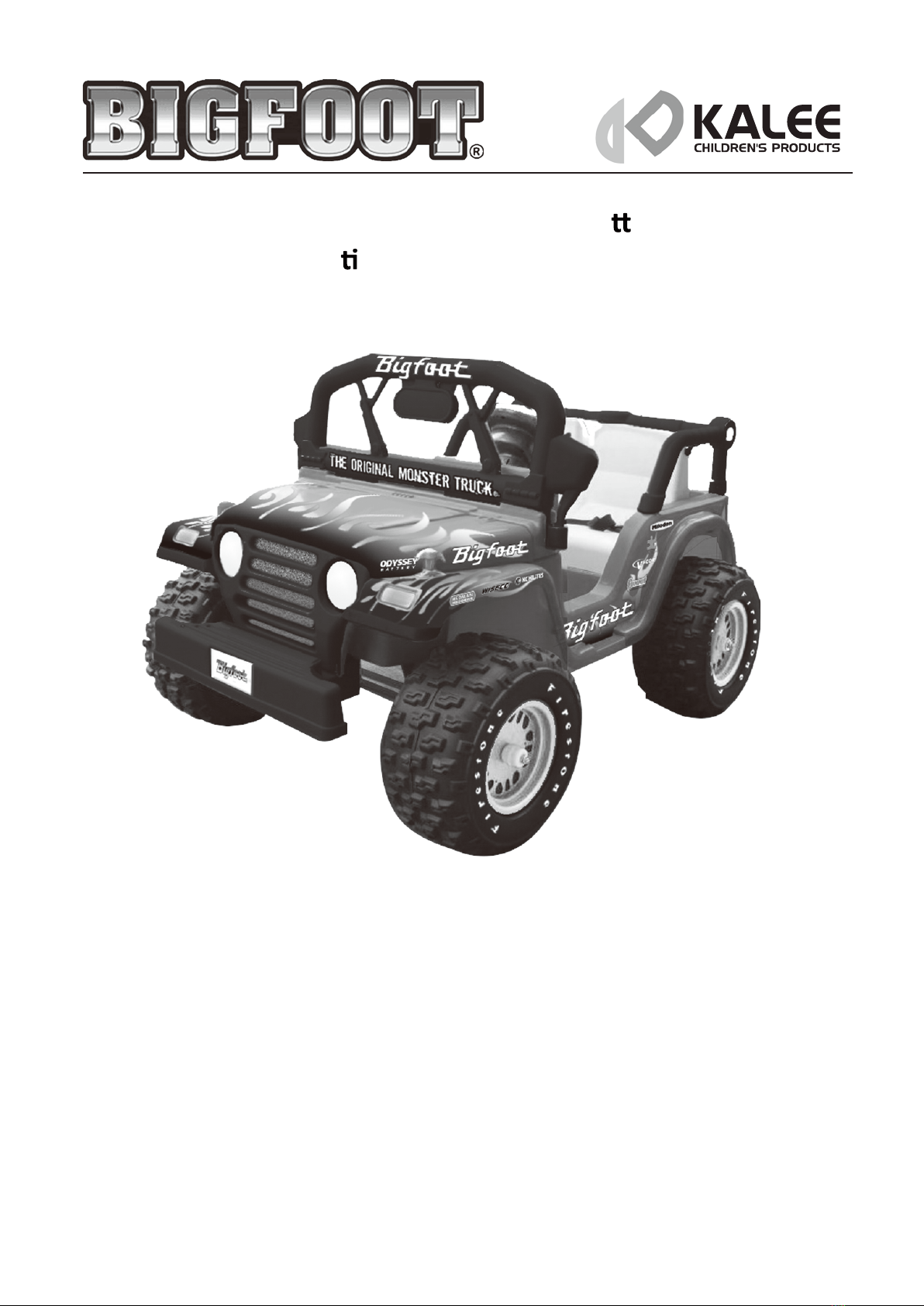

Bigfoot KL-40033BF User manual

Adult Assembly Required.
Please read this manual carefully before giving this toy to your child.
This manual contains important information which will help you to assemble
the unit includes safety instructions.
Please keep this manual for future purpose
Manufactured by : Kalee Children’s Products Co, Ltd.
Made in China
Item No. KL-40033BF
Bigfoot® Motorised Ba ery Operated Ride On
Instruc on / Assembling Manual
Utility Vehicle

Age: Ages 3 and up
Maximum Capacity: 40 kgs / 88 lbs
Speed: 5.0-5.5km/h / 3.1-3.4mph
Battery Type: Sealed lead-acid rechargeable, 12Volt 7Ah
Charging time: Always charge the battery for 8-10 hours before first use
and when recharging is needed. Never charge for more
than 16 hours.
Power input for Charger: A/C 100-240 Volts, 60Hz
Power output to Battery: DC 14Volts, 1000mA
WARNING:
To reduce the risk of injury, adult supervision
is required.
Never use on roadways, near motor vehicles,
on or near steep inclines or steps, swimming
pools or other bodies of water. Always wear
shoes and never allow more than 2 rider.
WARNING:
Contains small parts, sharp points and
sharp edges. Adult assembly required.
WARNING:
Choking Hazard! Contains small
parts. Not for children under 3 years old!
Vehicle / Battery Specifications:
WARNING:
Use the toy only on flat surfaces, such as sidewalks, driveways or
playgrounds. Never ride the vehicle in dangerous places such as busy
streets, roads or highways.
Never use/ride/play near swimming pools or other bodies of water.
Never ride the vehicle in muddy or sandy areas. Never ride in hilly
areas or on steep slopes. This vehicle was made to operate on dry
leveled ground.
Never ride in the dark or in dimly lit areas.
Clean the vehicle only with a damp cloth and never submerge vehicle
in water or spray with water directly from a hose.
Do not exceed the recommended weight limit of 40 kgs / 88lbs.
To avoid suffocation of children please destroy all plastic bags after
assembly of the vehicle.
If vehicle is equipped with a forward / reverse switch, never press
this switch while vehicle is in motion. Always stop the vehicle before
switching directions.
1.
2.
3.
4.
5.
6.
7.
8.
2
WARNING:
This toy is unsuitable for children under
3 years due to its maximum speed.
WARNING:
Not to be used in traffic.
9. This toy should be used with caution since skill is required to avoid
falls or collisions causing injury to the user or third parties.

CHARGING CAUTIONS:
- The charger is not a toy. Do not allow children to play with the charger or
to recharge the battery.
- Turn the power switch to “OFF” when charging.
- Before the first use, you should charge the battery for 8-10 hours. Do not
charge the battery for more than 16 hours to avoid overheating the charger.
- It is normal for the charger to feel warm during charging. If the charger
feels very hot, stop charging, unplug the charger and check the battery and
charger.
- Use the charger in a dry location only and store in a dry location when
not in use.
- Regularly check the charger, battery and their connectors for excessive
wear or damage each time you charge the battery. If damage or excessive
wear is detected, do not use the charger or the battery until you have
replaced the worn or damaged part.
WARNING - Risk of fire. Do not by pass fuse. Replace only
with the correct amperage fuse.
BATTERY SAFETY WARNING:
- Only use the battery and charger supplied by the manufacturer.
- Do not connect the battery terminals directly together. This will cause
the battery to short-circuit.
- Never short-circuit the battery terminals or modify the electrical
system. Alterations may cause a fire resulting in serious injuries.
- Do not mix old and new batteries or batteries of different types.
- Remove batteries during long periods of non-use. Always remove
batteries from the product. Dispose of batteries safely. Do not dispose
of batteries in fires. The batteries may explode or leak.
- If removable, rechargeable batteries are used, they are only to be
charged under adult supervision.
- Recharge the battery fully before storage, then charge it every 3
months to extend the life of the battery.
3
Caution:
This ride on vehicle is equipped with a built-in thermal circuit breaker.
The thermal circuit breaker is a self-resetting safety device which
automatically “trips” and shuts down the operation of the vehicle if it is
overloaded or the driving conditions are too severe. Once the circuit
breaker has tripped it will automatically reset itself after approximately
25 seconds and allow the rider to resume normal operation.
Caution:

Parts
Parts
Parts

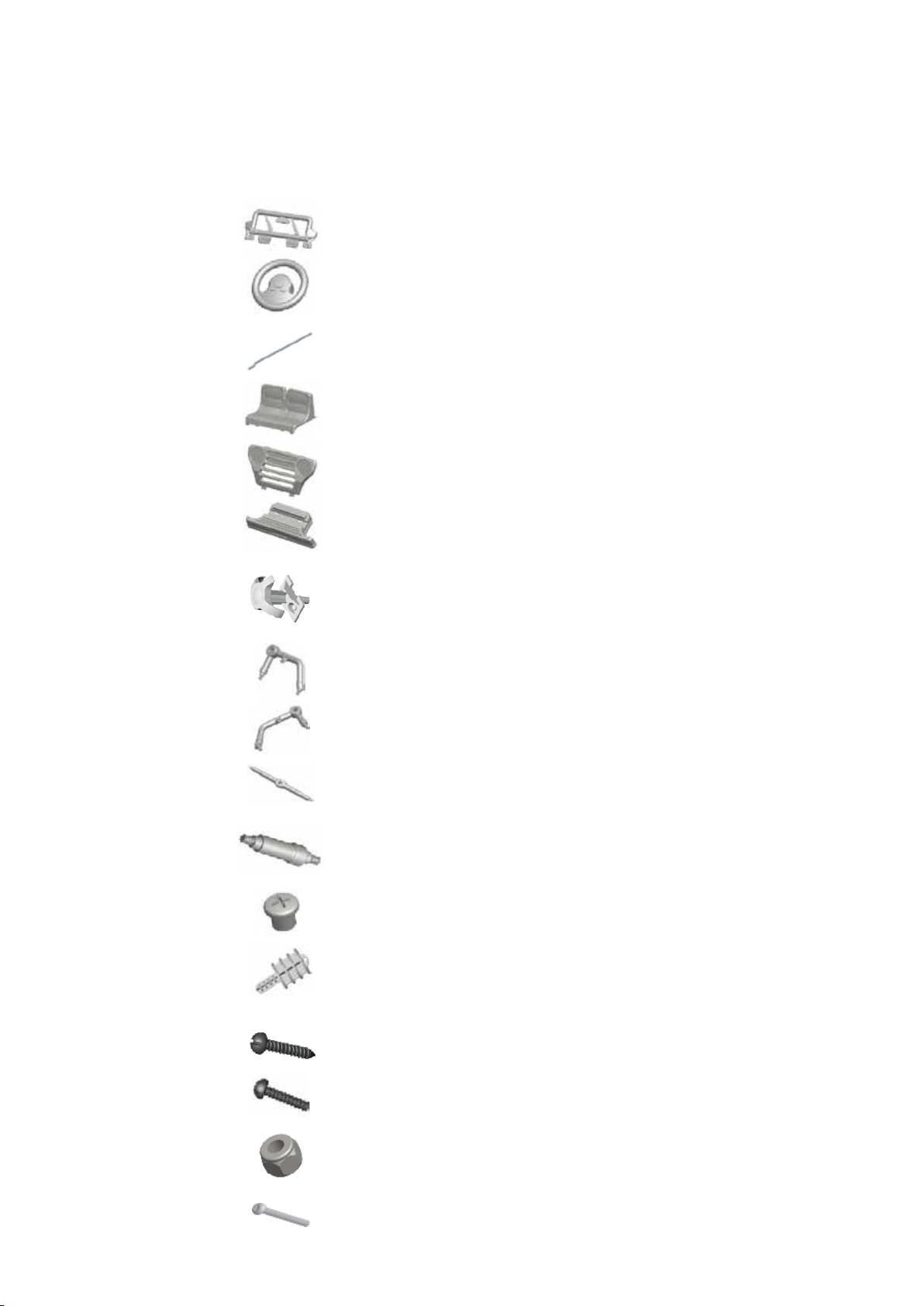

Parts list:
list:
list:
list:
No. Description Qty
1 Windshield 1pc
2 Steering wheel 1pc
3 Turning shaft 1pc
4 Seat 1pc
5 Radiator 1pc
6 Front bumper 1pc
7 Fastener for front hood 2pcs
8 Left roll bar 1pc
9 Right roll bar 1pc
10 Center roll bar 1pc
11 Center for roll bar 1pc
12 Plastic nut 8pcs
13 Plastic wrench 1pc
14 Screw (TA4.5x14x8) 10pcs
15 Screw for steering wheel 1pc
16 M5 nut for steering wheel 1pc
4
17 Screw (TM4x12x8) 2pcs

Assembly
Assembly
Assembly
Assembly

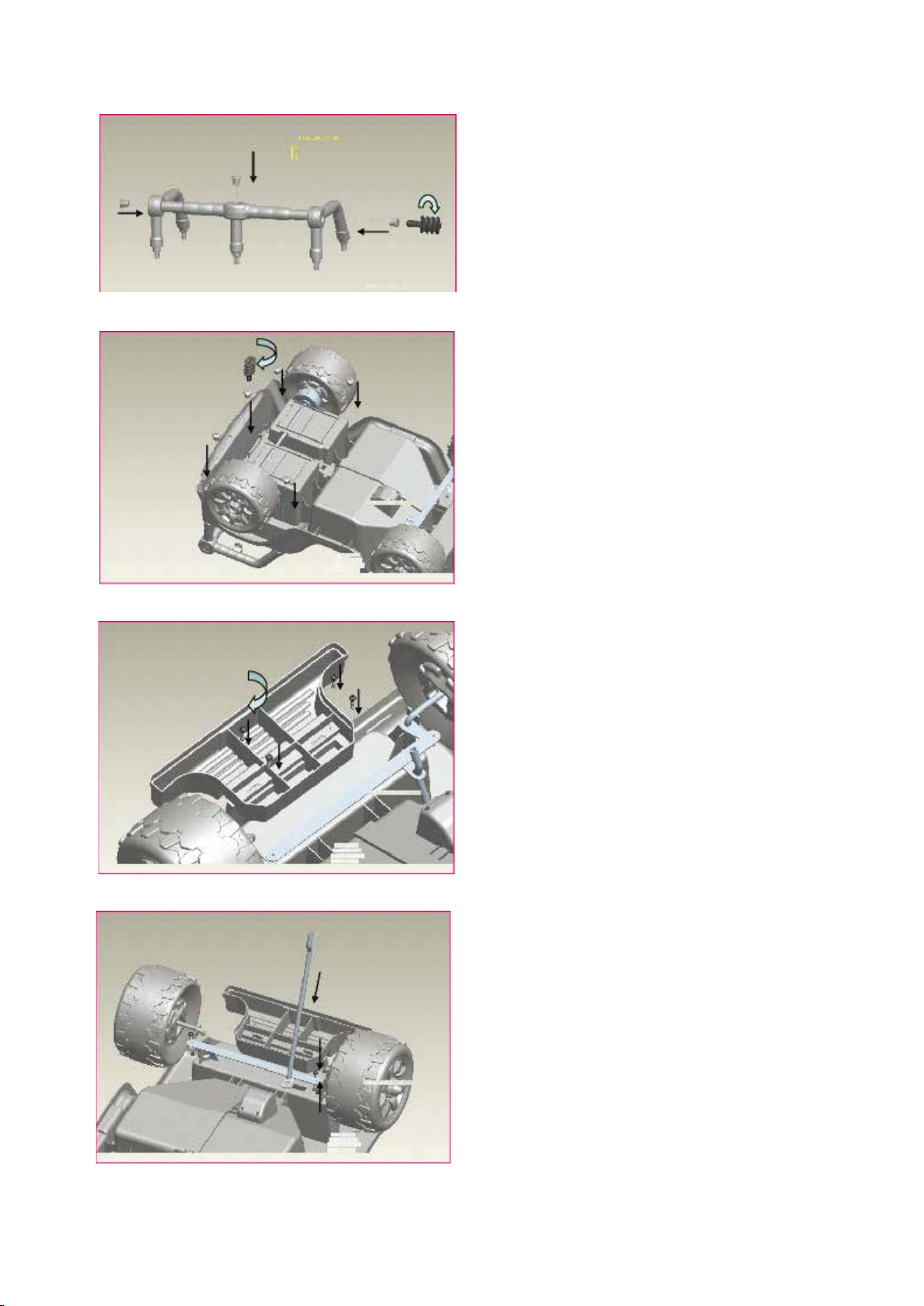

Step 1:
Assemble the left roll bar (#8) and right roll
bar (#9) to the center roll bar (#10), Attach
Center support (#11), secure with the plastic
nuts (#12) using the plastic wrench (#13).
Step 2:
Insert the roll bar with left side and right
side into the rear body, secure with plastic
nuts (#12).
Step 3:
Assemble the front bumper (#6) to the body,
secure with screws (#14) provided.
Step 4:
Unscrew the nut and screw on the left of the
steering link.
5

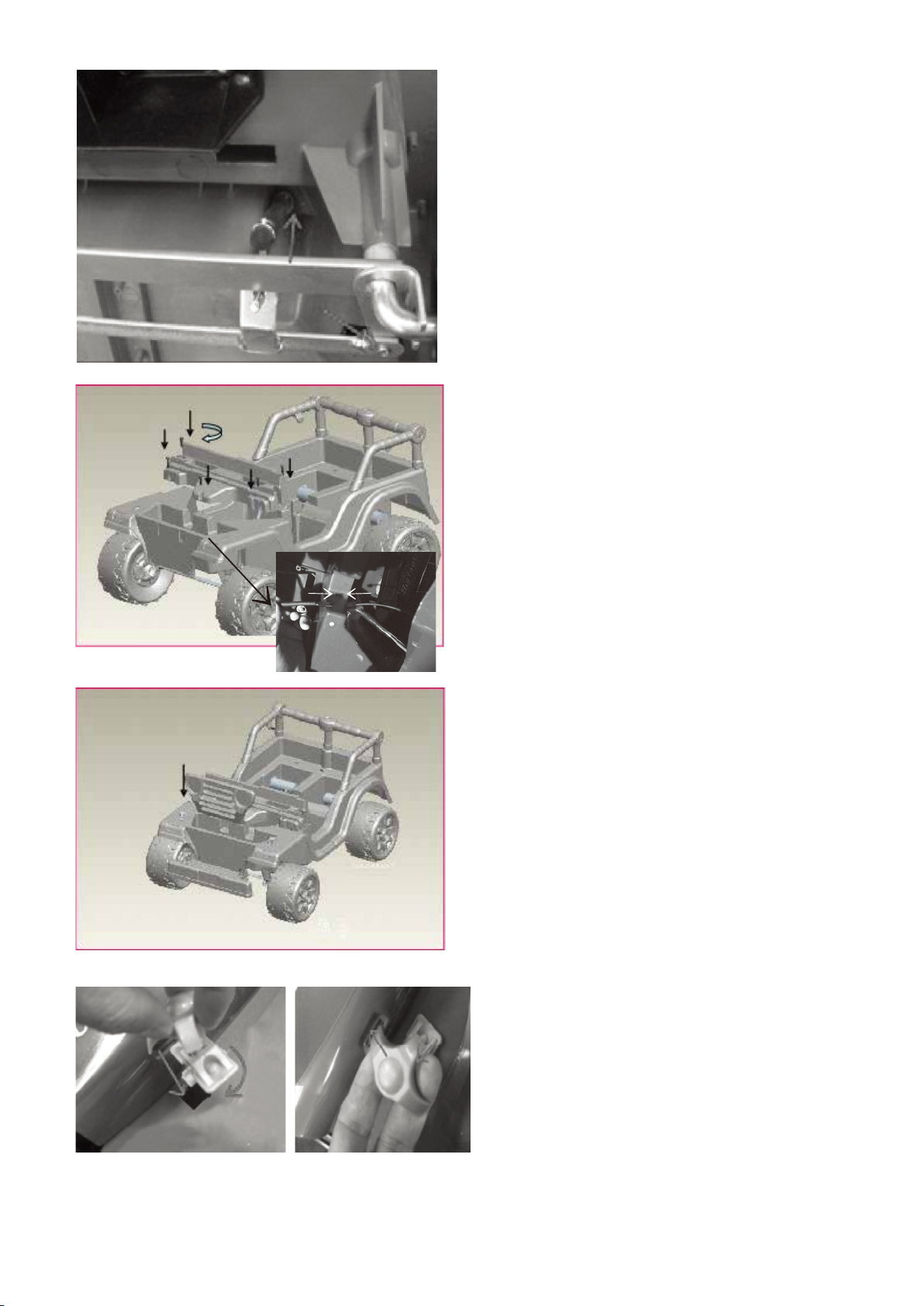

Step 5:
Insert the turning shaft (#3) into body, then
insert the end of the turning shaft into the
steering link, then tighten the nut and bolt.
Step
6:
Insert the turning shaft into the hole of the
instrument panel, and attach the
instrument panel to the body, then secure
it with the screw TA4.5x14x8 (#14).
Step 7:
Attach the radiator (#5) onto the front of
the body.
Step 8:
Insert the fastener for front hood (#7) into
the hole of the body, and then attach the
front the hood onto the front of the body.
6
plug

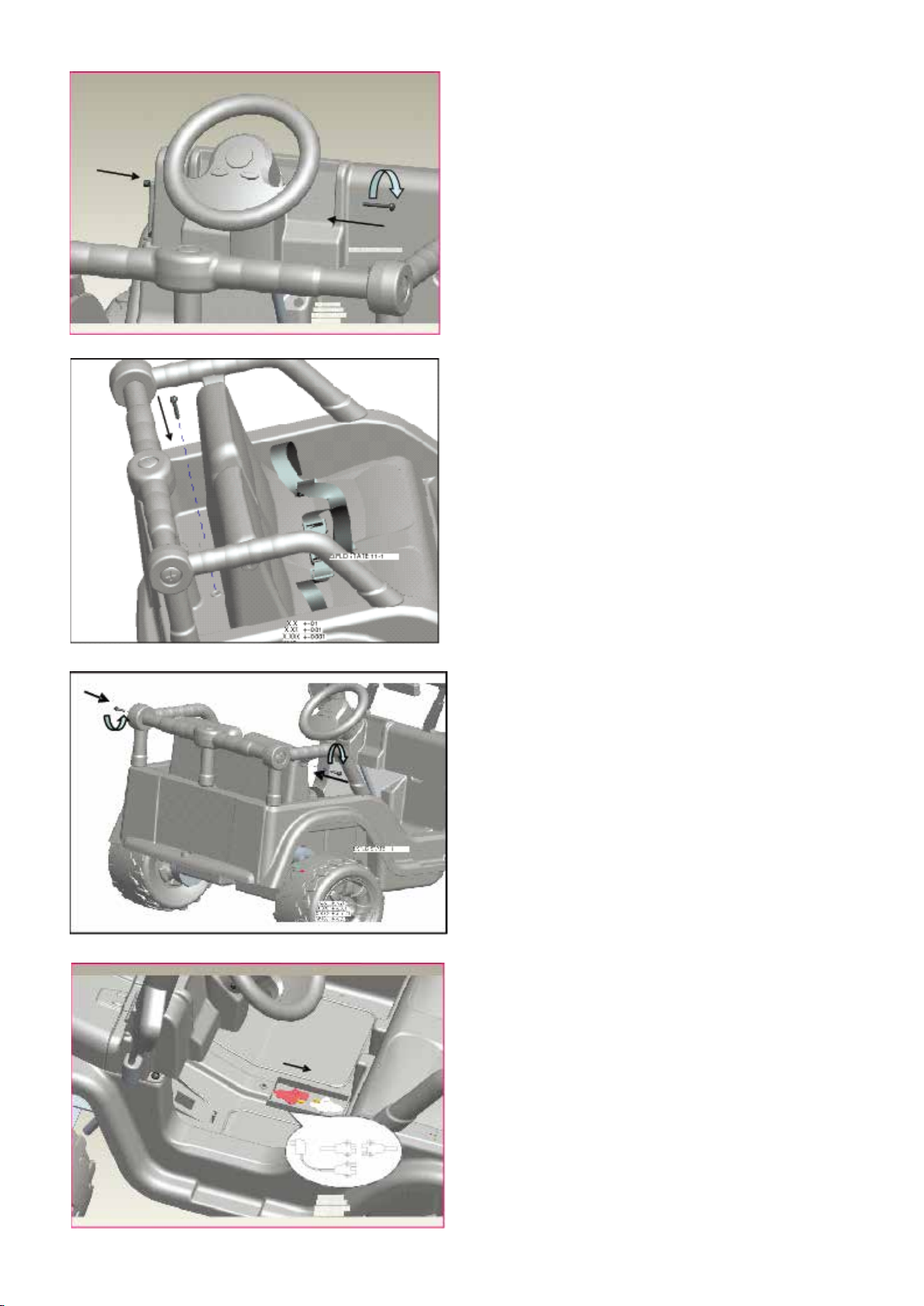

Step 9:
Place the steering wheel (#2) onto the
turning shaft, then secure it by inserting
the screw (#15) through the steering
wheel and the steering column, tighten the
nut (#16) with the spanner.
Step 10:
Attach seat (#4) into the body, then secure it
with the screw TA4.5x14x8 (#14) at the back
of the seat, tighten screw with screwdriver.
Step 11:
Secure the roll bar with left roll bar and
right roll bar with the screw TM4x12x8
(#17) at the sides of the seat.
Step 12:
When charging the battery, disconnect the
plug of the battery from the plug of the vehicle
and then connect the plug of the adaptor with
the plug of the battery. Then plug into a
household outlet.
7

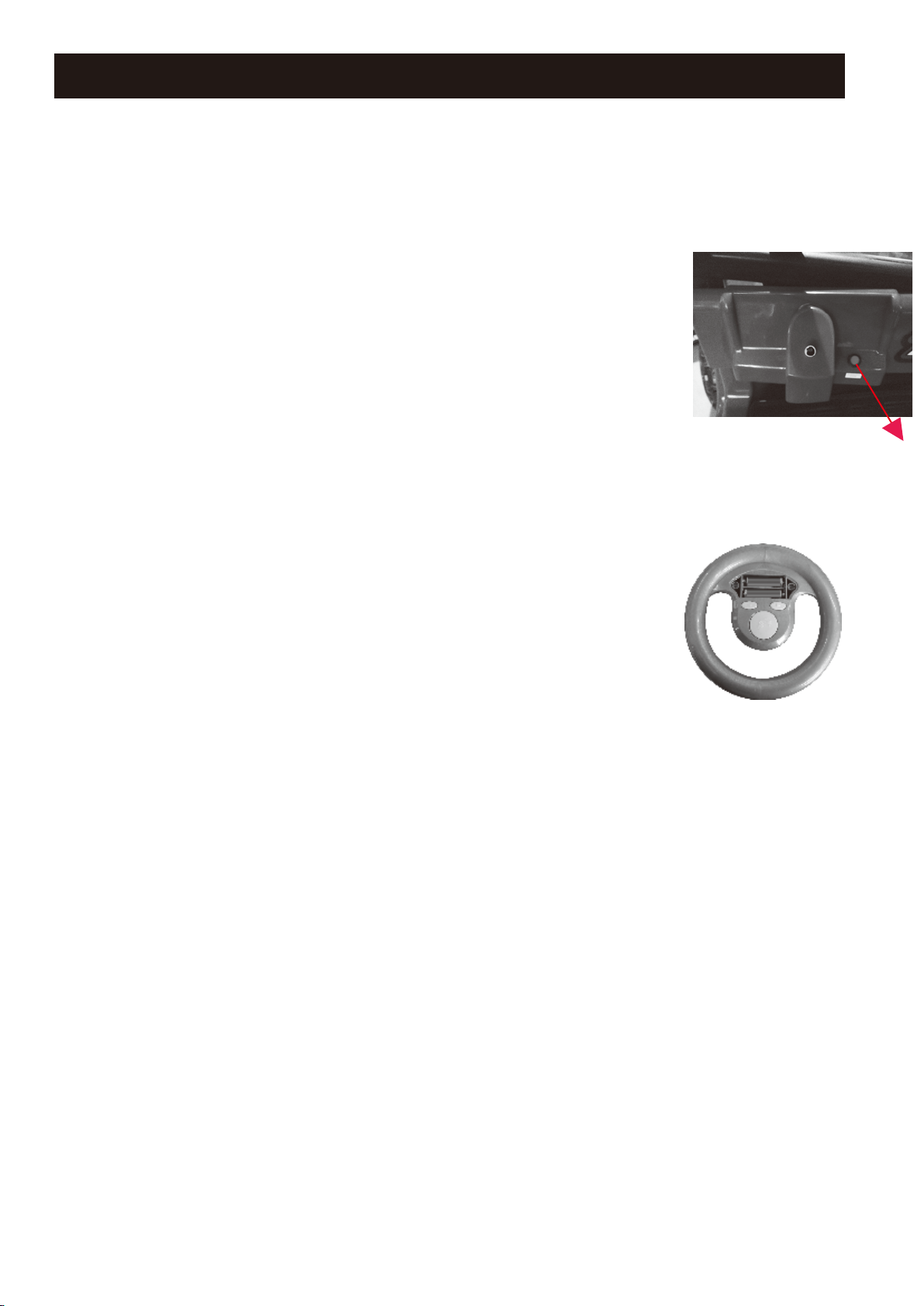

6. Requires 2x"AA" size batteries(Not included).
Using the coin to open the battery cover
to place the batteries in the battery compartment
checking that the batteries are placed with the
correct polarities to the battery terminals. Exhausted
batteries are to be removed from the toy.
Different types of batteries or new and used
batteries are not be mixed.
Switch
Operation of the Vehicle:
1.Make sure the battery is fully charged and the motor plug is connected to
the battery plug.
2.Before using the vehicle, please connect the plugs which located in the middle
of the seat.
3.Press the direction switch to “F” and press the accelerator pedal,
vehicle will move forward.
4.To stop the vehicle remove foot from accelerator pedal.
When stopped, press the direction switch to “B” then press
the accelerator pedal, vehicle will move backward.
5. The vehicle has 2 speeds, drive forward with 2
speed and backward with 1 speed, press the red button
as shown to change into faster speed.
NOTE: Do not change directions switch while vehicle
is in motion.

Maintaining your vehicle:
It is a parents responsibility to check main parts of the vehicle before
use. Regularly examine the vehicle for potential hazards, such as the
battery, charge cable, cord and plug. Ensure screws are tightened. If
there are any damages, the vehicle must not be used until these
damages have been properly repaired or replaced.
Occasionally use a lightweight oil to lubricate moving parts such as
the wheels and steering linkages.
Keep the vehicle in an upturned position, do not overturn or incline it.
It is recommended to store the vehicle indoors when not in use. If
stored outdoors, the vehicle needs to be covered by a tarp for
protection against weather elements.
This toy should be kept away from fire. Keep the vehicle away from
sources of heat, such as stoves and heaters. Plastic parts may melt.
While charging ensure all flammable liquids are well away from the
vehicle.
ADULTS ONLY to recharge the battery after each use. Recharge the
battery at least once a month when the vehicle is not being used.
Use a soft, dry cloth to clean vehicle.
DO NOT use any chemical liquids to clean the plastic surface of the
vehicle.
DO NOT wash the vehicle with soap and water.
DO NOT drive the vehicle in rainy or snowy weather. Water will
damage the motor, electric system and battery.
When not in use all electrical sources should be turned off. Press the
power switch to the "OFF" position to turn the power off. Also
disconnect the battery connection under the seat.
Please do not change the structure of this product and circuit system.
DO NOT use the vehicle for other purposes except riding.
●
●
●
●
●
●
●
●
●
●
●
●
9
● To extend the battery life you should recharge the battery fully before
storage, then charge it every 2 months if not in use.

Safety Precautions:
1. While riding, adult supervision is required at all times.
2. Always wear a helmet when riding.
3. Do not ride near roads or on the footpath.
4. It is not recommended to drive the vehicle on wet surfaces or on
slopes greater than 15 degrees.
5. It is recommended to ride this vehicle on smooth surfaces only.
6. Do not use this vehicle outdoors when it is raining.
7. Make sure you come to a complete stop before changing directions
from forward to reverse.
8. Don't allow children to operate the charger or play with the battery.
9. Clean the vehicle with a dry cloth only.
10. Please follow the correct weight and age limits allowed to driver
this vehicle.
11. It is prohibited to change the circuit or add other electric parts.
12. Adults must teach their children about safe driving procedures.
13. Please turn the power off when not in use.
14. Check the seat to ensure it has been fitted and secured with a bolt
before driving.
15. Inspect all wires and connections of the vehicle perodically.
16. Charging the battery should only be done by adults.
17. Charging plug is located the bottom of the vehicle.
18. In order to avoid accidents, please ensure the vehicle is safe before
driving.
19. Do not let any child touch the wheels or be near them when the
vehicle is moving.
10

11
1. If vehicle fails to move:
a) Make sure the battery wires are connected properly.
b) Recharge the battery, if necessary.
c) Check the fuse and replace if damaged.
2. If vehicle runs slowly:
a) Recharge the battery.
3. If the battery can not recharged:
a) Battery or charger may be damaged. Replace if necessary.
Trouble-Shooting:
Manufactured by: Kalee Children’t Products Co. Ltd.
ALL RIGHTS RESERVED.
BIGFOOT®, visit www.Bigfoot4x4.com
Licensee: Kalee Trading Company/Kalee Children’s Products Co., Ltd.
Unit 816, Tower B, New Mandarin Plaza, 14 Science Museum Road,
Kowloon, Hong Kong
Made in China
You can help protect the environment! Please
remember to respect the local regulaons:hand in the
non-working electrical equipments to an appriate
waste disposal center.
If you have any missing or damaged parts or need assembly assistance,
please contact our service center directly. Do not return this product to the retailer,
they do not stock replacement parts.
Support Website: http://support.bigtoysusa.com
Support Phone: [phone]
