BSD-Racing RAMPAGE XTE BS232R User manual

1/10 4WD ELECTRIC-POWERED BRUSHLESS
MONSTER TRUCK
BS232R
Length: 538mm
Width: 385mm
Heigth: 193mm
FEATURES:
ESC: 120A ESC Motor: KV2950
BS232R
Instruction Manual
www.bsdracing.com
SAFETY PRECAUTIONS
This radio controlled racing vehicle is not a toy!
This high-performance R/C vehicle is recommended for ages 14 and older.
First-time builders should seek the advice of experienced modellers before
commencing assembly.
Take enough safety precautions prior to operating this vehicle.
You are responsible for this R/C vehicle's assembly and safe operation!
!
4 Wheel Drive System
Ready Assemble Ready to Run
High Performance KV: 2950 Type Brushless Motor, More Power!
Brushless ESC Waterproof 120A
Tough Oil-Filled Gear Differentials
15Kg Waterproof Servo (Metal Gear)
Adjustable Front And Rear Suspension Arms
Full Set Of Metal-Sealed Ball Bearings
Silicone Oil-Filled Big Bore Shocks With Threaded Bodies
Fit Any 17MM Hex Wheel
Beval Pinion Diff Gears For Extra Durability
Front Universal Dogbones, Scale Off-Road Wheels
2.4G Radio System (Waterproof Receiver)
HIGHLIGHTS:

Required equipment for operation
4.5 4.0
5.5
7.0
17
8
9
12 10
1.5mm
2.0mm
2.5mm
1.Toois required for building and maintenance:
2.Additional items needed for operation:
Hobby knife
Lexan scissors
Cross wrench
Cross wrench
CA glue&rubber cement
Thread locking compound
Flat and Philips screwdriver Wire cutters
Hex wrench
Precision ruler Needle nose pliers
WARNING!
IMPORTANT!
Do not use a power screw driver to install screws into nylon or plastic materials.The fast locking
may heat up the screws being installed that may break the moldedparts or strip thethreads during
in stallation.
4pcs AA alkaline batteries for transmitter
Check all the screws are tight before playing the vehicle!
Use thread lock on all screws that work loose.
AA

Please read the instruction carefully before starting
the assembly.
2.4GHz radio instructions
1.Please assemble and install this car without children’s reach.As it includes smalland sharp parts.
2.Do not run the car on public streets or highways.As it might cause serious accidents,personal injuries
and property damage etc.
3.During the middle of racing and after operation,the engine and exhaust will becomeHOT. Therefore
please do not touch them before cooling down.
4.Please make sure everyone is using different frequencies while racing the car in thesame area.
Special symbols
Safty guidelines
Battery charging
Please pay attention to the following symbols,and read them carefully.
Danger:
Warning:
If the operator does not operate according to the instructions,it may lead to serious
injuries,even mortal danger.
If the operator does not operate according to the instructions,it may lead to
serious injuries,even mortal danger.
Attention:
If the operator does not operate according to the instructions,it may lead to
serious injuries,even mortal danger.but generally it will not cause serious
injuries to the operator.
Don’t drive the truck at night,bad weather such as rainy or thundering days.It will interfere the transmitter
signal.Thereby it will cause out of control and unexpected accident.
Before you drive,please make sure the movement of servo corresponds with the direction of joysticks.If
inconsistent,please adjust before drive.
You need to turn the throttle channel(ch2) and inching switch to the lowest before use.Then switch on
the transmitter power,finally connect the receiver.
The sequence to shutdown is to turn off the receiver power first,and then the transmitter power.
If your transmitter, receiver use a lithium polymer, nickel-metal hydride rechargeable battery, you
have to check it before use. If lack of electricity,it could cause inadequate control or out of control,
resulting in accident.So please charge it immediately when the battery poweris low.

System switching: turn the steering wheel and press the “BIND”
button when turn the transmitter on.
Switching system between system AF HDS
and system AFHDS 2A
The current system is AFHDS if the green LED keeps flashing.
Press the “ B IN D” button to save the current system.
The current system is AFHDS 2A if the green LED flashes twice
every time. Press the “BIND” button to save the current system.
Restart the transmitter, and the current system is what you saved
before.
Channels: 2
Model type: car /boat
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band: 141
RF power: less than20 dBm
2.4G system: AFHDS2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC port： 3.5mm ; output: PPM
ST range: 70 L:35 R:35
TH range: 45 F:35 B:15
Charger port：no
ANT length: 26mm
Weight: 239g
Power: 6V DC 1.5AA*4
Display mode: LED indicator
Size: 210*95*160mm
Color: blacK
Transmitter
specifications
Channels: 3
Model type: car /boat
RF range: 2.405-2.4 75GHz
Bandwidth: 500KHz
Band sum: 141
RF.receiver sensitivity: -98dBm
2.4G system: AFHDS 2A
Code type: GFSK
Sensitivity: 1024
Power: 4.0-6.5V DC
ANT lenght: 26mm
Weight: 5g
Size: 35*22*12mm
Color: black
Certificate: CE FCC
Receiver
specifications
Installation when a motor controller is used
Remark:Place the receiver antenna upright and
perpendicular to the horizontal planeKeep the
receiver antenna away from any metal objects
to ensure max sensitivity.(See pic1)
SWITCH
SPC
Servo
CH2
CH1
BATTERY
MOTOR
ANT
Receiver
Figure1
Receiver

Each part of the
transmitter Steering control
This function is to control the direction.when
the steering turn to right then the front wheel
will turn to right (as picture),
when the steering turn to left then the front
wheel will turn to left(as picture).
Function lntroduction:
Adjust the dual rate of the steering by adjusting
the D/R knob.
Operation Method:
Throttle control
Function Introduction:
To control it by pushing and pulling back the
throttle trigger after power on.
This function is to control the throttle speed.
when pull the rhrotte trigger back.car will
accelerate forward(see the picture ),when push
the throttle trigger.the car will put on the brakes
or double ring asterm(according tothe different
ESC)(see thepicture).
Operation Method:
Failsafe aims to prevent out-of-control driving
of RC car or RC boat. If the Receiver is not able
to receive any signal, from the control to throttle,
the parameter of throttle on receiver will turn
back to its original setting.
a.Turn on the Transmitter switch;
b.Turn on the Receiver switch. the LEDwill be
lighting;
c. Adjust Transmitter's Throttle, make the car/
boatto stop or flameout, then keep still.
d.Press the“Setting” button on Receiver (as the
pic below). the LEDwill be flashing, then stop
after 3seconds around, which means setting
finished.
a.Turn on the Transmitter switch;
b.Turn on the Receiver switch;
c. Turn off the transmitter switch;
d.Servo of throttle will turn back to its original
setting automaticlly’
e.Setting is successful if above procedures
finished completely.
Failsafe
Instruction
1.Function
ST TRIM
TH TRIM
ST D/R
POWER LED
POWER CHECK
ST REV
BIND KEY
TH REV
SWITCH
STEERING WHEEL
THROTTLE TRIGGER
BAT BOX
2.Setting
3.Testing

BS230-006
BS232-004
BS230-014
BS910-026
BS232-002
BS810-035
BS232-006
BS230-016
BS232-012
BS230-002
BS502-032
BS501-060
BS810-101
BS502-027
BS502-027
BS502-022
BS232-004
BS232-008
BS232-008 BS901-066
BS232-009
BS232-005
BS501-067
BS830-015
BS819-040
BS501-059 BS230-019
BS501-060
BS232-007
BS232-001
BS232-010
BS910-026
BS232-002
BS502-032
BS501-058
BS232-008
BS501-058
BS502-032
BS901-066
BS810-035
BS910-026 BS230-019
BS501-058
BS502-032
BS232-008
BS901-066
BS232-004
BS232-007
BS232-009
BS232-005
BS501-067
BS232-013
BS806-006 BS230-007
BS232-014
BS936-002
BS910-075
BS230-015
BS830-040
BS232-006
BS810-035
BS232-002
BS910-026
BS232-001
BS232-010
BS230-011
BS401-048 BS232-004
BS830-016
BS819-040
BS810-032
BS232-003
BS936-002
BS232-014
BS901-066
BS232-008
BS502-032
BS501-058
BS501-067
BS232-005
BS232-009
BS230-012
BS230-009
BS501-056
BS230-008
BS230-004
BS230-005
BS230-020
BS501-060
BS230-003
BS810-032
BS819-039
BS819-040
BS230-001
BS936-002
BS232-001
BS810-032
BS232-014
BS936-002
BS232-014
BS501-067
BS232-005 BS232-009
BS819-038
BS819-040
BS810-032
BS810-038
BS903-089
BS903-089
BS903-087
BS903-087
BS810-045
BS810-045
BS903-091
BS903-091
BS903-092
BS903-092
BS502-024
BS401-048
BS230-011
BS230-013
BS810-035
BS232-002
BS230-011
BS232-010
BS501-056
BS232-011
BS830-055
BS819-028
BS232-009
GT-2E
GT-2E
BS232R EXPLODED VIEW
BS502-026

BS230-001 Fr. Diff cover BS230-003 Main chassis BS230-004 Servo saver BS230-005 Servo link unit
BS230-006 Master Gear Unit BS230-008 Motor unit plate
BS230-009 Fr. Bumper unit BS230-010 Body mount
BS230-011 Hingepin Brace BS230-013 Rear Chassis BS230-014 Receiver case BS230-015 Wire mount
BS230-016 Battery Belt
BS232-003 BODY
BS232-008 Shock Absorber Unit
BS232-001 Diff gear Unit
BS230-020
KV2950 Brushelss motor
BS232-005 Upper Arm Unit
BS232-002
Lower Suspension Arm
BS232-006 Steering Linkage Rr. Steering linkage set
BS232-007
BS232-010 Rear Bumper BS232-011 Wheellie bar
BS232-012 Center shaft
BS232-013 13T motor gear
BS501-056
B head hex fine pitch screws
HM4*12
BS501-057
B head hex fine pitch screws
HM4*16
BS230-002 Rr. Diff cover
BS230-007 Spur Gear unit
BS230-012 Front chassis
BS230-019
B head hex screws HM4*40/6 pcs
BS232-004
Transverse Drive Shaft Set
BS810-035 Pin 3*81
BS232-009 Pin 3*65
BS401-048
HM3*6mm B-Head Hex Screw
12PCS
BS501-058
B head hex fine pitch screws
HM4*20/12 pcs

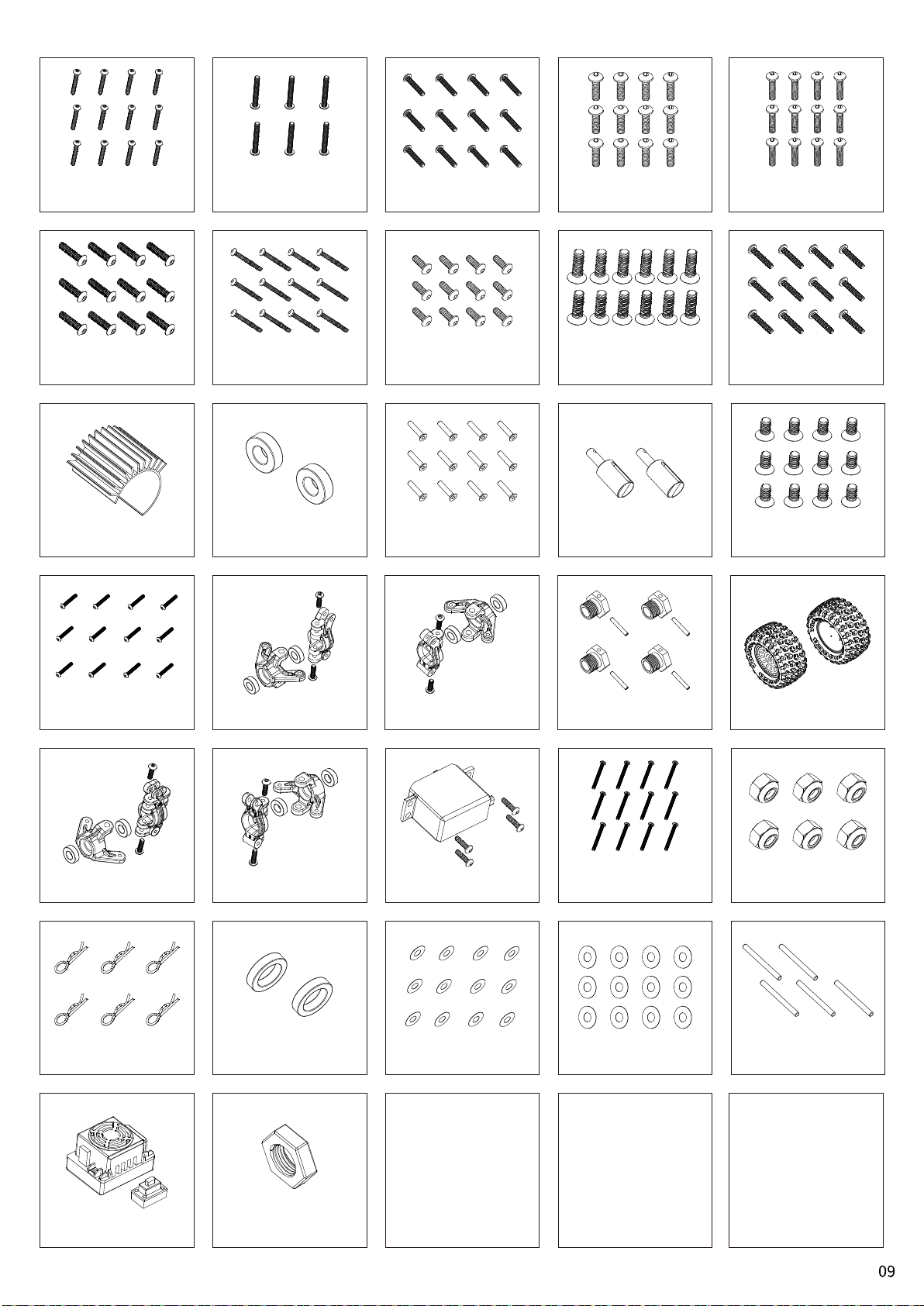

BS232R PARTS

BS819-039 C Hubs Unit R
BS819-040 Rim hub with pins
BS830-015 C Hubs Unit L BS830-016 C Hubs Unit R BS901-066 M3 locknut
BS903-007 Body Pin
BS936-002 Nut M17
BS910-026 Pin 3*32.9mm
BS830-055
B head hex fine pitch screws
HM4*40
BS903-087 Ball Bearing(12*18*4) BS903-091 Washer A(5.2*10*0.2) BS903-092 Washer B(4.2*8*0.2)
BS232-014 Tire unit
BS830-040 15KG servo
B910-075 120A ESC
BS819-038 C Hubs Unit L
BS819-028
HM4*28 B-Head Hex Screw 12PCS
BS810-038
Flat head hex fine pitch screws
HM2.5*12 BS810-045 Joint B
BS810-101
HM3*6mm Flat-Head Hex Screw
12PCS
BS806-006 Hot Sink
BS810-032 Bearing 8*16*5
BS502-025
HM3*20mm B-Head Hex Screw
12PCS
BS502-027
HM3*10mm Flat Hex Screw
12PCS
BS502-032
HM3*16mm B-Head Hex Screw
12PCS
BS502-023
HM3*12mm B-Head Hex Screw
12PCS
BS502-024
HM3*14mm B-Head Hex Screw
12PCS
BS502-022
HM3*10mm B-Head Hex Screw
12PCS
BS501-060
B head hex fine pitch screws
HM4*30/6 pcs
BS501-067
B head hex screws HM4*22
B head hex fine pitch screws
BS501-059
HM4*25/12 pcs
BS502-026
HM3*8mm B-Head Hex Screw
12PCS

Precautions and Warnings for Use and Handling
of Lithium Polymer Battery
PREFACE
In order to get the optimum performance and reliable safety, consumers shall read and take the
following instructions and precautions when use and handle the Lithium Polymer (Li-Po) batteries.
1. CHARGING
1-1 Charging current should not be more than the maximum charge current specified in the
Product Specification (normally 0.5C-1.0C or lower). Charging with higher current may damage
the cell or even lead to safety problem, e.g. overheating or leakage.
1-2 Charging voltage shall not be more than that specified in the Product Specification
(4.2V/cell). 4.25V is the maximum charging voltage for each cell. Never charge the battery
in series and be sure that each single cell has a separated charging circuit with a max. charging
voltage of 4.25V.Or the battery may be overcharged, and lead to fire or explosion. The user is
fully responsible to the result of misusing the battery.
1-3 Charging temperature: The cell should be charged within the range of temperatures specified
in the Product Specification. Stop charging imm ediately when the surface temperature of the
battery is over 50℃．
1-4 Reverse charging: Please make sure the polarities of cells are connected properly before
charging. Reverse charging is strictly prohibited. Reverse charging cannot charge the cells but
will deteriorate their charging/discharging and safety characteristics, or even lead to fire or
explosion.
2. DISCHARGING
2-1 Discharging current: The cell shall be discharged at the current no more than the maximum
discharging current specified in the Product Specification. Over current discharging may damage
the battery and cause over-heat.
2-2 Operation temperature: Use the battery within the temperature range specified in the Product
Specification. Stop using when temperature is over 70℃．
2-3Over-discharging:Over-discharging will deterioratethecell' s performance and characteristics.
Do not over-discharge a battery below 2.75V/cell.
3. STORAGE
If you intend to keep the battery for a long time (3 months or longer), it is strongly recommended
that the battery shall be stored under the environment with temperature 10-25℃, low humidity
and without corrosive gas. The battery should be charged every six months to ensure that each
cell' s storage voltage is 3.6-3.9V.
OTHERS
>The aluminum packing foil is very soft that it will be easily left scratches. Please do not hit the
cell with any sharp edge parts.
>Don' t fall, hit or bend the battery. It may cause fire or explosion.
>Short circuit the battery is strictly prohibited, it may damage the battery seriously.
>Never disassemble the battery. It may cause fire.
>Never dispose of the battery in fire. It is very dangerous and strictly prohibited.
>To place the battery into liquid such as water is strictly prohibited.
>Always remove battery from car when charging. Charging the battery in a car is forbidden and
is dangerous.
>Avoid vibration, shock or extruding the battery. Handle carefully when moving it.

www.bsdracing.com
4th Fl,5th Bldg,Changxing High Tech Ind Zone,Wan’an Rd,Shajing,Bao’an Dist,Shenzhen,China 518104
[phone]
Lisa.bsdracing
350878106
[email protected]
[phone]
