BilJax XLB-4016 User manual

Operation and
Maintenance Manual
AERIAL WORK PLATFORMS
XLB-4016
Hydraulic Boom Lift
XLB-4016
B33-01-0081

BOOM PERSONNEL LIFT
This equipment is designed and manufactured in compliance with the duties, re-
sponsibilities, and standards set forth for manufacturers in the ANSI 92.2 standard
in effect at the time of manufacture.
This equipment will meet or exceed applicable OSHA codes and ANSI A92.2 stan-
dards when used in accordance with sections 7, 8, 9 & 10 of ANSI A92.2 and all
other manufacturer’s recommendations.
It is the responsibility of the user of this equipment to follow all applicable ANSI,
OSHA, Federal, State, and local codes and regulations that govern the safe opera-
tion of this equipment.

i
Table of Contents
Preface.......................................................................................................v
1Safety................................................................................................................1-1
1-1 Introduction................................................................................1-1
1-2 Before Operation......................................................................1-2
1-3 During Operation .....................................................................1-3
1-4 Maintenance Safety.................................................................1-5
General Maintenance......................................................................1-5
Battery Maintenance.......................................................................1-6
1-5 Damaged Equipment Policy ...................................................1-6
Safety Statement.............................................................................1-6
Damage Policy................................................................................1-6
Damage Repair Notice....................................................................1-6
Reporting Safety Defects................................................................1-7
2Introduction.....................................................................................................2-1
2-1 General Description.................................................................2-1
2-2 Specifications............................................................................2-2
Boom Lift Work Platform..............................................................2-2
2-3 Warranty ...................................................................................2-2
3Operation.........................................................................................................3-1
3-1 Operator Controls ....................................................................3-1
Ground Control Station ..................................................................3-1
Outrigger Control Station...............................................................3-3
Basket Control Station....................................................................3-4
3-2 Normal Operating Procedure..................................................3-6
3-3 Emergency Lowering...............................................................3-8
Manually Lowering the Work Basket with Two People ................3-9
Manually Lowering the Work Basket with One Person...............3-10
3-4 Manual Boom Rotation .........................................................3-11
3-5 Battery Recharge...................................................................3-12
3-6 Boom Lift Transport ..............................................................3-14
Trailer Hitching............................................................................3-14
4Maintenance ....................................................................................................4-1
4-1 Scheduled Service Checks.....................................................4-1
Daily/Weekly Service Checks........................................................4-1
Monthly Service Checks.................................................................4-2
4-2 Wheel Nut Torque Requirements..........................................4-2
4-3 Lubrication ................................................................................4-3
4-4 Hydraulic System.....................................................................4-4
Hydraulic System Inspection..........................................................4-4
Fluid Check and Replacement........................................................4-4
Air Bleeding ...................................................................................4-4
Hydraulic Cylinder Replacement ...................................................4-4
Hydraulic Pressure Checks and Adjustments.................................4-8
4-5 Limit Switch Checks and Adjustments..................................4-9
Adjusting Boom Down Limit Switch.............................................4-9
Adjusting Outrigger Position Switches ........................................4-11
4-6 Troubleshooting......................................................................4-12
Troubleshooting Aids...................................................................4-14
4-7 Material Safety Data Sheets................................................4-18
5Replacement Decals ........................................................................................5-1

ii
6Parts List......................................................................................................... 6-1
6-1 Upper Boom.............................................................................6-2
6-2 Lower Boom.............................................................................6-4
6-3 Chassis and Rotation Unit.....................................................6-6
6-4 Hitch, Jack, and Emergency Brake ....................................6-10
6-5 Axle and Wheel Assembly...................................................6-12
6-6 Pump Compartment and Cover...........................................6-14
6-7 Outriggers...............................................................................6-16
6-8 Basket.....................................................................................6-18
6-9 Basket Controls......................................................................6-20
6-10 Lower Controls.......................................................................6-22
6-11 Upper and Lower Control Box ............................................6-24
6-12 Outrigger Controls..................................................................6-26
6-13 Ground Control and Pump Hydraulics................................6-28
6-14 Rotation Hydraulics................................................................6-30
7ANSI Reprint................................................................................................. 7-1

iii
List of Illustrations

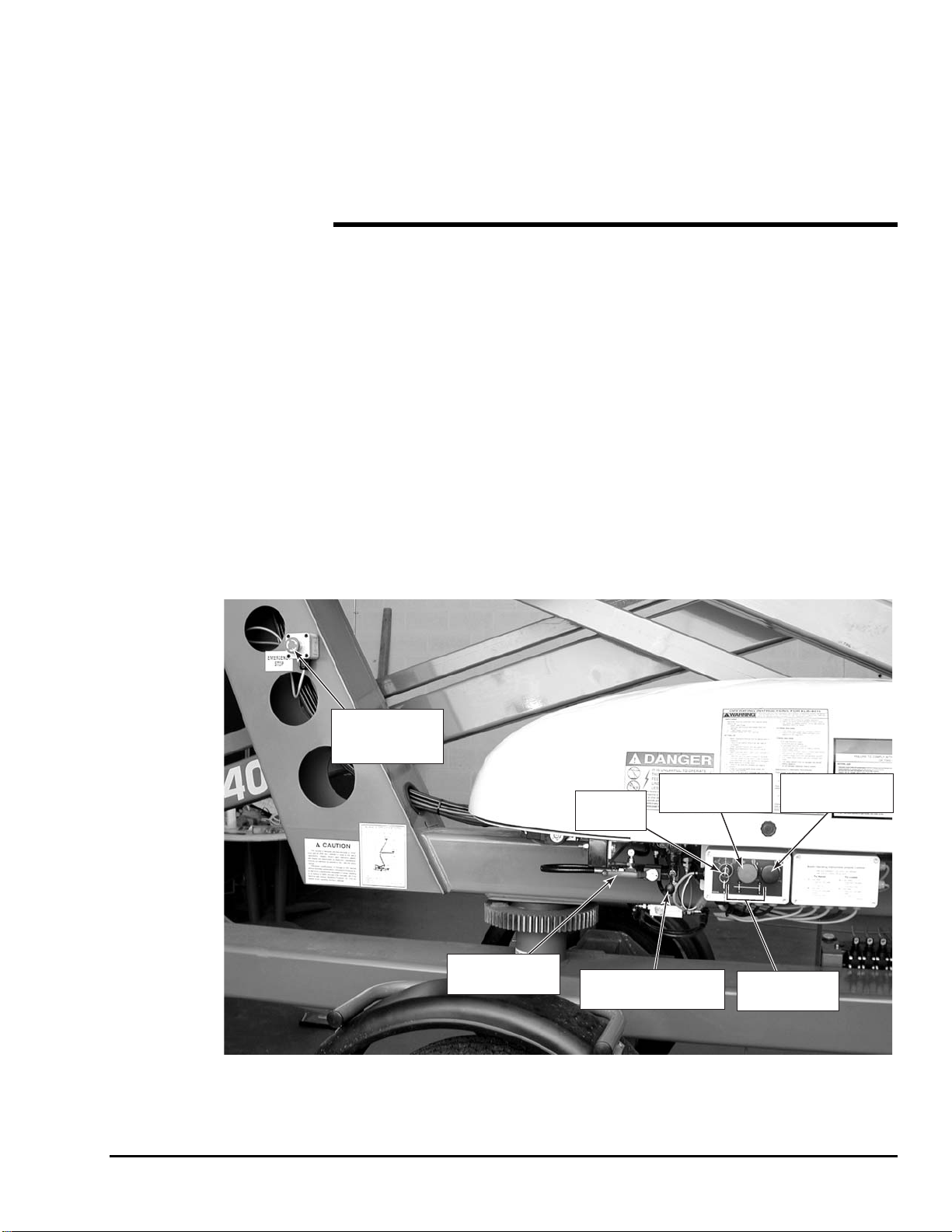

Figure 3-1. Ground Control Station...........................................................................3-1
Figure 3-2. Outrigger Control Station........................................................................3-3
Figure 3-3. Basket Control Station ............................................................................3-4
Figure 3-4. Outrigger Controls ..................................................................................3-6
Figure 3-5. Manual Lowering Valve Plungers ..........................................................3-9
Figure 3-6. Emergency Ball Valves.........................................................................3-10
Figure 3-7. Hydraulic Rotation Motor Bypass Valve..............................................3-11
Figure 3-8. Power Cord ...........................................................................................3-12
Figure 3-9. Trailer Hitching.....................................................................................3-14
Figure 4-1. Wheel Nut Tightening Sequence ............................................................4-2
Figure 4-2. Lubricate Semi-Annually........................................................................4-3
Figure 4-3. Hydraulic Cylinder Removal ..................................................................4-5
Figure 4-4. Outrigger Cylinder Removal...................................................................4-6
Figure 4-5. Main Bypass Valve and Pressure Test Port ............................................4-8
Figure 4-6. Boom Down Limit Switch ......................................................................4-9
Figure 4-7. Outrigger Position Switch.....................................................................4-11
Figure 4-8. Electrical Diagram ................................................................................4-14
Figure 4-9. Detailed Electrical Diagram..................................................................4-15
Figure 4-10. Hydraulic Diagram................................................................................4-16
Figure 4-11. Level Sensor..........................................................................................4-17
Figure 5-1. Replacement Decals................................................................................5-2
Figure 5-2. Decal Locations, Trailer and Boom ........................................................5-5
Figure 5-3. Decal Locations, Outrigger Control Station............................................5-6
Figure 6-1. Upper Boom............................................................................................6-2
Figure 6-2. Lower Boom ...........................................................................................6-4
Figure 6-3. Chassis and Rotation Unit.......................................................................6-6
Figure 6-4. Hitch, Jack, and Emergency Brake.......................................................6-10
Figure 6-5. Axle and Wheel Assembly....................................................................6-12
Figure 6-6. Pump Compartment and Cover.............................................................6-14
Figure 6-7. Outriggers .............................................................................................6-16
Figure 6-8. Basket....................................................................................................6-18
Figure 6-9. Basket Controls.....................................................................................6-20
Figure 6-10. Lower Controls .....................................................................................6-22
Figure 6-11. Upper and Lower Control Box..............................................................6-24
Figure 6-12. Outrigger Controls ................................................................................6-26
Figure 6-13. Ground Control and Pump Hydraulics..................................................6-28
Figure 6-14. Rotation Hydraulics .............................................................................6-30

iv
List of Tables
Table 1-1. Minimum Safe Approach Distances....................................................... 1-3
Table 2-1. Specifications......................................................................................... 2-2
Table 4-1. Daily/Weekly Service Checks................................................................ 4-1
Table 4-2. Monthly Service Checks ........................................................................ 4-2
Table 4-3. Troubleshooting Chart.......................................................................... 4-12
Table 4-4. Level Sensor LEDs............................................................................... 4-17
Table 5-1. Replacement Decals ............................................................................... 5-1
Table 6-1. Upper Boom Parts List........................................................................... 6-3
Table 6-2. Lower Boom Parts List........................................................................... 6-5
Table 6-3. Chassis and Rotation Unit Parts List...................................................... 6-7
Table 6-4. Hitch, Jack, and Emergency Brake Parts List ...................................... 6-11
Table 6-5. Axle and Wheel Assembly Parts List................................................... 6-13
Table 6-6. Pump Compartment and Cover Parts List............................................ 6-15
Table 6-7. Outriggers Parts List............................................................................. 6-17
Table 6-8. Basket Parts List................................................................................... 6-19
Table 6-9. Basket Controls Parts List.................................................................... 6-21
Table 6-10. Lower Controls Parts List..................................................................... 6-23
Table 6-11. Upper and Lower Control Box Parts List............................................. 6-25
Table 6-12. Outrigger Controls Parts List ............................................................... 6-27
Table 6-13. Ground Control and Pump Hydraulics Parts List................................. 6-29
Table 6-14. Rotation Hydraulics Parts List.............................................................. 6-31
Table 7-1. Minimum Safe Approach Distance (M.S.A.D.) to energized
(exposed or insulated) power lines and parts ......................................... 7-7

v
PREFACE
The purpose of this manual is to provide a thorough understanding of the XLB-4016 Hy-
draulic Boom Lift operation and controls. Read the safety and operating
instructions in this manual and become familiar with the location and use of all controls.
Follow all warnings, cautions, and instructions in this manual and any attached to and
supplied with the boom lift. All OSHA, ANSI, state, and local codes and regulations
concerning this equipment should obtained, read, and thoroughly understood before
attempting to operate this equipment.
To ensure proper and safe use of this equipment, only trained and qualified personnel
should operate and maintain the boom lift.
SAFETY NOTES
This manual contains DANGERS, WARNINGS, CAUTIONS, and NOTES that must be
followed to prevent the possibility of improper service, personnel injury or death, and
damage to equipment.
DANGER
Dangers warn of equipment operation near electrical power lines that could lead to
personal injury or death.
WARNING
Warnings describe conditions or practices that could lead to personal injury or
death.
CAUTION
Cautions provide information important to prevent errors that could damage
machine or components.
NOTE: Notes contain additional information important to a procedure.

vi

1-1
1
Safety
1-1
ip-
me-
sense in the operation of mechanical equipment is the best s
implemented at all
considered as legal advice and is intended
to
For any questions concerning the safe use of this equipment, call 800-537-0540 before
operating.
INTRODUCTION
Familiarity and proper training are required for the safe operation of mechanical equ
ment. Equipment operated improperly or by untrained personnel can be dangerous. Read
the operating instructions in this manual and become familiar with the location and
proper use of all controls. Inexperienced operators should receive instruction from so
one familiar with the equipment before being allowed to operate the machine. The use of
intelligence and common
practice in any safety policy. Be professional and always observe the safety procedure
set forth in this manual.
All OSHA, ANSI, state, and local codes and regulations pertaining to this equipment
should be obtained, read, and thoroughly understood before attempting to operate this
equipment. Persons under the influence of drugs, alcohol, or prescription medication
should not be on or near this equipment. Common sense should be
times during the use of this equipment. Do not operate this equipment in areas where the
equipment or user may come in contact with a live power source.
The information contained herein is not to be
for informational purposes only. This information is offered to alert Bil-Jax customers
procedures that may be of concern to them.
This information is not intended to be all inclusive and is to be followed in the use of
Bil-Jax equipment only.

XLB-4016
1-2
1-2 BEFORE OPERATION
Ensure the following general safety precautions are followed before operating the
XLB-4016 Hydraulic Boom Lift.
• ALWAYS survey the usage area for potential hazards such as untamped earth
fills, unlevel surfaces, overhead obstructions, and electrically charged conduc-
tors or wires. Be aware of any potential hazards and always consider what could
happen. Watch for moving vehicles in the operating area.
• ALWAYS read, understand, and follow the procedures in this manual before at-
tempting to operate equipment.
• ALWAYS inspect the equipment for damaged or worn parts. Check for cracked
welds, hydraulic leaks, damaged wiring, loose wire connectors, damaged out-
riggers, low tire pressure, uneven tire wear, or tire damage. Also check for any
improper operation. NEVER operate equipment if damaged in any way. Im-
properly operating equipment must be repaired before using.
• ALWAYS wear proper clothing for the job. Wear protective equipment as re-
quired by federal, state, or local regulations. The operator MUST wear a safety
harness and lanyard.
• ALWAYS locate, read, and follow all directions and warnings displayed on the
equipment.
• ALWAYS inspect the equipment for “DO NOT USE” tags. NEVER use equip-
ment tagged in this way until all repairs are made and all “DO NOT USE” tags
are removed by authorized maintenance personnel.
• ALWAYS make sure the basket and outrigger shoes are free of mud, grease, or
other slippery material to reduce the possibility of slipping.
• NEVER allow improperly trained personnel to operate this equipment. Only
trained and authorized personnel shall be allowed to operate this equipment.
• NEVER operate this equipment if you are under the influence of alcohol or
drugs, or if you feel ill, dizzy, or unsteady in any way. Operators must be physi-
cally fit, thoroughly trained, and not easily excitable.
• NEVER modify, alter, or change the equipment in any way that would affect its
original design or operation in any way.
• NEVER operate this equipment in ways for which it is not intended.

1 — SAFETY
1-3
1-3 DURING OPERATION
Ensure the following general safety precautions are followed during the operation of the
XLB-4016 Hydraulic Boom Lift.
DANGER
This machine is not insulated for use near electrical power lines and DOES NOT
provide protection from contact with or close proximity to any electrically
charged conductor. Operator must maintain safe clearances at all times (10 feet
minimum) and always allow for platform movement such as wind induced sway.
Always contact the power company before performing work near power lines. As-
sume every line is hot. Remember, power lines can be blown by the wind.
Refer to Table 1-1 for minimum safe approach distances between machine and electrical
power lines.
Table 1-1. Minimum Safe Approach Distances
Minimum Safe Approach Distance
Voltage Range
(Phase to Phase) (Feet) (Meters)
0 to 300V Avoid Contact
Over 300V to 50KV 10 3.05
Over 50KV to 200KV 15 4.60
Over 200KV to 350KV 20 6.10
Over 350KV to 500KV 25 7.62
Over 500KV to 750KV 35 10.67
Over 750KV to 1000KV 45 13.72
• ALWAYS position lift far enough away from power sources to ensure that no
part of the lift can accidentally reach into an unsafe area. This includes full ex-
tension of the boom through 360 degrees rotation.
• ALWAYS operate only on a firm and level surface. NEVER use on surfaces
that do not support the equipment with its rated load capacity and the resulting
force exerted on the outriggers during boom extension and rotation.
• ALWAYS keep yourself and all personnel away from potential pinch or shear
points.
• ALWAYS report any misuse of equipment to the proper authorities. Horseplay
is prohibited.
• ALWAYS maintain good footing on the work platform. NEVER wear slippery
soled shoes.
• ALWAYS make certain all personnel are clear and there are no obstructions be-
fore repositioning basket.
• ALWAYS cordon off area around the outriggers to keep personnel and other
equipment away from it while in use.
• ALWAYS stay clear of wires, cables, and other overhead obstructions.
• ALWAYS engage the boom travel locking pins before towing the trailer.

XLB-4016
1-4
• NEVER allow electrode contact with any part of the basket if welding is being
performed from the platform.
• NEVER use without the outriggers fully extended and firmly based.
• NEVER override or by-pass manufacturer's safety devices.
• NEVER attach a safety harness to an adjacent structure, pole, or equipment
while working from the boom platform.
• NEVER move unit with a person or materials on board.
• NEVER try to move the trailer with the boom extended.
• NEVER stand or sit on cage bars. Work only within the work cage and do not
lean out over the cage to perform work.
• NEVER attempt to increase working height with boxes, ladders, or other means.
• NEVER operate this equipment when exposed to high winds, thunderstorms,
ice, or any other weather conditions that would compromise operator safety.
• NEVER allow ropes, electric cords, hoses, etc. to become entangled in the
equipment when the basket is being raised or lowered.
• NEVER exceed manufacturer's load limits or use the lift as a crane for lifting
heavy materials. Make sure all tools and equipment are safely stowed.
• NEVER exceed load ratings by transferring loads to the basket at elevated
heights.
• NEVER use cage to carry materials and never allow overhang of materials when
raising or lowering the basket.
• NEVER push or pull with the boom or basket and NEVER use the boom to lift
any part of the trailer.
• NEVER use the boom or basket to place a “dead man” load against any struc-
ture, materials, or equipment.
• NEVER climb up or down boom.
• NEVER leave the keys in the boom lift while unattended or not in use.

1 — SAFETY
1-5
1-4 MAINTENANCE SAFETY
Ensure the following safety precautions are observed whenever maintenance is per-
formed on the XLB-4016 Hydraulic Boom Lift.
General Maintenance
• ALWAYS perform maintenance procedures according to manufacturer's re-
quirements. NEVER short change maintenance procedures.
• ALWAYS check hydraulic system. Make sure all lines, connectors, and fittings
are tight and in good condition.
• ALWAYS turn the key switch off before connecting or disconnecting wiring to
or from valve solenoids or other load devices.
• ALWAYS disconnect power to the hydraulic pump drive motor before making
electrical checks of the hydraulic valves.
• ALWAYS keep all mechanisms properly adjusted and lubricated according to
maintenance schedule and manufacturer’s specifications.
• ALWAYS perform a function check of operating controls before each use and
after repairs have been made.
• ALWAYS locate and protect against possible pinch points prior to performing
maintenance and repairs.
• ALWAYS use factory-approved parts to repair or maintain this equipment. If
this equipment is rebuilt, retesting is required in accordance with factory
instructions.
• NEVER allow water or foreign particles into the DC electric motor housing. In-
gestion of water or foreign particles may cause serious damage to the motor. If
the motor gets wet, oven dry the motor to remove all moisture before operating;
consult motor manufacturer for drying instructions.
• NEVER test or operate the hydraulic components when another person is near
the equipment.
• NEVER add unauthorized fluids to the hydraulic system or battery. Check origi-
nal manufacturer specifications.
• NEVER exceed the manufacturer's recommended relief valve settings.
• NEVER touch or allow metal tools to contact static discharge sensitive elec-
tronic components. ALWAYS use static discharge prevention mats and ground-
ing devices when handling electronic components.
• NEVER tamper with cylinder counter balance valves. Contact the Bil-Jax Ser-
vice Department at 800-537-0540 if the cylinder counter balance valves need
adjusting.
• NEVER attempt repairs you do not understand. Consult manufacturer if you
have any questions regarding proper maintenance, specifications, or repair.

XLB-4016
1-6
Battery Maintenance
Ensure the following general safety precautions are followed whenever performing bat-
tery maintenance on the XLB-4016 Hydraulic Boom Lift.
• ALWAYS check battery acid level daily. Check battery test indicator for proper
state of charge on maintenance free batteries before using lift.
• ALWAYS wear safety glasses when working near battery.
• ALWAYS avoid contact with battery acid. Battery acid causes serious burns.
Avoid contact with skin or eyes. If accidental contact occurs, flush with water
and consult a physician immediately.
• ALWAYS disconnect ground cable first when removing battery.
• ALWAYS connect ground cable last when installing battery.
• ALWAYS charge batteries in open, well-ventilated areas.
• NEVER smoke when servicing battery.
• NEVER allow batteries to overcharge and boil.
• NEVER short across battery posts to check for current. NEVER break a live cir-
cuit at battery.
• NEVER jump start other vehicles using boom lift battery.
1-5 DAMAGED EQUIPMENT POLICY
Safety Statement
At Bil-Jax, we are dedicated to the safety of all users of our products. Therefore, all
Bil-Jax lifts are designed, manufactured and tested to comply with current applicable
Federal OSHA and ANSI codes and regulations.
Damage Policy
There may be occasions when a Bil-Jax lift is involved in an incident that results in struc-
tural damage to the lift. This can seriously compromise the ability of the lift to perform in
a safe manner. Therefore, whenever a Bil-Jax lift is damaged structurally or when there is
the possibility of structural damage (this damage may be internal and is not always visi-
ble to the naked eye), Bil-Jax requires that the lift be returned to our facility at 125 Tay-
lor Parkway, Archbold, Ohio, for reconditioning. If you have any questions concerning
what constitutes structural damage, please call the Bil-Jax Service Department at
800-537-0540.
Damage Repair Notice
There may be occasions when a Bil-Jax lift is involved in an incident resulting in non-
structural damage. When this occurs and repairs are made by the owner or area distribu-
tor, please notify Bil-Jax of these non-maintenance repairs and request a repair form to
be filled out and returned to Bil-Jax.

1 — SAFETY
1-7
Bil-Jax, Inc.
125 Taylor Parkway
Archbold, Ohio 43502
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or
death, you should immediately inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Bil-Jax, Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a recall and remedy campaign. However,
NHTSA cannot become involved in any individual problems between you, your dealer, or
Bil-Jax, Inc.
To contact NHTSA you may either call the Auto Safety Hotline toll-free at 1-800-424-9393
(366-0123 in Washington, DC area) or write to:
NHTSA
U.S. DEPARTMENT of TRANSPORTATION
400 7th Street SW, (NSA-11)
Washington, DC 20590
You can also obtain other information about motor vehicle safety from the Hotline.

XLB-4016
1-8

2-1
2
Introduction
2-1
t
,
sections. A hydraulic powered motor and worm gear rotates the boom
et.
the
ll
g
both booms is approximately 70 seconds. It is strongly recom-
the upper and lower
l
g storage
since the cylinder rod is fully immersed in oil. It is important that the cylinder rods be
kept clean and undamaged for the protection of the cylinder head packings.
GENERAL DESCRIPTION
The XLB-4016 Hydraulic Boom Lift is designed and manufactured for positioning per-
sonnel with their tools and equipment at overhead work locations. The rated work baske
load capacity is 474 lbs. Basket elevation is by two hydraulic cylinders acting on lower
and upper boom
360°around a vertical axis. The hydraulic power unit includes a reservoir, pump, and
control valves.
A 12 volt DC electric motor drives the hydraulic pump. The DC motor is powered by
two 6 volt DC, 175 Amp-hour batteries connected in series. An automatic on-board bat-
tery charger is provided for recharging the batteries at the end of each work period.
Two control panels use motion enable pushbuttons and proportional hydraulic valves to
control the direction and speed of boom lift and rotation. One set of operator controls is
provided for ground operation and another set is provided for operation from the bask
Elevation and rotation controls are operational only when the outriggers are correctly ex-
tended and the moving boom sections are within a programmed safe operating zone.
Only one boom motion is permitted at a time, and only as long as the boom is within
safe operating zone. When a selected boom motion reaches a safe operating limit, the
motion ceases and another motion must be selected within the safe operating zone.
Outrigger load sensing interlocks and interlock safety switches prevent all boom lifting
operations until the four outriggers are properly extended, the trailer is level, and the fu
weight of the boom lift is loaded onto the outriggers. An interlock prevents the retractin
of any outrigger while the upper or lower boom is raised two inches (50 mm) or more.
Boom elevation speed is a maximum of 1 foot per second (0 to 0.3 m/sec). The time re-
quired to fully extend
mended that no one adjust these speeds. If service is required, please notify Bil-Jax for
detailed instructions.
Emergency lowering of the basket is by manual valve plungers on
boom lift cylinders. Pulling out and holding a valve plunger while operating the contro
lever at the ground control station retracts the boom lift cylinder.
The XLB-4016 Hydraulic Boom Lift cylinders will not rust or corrode durin

XLB-4016
2-2
2-2 SPECIFICATIONS
Boom Lift Work Platform
Model Number: XLB-4016 Serial Number ________________
Manufactured by: Bil-Jax, Inc.
125 Taylor Parkway
Archbold, Ohio 43502
800-537-0540
Table 2-1. Specifications
Feature Data
Rated Platform Load 474 lbs (215 kg) total
Maximum Work Height 40 ft (12,2 m)
Extended Basket Height 33.5 ft (10,2 m)
Maximum Outreach 16 ft (4,9 m)
Elevation Rate, Nominal 1 ft/sec (0,3 m/sec)
Boom Rotation 360° Non-Continuous
Rotation Speed 318° per Minute, Nominal
Basket Dimensions 47 in. W x 31.5 in. D x 43 in. H
(1,20 m x 0,80 m x 1,10 m)
Power Source 12 Volt DC, 2 x 175 Amp-hour
Batteries
Battery Charger 110/210 Volt, 25 Amp
Hydraulic Pressure 3045 psi (21 000 kPa)
Reservoir Capacity 1.98 Gallons (7,5 Liters)
Hydraulic Capacity 3.96 Gallons (15 Liters)
Hydraulic Oil Energol HLP-HM22 (BP Oil)
Gross Vehicle Weight 2866 lbs (1300 kg)
Tongue Weight 160 lbs (72,5 kg)
Vehicle Weight 2821 lbs (1280 kg)
Trailer Brakes Mechanical Surge
2-3 WARRANTY
Bil-Jax warrants its boom lifts for one year from the date of delivery against all defects of
material and workmanship, provided the unit is operated and maintained in compliance
with Bil-Jax’s operating and maintenance instructions. Bil-Jax will, at its option, repair
or replace any unit or component part which fails to function properly in normal use.
This warranty does not apply if the lift and/or its component parts have been altered,
changed, or repaired without the consent of Bil-Jax or by anyone other than Bil-Jax or its
factory trained personnel, nor if the lift and/or its components have been subjected to
misuse, negligence, accident or any conditions deemed other than those considered as
occurring during normal use.
Components not manufactured by Bil-Jax are covered by their respective manufacturer’s
warranties. A list of those components and their warranties is available upon written re-
quest to Bil-Jax.
Bil-Jax shall not in any event be liable for the cost of any special, indirect, or consequen-
tial damages to anyone, product, or thing. This warranty is in lieu of all other warranties
expressed or implied. We neither assume nor authorize any representative, or other per-
son, to assume for us any other liability in connection with the sale, rental, or use of this
product.

3-1
3
Operation
3-1
ith multiple operator controls. Equip-
ment power, outrigger controls, and boom lift controls are located at ground level. Boom
d in the basket.
ation (Figure 3-1) selects between ground and basket control, and
operates the lift booms. The ground control station includes the following electrical and
s.
n-
from the basket control station. The cen-
ter (OFF) position disables electrical and hydraulic operations. Removing the key pro-
OPERATOR CONTROLS
The XLB-4016 Hydraulic Boom Lift is equipped w
lift and rotation controls are locate
Ground Control Station
The ground control st
hydraulic control
Key Switch
Turning the key switch to the left selects operation from the ground control station. Tur
ing the key switch to the right selects operation
tects against unauthorized boom lift operation.
EMERGENCY
STOP
PUSHBUTTON
EMERGENCY
BALL VALVES BOOM OPERATOR
LEVER
OUTRIGGER
INDICATORS
KEY
SWITCH
BOOM RAISE
PUSHBUTTON
BOOM LOWER
PUSHBUTTON
Figure 3-1. Ground Control Station

XLB-4016
3-2
Boom Raise Pushbutton
Holding the green boom run pushbutton in starts the hydraulic motor and enables the
boom lift function. The lift boom cylinders can only be operated when the outrigger cyl-
inders are extended and the trailer is level.
Boom Lower Pushbutton
Holding the black boom lower pushbutton in enables the boom lowering function.
Boom Operator Lever
The boom operator lever positions proportional hydraulic valves to extend and retract the
boom lift cylinders. Lifting up on the boom operator lever while holding the boom raise
pushbutton causes the lower boom cylinder to extend and raise the lower boom. Pushing
down on the boom operator lever while holding the boom raise pushbutton causes the
upper boom cylinder to extend and raise the upper boom. How far the lever is lifted or
pushed controls the boom speed. When released, the boom operator lever returns to the
center (valve-off) position.
Outrigger Indicators
Four green LEDs indicate the status of the outriggers. When an outrigger is extended, the
corresponding green LED will light. All four outriggers must be properly deployed be-
fore the boom lift functions will be enabled.
EMERGENCY STOP Pushbutton
When pressed, the EMERGENCY STOP pushbutton disconnects electrical power to the
upper and lower control stations. The EMERGENCY STOP pushbutton should only be
pressed to immediately stop a hydraulic equipment motion. To resume control, rotate the
pushbutton clockwise.
Emergency Ball Valves
The emergency ball valves can be used to manually lower the work basket in an emer-
gency. During normal operation, these valves should be closed. The valves are closed
when the valve handles are horizontal.
