Bilt Trinity TBFPDG-2107 User manual

OWNER’S MANUAL
LAUNDRY CART WITH FLIP-UP TOP
MODEL # TBFPDG-2107 / CTBFPDG-2107
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
Intelligent Instructions
Directives intelligentes
Instrucciones Inteligentes
DOWNLOAD THE FREEAPP | TÉLÉCHARGERL’APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA

PARTS LIST
Your TRINITY Laundry Cart with Flip-up Top should include the following parts. Please inspect box
contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or [e-mail]. Parts can also be requested online
via our “Contact Us” section at www.trinityii.com.
A
TOP (1)
B
SHELF (1)
C
RIGHT SIDE
FRAME (1)
D
LEFT SIDE
FRAME (1)
E
POLE (4)
F
NON-LOCKING
CASTER (2)
G
LOCKING
CASTER (2)
H
SCREW
(12) + (1) Extra
J
LAUNDRY
BAG (3)
K
HANDLE (6)
L
LEFT
HINGE (1)
R
RIGHT
HINGE (1)
© 2023 TRINITY - 800.985.5506 1

PARTS LIST
M
HINGE SCREW
(8) + (1) Extra
N
SHELF REST (2)
O
HEX KEY(1)
P
WRENCH (1)
2© 2023 TRINITY - 800.985.5506

ASSEMBLY INSTRUCTIONS

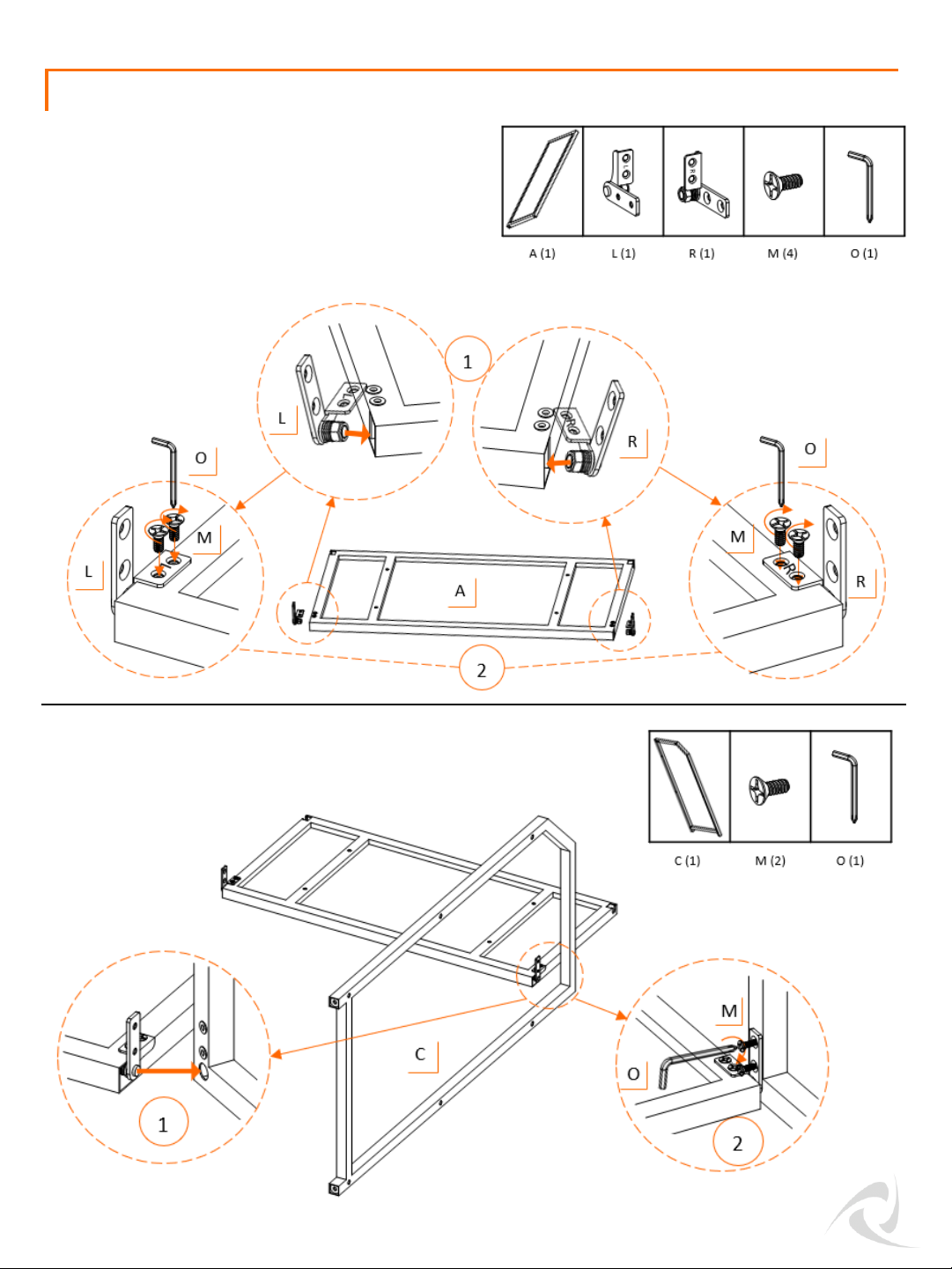

STEP 1
STEP 2
© 2023 TRINITY - 800.985.5506 3

ASSEMBLY INSTRUCTIONS
STEP 3
STEP 4
4© 2023 TRINITY - 800.985.5506

ASSEMBLY INSTRUCTIONS

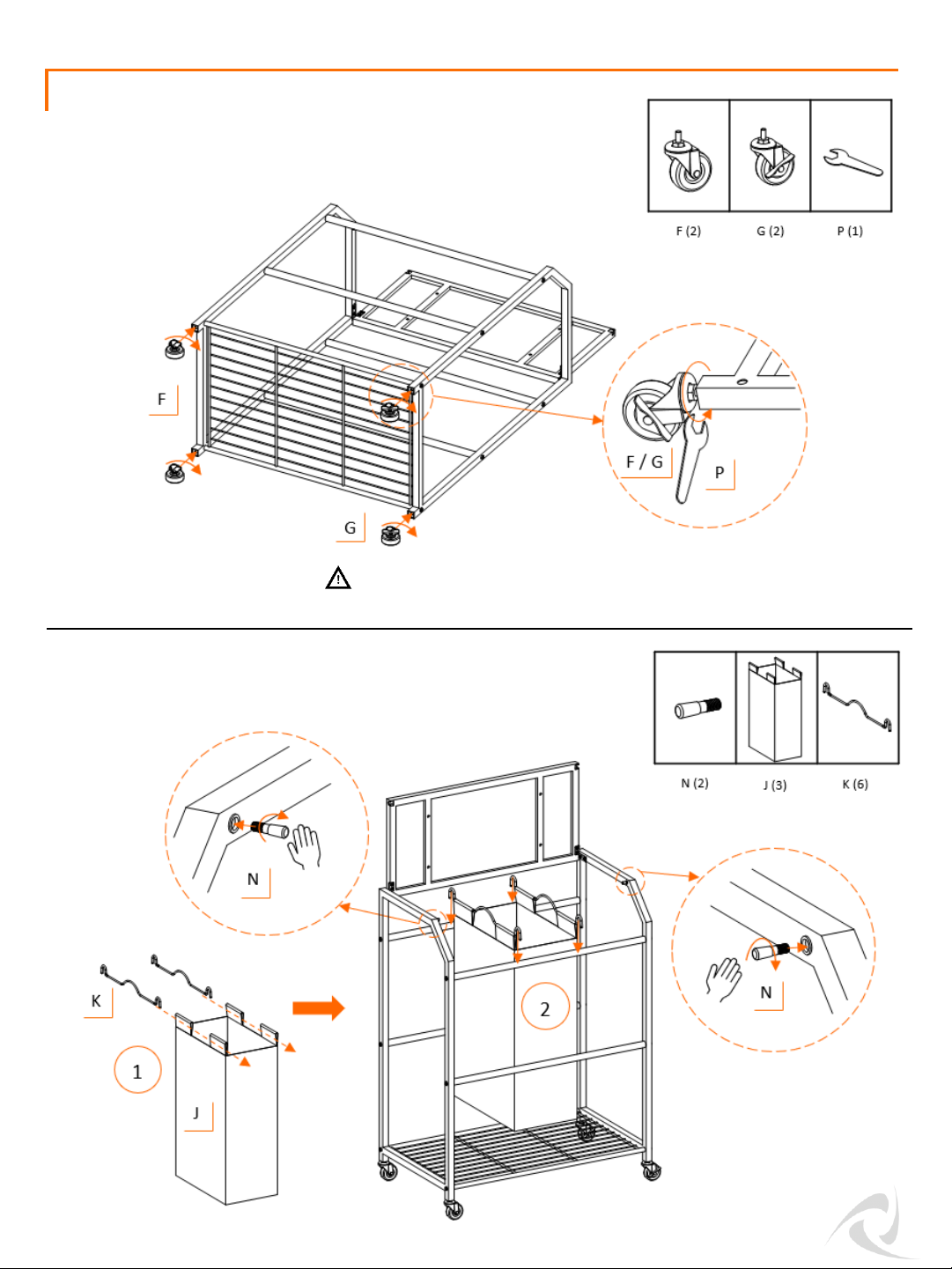

STEP 5
Tighten all casters completely by using the wrench.
STEP 6
© 2023 TRINITY - 800.985.5506 5

ASSEMBLY INSTRUCTIONS
STEP 7
6© 2023 TRINITY - 800.985.5506

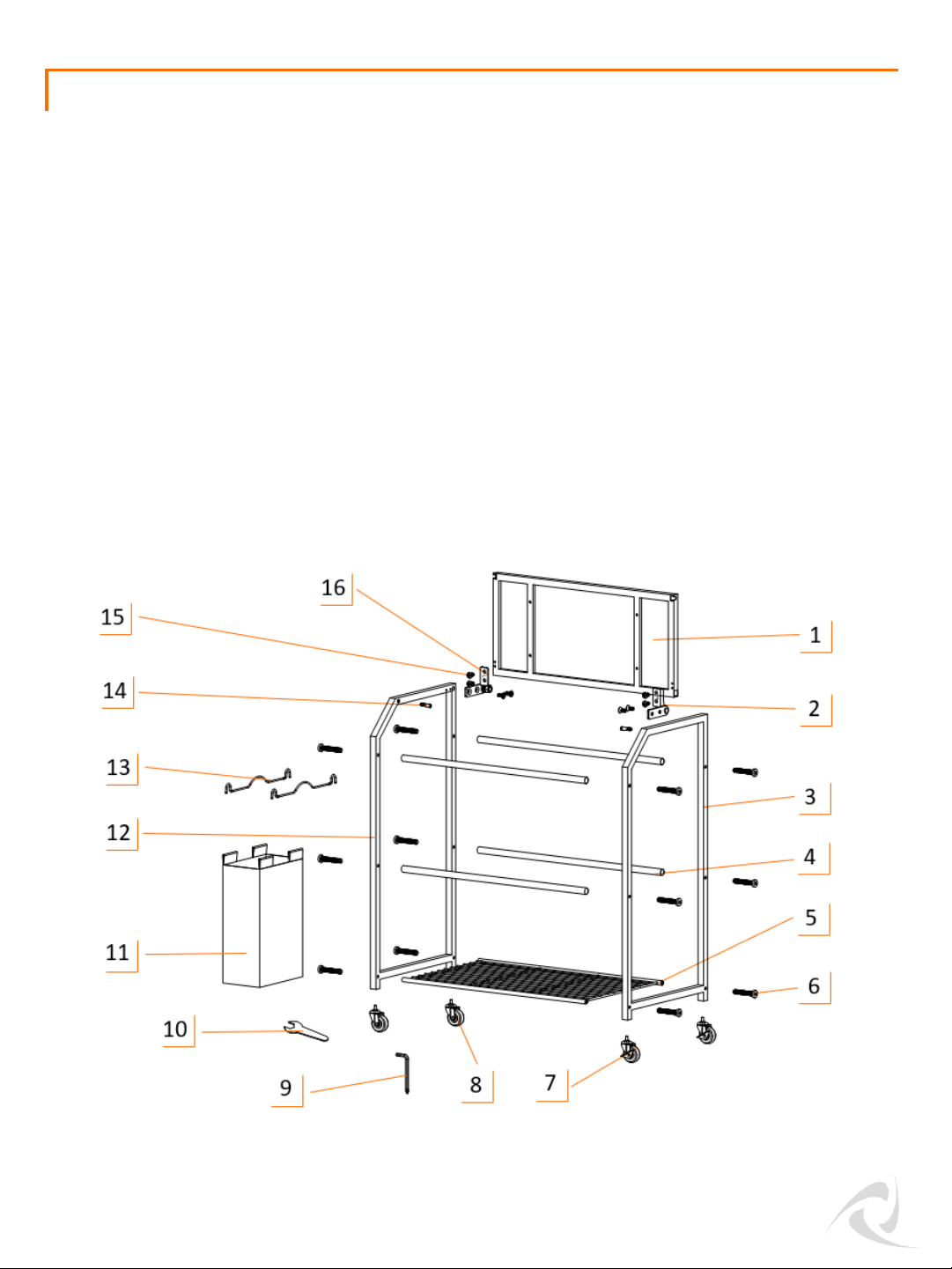

SERVICE PARTS LIST –TBFPDG-2107 / CTBFPDG-2107 (Dark Gray)
TRINITY Customer Service provides the following replacement parts:
# Part Number Description # Part Number Description
1) PDG-03-109-2512
Top
9) XXX-97-001-0001
Hex Key
2) XSV-09-019-0002
Right Hinge
10) XXX-97-002-0005
Wrench
3) PDG-14-056-3416
Right Side Frame
11) XGR-24-010-0814
Laundry Bag
4) PDG-13-021-2600
Pole
12) PDG-14-055-3416
Left Side Frame
5) PDG-03-110-2616
Shelf
13) PDG-05-013-1675
Handle
6) ZBK-01-002-0635
Screw
14) XBK-01-049-0424
Shelf Rest
7) ZSV-99-010-2008
Locking Caster
15) XBK-01-048-0415
Hinge Screw
8) ZSV-99-009-2008
Non
-locking Caster 16) XSV-09-019-0001
Left Hinge
© 2023 TRINITY - 800.985.5506 7

WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in
injury and/or damage.
2. Tighten all casters completely by using the wrench. Failure to do as instructed could
result in the caster stem breaking, thereby causing the product to collapse.
3. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of the
environment and ensure to use the product in a safe and responsible manner.
4. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product.
5. Check for damaged parts. Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the
operation of this product. Replace damaged or worn parts, and never use this product
with a damaged part.
6. Do NOT overload the product. Below capacity is based on evenly distributed weight.
7. Do NOT allow children to climb or play around the product. Tipping may occur
causing injury.
8. Do NOT stand or lean on the product or use any part of this product as a step ladder.
Tipping may occur causing injury.
9. Always lock casters when working on tabletop or not moving product.
10. Do NOT leave objects on tabletop when moving product, as they may fall from
tabletop causing injury.
11. Do NOT put hands or fingers near side frame when flipping up or down top board to
avoid pinching hands or fingers.
Weight capacity of top 9 kg / 20 lb
Weight capacity per bag 6.8 kg / 15 lb
Weight capacity of shelf 9 kg / 20 lb
Total weight capacity of cart 38.6 kg / 85 lb
8© 2023 TRINITY - 800.985.5506

CARE AND MAINTENANCE
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•Laundry bags are made of 100% polyester with a coated backing, wipe them clean by
wet towel or sponge with mild detergent where needed.
•Do NOT wash laundry bags in hot water. Hand wash only in cold water after removing
bag handles, line dry in shade only. Do NOT wring or rub laundry bags. Do NOT bleach,
iron, dry clean or tumble dry laundry bags.
•The product is designed for indoor use.
© 2023 TRINITY - 800.985.5506 9

PRODUCT REGISTRATION
Thank you for purchasing a TRINITY Laundry Cart with Flip-up Top. In order to register your product
and receive streamlined customer service, please fill out the following Product Registration Form and
(1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at
www.trinityii.com or (3) scan and email the form to [email protected]om. Include a copy of
your original receipt with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
10 © 2023 TRINITY - 800.985.5506

1 YEAR LIMITED WARRANTY
TRINITY Laundry Cart with Flip-up Top
Model # TBFPDG-2107 / CTBFPDG-2107
Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the
TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Dividers (“Product”) that each Product shall be free from
defects in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s
obligation under this warranty shall be limited to repair or replacement of, or adequate compensation for the
Product which shall not be greater than the amount of the purchase price of the Product, at the option of
Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must
be returned to Trinity.
This warranty excludes normal wear and tear of the Product and its parts or components, and damage arising
from any of the following: negligent use or misuse of the Product, use contrary to this User’s Manual, or
alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by
the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is
limited in duration to one year from the date of purchase and is subject to the same conditions and
limitations as is provided for our express warranty.
Except as set forth herein, and to the extent of applicable there are no warranties on this Product either
express or implied, and Trinity disclaims all warranties including, but not limited to, any implied warranties of
merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any
person, firm, or corporation with respect to this product shall be binding on Trinity.
If your Product is defective or otherwise requires service or parts, please call TRINITY Customer Service toll-
free at [phone], between 5:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased,
the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must
accompany your service request.
LIMITATION OF REMEDIES AND LIABILITY
Trinity (and its employees, officers, members, managers, affiliates and assigns) shall not be liable for any
incidental, consequential, special, indirect, remote, special or punitive damages for breach of any warranty,
express or implied, including, but not limited to, lost profits, lost savings, loss of anticipated benefits and
attorneys’ fees, which arise out of the purchase, use or inability to use the Product, whether arising out of
contract, negligence, strict tort, product liability, or any other legal theory on which a claim is based. As
noted above, to the extent damages are allowed by our express warranty or by applicable law, those
damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser
assumes all risk and liability for loss, damage or injury to Purchaser and Purchaser’s property and to others
and their property arising out of the use, misuse, or inability to use this Product. This limited warranty shall
not extend to anyone other than the original purchaser of this product, is nontransferable and states your
exclusive remedy.
Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive
damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific
legal rights, and you may have other rights which vary from state to state.
© 2023 TRINITY - 800.985.5506 11

CONTACT US
QUESTIONS? NEED PARTS?
WE ARE HERE TO HELP!
Please feel free to contact us. There are no questions too small, or
any problems too big. We’re committed to providing our customers
with the highest level of service.
TRINITY Customer Service
TEL: [phone]
FAX: [phone]
EMAIL: [e-mail]
Monday through Friday
5:00 AM –5:00 PM (PST)
www.trinityii.com
