Binatone SYMPHONY 2600 User manual

"Symphony Symphony 2600 System"
User Guide - Front Page
1) Colour : White background black letters.
2) Material : 80lb book paper.
3) Size: 105mm(w) x 145mm(H) or A6
"Symphony 2600 System"
User Guide - Back Page
Ver. 1, Ju 07 Before operating this set,
please read these instructions carefully.
TELEPHONES WITH
USER GUIDE
SMS MESSAGING
l
THIS EQUIPMENT IS NOT DESIGNED FOR
MAKING EMERGENCY TELEPHONE CALLS
WHEN THE POWER FAILS. ALTERNATIVE
ARRANGEMENTS SHOULD BE MADE FOR
ACCESS TO DIAL EMERGENCY SERVICES.
DIGITAL CORDLESS
Symphony 2600 System

Important note — emergency calls
The Symphony
emergency calls when the mains power fails. So you
should make alternative arrangements for access to
Emergency Services.
(This means that you should also have a basic
phone that does not need mains power, connected
to your line so that you can make calls during a
power failure.)
If you need help …
The Binatone Help Line is available from 9.00 am to
5.00 pm, Monday to Friday, on
Calls are charged at Local Call rate.
Unpacking your Symphony 2600 system
In the box are:
■the cordless handset (up to six, depending on
which Symphony system you’ve bought)
■the base unit
■two rechargeable batteries and a battery
compartment cover for each handset
■atelephone line cable for the base unit
■amains power lead and adapter for the base
unit
■up to five , each with a separate
mains power lead and adapter, for multi-
handset systems
Keep the packaging materials in a safe place in
case you later need to transport the unit.
Keep your sales (till) receipt, which is your
guarantee.
Or visit our website, at:
http://www.binatoneonline.com/
charger pods
0845 345 9677
2600 is not designed for making
2600

INT (Intercom) button
Press and hold for 2 seconds to
make an intercom call (if you
have more than one handset).
Where to find it
CHARGE light
This comes on when the handset'¡¯s
batteries are being charged.
PHONE
Press to begin or answer a phone call.
Press during a call to switch the
speakerphone on and off.
(Note: the speakerphone won’t work
if the batteries are low.)
Left and right Soft buttons
Press to select the functions shown
above them on the display (for
example,
If the display is blank
Press the button to switch the handset on
Display
For details of how to change the
screen background, refer to the
functions in the
section headed ‘Quick reference
guide to the menus’.
Before you can use the handset to make calls you will need to fit
and fully charge the batteries, as described on pages 5to 6.
HANDSET LOCATOR button
Press to make all registered handsets
ring (useful if you've forgotten
where you put a handset).
R (Recall) button#
Press and hold this button for a Recall signal.
IN USE light
Arrow buttons
Press or
Press to navigate through the menu on the
display.
Press in idle mode for short-cut functions
during a call to adjust the
volume in the earpiece.
to go straight to the
menu. SMS text messages
to go straight to a list of
(CID) records. Caller Display
HANG UP /C/ button
Press to end a call.
Press while using menus to cancel and
return to idle mode.
Press and hold for 2 seconds to turn
the handset on and off.
Short cuts
To subscribe to network features like Caller Display and Call Waiting,
simply call your network service provider (the company which
supplies your telephone line). You don’t need to do anything special
on your Symphony 2600 phone to set these features up.
to go straight to a list of
records. redial
).
Menu Back
or
button
Wallpaper
button
Handfree
CID
connection to the telephone line.
Flashes when you have a
Flashes when you have message(s).
CID

Contents
Read these notes first 3
Choosing a site for the base unit and
charger pod 3
Radio signals between handset and
base unit 3
Mains power connection 3
Installation and set-up 4
Before you start
Electrical safety
Interference
‘Out of range’ warning
Exploring the display
Shortcut buttons 9
To lock the keypad
Switching on and off
Ringer melodies and volumes 11
Your handset’s name 12
Time and date 13
Making and answering calls 14
To make a call 14
To answer a call 14
To end a call 15
The speakerphone 15
Muting the microphone 15
Earpiece volume 15
Last Number Redial 16
… and options in the Redial list 16
The Phone Book
(memory dialling) 18
To open the Phone Book 18
To store a number 18
To make a memory call (short-cut
method) 19
To make a memory call (Phone Book
method) 19
To change a stored number 20
To delete a Phone Book entry 21
To delete all Phone Book entries 21
Caller Display 22
To review Caller Display records
(shortcut) 23
To review all call information 23
Options in the Caller Display lists 24
… to delete a entry from the list 24
… to store a number in the Phone Book
24
Using a multi-handset system 25
To make an intercom call 25
To end an intercom call 25
To transfer a call 26
To shuttle between two calls 26
To set up a three-way conference
27
To page all handsets from the
base unit 27
continued overleaf …
1
Handset registration 28
To re-register or to register a new
handset 28
To register to a different brand of
base unit
Binatone Help Line: 0845 345 9677 (Local Call rate)
8
8
889
10 11
… to delete all entries from the list 24
29
SMS text messaging — read
thisfirst
Caller Display
Registering for the SMS service
The SMS Send and Receive numbers
SMS message boxes
30
30 30
31 31

Contents
2
SMS text messaging
To write and send a text message
you hear an error tone
To read your messages
… and to store a caller’s number in the
Phone Book
… or to delete messages from the Inbox
To reply to a message
To delete a message from the Outbox
or Draft Box
To check or change the Send and
Receive numbers
Quick reference guide to the
menus
Troubleshooting
Cleaning and care
Declaration of conformity
Guarantee and service
Technical details
Connection and conditions for use
You can connect your Symphony
a line connected to a local exchange, with its own phone number; to an
extension socket connected to a DEL; or to an extension on an
approved compatible PBX. Do not connect the Symphony
extension to a payphone.
The ringer equivalence numbers (RENs) of all instruments (phones,
fax machines, etc.) connected to an exchange line must not add up to
more than 4 — otherwise, one or more of them may not ring and/or
answer calls correctly. The Symphony
other telephones have a REN of 1 unless marked otherwise.
http://www.binatoneonline.com/
...If
To forward a message to another
receiver
To switch SMS receotion on
To change write format
33
33
35
35
36
36 37
37
38
38
39
39
40
45
51
52
53
54
To select the send server
39
2600 to a direct exchange line (DEL) —
2600 as an
2600 has a REN of 1, and most

Read these notes first
Choosing a site
for the base
unit and
charger pod
The base unit and charger pod(s) should be placed on a
level surface, in a position where:
■the mains adapter plug will reach an easily accessible
230-V AC switched mains supply socket — never try
to lengthen the mains power cable
■the base unit’s telephone line cable will reach your
telephone line socket or extension socket (the charger
pod does not have a telephone line connection)
■it is not close to another telephone — this can cause
radio interference
■it is not close to a sink, bath or shower, or anywhere
else where it might get wet
■it is not close to other electrical equipment — fridges,
washing machines, microwave ovens, fluorescent
lights, TVs etc.
!If you’re using the SMS text messaging facility,
please note that only one SMS phone connected to
the line can receive messages. So you shouldn’t
connect another SMS-compatible phone to the same
line as your Symphony
Radio signals
between
handset and
base unit
To use your handset and base unit together, you must
be able to establish a radio link between them. Be
aware that:
■Any large metal object — like a refrigerator, a mirror
or a filing cabinet — between the handset and the
base unit may block the radio signal.
■Other solid structures, like walls, may reduce the
signal strength.
Mains power
connection IMPORTANT — The Symphony charger pod must be used with the mains adapter
supplied with the unit. Using any other adapter will
result in non-compliance with EN60950, and will
invalidate any approval given to this apparatus.
Binatone Help Line: 0845 345 9677 (Local Call rate)
3
2600.
2600 base unit and

Installation and set-up
4

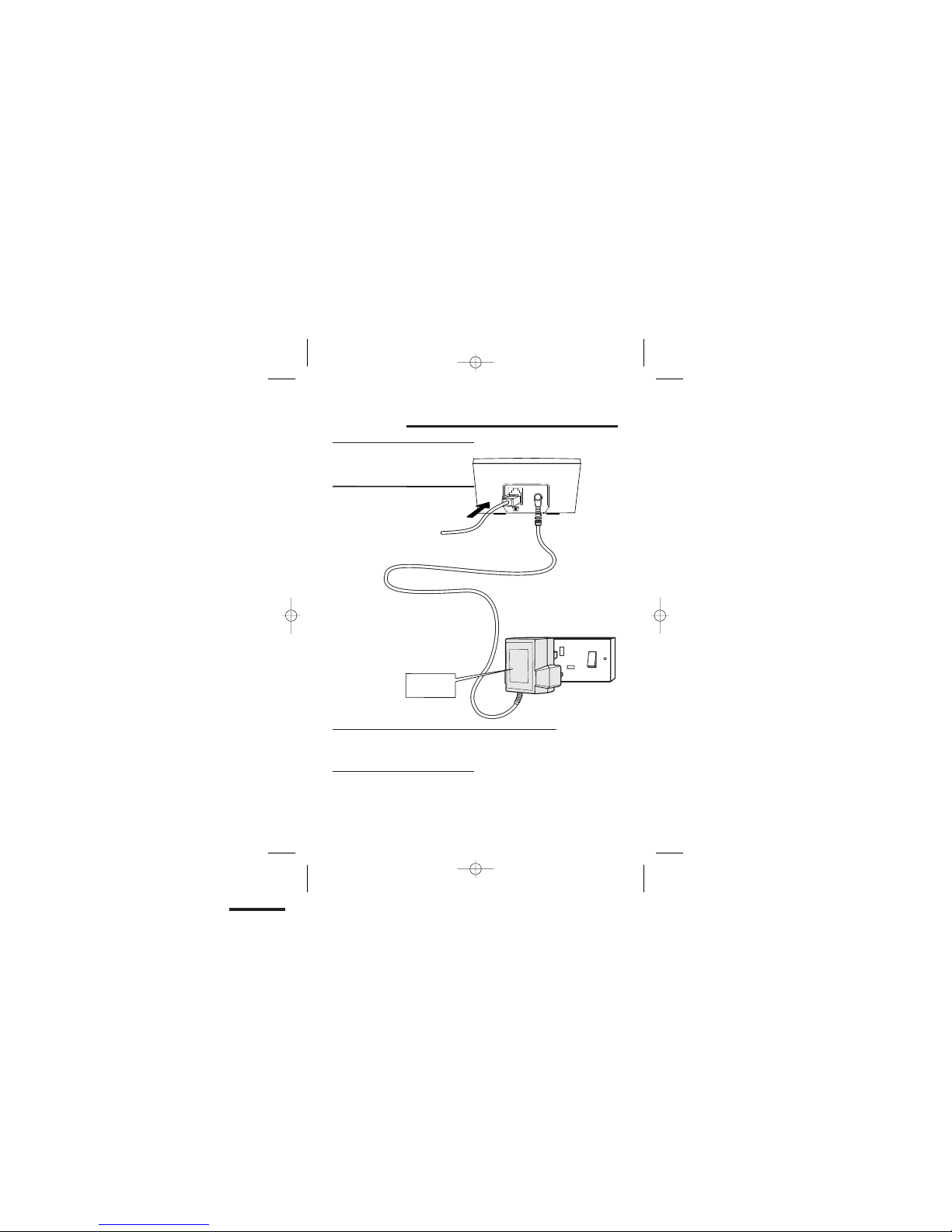

1
3
Choose a suitable site for the
base unit See page 3
Plug the mains adapter into a 230 V AC, 50 Hz mains
socket, with the switch on the socket set to OFF
Connect the mains
power lead and the
telephone line cord
into the underside of
the base unit
2
Use the telephone line
cord supplied with your
Symphony
not use any other
telephone line cord
See the note
on page 3
4Switch on at the mains socket
http://www.binatoneonline.com/
2600 — do

Installation and set-up
5
Fit the rechargeable batteries in each handset
7
A+
–
. Fit the two batteries as shown,
making sure you match the and
ends to the markings in the
battery compartment
B. Fit the battery compartment
cover, sliding it into place
and pressing firmly to make
sure it is secure
Battery safety
—batteries in the handset they may
burst, causing damage. Use the
rechargeable batteries supplied.
6
5
Plug the mains adapter into a 230 V AC,
50 Hz mains socket, with the switch on
the socket set to OFF
Switch on at the mains socket
If you have one or more charger pods …
See the note
on page 3
Caution : DON’T use non-rechargeable
Binatone Help Line: 0845 345 9677 (Local Call rate)
--
+
++
-

Installation and set-up
8Charge the batteries for 15 hours
The battery charge level symbol should
increase by one bar every half hour when
you’re charging an empty battery. If you
think that the symbol isn’t showing the
correct battery charge level, remove and
refit the batteries.
Keeping the batteries charged
n
n
When you don’t need to use the
handset (for example, overnight or
when you go out), replace it on the
base unit or charger pod, to keep the
batteries charged.
Whenever the battery charge level
symbol shows ‘nearly empty’( ),
place the handset on the base unit or
charger pod to charge the batteries.
Before you use the handset for the first time,
it’s important to charge the batteries fully.
The handset ‘beeps’ when it’s correctly in
position on the charging cradle.
Leave the handset on the charging cradle
for 15 hours.
Make sure mains power is
switched on at the socket if you
want to use the phone — it will
not work without electrical power
Connect the base unit to the telephone line
Switch off power at the mains socket
Insert the telephone line plug into the
socket as shown
Switch mains power back on
9
Use the plug
to raise the
shutter before
pushing it
into the
socket
NOTE: the charger pod does not have
a connection to the telephone line.
Battery charge
level symbol
The Charge
light comes on.
http://www.binatoneonline.com/
6
CID

e
li
f
o
r
p
r
e
tn
i
rp KY
M
C
c
i
re
n
eG :e
l
ifor
p
r
o
lo
C
n
ee
r
cs tl
u
af
e
D etisopmoC
7
Installation and set-up
Binatone Help Line: 0845 345 9677 (Local Call rate)
If you have a Broadband line
If you connet your telephone to a line with broadband connection,
you will need to insert a microfilter(not included) between the
telephone and telephone line,otherwise you may get interference
between the telephone and the broadband,whichcould cause
problems.
In a home with broadband,every telephone must have a microfilter
connected,not just the one at the telephone point that your modem
is connected to.If you need more broadband microfilters,contact
your broadband supplier.
10
CID

Before you start
Electrical
safety ■DON’T let the base unit or charger pod get wet. Electrical equipment can cause serious injury if used
while you are wet or standing in water.
■If the base unit or charger pod ever falls into water,
DON’T retrieve it until you have unplugged the power
lead from the mains and the telephone line plug from
the telephone socket (base unit only); then pull it out by
the unplugged cables.
■NEVER use your Symphony outdoors during a
thunderstorm — unplug the base unit from the
telephone line and the mains socket when there are
storms in your area. Damage caused by lightning is not
covered by the guarantee.
Interference If the sound quality gets worse as you move around
while on a call, this is probably caused by interference
between the handset and the base unit, perhaps
because you are too near to another phone or other
electrical equipment.
Move to a different position to clear the interference.
If you do not move, your call may be cut off.
!Radio interference in the environment may occasionally
cause a short break in the link between the handset
and the base unit while you are on a call. The handset’s
display may briefly show until the link
is restored.
‘Out of range’
warning If you hear a warning tone during a call, and/or the sound in the earpiece becomes faint or distorted, you
may be going out of range of the base unit. Move
nearer to the base unit within 20 seconds, until the
tone stops. Otherwise, your call may be cut off.
Searching
8http://www.binatoneonline.com/
2600

Exploring the display
For information on how to set the time and date, turn to page 13.
To go from standby mode into idle mode:
◗Press the HANG UP button
◗OR replace the handset on the base unit or charger pod
(OR you can press any numbered button — but you’ll then need
to press the right Soft button Clear to clear the display.)
In idle mode … The display shows the background picture (’wallpaper
of your choice (see page
Menu
The strength of the
signal between handset
and base unit.
The handset’s
name and
number.
means you can press the right Soft button to activate
means you can press the left Soft
the menu options.
The battery charge
When this
place the
handset on the base
unit orcharger pod to
batteries.
to save battery power, plus:
Menu
20/05
Time and Date
Jane 1
2
2 Missed calls
level.
shows ‘nearly empty’
charge the
02:33PM
Binatone Help Line: 0845 345 9677 (Local Call rate)
9
53), and the screen is dimmed
CID
appears when you
button to display
have new missed call
(for example,the time format is 12 )
Hour
appears when you have new missed call.
CID
phone book.

Shortcut
buttons From either standby or idle mode, you can press:
To lock the
keypad To lock the keypad:
◗
◗
To go back on step at a time, press the appropriate
Soft button to select or
To go back to idle mode in a single step, press the
(Cancel) buttonHANG UP/C
menu.
SMS textmessages
(CID) records.
CallerDisplay
records.
redial
To go straight to the
To go straight to a list of
To go straight to a list of
Menu
CID
10 http://www.binatoneonline.com/
Exploring the display
Press the left soft button
To unlock the keypad:
Or simply replace the handset on the base unit or
charger pod.
Menu
Press the left soft button
Menu
(ASTERISK) in 2 seconds.
(ASTERISK) in 2 seconds.
then followed by
then followed by

Switching on and off
To switch the
handset on
and off
To switch the handset off (in case you need to
save battery power):
◗Press the HANG UP button and hold it for
uThe display goes blank.
To switch the handset back on:
◗Briefly press the HANG UP button
ufor a moment before going to idle
Notes ■When the handset is switched off, it can’t be used for
making calls, including emergency calls.
■When the handset is switched off, it won’t ring for
incoming calls, but the base unit will still ring. To
answer a call when the handset is switched off, you
need to switch it back on. Remember that it may take a
few moments for the handset to re-establish a radio link
with the base unit.
■If the batteries have become completely run down (or if
the handset is switched off) and you place the handset
in the charging cradle, it may take about 5 minutes to
link with the base unit. If you lift the handset during this
time, it will try to link to the base unit.
!Make sure mains power to the base unit stays
switched on. The Symphony
power for normal operation; not just for charging
the batteries.
Ringer
melodies and
volumes
For details of how to change these, refer to the
‘ ’ functions in the Handset and Base Settings
and
11
2 seconds
The handset plays music, then display shows
Searching
mode.
menus (pages
Ring Setup
Binatone Help Line: 0845 345 9677 (Local Call rate)
41 43).
2600 needs electrical

Your handset’s name
Before you start to use your Symphony
especially if you have a multi-handset system, you’ll
probably want to personalise the display with your name.
The name can have up to 12 characters (including
spaces).
To change the
name 1Press the left Soft button to select Menu
2Press the or button to scroll to
HS Settings
3Press the left Soft button to confirm
4Press the or button to scroll to
Name Handset
uThe display shows the current handset
name (the default is ).
5Use the right Soft button Clear to clear
letters from the display, then key in your
chosen handset name
There’s a list of the buttons to use for different
characters, at the back of this guide.
By default, the first letter of each word you key
in will be upper-case (capital) and the other
letters will be lower-case. If you don’t want the
letters like that, press and hold the #
5When you’ve finished, press the left Soft
button to select OK
6Press the right Soft button Back twice to go
back to idle mode
12
Select
and press the left Soft button
Handset
(HASH)
button to switch between upper and lower case.
http://www.binatoneonline.com/
2600 handset,

Time and date
If you subscribe to Caller Display (see page 22) your
Symphony
from the network when you receive an incoming call.
Once you’ve installed your Symphony
batteries and connected the base unit to the telephone
line, ask someone to make a call to you.
you can set the time and date yourself, as follows:
1Press the left Soft button to select Menu
2Press the or button to scroll to
3Press the left Soft button to confirm
4Press the or button to scroll to
Date / Time then press
uThe display shows
current date format
Key in the date as a eight-digit number then
select to confirm the date changed
OK
Key in the time as a four-digit number (24-
hour) then select OK *
Press the right soft button Back twice to go
back to idle mode
* If the time format is 12-hour, you are request to define the
Clock/Alarm menu
Select
Select
Date Format
Time Format
Set Date
Set Time
Press the or button to scroll to
then press Select
5Set Date
uThe display shows
6
:
DD MM :
MM DD
Date Format
You can select on steps 4 to switch
the date format between and .
Press the or button to scroll to
Select
7
8
or by press Up and Down button.
AM PM
You can select on steps 4 to switch
the time format between and .
Time Format
12 Hour 24 Hour
9
on steps 4 then press Set time
Binatone Help Line: 0845 345 9677 (Local Call rate)
13
2600 should take the time and date settings
2600, charged the

Making and answering calls
To make 1Key in the telephone number
If you make a mistake, press the right Soft button
Clear to clear digits from the display.
2Press the PHONE button
(You can dial the number after you press the
PHONE button to get Dial tone if you prefer,
but you won’t be able to correct any mistakes
if you do it this way.)
uAfter a few seconds, the display shows the
call’s duration in minutes and seconds.
To answer When there’s an incoming call, Incoming Call! or the
phone number (if you subscribe to Caller Display: see
page 22) appears on the display; if the number is stored
in your Phone Book (see page 18), the caller’s name may
also appear.
The base unit and handset ring (unless the ringer is
turned off). If you’ve stored the caller’s number with a
◗Press the PHONE button or the left Soft button
Note — you may notice that the Symphony
ringing a few moments after any other phone you have
connected to your line. This is not a fault — it’s part of
the design of the system, to enable it to receive SMS
text messages.
personal melody in the Phone Book (see page 18) and
you subscribe to Caller Display, the handset will ring
with a special melody.
Accept to answer the call
◗Press the button to answer the call withHANDFREE
speakerphone.
a call
a call
http://www.binatoneonline.com/
14
2600 starts

To end a call ◗Press the HANG UP button so that the
IN USE light on the base unit goes out
◗Or simply replace the handset on the base
unit or charger pod
The
speakerphone Using the speakerphone, you can listen on a call without holding the handset to your ear.
To switch the speakerphone on and off during
a call:
◗Press the
The display shows the speakerphone
and you can adjust the volume level
!The speakerphone won’t work if the batteries are low.
Muting the
microphone While you’re on a call, Mute appears on the display above the left Soft button, to show that
you can mute the microphone so the person
on the other end can’t hear you.
To mute and un-mute the microphone:
◗Press the left Soft button Mute
uWhile the microphone is muted, the display
shows
Earpiece
volume During a call, to adjust the volume in the earpiece:
◗Press the or button
There are five volume levels, shown on the
display. After you
volume will stay at the level you have set.
Making and answering calls
HANDFREE button
symbol ,
(from level 1 to 5) by pressing or
button.
Unmute and the symbol appears.
end your call, the earpiece
■
Binatone Help Line: 0845 345 9677 (Local Call rate)
15

Last Number
Redial Your Symphony most recent numbers you dialled. To use Redial:
1Press the right key of navigation keys
uThe display shows a list of up to 5 numbers.
2If necessary, press the or button to go
to the number you want to call
3Press the PHONE button to dial the number
Or you can press the right Soft button Back to
go back to standby mode without dialling the
number.
à… and
options in the
Redial list
When the Redial list is shown on the display,
appears above the right Soft button.
1
Press the left Soft button Menu to display
the menu options:
— store this number in the Phone
Book for future use.
Delete — delete this number from the
Redial list.
Delete all — clear the Redial list.
Use the or button to go to the option
you want, then press the left Soft button
For details of how to store the number in the
Phone Book, turn to page 18.
Making and answering calls
Select
Select
Add to PB
2
If you’ve selected Delete, you’ll be asked :
◗Press the left Soft button OK to delete
this entry, or the left Soft button Back to
cancel without deleting the entry
Delete?
http://www.binatoneonline.com/
16
2600 handset stores the 5

àoptions in
the Redial list,
continued
If you’ve selected Delete all, you’ll be asked:
◗Press the left Soft button OK to delete all
entries from the list, or the right Soft button
Back to cancel
Making and answering calls
Delete ?
Binatone Help Line: 0845 345 9677 (Local Call rate)
17
