Bio-Logic Hard Case for iPhone 5 User manual

12
3 4 5
6
7
8
9
10 11
12
13
16
14
15
3 4
8

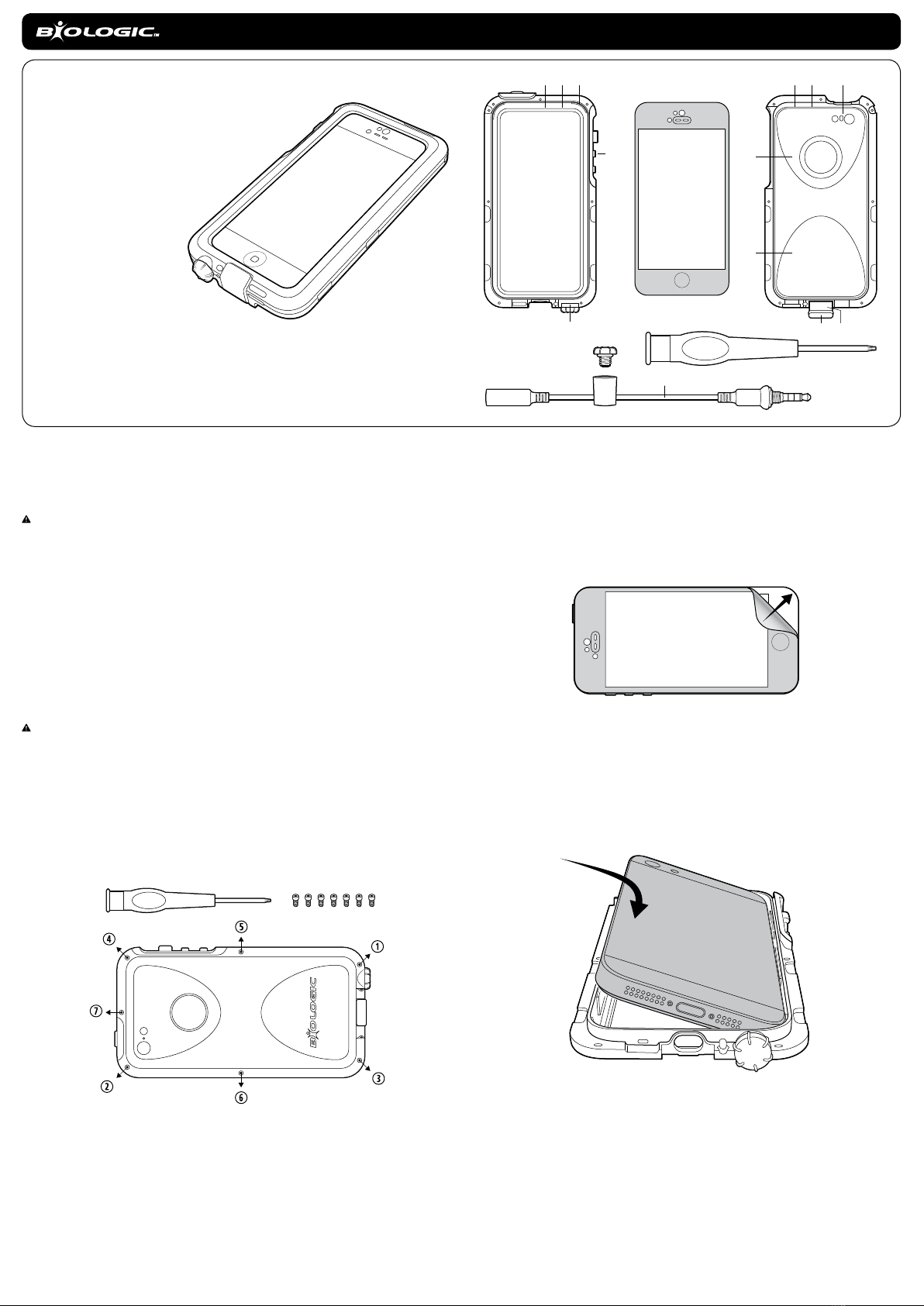

Installation
IMPORTANT
While the Hard Case passes our stringent quality control measures before
leaving our factory, some par ts may move or dislodge during shipment.
Therefore, to ensure optimal performance and prevent water or dust in-
gress, before installing the Hard Case onto your phone please,
1. Confirm that the Cover O-rings are properly seated in the Sealing Grooves.
2. Confirm that the Cover O-rings are free from twists, wrinkles and/or
deformation.
3. Do not touch, rub or dislodge the Cover O-rings with your hands or other
objects.
4. Check against dislocation or deformation especially during installation of
the phone into the case.
If the O-rings are twisted, deformed or out of place, use a pair of forceps
to put them back in place. In case the deformation persists, replace any
affected O-ring(s).
Tip: You can practice assembling the case using the provided dummy phone so
that you can test the waterproof feature before assembling to a real phone.
1. Separate the Front Cover from the Rear Cover by removing the seven Star
Bolts with the Star Key provided and then open the Access Door to separate
the Covers..
Note : Please keep the Star Bolts in a safe place as they are required for
assembly.
2. Remove any protective cover, screen protector or protective film from
your phone and then clean the front phone surface using the Screen Cloth
provided.
Tip: to remove fine hairs and/or dust from the front phone sur face, make a
loop using self-adhesive tape and gently tap the screen with the sticky side.
3. Peel the Screen Film from the backing card and carefully stick the Screen
Film over the front of your phone. Be sure to align the edges of the Screen
Film with the phone screen. A rainbow pattern may be visible on the screen,
but this is normal and will gradually disperse.
4. Place the Front Cover face down on a flat surface and check the O-rings
are in place and undamaged.
5. Tilt the phone down toward the side with the Volume Buttons and align
the Silent Switch with the Button Panel and the lower edge of the phone
with the same edge of the Front Cover. Once alignment is confirmed,
carefully insert the Silent Switch into the Button Panel, and gently set the
phone into the Front Cover.
Caution: Do not slide or rub the phone against the O-rings. If worried about
correct installation, carefully remove your phone, double check the O-rings,
and re-install.
6. Before installing the Rear Cover, carefully pick the phone and Front Cover
up to check that the O-ring is not visible from the front and that the Silent
Switch operates normally. If the O-ring is visible or the Silent Switch does
not function normally, remove and reinstall the phone by following Step 5.
List of Parts
1. Front Cover
2. Rear Cover
3. Sealing Groove
4. Cover O-ring
5. Silicon Pads
6. Button Panel
7. Screen Film
8. Antennae Spacers
9. Lens Cover
10. Access Door
11. Foam Gasket
12. Headphone Cable
13. Headphone Retainer
14. Headphone Plug
15. Headphone Mount
16. Star Key
* iPhone 5 not included
Hard Case for iPhone 5

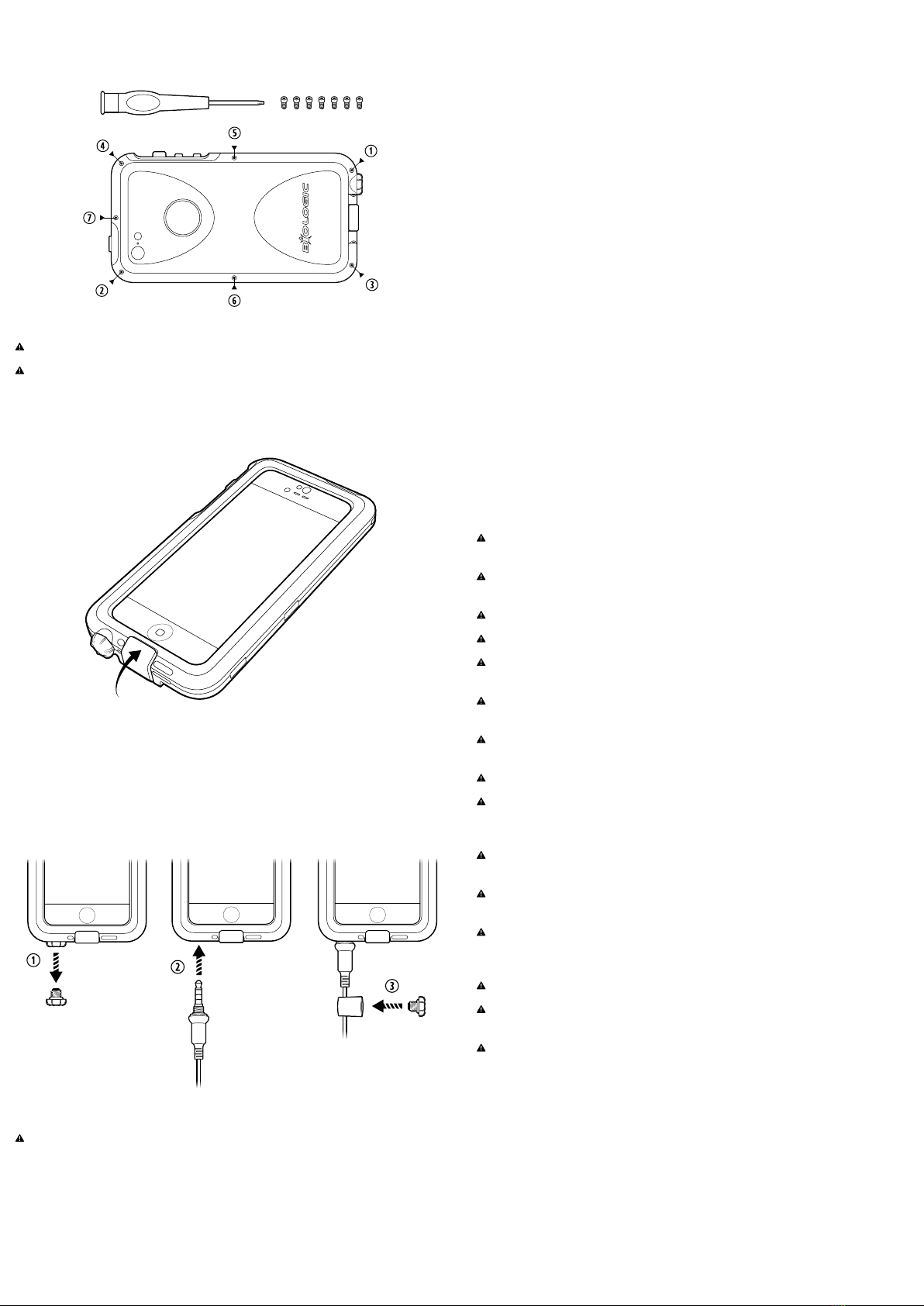

7. Place the Rear Cover on the back of the phone. Secure the Rear to the
Front Cover by inserting and gently tightening the seven Star Bolts. Then
firmly tighten the Star Bolts in the order shown below.
Align Star Key with Star Bolts properly to avoid damaging the Star Bolts.
Check around the edge between the Front and Rear covers to ensure that
they are firmly engaged and there is no gap between them.
8. Close the Access Door until it clicks into place.
9. If using without headphones, ensure the Headphone Plug is aligned with
and tightened to the Headphone Mount.
10. If using with headphones, remove the Headphone Plug and store in the
Headphone Retainer and then align and tighten the Headphone Cable
to the Headphone Mount before connecting your headphones with the
Headphone Mount.
If using headphones in or around water, use only waterproof headphones.
LIMITED PRODUCT WARRANTY INFORMATION:
This Product comes with a ONE (1) YEAR Limited Warranty from the date
of the retail purchase by the original end-user. If a material or workman-
ship defect arises and a valid claim is received within the Warranty Period,
the Product will be replaced or repaired. BioLogic cannot be held liable for
damages to personal property due to misuse or improper care and mainte-
nance. This Product’s Warranty does not, under any circumstance, cover
the replacement or cost of any electronic or personal property used with or
connected to the Product.
The BioLogic Hard Case is made of Aluminum. Like other metal cases, signal
reception by the phone while inside the case may be affected. Although our
tests show that any signal degradation is within a reasonable limit (no lower
than holding the phone in your hand), variations among networks can be
significant. If using the case in areas of poor signal reception, users should
be aware of the risk of degraded signal.
BioLogic retains no liability for loss of signal or inability to operate the
phone.
Caution
The BioLogic Hard Case contains some delicate components, the integrity of
which is critical to the protection and proper operation of your phone. Do not
touch, modify or remove these parts or the protection of your case may be
degraded, possibly compromising your phone’s operation or function.
1. Microvents covering sound ports
2. O-rings (except if necessary)
3. Button Panel
4. Lens Cover
Do not loosen, remove or replace the five cross head screws near the Button
Panel.
Do not remove or damage the surface of the Foam Gasket around the
Access Door.
Do not press the Lens Cover or Antennae Spacers without a phone installed.
Do not remove the O-ring from the Headphone Cap.
Do not remove the Button Pad from the inner sur face of the Screen Film that
corresponds to the Home Button.
Do not remove any one of the Silicon Pads adjacent to the Sealing Groove on
the Front Cover Frame.
The Cover O-rings in the Sealing Groove of the Front and Rear Covers are
critical for protection of your phone against water and particulates.
Ensure all seals are properly closed before exposure to dust or liquid.
After any impact, ensure case is fully close and there is no gap between
Front and Rear Covers, also check for damage to any seals. Replace the
Hard Case if damage is possible or detected.
If damaged, case may not perform as sold so cannot be relied upon to
prevent liquid and/or particle ingress.
Frequently check the Screen Film, O-rings, Star Bolts or Headphone Plug/
Cable for malfunction and/or wear and tear, replace if required.
Before opening or removing the Hard Case, check to make that no liquid or
foreign objects that may damage your phone remain on the case sur face or
between the gaps.
Check the O-rings during every installation.
Microvent fabric covers the front speaker on the phone so some
deterioration of sound quality may result.
The Hard Case is only compatible with original Apple lightning connectors.
Specification:
• Works with iPhone 5
• Case Size: 132.5 x 72 x 12.5 mm (5.1” x 2.8” x 0.6”)
• Case Weight: 88 g (3.08 oz)
* BioLogic, the BioLogic logo, BioLogic Man (device), and Hard Case are trade names, trade devices
or registered trademarks of Mobility Holdings, Ltd.
iPhone is a trademark of Apple Inc., registered in the US and other countries.
© 2011-2013 Mobility Holdings, Ltd.
