biodex ECHO PRO User manual

BIODEX
Biodex Medical Systems, Inc.

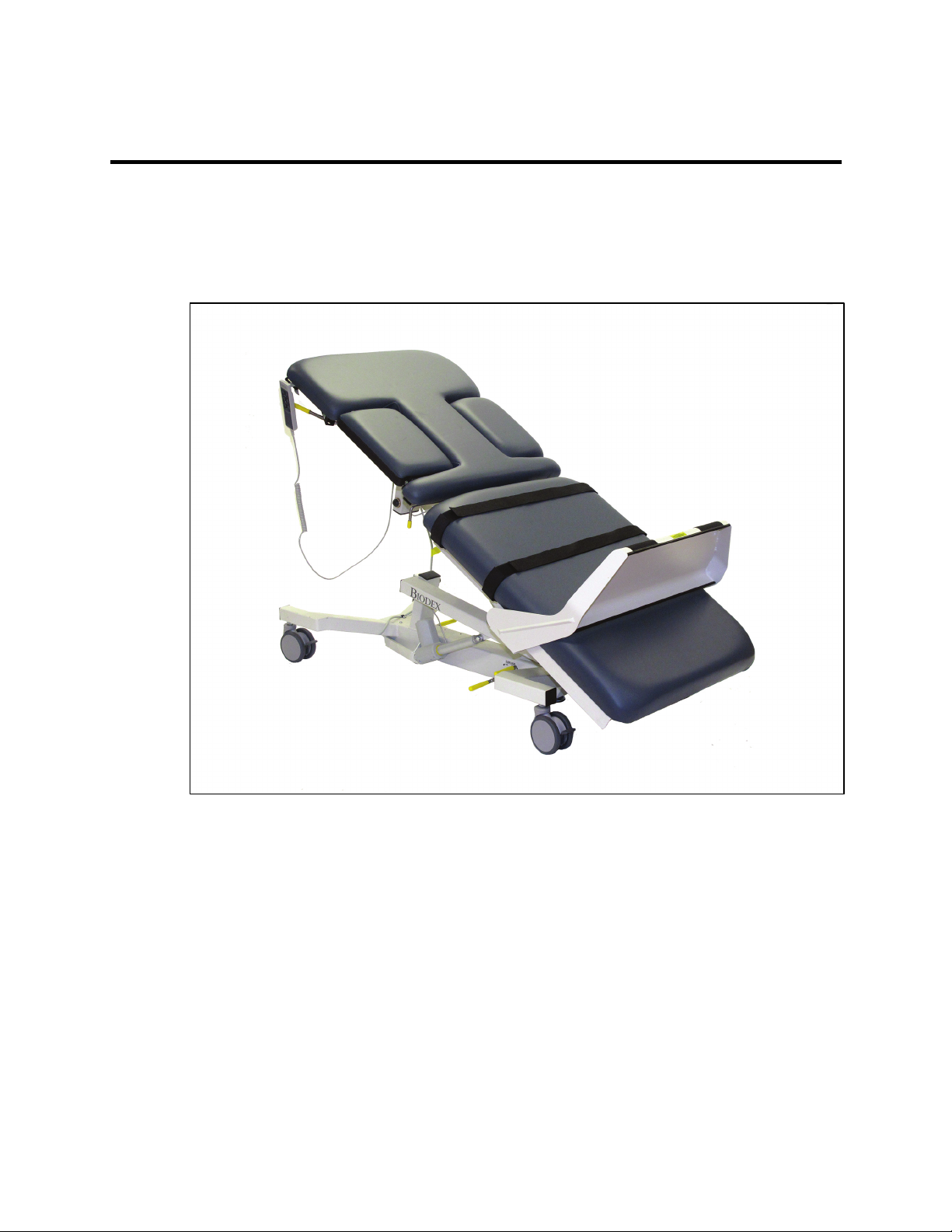

ECHO/VASC PROTM
VASCULAR ULTRASOUND TABLE
OPERATION MANUAL
058-702
058-707
FN: 11-308 Rev C 3/15

II ECHO/VASC PRO VASCULAR ULTRASOUND TABLE

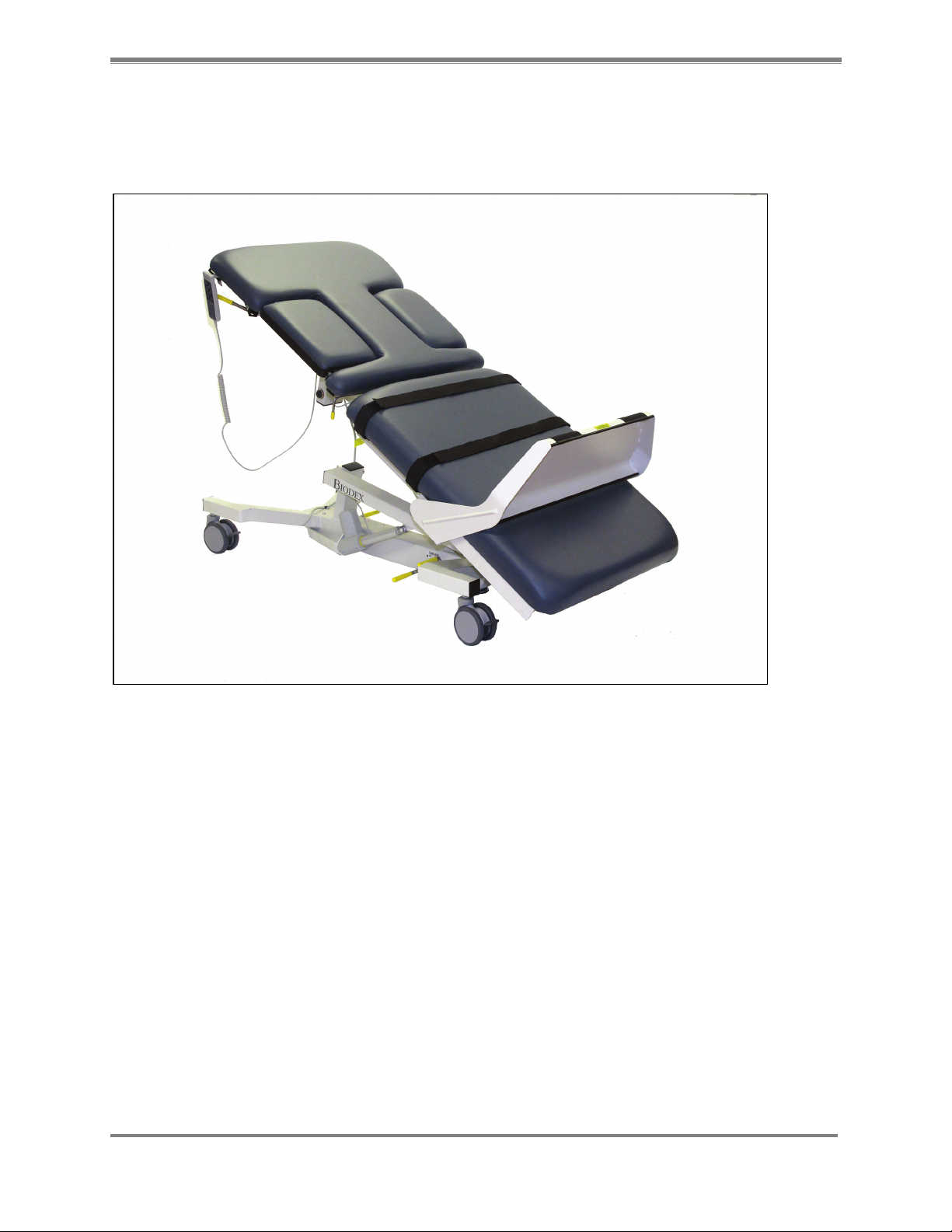

Echo/Vasc ProTM Vascular Ultrasound Table
This manual covers operation procedures for the following products:
058-702 Table, Vascular Ultrasound, Echo/Vasc Pro™, 115 VAC
058-707 Table, Vascular Ultrasound, Echo/Vasc Pro™, 230 VAC

BIODEX MEDICAL SYSTEMS, INC. © 2015 III
Table of Contents
Definition of Symbols………………………………………………………………………………………….….…IV
Before proceeding…………………………………………………………………………………………………... V
Important Safety information……………………………………………………………………………………... VII
Warranty……………………………………………………………………………………………………………….. IX
CHAPTER 1: INTRODUCTION…………………………………………………………................................. 1-1
Intended Use…………………………………………………………………………………………………………..1-1
Indications For Use………………………………………………………………………………………………….. 1-1
General Cleaning and Maintenance Instructions……………………………………………………………… 1-1
Table Parts and Adjustments……………………………………………………………………………………… 1-2
CHAPTER 2: ASSEMBLY AND TABLE OPERATION…………………………………............................... 2-1
Relocating the Table………………………………………………………………………………………………… 2-1
Height Adjustment………………………………………………………………………………………………….. 2-1
Trendelenburg/Reverse Trendelenburg………………………………………………………………………… 2-1
Fowler Back Adjustment.................................................................................................................2-2

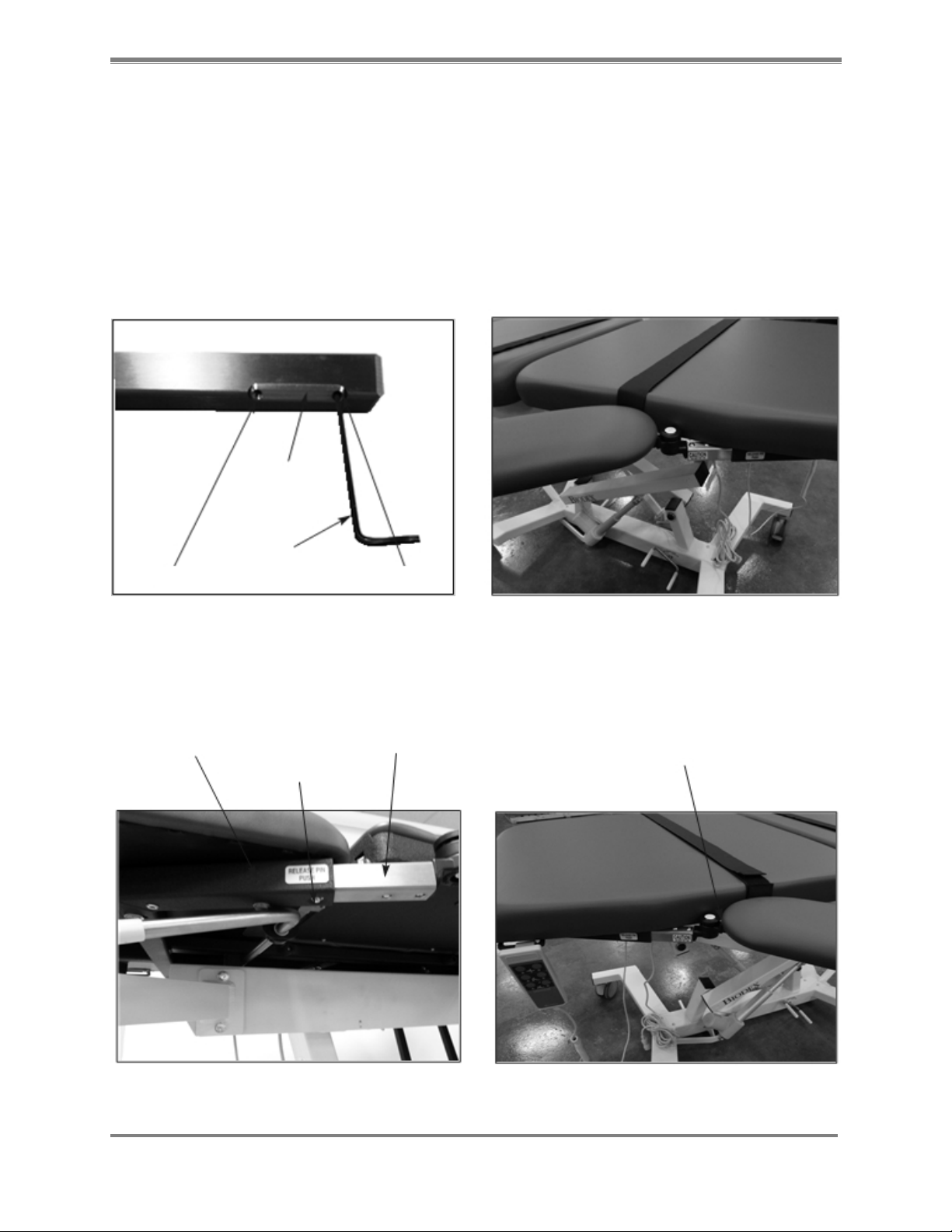

Leveling the Table…………………………………………………………………………………………………… 2-2
Adjustable Sonographer Cutout Cushion………………………………………………………………………. 2-2
Cardiac Scanning Cutout Cushion……………………………………………………………………………….. 2-2
Adjustable Foot Support................................................................................................................ 2-3
Installing and Using Optional Accessories………………………………………………………………..….…2-5

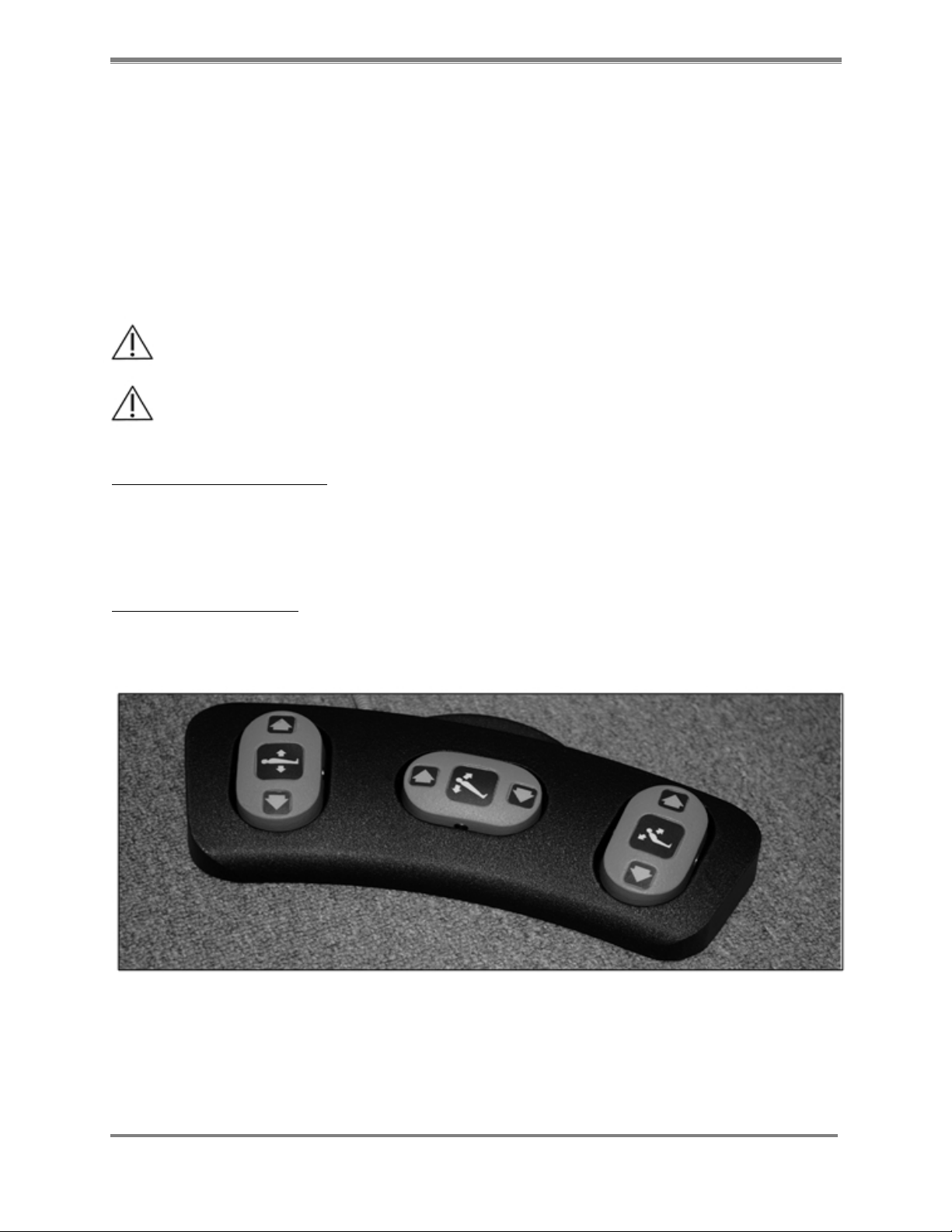

Foot Controller…………………………………………………………………………………………………….….2-5
Articulating Vascular Scanning Armboard…………………………………………………………………..…. 2-6
Side Rails…………………………………………………………………………………………………………….... 2-7
Headrest Extension………………………………………………………………………………………………..…2-8
Paper Dispenser……………………………………………………………………………………………………... 2-9
IV Pole…………………………………………………………………………………………………………........... 2-10
APPENDIX A – SPECIFICATIONS…………………………………………………………....……………......… A-1
APPENDIX B – CONFORMANCE TO STANDARDS…………………………………............................…. B-1
APPENDIX C – PARTS AND ASSEMBLY ILLUSTRATIONS……….....................………...……........….. C-1

IV ECHO/VASC PRO VASCULAR ULTRASOUND TABLE

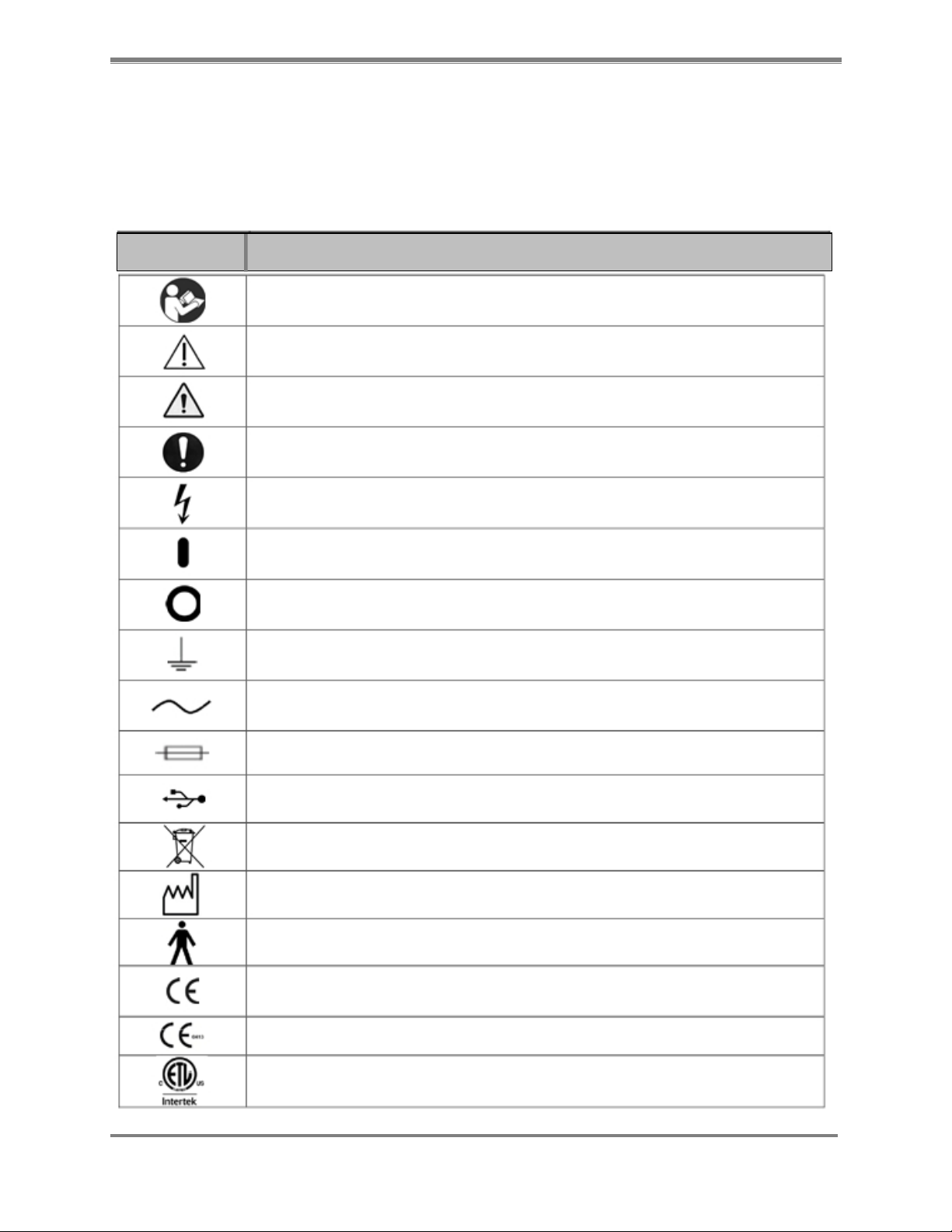

Definition of Symbols
The following symbols and their associated definitions are used and implied
throughout this manual.
Carefully read these instructions prior to use
Caution
General Warning
General Mandatory Action
Dangerous Voltage
“On” Power
“Off” Power
Earth (ground)
Alternating Current
Fuse
USB Connector/Cable
Waste in Electrical Equipment
Date of Manufacture
Type B Applied Part
CE Mark
CE Mark for products with EC Certificate
Certified for Safety by ETL Intertek
Symbol Definition

BIODEX MEDICAL SYSTEMS, INC. © 2015 V
Before Proceeding
NOTE: The warnings, cautions and instructions provided in this manual must be read,
followed and kept available for consultation at all times. Observing the information,
instructions and procedures presented throughout this manual are essential for using
this product both properly and safely.
SPECIFIC CAUTIONS:
• Allow only qualified, trained personnel to operate or service this product.
• If the equipment is used in a manner other than specified in this operation manual, the
protection provided by the equipment may be impaired and results could be
compromised.
• Never leave patient unattended on table.
• When the table is used in a wet environment, it is recommended that the foot controller
be covered with a plastic bag and sealed as watertight as possible.
EN GARDE SPÉCIFIQUES :
•Permettez au personnel seulement autorisé, entraîné de faire marcher ou assurer
l'entretien de ce produit.
•Si l'équipement est utilisé dans une manière autre qu'indiqué dans ce manuel
d'opération, la protection fournie par l'équipement peut être diminuée et les résultats
pourraient être compromis.
• Ne quittent Jamais le patient sans surveillance sur la table.
•Quand la table est utilisée dans un environnement mouillé, il est recommandé que le
contrôleur de pied soit couvert avec un sac de plastique et cacheté si inattaquable que
possible.
CAUTION: Unauthorized modifications to this product are not permitted and will void
the manufacturer’s warranty. Unauthorized modification of the product may result in a
hazard to the user and/or patient. Do not modify this equipment without authorization
from the manufacturer.
ATTENTION: Les modifications faites sans autorisation à ce produit ne sont pas
permises et va faire le vide la garantie du fabricant. La modification faite sans
autorisation du produit peut s'ensuivre dans un hasard à l'utilisateur et-ou le patient. Ne
modifiez pas cet équipement sans autorisation du fabricant.
CAUTION: Before moving the table with a patient, make sure side rails are in the up
position and body straps are in place to secure the patient.
ATTENTION: Avant le fait de déplacer la table avec un patient, assurez-vous que les
rails de côté sont dans en haut la position et les courroies de corps dans l'endroit pour
protéger le patient.

VI ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
Training
This operation manual includes assembly and operating instructions. Operating/assembly
questions can be directed to our service department during business hours.
User Profile
Patient
The product (without accessories) shall accommodate patients fitting the following profile:
Height: from infant to 74 inches (6ft - 2in).
Weight: up to 500 lbs
Age: infant to 65 years of age.
Sonographer
The product shall accommodate sonographers fitting the following profile:
5th percentile female, 20-65 years of age
95th percentile male, 20-65 years of age
Product Certifications and Classifications
The Echo/Vasc Pro Vascular Ultrasound Table has received the following certifications, and falls
within the following classifications:
•ETL Listed Electrical Equipment, General Requirements for Safety conforms to EN 60601-1,
2nd Ed, En 60601-1:1998, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN
60601-1-2, EN 1970, UL 60601-1, 1st ED, 4-25-2003 rev 2006/04/26 and CAN/CSA C22.2
no.: 601.1M9.
• Type B Applied Part
•Electromagnetic Compatibility: This equipment complies with the Medical Equipment
IEC60601-1-2 EMC Standard.
Authorized European Community Representative:
Emergo Europe
Molenstraat 15
2513 BH, The Hague
The Netherlands
EC
REP

BIODEX MEDICAL SYSTEMS, INC. © 2015 VII
Important Safety Information
CAUTION: Federal Law restricts this device to sale by or on the order of a physician,
sonographer or other licensed professional.
ATTENTION: La Loi Fédérale restreint cet artifice à la vente par ou sur l'ordre d'un
docteur, sonographer ou d'autre professionnel agréé.
Follow the unpacking and assembly instructions document.
Before using this equipment, read the entire operation manual carefully. Failure to
read the manual may result in user error or injury. Be sure to save all provided
documents for future reference.
Make certain to understand all warning and caution labels as explained in the “Before
Proceeding” section of this manual.
This product should be used only as specified in the operation manual.
Biodex Ultrasound Tables are designed for use in a patient environment.
Les Tables d'Ultrasons de Biodex sont conçues à l'utilisation dans un environnement
patient.
For product specifications, refer to the Table of Contents.
This medical electrical equipment requires special precautions regarding EMC and
must be assembled and placed into service according to EMC information provided in
this manual.
Reference Cleaning and Maintenance Instructions in Table of Contents.
CAUTION: Operation for 058-702: 120 VAC, 60 Hz; 058-707 230 VAC, 50 Hz.
ATTENTION: Opération pour 058-702: 120 VAC, 60 Hz; 058-707 230 VAC, 50 Hz.
WARNING: Only use approved power supplies.
AVERTISSEMENT: N'utiliser que les alimentations homologues.

VIII ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
CAUTION: To avoid risk of electric shock, this equipment must only be connected to
supply mains with protective earth.
ATTENTION: Pour éviter le risque de choc électrique, cet équipement doit uniquement
être connecté à un approvisionnement conduites avec la terre protectrice.
CAUTION: The plug is considered the method of disconnecting the product from main
power. Do not place the product in a position where the plug is not easily accessible.
ATTENTION: Le bouchon est considérée comme la méthode de déconnexion du produit
d'alimentation. Ne placez pas le produit dans une position où le bouchon n'est pas
facilement accessible.
CAUTION: This product is intended to remain in one location during operation. The
product is provided with wheels for relocation and should be used when performing this
operation. Once positioned, engage the central locking system lever to ensure stability.
ATTENTION: Le produit est voulu rester dans un emplacement pendant l'opération. Le
produit est fourni avec les roues pour la relocalisation, et devrait être utilisé en
exécutant cette opération. Une personne peut déplacer le produit.

BIODEX MEDICAL SYSTEMS, INC. © 2015 IX
Biodex Medical Imaging Table Warranty
1. Product Warranty
A. This equipment and its accessories (excluding cushions,) are warranted by BIODEX MEDICAL
SYSTEMS, INC. against defects in materials and workmanship for a period of two years from
the date of shipment from BIODEX MEDICAL SYSTEMS, INC. During the warranty period,
BIODEX MEDICAL SYSTEMS, INC. will, in its sole discretion, repair (on-site), send replacement
parts or replace the equipment found to have such defects, at no charge to the customer.
B. Except as stated above, there are no warranties, expressed or implied, including without
limitation warranties or merchantability or fitness for use. Biodex does not assume liability
for incidental, consequential or indirect damages including loss of use, sales, profits or
business interruption.
C. This warranty does not apply if the product, as determined by BIODEX MEDICAL SYSTEMS,
INC., is defective due to abuse, misuse, modification or service performed by other than a
BIODEX MEDICAL SYSTEMS, INC. authorized repair representative. Misuse and abuse include,
but are not limited to, subjecting limits and allowing the equipment to become contaminated
by fluid materials.
D. In order to obtain warranty repair service and to expedite repair process, please contact
BIODEX MEDICAL SYSTEMS, INC. Support Services Dept. at 800-224-6339, and select
radiology product support as prompted.
2. Warranty Is Non-Transferable
3. Non-Warranty Service
A. Repairs and/or replacements not covered by this warranty may be performed by
BIODEX MEDICAL SYSTEMS, INC. authorized service representatives.
B. The cost of transportation to and from the service location will be the responsibility of
the customer.

X ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
Service Procedure
If you think you have a service problem, take the following action:
1. Check to see that the problem occurs more than once.
2. Refer to the instruction manual and operations procedure.
If you still think you have a service problem, call Biodex MEDICAL SYSTEMS, INC. Service
Department at [phone] and select product service as prompted.
Keep yourself and the phone next to the equipment:
1. Biodex Service will ask you for a brief description of the problem. We will ask specific questions
about the malfunction that occurred. This diagnostic process may take a few minutes, so call us
when you can set aside an uninterrupted block of time.
2. After taking the information, we will advise on the action we will take.
3. Sometimes service personnel must consult with engineering and it may take time to get back to
you. Be sure to let the service representative know your schedule so that we can call at a
convenient time.
4. The return call may be from a person other than whom you first reported the problem.
5. After analyzing the problem, we will decide if the unit can be repaired on site or if replacement
parts will be sent.
6. If the unit must be returned, it will be given a return materials authorization number (r.m.a. #)
by us. Pack the system in the carton that it was originally shipped in, or pack it safely and
securely to avoid shipping damage. It is the customer's responsibility for any damage that occurs
during shipping.
7. Non-warranty/non-service contract charges for repair are as follows:
a. Materials
+
b. Time
+
c. Travel Zone

BIODEX MEDICAL SYSTEMS, INC. © 2015 1-1
1. INTRODUCTION
Intended Use
The Echo/Vasc Pro Vascular Ultrasound Table was designed to provide a safe ergonomic
environment for the sonographer and patient. The design features are intended to relieve
musculoskeletal stress on the sonographer while scanning, and to provide the utmost patient
comfort.
Indications For Use
The Echo/Vasc Pro Vascular ultrasound table is typically used in radiology departments,
diagnostic imaging centers and private practice clinics to achieve quality images for a variety of
procedures and patient applications, avoiding physical stress and strain on the sonographer
while scanning.
The table’s design features vertical height adjustment to accommodate sonographers petite and
tall, or the option to frequently change from seated or standing work position. Cutouts on either
side of the table enable full patient access and sonographer ergonomics. The cardiac scanning
cutout provides open access to the patient’s left thorax area for unobstructed apical approach.
Ergonomically designed, the sonographer cutout virtually eliminates repetitive strain injuries.
General Cleaning And Maintenance
1. As required, cleanse all exterior surfaces and tabletop pads with a mild detergent solution,
such as Parker Laboratories Protex Disinfectant or any one-step disinfectant that does not
contain bleach.
2. Keep wheel assemblies free of foreign materials and dirt accumulation.
3. Periodically inspect all welds.
4. Periodically check bolts on table, tighten if necessary.
5. Periodically inspect all strap holders. Any holder that feels loose should be removed and
reattached after adding a spot of Loctite®Threadlocker (Blue #242) to the bolt threads. This
should ensure that the bolt will not loosen again in the future.

1-2 ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
Table Parts And Adjustments
1
8
3 7
2
9
6
5
4
Figure 1. The Biodex Echo/Vasc Pro Vascular Ultrasound Table parts and adjustment include:
Standard Parts and Adjustments:
1. Fowler Back
2. Adjustable Sonographer Cutout Cushion
3. Hand-Held Controller
4. 5" Locking Swivel Casters
5. Central Floor Locking System Lever
6. Foot Support
7. Extra-Wide Tabletop With 500-Lb Patient Capacity
8. Cardiac Scanning Cutout Cushion
9. Restraining Straps
Optional:
058-740 Foot Controller
058-633 Side Rails, Folding
058-736 Arm Board, Vascular Scanning
058-737 IV Pole
058-611 Dispenser, Paper, With Cutter Strap
058-738 Extension, Headrest

BIODEX MEDICAL SYSTEMS, INC. © 2015 2-1

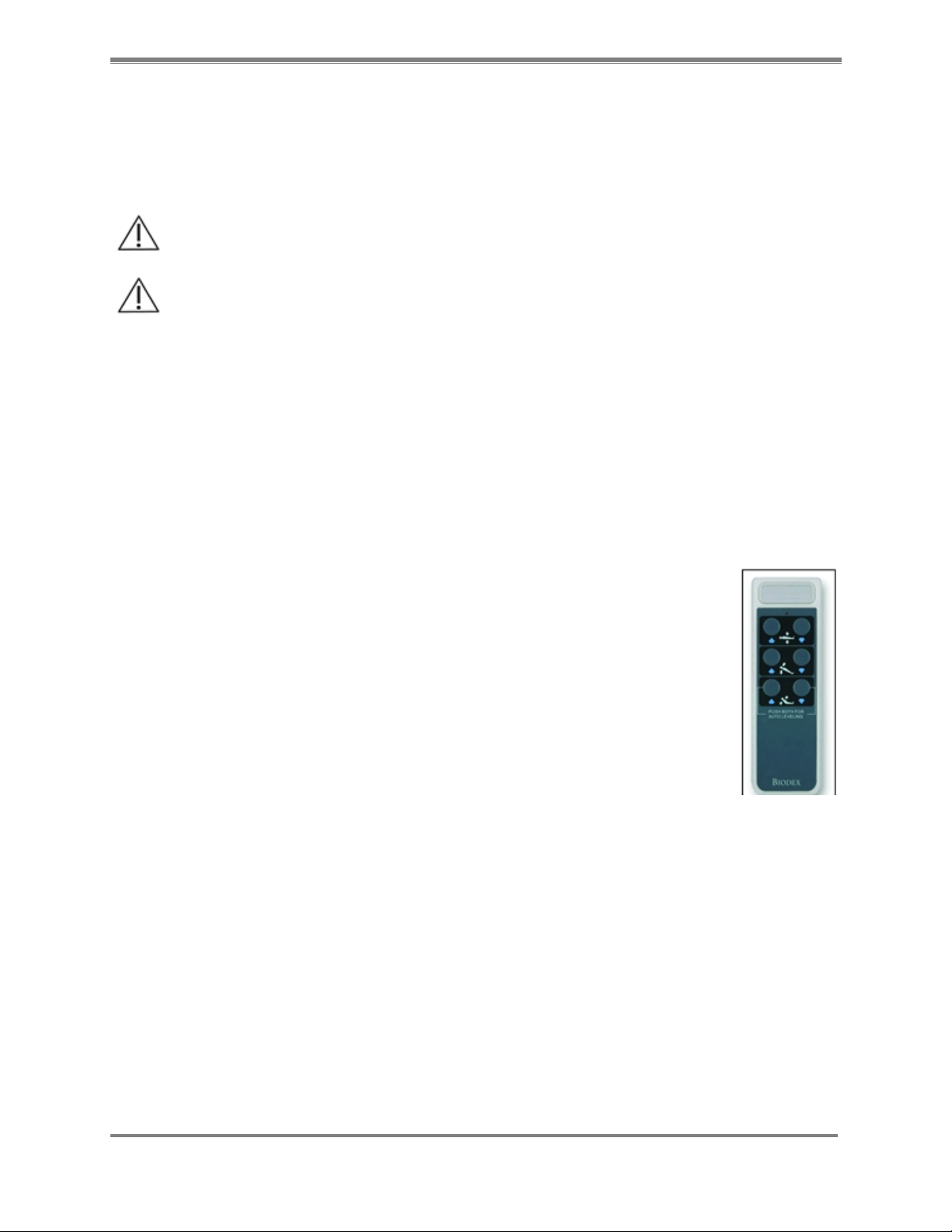

2. Assembly And Table Operation
Relocating The Table
CAUTION: Before moving the table with a patient, make sure side rails are in the up
position and restraining straps are in place to secure the patient.
ATTENTION: Avant de déplacer la table avec un patient, assurez-vous que les rails
latéraux sont dans les courroies hautes de position et de corps en place pour fixer le
patient
This table can be easily moved across smooth surfaces.
To move the table, release the central locking system by pressing with your foot on the short end
of the central locking lever. All four wheels release at the same time.
Once positioned, depress the end of the lever to engage the central locking system, ensuring
stability.
NOTE: In addition to the central locking system, each wheel can be locked individually by stepping
down on the individual wheel lock lever.
Height Adjustment
Table height is conveniently adjusted with the hand-held or optional foot
controller. D-ring holders are provided on the end of the straps at each side of the
table frame to hold the hand-held controller when it is not in use. The hand-held
controller can be moved to either side of the table. A power light on the controller
indicates that power from the control box is on.
•To raise the table: press and hold down the table up button.
• To lower the table: press and hold down the table down button.
NOTE: The control box, located underneath the tabletop, is labeled with
controller specific information.
Trendelenburg/Reverse Trendelenburg Positioning
The table can provide up to 15° Trendelenburg or 30° Reverse Trendelenburg positioning by
raising or lowering either the head or foot end of the table with the hand-held or optional foot
controller.
•For Trendelenburg positioning: press and hold down the foot-end up button on the hand-held
controller. This will simultaneously raise the foot end and lower the head end of the table. Release
the button when the desired angle is achieved.
Figure 2. Hand
controller
activates table
positions.

2-2 ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
• For Reverse Trendelenburg positioning: press and hold down the head-end up button on the
hand-held controller. This will simultaneously lower the foot end and raise the head end of the
table. Release the button when desired angle is achieved.
Fowler Back Adjustment
The motorized Fowler back is infinitely adjustable to 80° via the hand-held or optional foot
controller.
Leveling The Table
The table has a self-leveling feature which can be used when the table is in a Trendelenburg or
Reverse Trendelenburg position.
• To level the table, press and hold both Fowler back buttons on the hand-held control.
Adjustable Sonographer Cutout Cushion
To assure both patient and sonographer comfort, the adjustable sonographer cutout cushion
can be fully lowered, or raised to either of two positions.
• To fully lower the cushion, reach under the cushion and squeeze together the two
sonographer cutout cushion release handles. This will release the cushion, which can now be
lowered. To return the cushion back to the level position, squeeze the handles together and
lift up on the cushion until it is higher than level and then lower the cushion back down until it
locks in the level position.
• To raise the cushion, lift up on the cushion. There are two positions in which the raised
cushion can be set. To set the cushion in the first raised position, lift the cushion two-thirds of
the way to vertical and then allow it to slide back down slightly until you feel it lock into
position. To raise the cushion to the fully raised position, lift the cushion all the way up to
vertical and then allow it to move back slightly until it locks into place. To lower the cushion
from either raised position lift up on the sonographer cutout cushion release lever (located
along the head-end of the cushion) and then lower the cushion.
Cardiac Scanning Cutout
The cardiac drop-down cushion can be released by pressing the yellow release handle which can
be found toward the lower end of the Fowler back section on each side of the table.
The cushion can be returned from either side of the table. From the right side you will find a
handle located toward the head end of the table. By pressing this handle down, the cardiac
cushion will return to level. From the left side of the table, simply push the cushion back up to
level.

BIODEX MEDICAL SYSTEMS, INC. © 2015 2-3
Adjustable Foot Support
Adjustable every 2", up to 14", the foot support provides the sonographer comfortable access to
patients of various heights. Ideal for low extremity vascular studies, and any procedures requiring
patient remain in an upright position.
When not in use, the foot support conveniently tucks beneath the table allowing clear access to
the tabletop. If desired, the foot support can be removed from the table completely.
NOTE: The foot support cannot be stowed beneath the table when the table is in Reverse
Trendelenburg >15°. Doing so can cause damage to both the foot support and the table.
Adjusting The Foot Support Platform:
1. Stand behind the foot support platform and place both hands on the top edge of the foot
support.
2. Raise the foot support slightly and move it to the desired position.
3. Release the foot support so that it drops into the stop slot.
4. To return the foot support to its furthest point, raise it and move it to the last stop.
Figure 3. The Foot Support Platform.

2-4 ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
Storing The Foot Support Platform Beneath The Tabletop:
1. The foot support must be located in the stop (closest to the foot end of the table).
2. To return the foot support to its furthest point, raise it and move it to the last stop.
3. Stand behind the foot support with both hands on the top edge, raise the support and pull
toward you.
4. The foot support will drop below the tabletop.
5. Once the support starts to drop below the tabletop, push it forward as it slides completely
underneath the tabletop.
6. The foot support will rest beneath the table securely in place.
Return Foot Support Platform To Tabletop Position:
1. Grab the top edge of the support with both hands and pull up toward you.
2. Once the support has cleared the tabletop, raise it again and slide the foot support forward
to the desired stop.
Remove Foot Support Platform Completely:
1. The platform must be positioned on the tabletop.
2. Using a Phillips screwdriver, remove the two safety screws, one on each side of the foot
support beneath the tabletop.
3. With two hands on the top edge of the support, lift the platform high and pull toward you.

BIODEX MEDICAL SYSTEMS, INC. © 2015 2-5
Installing And Using Optional Accessories
NOTE: The tools needed to install all table accessories are provided with the table. These include
a 7/16" wrench, 9/16" wrench and a Phillips screwdriver.
Foot Controller (058-740)
The optional foot controller uses three separate rocker style pedals to control tabletop height,
Trendelenburg/Reverse Trendelenburg and Fowler positioning. (See Figure 4.)
CAUTION: When the table is used in a wet environment, it is recommended that the
foot controller be covered with a plastic bag and sealed as watertight as possible.
ATTENTION: Quand la table est utilisée dans un environnement mouillé, il est
recommandé que le contrôleur de pied soit couvert avec un sac de plastique et cacheté si
inattaquable que possible.
To install the foot controller:
1. Locate the foot control port on the frame underneath the seat cushion.
2. Insert the foot controller plug into the port (labeled "foot control") so that the plug key faces
up and slides fully into the port slot. The foot controller should now be ready for use.
Using the foot controller:
To use the foot controller, simply press and hold down the appropriate rocker switch with your
foot to adjust the table as desired. Releasing the rocker switch at any time immediately stops
the motion.
Figure 4. The optional foot controller can be used to adjust tabletop height, Trendelenburg/Reverse
Trendelenburg, and Fowler positioning.

2-6 ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
Articulating Scanning Arm Board (058-736)
The optional Articulating Scanning Arm Board is installed by inserting the arm board tube into
the receiving tube located on each side of the table below the Fowler back section. The arm
board pivot is adjustable at any point along its 130° arc. To adjust, press the yellow button on
the arm board and move to the desired location; release yellow button. (See Figures 5 – 8.)
To remove the arm board, press the release button beneath the receiving tube and pull to remove.
Compensator
Allen Key
Receiving Tube Arm Board Tube Angle Adjustment Knob
Release Button
Figure 6. The articulating scanning arm board.
Figure 5.
Figure 7.
Figure 8.
Adjustment Screw Adjustment Screw

BIODEX MEDICAL SYSTEMS, INC. © 2015 2-7
Side Rails (058-633)
The optional side rails can be installed on both sides of the table. Each rail pivots individually to
either the raised or lowered position. Two rails are supplied; one for each side of the table.
To install the side rails:
1. Using a 7/16" wrench, remove the four 1/4-20" hex head screws from under the abdominal
cushion (toward the rear of the cushion) on the side of the table to which the side rail will be
installed. Remove the strap bracket and save the screws to reinstall in step 3.
2. Position the side rail support bracket against the bottom of the cushion so the four pre-drilled
screw holes in the bracket align with the screw holes under the seat cushion.
3. Using a 7/16" wrench install the four screws removed in step 1 through the side rail support
bracket. Tighten securely.
4. Press the small piece of vinyl trim bumper onto the lower frame edge beneath the mid-point of
the seat.
5. Install the straps into the side rails strap brackets.
Using the side rails:
1. To raise either side rail, pull out the side rail pull pin and gently swing the rail upward so that it
locks fully into position.
2. To lower either side rail, pull out the side rail pull pin and, while supporting the side rail, allow
it to gently swing down and under the table until the rail locks in place.
Figure 9. Installing the side rails.

2-8 ECHO/VASC PRO VASCULAR ULTRASOUND TABLE
Headrest Extension (058-738)
The optional headrest is removable and adjustable. To install the headrest, simply slide it into the
receiving tube at the head end of the table until it clicks into place.
Figure 10. The optional headrest.
Figure 11. Headrest adjustments.
Push to adjust angle.
Push to release.
