Biomorph Flexo Corner User manual

Flexo Level3 Desk
& Flexo Corner Assembly
Biomorph Inc., 1045 33rd Street South, St Cloud, MN 56301
Tel and Fax [phone] [email protected]
www.biomorph.com
SX2M-A-LL-S-DS
SX2M-A-LL-B-DS

2
Hardware
Tools
“Questions? Please call 917.328.8955 for support.
IMPORTANT: Any issues at site must be reported to Biomorph immediately at 917.328.8955, by text or phone and wait on site for response. Also, photos of
completed desk(s) must be sent to 917.328.8955 or [email protected] and wait ON SITE for approval. This will avoid potential revisits. Thank you.
Components
4mm Wrench Drill Extension #2 Phillips Bit Hex Bit
Leg
Qty 2
2 Port Control Box
Qty 1
Wire Clips
Qty 62
Cable Cab
Qty 2
45˚ Digital Readout
Switch and 45˚
Switch Bracket
Qty 1
aLH Top Plate
Qty 1
bRH Top Plate
Qty 1
c
Keyboard Mechanism
Qty 1
n
ijm
k
Foot
Qty 2
d
Table Top
Qty 1
or
hTable Top Corner
Qty 1
h1
Adjustable
Crossbar
Qty 1
g
LH Adjustable
Crossbar Section
Qty 1
eRH Adjustable
Crossbar Section
Qty 1
fRH Adjustable
Crossbar Section
for Corner
Qty 2
LH Adjustable
Crossbar Section
for Corner
Qty 2
Adjustable
Crossba
for Corner
Qty 2
g1
e1 f1
M6 Flange Head Nut
Qty. 4
16mm PH Wd Screw
Qty. 18
M6 x 12 Screw
Qty. 24
45mm PH Wd Screw
Qty. 2
D - Glider
Qty. 4
5 x 25mm Wd Screw
Qty. 62

3
Assembly OverviewAssembly Overview
IMPORTANT:
DO NOT BUILD THIS TABLE
UPSIDE DOWN. FRAME MUST BE BUILT RIGHT SIDE UP, IN PLACE, AND TOPS THEN ATTACHED. If this
procedure is not followed then tops will not line up with frame. DO NOT REMOVE PROTECTIVE MATERIAL FROM
TOPS UNTIL FINAL ASSEMBLY.
IMPORTANT:
When moving this desk, do not drag frame as it can cause leg actuators to bind and fail. Always lift o
floor using frame, not tops.
a
a
c
b
d
d
g
g1
e
e1
f
f1
e1 f1 g1 e f g
Replaces
for Corner application only

4
Leg Assembly (continued)
Glide
Qty. 4
M6 x 12 Screw
Qty. 8
a
a
d
d
Note: Longer end of
Foot must face toward
front (user) side.
2
Leg Assembly
M6 x 12 Screw
Qty. 4
1
b
c
a
a
bc
a

5
Leg Assembly (continued)
e
f
e1
f1
M6 x 12 Screw
Qty. 4
3
LH Side RH Side
e
Use these holes. Use these holes.
f

6
Crossbar Assembly (continued)
Use these holes. Use these holes.
e
72” LH Side
60” LH Side
M6 x 12 Screw
Qty. 4
M6 Flange
Head Nut
Qty. 4
4
g
Use these holes. Use these holes.
e
g
84” LH Side
72” RH Side
60” RH Side
84” RH Side
Use these holes. Use these holes.
e
g
g
g
g
f
f
f
g
f
e

7
Crossbar Assembly for Corner (continued)
Use these holes. Use these holes.
e1
Corner” LH Side
M6 x 12 Screw
Qty. 4
M6 Flange
Head Nut
Qty. 4
5
1g
Corner” RH Side
g1
f1
f1
e1
g1

8
Top Assembly
5 x 25mm
Wood Screw
Qty. 12
h

9
Top Assembly Corner
5 x 25mm
Wood Screw
Qty. 12
h1

10
Electrical Components
j
45˚ Digital Readout
Switch and 45˚
Switch Bracket
Qty 1
16mm PH
Wood Screw
Qty. 2
i
2 Port Control Box
Qty 1
45mm PH
Wood Screw
Qty. 2
j

11
Cable Management
k
Cable Cab
Qty 1
16mm PH
Wood Screws
Qty 6
k

12
16mm PH
Wood Screws
Qty 8
Keyboard Mechanism Installation

13
1-1/2" Black
Hex-Head
Nut-Bolt
Qty 8
Keyboard Mechanism Installation (continued)

14
Cable Diagram
IMPORTANT:
All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex-
cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow
full height adjustment between surfaces.
IMPORTANT:
Extend desktops to full opposite heights to ensure that cables will travel w/o stress).
GROMMET HOLE
Place grommet into
grommet hole. Route
cable accordingly.
POWER CABLE
Connect power cables to power
strips inside cable cabs.
CABLE CAB
(Optional) Place door towards user.
WIRE CLIP
A wire clip MUST be placed directly
behind switch to prevent cable droop
l
LONG CABLES
Use LONG cables to connect both
legs to ports #1 & #2 in controller box.
CABLE TRACKS
Red FRONT surface
Blue REAR surface
SWITCH
for FRONT surface use long 45˚ angle bracket.
Control switches connect to port A1.
2 PORT CONTROLLER
box for FRONT surface
SWITCH
POWER CABLE
LONG CABLE/
FRONT LEG
LONG CABLE/
FRONT LEG
2 DC AC
3 4 1 A2 A1

15
Cable Diagram Corner
IMPORTANT:
All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex-
cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow
full height adjustment between surfaces.
IMPORTANT:
Extend desktops to full opposite heights to ensure that cables will travel w/o stress).
GROMMET HOLE
Place grommet into
grommet hole. Route
cable accordingly.
POWER CABLE
Connect power cables to power
strips inside cable cabs.
WIRE CLIP
A wire clip MUST be placed directly
behind switch to prevent cable droop
l
LONG CABLES
Use LONG cables to connect both
legs to ports #1 & #2 in controller box.
CABLE TRACKS
Red FRONT surface
Blue REAR surface
SWITCH
for FRONT surface use long 45˚ angle bracket.
Control switches connect to port A1.
2 PORT CONTROLLER
box for FRONT surface
SWITCH
POWER CABLE
LONG CABLE/
FRONT LEG
LONG CABLE/
FRONT LEG
2 DC AC
3 4 1 A2 A1

Questions? Call 888 302 3375
DPF1C control switch for Level Series, Flexo Series, and Pro SuperPlus and Level 3Plus-95 desks with 5 legs.
NOTE: DPF1C may or may not have digital display
Operating your Biomorph Desk
Setting Initial Height.
It may be necessary to adjust the displayed height due to dierent
thicknesses of desktops, or addition of casters, etc. The DPF1C will as
standard either show 68 cm or 24.5 inch as the default desk height.
Procedure
Press and keys at the same time and keep them pressed
for 5 seconds. This allows the initial height to be adjusted.
UP DOWN
MEMORY 1
MEMORY 2
MEMORY 3
STORE MEMORY
DIGITAL DISPLAY
5 sec.
1
Until the initial height can be adjusted, the display will show three
minuses . Hereafter the display will revert to showing the
height. The height can then be adjusted by either or until
desired height has been reached. The system will return to
normal operation (and give a short blink) after 5 seconds of
inactivity on the keys.
2
Keep the button pressed until the position is reached. Release
button and press again to go past that position.
Press one of these memory buttons and the
system will start driving to the pre-programmed memory position.
1
2
Display function (only included on dual or multiple drive tables)
shows the actual height in either cm or inch.
3
To Set Memory.
These buttons are used for memory drive/storing
memory. To store memory:
Press . The display will flash for 2 seconds. Within these two
seconds press one of these buttons and the position
will be stored at this button.
1
The panel will acknowledge by showing , or in the display
depending on chosen position (if panel is included).
2
Memory Drive.
To Raise or Lower Height in Regular Use.
Push the button to raise
the height or the button
to lower the height. The
system will move until the
button is released again or
the system reaches end
position.
48.6”
22.1”
Side View
©2021 GSE (US) LTD.

Questions? Call 888 302 3375
DPF1C control switch for Biomorph Level, Flexo, and DPF4T control switch for Plus Series Desks .

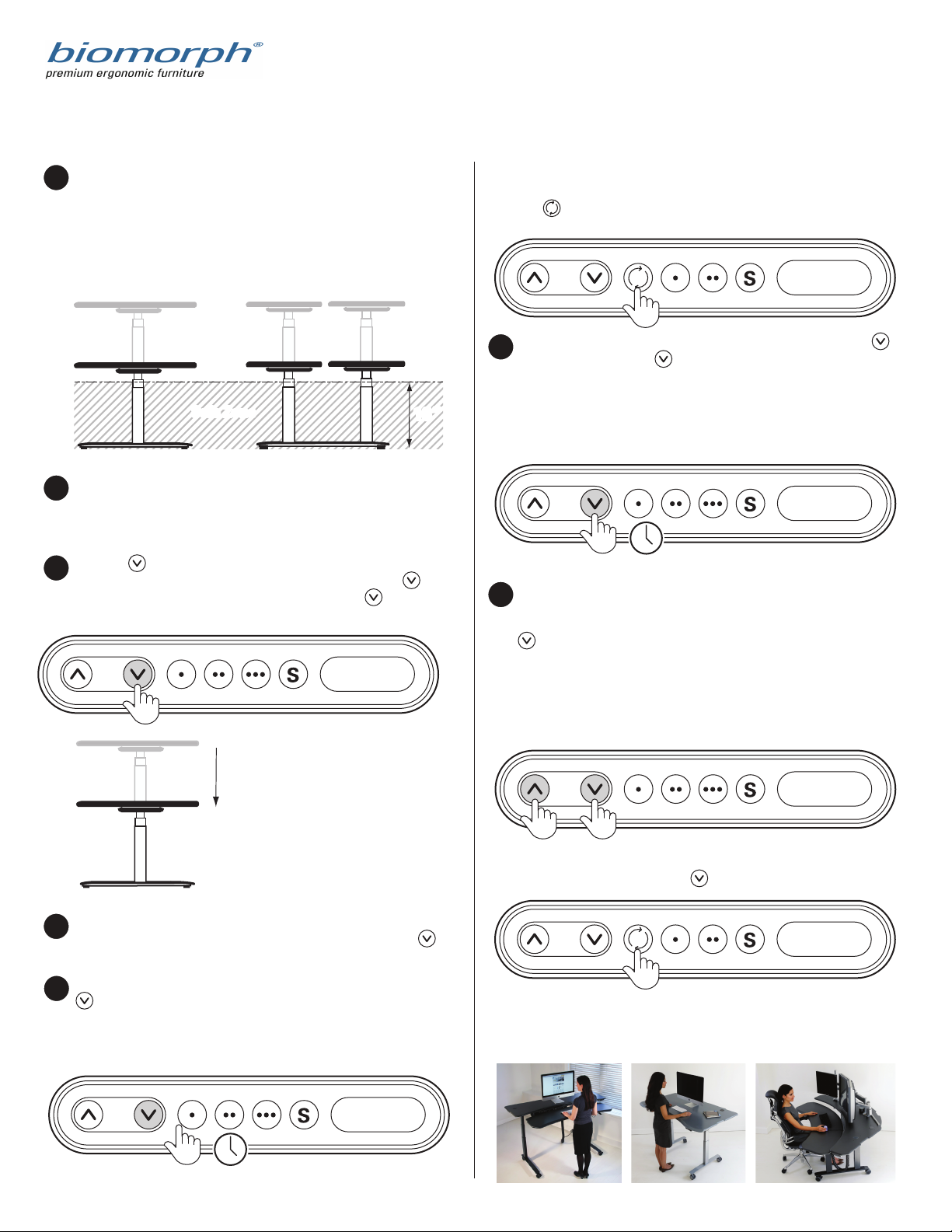

Troubleshooting Guide
Hold the button to cycle the table to its lowest position. If
the table does not move at first take your finger o the
button, and then immediately press and hold the button until
the desktop is at the lowest position, aprx. 22”
3
Once the desk has lowered to its lowest point allow the table to
come to a complete stop and then take you finger o the
button.
4
For dual surface Plus Series desks, you must reset both
front and rear surfaces, by starting with the front then using
the button to operate the rear surface and repeating the
procedure.
If the desk does not level o after pressing and holding the
button, then press the button again for 5-10 seconds until the
desk adjusts up the fraction of an inch and shows the height. This
may need to be attempted up to three times in succession before
movement is seen depending on the reason why the table needs
to be reset. The digital readout may cycle through several E codes
- this is normal.
6
If the above does not work initially then unplug all electrical
connections and check all female connections to ensure all pins
are sticking out straight and not bent over or pushed in. Hit the
down button 10 times to remove all voltage from the system.
Wait 30 seconds and re-plug all connections back in to ensure
good connections with all electrical parts, and repeat the above
process.
At this point the table should adjust up and down freely.
If you have a dual surface desk then this procedure must be done
with both surfaces using the button.
If the surface(s) will not move at all after the above procedure
note the E Code (if any) and call us at 888.302.3375 for further
troubleshooting support.
7
Re-check the power outlet with another electrical device to
ensure that you have power to the desk. Check power cord
connection to controller box, and check all other connections
from the legs and switch(es) to the controller box.
2
Check for obstructions above, below and around the desk that
may impede movement through the desk’s full adjustment
range of 22” - 48.5”. If there is anything more than 18” high
under either surface (or outside the “safe zone”) then it will
cause an obstruction and error E29 when the surface is lowered
to the lowest position to reset the system, and cause the
system to freeze.
1
22”
Side View
5-10 sec.
With the desk lowered in the lowest position press and hold the
button for 5-10 seconds. The table will adjust down and then
up a fraction of an inch, and may show E codes if the switch has
a display, which is normal, then show the height. This is the sign
that the table has fully reset.
5
5-10 sec.
Side View Side View
18”18”
Safe ZoneSafe Zone
Flexo Series Level Series Plus Series
