BION TECHNOLOGIES linea m eco pure White User manual

linea m eco
tunableWhite
USER MANUAL
BEDIENUNGSANLEITUNG
www.biontechnologies.com

linea m eco
tunableWhite
USER MANUAL
Safety Instructions
Devices must be installed by qualified personnel in compliance
with all pertaining regulations.
For your own safety, read all instructions and mounting steps carefully.
Do not attempt to install or use the luminaire until you read and understood the installation instructions and safety labels.
Keep the instructions for maintenance or disassembly work.
The electrical connection may only be carried out by for this purpose trained and authorized personnel.
WARNING - Risk of electric shock!
Operate the fixture only with an undamaged lens, housing, or power cables.
The light source (LED module) of this light is not replaceable.
When the light source reaches its end of life, replace the entire fixture.
LED module: Risk group 1
2 | www.biontechnologies.com

Scope of delivery
Check completeness of supplied device immediately after receipt.
In delivery included:
1x Bion Technologies linea m, as specified (specification may differ from the picture above)
2x Mounting components, as specified (specification may differ from the picture above)
1x User manual
If you detect any transportation damage or differences between specified packing contents and your unpacked delivery, please contact
your dealer immediately.
www.biontechnologies.com | 3

Technical Data
Dimensions 75 mm x 71 mm [W x H]
2.95 in x 2.80 in [W x H]
Standard Unit Lengths 629 mm, 934 mm, 1239 mm
24.77 in, 36.78 in, 48.78 in
Fixture Typ
tunableWhite
Beam Angles 8°, 10°, 23°, 43°, 8° x 31°
10° x 42°, 12° x 60°, 14° x 100°, 30° x 60°
Luminous Flux 629 mm (24.77 in): 1752 lm
934 mm (36.78 in): 2628 lm
1239 mm (48.78 in): 3504 lm
Light Source 629 mm (24.77 in): 16 LEDs
934 mm (36.78 in): 24 LEDs
1239 mm (48.78 in): 32 LEDs
Antiglare optional:
Hex louver (internal)
Linear louver (internal)
LED-Binning
MacAdam Ellipses Binning 3
Control DMX, 0 - 10 V, DALI
4 | www.biontechnologies.com

Input Voltage Power supply: internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption 629 mm (24.77 in): Max. 28 W
934 mm (36.78 in): Max. 42 W
1239 mm (48.78 in): Max. 56 W
Power Factor Correction 629 mm, 934 mm, 1239 mm (24.77 in, 36.78 in, 48.78 in):
>= 0,97 @ 110 VAC (max. Output)
>= 0,95 @ 230 VAC (max. Output)
>= 0,92 @ 277 VAC (max. Output)
Protection Class I
Inrush 629 mm (24.77 in):
50 A 210 µs 50% peak @ 230 VAC
934 mm, 1239 mm (36.78 in, 48.78 in):
55 A 270 µs 50% peak @ 230 VAC
Storage Temperatur -40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature -40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature -25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70] 65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-Class Class 2 LED-Product
Housing Aluminium
Housing Color(s)
Aluminium
anodized
(Standard)
Black
anodized
Lens Tempered safety glass, extra white
Weight 617 mm / 24.30 in: 5 kg (11.02 lbs)
922 mm / 36.30 in: 7 kg (15.43 lbs)
1228 mm / 48.35 in: 9 kg (19.84 lbs)
Ingress Protection IP66
Environment
indoor outdoor
Impact Protection IK07

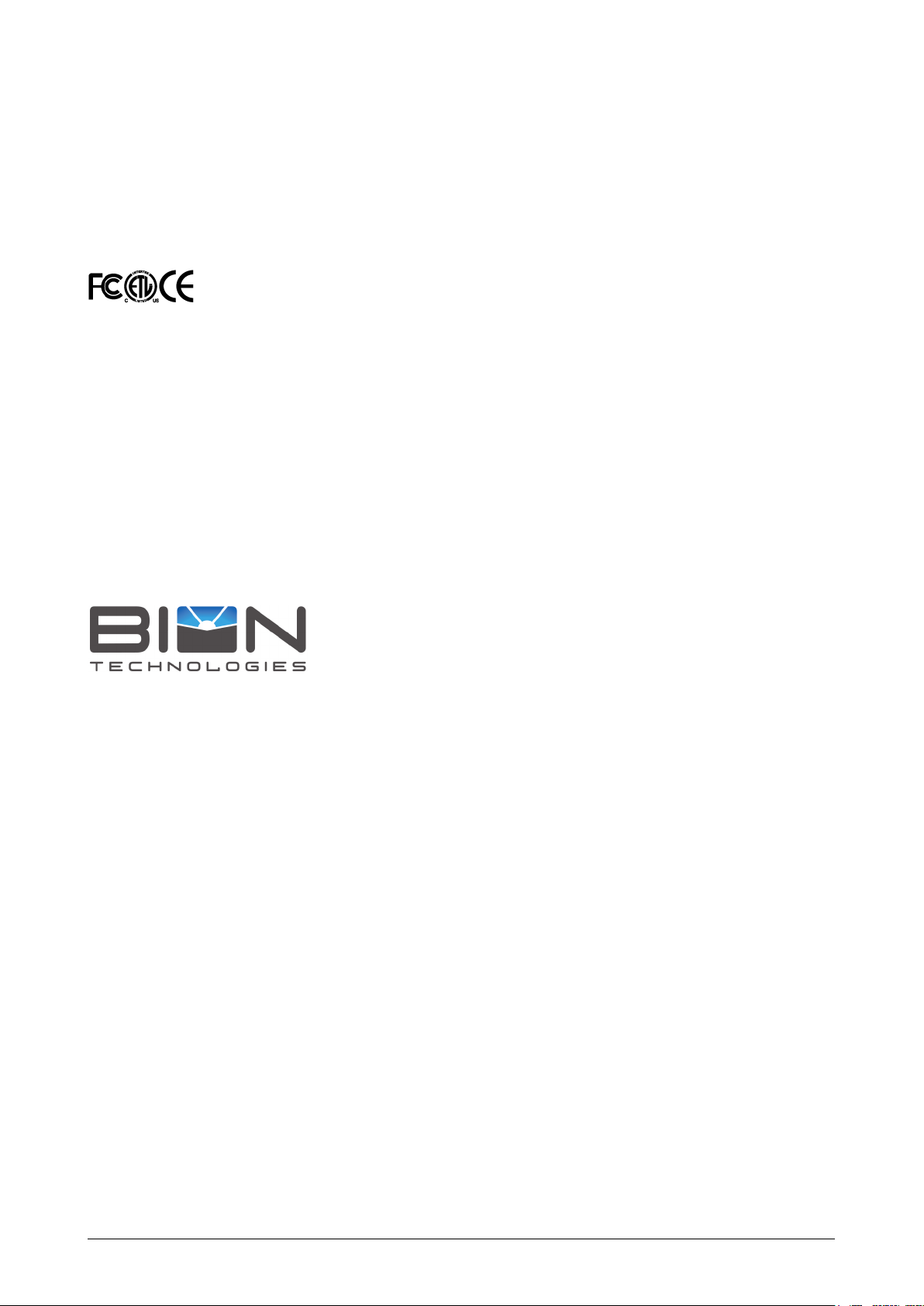

Certification
www.biontechnologies.com | 5

Engineering Drawing
Load Table
Load Table 230 V
230 V B10 B16 C10 C16
629 mm (24.77 in) - 12 - 20
934 mm (36.78 in) - 8 - 14
1239 mm (48.78 in) - 8 - 14
Load Table 110 V
110 V B10 B16 C10 C16
629 mm (24.77 in) - 12 - 20
934 mm (36.78 in) - 8 - 14
1239 mm (48.78 in) - 8 - 14
6 | www.biontechnologies.com

Mounting

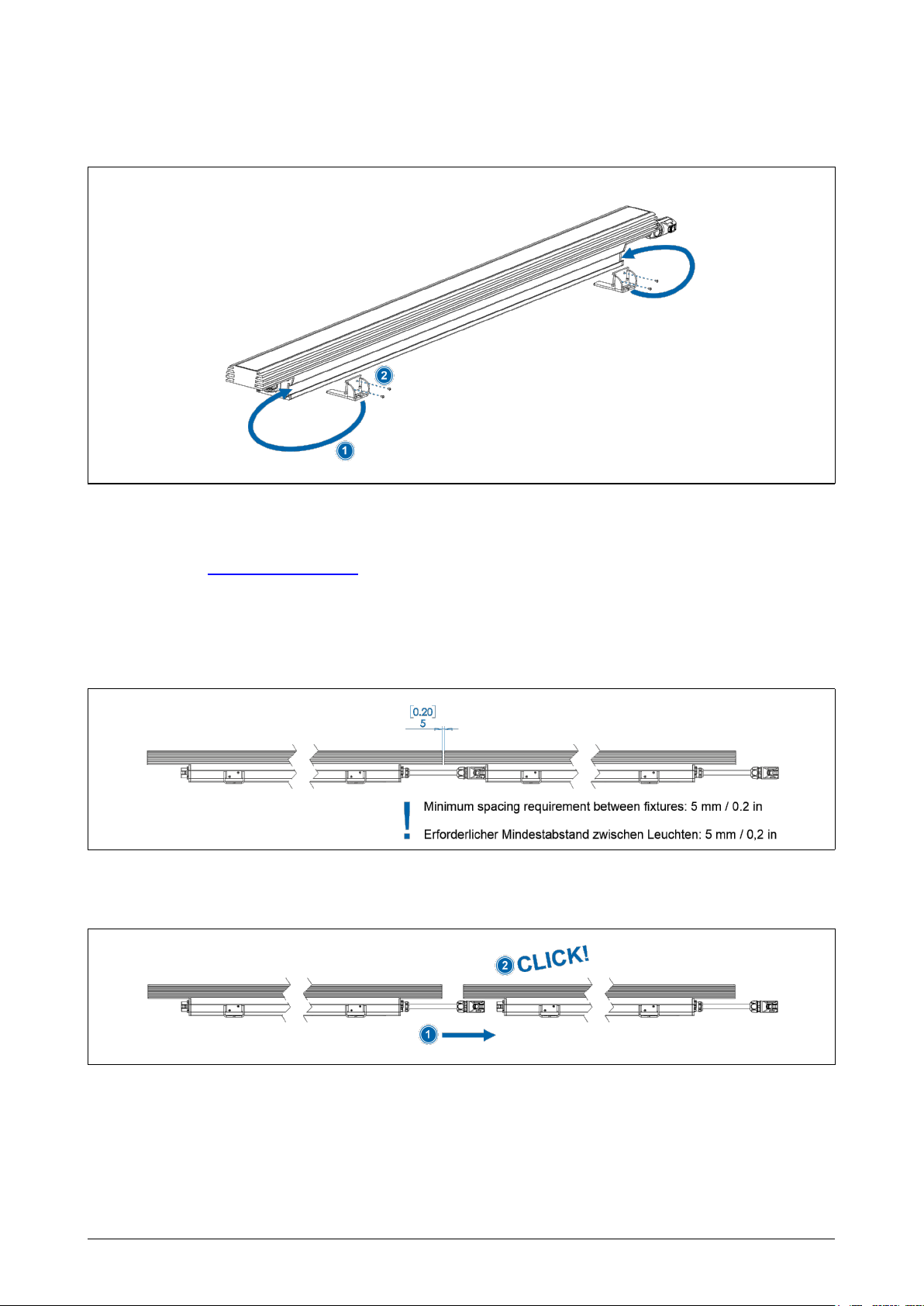

1. Mounting bracket options MX00 / MX20
Torque step 2: 2Nm
Fixtures should only be mounted with additional available accessories.
For more details see: www.biontechnologies.com
IMPORTANT:
Fastening screws in the facade area must additionally be chemically secured with a screw locking agent.
2. Minimum spacing of luminaires in linear installation
3. Checking the connection between the luminaires
The connection between the luminaires is correctly sealed if a clearly audible "click" sound is heard when the connector and socket are
plugged together.
www.biontechnologies.com | 7

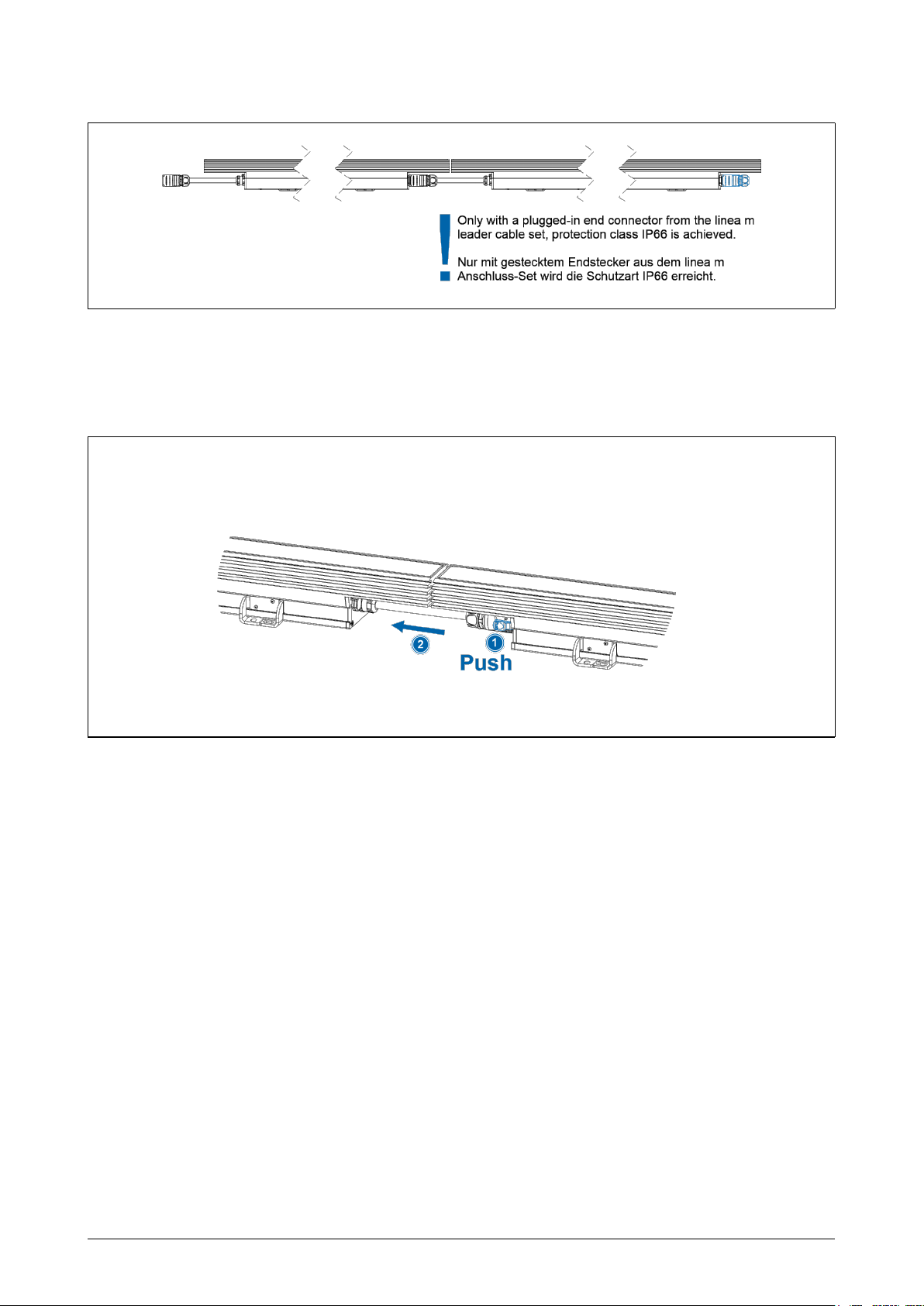

4. Mounting end plug / Ingress protection IP66
The end cap on the socket only achieves IP44 protection. The end cap can be carefully separated from the luminaire with a side cutter
after mounting.
5. Disconnecting the mating connection
8 | www.biontechnologies.com

Commissioning
1. DMX / DALI / 0-10V - Wire assignment
2. IOT / NDIM - Wire assignment
www.biontechnologies.com | 9

Operation
1. Temperature management
BION Technologies linea m generation 3 luminaires feature an active thermal management system to protect the luminaire against
overheating. Sensors detect the state of the luminaire and regulate the light output accordingly. The adjustments of the power are made
via an algorithm relatively over all channels, so that the desired light color is maintained as far as possible. In the event that the power
reduction is not sufficient to protect the luminaire from permanent overtemperature damage, the luminaire switches off.
IMPORTANT! The shutdown is above the permissible ambient temperature (or surface temperature) during operation.

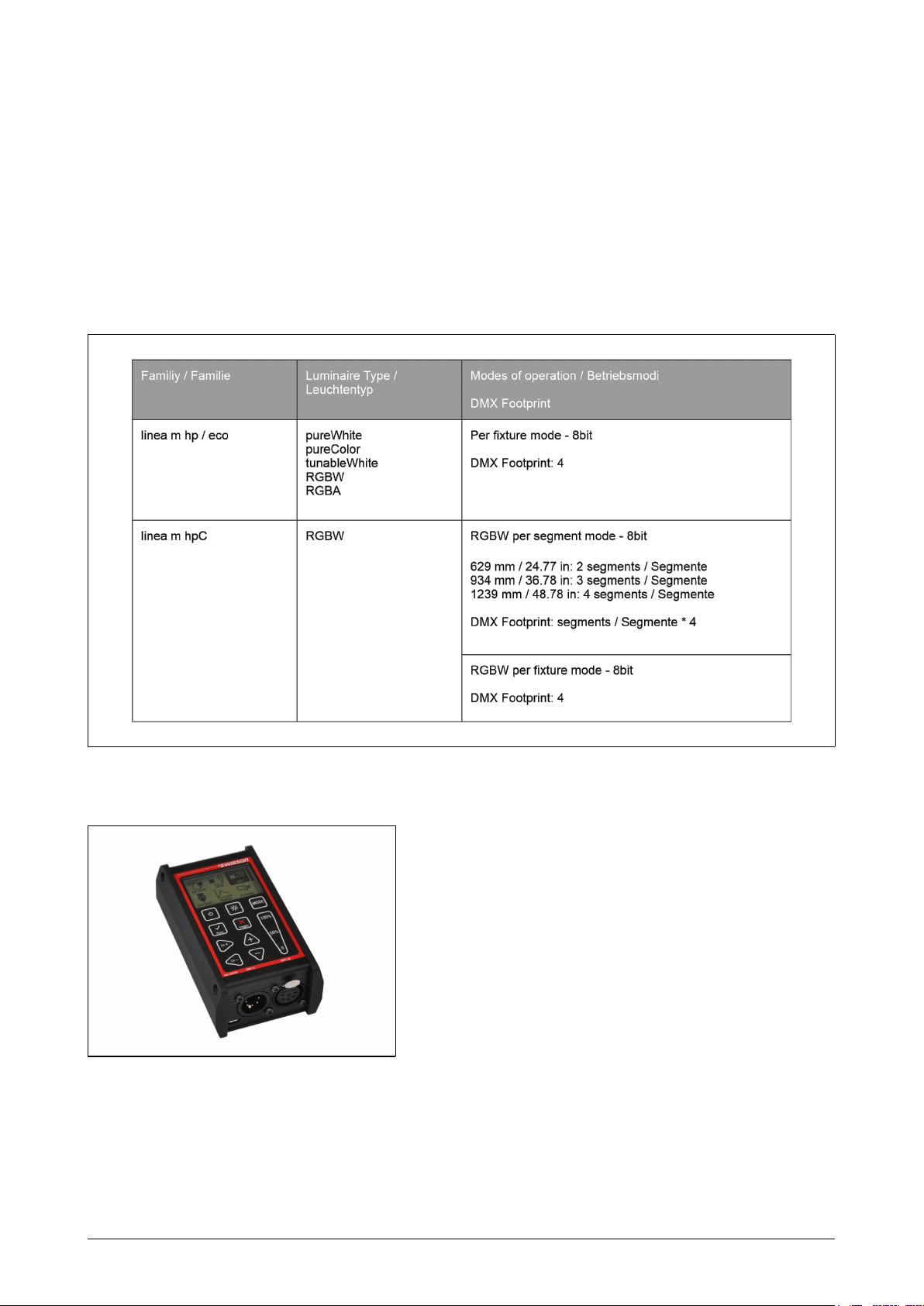

2. DMX - Modes of operation
3. RDM - Remote Device Management Protocol
RDM is an extension of the DMX protocol defined by ANSI E1.20.
The protocol is used to discover, configure, monitor, and manage BION
Technologies luminaires through a DMX512 network.
BION Technologies luminaires require an RDM-compatible controller
connected to the DMX512 network to read and alter fixture settings and
request fixture data. BION Technologies recommends the scriptus XMT-350
as RDM-Interface to DMX512 networks.

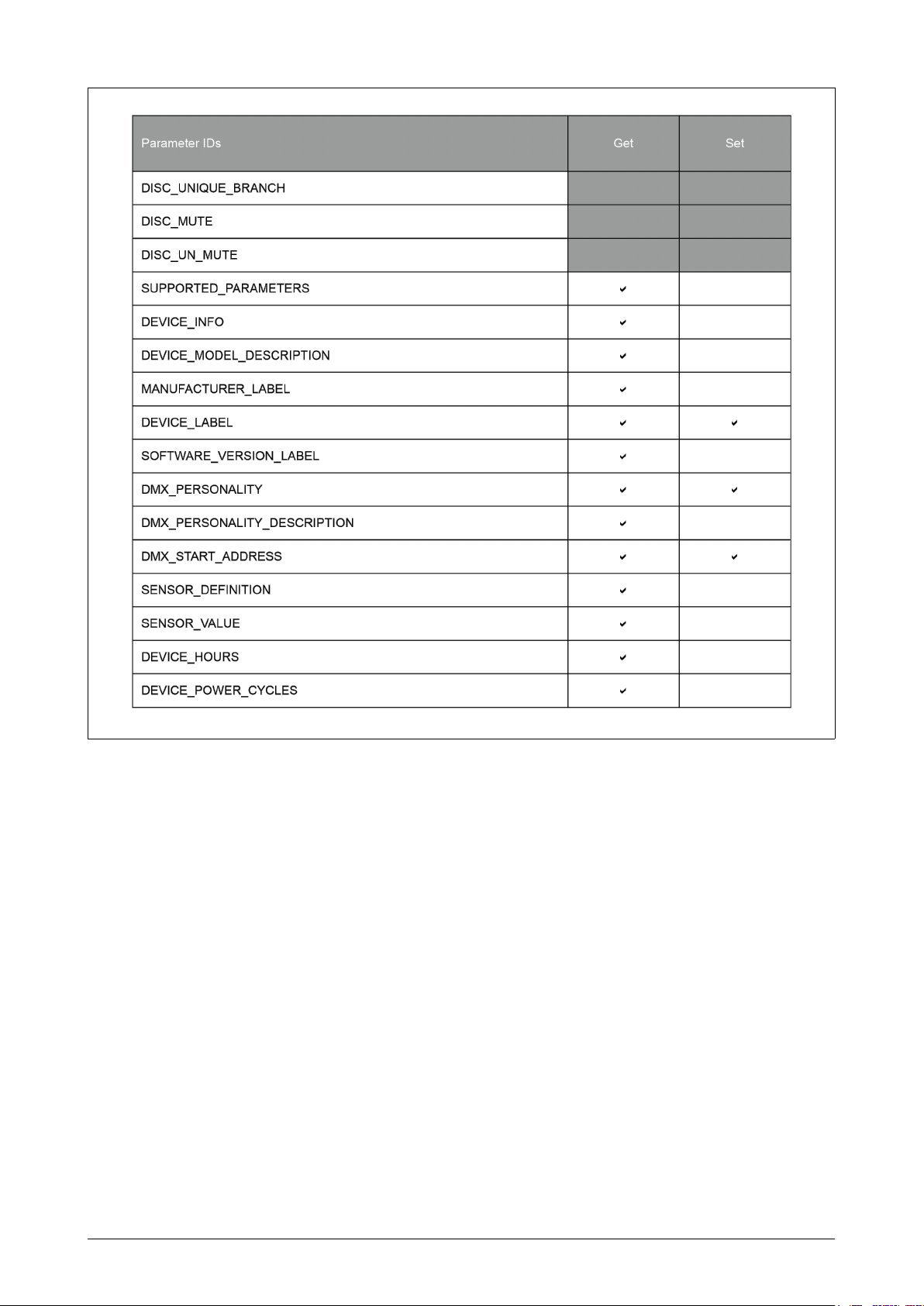

Please see below the full list of the RDM functions BION Technologies
luminaires support. These functions are generally referred to as Parameter
IDs.
10 | www.biontechnologies.com

www.biontechnologies.com | 11

Maintenance
Clean device from dirt and residue regularly. Use solvent-free cleaning agents only and do not employ aggressive chemicals or high
pressure cleaner. Operate device only after complete drying.
Conformity
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conform à la norme NMB-003 du Canada.
Manufacturer
Bion Technologies GmbH
Lindberghstrasse 15
86343 Koenigsbrunn
Tel: +49 (0)8231/95787-0
Fax: +49 (0)8231/95787-29
www.biontechnologies.com
YouTube: http://www.youtube.com/BIONTECHNOLOGIES
All rights reserved / Subject to change / Specifications may change without notice
12 | www.biontechnologies.com

linea m eco
tunableWhite
BEDIENUNGSANLEITUNG
Sicherheitshinweise
Anschluss und Bedienung dieses Geräts sollte ausschließlich
von qualifiziertem Fachpersonal in Übereinstimmung mit allen
geltenden Vorschriften erfolgen.
Lesen Sie zu Ihrer eigenen Sicherheit sorgfältig alle Hinweise und Montageschritte.
Installieren oder verwenden Sie die Leuchte erst, nachdem Sie die Installationsanweisungen und Sicherheitsetiketten gelesen und
verstanden haben.
Bewahren Sie die Anleitung für Wartungs- oder Demontagearbeiten auf.
Der elektrische Anschluss darf nur von fachkundigem Personal durchgeführt werden, das hierfür ausgebildet und befugt ist.
WARNUNG - Gefahr eines elektrischen Schlages!
Betreiben Sie die Leuchte nur mit unbeschädigter Abdeckscheibe, Gehäuse und Versorgungsleitungen.
Die Lichtquelle (LED-Modul) dieser Leuchte ist nicht ersetzbar.
Wenn die Lichtquelle ihr Lebensdauerende erreicht hat, ersetzen Sie die gesamte Leuchte.
LED-Modul: Risikogruppe 1
www.biontechnologies.com | 13

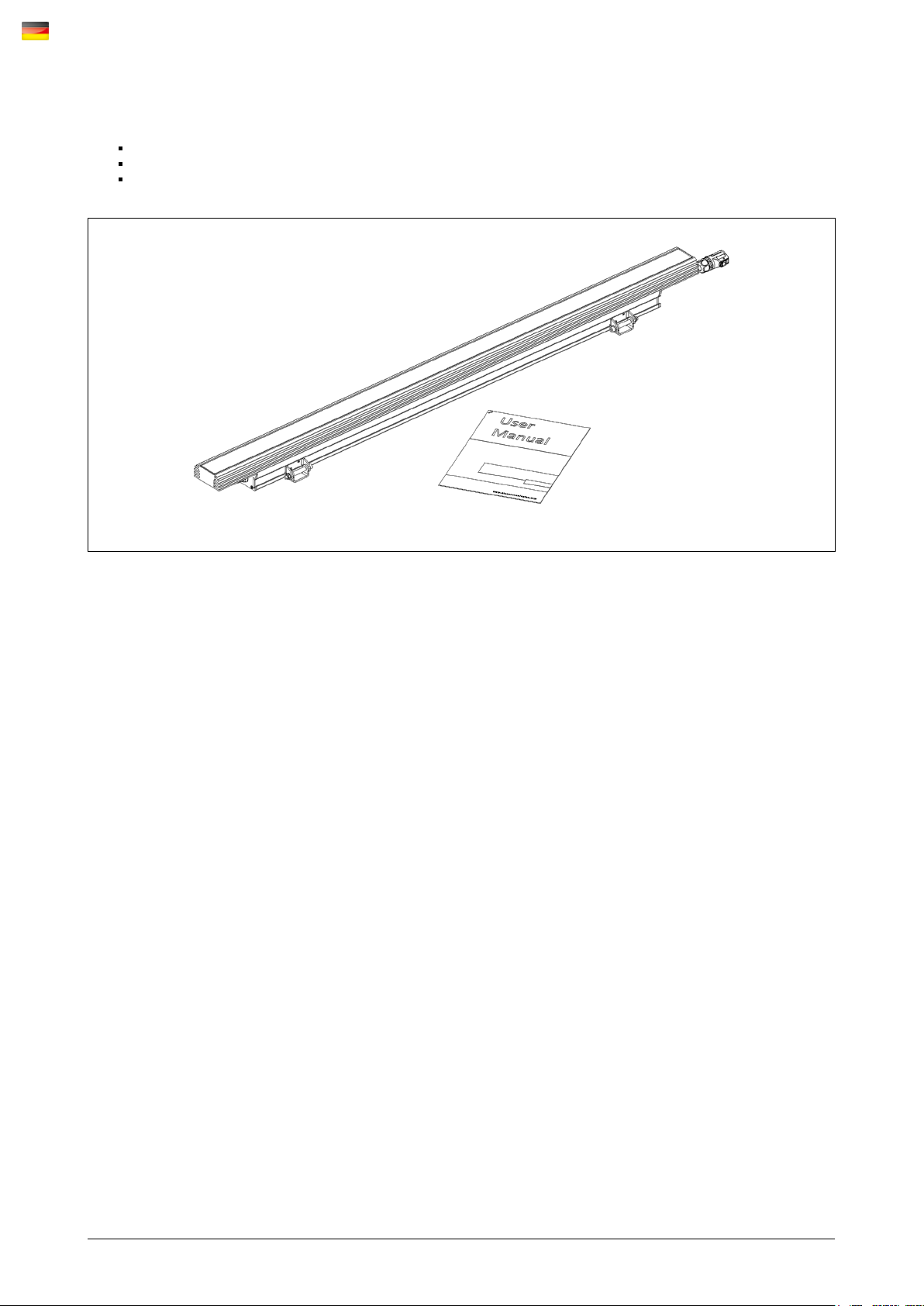

Lieferumfang
Packen Sie alle Teile aus.
Prüfen Sie den Verpackungsinhalt auf sichtbare Transportschäden.
Prüfen Sie, ob der Verpackungsinhalt vollständig ist.
Im Lieferumfang enthalten:
1x Bion Technologies linea m, gem. Spezifikation (Spezifikation kann von obigem Bild abweichen)
2x Befestigungsbauteile, gem. Spezifikation (Spezifikation kann von obigem Bild abweichen)
1x Bedienungsanleitung
Wenn Sie Transportschäden oder Unstimmigkeiten zwischen dem hier angegebenen Lieferumfang und Verpackungsinhalt feststellen,
informieren Sie unverzüglich Ihre Verkaufstelle.
14 | www.biontechnologies.com

Technische Daten
Abmessungen 75 mm x 71 mm [B x H]
2.95 in x 2.80 in [B x H]
Leuchtenlängen 629 mm, 934 mm, 1239 mm
24.77 in, 36.78 in, 48.78 in
Leuchtentyp
tunableWhite
Abstrahlwinkel 8°, 10°, 23°, 43°, 8° x 31°
10° x 42°, 12° x 60°, 14° x 100°, 30° x 60°
Lichtstrom 629 mm (24.77 in): 1752 lm
934 mm (36.78 in): 2628 lm
1239 mm (48.78 in): 3504 lm
Lichtquelle 629 mm (24.77 in): 16 LEDs
934 mm (36.78 in): 24 LEDs
1239 mm (48.78 in): 32 LEDs
Entblendung optional:
internes Wabenraster
internes lineares Entblendungsraster
LED-Binning
MacAdam-Ellipsen Binning 3
Steuerung DMX, 0 - 10 V, DALI
www.biontechnologies.com | 15

Eingangsspannung Netzteil: intern | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Wirkleistungsaufnahme 629 mm (24.77 in): Max. 28 W
934 mm (36.78 in): Max. 42 W
1239 mm (48.78 in): Max. 56 W
Blindleistungskompensation 629 mm, 934 mm, 1239 mm (24.77 in, 36.78 in, 48.78 in):
>= 0,97 @ 110 VAC (max. Leistungsabgabe)
>= 0,95 @ 230 VAC (max. Leistungsabgabe)
>= 0,92 @ 277 VAC (max. Leistungsabgabe)
Schutzklasse I
Einschaltstrom 629 mm (24.77 in):
50 A 210 µs 50% peak @ 230 VAC
934 mm, 1239 mm (36.78 in, 48.78 in):
55 A 270 µs 50% peak @ 230 VAC
Lagertemperatur -40 °C / +80 °C | -40 °F / +176 °F
Betriebstemperatur -40 °C / +40 °C | -40 °F / +104 °F
Einschalttemperatur -25 °C / +40 °C | -13 °F / +104 °F
Lebensdauer [L70] 65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-Klasse Klasse 2 LED-Produkt
Gehäuse Aluminium
Gehäusefarbe(n)
Aluminium
natur
eloxiert
(Standard)
Schwarz
eloxiert
Linse Gehärtetes Sicherheitsglas, extra weiß
Gewicht 617 mm / 24.30 in: 5 kg (11.02 lbs)
922 mm / 36.30 in: 7 kg (15.43 lbs)
1228 mm / 48.35 in: 9 kg (19.84 lbs)
Schutzart IP66
Umgebung
indoor outdoor
Schlagschutz IK07
Zulassungen
16 | www.biontechnologies.com

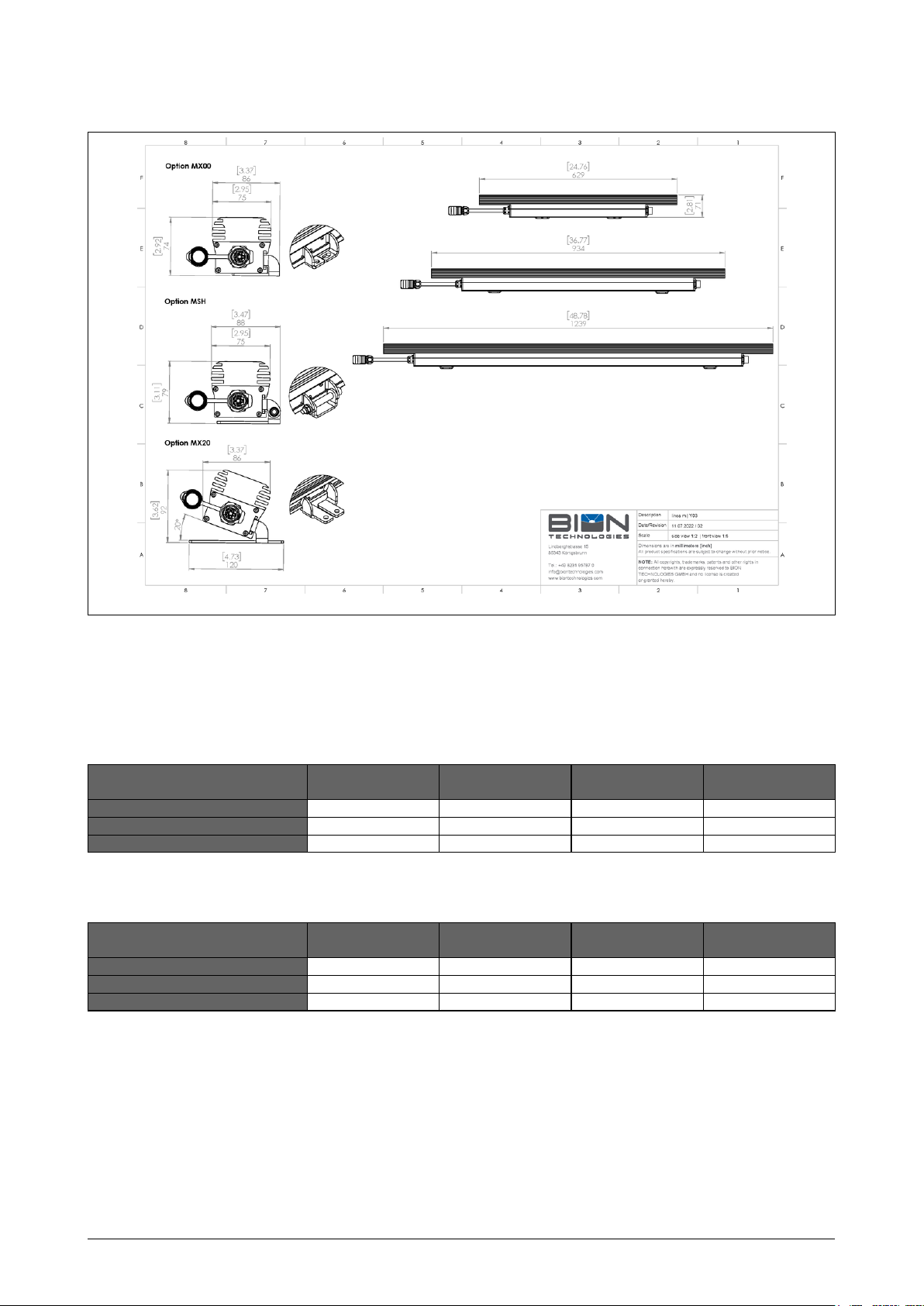

Technische Zeichnung
Lasttabelle
Lasttabelle 230 V
230 V B10 B16 C10 C16
629 mm (24.77 in) - 12 - 20
934 mm (36.78 in) - 8 - 14
1239 mm (48.78 in) - 8 - 14
Lasttabelle 110 V
110 V B10 B16 C10 C16
629 mm (24.77 in) - 12 - 20
934 mm (36.78 in) - 8 - 14
1239 mm (48.78 in) - 8 - 14
www.biontechnologies.com | 17

Montage
1. Montage Befestigungsoptionen MX00 / MX20
Drehmoment Schritt 2: 2Nm
Die Leuchten ausschließlich mit Hilfe des optional erhältlichen Zubehörs montieren.
Weitere Details finden Sie unter www.biontechnologies.de
WICHTIG:
Befestigungsschrauben im Fassadenbereich müssen zusätzlich chemisch mit einer Schraubensicherung gesichert werden.
2. Mindestabstand Leuchten in linearer Verbauung
3. Überprüfen der Steckverbindung zwischen den Leuchten
Die Steckverbindung zwischen den Leuchten ist richtig geschlossen, wenn beim Zusammenführen von Stecker und Buchse ein deutlich
hörbares „Click“-Geräusch vernommen wurde.
18 | www.biontechnologies.com

4. Montage Endstecker / Schutzgrad IP66
Die Endkappe an der Buchse erreicht nur eine Schutzart IP44. Die Endkappe kann nach Montage vorsichtig mit einem Seitenschneider
von der Leuchte abgetrennt werden.
5. Trennen der Steckverbindung
www.biontechnologies.com | 19

Inbetriebnahme
1. DMX / DALI / 0-10V - Aderbelegung
2. IOT / NDIM - Aderbelegung
20 | www.biontechnologies.com
