BIOPAC Systems, Inc. MP30 Installation instructions

MP30 and MP35 Specifications - 1-
IMPORTANT SAFETY NOTICE
BIOPAC Systems, Inc. instrumentation is designed for educational and research
oriented life science investigations. BIOPAC Systems, Inc. does not condone the
use of its instruments for clinical medical applications.
Instruments, components, and accessories provided by BIOPAC Systems, Inc.
are not intended for the cure, mitigation, treatment, or prevention of disease.
The MP35/30 is an electrically isolated data acquisition unit, designed for
biophysical measurements.
Exercise extreme caution when applying electrodes and taking bioelectric
measurements while using the Biopac Student Lab with other external
equipment that also uses electrodes or transducers that may make electrical
contact with the Subject.
Always assume that currents can flow between any electrodes or electrical
contact points. In case of equipment failure, it is very important that significant
currents are not allowed to pass through the heart.
If electrocautery or defibrillation equipment is used, it is recommended that the
BIOPAC instrumentation be disconnected from the Subject.

- 2- BIOPAC Systems, Inc.
MP35/30 ACQUISITION UNIT
The MP35/30 data acquisition unit is the heart of the Biopac Student Lab PRO System. The MP35/30
has an internal microprocessor to control data acquisition and communication with the computer. The
MP35/30 unit takes incoming signals and converts them into digital signals that can be processed
with your computer. There are four analog input channels, one of which can be used as a trigger
input. You will need to connect the MP35/30 to your computer and connect electrodes, transducers,
and I/O devices to the MP35/30. You are encouraged to take a few minutes to familiarize yourself
with the MP35/30 prior to making any connections.
SYMBOLS — MP35
Symbol Description Explanation
TYPE BF
EQUIPMENT Classification
Attention Consult accompanying documents
On (partial) Turns MP35 on assuming AC300A
power adapter is powered by the mains
Off (partial) Turns MP35 off if but AC300A power
adapter remains powered by the mains
Direct current Direct current output
USB USB port
COMPLIANCE
SAFETY
The MP35 satisfies the Medical Safety Test Standards affiliated with IEC60601-1. The MP35 is
designated as Class I Type BF medical equipment
EMC
The MP35 satisfies the Medical Electromagnetic Compatibility (EMC) Test Standards affiliated with
IEC60601-1-2.
TYPES OF INPUT DEVICES
There are three types of devices that connect to the MP35/30: electrodes, transducers, and I/O
devices.
• Electrodes are relatively simple instruments that attach to the surface of the skin and pick up
electrical signals in the body.
• Transducers, on the other hand, convert a physical signal into a proportional electrical signal.
• Input/Output devices (I/O for short) are specialized devices like pushbutton switches and
headphones.
Visit www.biopac.com for the latest product updates

MP30 Hardware Guide - 3-
SIMPLE SENSOR CONNECTORS
Regardless of the type of device connected, every sensor or I/O device connects to the MP35/30 using
a “Simple Sensor” connector. Simple Sensor connectors are designed to plugs only one way into the
MP35/30, so you don’t have to worry about plugging things in upside down or into the wrong socket.
• Electrodes, transducers, and the pushbutton switch all connect to the channel input ports on
the front panel of the MP35/30.
• Headphones and the stimulator connect to the “Analog out” port on the back panel of the
MP35/30.
• MP35 only: A digital device may connect to the “I/O Port” on the back panel
• MP35 only: A trigger device may be connected to the “Trigger” port on the back panel.
FRONT PANEL

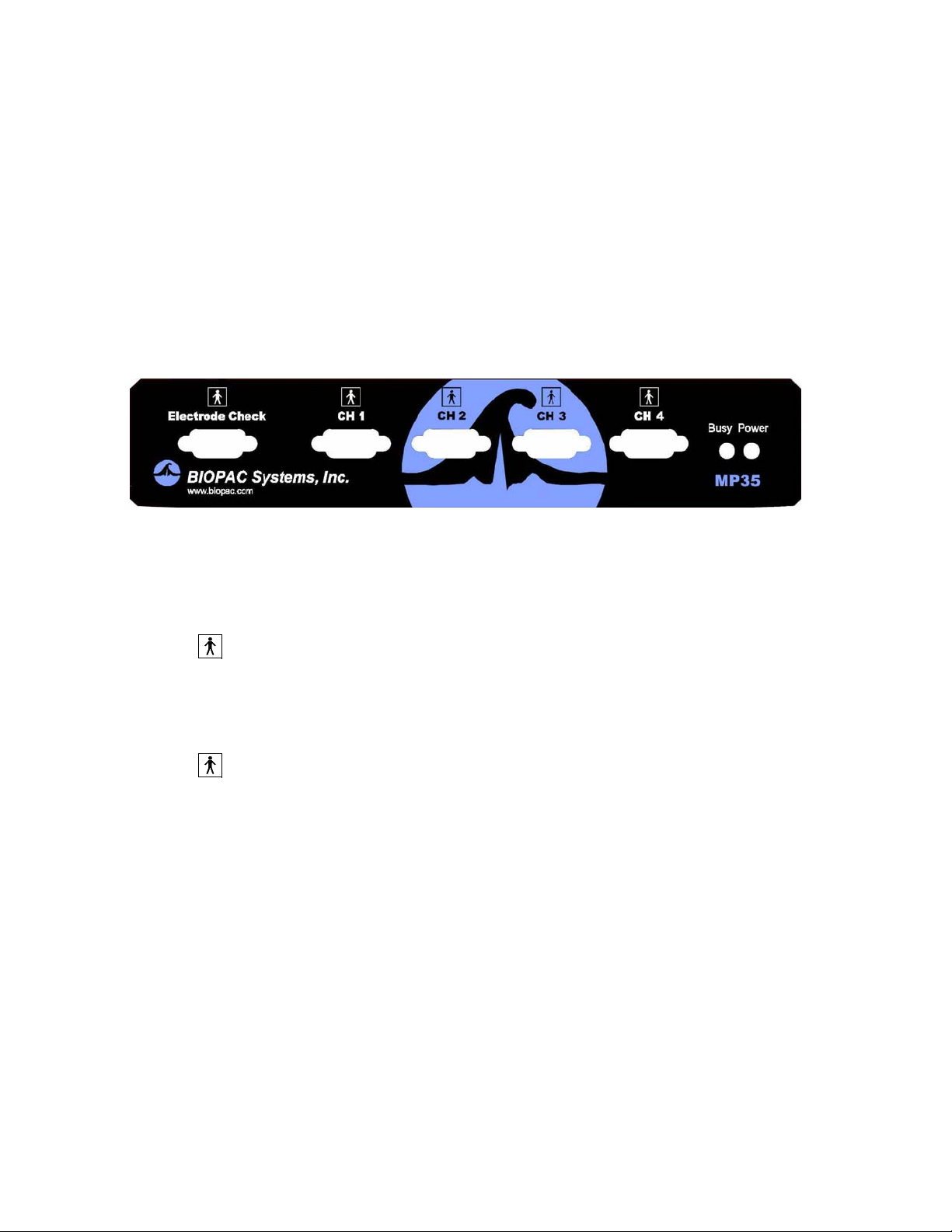

Front Panel, MP35
The front panel of the MP35/30 has an electrode check port, four analog input ports, and two status
indicators.
Electrode Check
• The Electrode Check port is a diagnostic tool used with the BSL PRO software to
determine if the electrodes are properly attached to the subject. See page Error! Bookmark
not defined..
Input ports: CH 1, CH 2, CH 3, and CH 4
• The inputs on the MP35/30 acquisition unit are referred to as Channels. There are four 9-
pin female analog input ports on the front of the MP35/30. The Biopac Student Lab Lessons
software will always check to see that you have the proper sensors connected to the
appropriate channel.
Status indicators
• The Busy status indicator is activated when the MP35/30 is acquiring data and also during the
first few seconds after the MP35/30 is powered on to indicate that a self-test is in progress.
(When the MP35/30 passes the power-on test, the Busy light will turn off.)
• The Power status indicator is illuminated when the MP35/30 is turned on.

- 4- BIOPAC Systems, Inc.
BACK PANEL
Back Panel, MP35
The back panel of the MP35 has an analog output port, a USB port, an I/O Port, a Trigger Port, a DC
input, a fuse holder, and a power switch, and the unit’s serial number.
The back panel of the MP30 has an analog output port, a serial port, a DC input, a fuse holder, and a
power switch, and the unit’s serial number.
Analog Out port
There is one 9-pin male “D” analog output port on the back of the MP35/30 that allows signals to be
amplified and sent out to devices such as headphones.
USB port (MP35 only)
The MP35 connects to the computer via a USB Port, located just below the word USB.
• Uses a standard USB connector.
• Should only be used to connect the MP35to a PC or Macintosh.
Serial port (MP30 only)
The MP30 connects to the computer via a serial port, located just below the word Serial.
• Uses a standard MINI DIN 8 connector.
• Should only be used to connect the MP30 to a PC (with ISA or PCMCIA card) or Macintosh.
Headphone Output (MP35 only)
 Accepts a standard (1/4” or 6.3mm) stereo headphone jack.
I/O Port (MP35 only)
• Accepts a DB 25 Female connector.
• Input/Output port used to connect digital devices to the MP35.
Trigger Input (MP35 only)
• Accepts a male BNC connector.
• Input port used to send trigger signals from another device to the MP35.
• Used to synchronize MP35 units when more than one MP35 is used.
DC Input
Visit www.biopac.com for the latest product updates
Use the DC Input to connect a battery, AC/DC converter or other power supply to the
MP35/30.

MP30 Hardware Guide - 5-
• The power supply requirements for the MP35/30 are 12 VDC @ 1 Amp. Only use the
AC300A power adapter with the MP35. The AC300A is a 12 VDC @ 1.25 Amp power
supply adapter that can connect to any mains rated as 100-250 VAC @ 50/60Hz, 40VA.
• The receptacle is configured to accept a “+” (positive) input in the center of the connector and
a “-” (negative) input on the connector housing.
Fuse holder
The fuse holder contains a fast-blow fuse that helps protect the MP35/30 from shorts on its power,
analog, and digital I/O lines. The MP35 uses a 1.0 amp fast-blow fuse and the MP30 uses a 2.0 amp
fast-blow fuse.
• To remove the fuse, use a screwdriver to remove the fuse cover located below the word Fuse.
Power switch
• ON position — powers up the MP35/30
• OFF position — cuts the flow of power to the MP35/30
CLEANING PROCEDURES
Be sure to unplug the power supply from the MP35/30 before cleaning. To clean the MP35/30, use a
damp, soft cloth. Abrasive cleaners are not recommended as they might damage the housing. Do not
immerse the MP35/30 or any of its components in water (or any other fluid) or expose to extreme
temperatures as this can damage the unit.

- 6- BIOPAC Systems, Inc.
Visit www.biopac.com for the latest product updates
SPECIFICATIONS
Specification MP35 Unit MP30 Unit
Front Panel
ELECTRODE CHECKER
Resistance Range (Vin+ and
Vin- to GND)
0-100 KΩ
0-100 KΩ
ANALOG INPUTS
Number of channels
4 isolated (front panel CH 1–CH 4),
2 unisolated (auxillary)
4 (front panel CH 1–CH 4)
SAMPLE RATE
Maximum
Minimum
Trigger Input
Threshold
100K samples/second
1 samples/second
Analog or digital channel
Adjustable threshold; Positive or
Negative Trigger
2K s/s (8K aggregate on four ch.)
1 samples/second
CH 4 input only
Adjustable threshold; Positive or
Negative Threshold
A/D resolution (before digital
filtering)
24-bit 10-bit
Signal to noise ratio > 90 dB (nominal) > 90 dB
Voltage resolution Gain
dependent
1.192 microvolts /bit (Gain 10) to
0.024 nanovolts /bit (Gain 50,000)
0.400 microvolts/bit (Gain 100) to
0.200 millivolts/bit (Gain 25,000)
Input voltage range (Gain
dependent)
400 microvolts to 2.0 Volts p-p 4.0 millivolts to 0.2 Volts p-p
Input accuracy ±0.01% of Full Scale Range (FSR) ±0.05% FSR
Input protection; current limited ± 1 mA/V ± 1 mA/V
Maximum Input Voltage
(between Vin+ and Vin-)
2V p-p 130mV p-p
Differential Input Impedance
(between Vin+ and Vin-)
2 MΩ2 MΩ
Filters (automatic or user
adjustable)
3 two-pole IIR digital filters per
channel
3 two-pole IIR digital filters per
channel
Common Mode Input
Impedance (between Vin+/Vin-
and GND)
DC
AC (50/60 Hz)
11 MΩ
1,000 MΩ
11 MΩ
1,000 MΩ
Gain ranges (automatic preset
or user adjustable)
10 – 50,000 100 – 50,000
Baseline adjustment
(automatic or user adjustable)
Gains 10, 20, and 50: ±100mV
Gains 100 to 50,000: ±10mV
±10mV all Gains
Electrode offset potential
tolerance
Gains 10, 20, and 50: ±2V
Gains 100, 200, 500: ±200mV
Gains 1,000 to 50,000: ±80mV
±70 mV all Gains
Back Panel
ANALOG OUTPUT
Number of channels
D/A resolution
Accuracy
Output impedance
Output voltage
Output drive current
1
12 bits
±0.0125% of FSR
50Ω
0 - 4.096 V
±10 mA maximum
1
8 bits
±0.2% of FSR
50Ω
0 - 5.000 V
±100 mA maximum

MP30 Hardware Guide - 7-
Specification MP35 Unit MP30 Unit
SERIAL INTERFACE
Transmission type
Transmission rate
USB
Type 2.0 full speed
RS422-clocked asynchronous
524,000 bits per second (KBPS)
HEADPHONE (MP35 only)Drives low-impedance standard
stereo headphones
N/A – MP35 only
I/O PORT (MP35 only)8 TTL compatible inputs and 8 TTL
compatible outputs
N/A – MP35 only
TRIGGER (MP35 only)TTL compatible input and
synchronization port
N/A – MP35 only
DC INPUT Power input; requires 12 VDC @ 1
Amp. Use the AC300A 12 VDC @
1.25 Amp power supply adapter to
connect to any mains rated as 100-
250 VAC @ 50/60Hz, 40VA.
Power input; requires 12 VDC @
1 Amp. Use the AC300A 12 VDC
@ 1.25 Amp power supply
adapter to connect to any mains
rated as 100-250 VAC @
50/60Hz, 40VA.
FUSE 1.0 amp fast-blow fuse 2.0 amp fast-blow fuse
MP UNIT
Dimensions
Weight
7 cm x 29 cm x 25 cm
1.4 Kg
7 cm x 29 cm x 25 cm
1.4 Kg

- 8- BIOPAC Systems, Inc.
MP UNIT PIN-OUTS
Electrode Check — Front Panel
9-PIN FEMALE DSUB
Pin MP35 and MP30
2 Vin+ Electrode connection
3 GND
4 Vin- Electrode connection
MP Input — Front Panel
CH 1, CH 2, CH 3, CH 4
9 PIN FEMALE DSUB (1 of 4)
Pin MP35 MP30
1Shield drive Shield drive
2Vin+ Vin+
3GND GND
4Vin−Vin−
5Shield drive Shield drive
6 +5 V (100 mA max aggregate) +5 V (50 mA max)
7ID resistor lead 1; I2C SCL ID resistor lead 1 (+5 V)
8ID resistor lead 2; I2C SDA ID resistor lead 2
9 −5 V (100 mA max aggregate) −5 V (50 mA max)
MP Analog Output —Back
Panel
9 PIN MALE DSUB
Pin MP35 MP30
1 Buffered AC output Buffered AC output
Z out = 2,200 µF Cap Z out = 2,200 µF Cap
V out range MP35: (+/- 2.0 V) MP30: (+/- 2.5 V)
2 Buffered DC output Buffered DC output
Z out = 50 ΩZ out = 50 Ω
V out range MP35: (0 to 4.096 V) MP30: (0 to 5 V)
3 GND GND
4 +5.0 V (100 mA max) +7.5 V (100 mA max)
5 Buffered digital output Unbuffered DC output
Z out = 1 kΩZ out = 1 kΩ
V out range (0 to 5 V) V out range (0 to 5 V)
6 +12 V (100 mA max) Not used
7 I2C SCL Not used
8 I2C SDA Not used
9 Not used Not used
MP Serial Connector —Back
Panel
MP35 MP30
Pin MP35 MP30
1 +5 Digital Output 1
2 -Data Digital Output 2
3 Data + Digital Output 3
4 GND Digital Output 4
5 n/a GND Unisolated
6 n/a GND Unisolated
7 n/a RS-232-RX
8 n/a +5 V Unisolated
Visit www.biopac.com for the latest product updates

MP30 Hardware Guide - 9-
MP UNIT PIN OUTS continued
I/O Port — MP35 Back Panel
DSUB 25 (male)
17 18 19
1 2 3 4 5
23 24 25
10 11 12 13
6 7 8 9
14 15 16 20 21 22
Note: BSL v 3.7.0 does not support
Pins 7, 9, 18, 19, 20 and 21.
Pin MP35 Only
1 Digital Output 1
2 Digital Output 2
3 Digital Output 3
4 Digital Output 4
5 GND Unisolated
6 GND Unisolated
7 RS-232-RX
8 +5 V Unisolated
9 I2C-SDA
10 Digital Input 1
11 Digital Input 2
12 Digital Input 3
13 Digital Input 4
14 Digital Output 5
15 Digital Output 6
16 Digital Output 7
17 Digital Output 8
18 Analog Input — Right
19 Analog Input — Left
20 RS-232-TX
21 I2C-SCL
22 Digital Input 5
23 Digital Input 6
24 Digital Input 7
25 Digital Input 8
