A880GU3/A880GB BIOS Manual
1
BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the AMI BIOS Setup
program on this motherboard. The Setup program allows users to modify the basic
system configuration and save these settings to CMOS RAM. The power ofCMOS
RAM is supplied by abattery so that it retains theSetup information when the power
is turned off.
Basic Input-Output System (BIOS) determines what a computer can do without
accessing programs from a disk. This system controls most of the input and output
devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the
first stage ofthe booting process, loading and executing the operating system. Some
additional features, such as virus and password protection or chipset fine-tuning
options are also included in BIOS.
The rest of this manual will to guide you through the options and settings in BIOS
Setup.
Plugand Play Support
ThisAMI BIOS supports thePlug and Play Version 1.0A specification.
EPA Green PC Support
ThisAMI BIOS supports Version 1.03 ofthe EPAGreen PC specification.
APM Support
This AMI BIOS supports Version 1.1&1.2 of the Advanced Power Management
(APM) specification. Power management features are implemented via the System
Management Interrupt (SMI). Sleep and Suspend power management modes are
supported. Power to the hard disk drives and video monitors can also be managed by
this AMI BIOS.
ACPI Support
AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power
interface specification (ACPI). It provides ASL code for power management and
device configuration capabilities as defined in theACPI specification, developed by
Microsoft, Intel andToshiba.

A880GU3/A880GB BIOS Manual
2
PCI Bus Support
This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component
Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.
Supported CPUs
ThisAMI BIOS supports the AMD CPU.
Using Setup
When starting up the computer, press
<Del> during the Power-On Self-Test
(POST) to enter theBIOS setup utility.
In the BIOS setup utility, you will see
General Help description at the top right
corner, and this is providing a brief
description of the selected item.
Navigation Keys for that particular menu
are at the bottom right corner, and you can
use these keys to select item and change
the settings.
Notice
zThe default BIOS settings applyfor most conditions to ensure optimum performance
of the motherboard. If the system becomes unstable after changing any settings,
please load the default settings to ensure system’s compatibility and stability. Use
Load Setup Default under the Exit Menu.
zFor better system performance, the BIOS firmware is being continuously updated.
The BIOS information described in this manual isfor your referenceonly. The actual
BIOS information and settings on board may be slightly different from this manual.
zThe content ofthis manual is subject to be changed without notice. We will not be
responsible for any mistakes found in this user’s manual and any system damage that
may be caused by wrong-settings.
General Help
Navigation Keys

A880GU3/A880GB BIOS Manual
3
1 Main Menu
Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen
providing an overview of the basic system information.

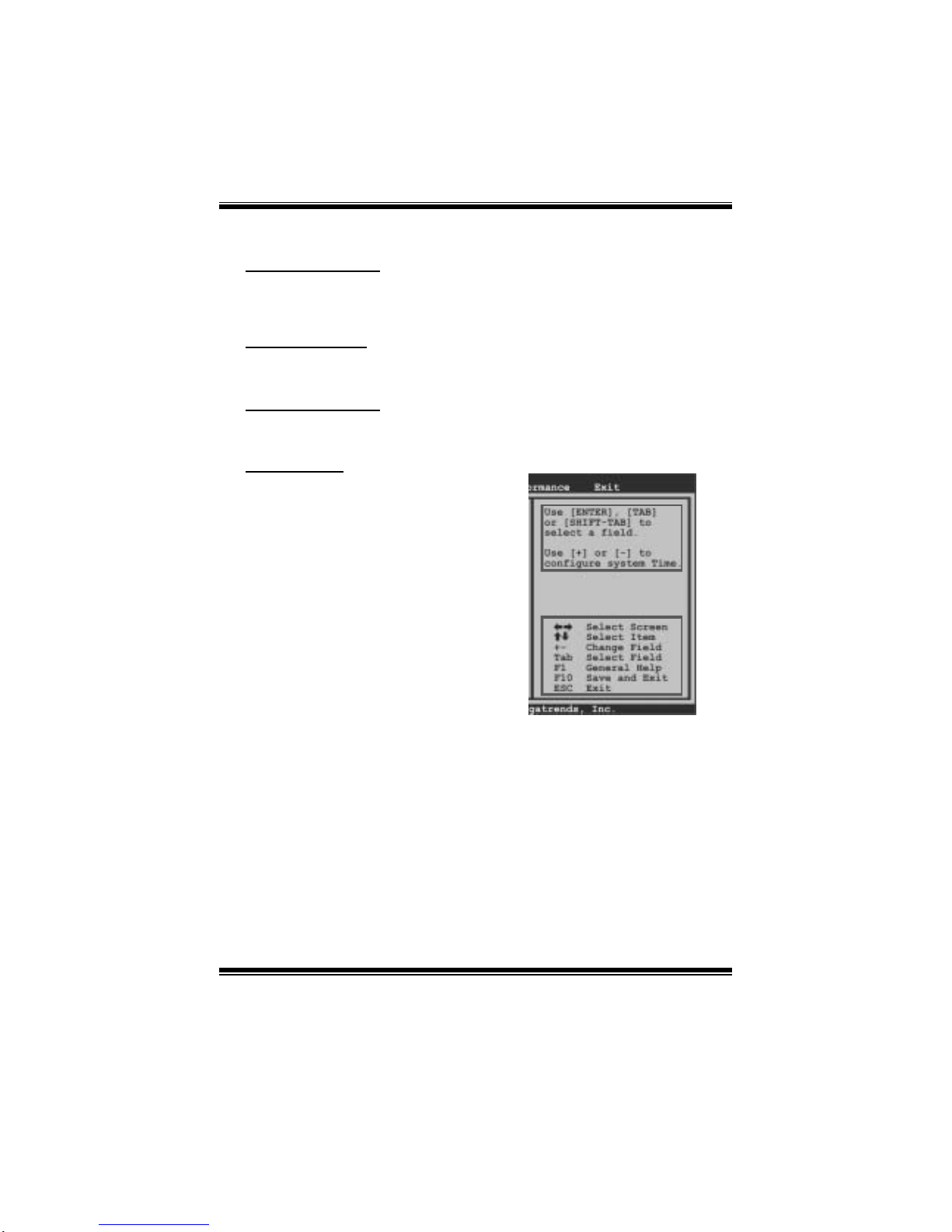

BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Field
Select Field
General Help
Save and Exit
Exit
+-
Tab
F1
F10
ESC
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
Use [+] or [-] to
configure system Time.
System Overview
AMI BIOS
Version :01.01.01
Build Date:01/01/10
System Memory
Size :
System Time [ :00:00]00
System Date [Fri 01/01/2010]
Floppy A
> IDE/SATA Configuration
Exit
AMI BIOS
Shows systeminformation including BIOS version and built date.
System Memory
Shows systemmemory size, VGA shard memory will be excluded..
System Time
Set the systeminternal clock.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set the
date.
Floppy A
Select the typeof floppy disk drive installed in yoursystem.
Options: 360K, 5.25in / 1.2M, 5.25 in/ 720K, 3.5 in / 1.44M, 3.5 in /
2.88M, 3.5in / None

A880GU3/A880GB BIOS Manual
4
IDE/SATA Configuration
The BIOS will automatically detect the presence of IDE/SATA devices. There is a
sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter
the sub-menu of detailed options.
BIOS SETUP UTILITY
Main
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
IDE/SATA Configuration
> Primary IDE Slave
> SATA 1 Device
Hard Disk Write Protect [Disabled]
IDE Detect Time Out (Sec) [35]
> SATA 2 Device
> SATA 3 Device
> SATA 4 Device
> Primary IDE Master
Primary IDEMaster/Slave ;SATA 1/2/3/4 Device
BIOS SETUP UTILITY
Main
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Select the type
of device connected
to the system.
Primary IDE Master
LBA/Large Mode [Auto]
Block (Multi-Sector Transfer)[Auto]
PIO Mode [Auto]
DMA Mode [Auto]
S.M.A.R.T [Auto]
32Bit Data Transfer [Enabled]
Device :
Type [Auto]
The BIOS detects the information and values of respective devices, and these
information and values are shown belowto the name of thesub-menu.

A880GU3/A880GB BIOS Manual
5
Type
Select the typeofthe IDE/SATA drive.
Options: Auto (Default) / CDROM / ARMD / Not Installed
LBA/Large Mode
Enable or disable the LBA mode.
Options: Auto (Default) / Disabled
Block (Multi-Sector Transfer)
Enable or disable multi-sector transfer.
Options: Auto (Default) / Disabled
PIOMode
Select the PIOmode.
Options: Auto (Default) / 0 / 1/ 2 / 3 /4
DMA Mode
Select the DMA mode.
Options: Auto (Default) / SWDMA0 ~2 / MWDMA0 ~2 / UDMA0 ~ 5
S.M.A.R.T
Set the Smart Monitoring, Analysis, and ReportingTechnology.
Options: Auto (Default) / Disabled / Enabled
32Bit Data Transfer
Enable or disable 32-bit data transfer.
Options: Enabled (Default) / Disabled
Hard Disk Write Protect
Disable or enable device write protection. This will be effective only if the device
is accessed through BIOS.
Options: Disabled (Default) / Enabled
IDE Detect Time Out (Sec)
Select the time out value for detecting IDE/SATA devices.
Options: 35 (Default)/ 30 / 25/ 20 / 15 / 10 / 5 / 0

A880GU3/A880GB BIOS Manual
6
2Advanced Menu
The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power
Management, and othersystem devices.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system tomalfunction.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
Configure CPU.Advanced Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
> SuperIO Configuration
> Smart Fan Configuration
> Hardware Health Configuration
> Power Configuration
> USB Configuration
> Audio Configuration
> OnBoard Peripherals Configuration
> CPU Configuration
Exit
CPU Configuration
Thisitem shows theCPU information that theBIOS automatically detects.
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enable/Disable
Secure Virtual Machine
Mode (SVM)
CPU Configuration
Module Version:
AGESA Version:
Physical Count:
Logical Count:
AMD CPU
Revision:
Cache L1:
Cache L2:
Cache L3:
Speed : NB Clk:
ncHT Speed : WidthI/O :
Able to Change Freq :
uCode Patch Level :
Secure Virtual Machine Mode [Enabled]
PowerNow [Enabled]
ACPI SRAT Table [Enabled]
Probe Filter [Enabled]

A880GU3/A880GB BIOS Manual
7
Secure Virtual Machine Mode
Virtualization Technology can virtually separate your system resource into several
parts, thus enhance the performance when running virtual machines or multi
interface systems.
Options: Enabled (Default) / Disabled
PowerNow
Thisitem allows you to enable or disablethePowerNow power saving technology.
Options: Enabled (Default) / Disabled
ACPI SRAT Table
The operating system scans the ACPI SRAT at boot time and uses the information to
better allocate memory and schedule software threads for maximum performance.
This item controls whether the SRAT is made available to the operating system at
boot up, or not.
Options: Enabled (Default) / Disabled
Probe Filter
Thisitem allows you to set initializationmode for Probe Filter.
Options: Auto (Default) / Disabled / MP Mode
Advanced Clock Calibration
Advanced Clock Calibration (ACC) is an enhanced technology for overclocking,
needing support from both chipset and CPU. When enabled, it will improve the
stability ofadvanced overclocking greatly.
Options: Disabled (Default) / Auto / All Cores /Per Core
C1E Support
This item allows you to configure the Enhanced Halt State (C1E) function, which
may reduce the power consumption of your system when the systemis idle.
Options: Enabled (Default) / Disabled
Core Leveling
Thisitem allows you to activate Core Leveling function.
Options: Auto(Default) / Force SingleCore / Force Dual Core / Force Tri Core /
Enable all Cores

A880GU3/A880GB BIOS Manual
8
SuperIO Conf iguration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Allows BIOS to Enable
or Disable Floppy
Controller
Configure ITE8718 Super IO Chipset
Onboard Floppy Controller [Enabled]
Serial Port1 Address [3F8/IRQ4]
Parallel Port Address [378]
Parallel Port Mode [Normal]
Parallel Port IRQ [IRQ7]
OnBoard CIR Port [Disabled]
Keyboard PowerOn [Disabled]
Mouse PowerOn [Disabled]
Restore on AC Power Loss [Power Off]
Onboard Floppy Controller
Select enabled if your system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. Ifyou installed another FDC or the system uses
no floppy drive, select disabled in this field.
Options: Enabled (Default) / Disabled
Serial Port1Address
Select an address and corresponding interrupt for the first and second serial ports.
Options: 3F8/IRQ4 (Default) / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3/ Disabled
ParallelPort Address
Thisitem allows you to determine access onboard parallel port controller with which
I/O Address.
Options: Disabled (Default) / 378 / 278 / 3BC
ParallelPortMode
Thisitem allows you to determine how the parallel port should function.
Options: Normal (Default) Using Parallel port as Standard Printer Port.
EPP Using Parallel Port as Enhanced Parallel Port.
ECP Using Parallel port as Extended Capabilities Port.
ECP+EPP Using Parallel port as ECP& EPP mode.

A880GU3/A880GB BIOS Manual
9
ECP Mode DMA Channel
Thisitem allows you to select parallel port ECP DMA.
Options: DMA3 (Default) / DMA0 / DMA1
Parallel Port IRQ
Thisitem allows you to select the IRQ for the onboard parallel port.
Options: IRQ7 (Default) / IRQ5 / Disabled
OnBoard CIR Port
Thisitem allows you to select consumer IR port.
Options: Disabled (Default) / Enabled
CIR Port IRQ
Thisitem allows you to select consumer IR port IRQ.
Options: IRQ10 (Default) /IRQ3 / IRQ4 / IRQ11
Keyboard PowerOn
Thisitem allows you to control thekeyboard power on function.
Options: Disabled (Default) / Specific Key / Stroke Key / Any Key
Specific KeyEnter
Thisitem will show only when Keyboard PowerOn is set “Specific Key.”
Stroke KeysSelected
Thisitem will show only when Keyboard PowerOn is set “Stroke Key.”
Options: Ctrl+F1 (Default) / Wake Key / Power Key / Ctrl+F2 / Ctrl+F3 /
Ctrl +F4 / Ctrl+F5 / Ctrl+F6
MousePowerOn
Thisitem allows you to control themouse poweron function.
Options: Disabled (Default) / Enabled

A880GU3/A880GB BIOS Manual
10
Restore on AC Power Loss
Thissetting specifies how yoursystem should behave after a power fail or interrupts
occurs. Choosing Disabled will leave the computer in the power off state. Choosing
Enabled will restore thesystem tothe status beforepower failure orinterrupt occurs.
Options: Power Off(Default)/ Last State
Smart Fan Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
When you choice [Auto]
,[3Pin] or [4Pin],
please run the
calibration to define
the Fan parameters for
Smart Fan control
Smart Fan Configuration
CPU Smart Fan [Disabled]
Smart Fan Calibration
Control Mode
Fan Ctrl OFF( C)
o
Fan Ctrl On(C)
Fan Ctrl Start value
Fan Ctrl Sensitive
o
CPUSmartFan
Thisitem allows you to control theCPUSmart Fan function.
Options: Disabled (Default) / Auto / 4Pin / 3Pin
Smart Fan Calibration
Choose this item and then the BIOS will auto test and detect the CPU/System fan
functions and show CPU/Systemfan speed.
Control Mode
Thisitem provides several operation modes ofthefan.
Options: Quiet / Performance/ Manual

A880GU3/A880GB BIOS Manual
11
Fan Ctrl OFF(℃ )
IftheCPU/System Temperatureis lowerthan theset value, FAN will turn off.
Options: 0~127 (℃) (With the interval of1℃)
Fan Ctrl On(℃ )
CPU/System fan starts to work under smart fan function when arrivethis set value.
Options: 0~127 (℃) (With the interval of1℃)
Fan Ctrl Start Value
When CPU/System temperature arrives to the set value, the CPU/System fan will
work under Smart Fan Functionmode.
Options: 0~127 (With theinterval of 1)
Fan Ctrl Sensitive
Increasing the value will raise the speed of CPU/System fan.
Options: 1~127 (With theinterval of 1)
Hardware HealthConfiguration
Thisitem shows the system temperature, fan speed, and voltage information.
Advanced
Hardware Health Configuration
H/W Health Function [Enabled]
Shutdown Temperature [Disabled]
CPU Temperature
SYS Temperature
+12.0V
CPU-NB Voltage
Chip Voltage
CPU Fan
Sytem1 Fan
+5.00V
CPU Vcore
DDR Voltage
HT Voltage
BIOS SETUP UTILITY
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enables Hardware
Health Monitoring
Device.
H/W Health Function
Ifwith amonitoring system, thesystem willshowPChealth status duringPOST stage.
Options: Enabled (Default) / Disabled

A880GU3/A880GB BIOS Manual
12
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature. This item is only
effective under Windows 98 ACPImode.
Options: Disabled (Default) / 60℃/140℉/ 65℃/149℉/ 70℃/158℉/ 75℃/167℉
/ 80℃/176℉/ 85℃/185℉/ 90℃/194℉
Power Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Select the ACPI
state used for
System Suspend.
ACPI Settings
Suspend mode [S1 (POS)]
ACPI Version Featu res [ACPI v1.0]
ACPI APIC support [Enabled]
AMI OEMB table [Enabled]
Headless mode [Disabled]
RTC Resume [Disabled]
RTC Alarm Date(Days)
Time
USB Wakeup From S3/S4 [Disabled]
Power ON by PCIE/O nboard LAN [ Disabled]
Wake Up by PCI [ Disabled]
Wakeup on Ring [Disabled]
RTC Alarm
Suspend mode
The item allows you to select the suspend type under the ACPI operating system.
Options: S1 (POS) (Default) Power on Suspend
S3(STR) Suspend toRAM
S1& S3 POS+STR
ACPI Version Features
The item allows you to select the version of ACPI.
Options: ACPI v1.0 (Default)/ ACPI v2.0 / ACPI v3.0
ACPI APIC support
This item is used to enable or disable the motherboard's APIC (Advanced
Programmable Interrupt Controller). The APIC provides multiprocessor support,
moreIRQs and faster interrupt handling.
Options: Enabled (Default) / Disabled

A880GU3/A880GB BIOS Manual
13
AMI OEMB table
Set this valueto allowthe ACPIBIOS toadd a pointer to an OEMBtable intheRoot
System Description Table (RSDT) table.
Options: Enabled (Default) / Disabled
Headless mode
This is a server-specific feature. A headless server is one that operates without a
keyboard, monitor or mouse. To run in headless mode, both BIOS and operating
system (e.g. WindowsServer 2003) must supportheadless operation.
Options: Disabled (Default) / Enabled
RTC Resume
When “Enabled”, you can set the date and time at which the RTC (real-time clock)
alarm awakens the system from Suspend mode.
Options: Disabled (Default) / Enabled
RTC Alarm Date (Days)
You can choose which date the system will boot up.
RTC Alarm Time
You can choose the system boot up time, input hour, minute and second to specify.
USBWakeup from S3/S4
Thisitem allows you to enable or disabled the USB resumefrom S3/S4 function.
Options: Disabled (Default) / Enabled
Power On by PCIE/OnboardLAN
Thisitem allows you control thewake on LAN (WOL) function.
Options: Disabled (Default) / Enabled
Wake Up byPCI
Enable / Disable PCI to generate a wake event.
Options: Disabled (Default) / Enabled
Wakeup on Ring
Thisitem allows you control thewake on ring function.
Options: Disabled (Default) / Enabled

A880GU3/A880GB BIOS Manual
14
USB Configuration
Thisitem shows the USB controller and using USB deviceinformation.
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enables support for
legacy USB. AUTO
option disables
legacy support if
no USB devices are
connected.
USB Configuration
USB Devices Enabled:
Module Version - 2.24.5-13.4
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed]
BIOS EHCI Hand-Off [Enabled]
Legacy USB1.1 HC Support [Enabled]
> USB Mass Storage Device Configuration
Legacy USBSupport
This item determines if the BIOS should provide legacy support for USB devices
like the keyboard, mouse, and USB drive. This is a useful feature when using such
USB devices with operating systems that do not natively support USB (e.g.
Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled
USB2.0 ControllerMode
Thisitem allows you to select the operation modeofthe USB 2.0 controller.
Options: HiSpeed (Default) USB 2.0-480Mbps
FullSpeed USB 1.1-12Mbps
BIOS EHCI Hand-Off
This item allows you to enable support for operating systems without an EHCI
hand-off feature.
Options: Enabled (Default) / Disabled
Legacy USB1.1 HC Support
Thisitem allows you to enable to support USB1.1 HC.
Options: Enabled (Default) / Disabled

A880GU3/A880GB BIOS Manual
15
USBMass Storage Device Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Number of seconds
POST waits for the
USB mass storage
device after start
unit command.
USB Mass Storage Device Configuration
USB Mass Storage Reset Delay [20 Sec]
Emulation Type [Auto]
Device #
USB Mass Storage Reset Delay
Thisitem allows you to set the reset delay for USB mass storage device.
Options: 20 Sec (Default) / 10 Sec / 30Sec / 40Sec
Emulation Type
Thisitem allows you to select the emulation typeofthe USB mass storage device.
Options: Auto (Default) / Floppy / Forced FDD/ Hard Disk / CDROM
Audio Configuration
BIOS SETUP UTILITY
Chipset
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Update
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
AUDIO Configuration
HD Audio Azalia Device [Enabled]
AMD 880 HD Audio [Enabled]
Options
Dis
Enabled
abled

A880GU3/A880GB BIOS Manual
16
AMD 880 HD Audio
Thisitem allows you to control AMD 880 HD audio function.
Options: Enabled (Default) / Disabled
HD Audio Azalia Device
Thisitem allows you to control theHD audio device.
Options: Enabled (Default) / Auto / Disabled
OnBoard Peripherals Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enabled/Disabled OnBoaOnboard LAN Configuration
MAC ID Information :
OnBoard USB3.0 Controller [Enabled]
Realtek PCIE NIC [Enabled]
Realtek Option ROM [Disabled]
MACID Information
Thisarea shows the MAC ID.
OnBoard USB3.0 Controller (Only For A880GU3)
Thisoption allows youto enable or disable OnBoard USB3.0 Controller.
Options: Enabled (Default) / Disable
Realtek PCIE NIC
Thisoption allows youto control the onboard LANcontroller.
Options: Enabled (Default) / Disable
Realtek Option ROM
Thisitem allows you to enable or disablethe Onboard LANBoot ROM.
Options: Disabled (Default) / Enabled

A880GU3/A880GB BIOS Manual
17
3 PCIPnP Menu
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the
speed ofthe CPU itselfuses when communicatingwith itsown special components.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system tomalfunction.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Clear NVRAM during
System Boot.
Advanced PCI/PnP Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
Plug & Play O/S [No]
PCI Latency Timer [64]
Allocate IRQ to PCI VGA [Yes]
Palette Snooping [Disabled]
PCI IDE BusMaster [Enabled]
> PCI Resource
> PCI Express Configuration
Clear NVRAM [No]
Exit
Clear NVRAM
Thisitem allows you to clear thedata in the NVRAM (CMOS) by selecting “Yes”.
Options: No (Default) / Yes
Plug & Play OS
When set to YES, BIOS will only initialize the PnP cards used for the boot sequence
(VGA, IDE, SCSI). The rest of the cards will be initialized by the PnP operating
system like Window™ 95. When set to NO, BIOS will initialize all the PnP cards.
For non-PnP operating systems (DOS, Netware™), this option must set to NO.
Options: No (Default) / Yes

A880GU3/A880GB BIOS Manual
18
PCI Latency Timer
Thisitem controls how long a PCI device can hold the PCI bus before another takes
over. The longer the latency, the longer the PCI device can retain control of the bus
before handing it overto another PCI device.
Options: 64 (Default)/ 0-255
Allocate IRQ to PCI VGA
Thisitem allows BIOSto choose a IRQ to assignfor the PCI VGA card.
Options: Yes (Default) / No
Palette Snooping
Some old graphic controllers need to “snoop” on the VGApalette and then map it to
their display as a way to provideboot information and VGA compatibility. This item
allows such snooping to take place.
Options: Disabled (Default) / Enabled
PCI IDE BusMaster
Thisitem is atoggle for the built-in driver that allows theonboard IDE controller to
perform DMA (Direct Memory Access) transfers.
Options: Enabled (Default) / Disabled
PCI Resource
BIOS SETUP UTILITY
PCIPnP
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Available: Specified
IRQ is available to be
used by PCI/PnP
devices.
Reserved: Specified
IRQ is reserved for
use by Legacy ISA
devices.
PCI Resource
IRQ3 [Available]
IRQ4 [Available]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Available]
IRQ11 [Available]
IRQ14 [Available]
IRQ15 [Available]
DMA Channel 0 [Available]
DMA Channel 1 [Available]
DMA Channel 3 [Available]
DMA Channel 5 [Available]
DMA Channel 6 [Available]
DMA Channel 7 [Available]
Reserved Memory Size [Disabled]

A880GU3/A880GB BIOS Manual
19
IRQ3/4/5/7/9/10/11/14/15
These items will allow you to assign each system interrupt a type, depending on the
type of device using the interrupt. Theoption “Available” means the IRQ is going
to assign automatically.
Options: Available (Default) / Reserved
DMAChannel0/1/3/5/6/7
These items will allow you to assign each DMA channel a type, depending on the
type of device using the channel. The option “ Available” means the channel is
going to assign automatically.
Options: Available (Default) / Reserved
ReservedMemory Size
Thisitem allowsBIOSto reserve certain memory size for specific PCI device.
Options: Disabled (Default) / 16K / 32K / 64K
PCI Express Configuration
BIOS SETUP UTILITY
PCIPnP
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enable/Disable
Pci Express Device
Relaxed Ordering.
PCI Express Configuration
Relaxed Ordering [Auto]
Maximum Payload Size [Auto]
Extended Tag Field [Auto]
No Snoop [Auto]
Maximum Read Request Size [Auto]
Active State Power-Management[Disabled]
Extended Synch [Auto]
Relaxed Ordering
Thisitem enables/disables PCI Express Device Relaxed Ordering.
Options: Auto (Default) / Disabled / Enabled
