Asus A8AE-LE Amberine User manual

Motherboard
A8AE-LE
(Amberine/
AmberineM)
User Guide

ii
Checklist
Contents
A8AE-LE (Amberine/AmberineM) specifications summary ............ iii
1. Motherboard layout ............................................................... 1
2. Central Processing Unit (CPU).............................................. 2
2.1 Overview ......................................................................... 2
2.2 Installing the CPU............................................................ 2
3. System memory .................................................................... 3
3.1 Installing a DIMM............................................................. 3
4. Expansion slots ..................................................................... 4
4.1 Standard interrupt assignments ...................................... 4
4.2 IRQ assignments for this motherboard............................ 4
4.3 PCI slots .......................................................................... 5
4.4 PCI Express x16 slot ....................................................... 5
4.5 PCI Express x1 slot ......................................................... 5
5. Jumpers................................................................................. 6
6. Connectors ............................................................................ 7
6.1 Rear panel connectors .................................................... 7
6.2 Internal connectors.......................................................... 9
Product Name: A8AE-LE (Amberine/AmberineM)
Manual Revision: E2098
Release Date: June 2005

iii
Socket 939 for AMD Athlon™64 FX processor
AMD 64 architecture that enables 32- and 64-bit computing
ATI RS482 with ATI SB400
2000 MT per second
4 x 184-pin DDR DIMM sockets for up to 4GB non-ECC 2.6V
Dual Channel memory
Supports PC3200/2700 DDR
1 x PCI-Express x16 slot
3 x PCI slots
1 x ASUS proprietary PCI expander connector (AmberineM
no Support)
ATI SB400 Supports :
2 x UltraDMA100/66/33 connectors, PIO Mode 3/4
Supports 4ATAPI IDE, CD-ROM, CD-R, CD-RW and LS-120
2 x Serial ATA 150 connectors
Support AC97 Audio CODEC
RealTekALC658C 6-channel audio CODEC
Realtek RTL810L(D version) 10/100Mbps LAN PHY
VIA VT6307 chipset supports 2 x IEEE1394 ports
Super I/O integrated monitoring of CPU and system fan
rotations and CPU temperature
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Parallel port
1 x Serial port
1 x VGA Port
4 x USB 2.0 ports
1 x RJ-45 port
1 x IEEE 1394 port
1 x S-Video (AmberineM no support)
1 x Composite-out (AmberineM no support)
1 x S/PDIF-out
Line In/Line Out/Microphone ports
CPU
Chipset
System Bus
Memory
Expansion slots
Storage
Onboard Audio
Onboard LAN
Onboard IEEE 1394
Hardware monitoring
Rear panel I/O
A8AE-LE(Amberine/AmberineM)
specifications summary
(continuned on the next page)

iv
1 x Floppy connector
2 x USB 2.0 connectors for additional 4 USB ports
1 x IEEE 1394 connector for additional 1394 port
1 x CPU and SYSTEM/Chassis FAN connector
1 x 24-pin ATX power connector
1 x 4-pin ATX power connector
1 x Serial port
1 x S/PDIF out connector
1 x CD/AUX audio connectors
1 x Front headphone connector
4Mb LPC EEPROM, AWARD BIOS with Enhanced ACPI,
DMI, Green, PnP Features Plus
USB 2.0/1.1, PCI 2.2
ATX power supply (with 24-pin and 4-pin 12V plugs)
ATX form factor: 9.6 in x 9.6 in
Internal I/O
BIOS features
Industry Standard
Power Requirement
Form Factor

ASUS A8AE-LE (Amberine/AmberineM) Motherboard 1
1. Motherboard layout
20.8cm (8.2in)
PCI1
A8AE-LE
LPC
Flash
ROM
PS/2KBMS
T: Mouse
B: Keyboard
ALC658
USB2.0
T: USB3
B: USB4 Top:
RJ-45
CLRTC
CHA_FAN1
F_USB1
24.5cm (9.6in)
PCI2
PC3
BUZZ1
T:USB1
B:USB2
Bottom:
1394
Top:
RTL8101L
F_PANEL1
F_USB2
ATX12V1
CPU_FAN1
CLPWD
Super
I/O
Asus
A8000
F_AUDIO1 AUX_IN1
CD_IN1
PARALLEL PORT
VGA
DDR2 DIMMA1 (64 bit,240-pin module)
ATXPWR1
SATA1
SATA2
FLOPPY1
IDE1
DDR2 DIMMA1 (64 bit,240-pin module)
IDE2
Socket 939
CR2032 3V
Lithium Cell
CMOS Power
ATI
SB400
ATI
RS482
PCIEX1
VIA
VT6307
PCI45
F_1394
Below:Mic In
Center:Line Out
Top:Line In
SPDIFOUT1
DDR2 DIMMA1 (64 bit,240-pin module) DDR2 DIMMA1 (64 bit,240-pin module)

2 ASUS A8AE-LE (Amberine/AmberineM) Motherboard
2. Central Processing Unit (CPU)
2.1 Overview
The motherboard comes with a surface mount 939-pin Zero Insertion Force (ZIF)
socket. The socket is designed for the newAMDAthlon™ 64FX orAMDAthlon 64™
Processor.
The 128-bit-wide data paths of these processors can run applications faster than
processors with only 32-bit or 64-bit wide data paths.
Take note of the marked corner (with gold triangle) on the CPU. This mark should
match a specific corner on the socket to ensure correct installation.
Installing the CPU
Follow these steps to install a CPU.
1. Locate the Socket 939 and open it by pulling
thelevergently sidewaysawayfromthe socket.
Then lift the lever upwards. The socket lever
must be fully opened (90 to 100 degrees).
2. Insert the CPU with the correct orientation.
Position the CPU above the socket such that
the CPU corner with the gold triangle matches
the socket corner with a small triangle.
3. When the CPU is in place, push down the socket lever to secure the CPU. The
lever clicks on the side tab to indicate that it is locked.
The CPU fits only in one correct orientation. DO NOT force the CPU into the
socket to prevent bending the pins and damaging the CPU!
Gold triangle
A8AE-LE
A8AE-LE CPU Socket 939

ASUS A8AE-LE (Amberine/AmberineM) Motherboard 3
3. System memory
The motherboard comes with four Double Data Rate (DDR) Dual Inline Memory
Module (DIMM) sockets. These sockets support up to 4GB system memory using
184-pin unbuffered non-ECC PC3200/PC2700 DDR DIMMs.
The following figure illustrates the location of the DDR DIMM sockets.
Make sure to unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so may cause severe damage to both the
motherboard and the components.
Follow these steps to install a DIMM.
1. Unlock a DIMM socket by pressing the
retaining clips outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in
placeand the DIMMisproperly seated.
2.2 Installing a DIMM
Youmay install64MB, 128MB,256MB, 512MB,and 1GBDDR DIMMsinto theDIMM
sockets using the memory configurations in this section.
Unlocked Retaining Clip
DDR DIMM notch
CAUTION: DIMMs are keyed to fit with only one direction. DO NOT force a DIMM
into a socket to avoid damaging the DIMM.
A8AE-LE
A8AE-LE 184-pin DDR DIMM sockets
XMM1
XMM2 XMM3 XMM4

4 ASUS A8AE-LE (Amberine/AmberineM) Motherboard
4. Expansion slots
The motherboard has three PCI slots and one Accelerated Graphics Port (AGP) slot.
To install and configure an expansion card:
1. Install an expansion card following the instructions that came with the chassis.
2. Turn on the system and change the necessary BIOS settings, if any.
3. Assign an IRQ to the card. Refer to the tables below.
4. Install the drivers and/or software applications for the expansion card according
to the card documentation.
4.1 Standard interrupt assignments
IRQ Priority Standard Function
0 1 System Timer
1 2 Keyboard Controller
2 N/A Programmable Interrupt
3* 11 Communications Port (COM2)
4* 12 Communications Port (COM1)
5* 13 Sound Card (sometimes LPT2)
6 14 Floppy Disk Controller
7* 15 Printer Port (LPT1)
8 3 System CMOS/Real Time Clock
9* 4 ACPI Mode when used
10* 5 IRQ holder for PCI steering
11*6 IRQ holder for PCI steering
12* 7 PS/2 Compatible Mouse Port
13 8 Numeric Data Processor
14* 9 Primary IDE Channel
15* 10 Secondary IDE Channel
*These IRQs are usually available for ISA or PCI devices.
4.2 IRQ assignments for this motherboard
ABCD
PCI slot 1 INTA# INTB# INTC# INTD#
PCI slot 2 INTB# INTC# INTD# INTA#
PCI slot 3 INTC# INTD# INTA# INTB#
PCI slot 4 INTD# INTA# INTB# INTC#
PCI slot 5 INTA# INTB# INTC# INTD#
Onboard 1394 controller INTE# - - -
*Onboard USB controller 1 INTD# - - -
*Onboard LAN INTF# - - -
*The onboard USB, LAN and audio IRQs are assigned by the BIOS.

ASUS A8AE-LE (Amberine/AmberineM) Motherboard 5

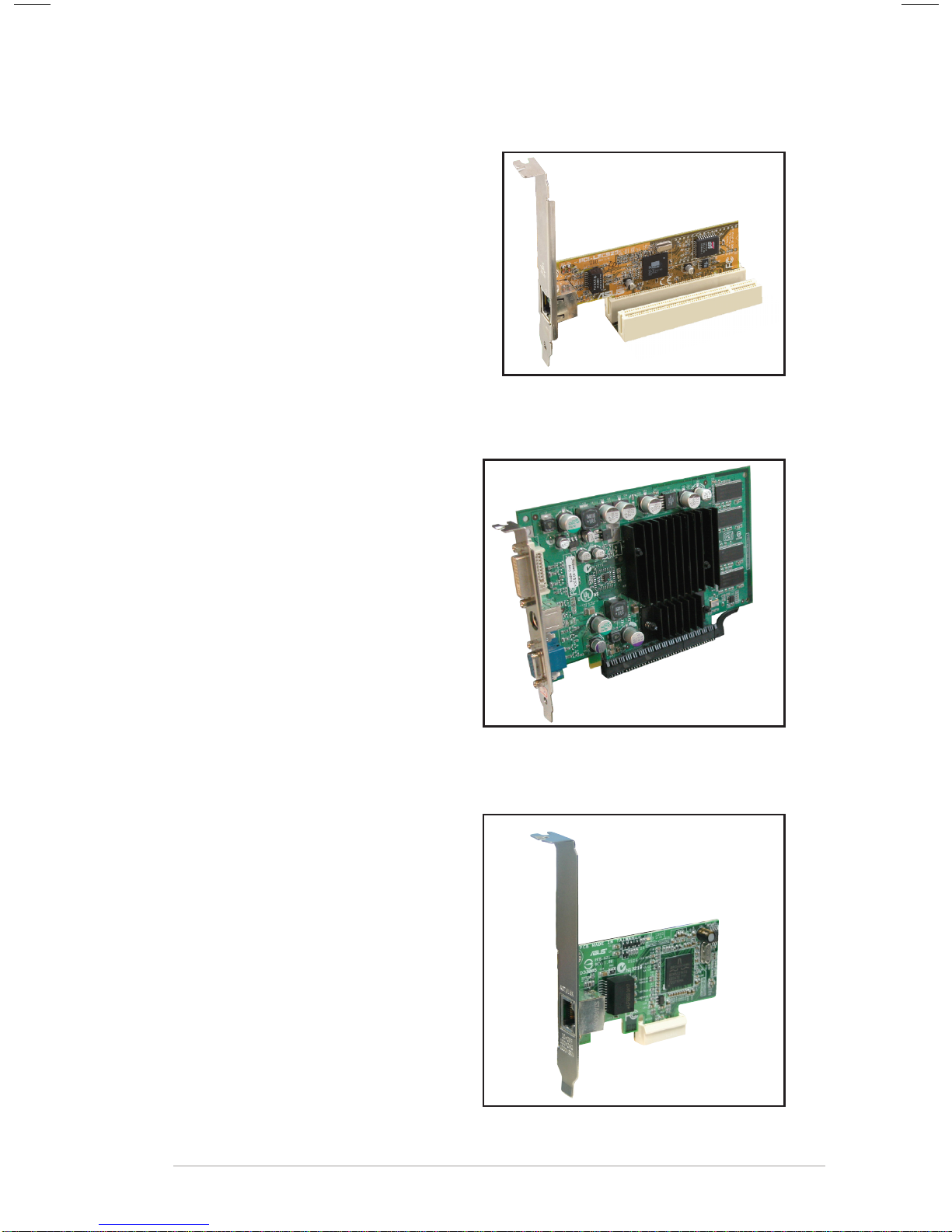

4.3 PCI slots
This motherboard has three PCI slots. The
PCI slots support cards such as a LAN card,
SCSI card, USB card, and other cards that
comply with PCI specifications. The figure
shows a LAN card installed on a PCI slot.
4.4 PCI Express x16 slot
This motherboard supports PCI Express
x16graphic cards thatcomplywith thePCI
Expressspecifications.Thefollowingfigure
showsa graphicscardinstalled onthePCI
Express x16 slot.
4.5 PCI Express x1 slot
This motherboard supports PCI Express
x1 network card, SCSI cards and other
cards that comply with the PCI Express
specifications.
The figure shows a network card install on
the PCI Express x1 slot.

6 ASUS A8AE-LE (Amberine/AmberineM) Motherboard
5. Jumpers
2. Clear Password (3-pin CLPWD)
This jumper allows you to clear the password in CMOS. To erase the Password
move the jumper cap from pins 2-3 (Default) to pins 1-2 (Clear Password). Keep
the cap on pins 1-2 for about 5~10 seconds, then move the cap back to pins 2-3.
Plug the power cord and turn ON the computer. Hold down the <Del> key during
the boot process and enter BIOS setup to re-enter data.

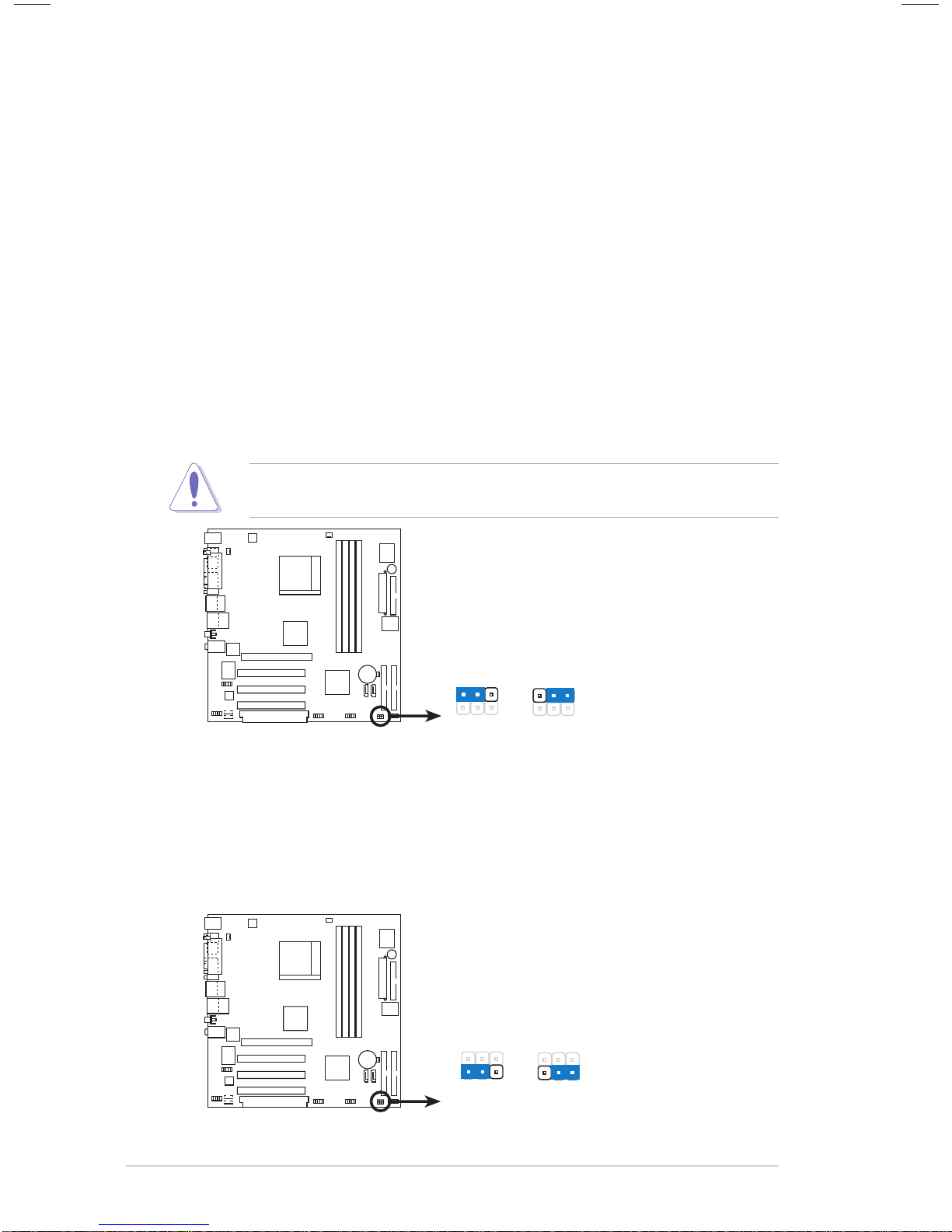

1. Clear RTC (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You
can clear the CMOS memory of date, time, and system setup parameters by
erasing the CMOS RTC RAM data. The RAM data in CMOS, that include system
setup information, is powered by the onboard button cell battery.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 2-3 (Default) to pins 1-2 (Clear CMOS).
Keep the cap on pins 1-2 for about 5~10 seconds, then move the cap back
to pins 2-3.
3. Plug the power cord and turn ON the computer.
4. Hold down the <F1> key during the boot process and enter BIOS setup to
re-enter data.
Except when clearing the RTC RAM, never remove the jumper caps on default
position. Removing the cap will cause system boot failure!
A8AE-LE
A8AE-LE Clear RTC RAM
CLRTC
NormalClear CMOS (Default)
12 23
A8AE-LE
A8AE-LE Clear password setting
CLPWD
Normal Clear Password
(Default)
12 23

ASUS A8AE-LE (Amberine/AmberineM) Motherboard 7
6. Connectors
6.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed
connectivityforaudio/videodevices,storageperipherals,PCs, or portable
devices.
4. LAN (RJ-45) port. This port allows connection to a Local Area Network
(LAN) through a network hub.
5. Line In port (light blue). This port connects a tape, CD, DVD player or
other audio sources.
6. Line Out port (lime). Thisportconnects a headphone oraspeaker.In 4-
channel and 6-channel mode, the function of this port becomes Front
Speaker Out.
7. Microphone port (pink). This port connects a microphone.
8. Coaxial S/PDIF Out port. This port connects an external audio output
device via a coaxial S/PDIF cable.
1
14 9
2 43
1011
5
6
7
13 812
Audio 2, 4, or 6-channel configuration
Headset/Headset/
Headset/Headset/
Headset/
2-channel2-channel
2-channel2-channel
2-channel 4-channel4-channel
4-channel4-channel
4-channel 6-channel6-channel
6-channel6-channel
6-channel
Light Blue Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/Subwoofer

8 ASUS A8AE-LE (Amberine/AmberineM) Motherboard
9. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
10.USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
11. VGA Graphic Adapter port. This 15-pin port is for a VGA monitor or
other VGA-compatible devices.
12.S-Video Out port. This port connects an external Video output device
via a S-Video cable.
13. Composite Out port .Thisportconnectsanexternalaudio output device
via a Composite cable.
14.PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

ASUS A8AE-LE (Amberine/AmberineM) Motherboard 9
6.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector supports the provided floppy drive ribbon cable.After connecting
one end to the motherboard, connect the other end to the floppy drive. (Pin 5 is
removed to prevent incorrect insertion when using ribbon cables with pin 5 plug).
A8AE-LE
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
A8AE-LE Floppy disk drive connector
FLOPPY1
PIN 1
2. ATX power connectors (24-pin ATXPWR1, 4-pin ATX12V1)
These connectors connect to an ATX 12V power supply. The plugs from the
power supply are designed to fit these connectors in only one orientation. Find
the proper orientation and push down firmly until the connectors completely fit.
Make sure that yourATX 12V power supply can provide 8Aon the +12V lead and
at least 1A on the +5-volt standby lead (+5VSB). The minimum recommended
wattage is 230W, or 300W for a fully configured system. The system may become
unstable and may experience difficulty powering up if the power supply is
inadequate.
A8AE-LE
A8AE-LE ATX power connectors
ATXPWR1
ATX12V1
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts +5 Volts
Ground
+12V DC
GND
+12V DC
GND

10 ASUS A8AE-LE (Amberine/AmberineM) Motherboard
4. IDE connectors (40-1 pin IDE1, IDE2)
This connector supports the provided UltraDMA100/66/33 IDE hard disk ribbon
cable. Connect the cable’s blue connector to the primary (recommended) or
secondaryIDEconnector, thenconnectthegrayconnectortotheUltraDMA100/66/
33 slave device (hard disk drive) and the black connector to the UltraDMA100/66/
33 master device. It is recommended that you connect non-UltraDMA100/66/33
devices to the secondary IDE connector. If you install two hard disks, you must
configure the second drive as a slave device by setting its jumper accordingly.
Refertotheharddiskdocumentationforthejumpersettings.BIOSsupportsspecific
device bootup. If you have more than two UltraDMA100/66/33 devices, purchase
another UltraDMA100/66/33 cable. You may configure two hard disks to be both
master devices with two ribbon cables – one for the primary IDE connector and
another for the secondary IDE connector.
1. Pin 20 on each IDE connector is removed to match the covered hole on the
UltraDMAcableconnector.This preventsincorrect orientation whenyou connect
the cables.
2. The holenear theblue connectoronthe UltraDMA100/66/33 cable is intentional.
A8AE-LE
A8AE-LE IDE connectors
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
IDE1
PIN 1
IDE2
PIN 1

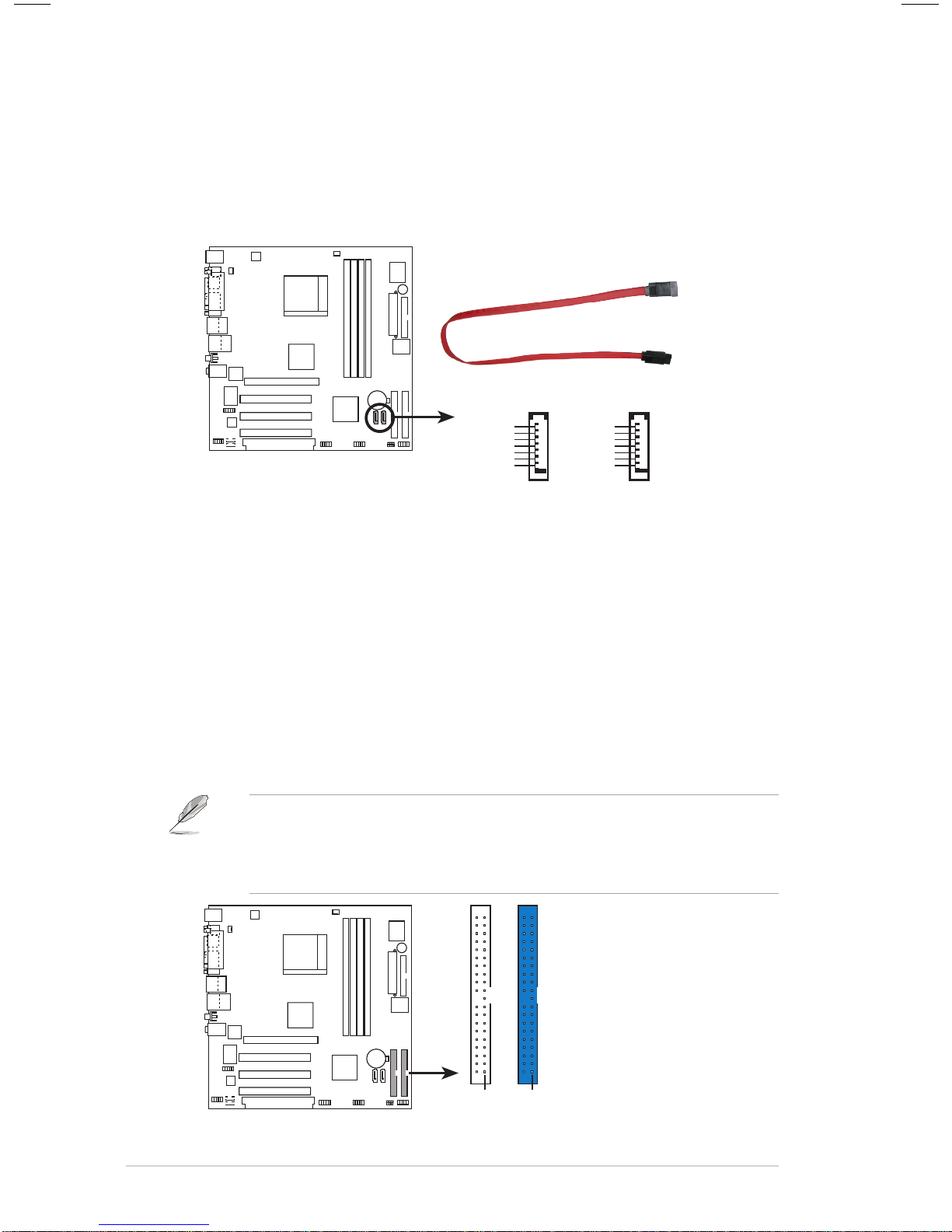

3. Serial ATA connectors (7-pin SATA1, SATA0)
These next generation connectors support the thin SerialATAcables for
primary internal storage devices. The current Serial ATAinterface allows
up to 150 MB/s data transfer rate, faster than the standard parallel ATA
with 133 MB/s (UltraDMA133).
A8AE-LE
A8AE-LE SATA connectors
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA2

ASUS A8AE-LE (Amberine/AmberineM) Motherboard 11

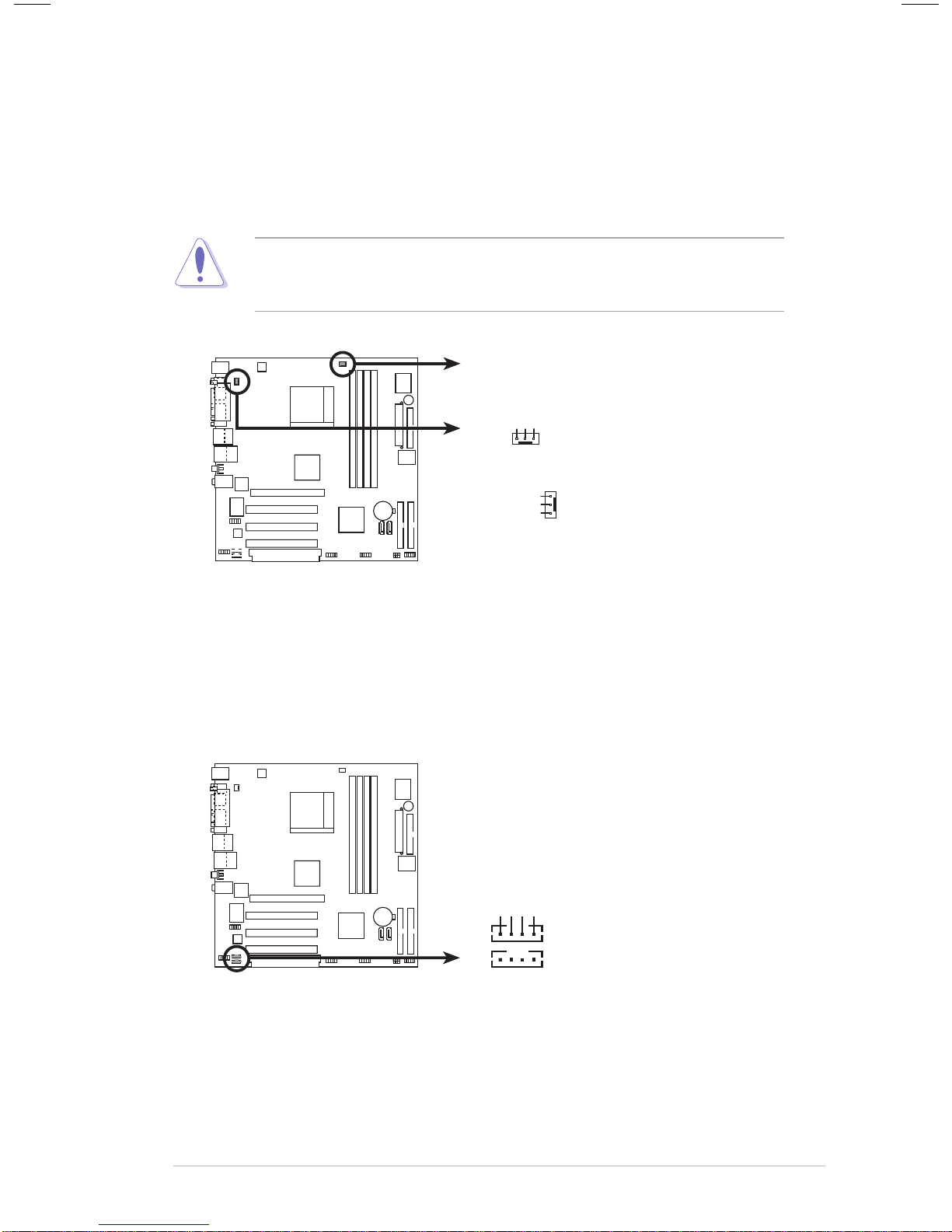

5. CPU and System Fan Connectors (3-pin CPU_FAN1, CHA_FAN1)
The fan connectors support cooling fans of 350mA~740mA (8.88W max.) or a
total of 1A~2.22A (26.64W max.) at +12V. Connect the fan cables to the fan
connectors on the motherboard, making sure that the black wire of each cable
matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Lack of sufficient air
flow within the system may damage the motherboard components. These are not
jumpers! DO NOT place jumper caps on the fan connectors!
6. Internal audio connectors (4-pin CD_IN1, AUX_IN1)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
A8AE-LE
A8AE-LE Fan connectors
CPU_FAN1
CHA_FAN1
GND
Rotation
+12V
GND
Rotation
+12V
A8AE-LE
A8AE-LE Internal audio connectors
CD_IN1
Right Audio Channel
Left Audio Channel Ground Ground
AUX_IN1

12 ASUS A8AE-LE (Amberine/AmberineM) Motherboard
8. IEEE 1394 connector (10-1 pin F_1394)
This connector is for a 10-to-6-pin 1394 serial connector cable that connects to a
1394 module. Attach the 10-1 pin cable plug to this connector, and the 6-pin
cable plug to the 1394 module. You may also connect a 1394-compliant internal
hard disk to this connector.

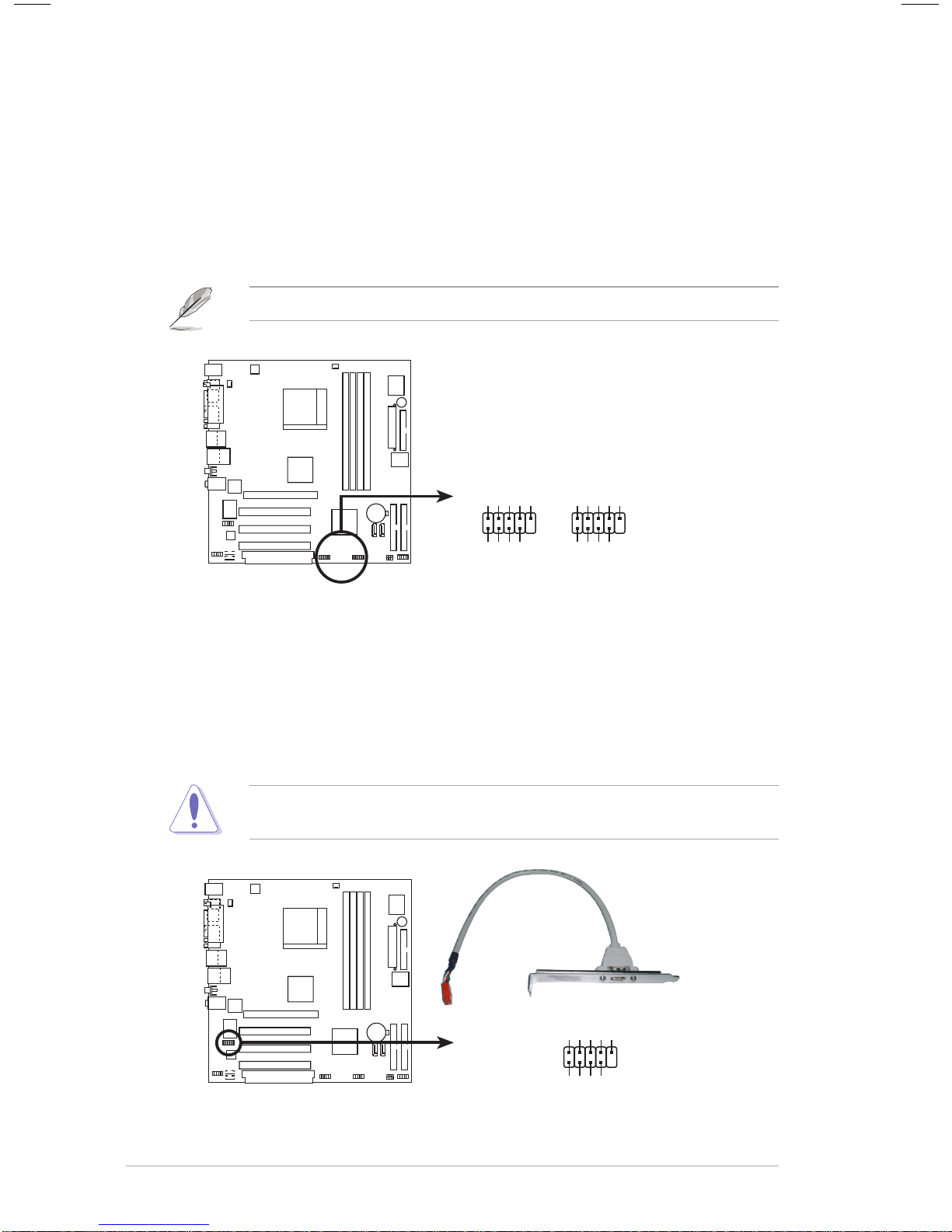

7. USB headers (10-1 pin F_USB1,F_USB2)
If the USB ports on the rear panel are inadequate, a USB header is available for
additional USB ports. The USB header complies with USB 2.0 specification that
supports up to 480 Mbps connection speed. This speed advantage over the
conventional 12 Mbps on USB 1.1 allows faster Internet connection, interactive
gaming, and simultaneous running of high-speed peripherals. You may connect
a USB module to the USB header.
NEVER connect a USB cable to any of the IEEE 1394 connectors. Doing so will
damage the motherboard!
The USB module is purchased separately.
A8AE-LE
A8AE-LE USB 2.0 connectors
F_USB1 F_USB2
USB+5V
USB_P5-
USB_P5+
GND
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
USB+5V USB_P6- USB_P6+ GND NC
A8AE-LE
A8AE-LE IEEE 1394 connector
F_1394 1
TPA1- GND TPB1- +12V GND
TPA1+
GND
TPB1+
+12V

ASUS A8AE-LE (Amberine/AmberineM) Motherboard 13
A8AE-LE
A8AE-LE Front audio connector
F_AUDIO1
AUD_GND AUD_VCC AUD_RET_R AUD_VCC AUD_RET_L
AUD_MIC1 AUD_MIC2
AUD_FPOUT_R
AUD_MIC_JD
AUD_FPOUT_L
1
9. Front panel audio connector (10-1 pin F_AUDIO1)
This is an interface for the Intel front panel audio cable that allow convenient
connection and control of audio devices.
By default, the pins labeled LINE_OUT_R/BLINE_OUT_R and the pins
LINE_OUT_L/BLINE_OUT_L are shorted with jumper caps. Remove the caps
only when you are connecting the front panel audio cable.

14 ASUS A8AE-LE (Amberine/AmberineM) Motherboard

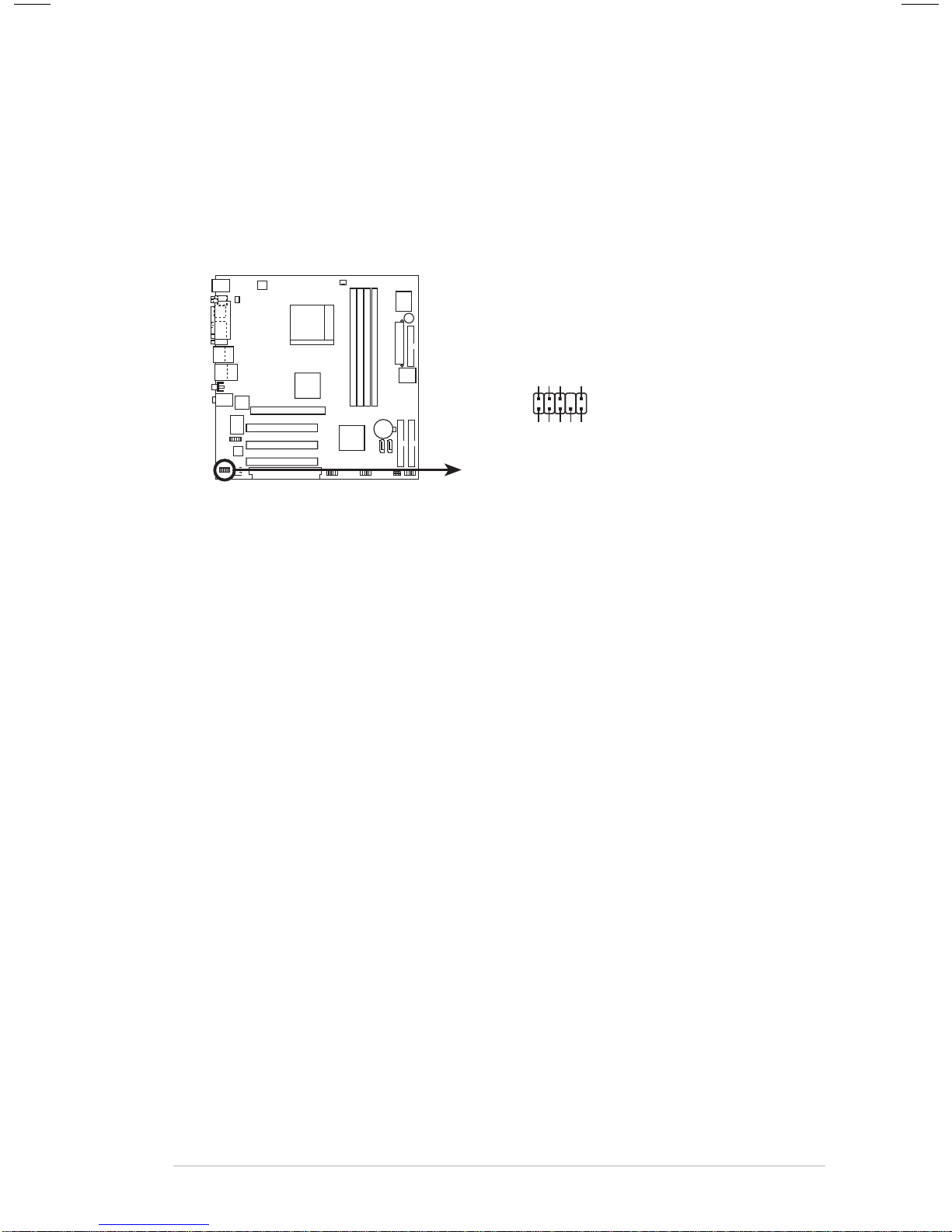

10. System panel connector (10-pin F_PANEL1)
This connector accommodates several system front panel functions.
•System Power LED Lead (2-pin PWR LED)
This 3-1 pin connector connects to the system power LED. The LED lights up
when you turn on the system power, and blinks when the system is in sleep
mode.
•Hard Disk Activity LED Lead (2-pin HD LED)
This 2-pin connector is for the HDD LED cable. The read or write activities of the
device connected to the any of IDE connectors cause the IDE LED to light up.
•ATX Power Switch / Soft-Off Switch Lead (2-pin PWR BTN)
This connector connects a switch that controls the system power. Pressing the
power switch turns the system between ON and SLEEP, or ON and SOFT OFF,
depending on the BIOS or OS settings. Pressing the power switch while in the
ON mode for more than 4 seconds turns the system OFF.
•Reset Switch Lead (2-pin RESET)
This 2-pin connector connects to the case-mounted reset switch for rebooting
the system without turning off the system power.
A8AE-LE
A8AE-LE System panel connector
F_PANEL1
PLED-
PWR PLED+
Ground GNDReset
HDLED+
HDLED-
HDLED RESET
PWR LED PWR BTN
NC
