Asus P5G-TVM User manual

E2245
UserGuide

ASUScontactinformation
ASUSTeKCOMPUTERINC.(Asia-Pacific)
Address15Li-TeRoad,Peitou,Taipei,Taiwan112
Telephone[phone]
Websitewww.asus.com.tw
Technical Support
Telephone
(MB/Component)[phone](English)
(Notebook)[phone](English)
(Server/PC)[phone](English)
(Networking)[phone](English)
Supportfax+886-2-2890-7698
ASUSCOMPUTERINTERNATIONAL(America)
Address44370NobelDrive,Fremont,CA94538,USA
Fax[phone]
E-mail[email protected]m
Websiteusa.asus.com
Technical Support
Telephone
(General)[phone]
(Notebook)[phone]
Supportfax+1-502-933-8713
Supporte-mail[email protected]m
ASUSCOMPUTERGmbH(GermanyandAustria)
AddressHarkortStr.25,D-40880Ratingen,Germany
Telephone[phone]
Fax[phone]
Onlinecontactwww.asuscom.de/sales
Technical Support
Telephone
Fax
Onlinesupport
Website
[phone]
[phone]
www.asuscom.de/support
www.asuscom.de/news

P5S-TWM

E2245
FirstEditionVI
February2005
Copyright© 2005ASUSTeKCOMPUTERINC.AllRightsReserved.
Nopartofthismanual,includingtheproductsandsoftwaredescribedinit,maybereproduced,
transmitted,transcribed,storedina retrievalsystem,ortranslatedintoanylanguageinanyform
orbyanymeans,exceptdocumentationkeptbythepurchaserforbackuppurposes,withoutthe
expresswrittenpermissionofASUSTeKCOMPUTERINC.("ASUS").
Productwarrantyorservicewillnotbeextendedif:(1)theproductisrepaired,modifiedor
altered,unlesssuchrepair,modificationofalterationisauthorizedinwritingbyASUS;or(2)
theserialnumberoftheproductisdefacedormissing.
ASUSPROVIDESTHISMANUAL"ASIS"WITHOUTWARRANTYOFANYKIND,EITHER
EXPRESSORIMPLIED,INCLUDINGBUTNOTLIMITEDTOTHEIMPLIEDWARRANTIES
ORCONDITIONSOFMERCHANTABILITYORFITNESSFORA PARTICULARPURPOSE.
INNOEVENTSHALLASUS,ITSDIRECTORS,OFFICERS,EMPLOYEESORAGENTSBE
LIABLEFORANYINDIRECT,SPECIAL,INCIDENTAL,ORCONSEQUENTIALDAMAGES
(INCLUDINGDAMAGESFORLOSSOFPROFITS,LOSSOFBUSINESS,LOSSOFUSE
ORDATA,INTERRUPTIONOFBUSINESSANDTHELIKE),EVENIFASUSHASBEEN
ADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGESARISINGFROMANYDEFECTOR
ERRORINTHISMANUALORPRODUCT
SPECIFICATIONSANDINFORMATIONCONTAINEDINTHISMANUALAREFURNISHED
FORINFORMATIONALUSEONLY,ANDARESUBJECTTOCHANGEATANYTIME
WITHOUTNOTICE,ANDSHOULDNOTBECONSTRUEDASA COMMITMENTBY
ASUS.ASUSASSUMESNORESPONSIBILITYORLIABILITYFORANYERRORSOR
INACCURACIESTHATMAYAPPEARINTHISMANUAL,INCLUDINGTHEPRODUCTS
ANDSOFTWAREDESCRIBEDINIT.
Productsandcorporatenamesappearinginthismanualmayormaynotberegistered
trademarksorcopyrightsoftheirrespectivecompanies,andareusedonlyforidentificationor
explanationandtotheowners'benefit,withoutintenttoinfringe.
ii

Contents
Noticesv
Safetyinformationvi
P5G-TVMspecificationssummaryvii
Chapter1:Productintroduction
1.1Beforeyouproceed1-2
1.2Motherboardoverview 1 -3
1.2.1Placementdirection 1 -3
1.2.2Screwholes1-3
1.2.3Motherboardlayout 1 -4
1.2.4Layoutcontents 1 -5
1.3CentralProcessingUnit(CPU) 1 -7
1.3.1InstallingtheCPU1-7
1.3.2InstallingtheCPUheatsinkandfan 1 -10
1.3.3UninstallingtheCPUheatsinkandfan 1 -12
1.4Systemmemory1-14
1.4.1DIMMsocketslocation1-14
1.4.2MemoryConfigurations1-14
1.4.3Installinga DIMM1-16
1.4.4 Removinga DIMM1-16
1.5Expansionslots1-17
1.5.1Installinganexpansioncard 1 -17
1.5.2Configuringanexpansioncard 1 -17
1.5.3Interruptassignments1-18
1.5.4PCIslots1-19
1.5.5PCIExpressxl6 slot1-19
1.6Jumpers1-20
1.7Connectors1-22
1.7.1Rearpanelconnectors1-22
1.7.2Internalconnectors 1 -24
Chapter2:BIOSSetup
2.1BIOSsetupprogram2-2
2.2BIOSmenuscreen2-3
2.2.1Menubar2-3
2.2.2Legendbar2-4

Contents
2.2.3Menuitems2-4
2.2.4Sub-menuitems2-4
2.2.5Configurationfields2-4
2.2.6Pop-upwindow2-5
2.2.7Generalhelp2-5
2.3Mainmenu2-6
2.3.1SystemTime2-6
2.3.2SystemDate2-6
2.3.3LegacyDisketteA 2-6
2.3.4PrimaryandSecondaryIDEMaster/Slave2-7
2.3.5HDDSMARTMonitoring2-8
2.3.6InstalledMemory2-8
2.3.7UsableMemory2-8
2.4AdvancedMenu2-9
2.4.1CPUConfiguration2-9
2.4.2MemoryConfiguration2-11
2.4.3Chipset2-12
2.4.4PCIPnP2-13
2.4.5OnboardDeviceConfiguration2-14
2.4.6USBConfiguration2-16
2.5Powermenu2-17
2.5.1ACPISuspendType2-17
2.5.2ACPIAPCiSupport2-17
2.5.3АРМConfiguration2-18
2.5.4HardwareMonitor2-20
2.6Bootmenu2-21
2.6.1BootDevicePriority2-22
2.6.2RemovableDrives2-23
2.6.3HardDiskDrives2-23
2.6.4NetworkBootPriority2-24
2.6.5BootSettingsConfiguration2-24
2.6.6Security2-26
2.7Exitmenu2-28

Notices
FederalCommunicationsCommissionStatement
ThisdevicecomplieswithPart 1 5 oftheFCCRules.Operationissubjectto
thefollowingtwoconditions:
•Thisdevicemaynotcauseharmfulinterference,and
•Thisdevicemustacceptanyinterferencereceivedincluding
interferencethatmaycauseundesiredoperation.
Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora
ClassВ digitaldevice,pursuanttoPart 1 5 oftheFCCRules.Theselimits
aredesigned toprovidereasonableprotectionagainstharmfulinterference
ina residentialinstallation.Thisequipmentgenerates,usesandcanradiate
radiofrequencyenergyand,ifnotinstalledandusedinaccordancewith
manufacturer'sinstructions,maycauseharmfulinterferencetoradio
communications.However, thereisnoguaranteethatinterferencewill
notoccurina particularinstallation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrect
theinterferencebyoneormoreofthefollowingmeasures:
•Reorientorrelocatethereceivingantenna.
оIncreasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmenttoanoutletona circuitdifferentfromthatto
whichthereceiverisconnected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
vTheuseofshieldedcablesforconnectionofthemonitortothegraphics
i С cardisrequiredtoassurecompliancewithFCCregulations.Changes
/ormodificationstothisunitnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidtheuser'sauthoritytooperate
thisequipment.
CanadianDepartmentofCommunicationsStatement
ThisdigitalapparatusdoesnotexceedtheClassВ limitsforradionoise
emissionsfromdigitalapparatussetoutintheRadioInterference
RegulationsoftheCanadianDepartmentofCommunications.
ThisclassВ digitalapparatuscomplieswithCanadian
ICES-003.

Safetyinformation
Electricalsafety
оTopreventelectricalshockhazard,disconnectthepowercablefrom
theelectricaloutletbeforerelocatingthesystem.
•Whenaddingorremovingdevicestoorfromthesystem,ensurethat
thepowercablesforthedevicesareunpluggedbeforethesignal
cablesareconnected.Ifpossible,disconnectallpowercablesfromthe
existingsystembeforeyouadda device.
•Beforeconnectingorremovingsignalcablesfromthemotherboard,
ensurethatallpowercablesareunplugged.
•Seekprofessionalassistancebeforeusinganadapterorextension
cord.Thesedevicescouldinterruptthegroundingcircuit.
•Makesurethatyourpowersupplyissettothecorrectvoltageinyour
area.Ifyouarenotsureaboutthevoltageoftheelectricaloutletyou
areusing,contactyourlocalpowercompany.
оIfthepowersupplyisbroken,donottrytofixitbyyourself.Contact
aqualifiedservicetechnicianoryourretailer.
Operationsafety
•Beforeinstallingthemotherboardandaddingdevicesonit,carefully
readallthemanualsthatcamewiththepackage.
•Beforeusingtheproduct,makesureallcablesarecorrectlyconnected
andthepowercablesarenotdamaged.Ifyoudetectanydamage,
contactyourdealerimmediately.
оToavoidshortcircuits,keeppaperclips,screws,andstaplesawayfrom
connectors,slots,socketsandcircuitry.
•Avoiddust,humidity,andtemperatureextremes.Donotplacethe
productinanyareawhereitmaybecomewet.
•Placetheproductona stablesurface.
•Ifyouencountertechnicalproblemswiththeproduct,contacta
qualifiedservicetechnicianoryourretailer.

P5G-TVMspecificationssummary
CPU LGA775socketforIntel®Pentium®4/Celeronprocessor
CompatiblewithIntel0Mainstream/ValueFMB
processors
SupportsIntel-'Hyper-ThreadingTechnology
Chipset Northbridge:Intel'1
91 5GGraphicsMemoryand
ControllerHub(GMCH)
Southbridge:Intel'"82801FBICH6
FrontSideBus 800/533MHz
Memory 4x 184-pinDIMMsocketssupportunbufferrednon-ECC
400/333MHzDDRmemorymodules
Expansionslots 1x PCIExpress™xl6 slotfordiscretegraphicscard
3x PCIslots
Storage Intel®ICH6Southbridgesupports:
-2 x UltraATA100/66/33harddiskdrives
-4 x SerialATAharddiskdrives
Audio Realtek*ALC6556-channelCODEC
LAN Realtek*RTL8110SGigabitLANcontroller
USB Supportsupto8 USB2.0ports
BIOSfeatures 4MBFWH,PhoenixAward,Green,PnP,DMI2.3.4,
ACPI1.0,SMBIOS2.3
Rearpanel 1x PS/2mouseport
1x Parallelport
1x LAN(RJ-45)port
6-channelaudioports(optional8-channelaudioports)
4x USB2.0ports
1x VGAport
1x Serialport
1x PS/2keyboardport
(continued on the next page)

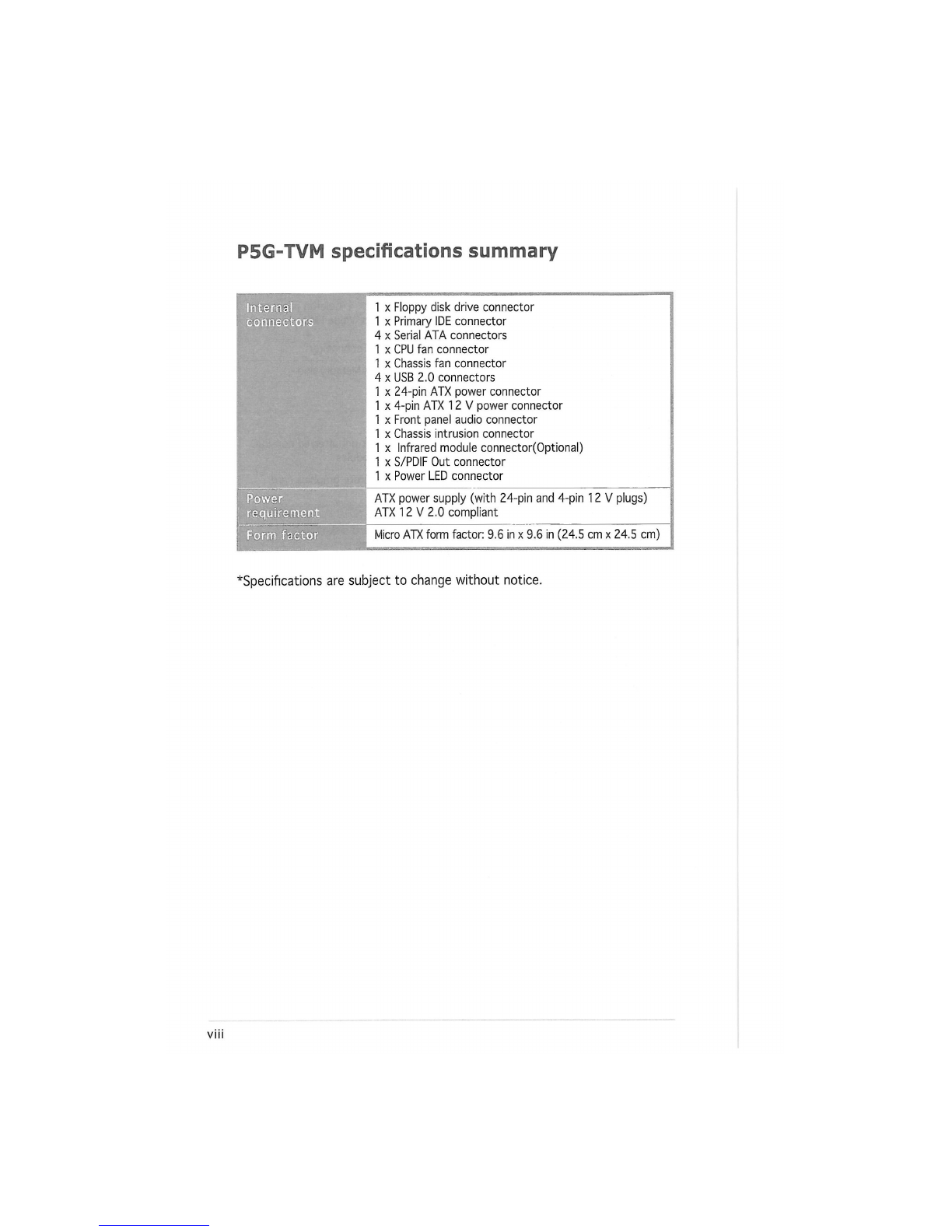

P5G-TVMspecificationssummary
Internal 1x Floppydiskdriveconnector
connectors 1x PrimaryIDEconnector
4x SerialATAconnectors
1x CPUfanconnector
1x Chassisfanconnector
4x USB2.0connectors
1x 24-pinATXpowerconnector
1x 4-pinATX12V powerconnector
1x Frontpanelaudioconnector
1x Chassisintrusionconnector
1x Infraredmoduleconnector(Optional)
1x S/PDIFOutconnector
1x PowerLEDconnector
Power ATXpowersupply(with24-pinand4-pin12V plugs)
requirement ATX12V 2.0compliant
Formfactor MicroATXformfactor:9.6inx 9.6in(24.5cmx 24.5cm)
*Specificationsaresubjecttochangewithoutnotice.

Thischapterdescribesthemotherboard
featuresandthenewtechnologies
itsupports.
[Piredlpctt
introduction
ASUSP5G-TVM 1-15

1.1Beforeyouproceed
Takenoteofthefollowingprecautionsbeforeyouinstallcomponentsinto
thesystem.
/\
I Unplugthepowercordfromthewallsocketbeforetouchingany
component.
Usea groundedwriststraportoucha safelygroundedobjector
ametalobject,suchasthepowersupplycase,beforehandling
componentstoavoiddamagingthemduetostaticelectricity.
HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
Wheneveryouuninstallanycomponent,placeitona grounded
antistaticpadorinthebagthatcamewiththecomponent.
Beforeyouinstallorremoveanycomponent,ensurethattheATX
powersupplyisswitchedofforthepowercordisdetachedfrom
thepowersupply.Failuretodosomaycauseseveredamagetothe
motherboard,peripherals,and/orcomponents.
OnboardLED
Themotherboardcomeswitha standbypowerLEDthatlightsupto
indicatethatthesystemisON,insleepmode,orinsoft-offmode.
Thisisa reminderthatyoushouldshutdownthesystemandunplug
thepowercablebeforeremovingorplugginginanymotherboard
component.Theillustrationbelowshowsthelocationoftheonboard
LED.
P5G-TVMOnboardLED
SB_PWR1
ON
Standby
Power
OFF
Powered
Off
1-2 Chapter1:Hardwareinformation

1.2Motherboardoverview
Beforeyouinstallthemotherboard,studytheconfigurationofyourchassis
toensurethatthemotherboardfitsintoit.
Makesuretounplugthepowercordbeforeinstallingorremovingthe
motherboard.Failuretodosocancauseyouphysicalinjuryanddamage
motherboardcomponents.
1.2.1Placementdirection
Wheninstallingthemotherboard,makesurethatyouplaceitintothe
chassisinthecorrectorientation.Theedgewithexternalportsgoestothe
rearpartofthechassisasindicatedintheimagebelow.
1.2.2Screwholes
Placeseven(8)screwsintotheholesindicatedbycirclestosecurethe
motherboardtothechassis.
Donotovertighten thescrews!Doingsocandamagethemotherboard.
Placethissidetowards
therearofthechassis
ASUSP5G-TVM 1-1 5

1.2.3Motherboardlayout
F.жт is
T: Mouse
B:K*ooard Q «Ы
I,B
•VGA1I
CPU_FAN1U
EIH
FANPWR1
PCIEX16
/HLS'
PCI1
P5G-TVM O
nu нш
PCI2
PCI3
lii
COM2
Intel"1
ICH6 с
l|ГАТАЗ
сl|SATA1
AAFP1CD1AUX1
IE1394.2
ШИЗ
USB56
иппш
Thefollowingitemsareoptional:
oRealtekRL8100S10/100MbpsLANcontroller
•InfraredconnectorIR_C0N1(Optional)
•Rearspeakerout,sidespeakerout,andcenter/subwooferaudio
ports(grayedoutintheabovemotherboardlayout)
1-14 Chapter1:Hardwareinformation

1.2.4Layoutcontexnts
Slots Page
1.PCI-Exl6 1-19
2.PCI 1-19
!Jumpers Page
1.ClearRTCRAM(3-pinCLRTC) 1-20
2.Keyboardpower(3-pinKBPWR) 1-21
3.Fanpower(3-pinFANPWR1)) 1-21
Rearpanelconnectors Page
1.PS/2mouseport(qreen) 1-22
2.Parallelport 1-22
3.LAN(RJ-45)port 1-22
4.LineInport(liqhtblue) 1-22
5.LineOutport(lime) 1-22
6.Microphoneport(pink) 1-22
7.USB2.0ports3 and4 1-23
8.USB2.0ports 1 and2 1-23
9.VideoGraphicsAdapter(VGA)port 1-23
10.Serialport 1-23
11.PS/2keyboardport(purple) 1-23
ASUSP5G-TVM 1-1 5

'......'•.v • Ш H?
1i.
Floppydiskdriveconnector(34-1pinFLOPPY) 1-24
2. IDEconnector(40-1pinPRUDE,SECJDE) 1-25
3. SerialATAconnectors(7-pinSATA1,SATA2) 1-26
4. CPUandChassisFanconnectors(4-pinCPU_FAN,3-pinCHA_FAN) 1-27
5. USBconnectors(10-1pinUSB56,USB78) 1-28
6. ATXpowerconnectors(24-pinATXPWR,4-pinATX12V) 1-29
7. Frontpanelaudioconnector(10-1pinFP_AUDIO) 1-30
8. Serialportconnector(l 0-1 pinCOM2) 1-30
9. Internalaudioconnector(4-pinAUX1,CD1) 1-31
10. Chasisintrusionconnector(4-1pinCHASSIS) 1-31
11. Diqitalaudioconnector(4-1pinSPDIF_OUT) 1-32
12. Systempanelconnector(10-1pinPANEL) 1-33
SystempowerLED(2-pinPLED)
HarddiskdriveactivityLED(2-pinIDE_LED)
ATXpowerbutton/soft-offbutton(2-pinPWRSW)
Resetbutton(2-pinRESET)
1-6 Chapter1:Hardwareinformation

1.3CentralProcessingUnit(CPU)
Themotherboardcomeswitha surfacemountLGA775socketdesignedfor
theIntel0Pentium®4 processorinthe775-landpackage.
•YourboxedIntel1Pentium4 LGA775processorpackageshould
comewithinstallationinstructionsfortheCPU,heatsink,andthe
retentionmechanism.Iftheinstructionsinthissectiondonot
matchtheCPUdocumentation,followthelatter.
•Uponpurchaseofthemotherboard,makesurethatthePnPcap
isonthesocketandthesocketcontactsarenotbent.Contact
yourretailerimmediatelyifthePnPcapismissing,orifyou
seeanydamagetothePnPcap/socketcontacts/motherboard
components.ASUSwillshoulderthecostofrepaironlyifthe
damageisshipment/transit-reiated.
•Keepthecapafterinstallingthemotherboard.ASUSwillprocess
ReturnMerchandiseAuthorization(RMA)requestsonlyifthe
motherboardcomeswiththecapontheLGA775socket.
•Theproductwarrantydoesnotcoverdamagetothesocket
contactsresultingfromincorrectCPUinstallation/removal,or
misplacement/loss/incorrectremovalofthePnPcap.
1.3.1InstallingtheCPU
Toinstalla CPU:
1.LocatetheCPUsocketonthemotherboard.
P5G-TVMCPUSocket775
BeforeinstallingtheCPU,makesurethatthesocketboxisfacing
towardsyouandtheloadleverisonyourleft.
ASUSP5G-TVM 1-1 5

2.Presstheloadleverwithyourthumb(A)andmoveittotheleft(B)
untilitisreleasedfromtheretentiontab.
Retentiontab
Loadlever
the
camboxshould
faceyou.
4.Lifttheloadplatewithyour
thumbandforefingertoa 100°
angle(A),thenpushthePnPcap
fromtheloadplatewindowto
remove(B).
5.PositiontheCPUonthe
socket,makingsurethat
thegoldtrianglefixeson
thebottom-leftcornerof
thesocket.Thesocket
alignmentkeysshouldfit
intotheCPUnotches.
1-18 Chapter1:Hardwareinformation
Topreventdamagetothesocketpins,donotremovethePnPcap
unlessyouareinstallinga CPU.
3.Lifttheloadleverinthedirection
ofthearrowtoa 135°angle.

6,Closetheloadplate(A),then
pushtheloadlever(B)untilit
snapsintotheretentiontab.
ThemotherboardsupportsIntelPentium®4 LGA775processorswith
theIntel®EnhancedMemory64Technology(EM64T),EnhancedIntel
SpeedStepTechnology(EIST),andHyper-ThreadingTechnology.Refer
totheAppendixformoreinformationontheseCPUfeatures.
NotesonIntel®Hyper-ThreadingTechnology
•ThismotherboardsupportsIntelPentium"4 CPUsinthe775-land
packagewithHyper-ThreadingTechnology.
•Hyper-ThreadingTechnologyissupportedunderWindows1XP/2003
ServerandLinux2.4.x(kernel)andlaterversionsonly.UnderLinux,
usetheHyper-Threadingcompilertocompilethecode.Ifyouare
usinganyotheroperatingsystems,disabletheHyper-Threading
TechnologyitemintheBIOStoensuresystemstabilityand
performance.
•InstallingWindows®XPServicePack 1 orlaterversionis
recommended.
•MakesuretoenabletheHyper-ThreadingTechnologyiteminBIOS
beforeinstallinga supportedoperatingsystem.
•FormoreinformationonHyper-ThreadingTechnology,visitwww.
intel.com/info/hyperthreading.
TousetheHyper-ThreadingTechnologyonthismotherboard:
1.InstallanIntel®Pentium14 CPUthatsupportsHyper-Threading
Technology.
2.PowerupthesystemandentertheBIOSSetup(seeChapter2:BIOS
setup).UndertheAdvancedMenu,makesurethattheitemHyper-
Threading TechnologyissettoEnabled.Theitemappearsonlyifyou
installeda CPUthatsupportsHyper-ThreadingTechnology.
3.Rebootthecomputer.
ASUSP5G-TVM1-1 5

1.3.2InstallingtheCPUheatsinkandfan
TheInterPentium114 LGA775processorrequiresa speciallydesigned
heatsinkandfanassemblytoensureoptimumthermalconditionand
performance.
C\• InstallthemotherboardtothechassisbeforeyouinstalltheCPUfan
andheatsinkassembly.
•Whenyoubuya boxedIntel®Pentium'14 processor,thepackage
includestheCPUfanandheatsinkassembly.Ifyoubuya
CPUseparately,makesurethatyouuseonlyInteKcertified
multi-directionalheatsinkandfan.
оYourIntelPentium1"14 LGA775heatsinkandfanassemblycomesin
apush-pindesignandrequiresnotooltoinstallit.
Makesurethatyouhaveinstalledthemotherboardtothechassisbefore
youinstalltheCPUfanandheatsinkassembly.
ToinstalltheCPUheatsinkandfan:
1.Placetheheatsinkontopofthe
installedCPU,andmakesure
thatthefourfastenersmatch
theholesonthemotherboard.
Orienttheheatsinkandfan
assemblysuchthattheCPU
fancableisclosesttothe
CPUfanconnector.
Motherboardhole
Fastener
Narrowend
ofthegroove
Makesuretoorienteachfastenerwiththenarrowendofthegroove
pointingoutward.(Thephotoshowsthegrooveshadedforemphasis.)
1-10Chapter1:Hardwareinformation
