UEFI BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup
program on this motherboard. The Setup program allows users to modify the basic
system configuration and save these settings to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs from a
disk. This system controls most of the input and output devices such as keybo ard,
mouse, serial ports and dis k drives. BIOS activates at the first stage of the booting
process, loading and executing the operating s ys tem. Some additional features, such
as virus and password pro tectio n or chips et fine-tuning options are also included in
UEFI BIOS.
The rest of this manual will to guide you through the options and settings in UEFI
BIOS Setup.
Plug and Play Support
This AMI UEFI BIOS suppo rts the P lug and Play Vers ion 1.0A specification.
EPA Green PC Support
This AMI UEFI BIOS s upports Version 1.03 of the EPA Green PC spec ification.
ACPI Support
AMI ACPI UEFI BIOS s uppo rt Vers ion 1.0/2.0 of Advanc ed Configuration and
Power interface specific atio n (ACPI). It provides ASL code for power management
and device configuration capabilities as defined in the ACPI specification, developed
by Microsoft, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also s uppo rts Version 2. 3 of the Intel PCI (Perip heral
Component Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

H77MU3 UEFI BIOS Manual
2
Supported CPUs
This AMI UEF I BIOS s uppo rts the Intel CPU.
Using Setup
When starting up the computer, press
<Del> during the Power-On Self-Test
(POST) to enter the UEFI BIOS setup
utility.
In the UEFI BIOS setup utility, you will
see General Help description at the top
right corner, and this is providing a brief
description of the selected item.
Navigation Keys for that particular menu
are at the bottom right corner, and you can
use thes e keys to select item and change
the settings.
Notice
zThe default UEFI BIOS settings apply for most conditions to ens ure optimum
performance of the motherboard. If the system beco mes unstable after c hanging
any settings, please load the default settings to ensure system’s compatibility and
stability. Use Load Setup Default under the Exit Menu.
zFor better system performance, the UEFI BIOS firmware is being continuously
updated. The UEFI BIOS informatio n described in this manual is fo r your reference
only. The actual UEFI BIOS information and settings on board may be slightly
different from this manual.
zThe content of this manual is subject to be changed without notice. We will not be
responsible for any mistakes found in this user’s manual and any system damage that
may b e c aused by wrong-settings.

H77MU3 UEFI BIOS Manual
3
1 Main Menu
Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the
screen providing an overview of the basic system information.
BIOS Information
Shows system information including UEFI BIOS version, model name, marketing
name, built date, etc.
Total Memor y
Shows system memory size, VGA shard memory will b e excluded.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set the
date.
System Time
Set the system internal cloc k.
Access Level
Shows the access level of current user.

H77MU3 UEFI BIOS Manual
4
2 Advanced Menu
The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power
Management, and other system devices.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.
PCI Subs ystem Settings

H77MU3 UEFI BIOS Manual
5
PCI ROM Priority
In case of multiple option ROMs (Legac y and EFI Compatible), this item specifies
what PCI Option ROM to launch
Options : Legacy ROM (Default) / EFI Compatible ROM
Above 4G Decoding
Enables or disables 64bit capable device to be decoded in above 4G address space
(o nly if system support 64 bit PCI d ecoding).
Options: Disabled (Default) / Enabled
PCI Latency Timer
This item sets the value to be programmed into PCI Latency Timer Register.
Options: 32 P CI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks /
128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224
PCI Bus Clocks / 248 PCI Bus Clocks
VGA Palette Snoop
Enables or disables VGA palette registers snooping.
Options: Disabled (Default) / Enabled
PERR# Generation
Enables or disables PCI device to generate SERR#.
Options: Disabled (Default) / Enabled
SERR# Generation
Enables or disables PCI device to generate SERR#.
Options: Disabled (Default) / Enabled

H77MU3 UEFI BIOS Manual
6
PCI Express Settings
Relaxed Ordering
Enables or disables PCI express device No snoop option.
Options: Disabled (Default) / Enabled
Extended Tag
If enabled allows d evice to use 8-bit tab field as a requester.
Options: Disabled (Default) / Enabled
No Snoop
This item enables or disables PCI Express Device No Snoop option.
Options: Enabled (Default) / Disabled
Maximum Payload
This item sets Maximum Payload of PCI Express Device or allows System BIOS to
select the value.
Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048
Bytes / 4096 Bytes
Maximum Read Request
This item sets Maximum Read Request Size of PCI Express Devic e or allows
System BIOS to s elect the value.
Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048
Bytes / 4096 Bytes

H77MU3 UEFI BIOS Manual
7
ASPM
This item sets the ASPM (Active State Power Management Settings) Level: Force
L0 – Force all links to LO State; Auto – BIOS auto configures; Disabled – Disables
ASPM.
Options: Disabled (Default) / Auto / Force L0s
Extend Synch
If enabled allows generation of extended synchronization patterns.
Options: Disabled (Default) / Enabled
Link Training Retry
Defines number of retry attempts software will take to retrain the link if previous
training attempt was unsuccessful.
Options: 5 (Default) / Disabled / 2 / 3
Link Training Timeout(uS)
Defines number of microseconds software will wait before polling ‘Link Training’
bit in link status register. Value range from 10 to 1000 uS.
Options: 100 (Default)
Unpopulated Links
In order to save power, software will disable unpopulated PCI Express links, if this
option set to ‘Disable Link’.
Options: Keep Link ON (Default) / Disable Link

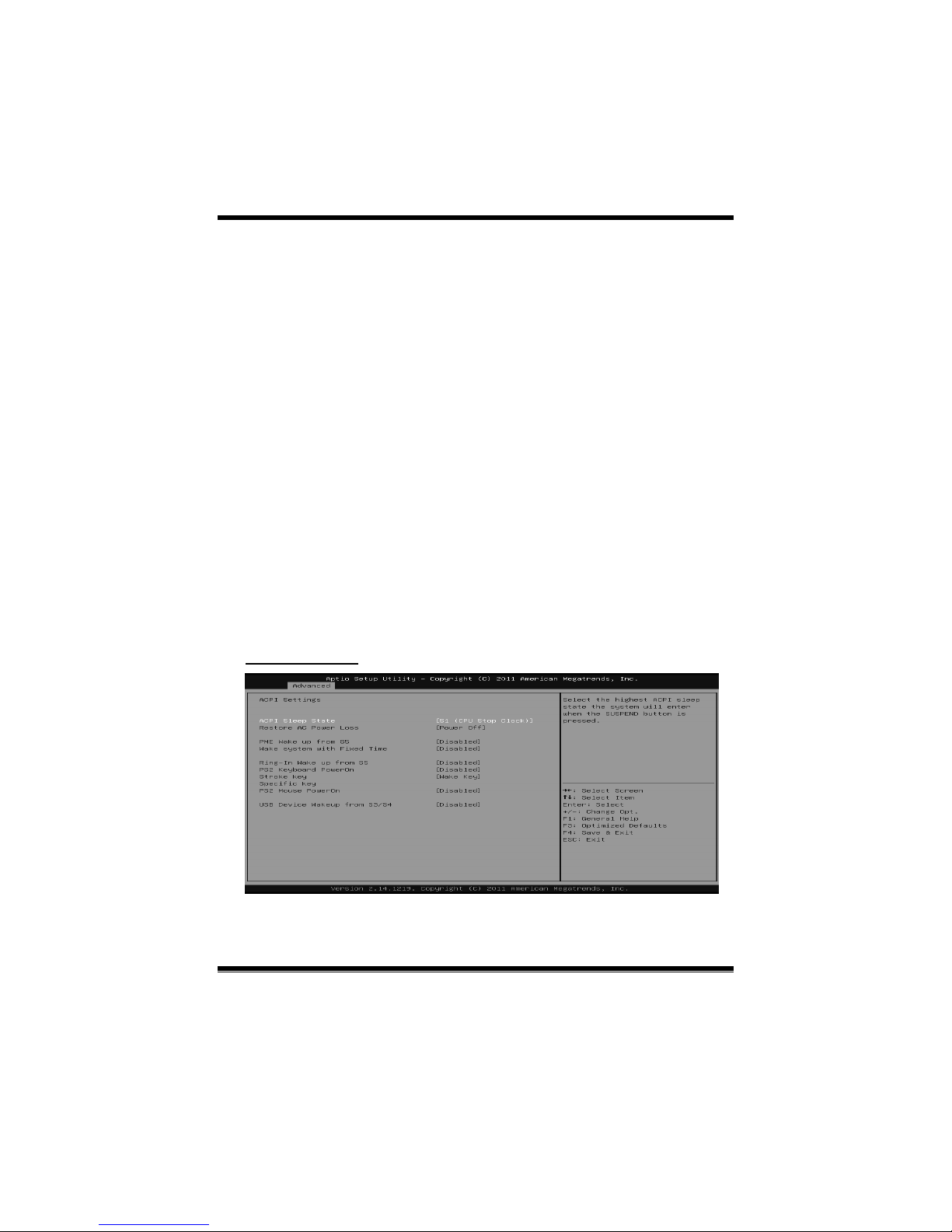

ACPI Settings

H77MU3 UEFI BIOS Manual
8
ACPI Sleep State
This item selects the highest ACPI sleep state the system will enter when the
SUSPEND button is pressed.
Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to
RAM)
Restore AC Power Loss
This setting specifies how your system should behave after a power fail or interrupts
occurs. Power Off: Leaving the system in power-off status after power recovers.
Power O N: Po we ring o n the s ystem immed iat ely whe n po wer r et urns. Last S tate: 1.
Leaving the system in power-off if the system shuts down at DC off status; 2.
Powering on the system immediately if the system shuts down at DC on status.
Options: Power Off (Default) / Power On / Last State
PME Wake up from S5
This item enables the system to wake from S5 using PEM event.
Options: Disabled (Default) / Enabled
Wake system with Fixed Time
This item enables or disables the system to wake on by alarm event. W hen this item
is enabled, the system will wake on the hr::min::sec specified.
Options: Disabled (Default) / Enabled
Wake up date
You can choose which date the system will boot up.
Wake up hour / Wake up minute / Wake up second
You can c hoos e the system boot up time, inp ut ho ur, minute and seco nd to sp ecify.
Ring-In Wake up from S5
This item enables the system to wake from S5 using Ring-In event.
Options: Disabled (Default) / Enabled

H77MU3 UEFI BIOS Manual
9
PS2 Keyboard PowerOn
This item allows you to control the keyboard power on function.
Options: Disabled (Default) / Any Key / Stroke Key / Specific Key
Stroke Keys Selected
This item will show only when Keyboard PowerOn is set “Stroke Key.”
Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F 3 /
Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specific Key Enter
This item will show only when Keyboard PowerOn is set “Specific Key.” Press
Enter to set Specific key.
PS2 Mouse PowerOn
This item allows you to control the mouse power on functio n.
Options: Disabled (Default) / Enabled
USB Device Wakeup from S3/S4
This item allows you to enab le or dis abled the USB resume fro m S3/S4 function.
Options: Disabled (Default) / Enabled
CPU Configuration

H77MU3 UEFI BIOS Manual
10
Active Processor Cores
This item sets number of cores to enable in each processor package.
Options: All (Default) / 1 / 2 / 3
Limit CP UID Max imum
When the computer is booted up, the operating system executes the CPUID
instruction to identify the processor and its capabilities. Before it can do so, it must
first query the processor to find out the highest input value CPUID recognizes. This
determines the kind of basic information CPUID can provide the operating system.
Options: Disabled (Default) / Enabled
Execute-Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux
9.2, Red Hat Enterpris e 3 Update 3.).
Options: Enabled (Default) / Disabled
Intel Virtualization Tech
Virtualization Techno logy c an virtually separate your system resourc e into several
parts, thus enhance the performance when running virtual machines or multi
interface systems.
Options : Dis abled (Default) / Enabled
Hardware Prefetcher
The processor has a hardware prefetcher that automatically analyzes its requirements
and prefetches data and ins tructions from the memory into the Level 2 c ache that are
likely to be required in the near future. This reduces the latency associated with
memory reads.
Options: Enabled (Default) / Disabled
Adjacent Cache Line Prefetch
The processor has a hardware adjacent c ache line prefetch mechanis m that
automatically fetches an extra 64-byte cache line whenever the processor requests for
a 64-byte cache line. This reduces cache latency by making the next cache line
immediately available if the processor requires it as well.
Options: Enabled (Default) / Disabled

H77MU3 UEFI BIOS Manual
11

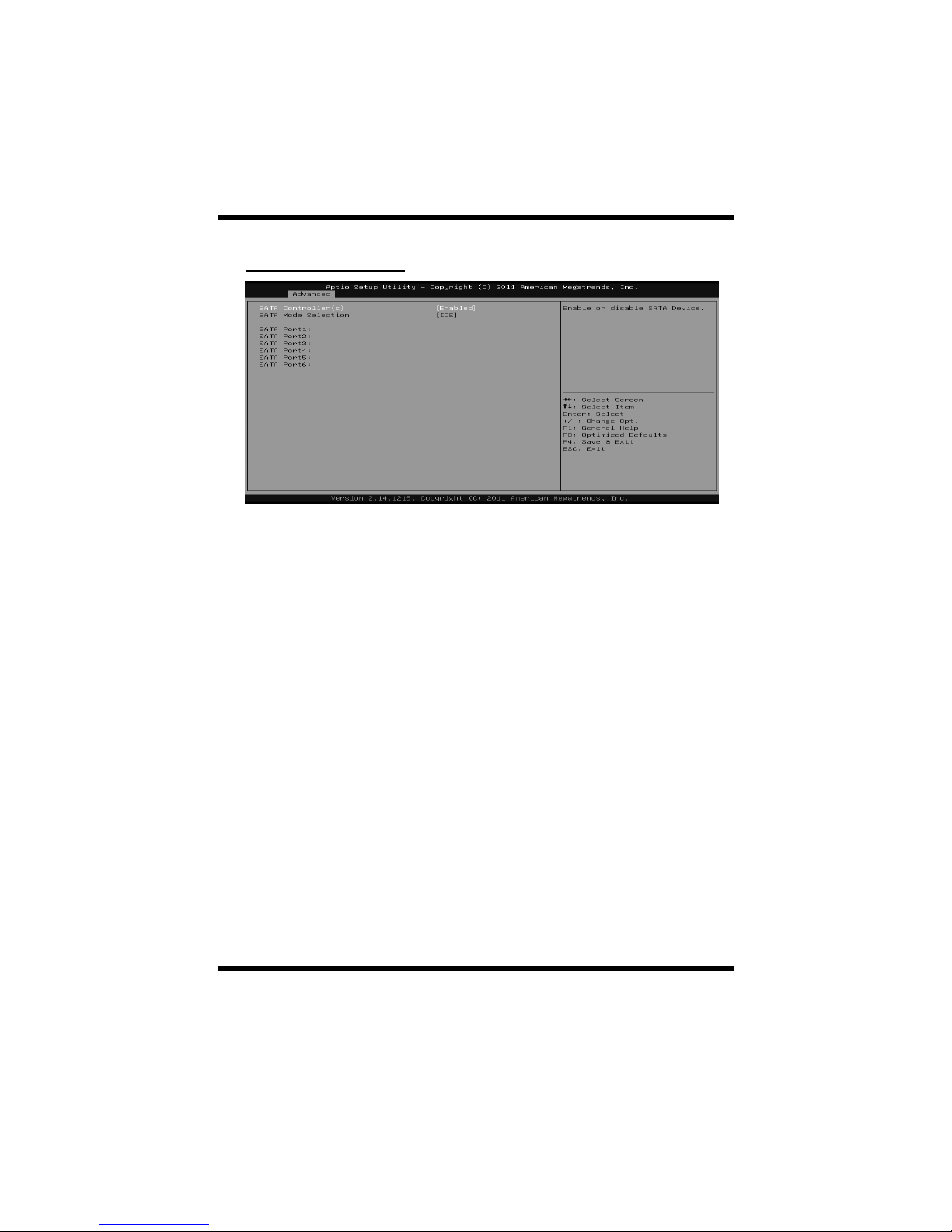

SATA Configuration
SATA Controller(s)
This item enables/disables Serial ATA Device.
Options: Enabled (Default) / Disabled
SATA Mode Selection
This item determines how SATA controller(s) operate.
Options: IDE (Default) / AHCI / RAID
Aggressive LPM Support
This item enables PCH to aggress ively enter link power state.
Options: Enabled (Default) / Disabled
SATA Controller Speed
This item indic ates the maximum speed the SATA controller can support.
Options: Gen3 (Default) / Gen1 / Gen2

H77MU3 UEFI BIOS Manual
12
Software Feature Mask Configuration
RAID 0 / 1 / 10 / 5
This item enables or d isables RAID 0 / 1 /10 / 5 feature.
Options: Enabled (Default) / Disabled
Intel Rapid Recovery Technology
This item enables or disables Intel Rapid Recovery Technology
Options: Enabled (Default) / Disabled
OROM UI and Banner
If this ite m id enab led then t he ROM UI is s hown. Otherwise, no OROM b anne r or
information will be displayed if all disks and RAID volumes are normal
Options: Enabled (Default) / Disabled
HDD Unl ock
If this item is enabled, the s ystem indicates. the HDD password unlock in the OS.
Options: Enabled (Default) / Disabled
LED Locate
If this item is enabled, the system indic ates. the LED/SGPIO hardware is attached
and pin to locate feature one the OS.
Options: Enabled (Default) / Disabled
IRRT Only on eSATA
If this item is enabled, then only URRT volumes can span internal and eSATA drives.
If this item is disabled, the any RAID volume can span internal and eSATA drives.
Options: Enabled (Default) / Disabled

H77MU3 UEFI BIOS Manual
13
Smart Response Technology
If this item is enables/ disables s mart response technology.
Options: Enabled (Default) / Disabled
OROM UI Delay
If this item is enabled, the system indicates. the delay of the OROM UI splash screen
in a normal status..
Options: 2 Seconds (Default) / 4 S econds / 6 Seconds / 8 Seco nds /
Intel(R) Rapid Start Technology
Intel(R) Rapid Start Technology
This item enables/disables Intel(R) Rapid Start Technology.
Options: Disabled (Default) / Enabled
Entry on S3 RTC Wake
This item sets iFFS invocation upon S3 RTC wake .
Options: Enabled (Default) / Disabled
Entry After
This item enables RTC wake timer at S3 entry.
Options: 10 minutes (Default) / Immediately / 1 minute / 2 minutes / 5 minutes / 15
minutes / 30 minutes / 1 hour / 2 ho urs

H77MU3 UEFI BIOS Manual
14
Active Page Threshold Support
This item allows system to support RST with small partition.
Options: Disabled (Default) / Enabled
Active Memory Threshold
This item allows system to try to support RST when partition size > Active Page
Threshold size in MB. When set to zero, the item will be in AUTO mode and check
if partition size is enough at S3 entry.
Options: 0 (Default)
PCH-FW Configuration
MDES BIOS Status Code
This item enab les/disables MDES BIOS status code..
Options: Disabled (Default) / Enabled

H77MU3 UEFI BIOS Manual
15

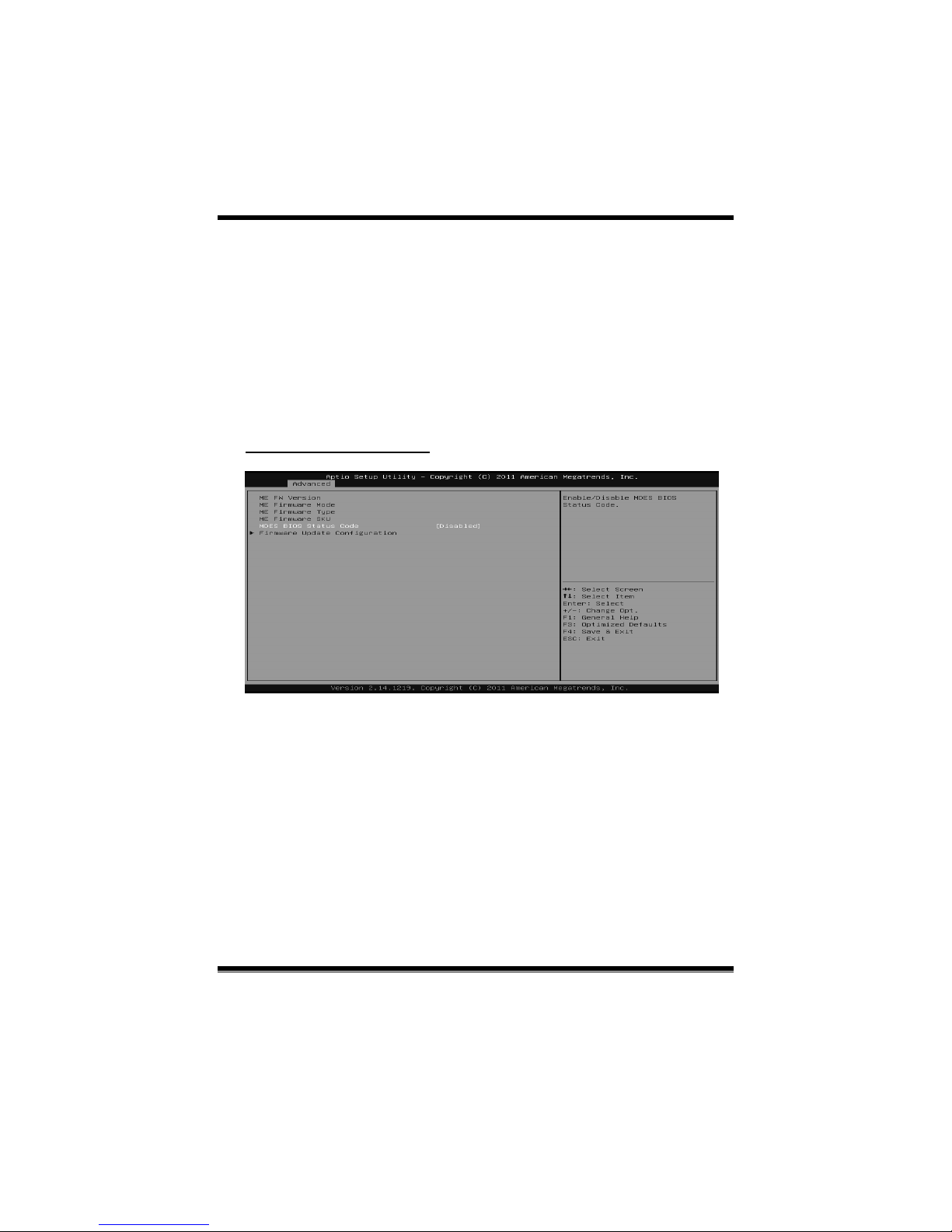

Firmware updated Configuration
Me FW Image Re-Flash
This item enab les or d is ables Me FW image Re-Flash function.
Options: Disabled (Default) / Enabled
USB Configuration
Legacy USB Support
This item determines if the BIOS should provide legacy support for USB devices
like the keyboard, mouse, and USB drive. This is a useful feature when using such
USB devices with operating systems that do not natively support USB (e.g.
Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled / Auto

H77MU3 UEFI BIOS Manual
16
USB3.0 Support
This item enables or disables USB3.0 (XHCI) Controller support.
Options: Enabled (Default) / Disabled
XHCI Hand-Off
This is a workaround for OSes without XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
Options: Enabled (Default) / Disabled
EHCI Hand-Off
This is a workaround for OSes without EHCI hand-off support. The EHCI ownership
change should be claimed by EHCI driver.
Options: Disabled (Default) / Enabled
Port 60/64 Emulation
This items enables I/O port 60h/64h emulation support. This should be enabled for
the complete USB keyboard legacy s uppo rt for no n-USB aware OSes.
Options: Enabled (Default) / Disabled
USB transfer time-out
The time-out value for Control, Bulk, and Interrupt transfers.
Options: 20 sec (Default) / 1 sec / 5 sec / 10 sec
Device reset time-out
The item sets USB mass storage device Start Unit command time-out.
Options: 20 sec (Default) / 10 s ec / 30 s ec / 40 sec
Device power-up delay
“Auto” uses default value: for a Root port it is 100ms, for a Hub port the delay is
taken from Hub descriptor.
Options: Auto (Default) / Manual
Device power-up delay in seconds
Delay range is 1 ~ 40 seconds, in one second increments.
Options: 5 (Default)

H77MU3 UEFI BIOS Manual
17
SMART FAN Control
CPU Smart FAN
This item allows you to control the CPU Smart Fan function.
Options: Disabled (Default) / Auto
CPU FAN Calibrate
Press [ENTER] to calibrate CPU FAN.
Control Mode
This item provides several operation modes of the fan.
Options: Quiet / Aggressive / Manual
Fan Ctrl OFF(℃)
When CPU temperature is lower than this value, the CPU fan will keep lowest RPM.
Options: 10 (℃) (default)
Fan Ctrl On(℃)
When CPU temperature is higher than this value, the CPU fan controller will turn on.
Options: 20 (℃) (Default)

H77MU3 UEFI BIOS Manual
18
Fan Ctrl Start Value
This item sets CPU FAN Start Speed Value.
Options: 50 (Default)
Fan Ctrl Sensitive
The bigger the numeral is, the higher the FAN speed is.
Options: 30 (Default)
Super IO Configuration
Serial Port 0 Configuration

H77MU3 UEFI BIOS Manual
19
Serial Port
This item enables or d is ables Serial Port (COM).
Options: Enabled (Default) / Disabled
Change Settings
This item selects an optimal setting for Super IO device.
Options: Auto (Default) / IO= 3F8h; IRQ=4 / IO=3F8h; IRQ=3,4, 5,6,7,10,11,12 /
IO=2F8h; IRQ=3,4,5, 6,7,10,11,12 / IO=3E8h; IRQ=3,4,5,6,7,10,11,12 /
IO=2E8h; IRQ=3,4,5,6,7, 10, 11,12
Parallel Port Configuration
Parallel Port
This item enables or disables Parallel Port (LPT/LPTE).
Options: Enabled (Default) / Disabled
Change Settings
This item allows you to select an optimal setting for Super IO device.
Options: Auto (Default) / IO=378h; IRQ=5 / IO=378h; IRQ=5, 6, 7, 9, 10, 11, 12 /
IO=278h; IRQ=5, 6, 7, 9, 10, 11, 12 / IO=3BCh; IRQ=5, 6, 7, 9, 10, 11,
12
Device Mode
This item allows you to determine how the parallel port should function.
Options: Standard Parallel Port Mode (Default) (Using Parallel port as Standard
Printer Port) /
EPP Mode (Using Parallel Port as Enhanced Parallel Port) /
ECP Mode (Using Parallel port as Extended Capabilities Port) /
ECP Mode & EPP Mode (Using Parallel port as ECP & EPP mode)
