Biostar I91PL-A7 PCI-ED User manual

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
i
FCC Information and Copyright
This equipment has been tested and found to comply withthe limits of a Class
B digital device,pursuant toPart15 oftheFCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,may
cause harmful interference to radiocommunications.There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respec t to the
contents here andspecially disclaims any impliedwarrantiesofmerchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

Table of Contents
ii
Chapter 1: Introduction ................................................................3
1.1 Motherboard Features.................................................. 3
1.2 Package Checklist.........................................................7
1.3 Layout and Components............................................... 8
Chapter 2: Hardware Information ..............................................9
2.1 Installing Central Processing Unit (CPU)........................9
2.2 FAN Headers..............................................................10
2.3 Installing System Memory...........................................11
2.4 Connectors and Slots ...................................................11
Chapter 3: Headers & Jumpers Setup...................................12
3.1 How to Setup Jumpers.................................................12
3.2 Detail Settings.............................................................12
Chapter 4: Useful Help...............................................................17
4.1 Award BIOS Beep Code...............................................17
4.2 Extra Information........................................................17
4.3 Troubleshooting..........................................................19
Chapter 5: WarpSpeeder™.......................................................20
5.1 Introduction................................................................20
5.2 System Requirement....................................................20
5.3 Installation..................................................................21
5.4 [WarpSpeeder™] includes 1 tray icon and 5panels........23

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
3
CHAPTER 1: INTRODUCTION
1.1 MOTHERBOARD FEATURES
A. Hardware
CPU
Supports LGA775.
Supports single Intel Pentium 4 processor.
Supports Intel Celeron D processor.
Front Side Bus at the following frequency ranges:
-533 MT /s (133 MHz Core Cl ock)
-800 MT /s (200 MHz Core Cl ock)
Supports Hyper-ThreadingTechnology.
Chipset
Northbridge: Intel 915PL/915P.
Southbridge: Intel ICH6.
Dimensions
AT X Form Factor: 29.35cm (L) x 24.4cm (W)
Operating System
Supports Windows 98SE, Windows 2000, Windows Me, and
Windows XP.
I915P-A7PCI-ED System Memory
Supports Dual Channel DDR with 8 banks in total.
Supports DDR333 and DDR400.
Supports 256Mb, 512Mb, and 1G-Mb DDR technologies for x8
and x16 non-ECC DDR devices.
Registered DIMMs are not supported.
Maximum DRAM address decode space of 4GB.
DIMMSocket
Location DDR Module Total Memory Size
DDRA1 256MB/512MB/1GB*1
DDRA2 256MB/512MB/1GB*1
DDRB1 256MB/512MB/1GB*1
DDRB2 256MB/512MB/1GB*1
Max is 4GB.

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
4
I91PL-A7 PCI-ED System Memory
Supports Dual Channel DDR with 4 banks only.
Supports DDR333 and DDR400.
Supports 256Mb, 512Mb, and 1G-Mb DDR technologies for x8
and x16 non-ECC DDR devices.
Registered DIMMs are not supported.
Maximum DRAM address decode space of 2GB.
DIMMSocket
Location DDR Module Total Memory Size
DDRA1 256MB/512MB/1GB*1
DDRA2 256MB/512MB/1GB*1
Max is 1GB.
DDRB1 256MB/512MB/1GB*1
DDRB2 256MB/512MB/1GB*1
Max is 1GB.
DDR Installing Precautions
This system supports both Single Side (SS) and Double Side
(DS) Memory type. Please be aware of memory module
installation rules, orit may cause the system fail to boot-up.
DIMM
Socket Memory ModuleCombination Total Memory Size
DDRA1 SS x SS DS x
DDRA2 x SS SS x DS Max is 1GB.
DDRB1 SS x SS DS x
DDRB2 x SS SS x DS Max is 1GB.
Slots
Three 32bit PCI bus master slots.
One PCI-Express (PCI-E) x 16 slot:
-PCI-Express 1.0a compliant.
-Maximum theoretical realized bandwidth of 4GB/s
simultaneously per direction, foran aggregate of 8GB/s
totally.
One PCI-Extreme (PCI-EX) slot:
-PCI-Express 1.0a compliant.
-Supports data transfer speed up to 1GB/s per direction.
(See p.13 for detail information.)
Special PCI-Express Dual Feature
This special function supports Dual View (two graphic cards).

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
5
LAN
Chip: RTL8100C
Supports 10 Mb/s, and 100 Mb/s auto-negotiation.
Hal f/Ful l d upl ex ca pabili ty.
Su pports ACPI power mana ge ment.
On-board AC’97 Sound Codec
Chip: ALC655
Support 6 channels.
Supports S/PDIF-Out and S/PDIF-In (optional) functions.
Compliant withAC’97 Version 2.3 specification.
Super I/O
Chip: ITE IT8712F.
Low Pin Count Interface.
Provides the most commonly used legacy Super I/O
functionality.
Environment Control initiatives:
-H/W Monitor.
-Fan Speed Controller.
-ITE's "Smart Guardian" function.
IEEE1394 Chip(optional)
Chi p: VIA VT 63 07.
Su ppo rts two 1394A Fi re wi re ports up to 400M b/s in di vi duall y.
Serial ATA
Controller integrated in ICH6.
Supports 4 Serial ATA (SATA) ports.
-Integrated AHCI controller.
-Compliant with Serial ATA 1.0 specification.
-Data transfer rates up to 1.5Gb/s.
On-board IDE
One connector supports 2 IDE disk drives.
Supports PIO Mode 0~4, Bride Mode and Ultra DMA33/66/100
B u s M a st e r Mo de .

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
6
InternalOn-boardI/O Connectors and Headers
1 IDE connector supports 2 hard disk devices.
1 front panel header supports front panel facilities.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 SPDIF-out connector supports digital audio-out function.
1 front audio header supports front panel audio-out function.
1 chassi s open header supports PC case-opened warning
function.
1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M
and 2.88Mbytes.
1 SPDIF-in connector supports digital audio-in function
(optional).
1 1394Aheader supports 1 front panel 1394A Firewire port
(optional).
2 USB headers support 4 USB 2.0 ports at front panel.
4 serial ATA connectors support 4 SATAdevices.
Back Panel I/O Connectors
4 USB 2.0 ports.
1 Serial port. (COM2 is optional).
1 Parallel (Pri nter) port.
1 RJ-45 LAN jack.
1 PS/2 Mouse & Keyboard port.
1 vertical audio port including 1 line-in connector, 1 line out
connector, and 1 MIC in connector.
Line In/
Su rr oun d
Line Out
Mic In 1/
Ba se/Ce nte r
PS / 2
K eyb oar d
PS/2
Mo us e
L AN Jack
USB x2CO M1
P ri nt er Po rt
COM 2
( opt io na l)
USB x2

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
7
B. BIOS & Software
BIOS
Award legal BIOS.
SupportsAPM1.2.
SupportsACPI.
Supports USB Function.
BundledSoftware
Supports Warpspeeder™, 9th Touch™, WINFLASHER™ and
FLASHER™.
1.2 PACKAGE CHECKLIST
FDD Cable X 1
HDD Cabl e X 1
S/PDIF Cable X 1
Use r ’ s M a nual X 1
Serial ATA Cable X 1
Fully Setup Driver CD X 1
Rear I/O Panel for ATX Case X 1
USB 2.0 Cable X1 (optional)
IEEE 1394 Cable X 1 (optional)
Serial ATA Power Switch Cable X 1 (optional)

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
8
1.3 LAYOUT AND COMPONENTS
DDRA1 DDRA2 DDRB1 DDRB2
FDD1
IDE1
PCI EXP RES S x16
PCI2
PCI3
JKBV 1
JU SBV1
JPANEL1
JUSB4
J1394A1
(o ptio nal)
J1394PWR1
(op tio nal)
JUSB3
JUSBV3_ 1
JATXPWR1
JCFAN1
JAT XPW R2
JAU DI O 1
JAUDI OF1
Super
I/ O
JC L1JC MO S1
SATA1
SATA3
SATA2
SATA4
Codec
JCDIN1
JS PDI F_ OUT1JSPDIF_IN1
(optional)
JS FAN1
LAN
IEEE13 94
Chi p
(option al)
BAT1
BIOS
JSF AN 2
( opt iona l )
JKBMS1
Par allel P ort (JPRNT1 )
C
OM1
C
OM1C
OM2
JCO M2
( op tiona l)
J1394_USB1
JRJ45USB1
Intel
ICH6
LGA775
CPU1
JCOM 1
PC I1
PC I-E XTREME
Intel 915P
or
Intel 915PL
Note: ■represents the 1st pi n .

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
9
CHAPTER 2: HARDWARE INFORMATION
2.1 INSTALLING CENTRALPROCESSINGUNIT (CPU)
Special Notice:
Remove Pin Cap before installation, and make good preservation for
future use. When the CPU is removed, cover the Pin Capon the empty
socket to ensure pin legs won’t be damaged.
pin cap
Step 1: Pull the lever sideways away from the socket and then raise the
lever up to a 90-degree angle.
Step 2: Look for the black cut edge on socket, and the white dot on CPU
should point wards this black cut edge.The CPU will fit only in the
correct orientation.
Step 2-1:
Step 2-2:

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
10

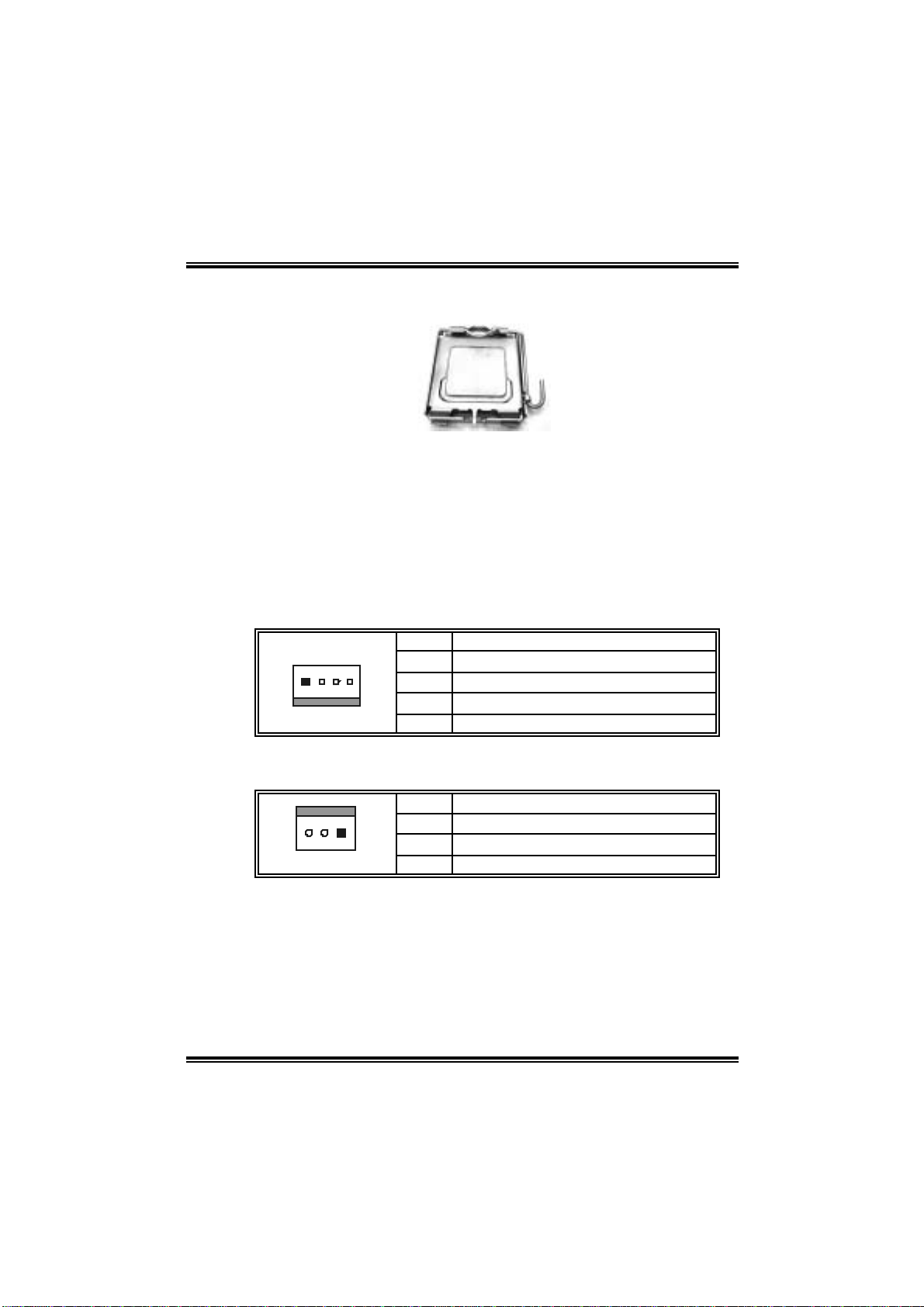

Step 3: Hold the CPU down firmly, and then close the lever to complete
the installation.
Step 4:Put the CPU Fan on the CPU and buckle it. Connect the CPU FAN
power cable to the JCFAN1. This completes the installation.
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
wiring and plug may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: PowerSource for CPU Fan
Pin Assignment
1 Ground
2 Power
3 FAN RPM rate sense
14
4 Smart Fan Control
JSFAN1/JSFAN2: Power Source for System Fan
(JSFAN2 is optional.) Pin Assignment
1 Ground
2 Smart Fan Control
13
3 FAN RPM rate sense
Note:
The JCFAN1, JSFAN1 and JSFAN2 support system cooling fan with
Smart Fan Control utility. They support 4-pin and 3-pin head connectors.
When connecting with wires onto connectors, please note that the red
wire is the positive and should be connected to pin#2, and the black wire
is Ground and should be connected to GND.

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
11
2.3 INSTALLING SYSTEM MEMORY
1. Unlock a DIMM slot by pressing the
retaining clips outward. Align a DIMM
on the slot such that the notch on the
DIMM matches the break on the Slot.
2. Insert the DIMM verti cally and fi rml y
into the slot until the retaining chip
snap back in place and the DIMM is
properly seated.
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
IDE1: Hard Disk Connector
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~5, Bus Master, and Ultra DMA 33/ 66/ 100
functionality. The IDE connectors can connect a master and a slave
drive, so you can connect up to four hard disk drives.
PCI1~PCI3:Peripheral Component Interconnect Slots
This motherboard is equipped with 3 standard PCI slots. PCI stands
for Peripheral Component Interconnect, and it is a bus standard for
expansion cards. This PCI slot is designated as 32bits.
PCI-Ex4: PCI-Extreme Slot
This PCI-Ex 4: PCI-Extreme slot is a special design for PCI-Express
interface graphic cards.
The PCI-Ex 4: PCI-Extreme slot is compliant with PCI-Express 1.0a
specification.
This PCI-Ex 4: PCI-Extreme slot is compatible with PCI-E x4 and
PCI-E x1 expansion card.
The bandwidth of data transfer is up to 1GB/s per direction, and for
an aggregate of 2GB/s in total.

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
12
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 HOW TO SETUPJUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAILSETTINGS
JATXPWR1/JATXPWR2: ATXPowerConnectors
JATXPWR1: This connector allows user to connect 24-pin power
connector on the ATX power supply.
JATXPWR2: By connecting this connector, it will provide +12V to CPU
power circuit.
Pin Assignment Pin Assignment
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PW_ON 20 -5V
9 Standby Voltage +5V 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
1
12
13
24
JATXPWR1 12 2 x 12 Detect 24 Ground
Pin Assignment Pin Assignment
1 +12V 3 Ground
1
2
3
4
JATXPWR2 2 +12V 4 Ground

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
13

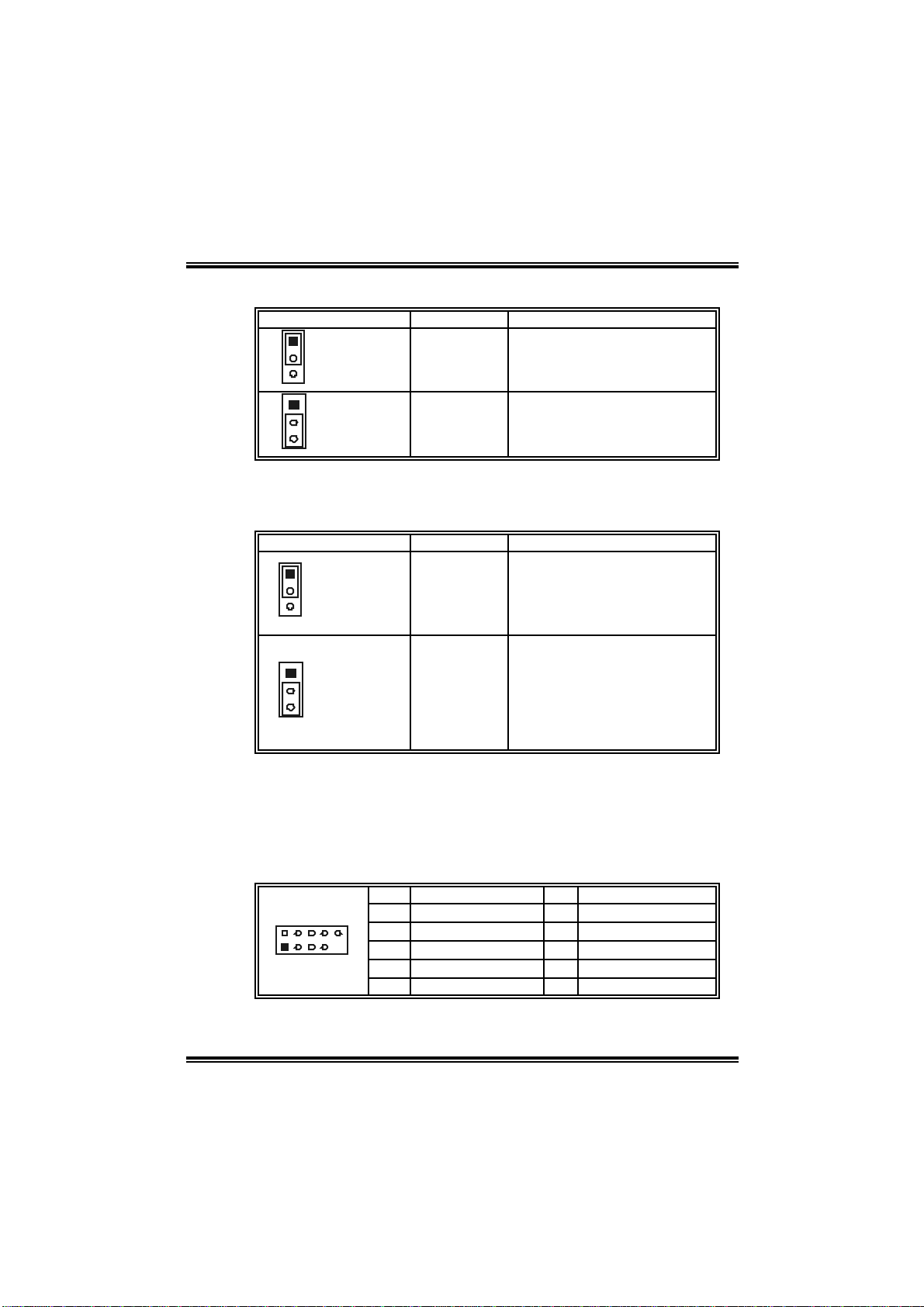

JKBV1:PowerSource HeaderforPS/2 Keyboardand Mouse
Assignment Description
1
3
Pin 1-2 close
+5V +5V f or PS/2 key board and
mouse.
1
3
Pin 2-3 close
+5V Standby
Voltage
PS/2 mouse and keyboard are
powered with +5V standby
v oltage.
Note:In order to support this f unction “Power-on system v ia keyboard and
mouse”, “JKBV1” jumper cap should be placed on Pin 2-3.
JUSBV1/JUSBV3_1: Power Source Header for USB Ports
Assignment Description
1
3
Pin 1-2 close
+5V
JUSBV1: +5V for USB ports at
JUSB_19341 and
JRJ45USB1.
JUSBV3_1: +5V for USB ports a
t
front panel (JUSB3/JUSB4).
1
3
Pin 2-3 close
+5V standby
Voltage
JUSBV1: USB ports at
JUSB_19341 and
JRJ45USB1 are powered by
+5V standby voltage.
JUSBV3_1: USB ports at front
panel (JUSB3/JUSB4) are
powered by +5V.
Note:In order to support this f unction “Power-on system v ia USB dev ice,”
“JUSBV1/ JUSBV3_1” jumper cap should be placed on Pin 2-3 individually.
JUSB3/JUSB4:Headers for USB2.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front
panel, and also can be connected with internal USB devices, like USB
card reader.
Pin Assignment Pin Assignment
1 +5V (f used) 2 +5V (f used)
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
2
1
10
9 Key 10 NC

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
14
JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variety
devices, like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card
etc..
Pin Assignment
1 Left channel input
2 Ground
3 Ground
1
4
4 Right channel input
JAUDIOF1: Front Panel Audio-out Header
This header allows user to connect the front audio out put cable with the
PC front panel. It will di sable the output on back panel audio connectors.
1
2
13
14
Pin Assignment Pin Assignment
1 Mic in/center 2 Ground
3 Mic power/Bass 4 Audio power
5 Right line out/Speaker out
Right 6 Right line out/Speaker out
Right
7 Reserv ed 8 Key
9 Left line out/Speaker out Left 10 Left line out/Speaker out Left
11 Right line in/Rear speaker
Right 12 Right line in/Rear speaker
Right
13 Left line in/Rear speaker Left 14 Left line in/Rear speaker Left
JSPDIF_OUT1/JSPDIF_IN1: Digital AudioConnectors
(JSPDIF_IN1 is optional.)
This connector allows user to connect the PCI bracket SPDIF output and
input headers.
Pin Assignment
1 +5V
2 SPDIF_OUT
13
JSPDIF_OUT 3 Ground
Pin Assignment
1 +5V
2 SPDIF_IN (optional)
13
JSPDIF_IN1 (optional) 3 Ground

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
15
J1394PWR1: PowerSource for1394 Firewire Port (optional)
This header allows user to connect the digital image device, like DV, D8,
or V8, etc.
Assignment Description
1
3
Pin 1-2 close
+3.3V SB +3.3V SB for 1394 chipset.
1
3
Pin 2-3 close
+3.3V +3.3V f or 1394 chipset.
(Def ault)
J1394A1:Header for1394AFirewire Portat FrontPanel (optional)
Pin Assignment Pin Assignment
1 A+ 2 A-
3 Ground 4 Ground
5 B+ 6 B-
7 +12V 8 +12V
2
1
10
9 Key 10 Ground
JCMOS1:ClearCMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe
setting and the CMOS data, please carefully follow the procedures to
avoid damaging the motherboard.
Assignment
1
3
Pin 1-2 close
Normal Operation (Def ault).
1
3
Pin 2-3 close
Clear CMOS data.
※Clear CMOS Procedures:
1. Remove AC power l ine.
2. Set the jumper to “Pin 2-3 close”.
3 . Wa i t fo r fi ve se c o nd s.
4. Set the jumper to “Pin 1-2 close”.
5. Powers on the AC.
6. Reset your desired password or clear the CMOS data.

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
16
JCL1: Chassis Open Message Header
This connector allows system to monitor PC case open status. If the
signal has been triggered, it will record to the CMOS and show the
message on next boot-up.
Pin Assignment
1 Case open signal
1
2 Ground
SATA1~SATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA
interface, it satisfies the SATA1.0 spec and with transfer rate of 1.5Gb/s.
Pin Assignment Pin Assignment
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
1
7
7 Ground
FrontPanel Connector:JPANEL1
This 24-pin connector includes Power-on, Reset, HDD LED, Power LED,
Sleep button, speaker and IrDA Connection. It allows user to connect
the PC case’s front panel switch functions.
1
2
23
24
SLP
PWR_LED
On/Off IR
IR
RS T
HLED
SPK
++
+
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground
Sleep
button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector
8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-)
Hard drive
LED 12 Power LED (-)
Power LED
13 Ground 14 Power button
15 Reset control
Reset
button 16 Ground
Power-on
button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector 24 IRRX
IrDA
Connector

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
17
CHAPTER 4: USEFUL HELP
4.1 AWARDBIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps
Video card not found or v ideo card
memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
4.2 EXTRA INFORMATION
A. BIOS Update
After you fail to update BIOS or BIOS is invaded by virus, the
Boot-Block function will help to restore BIOS. If the following message
is shown after boot-up the system, it means the BIOS contents are
corrupted.
In this Case, please follow the procedure below to restore the BIOS:
1. Make a bootable floppy disk.
2. Download the Flash Utility “AWDFLASH.exe” from the Biostar
website: www.biostar.com.tw
3. Confirm motherboard model and download the respectively BIOS
from Biostar website.
4. Copy “AWDFLASH.exe” and respectively BIOS into floppy disk.
5. Insert the bootable disk into floppy drive and press Enter.
6. System will boo-up to DOS prompt.
7. Type “Awdflash xxxx.bf/sn/py/r”in DOS prompt.
8. System will update BIOS automatically and restart.
9. The BIOS has been recovered and will work properly.

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
18
B. CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2 . Wa i t f o r se co nd s.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2 . Wa i t f o r se co nd s.
3. Power on the system ag ai n.

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
19
4.3 TROUBLESHOOTING
Probable Solution
1. No power to the system at all
Power light don’t illuminate, f an
inside power supply does not turn
on.
2. Indicator light on key board does
not turn on.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System inoperativ e. Keyboard lights
are on, power indicator lights are lit,
and hard driv e is spinning.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from hard disk
driv e, can be booted f rom optical driv e.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; c h ec k t h e d r iv e ty p e in t h e
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots f rom optical driv e.
Hard disk can be read and applications
can be used but booting from hard disk
is impossible.
1. Back up data and applications
files.
2. Ref ormat the hard driv e.
Re-install applications and data
using backup disks.
Screen message says “Invalid
Conf iguration” or “CMOS Failure.”
Rev iew system’s equipment. Make sur
e
correct inf ormation is in setup.
Cannot boot system after installing
second hard driv e.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct driv e types. Call the drive
manuf acturers f or compatibility
with other drives.

I915P-A7 PCI-ED
I91PL-A7 PCI-ED
20
CHAPTER 5: WARPSPEEDER™
5.1 INTRODUCTION
[WarpSpeeder™], a new powerful control utility, features three
user-friendly functions including Overclock Manager, Overvoltage
Manager, and Hardware Monitor.
With the Overclock Manager, users can easily adjust the frequency they
preferor they can get the best CPU performance with just one click. The
Overvoltage Manager, on the other hand, helps to power up CPU core
voltage and Memory voltage.The cool Hardware Monitor smartly indicates
the temperatures, voltage and CPU fan speed as well as the chipset
information. Also, in the About panel, you can get detail descriptions about
BIOS model and chipsets. In addition, the frequency status of CPU,
memory, AGP and PCI along with the CPU speed are synchronically
shown on our main panel.
Moreover, to protect users' computer systems if the setting is not
appropriate when testing and results in system fail or hang,
[WarpSpeeder™] technology assures the system stability by automatically
rebooting the computerand then restart to a speed that is either the
original system speed or a suitable one.
5.2 SYSTEM REQUIREMENT
OS Support: Windows 98 SE, Windows Me, Windows 2000, Windows XP
DirectX: DirectX 8.1 or above. (The Windows XP operating system
includes DirectX 8.1. If you use Windows XP, you do not need to install
DirectX 8.1.)
