Biostar P4M80-M7 User guide

P4M80-M7 BIOS SETUP
i
BIOS Setup .......................................................................................1
1 Main Menu ................................................................................................... 3
2 Standard CMOS Features............................................................................. 6
3 Advanced BIOS Features ............................................................................. 9
4 Advanced Chipset Features ........................................................................ 14
5 Integrated Peripherals................................................................................. 21
6 Power Management Setup.......................................................................... 27
7 PnP/PCI Configurations.............................................................................. 33
8 PC Health Status......................................................................................... 36
9 Frequency/ Voltage Control ....................................................................... 37

P4M80-M7 BIOS Manual
1
BIOS Setup
Introduction
This manual discussed Award™ Setup program built into the ROM BIOS. The Setup
program allows users to modify the basic system configuration. This special information is
then stored in battery-backed RAM so that it retains the Setup information when the power
is turned off.
The Award BIOS™ installed in your computer system’s ROM (Read Only Memory) is a
custom version of an industry standard BIOS. This means that it supports Intel Pentium ®4
processor input/output system. The BIOS provides critical low-level support for standard
devices such as disk drives and serial and parallel ports.
Adding important has customized the Award BIOS™, but nonstandard, features such as
virus and password protection as well as special support for detailed fine-tuning of the
chipset controlling the entire system.
The rest of this manual is intended to guide you through the process of configuring your
system using Setup.
Plug and Play Support
These AWARD BIOS supports the Plug and Play Version 1.0A specification. ESCD
(Extended System Configuration Data) write is supported.
EPA Green PC Support
This AWARD BIOS supports Version 1.03 of the EPA Green PC specification.
APM Support
These AWARD BIOS supports Version 1.1&1.2 of the Advanced Power Management
(APM) specification. Power management features are implemented via the System
Management Interrupt (SMI). Sleep and Suspend power management modes are supported.
Power to the hard disk drives and video monitors can be managed by this AWARD BIOS.
ACPI Support
Award ACPI BIOS support Version 1.0 of Advanced Configuration and Power interface
specification (ACPI). It provides ASL code for power management and device
configuration capabilities as defined in the ACPI specification, developed by Microsoft,
Intel and Toshiba.

P4M80-M7 BIOS Manual
2
PCI Bus Support
This AWARD BIOS also supports Version 2.1 of the Intel PCI (Peripheral Component
Interconnect) local bus specification.
DRAM Support
DDR SDRAM (Double Data Rate Synchronous DRAM) are supported.
Supported CPUs
This AWARD BIOS supports the AMD CPU.
Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
<PgUp> and <PgDn> keys to change entries, press <F1> for help and press <Esc> to quit.
The following table provides more detail about how to navigate in the Setup program by
using the keyboard.
Keystroke Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left (menu bar)
Right arrow Move to the item on the right (menu bar)
Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ Key Increase the numeric value or make changes
- Key Decrease the numeric value or make changes
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu – Exit
Current page and return to Main Menu
F1 key General help on Setup navigation keys
F5 key Load previous values from CMOS
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit

P4M80-M7 BIOS Manual
3
1 Main Menu
Once you enter Award BIOS™ CMOS Setup Utility, the Main Menu will appear on the
screen. The Main Menu allows you to select from several setup functions. Use the arrow
keys to select among the items and press <Enter> to accept and enter the sub-menu.
!

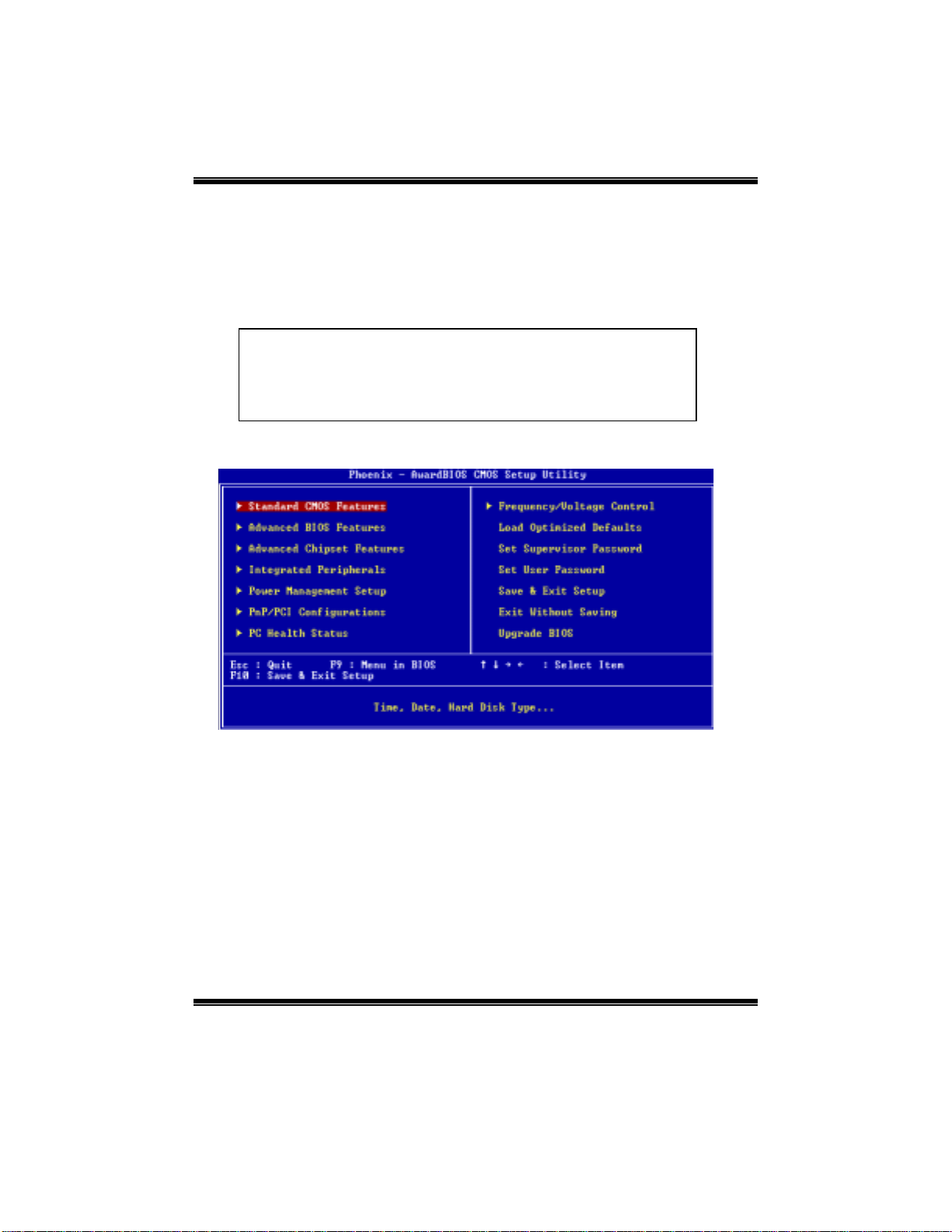

Figure 1. Main Menu
Standard CMOS Features
This submenu contains industry standard configurable options.
Advanced BIOS Features
This submenu allows you to configure enhanced features of the BIOS.
Advanced Chipset Features
This submenu allows you to configure special chipset features.
Integrated Peripherals
This submenu allows you to configure certain IDE hard drive options and Programmed
Input/ Output features.
!! WARNING !!
The information about BIOS defaults on manual (Figure
1,2,3,4,5,6,7,8,9) is just for reference, please refer to the BIOS
installed on board, for update information.

P4M80-M7 BIOS Manual
4
Power Management Setup
This submenu allows you to configure the power management features.
PnP/PCI Configurations
This submenu allows you to configure certain “Plug and Play” and PCI options.
PC Health Status
This submenu allows you to monitor the hardware of your system.
Frequency/ Voltage Control
This submenu allows you to change CPU Vcore Voltage and CPU/PCI clock. (However,
this function is strongly recommended not to use. Not properly change the voltage
and clock may cause the CPU or M/B damage!)
Load Optimized Defaults
This selection allows you to reload the BIOS when the system is having problems
particularly with the boot sequence. These configurations are factory settings optimized
for this system. A confirmation message will be displayed before defaults are set.
Set Supervisor Password
Setting the supervisor password will prohibit everyone except the supervisor from making
changes using the CMOS Setup Utility. You will be prompted with to enter a password.

P4M80-M7 BIOS Manual
5
Set User Password
If the Supervisor Password is not set, then the User Password will function in the same way
as the Supervisor Password. If the Supervisor Password is set and the User Password is
set, the “User” will only be able to view configurations but will not be able to change them.
Save & Exit Setup
Save all configuration changes to CMOS(memory) and exit setup. Confirmation message
will be displayed before proceeding.
Exit Without Saving
Abandon all changes made during the current session and exit setup. confirmation
message will be displayed before proceeding.
Upgrade BIOS
This submenu allows you to upgrade bios.

P4M80-M7 BIOS Manual
6
2 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into 10 categories. Each category
includes no, one or more than one setup items. Use the arrow keys to highlight the item and
then use the<PgUp> or <PgDn> keys to select the value you want in each item.
!

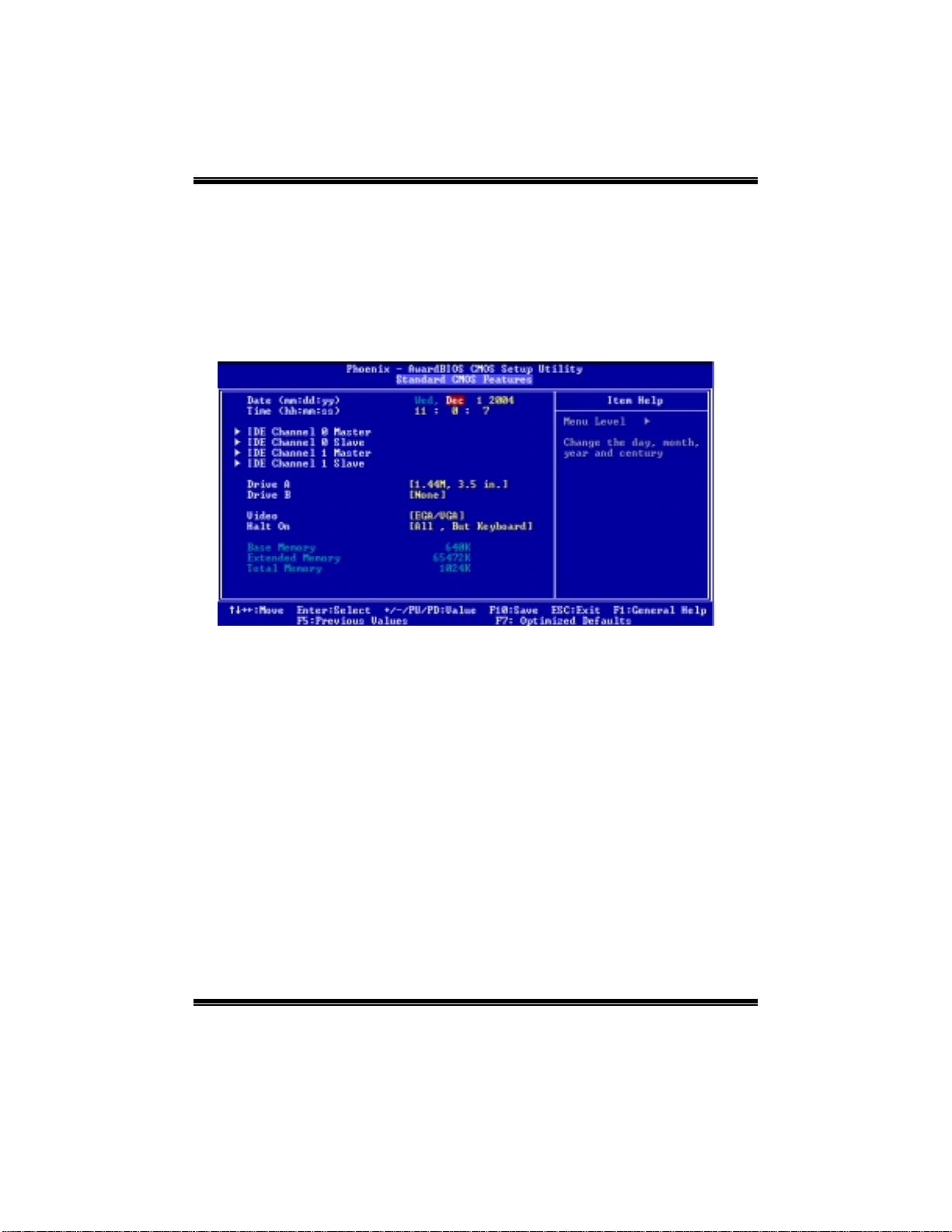

Figure 2. Standard CMOS Setup

P4M80-M7 BIOS Manual
7
Main Menu Selections
This table shows the selections that you can make on the Main Menu.
Item Options Description
Date mm : dd : yy Set the system date. Note
that the ‘Day’ automatically
changes when you set the
date.
Time hh : mm : ss Set the system internal
clock.
IDE Primary Master Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options
IDE Primary Slave Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options.
IDE Secondary Master Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options.
IDE Secondary Slave Options are in its sub
menu. Press <Enter> to enter the sub menu of detailed
options.
Drive A
Drive B 360K, 5.25 in 1.2M, 5.25 in
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
None
Select the type of floppy
disk drive installed in your
system.
Video EGA/VGA
CGA 40
CGA 80
MONO
Select the default video
device.

P4M80-M7 BIOS Manual
8
Item Options Description
Halt On All Errors
No Errors
All, but Keyboard
All, but Diskette
All, but Disk/ Key
Select the situation in which
you want the BIOS to stop
the POST process and
notify you.
Base Memory N/A Displays the amount of
conventional memory
detected during boot up.
Extended Memory N/A Displays the amount of
extended memory detected
during boot up.
Total Memory N/A Displays the total memory
available in the system.

P4M80-M7 BIOS Manual
9

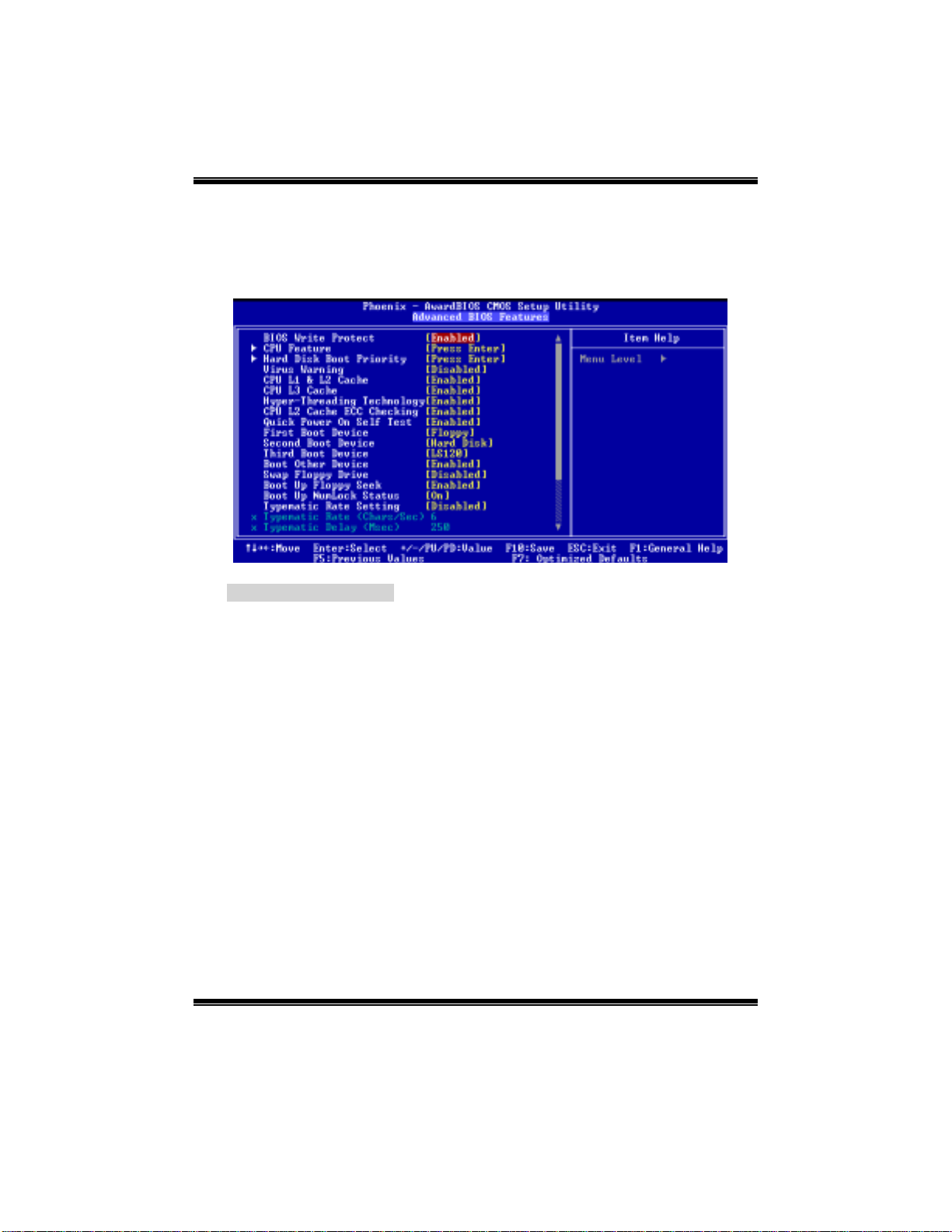

3 Advanced BIOS Features
!
Figure 3. Advanced BIOS Setup
3.1 BIOS Write Protect

P4M80-M7 BIOS Manual
10
3.2 CPU FEATURE
3.1.1 Delay Prior to Thermal
Set this item to enable the CPU Thermal function to engage after the specified time.
The Choices: 4, 8, 16 (default), 32.
3.1.2 Thermal Management
Allow you to choose the thermal management method of your monitor.
The Choices:Thermal Monitor 1 (default), Thermal Monitor2.
Notes:The choices will be different according to your CPU features.
3.1.3 TM2 Bus Ratio
Represents the frequency. Bus ratio of the throttled performance state
that will be initiated when the on-die sensor goes from not hot to hot.
The Choices: 0X (default).
3.1.4 TM2 Bus VID
Represents the voltage of the throttled performance state that will be
initiated when the on-die sensor goes from not hot to hot.
The Choices:0.8375 (default).
3.1.5 Limit CPU ID Max Val
Set limit CPU ID maximum vale to 3, it should be disabled for Win XP.
The Choices: Disabled (default), Enabled.]
3.1.6 Execute Disable Bit
When disabled ,forces the XD feature flag to always return 0.
The Choices: Disabled (default), Enabled.]

P4M80-M7 BIOS Manual
11

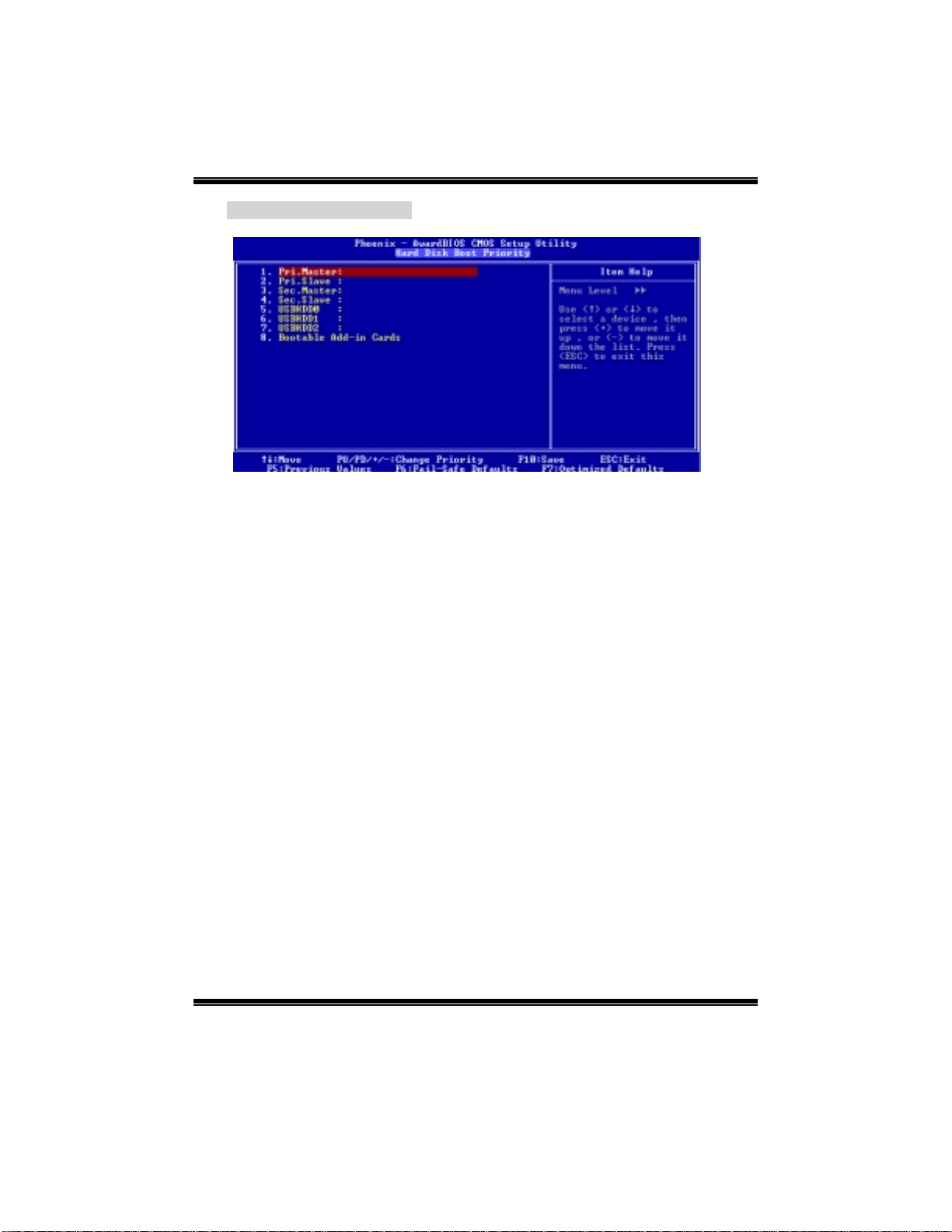

3.3 Hard Disk Boot Priority
These BIOS attempt to load the operating system from the device in the sequence selected in
these items.
The Choices:
Pri. Master, Pri.Slave, Sec.Master, Sec. Slave, USBHDD0, USBHDD1, USBHDD2 and
Bootable Add-in Carde.

P4M80-M7 BIOS Manual
12
3.4 Virus Warning
This option allows you to choose the Virus Warning feature that is used to protect the IDE
Hard Disk boot sector. If this function is enabled and an attempt is made to write to the
boot sector, BIOS will display a warning message on the screen and sound an alarm beep.
Disabled (default) Virus protection is disabled.
Enabled Virus protection is activated.
3.5 CPU L1&L2 Cache
Depending on the CPU/chipset in use, you may be able to increase
memory access time with this option.
Enabled (default) Enable cache.
Disabled Disable cache.
3.6 CPU L3 Cache
Depending on the CPU/chipset in use, you may be able to increase
memory access time with this option.
Enabled (default) Enable cache.
Disabled Disable cache.
3.7 Hyper-Threading Technology
This option allows you to enable or disabled CPU Hyper-Threading.
Enabled for Windows XP and Linux 2.4.x (OS optimized for Hyper
Threading Technology. Disabled for other OS (OS not optimized for
Hyper Threading Technology.
The Choices:Enabled (Default), Disabled.
3.8 CPU L2 Cache ECC Checking
This item allows you to enable/disable CPU L2 Cache ECC Checking.
The Choices:Enabled (default), Disabled.
3.9Quick Power On Self Test
Enabling this option will cause an abridged version of the Power On Self-Test (POST) to
execute after you power up the computer.
Enabled (default) Enable quick POST.
Disabled Normal POST.
3.10 First/ Second/ Third/ Boot Other Device
These BIOS attempt to load the operating system from the device in the sequence selected
in these items.
The Choices:Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, IP100,
LAN, HPT370, Disabled, Enabled

P4M80-M7 BIOS Manual
13
3.11 Swap Floppy Drive
For systems with two floppy drives, this option allows you to swap logical drive
assignments.
The Choices:Disabled (default), Enabled.
3.12 Boot Up Floppy Seek
Enabling this option will test the floppy drives to determine if they have 40 or 80 tracks.
Disabling this option reduces the time it takes to boot-up.
The Choices:Enabled (Default), Disabled.
3.13 Boot Up NumLock Status
Selects the NumLock. State after power on.
The Choices:On (default) Numpad is number keys.
Off Numpad is arrow keys.
3.14 Typematic Rate Setting
When a key is held down, the keystroke will repeat at a rate determined by the keyboard
controller. When enabled, the typematic rate and typematic delay can be configured.
The Choices:Disabled (default), Enabled.
3.15 Typematic Rate (Chars/Sec)
Sets the rate at which a keystroke is repeated when you hold the key down.
The Choices:6 (default), 8, 10, 12, 15, 20, 24, 30.
3.16 Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat the keystroke.
The Choices:250 (default), 500,750,1000.

P4M80-M7 BIOS Manual
14
4 Advanced Chipset Features
This submenu allows you to configure the specific features of the chipset installed on your
system. This chipset manage bus speeds and access to system memory resources, such as
DRAM. It also coordinates communications with the PCI bus. The default settings that came
with your system have been optimized and therefore should not be changed unless you are
suspicious that the settings have been changed incorrectly.
!

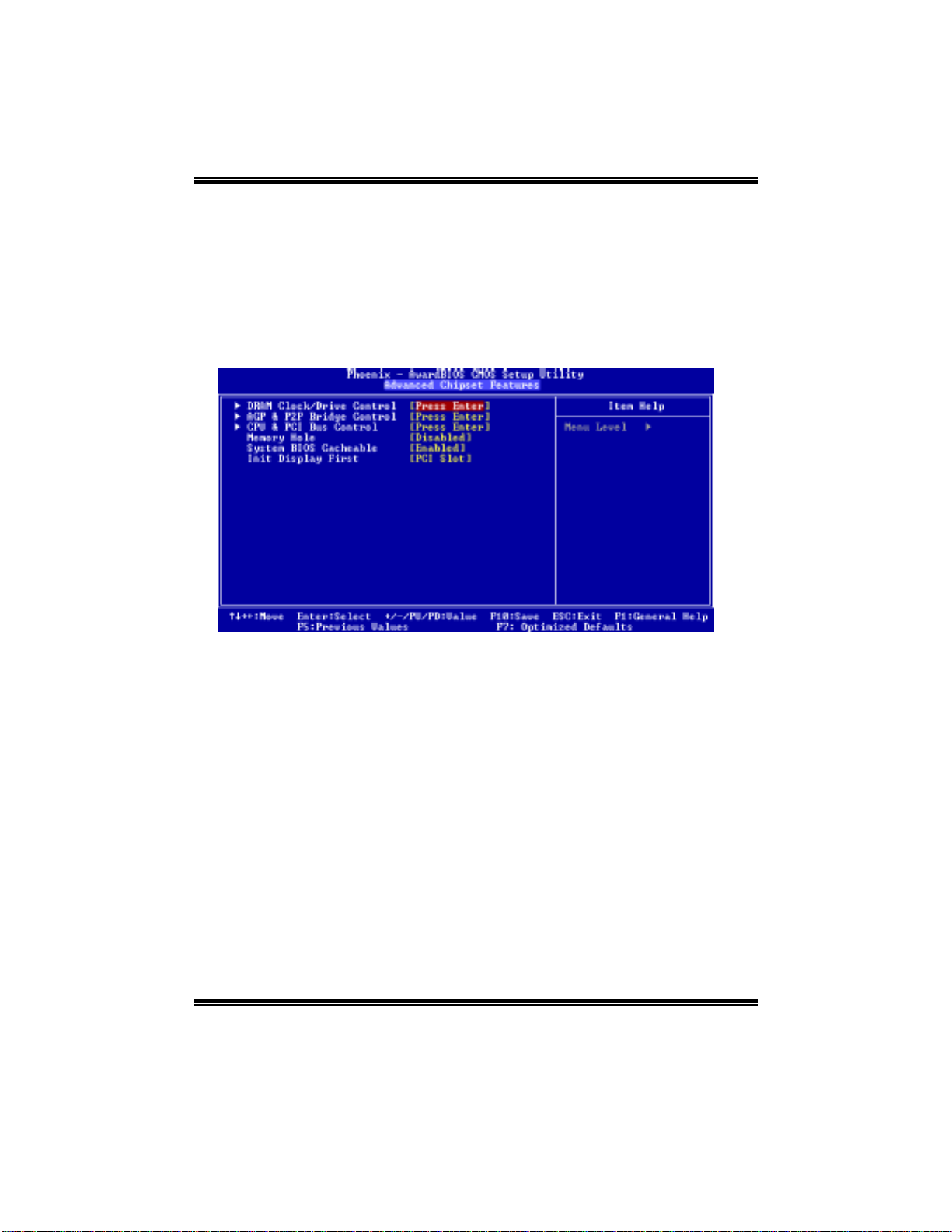

Figure 4. Advanced Chipset Setup

P4M80-M7 BIOS Manual
15
4.1 DRAM Clock/Drive Control
To control the Clock/Drive. If you highlight the literal “Press Enter” next to the “DRAM
Clock/Drive Control” label and then press the enter key, it will take you a submenu with the
following options:
4.1.1 DRAM Clock
This item determines DRAM clock following 100MHz, 133MHz, 166MHz or By SPD.
The Choices: 100MHz, 133MHz, By SPD (default), 166MHz
.
4.1.2 DRAM Timing
This item determines DRAM clock/ timing follow SPD or not.
The Choices: Auto By SPD (default), Manual, Turbo, Ultra.
4.1.3 SDRAM CAS Latency
When SDRAM is installed, the number of clock cycles of CAS latency depends on the
SDRAM timing.
The Choices: 2.5 (default), 2.
4.1.4 Bank Interleave
This item allows you to enable or disable the bank interleave feature.
The Choices: Disabled (default), 2 bank, 4 bank.
4.1.5 Precharge to Active (Trp)
This items allows you to specify the delay from precharge command to activate
command.
The Choices: 2T, 3T, 4T, 5T (default).
4.1.6 Active to Precharge (Tras)
This items allows you to specify the minimum bank active time.
The Choices: 7T, 6T (default).

P4M80-M7 BIOS Manual
16
4.1.7 Active to CMD (Trcd)
Use this item to specify the delay from the activation of a bank to the time that a read
or write command is accepted.
The Choices: 2T, 3T, 4T, 5T (default).
4.1.8 REF to ACT/REF to REF (Trfc)
The Choices: 15T (default).
4.1.9 ACT (0) to ACT(1) (TRRD)
The Choices: 3T (default).
4.1.10 DRAM BUS Selection
The Choices: Auto (default).
4.1.11 DRAM Command Rate
This item controls clock cycle that must occur between the last valid write operation
and the next command.
The Choices: 1T Command, 2T Command (default).

P4M80-M7 BIOS Manual
17

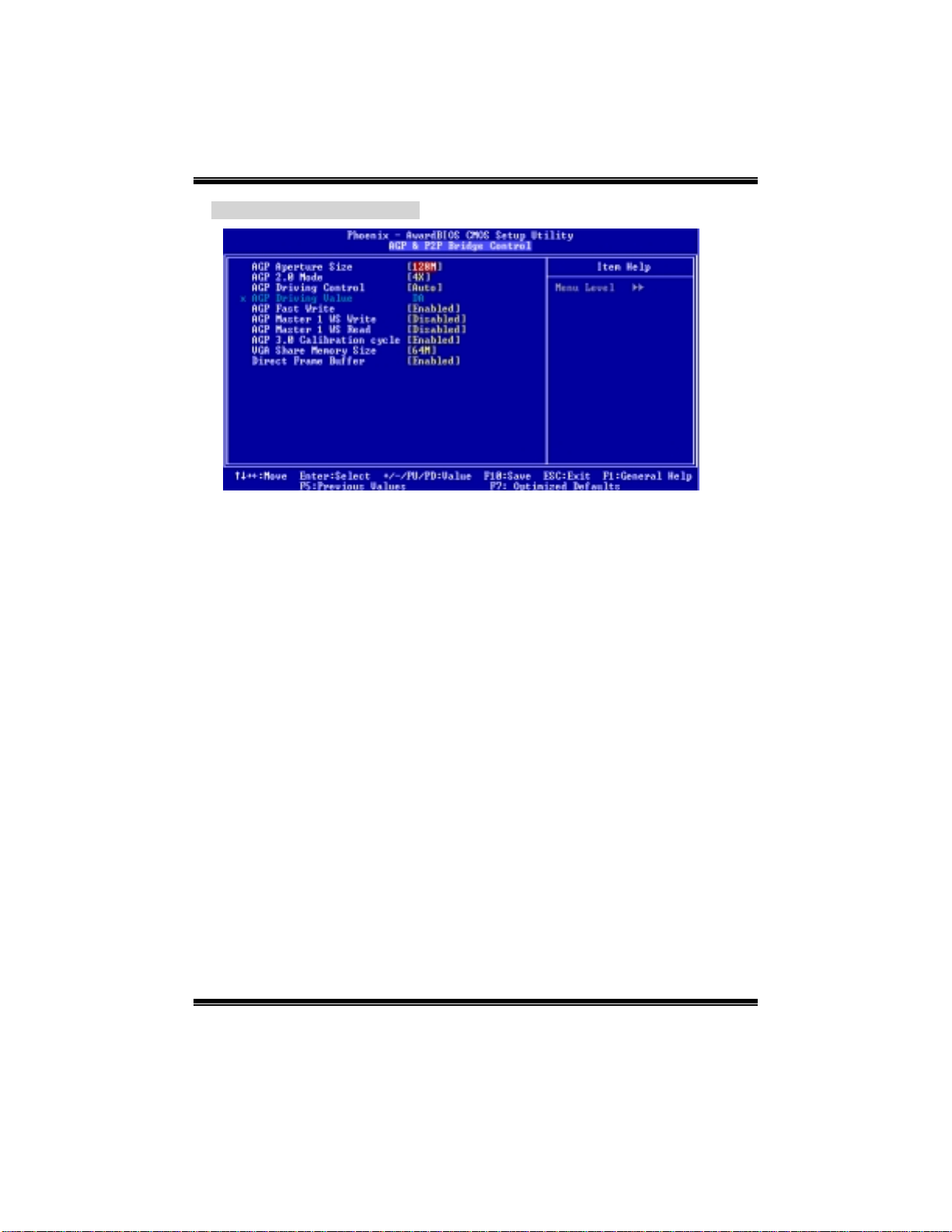

4.2 AGP & P2P Bridge Control
If you highlight the literal “Press Enter” next to the “AGP & P2P Bridge Control” label and then
press the enter key, it will take you a submenu with the following options:
4.2.1 AGP Aperture Size
Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion
of the PCI memory address range dedicated for graphics memory address space. Host
cycles that hit the aperture range are forwarded to the AGP without any translation.
The Choices: 64M, 256M, 128M (default), 32M, 16M, 8M, 4M.
4.2.2 AGP 2.0 Mode
This item allows you to select the AGP Mode.
The Choices: 4X (default), 2X, 1X.
4.2.3 AGP Driving Control
By choosing “Auto” the system BIOS will the AGP output Buffer Drive strength P
Ctrl by AGP Card. By choosing “Manual”, it allows user to set AGP output Buffer Drive
strength P Ctrl by manual.
The Choices: Auto (default), Manual.
4.2.4 AGP Driving Value
While AGP driving control item set to “Manual”, it allows user to set AGP driving.
The Choices: DA (default).

P4M80-M7 BIOS Manual
18
4.2.5 AGP Fast Write
TheChoices:Enabled, Disabled (default).
4.2.6 AGP Master 1 WS Write
When Enabled, writes to the AGP (Accelerated Graphics Port) are executed
with one-wait states.
The Choices: Disabled (default), Enabled.
4.2.7 AGP Master 1 WS Read
When Enabled, read to the AGP (Accelerated Graphics Port) are executed with
one wait states.
The Choices: Disabled (default), Enabled.
4.2.8 AGP 3.0 Calibration cycle
The Choices: Disabled (default), Enabled.
4.2.9 VGA Share Memory Size
The Choices: 64M (default), Disabled.
4.2.10 Direct Frame Buffer
The Choices: Enabled (default).

P4M80-M7 BIOS Manual
19

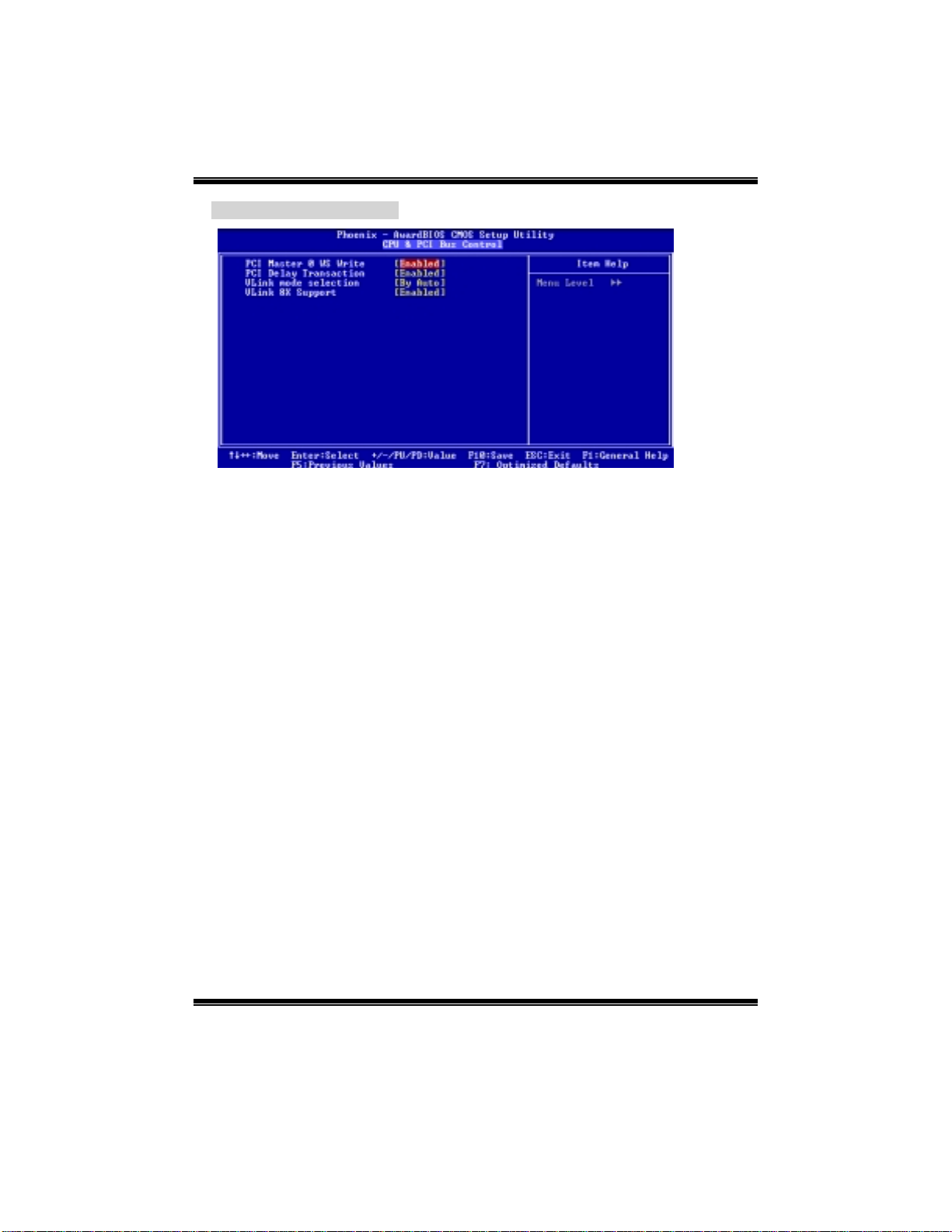

4.3 CPU & PCI Bus Control
If you highlight the literal “Press Enter” next to the “CPU & PCI Bus Control” label and then
press the enter key, it will take you a submenu with the following options:
4.3.1 PCI Master 0 WS Write
When enabled, writes to the PCI bus are executed with zero-wait states.
The Choices: Enabled (default), Disabled.
4.3.2 PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles.
Select Enabled to support compliance with PCI specification.
The Choices: Enabled (default), Disabled.
4.3.3 Vlink mode selection
The Choices: Mode 1 (default).
4.3.4 VLink 8X Support
This item allows you to enable or disable VLink 8X support.
The Choices: Enabled (default), Disabled.
