FCC Informaon and Copyright
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon
against harmful interference in a residenal installaon. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instrucons,
may cause harmful interference to radio communicaons. There is no guarantee that interference
will not occur in a parcular installaon.
The vendor makes no representaons or warranes with respect to the contents here and
specially disclaims any implied warranes of merchantability or tness for any purpose. Further
the vendor reserves the right to revise this publicaon and to make changes to the contents here
without obligaon to nofy any party beforehand.
Duplicaon of this publicaon, in part or in whole, is not allowed without rst obtaining the
vendor’s approval in wring.
The content of this user’s manual is subject to be changed without noce and we will not be
responsible for any mistakes found in this user’s manual. All the brand and product names are
trademarks of their respecve companies.
Dichiarazione di conformità sinteca
Ai sensi dell’art. 2 comma 3 del D.M. 275 del
30/10/2002
Si dichiara che questo prodoo è conforme
alle normave vigen e soddisfa i requisi
essenziali richies dalle direve
2004/108/CE, 2006/95/CE e 1999/05/CE
quando ad esso applicabili
Short Declaraon of conformity
We declare this product is complying with the
laws in force and meeng all the essenal
requirements as specied by the direcves
2004/108/CE, 2006/95/CE and 1999/05/CE
whenever these laws may be applied
2 / 361 / 342 / 361 / 342 / 36

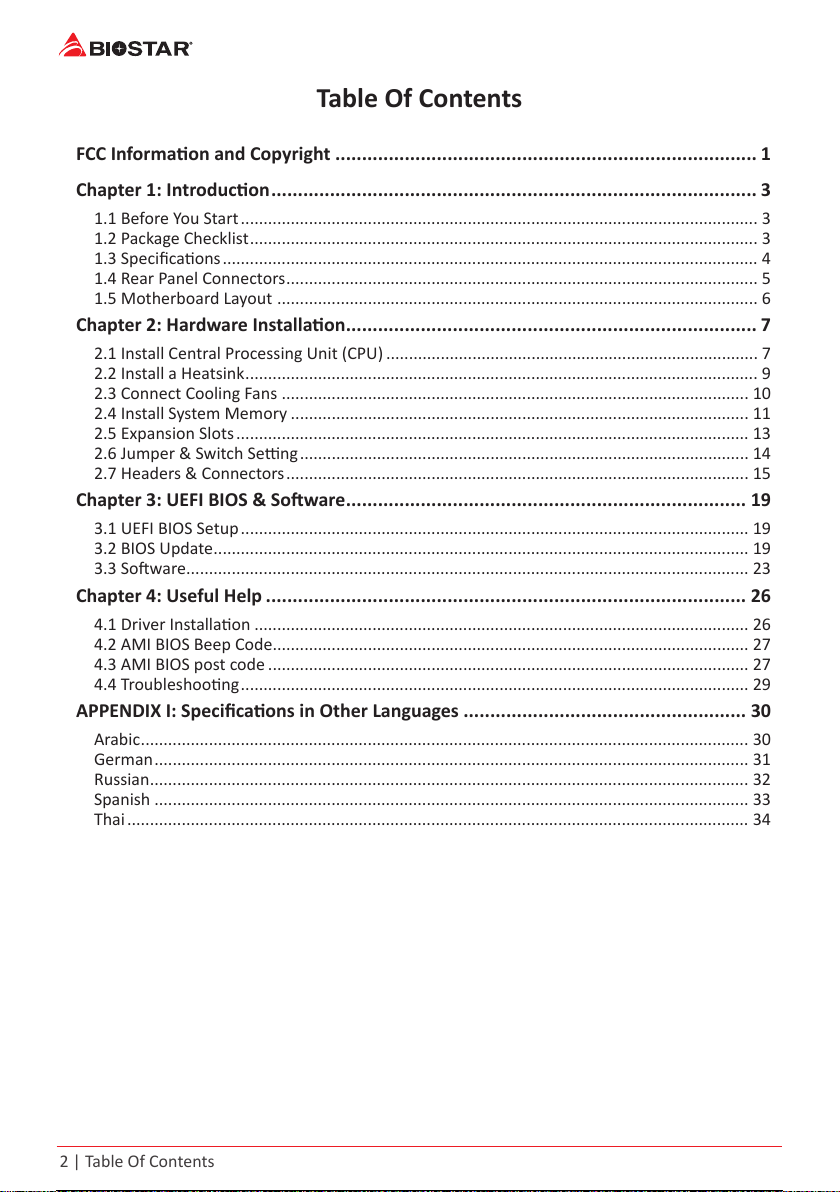

2 | Table Of Contents
Table Of Contents
FCC Informaon and Copyright ������������������������������������������������������������������������������� 1
Chapter 1: Introducon������������������������������������������������������������������������������������������� 3
1.1 Before You Start.................................................................................................................. 3
1.2 Package Checklist................................................................................................................ 3
1.3 Specicaons...................................................................................................................... 4
1.4 Rear Panel Connectors........................................................................................................ 5
1.5 Motherboard Layout .......................................................................................................... 6
Chapter 2: Hardware Installaon����������������������������������������������������������������������������� 7
2.1 Install Central Processing Unit (CPU) .................................................................................. 7
2.2 Install a Heatsink................................................................................................................. 9
2.3 Connect Cooling Fans ....................................................................................................... 10
2.4 Install System Memory ..................................................................................................... 11
2.5 Expansion Slots ................................................................................................................. 13
2.6 Jumper & Switch Seng................................................................................................... 14
2.7 Headers & Connectors...................................................................................................... 15
Chapter 3: UEFI BIOS & Soware��������������������������������������������������������������������������� 19
3.1 UEFI BIOS Setup................................................................................................................ 19
3.2 BIOS Update...................................................................................................................... 19
3.3 Soware............................................................................................................................ 23
Chapter 4: Useful Help ������������������������������������������������������������������������������������������ 26
4.1 Driver Installaon ............................................................................................................. 26
4.2 AMI BIOS Beep Code......................................................................................................... 27
4.3 AMI BIOS post code .......................................................................................................... 27
4.4 Troubleshoong................................................................................................................ 29
APPENDIX I: Specicaons in Other Languages ����������������������������������������������������� 30
Arabic...................................................................................................................................... 30
German................................................................................................................................... 31
Russian.................................................................................................................................... 32
Spanish ................................................................................................................................... 33
Thai ......................................................................................................................................... 34
3 / 362 / 343 / 362 / 343 / 36

Chapter 1: Introducon | 3
TB360-BTC D+
Chapter 1: Introducon
1�1 Before You Start
Thank you for choosing our product. Before you start installing the motherboard, please make
sure you follow the instrucons below:
• Prepare a dry and stable working environment with sucient lighng.
• Always disconnect the computer from power outlet before operaon.
• Before you take the motherboard out from an-stac bag, ground yourself properly
by touching any safely grounded appliance, or use grounded wrist strap to remove the
stac charge.
• Avoid touching the components on motherboard or the rear side of the board unless
necessary. Hold the board on the edge, do not try to bend or ex the board.
• Do not leave any unfastened small parts inside the case aer installaon. Loose parts
will cause short circuits which may damage the equipment.
• Keep the computer from dangerous area, such as heat source, humid air and water.
• The operang temperatures of the computer should be 0 to 45 degrees Celsius.
• To avoid injury, be careful of:
Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit
1.2 Package Checklist
• Serial ATA Cable x1
• SATA Power Cable x1
• Quick Installaon Guide x1
• Fully Setup Driver DVD x1
Note
»  Thepackagecontentsmaybedierentduetothesalesregionormodelsinwhichitwassold.For
moreinformaonaboutthestandardpackageinyourregion,pleasecontactyourdealerorsales
representave.
4 / 363 / 344 / 363 / 344 / 36

4 | Chapter 1: Introducon
1�3 Specifications
Specicaons
CPU Support
Socket 1151 for 8/9th Intel® Core i9 / i7 / i5 / i3 / Penum / Celeron processor
Maximum CPU TDP (Thermal Design Power): 95Wa
* Please refer to www.biostar.com.tw for CPU support list.
Chipset INTEL® B360
Memory
Supports Single Channel DDR4 1866/ 2133/ 2400/ 2666
1x DDR4 SO-DIMM Memory Slot, Max. Supports up to 16 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
Storage 1x SATA III Connector (6Gb/s)
1x M.2 (32Gb/s) : Support PCI-E & SATA SSD
LAN RTL8111H
10/ 100/ 1000 Mb/s auto negoaon, Half / Full duplex capability
USB 6x USB 2.0 port (4 on rear I/Os and 2 via internal header)
Expansion Slots
7x PCIe 2.0 x16 Slot (x1)
1x PCIe 3.0 x16 Slot (x16)
* Maximum VGA cards mining support are depening on VGA Driver or mining soware.
Rear I/Os
1x HDMI Port
1x LAN port
4x USB 2.0 Port
Internal I/Os
1x SATA III Connector (6Gb/s)
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
8x 6-Pin Power Connector (12V_In for Motherboard)
8x 6-Pin Power Connector (12V_Out for VGA Card)
1x SATA Power Connector
1x CPU Fan Connector
7x System Fan Connector (SysFan 6/ SysFan 7 Without monitoring)
2x Front Panel Header
1x Clear CMOS Header
Form Factor 485mm x 235mm
OS Support Windows 10(64bit)
* Biostar reserves the right to add or remove support for any OS with or without noce.
5 / 364 / 345 / 364 / 345 / 36

Chapter 1: Introducon | 5
TB360-BTC D+
1.4 Rear Panel Connectors
USB2.0
USB2.0 USB2.0 x2HDMI
LAN
Note
»  HDMIportonlyworkswithanIntel®integratedGraphicsProcessor.

»Maximumresoluon
HDMI:4096x2160@24Hz
6 / 365 / 346 / 365 / 346 / 36

6 | Chapter 1: Introducon
1.5 Motherboard Layout
Note
»  representsthe1stpin.
7 / 366 / 347 / 366 / 347 / 36

Chapter 2: Hardware Installaon | 7
TB360-BTC D+
Chapter 2: Hardware Installaon
2.1 Install Central Processing Unit (CPU)
Step 1: Locate the CPU socket on the motherboard
Note
»  Removepincapbeforeinstallaon,andmakegoodpreservaonforfutureuse.WhentheCPUis
removed,coverthepincapontheemptysockettoensurepinlegswon’tbedamaged.
»  Themotherboardmightequipwithtwodierenttypesofpincap.Pleasereferbelowinstruconto
removethepincap.
Step 2: Pull the socket locking lever out from the socket and then raise the lever up.
8 / 367 / 348 / 367 / 348 / 36

8 | Chapter 2: Hardware Installaon
Step 3: Remove the Pin Cap.
Step 4: Hold processor with your thumb and index ngers, oriented as shown. Align the
notches with the socket. Lower the processor straight down without lng or sliding the
processor in the socket.
Step 5: Hold the CPU down rmly, and then lower the lever to locked posion to complete the
installaon.
Note
»  EnsurethatyouinstallthecorrectCPUdesignedforLGA1151socket.
»  TheCPUtsonlyinonecorrectorientaon.DonotforcetheCPUintothesockettoprevent
damagingtheCPU.
9 / 368 / 349 / 368 / 349 / 36

Chapter 2: Hardware Installaon | 9
TB360-BTC D+
2.2 Install a Heatsink
Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four
fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest
to the CPU fan connector.
Step 2: Press down two fasteners at one me in a diagonal sequence to secure the CPU fan
assembly in place. As each fastener locks into posion a click should be heard.
Note
»  ApplythethermalinterfacematerialontheCPUbeforeheatsinkinstallaon,ifnecessary.
»  DonotforgettoconnecttheCPUfanconnector.
»  Forproperinstallaon,pleasekindlyrefertotheinstallaonmanualofyourCPUheatsink.
10 / 369 / 3410 / 369 / 3410 / 36

10 | Chapter 2: Hardware Installaon
2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN1: CPU Fan Header
Pin Assignment
1 Ground
2+12V
3FAN1_Tach
4FAN1_Ctl
SYS_FAN1/ SYS_FAN2/ SYS_FAN3/ SYS_FAN4/ SYS_FAN5: System Fan Header
Pin Assignment
1 Ground
2+12V
3Monitoring_Tach
4 Fan Control
11 / 3610 / 3411 / 3610 / 3411 / 36

Chapter 2: Hardware Installaon | 11
TB360-BTC D+
SYS_FAN6/ SYS_FAN7: System Fan Header (Without monitoring)
Pin Assignment
1 Ground
2+12V
3 NA
4 Fan Control
Note
»  CPU_FAN1,SYS_FAN1/2/3/4/5/6/7support4-pinand3-pinheadconnectors.Whenconnecng
withwiresontoconnectors,pleasenotethattheredwireistheposiveandshouldbeconnectedto
pin#2,andtheblackwireisGroundandshouldbeconnectedtopin#1(GND).
2.4 Install System Memory
DDR4 Modules
12 / 3611 / 3412 / 3611 / 3412 / 36

12 | Chapter 2: Hardware Installaon
Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the break on the
Slot.
Step 2: Insert the DIMM rmly into the slot unl the retaining chip snap back in place and the
DIMM is properly seated.
Note
»  IftheDIMMdoesnotgoinsmoothly,donotforceit.Pullitallthewayoutandtryagain.
Memory Capacity
DIMM Socket Locaon DDR4 Module Memory Size
DIMM1 4GB/8GB/16GB Max is 16GB.
13 / 3612 / 3413 / 3612 / 3413 / 36

Chapter 2: Hardware Installaon | 13
TB360-BTC D+
2.5 Expansion Slots
PEX16_1: PCI-Express Gen3 x16 Slot (x16)
• PCI-Express 3.0 compliant.
• Theorecal maximum bandwidth using two slots simultaneously is 16GB/s for each slot,
a total of 32GB/s.
PEX16_2/PEX16_3/PEX16_4/PEX16_5/PEX16_6/PEX16_7/PEX16_8:
PCI-Express Gen2 x16 Slots (x1)
• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 500MB/s per direcon; 1GB/s in total.
PCIE-M2_1: M.2 (Key M) Slot
• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD
module, please place the screw and hex pillar to correct posion.
• Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4
(32Gb/s).
Note
»  MaximumVGAcardsminingsupportaredepeningonVGADriverorminingsoware.
14 / 3613 / 3414 / 3613 / 3414 / 36

14 | Chapter 2: Hardware Installaon
Install an Expansion Card
You can install your expansion card by following steps:
• Read the related expansion card’s instrucon document before install the expansion
card into the computer.
• Remove your computer’s chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card unl it is completely
seated in the slot.
• Secure the card’s metal bracket to the chassis back panel with a screw.
• Replace your computer’s chassis cover.
• Power on the computer, if necessary, change BIOS sengs for the expansion card.
• Install related driver for the expansion card.
2.6 Jumper & Switch Setting
JCMOS1: Clear CMOS Jumper
The jumper allows users to restore the BIOS safe seng and the CMOS data. Please carefully
follow the procedures to avoid damaging the motherboard.
Pin 1-2 Open: Normal Operaon (Default)
Pin 1-2 Close: Clear CMOS data
Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 1-2 close”, you can use a metal object like a screwdriver to touch
the two pins.
3. Wait for ve seconds.
4. Aer clearing the CMOS values, be sure the jumper is “Pin 1-2 open”.
5. Power on the AC.
6. Load Opmal Defaults and save sengs in CMOS.
15 / 3614 / 3415 / 3614 / 3415 / 36

Chapter 2: Hardware Installaon | 15
TB360-BTC D+
2.7 Headers & Connectors
ATXPWR1/ 2/ 3/ 4/ 5/ 6/ 7/ 8: DC-IN Power Source Connector (12V-In from PSU for
motherboard)
The connector provides +12V to the DC-IN power circuit.
Pin Assignment
1+12V_Input
2+12V_Input
3+12V_Input
4 Ground
5 Ground
6 Ground
Note
»  Beforeyoupoweronthesystem,pleasemakesurethatATXPWR1~8connectorshavebeen
plugged-in.
»  Insucientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunconing
properly.UseofaPSUwithahigherpoweroutputisrecommendedwhenconguringasystemwith
morepower-consumingdevices.
PEX16_OUT1/ 2/ 3/ 4/ 5/ 6/ 7/ 8:
PCIe Power Source Connector (12V-Out for VGA Card)
The connector provides +12V to the PCIe power circuit.
Pin Assignment
1+12V_Output
2+12V_Output
3+12V_Output
4 Ground
5 Ground
6 Ground
16 / 3615 / 3416 / 3615 / 3416 / 36

16 | Chapter 2: Hardware Installaon
Note
»  Ifthegraphicscardneedsexternalpowersupply,connectthecablethroughPEX16_OUT1~8
connector.
»  Insucientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunconing
properly.UseofaPSUwithahigherpoweroutputisrecommendedwhenconguringasystemwith
morepower-consumingdevices.
SATA_POWER: SATA Power Source Connector
This connector allows you SATA power connector to the SATA hard drive.
Pin Assignment
112V
2 Ground
3 Ground
45V
JPANEL1: Front Panel Header
This connector includes Power-on, Reset, HDD LED and Power LED connecons. It allows user
to connect the PC case’s front panel switch funcons.
Pin Assignment Funcon Pin Assignment Funcon
1SATA_LED (+) HDD
LED
2 Power LED (+) Power
LED
3SATA LED (-) 4Power LED (-)
5 Ground Reset
Buon
6Power Buon Power-On
Buon
7 Reset Control 8 Ground
9N/A N/A 10 Key Key
17 / 3616 / 3417 / 3616 / 3417 / 36

Chapter 2: Hardware Installaon | 17
TB360-BTC D+
JPANEL2: Front Panel Header
This connector allows user to connect the PC case’s front panel switch funcons.
Pin Assignment Funcon
1 Power LED (+) Power
LED
2Power LED (-)
3Power Buon Power-On
Buon
4 Ground
5Key Key
SATA1: Serial ATA Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Pin Assignment
1 Ground
2 TX+
3TX-
4 Ground
5RX-
6 RX+
7 Ground
18 / 3617 / 3418 / 3617 / 3418 / 36

18 | Chapter 2: Hardware Installaon
F_USB1: Header for USB 2.0 Ports at Front Panel
This header allows user to add addional USB ports on the PC front panel, and also can be
connected with a wide range of external peripherals.
Pin Assignment
1+5V (fused)
2+5V (fused)
3USB-
4USB-
5 USB+
6 USB+
7 Ground
8 Ground
9Key
10 NC
19 / 3618 / 3419 / 3618 / 3419 / 36

Chapter 3: UEFI BIOS & Soware | 19
TB360-BTC D+
Chapter 3: UEFI BIOS & Soware
3.1 UEFI BIOS Setup
• The BIOS Setup program can be used to view and change the BIOS sengs for the
computer. The BIOS Setup program is accessed by pressing the <DEL> key aer the
Power-On Self-Test (POST) memory test begins and before the operang system boot
begins.
• For further informaon of seng up the UEFI BIOS, please refer to the UEFI BIOS Manual
on our website.
3.2 BIOS Update
The BIOS can be updated using either of the following ulies:
• BIOSTAR BIOS-FLASHER: Using this ulity, the BIOS can be updated from a le on a hard
disk, a USB drive (a ash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Ulity: It enables automated updang while in the Windows
environment. Using this ulity, the BIOS can be updated from a le on a hard disk, a USB
drive (a ash drive or a USB hard drive), or a CD-ROM, or from the le locaon on the
Web.
BIOSTAR BIOS-FLASHER
Note
»  ThisulityonlyallowsstoragedevicewithFAT32/16formatandsingleparon.
»  ShungdownorresengthesystemwhileupdangtheBIOSwillleadtosystembootfailure.
Updang BIOS with BIOSTAR BIOS-FLASHER
1. Go to the website to download the latest BIOS le for the motherboard.
2. Then, copy and save the BIOS le into a USB ash (pen) drive.(Only supported FAT/FAT32
format)
3. Insert the USB pen drive that contains the BIOS le to the USB port.
4. Power on or reset the computer and then press <F12> during the POST process.
5. Aer entering the POST screen, the BIOS-
FLASHER ulity pops out. Choose <fs0> to search
for the BIOS le.
20 / 3619 / 3420 / 3619 / 3420 / 36
