UEFI BIOS Setup
Introduction
The purpose ofthis manual is to describethe settings in the AMI UEFI BIOS Setup
program on this motherboard. The Setup program allows users to modify the basic
system configuration and save these settings to NVRAM.
UEFI BIOS determines what acomputer can do without accessing programs from a
disk. This system controls most of the input and output devices such as keyboard,
mouse, serial ports and disk drives. BIOS activates at the first stage of the booting
process, loading and executing the operating system. Some additional features, such
as virus and password protection or chipset fine-tuning options are also included in
UEFI BIOS.
The rest of this manual will to guide you through the options and settings in UEFI
BIOS Setup.
Plugand Play Support
ThisAMI UEFI BIOSsupportsthe Plugand Play Version 1.0A specification.
EPA Green PC Support
ThisAMI UEFI BIOSsupports Version 1.03 of the EPA Green PCspecification.
ACPI Support
AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Configuration and
Power interface specification (ACPI). It provides ASL code for power
management and device configuration capabilities as defined in the ACPI
specification, developed by Microsoft, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral
Component Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

TP67XE UEFI BIOS Manual
2
Supported CPUs
ThisAMI UEFI BIOSsupportsthe Intel CPU.
Using Setup
When starting up the computer, press
<Del> during the Power-On Self-Test
(POST) to enter the UEFI BIOS setup
utility.
In the UEFI BIOS setup utility, you will
see General Help description at the top
right corner, and this is providing a brief
description of the selected item.
Navigation Keys for that particular menu
are at the bottom right corner, and you can
use these keys to select item and change
the settings.
Notice
zThe default UEFI BIOS settings apply for most conditions to ensure optimum
performance of the motherboard. If the system becomes unstable after changing
any settings, please load the default settings to ensure system’s compatibility and
stability. Use Load Setup Default underthe Exit Menu.
zFor better system performance, the UEFI BIOS firmware is being continuously
updated. The UEFI BIOS information described in this manual is for your reference
only. The actual UEFI BIOS information and settings on board may be slightly
different from this manual.
zThe content ofthis manual is subject to be changed without notice. We will not be
responsible for any mistakes found in this user’s manual and any system damage that
may be caused by wrong-settings.

TP67XE UEFI BIOS Manual
3
1 Main Menu

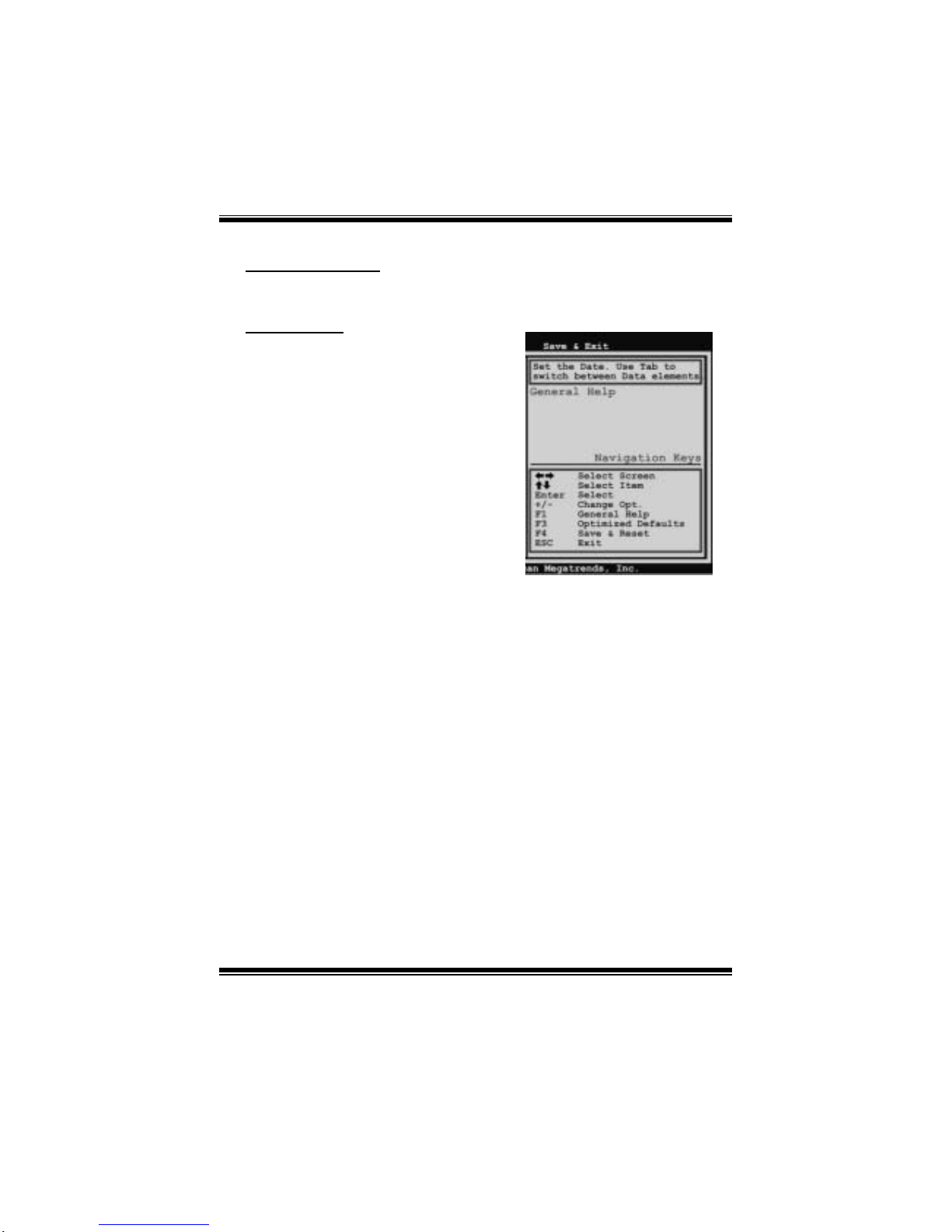

Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the
screen providing an overview ofthe basicsystem information.
BIOS SETUP UTILITY
Main Advanced Chipset Boot Security O.N.E
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Set the Date. Use Tab to
switch between Data elements.
BIOS Information
Compliency
Model Name
Marketing Name
Build Date
Total Memory
System
Time [00:00:00]
System Date [Fri 01 /01/2010]
Access Level Administrator
Save & Exit
System Language [English]
BIOS Information
Shows system information including UEFI BIOS version, model name, marketing
name, built date, etc.
Total Memory
Shows systemmemory size, VGA shard memory will be excluded.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set the
date.
System Time
Set the systeminternal clock.
Access Level
Shows the access level of current user.

TP67XE UEFI BIOS Manual
4
2Advanced Menu
The Advanced Menu allows you to configure the settings ofCPU, Super I/O, Power
Management, and other system devices.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system tomalfunction.
BIOS SETUP UTILITY
> ACPI Settings/WakeUp Event control
> CPU Configuration
> SATA Configuration
> USB Configuration
> SMART FAN Control
> Super IO Configuration
> H/W Monitor
> PCI Subsystem Settings
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
PCI, PCI-X and PCI Express
Settings.
Main Advanced Chipset Boot Security O.N.E Save & Exit
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
PCISubsystem Settings
BIOS SETUP UTILITY
PCI Bus Driver Version V x.xx.xx
PCI Common Settings
PCI Express Device Settings
PCI Express Link Settings
WARNING: Enabling ASPM may cause some
PCI-E devices to fail
PCI ROM Priority [Legacy ROM]
PCI Latency Timer [32 PCI Bus Clocks]
VGA Palette Snoop [Disabled]
No Snoop [Enabled]
Maximum Payload [Auto]
Maximum Read Request [Auto]
ASPM Support [Disabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
In case of multiple Opiton
ROMs (Legacy and EFI
Compatible), specifies what
PCI Option ROM to launch.
Advanced
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC

TP67XE UEFI BIOS Manual
5
PCI ROM Priority
In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies
what PCI Option ROMto launch
Options: Legacy ROM (Default) / EFICompatible ROM
PCI LatencyTimer
Thisitem sets the value to be programmed intoPCI Latency TimerRegister.
Options: 32 PCI Bus Clocks (Default) / 64 PCIBus Clocks / 96 PCI Bus Clocks /
128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224
PCI Bus Clocks / 248 PCI Bus Clocks
VGA Palette Snoop
Thisitem enables or disables VGA Palette Registers Snooping.
Options: Disabled (Default) / Enabled
No Snoop
Thisitem enables or disables PCI Express DeviceNo Snoop option.
Options: Enabled (Default) / Disabled
Maximum Payload
This item sets Maximum Payload ofPCI Express Device or allows System BIOS to
select the value.
Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048
Bytes / 4096 Bytes
Maximum Read Request
This item sets Maximum Read Request Size of PCI Express Device or allows
System BIOSto select the value.
Options: Disabled (Default) / Enabled
ASPM Support
This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –
BIOS auto configures; Disabled – Disables ASPM.
Options: Disabled (Default) / Auto / Force LO

TP67XE UEFI BIOS Manual
6
ACPISettings/WakeUpEventcontrol
BIOS SETUP UTILITY
EuP Control [Disabled]
ACPI Sleep State [S3 (Suspend to RAM)]
PME Wake up from S5 [Disabled]
Wake system with Fixed Time [Disabled]
Ring-In Wake up from S5 [Disabled]
PS2 Keyboard PowerOn [Disabled]
PS2 Mouse PowerOn [Disabled]
USB Device Wakeup from S3/S4 [Disabled]
Wake up date [EveryDay]
Wake up hour 0
Wake up minute 0
Wake up second 0
Stroke key [Wake Key]
Specific key
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
When EuP Enabled,System meets
EuP requirement.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
EuP Control
When EuP is enabled, the system will meet EuP requirement.
Options: Disabled (Default) / Enabled
ACPI SleepState
This item selects the highest ACPI sleep state the system will enter when the
SUSPEND button is pressed.
Options: S3 (Suspend to RAM) (Default) / Suspend Disabled / S1 (CPU Stop
Clock)
PMEWake up from S5
The item enables the system to wake from S5 using PME event.
Options: Disabled (Default) / Enabled
Wake systemwith Fixed Time
Thisitem enables or disables the system to wake on by alarm event. When this item
is enabled, thesystem will wakeon the hr::min::sec specified.
Options: Disabled (Default) / Enabled

TP67XE UEFI BIOS Manual
7
Wake up date
You can choose whichdate the system will boot up.
Wake up hour / Wake up minute / Wake up second
You can choose the system boot up time, input hour, minute and second to specify.
Ring-In Wake up from S5
Thisitem enables the system towake from S5 usingRing-In event.
Options: Disabled (Default) / Enabled
PS2 Keyboard PowerOn
Thisitem allows you to control the keyboard power on function.
Options: Disabled (Default) / Any Key / Stroke Key / Specific Key
Stroke KeysSelected
Thisitem will showonly when Keyboard PowerOn is set “Stroke Key.”
Options: Wake Key (Default)/ Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 /
Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specific KeyEnter
This item will show only when Keyboard PowerOn is set “Specific Key.” Press
Enterto set Specific key.
PS2Mouse PowerOn
Thisitem allows you to control the mouse power on function.
Options: Disabled (Default) / Enabled
USBDevice Wakeup from S3/S4
Thisitem allows you to enable or disabled the USB resumefrom S3/S4 function.
Options: Disabled (Default) / Enabled

TP67XE UEFI BIOS Manual
8
CPU Configuration
BIOS SETUP UTILITY
CPU Configuration
EMT64
Processor Speed
Microcode Revision
Intel HT Technology
Processor Stepping
Processor Cores
Active Processor Cores [All]
Limit CPUID Maximum [Disabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Execute-Disable Bit [Enabled]
Intel Virtualization Technology[Disabled]
Power Technology [Energy Efficient]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Number of cores to enable in
each processor package.
Active Processor Cores
Thisitem sets number of cores to enable in each processor package.
Options: All (Default) / 1 / 2 /3
Limit CPUID Maximum
When the computer is booted up, the operating system executes the CPUID
instruction toidentify the processor and its capabilities. Before it can do so, it must
first query the processor to find out the highest input value CPUID recognizes. This
determines the kind ofbasic information CPUID can provide the operating system.
Options: Disabled (Default) / Enabled
Execute-Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux
9.2, RedHat Enterprise3 Update3.).
Options: Enabled (Default) / Disabled

TP67XE UEFI BIOS Manual
9
Hardware Prefetcher
The processor has a hardware prefetcher that automatically analyzes its requirements
and prefetches data and instructions from the memory into the Level 2 cache that are
likely to be required in the near future. This reduces the latency associated with
memory reads.
Options: Enabled (Default) / Disabled
Adjacent Cache Line Prefetch
The processor has a hardware adjacent cache line prefetch mechanism that
automatically fetches an extra 64-byte cache line whenever the processor requests for
a 64-byte cache line. This reduces cache latency by making the next cache line
immediately available ifthe processor requires it as well.
Options: Enabled (Default) / Disabled
Intel Virtualization Tech
Virtualization Technology can virtually separate your system resource into several
parts, thus enhance the performance when running virtual machines or multi
interface systems.
Options: Disabled (Default) / Enabled
Power Technology
Thisitem enables thepowermanagement features.
Options: Energy Efficient (Default) / Disabled /Custom
CPU C3 Report
Thisitem enables/disables CPU C3 (ACPI C2) report to OS.
Options: Disabled (Default) / ACPIC-2 / ACPIC-3
CPU C6 Report
Thisitem enables/disables CPU C6 (ACPI C3) report to OS.
Options: Enabled (Default) / Disabled
Package C State Limit
Thisitem sets Package C State Limit.
Options: No Limit (Default) / C0 / C1 /C6 / C7

TP67XE UEFI BIOS Manual
10
SATA Configuration
BIOS SETUP UTILITY
SATA Configuration
SATA Port1:
SATA Port2:
SATA Port3:
SATA Port4:
SATA Port5:
SATA Port6:
Serial-ATA Controller 0 [Compatible]
Serial-ATA Controller 1 [Enhanced]
SATA Mode [IDE Mode]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
(1) IDE Mode. (2) AHCI Mode.
(3) RAID Mode.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
SATA Mode
Thisitem sets SATA Mode.
Options: IDEMode (Default)/ AHCI Mode / RAID Mode / Disabled
Serial-ATA Controller 0
Thisitem enables/disables Serial ATA Controller0.
Options: Compatible(Default)/ Disabled / Enhanced
Serial-ATA Controller 1
Thisitem enables/disables Serial ATA Controller1.
Options: Enhanced (Default) / Disabled
Aggressive Link PowerManagement
Aggressive Link Power Management Support.
Options: Enabled (Default) / Disabled

TP67XE UEFI BIOS Manual
11
SpinUp Device
If this item is enabled for any of ports, Staggered Spin Up will be performed, and
only the drives that have this option enabled will spin up at boot. Otherwise, all
drives spin up at boot.
Options: Disabled (Default) / Enabled
Hot Plug
SATA Ports Hot Plug Support.
Options: Enabled (Default) / Disabled
USB Configuration
BIOS SETUP UTILITY
USB Configuration
USB Devices:
EHCI Hand-off [Disabled]
Port 60/64 Emulation [Enabled]
Legacy USB Support [Enabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Enables Legacy USB support.
AUTO opiton disables legacy
support if no USB devices are
connected. DISABLE option
will keep USB devices
available only for EFI
applications.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Legacy USBSupport
This item determines if the BIOS should provide legacy support for USB devices
like the keyboard, mouse, and USB drive. This is a useful feature when using such
USB devices with operating systems that do not natively support USB (e.g.
Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled / Auto
BIOS EHCI Hand-Off
Thisis a workaround for OSes without EHCI hand-off support. TheEHCI ownership
change should be claimed by EHCI driver.
Options: Disabled (Default) / Enabled

TP67XE UEFI BIOS Manual
12
Port60/64 Emulation
Thisitem enables I/O port 60h/64h emulation support. This should be enabled for the
complete USB keyboard legacy support for non-USB awareOSes.
Options: Enabled (Default) / Disabled
SMART FAN Control
BIOS SETUP UTILITY
SMART FAN Control
> CPU FAN Calibrate
CPU Smart FAN [Disabled]
Control Mode [Manual]
FAN Ctrl OFF( C)
FAN Ctrl ON( C)
FAN Ctrl Start value
FAN Ctrl Sensitive
o
o
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
CPU FAN Smart control
function. [Disabled]: Full ON
[Auto]:By parameters below.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
CPU SmartFAN
Thisitem allows you to control the CPUSmart Fan function.
Options: Disabled (Default) / Auto
CPU FAN Calibrate
Press [ENTER] to calibrate CPU FAN.
Control Mode
Thisitem provides several operation modes ofthefan.
Options: Quiet / Aggressive / Manual
Fan Ctrl OFF(℃ )
When CPUtemperatureis lowerthan this value, the CPU fan will keep lowest RPM.
Options: 10 (℃) (default)

TP67XE UEFI BIOS Manual
13
Fan Ctrl On(℃ )
When CPUtemperatureis higher than this value, the CPU fan controller will turn on.
Options: 20 (℃) (Default)
Fan Ctrl Start Value
Thisitem sets CPU FAN Start Speed Value.
Options: 50 (Default)
Fan Ctrl Sensitive
The bigger thenumeral is, thehigher theFAN speed is.
Options: 30 (Default)
Super IO Configuration
BIOS SETUP UTILITY
Super IO Configuration
> Serial Port 0 Configuration
> CIR Controller Configuration
Super IO Chip
Restore AC Power Loss [Power Off]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Specify what state to go to
when power is re-applied
after a power failure.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Restore ACPower Loss
Thissetting specifies how yoursystem should behave aftera power fail or interrupts
occurs. Power Off: Leaving the system in power-off status after power recovers.
Power ON: Powering on the system immediately when power returns. Last State: 1.
Leaving the system in power-off if the system shuts down at DC off status; 2.
Powering on the systemimmediately ifthe systemshuts down at DCon status.
Options: Power Off(Default)/ Power On / LastState

TP67XE UEFI BIOS Manual
14
Serial Port 0 Configuration
BIOS SETUP UTILITY
Serial Port 0 Configuration
Change Settings [Auto]
Serial Port [Enabled]
Device Settings
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Enable or Disable Serial Port
(COM)
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Serial Port
Thisitem enables or disables Serial Port (COM).
Options: Enabled (Default) / Disabled
ChangeSettings
Thisitem selects an optimal setting for Super IO device.
Options: Auto (Default)
CIR Controller Configuration
BIOS SETUP UTILITY
CIR Controller Configuration
CIR Controller [Disabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Enable or Disable CIR
Controller
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
CIRController
Thisitem enables or disables CIR Controller.
Options: Disabled (Default) / Enabled

TP67XE UEFI BIOS Manual
15
ChangeSettings
Thisitem selects an optimal setting for Super IO device.
Options: Auto (Default)
H/W Monitor
BIOS SETUP UTILITY
PC Health Status
ShutDown Temperature [Disabled]
CPU temperature :
System temperature :
CPU Fan Speed :
SYS FAN1 Speed :
SYS FAN2 Speed :
CPU Vcore :
DRAM Voltage :
Vcc SA :
PCH Voltage :
Vcc IO :
+12V :
+ 5V :
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
ShutDown Temperature
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Shutdown Temperature
Thisitem allows you to set up the CPU shutdownTemperature.
Options: Disabled (Default) / 70 /158 / 75 /167 / 80 /176 / 85 /185℃℉℃℉℃℉℃℉
/ 90 /194℃℉

TP67XE UEFI BIOS Manual
16
3 Chipset Menu
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the
speed ofthe CPU itselfuses when communicating with itsown special components.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.
BIOS SETUP UTILITY
> Sou
> Onboard PCI-E Devices
> North Bridge
th Bridge
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
North Bridge Parameters
Main Advanced Chipset Boot Security O.N.E Save & Exit
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
North Bridge
BIOS SETUP UTILITY
PCI Express Port [Auto]
PEG Force Gen1 [Disabled]
Detect Non-Compliance Device [Enabled]
Memory Information
Total Memory
DDR3_A1
DDR3_A2
DDR3_B1
DDR3_B2
VT-d [Disabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
VT-d Enable/Disable
Chipset
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC

TP67XE UEFI BIOS Manual
17
VT-d
Thisitem enables/disables VT-d function.
Options: Disabled (Default) / Enabled
PCI Express Port
Thisitem allows user to controlPCIExpress x16 Port.
Options: Auto (Default) / Disabled / Enabled
PEGForce GEN1
Some non-graphics PCI-E devices may not follow PCI-E Specification and may
incorrectly report theirGen capability orlinkwidth.
Options: Disabled (Default) / Enabled
Detect Non-Compliance Device
Detect Non-Compliance PCI Express Device in PEG.
Options: Enabled (Default) / Disabled
South Bridge Configuration
BIOS SETUP UTILITY
Azalia HD Audio [Enabled]
High Precision Timer [Enabled]
All USB 1.0/2.0 Devices [Enabled]
EHCI Controller 1 (Front Panel)[Enabled]
EHCI Controller 2 [Enabled]
ME Version
SB Chipset Configuration
Audio Configuration
High Precision Event Timer Configuration
USB Configuration
SMBus Controller [Enabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Enabled/Disabled SMBus
Controller.
Chipset
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
SMBus Controller
Thisitem enables/disables SMBus Controller.
Options: Enabled (Default) / Disabled

TP67XE UEFI BIOS Manual
18
Azalia HD Audio
Thisitem enables/disables Azalia HD Audio.
Options: Enabled (Default) / Disabled
High Precision Timer
Thisitem enables/disables the High Precision Event Timer.
Options: Enabled (Default) / Disabled
All USB 1.0/2.0 Devices
Thisitem enables/disables All USB 1.0/2.0 Devices.
Options: Enabled (Default) / Disabled
EHCI Controller 1 (Front Panel)
Thisitem enables/disables USB 2.0 (EHCI) Support.
Options: Enabled (Default) / Disabled
EHCI Controller 2
Thisitem enables/disables USB 2.0 (EHCI) Support.
Options: Enabled (Default) / Disabled
Onboard PCI-E Devices
BIOS SETUP UTILITY
Launch Storage OpROM [Enabled]
Onboard PCIE Giga LAN [Auto]
Onboard USB3.0 [Auto]
Onboard PCI Bridge [Auto]
Onboard 1394 Device [Auto]
Onboard PCI-E Devices
LAN0 MAC ID =
Legacy OpROM Support
Launch PXE OpROM [Disabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Enable or Disable Boot Option
for Legacy Network Devices.
Chipset
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC

TP67XE UEFI BIOS Manual
19
Launch PXE OpROM
Thisitem enables/disables Boot Option for Legacy Network Devices.
Options: Disabled (Default) / Enabled
Launch Storage OpROM
This item enables/disables Boot Option for Legacy Mass Storage Devices with
Option ROM.
Options: Enabled (Default) / Disabled
Onboard PCIE Giga LAN
Thisitem enables/disables Onboard PCIE Giga LAN.
Options: Auto (Default) / Disabled / Enabled
Onboard USB3.0
Thisitem enables/disables Onboard USB3.0.
Options: Auto (Default) / Disabled / Enabled
Onboard PCI Bridge
Thisitem enables/disables Onboard PCI Bridge.
Options: Auto (Default) / Disabled / Enabled
Onboard 1394 Device
Thisitem enables/disables Onboard 1394 Device.
Options: Auto (Default) / Disabled / Enabled
