Renesas RZ/G2L User guide

R01TU0338EJ0105 Rev.1.05 Page
1
of 26
Feb. 28, 2022
RZ/G2L Group and RZ/V2L SMARC EVK
Start-up Guide
Introduction
This document provides a guide to prepare RZ/G2L Group and RZ/V2L reference boards to boot up with the Board
Support Package of RZ/G2L Group and RZ/V2L Group. Especially, procedures to write the bootloaders to each board
are explained.
Bootloaders are written to the Flash ROM on the board using the Flash Writer tool provided by Renesas through the
minimonitor utility. This document explains the way to write these files using the Flash Writer.
Target Reference Board
RZ/G2L reference board
•RZ/G2L Evaluation Board Kit PMIC version (smarc-rzg2l-pmic) (*1)
oRZ/G2L SMARC Module Board (P/N: RTK9744L23C01000BE)
oRZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
RZ/G2LC reference board
•RZ/G2LC Evaluation Board Kit PMIC version (smarc-rzg2lc-pmic) (*2)
oRZ/G2LC SMARC Module Board (P/N: RTK9744C22C01000BE)
oRZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
RZ/G2UL reference board
•RZ/G2UL Evaluation board Kit (smarc-rzg2ul) (*3)
oRZ/G2UL SMARC Module Board (P/N: RTK9743U11C01000BE)
oRZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
oParallel to HDMI Conversion board (This board is included with RTK9743U11C01000BE and is not
sold separately, so a part number does not exist.)
RZ/V2L reference board
•RZ/V2L Evaluation Board Kit PMIC version (smarc-rzv2l-pmic) (*4)
oRZ/V2L SMARC Module Board (P/N: RTK9754L23C01000BE)
oRZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
(*1) “RZ/G2L Evaluation Board Kit PMIC” includes the RZ/G2L SMARC Module Board and the RZ SMARC
Series Carrier Board.
(*2) “RZ/G2LC Evaluation Board Kit PMIC” includes the RZ/G2LC SMARC Module Board and the RZ SMARC
Series Carrier Board.
(*3) “RZ/G2UL Evaluation board Kit” includes the RZ/G2UL SMARC Module Board and the RZ SMARC Series
Carrier Board.
The “Evaluation board Kit for RZ/G2UL MPU” will be called “RZ/G2UL Evaluation Kit” in the next section.
(*4) “RZ/V2L Evaluation Board Kit PMIC” includes the RZ/V2L SMARC Module Board and the RZ SMARC Series
Carrier Board.
R01TU0338EJ0105
Rev.1.05
Feb. 28, 2022

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
2
of 26
Feb. 28, 2022
Target Software
•RZ/G2L Group Board Support Package version 1.4 or later. (hereinafter referred to as “RZ/G2L BSP”)
•RZ/V2L Linux Package V1.0.0 update1 or later. (hereinafter referred to as “RZ/V2L BSP”)

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
3
of 26
Feb. 28, 2022
Contents
1. Preparing Flash Writer...................................................................................................4
1.1 Preparing cross compiler........................................................................................................... 4
1.2 Building Flash Writer..................................................................................................................4
2. Renesas SMARC Evaluation Board kit of RZ/G2L, RZ/G2LC, RZ/G2UL, and RZ/V2L 6
2.1 Preparation before startup.........................................................................................................6
2.1.1 Preparation ............................................................................................................................6
2.1.2 How to distinguish each board............................................................................................ 7
2.1.3 How to replace the SMARC Module Board.........................................................................8
2.1.4 How to set boot mode and input voltage ...........................................................................9
2.1.5 How to set SW1...................................................................................................................10
2.1.6 How to use debug serial (console ouput) ........................................................................12

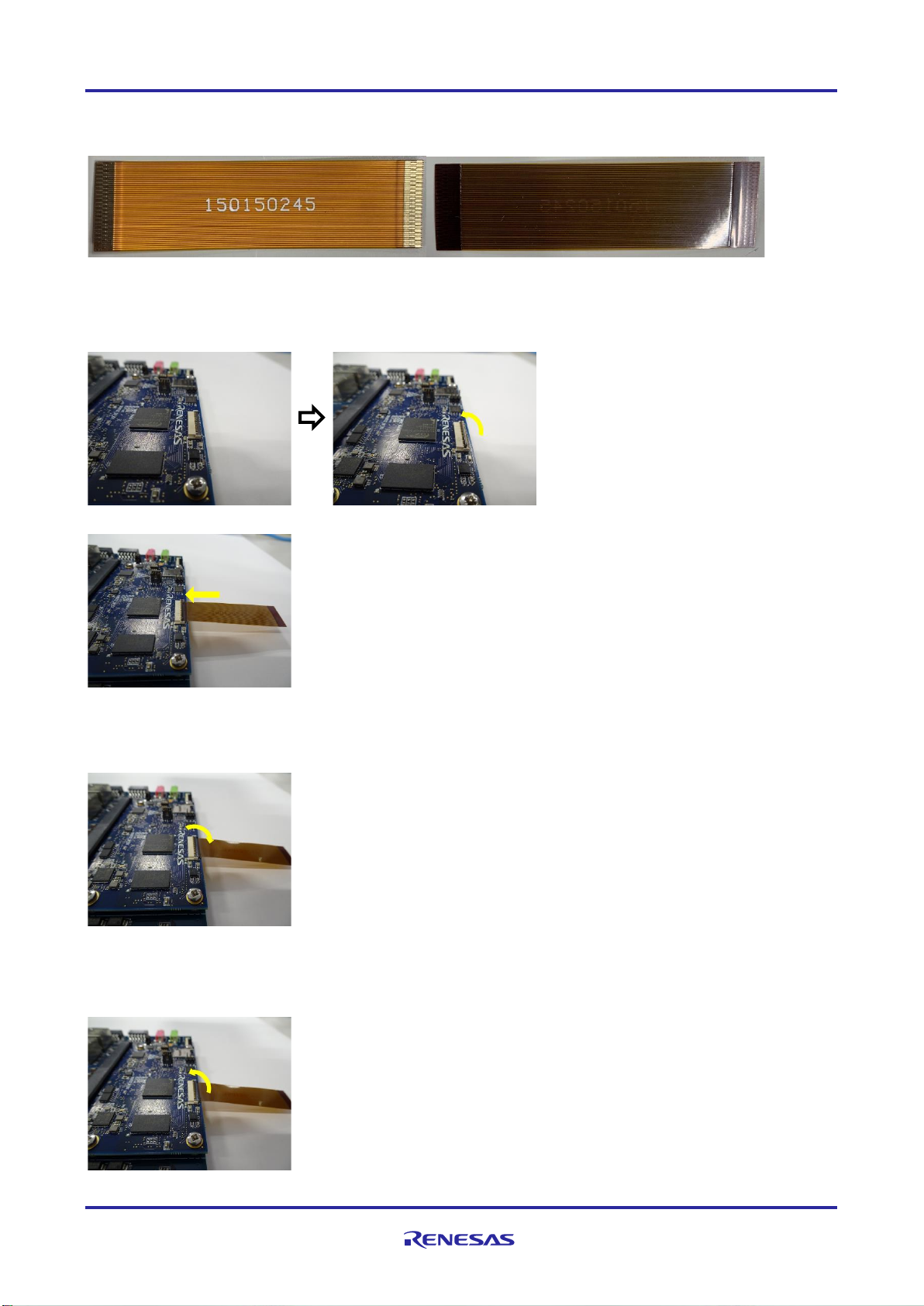

2.1.7 How to connect the Parallel to HDMI Conversion board for RZ/G2UL Evaluation kit
(smarc-rzg2ul) .....................................................................................................................13
2.2 Startup Procedure.....................................................................................................................15
2.2.1 Power supply.......................................................................................................................15
2.2.2 Building files to write..........................................................................................................16
2.2.3 Settings................................................................................................................................17
2.3 Booting Flash Writer.................................................................................................................19
2.4 Writing Bootloader....................................................................................................................21
2.5 Setting U-boot............................................................................................................................23
3. Revision History...........................................................................................................26

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
4
of 26
Feb. 28, 2022
1. Preparing Flash Writer
Flash Writer is built automatically when building BSP by bitbake command. Please refer to the Release Note of the
RZ/G2L Group BSP and the RZ/V2L BSP to obtain a binary file of Flash Writer.
If you need latest one, please get source code from the GitHub repository and build it according to the following
instructions. In general, new revision of reference boards requires latest Flash Writer.
1.1 Preparing cross compiler
FlashWriter runs on target boards. Please get cross compiler built by Linaro or setup a Yocto SDK.
ARM toolchain:
$ cd ~/
$ wget https://developer.arm.com/-/media/Files/downloads/gnu-a/10.2-2020.11/bi
nrel/gcc-arm-10.2-2020.11-x86_64-aarch64-none-elf.tar.xz
$ tar xvf gcc-arm-10.2-2020.11-x86_64-aarch64-none-elf.tar.xz
Yocto SDK:
Build an SDK according to Release Notes and install it to a Linux Host PC. Then, enable the SDK as below.
$ source /opt/poky/3.1.5/environment-setup-aarch64-poky-linux
1.2 Building Flash Writer
Get source codes of Flash Writer from the GitHub repository and checkout the branch rz_g2l.
$ cd ~/
$ git clone https://github.com/renesas-rz/rzg2_flash_writer.git
$ cd rzg2_flash_writer
$ git checkout rz_g2l
Build Flash Writer as an s-record file by the following commands. Please specify a target board by “BOARD”option.
ARM toolchain:
$ export PATH=$PATH:~/gcc-arm-10.2-2020.11-x86_64-aarch64-none-elf/bin
$ export CROSS_COMPILE=aarch64-none-elf-
$ export CC=${CROSS_COMPILE}gcc
$ export AS=${CROSS_COMPILE}as
$ export LD=${CROSS_COMPILE}ld
$ export AR=${CROSS_COMPILE}ar
$ export OBJDUMP=${CROSS_COMPILE}objdump
$ export OBJCOPY=${CROSS_COMPILE}objcopy
$ make clean
$ make BOARD=<board>
Yocto SDK:
$ make clean
$ make BOARD=<board>

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
5
of 26
Feb. 28, 2022
Please replace <board> to a proper option according to this table.
Table 1. BOARD option
Target board
BOARD option
Image to be generated
smarc-rzg2l-
pmic
RZG2L_SMARC_PMIC
Flash_Writer_SCIF_RZG2L_SMARC_PMIC_DDR4_2GB_1PCS.mot
smarc-rzg2lc-
pmic
RZG2LC_SMARC_PMIC
Flash_Writer_SCIF_RZG2LC_SMARC_PMIC_DDR4_1GB_1PCS.mot
smarc-rzg2ul
RZG2UL_SMARC
Flash_Writer_SCIF_RZG2UL_SMARC_DDR4_1GB_1PCS.mot
smarc-rzv2l-
pmic
RZV2L_SMARC_PMIC
Flash_Writer_SCIF_RZV2L_SMARC_PMIC_DDR4_2GB_1PCS.mot

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
6
of 26
Feb. 28, 2022
2. Renesas SMARC Evaluation Board kit of RZ/G2L, RZ/G2LC, RZ/G2UL, and
RZ/V2L
2.1 Preparation before startup
2.1.1 Preparation
The following power supply environment is used in the evaluation.
Hardware preparation:
•USB Type-C cable “AK-A8485011” (manufactured by Anker)
•USB PD Charger Anker “PowerPort III 65W Pod” (manufactured by Anker)
•USB Type-microAB cable (Any cables)
•Micro HDMI cable (Any cables)
•PC Installed FTDI VCP driver and Terminal software (Tera Term)
Note: Please install the FTDI driver that can be following website
(https://www.ftdichip.com/Drivers/VCP.htm).
Software preparation:
RZ/G2L Evaluation Board Kit PMIC version
•Flash_Writer_SCIF_RZG2L_SMARC_PMIC_DDR4_2GB_1PCS.mot (flash writer)
•bl2_bp-smarc-rzg2l_pmic.srec (boot loader)
•fip-smarc-rzg2l_pmic.srec (boot loader)
•Image-smarc-rzg2l.bin (Linux kernel)
•r9a07g044l2-smarc.dtb (Device tree file)
RZ/G2LC Evaluation Board Kit PMIC version
•Flash_Writer_SCIF_RZG2LC_SMARC_PMIC_DDR4_1GB_1PCS.mot (flash writer)
•bl2_bp-smarc-rzg2lc_pmic.srec (boot loader)
•fip-smarc-rzg2lc_pmic.srec (boot loader)
•Image-smarc-rzg2lc.bin (Linux kernel)
•r9a07g044c2-smarc.dtb (Device tree file)
RZ/G2UL Evaluation Board Kit
•Flash_Writer_SCIF_RZG2UL_SMARC_DDR4_1GB_1PCS.mot (flash writer)
•bl2_bp-smarc-rzg2ul.srec (boot loader)
•fip-smarc-rzg2ul.srec (boot loader)
•Image-smarc-rzg2ul.bin (Linux kernel)
•r9a07g043u11-smarc.dtb (Device tree file)
RZ/V2L Evaluation Board Kit PMIC version
•Flash_Writer_SCIF_RZV2L_SMARC_PMIC_DDR4_2GB_1PCS.mot (flash writer)
•bl2_bp-smarc-rzv2l_pmic.srec (boot loader)
•fip-smarc-rzv2l_pmic.srec (boot loader)
•Image-smarc-rzv2l.bin (Linux kernel)
•r9a07g054l2-smarc.dtb (Device tree file)

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
7
of 26
Feb. 28, 2022
2.1.2 How to distinguish each board
The evaluation boards of RZ/G2L, RZ/G2LC, and RZ/V2L are the same Printed Circuit Board, so the differences
between each board are described as follows to distinguish. The evaluation board of RZ/G2UL is different Printed
Circuit Board compared with them.
Comparison of RZ/G2L Evaluation Board Kit and RZ/V2L Evaluation Board Kit:
RZ/G2L Evaluation Kit
RZ/V2L Evaluation Kit
IC1
RZ/G2L (R9A07G044L23GBG)
RZ/V2L (R9A07G054L23GBG)
Comparison of RZ/G2L Evaluation Board Kit and RZ/G2LC Evaluation Board Kit:
RZ/G2L Evaluation Kit
RZ/G2LC Evaluation Kit
IC1
RZ/G2L (R9A07G044L23GBG)
RZ/G2LC (R9A07G054GBG)
IC7
MT40A1G16KD-062E:E (2GB)
MT40A512M16LY-062EIT:E (1GB)
IC23
Ethernet PHY (KSZ9131RNXC)
Not mounted
CN1
10-pin connector for ADC
Not mounted
SW1
2bit bus switch
6bit bus switch

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
8
of 26
Feb. 28, 2022
2.1.3 How to replace the SMARC Module Board
Please be careful when replacing the board as follows.
1. Remove the four screws.
Note: The screw thread is a special shape, so be careful not to crush the screw thread.
Please recommend to prepare a torx screwdriver which is a “T6” head size.
2. Remove the screw and the board will stand up at an angle. Slide it out.
3. Insert the replacement the board diagonally, then roll the SMARC board parallel to the board and fix it with screws.
Specially shaped screw threads

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
9
of 26
Feb. 28, 2022
2.1.4 How to set boot mode and input voltage
Please set the SW11 settings as follows.
•Pin no1 to no3 of the SW11 is used to control boot mode of RZ/G2L, RZ/G2LC, RZ/G2UL, and RZ/V2L.
•Pin no4 of the SW11 is used to control the input voltage from power charger to 5V or 9V. Please use a 5V
setting as initial setting.
Please select boot mode as below figures! Currently we support 2 modes in 4 modes: SCIF Download mode and QSPI
Boot mode.
Please select input voltage setting as below.
SW1-4
Input voltage selection
OFF
Input 9V
ON
Input 5V
SW11-1
OFF
SW11-2
ON
SW11-3
OFF
SW11-4
ON

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
10
of 26
Feb. 28, 2022
2.1.5 How to set SW1
Renesas SMARC RZ/G2L Evaluation kit PMIC (smarc-rzg2l-pmic), RZ/G2LC Evaluation kit
PMIC (smarc-rzg2lc-pmic) and RZ/V2L Evaluation kit PMIC (smarc-rzv2l-pmic)
Please set the SW1 settings to follows.
•Pin no1 of the SW1 is used to select the JTAG debug mode or not.
JTAG is not used, so set SW1-1 to normal operation mode.
•Pin no2 of the SW1 is used to select the eMMC or microSD mode. Please set SW1-2 to eMMC mode.
SW1-1
DEBUGEN
OFF
JTAG debug mode
ON
Normal operation
The selection of microSD slot and eMMC on the SMARC module is exclusive
Renesas SMARC RZ/G2UL Evaluation kit (smarc-rzg2ul)
Please set the SW1 settings to follows.
•The SW1-1 is used to select the JTAG debug mode or not.
JTAG is not used to in the procedure for booting up RZ/G2L Group Board Support Package, so please set
SW1-1 to normal operation mode.
•The SW1-2 is used to select the eMMC or microSD mode. Please set SW1-2 to eMMC mode.
•The SW1-3 is used to select the Ethernet or multiple functions mode. The multiple functions are enabled
CAN0, CAN1, PMOD0 and PMOD1. Please set SW1-3 to other function mode.
SW1-1
ON
SW1-2
OFF
SW1-2
MicroSD/eMMC selection
OFF
Select eMMC on RTK9744L23C01000BE
ON
Select microSD slot on RTK9744L23C01000BE
SW1-3
OFF
SW1-2
OFF
SW1-1
ON
SW1-1
DEBUGEN
OFF
JTAG debug mode
ON
Normal operation

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
11
of 26
Feb. 28, 2022
SW1-2
SD/MMC selection
OFF
Select eMMC memory
ON
Select microSD card
The selection of microSD slot and eMMC on the SMARC module is exclusive
SW1-3
Ether0/CAN0, CAN1, SSI1, RSPI1 selection
OFF
CAN0, CAN1, PMOD0 Type-2A, PMOD Type-6
ON
Ether0

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
12
of 26
Feb. 28, 2022
2.1.6 How to use debug serial (console ouput)
Please connect USB Type-microAB cable to CN14.
CN14:USB Type-microAB Connector
Connect to PC

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
13
of 26
Feb. 28, 2022
2.1.7 How to connect the Parallel to HDMI Conversion board for RZ/G2UL Evaluation kit
(smarc-rzg2ul)
Please connect CN1 of the Parallel to HDMI Conversion board to CN5 via the 50mm FPC (228-000071-01).
Parallel to HDMI Conversion board
CN5: FFC/FPC Connector
50mm FPC

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
14
of 26
Feb. 28, 2022
A termination procedure of the 50mm FPC is follows.
The top and bottom surfaces of the FPC are shown below.
1. Lift up the actuator. Use thumb or index finger.
2. Fully insert the FPC in the connector parallel to mounting surface, with the exposed conductive traces facing down
3. Rotate down the actuator until firmly closed.
Note: The PFC must be fully inserted in the connector. If not fully inserted, the actuator will not close property.
Should this be the case, lift up the actuator and repeat the process (starting with Step 1 above)
4. FPC Removal
1) Lift up the actuator.
2) Carefully remove the FPC
Top surface
Bottom surface

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
15
of 26
Feb. 28, 2022
2.2 Startup Procedure
Hereafter, RZ/V2L Evaluation Board Kit PMIC version picture is used as a representative. If you use Evaluation Board
Kit of RZ/G2L, RZ/G2LC, and RZ/G2UL, you can use Connectors on same location as RZ/V2L Evaluation Board Kit
PMIC version.
2.2.1 Power supply
1. Connect USB-PD Power Charger to USB Type-C Connector (CN6).
2. LED1(VBUS Power ON) and LED3 (Module PWR On) lights up.
3. Press the power button(SW9) to turn on the power.
Note: When turn on the power, press and hold the power button for 1 second.
When turn off the power, press and hold the power button for 2 seconds
4. LED4(Carrier PWR On) lights up.
2. LED1 and LED3 will be light up
1. Connect USB Type-C cable to CN6
Connect USB Type-microAB cable
to CN14 for SCIF download

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
16
of 26
Feb. 28, 2022
2.2.2 Building files to write
The evaluation boards use the files in the Table 2 as the boot loaders. Please build them according to the Release Note
and copy these files to a PC which runs serial terminal software.
Table 2. File names of Boot loader
Board
File name of Boot loader
RZ/G2L Evaluation Board Kit PMIC version
•bl2_bp-smarc-rzg2l_pmic.srec
•fip-smarc-rzg2l_pmic.srec
RZ/G2LC Evaluation Board Kit PMIC version
•bl2_bp-smarc-rzg2lc_pmic.srec
•fip-smarc-rzg2lc_pmic.srec
RZ/G2UL Evaluation Board Kit
•bl2_bp-smarc-rzg2ul.srec
•fip-smarc-rzg2ul.srec
RZ/V2L Evaluation Board Kit PMIC version
•bl2_bp-smarc-rzv2l_pmic.srec
•fip-smarc-rzv2l_pmic.srec

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
17
of 26
Feb. 28, 2022
2.2.3 Settings
Connect between the board and a control PC by USB serial cable according to the Release Note.
1. Bring up the terminal software and select the “File” > “New Connection” to set the connection on the software.
2. Select the “Setup” > “Serial port” to set the settings about serial communication protocol on the software.
Set the settings about serial communication protocol on a terminal software as below:
•Speed: 115200 bps
•Data: 8bit
•Parity: None
•Stop bit: 1bit
•Flow control: None

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
18
of 26
Feb. 28, 2022
3. To set the board to SCIF Download mode, set the SW11 as below (please refer 2.1.2):
SW11
1
2
3
4
OFF
ON
OFF
ON
4. After finished all settings, when pressed the reset button SW10, the messages below are displayed on the
terminal.
3. Press the Blue button

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
19
of 26
Feb. 28, 2022
2.3 Booting Flash Writer
Turn on the power of the board by pressing SW9. The messages below are shown on the terminal.
SCIF Download mode
(C) Renesas Electronics Corp.
-- Load Program to SystemRAM ---------------
please send !
Send an image of Flash Writer using terminal software after the message “please send !” is shown. Please refer to the
Table 3 below to know which file name of Flash Writer should be sent.
Table 3. File names of Flash Writer
Board name
File name of Flash Writer
RZ/G2L Evaluation Board Kit PMIC version
Flash_Writer_SCIF_RZG2L_SMARC_PMIC_DDR4_2GB_1PCS.mot
RZ/G2LC Evaluation Board Kit PMIC version
Flash_Writer_SCIF_RZG2LC_SMARC_PMIC_DDR4_1GB_1PCS.mot
RZ/G2UL Evaluation Board Kit
Flash_Writer_SCIF_RZG2UL_SMARC_DDR4_1GB_1PCS.mot
RZ/V2L Evaluation Board Kit PMIC version
Flash_Writer_SCIF_RZV2L_SMARC_PMIC_DDR4_2GB_1PCS.mot
Below is a sample procedure with Tera Term.
Open a “Send file” dialog by selecting “File” → “Sendfile” menu.

RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide
R01TU0338EJ0105 Rev.1.05 Page
20
of 26
Feb. 28, 2022
Then, select the image to be send and click “Open” button.
The image will be sent to the board via serial connection.
After successfully downloading the binary, Flash Writer starts automatically and shows a message like below on the
terminal.
Flash writer for RZ/V2 Series V1.00 Sep.17,2021
Product Code : RZ/V2L
>
