TZ68A+ UEFI BIOS Manual
i
UEFI BIOS Setup...................................................................................... 1
1 Main Menu ............................................................................................. 3
2 Advanced Menu...................................................................................... 4
3 PCIPnP Menu....................................................................................... 18
4 Boot Menu............................................................................................. 22
5 Chipset Menu ....................................................................................... 25
6 O.N.E Menu.......................................................................................... 26
7 Exit Menu ............................................................................................. 32

TZ68A+ UEFI BIOS Manual
1
UEFI BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup
program on this motherboard. The Setup program allows users to modify the basic
system configuration and save these settings to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs from a
disk. This sys tem controls most of the input and output d evices s uch as keyboard,
mouse, serial ports and disk drives. BIOS activates at the firs t stage of the booting
process, lo ading and executing the op erating s ystem. Some add itional features, s uch
as virus and pass word protection or chips et fine-tuning options are also included in
UEFI BIOS.
The rest of this manual will to guide you through the options and settings in UEFI
BIOS Setup.
Plug and Play Support
This AMI UEF I BIOS suppo rts the Plug and Play Version 1.0A spec ific ation.
EPA Green PC Support
This AMI UEFI BIOS s upports Vers ion 1.03 of the EPA Green PC specification.
ACPI Support
AMI ACP I UEFI BIOS s uppo rt Version 1.0/2.0 of Advanced Configuration and
Power interface specification (ACPI). It provides ASL code for power
management and device configuration capabilities as defined in the ACPI
specification, developed by Microsoft, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also s upports Vers ion 2.3 of the Intel PCI (Peripheral
Component Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

TZ68A+ UEFI BIOS Manual
2
Supported CPUs
This AMI UEF I BIOS suppo rts the Intel CPU.
Using Setup
When starting up the comp uter, press
<Del> during the Power-On Self-Test
(POST) to enter the UEFI BIOS setup
utility.
In the UEFI BIOS setup utility, you will
see General Help description at the top
right corner, and this is providing a brief
description of the selected item.
Navigation Keys for that particular menu
are at the bottom right corner, and you can
use these keys to select item and c hange
the settings.
Notice
zThe default UEFI BIOS settings apply for most conditions to ens ure optimum
performance of the motherboard. If the system becomes unstable after changing
any settings, please load the default settings to ensure system’s compatibility and
stability. Use Load Setup Default under the Exit Menu.
zFor better system performance, the UEFI BIOS firmware is being continuously
updated. The UEFI BIOS informatio n described in this manual is for your reference
only. The actual UEFI BIOS information and settings on board may be slightly
different from this manual.
zThe content of this manual is subject to be changed without notice. We will not be
responsible fo r any mistakes found in this user’s manual and any system damage that
may be c aused by wrong-settings.

TZ68A+ UEFI BIOS Manual
3

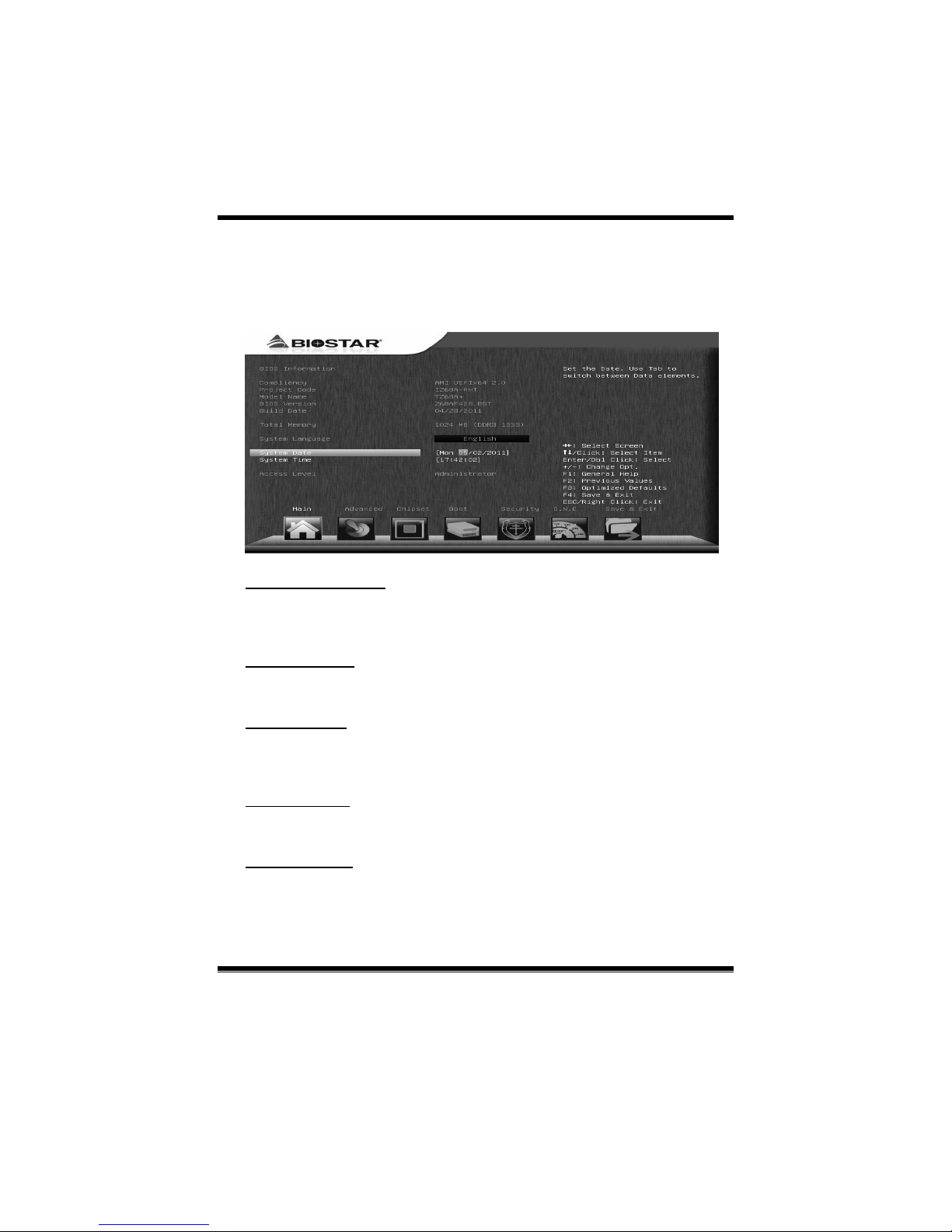

1 Main Menu
Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the
screen providing an overview of the basic system information.
BIOS Information
Shows system information including UEFI BIOS version, model name, marketing
name, built date, etc.
Total Memor y
Shows s ystem memory size, VGA shard memory will be excluded.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set the
date.
System Time
Set the s ystem internal clock.
Access Level
Shows the access level of current user.

TZ68A+ UEFI BIOS Manual
4

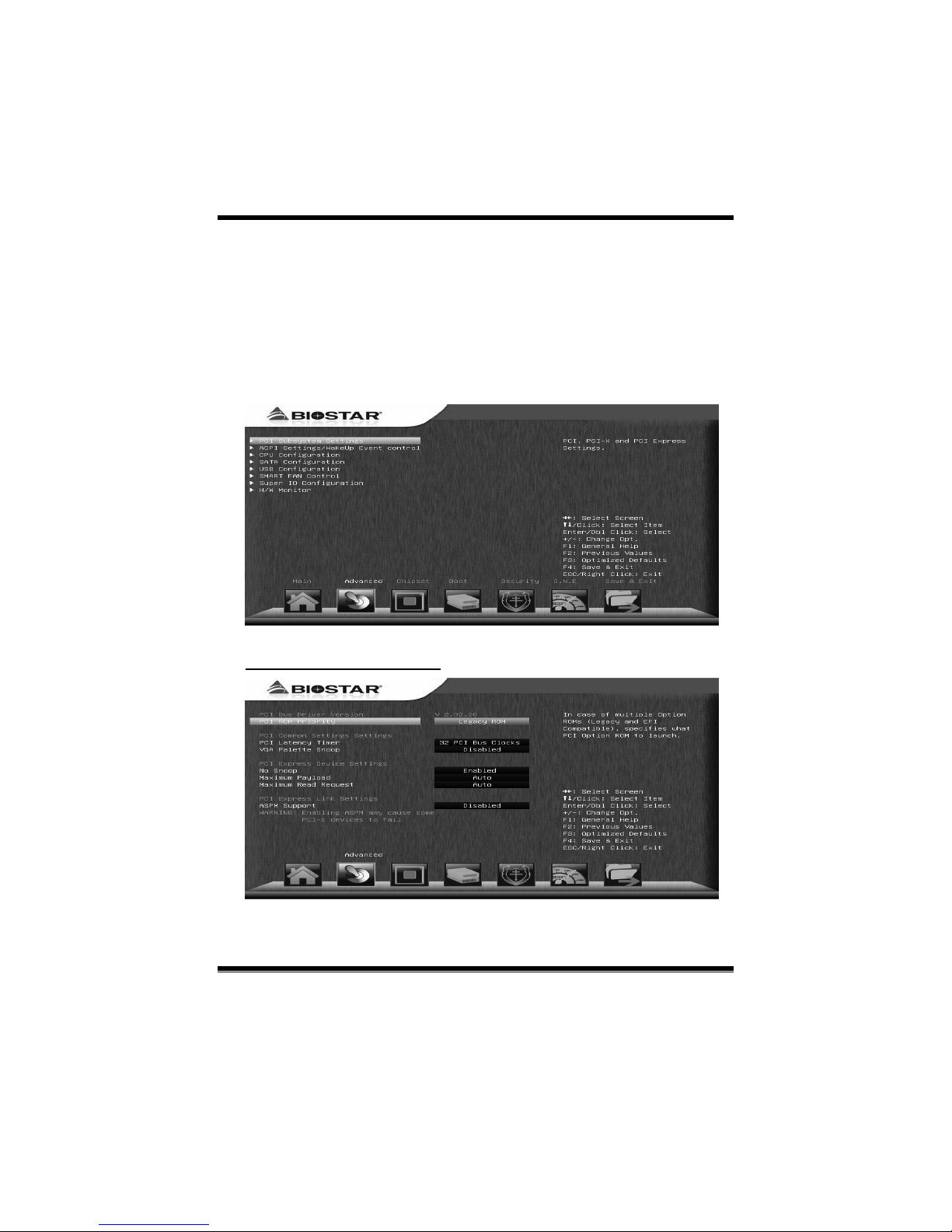

2 Advanced Menu
The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power
Management, and other system devices.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.
PCI Su bs ystem Settings

TZ68A+ UEFI BIOS Manual
5
PCI ROM Priority
In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies
what PCI Option ROM to launch
Options: Legacy ROM (Default) / EFI Compatible ROM
PCI Latency Timer
This item sets the value to be programmed into PCI Latency Timer Register.
Options: 32 PCI Bus Cloc ks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks /
128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224
PCI Bus Clocks / 248 PCI Bus Clocks
VGA Palette Snoop
This item enables or dis ables VGA Palette Registers Snooping.
Options: Disabled (Default) / Enabled
No Snoop
This item enables or disables PCI Express Device No Snoop option.
Optio ns: Enabled (Default) / Disabled
Maximum Payload
This item sets Maximum Payload of PCI Express Device or allows System BIOS to
select the value.
Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048
Bytes / 4096 Bytes
Maximum Read Request
This item sets Maximum Read Request Size of PCI Express Device or allows
System BIOS to select the value.
Options: Disabled (Default) / Enabled
ASPM Support
This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –
BIOS auto co nfigures; Dis abled – Dis ables ASPM.
Options: Disabled (Default) / Auto / Force LO

TZ68A+ UEFI BIOS Manual
6

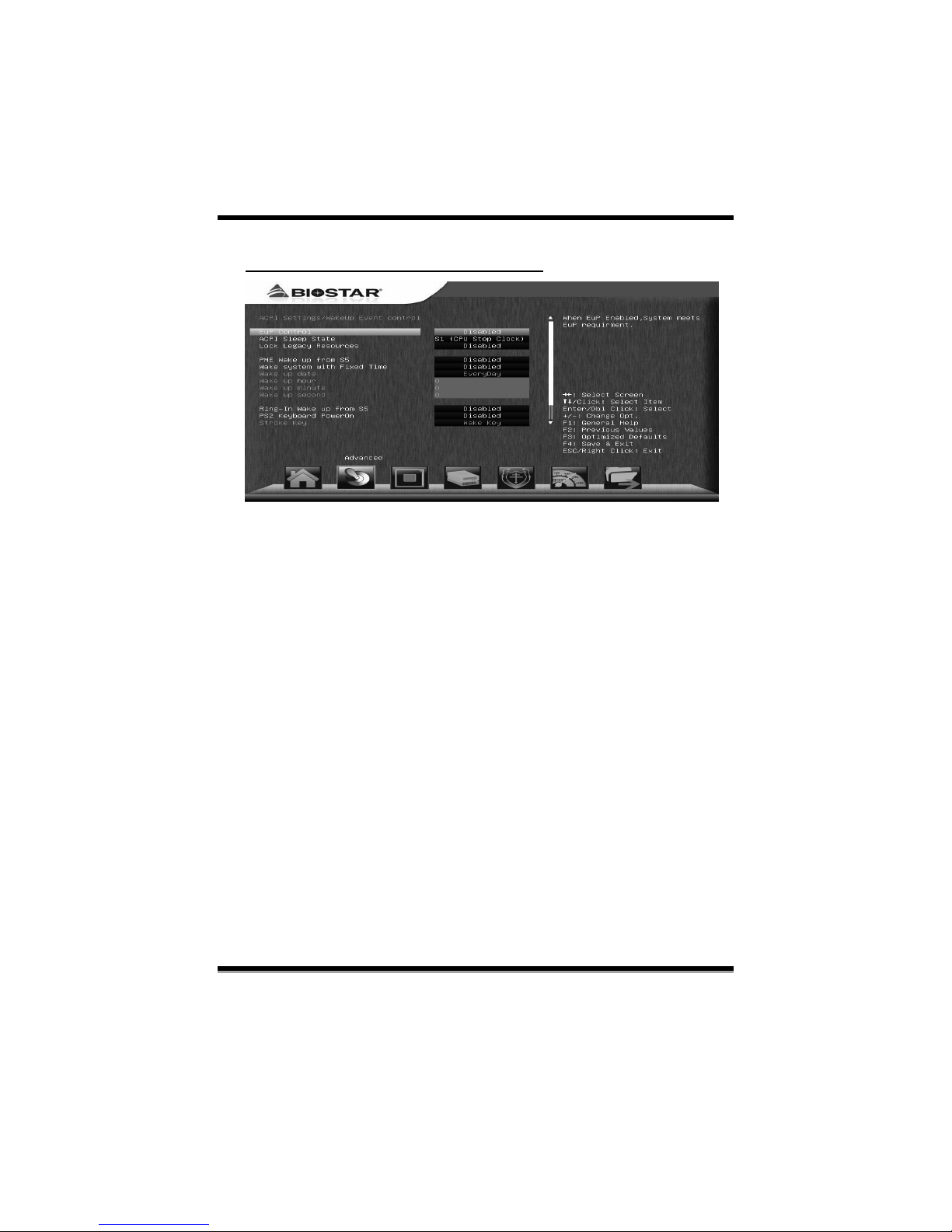

ACPI Settings/WakeUp Event control
EuP Control
When EuP is enabled, the system will meet EuP requirement.
Options: Disabled (Default) / Enabled
ACPI Sleep State
This item selects the highest ACPI sleep state the system will enter when the
SUSPEND button is pressed.
Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to
RAM)
Lock Legacy Resources
The item allows you to lock legacy resources.
Options: Disabled (Default) / Enabled
PME Wake up from S5
The item enables the s ystem to wake fro m S5 using PME event.
Options: Disabled (Default) / Enabled

TZ68A+ UEFI BIOS Manual
7
Wake system with Fixed Time
This item enables or disables the system to wake on by alarm event. W hen this item
is enabled, the system will wake on the hr::min::sec specified.
Options: Disabled (Default) / Enabled
Wake up date
You can choose which date the system will boot up.
Wake up hour / Wake up minute / Wake up second
You can choose the system boot up time, input hour, minute and second to specify.
Ring-In Wake up from S5
This item enables the system to wake from S5 using Ring-In event.
Options: Disabled (Default) / Enabled
PS2 Keyboard PowerOn
This item allows you to control the keyboard power on function.
Options: Disabled (Default) / Any Key / Stroke Key / Specific Key
Stroke Keys Selected
This item will s how only when Keyboard PowerOn is set “Stroke Key.”
Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F 3 /
Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specific Key Enter
This item will show only when Keyboard PowerOn is set “Specific Key.” Press
Enter to set Specific key.
PS2 Mouse PowerOn
This item allows you to control the mouse power on function.
Options: Disabled (Default) / Enabled

TZ68A+ UEFI BIOS Manual
8
USB Device Wakeup from S3/S4
This item allows you to enab le or dis abled the USB resume from S3/S4 function.
Options: Disabled (Default) / Enabled
CPU Configuration
Active Processor Cores
This item sets number of cores to enable in each processor package.
Options: All (Default) / 1 / 2 / 3
Limit CPUID Maximum
When the computer is booted up, the operating system executes the CPUID
instructio n to identify the processor and its c apabilities. Before it can do so, it must
first query the processor to find out the highest input value CPUID recognizes. This
determines the kind of basic information CPUID can provide the operating system.
Options: Disabled (Default) / Enabled
Execute-Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux
9.2, RedHat Enterp rise 3 Update 3.).
Optio ns: Enabled (Default) / Disabled

TZ68A+ UEFI BIOS Manual
9
Hardware Prefetcher
The processor has a hardware prefetcher that automatically analyzes its requirements
and prefetches data and instructio ns from the memory into the Level 2 cache that are
likely to be required in the near future. This reduces the latency associated with
memory reads.
Optio ns: Enabled (Default) / Disabled
Adjacent Cache Line Prefetch
The processor has a hardware adjacent cache line prefetch mechanism that
automatically fetches an extra 64-byte cache line whenever the processor requests for
a 64-byte cac he line. This reduces cache latenc y by making the next cache line
immediately availab le if the processor requires it as well.
Optio ns: Enabled (Default) / Disabled
Intel Virtualization Tech
Virtualization Technology can virtually separate your system reso urce into several
parts, thus enhance the performance when running virtual machines or multi
interface systems.
Options: Disabled (Default) / Enabled
Power Technology
This item enables the power management features.
Options: Energy Efficient (Default) / Disabled / Custom
CPU C3 Report
This item enables/disables CPU C3 (ACPI C2) report to OS.
Options: Disabled (Default) / ACPI C-2 / ACPI C-3
CPU C6 Report
This item enables/disables CPU C6 (ACPI C3) report to OS.
Optio ns: Enabled (Default) / Disabled
Package C State Limit
This item sets Package C S tate Limit.
Options: No Limit (Default) / C0 / C1 / C6 / C7

TZ68A+ UEFI BIOS Manual
10
Local x2APIC
This item enables Local x2APIC. Some OSes do not support this feature.
Options: Disabled (Default) / Enabled
SATA Configuration
SATA Mode
This item sets SATA Mode.
Options: IDE Mode (Default) / AHCI Mode / RAID Mode / Disabled
S.M.A.R.T
Set the Smart Monitoring, Analysis, and Reporting Technology.
Optio ns: Enabled (Default) / Disabled
Serial-ATA Controller 0
This item enables/disables Serial ATA Controller 0.
Options: Compatible (Default) / Disabled / Enhanced
Serial-ATA Controller 1
This item enables/disables Serial ATA Controller 1.
Options: Enhanced (Default) / Disabled

TZ68A+ UEFI BIOS Manual
11
Aggressive Link Power Management
Aggressive Link Power Management Support.
Optio ns: Enabled (Default) / Disabled
Spin Up Device
If this item is enabled for any of po rts, Staggered Spin Up will be performed, and
only the d rives that have this option enabled will sp in up at boo t. Otherwis e, all
drives spin up at boot.
Options: Disabled (Default) / Enabled
Hot Plug
SATAPorts Hot Plug Support.
Optio ns: Enabled (Default) / Disabled

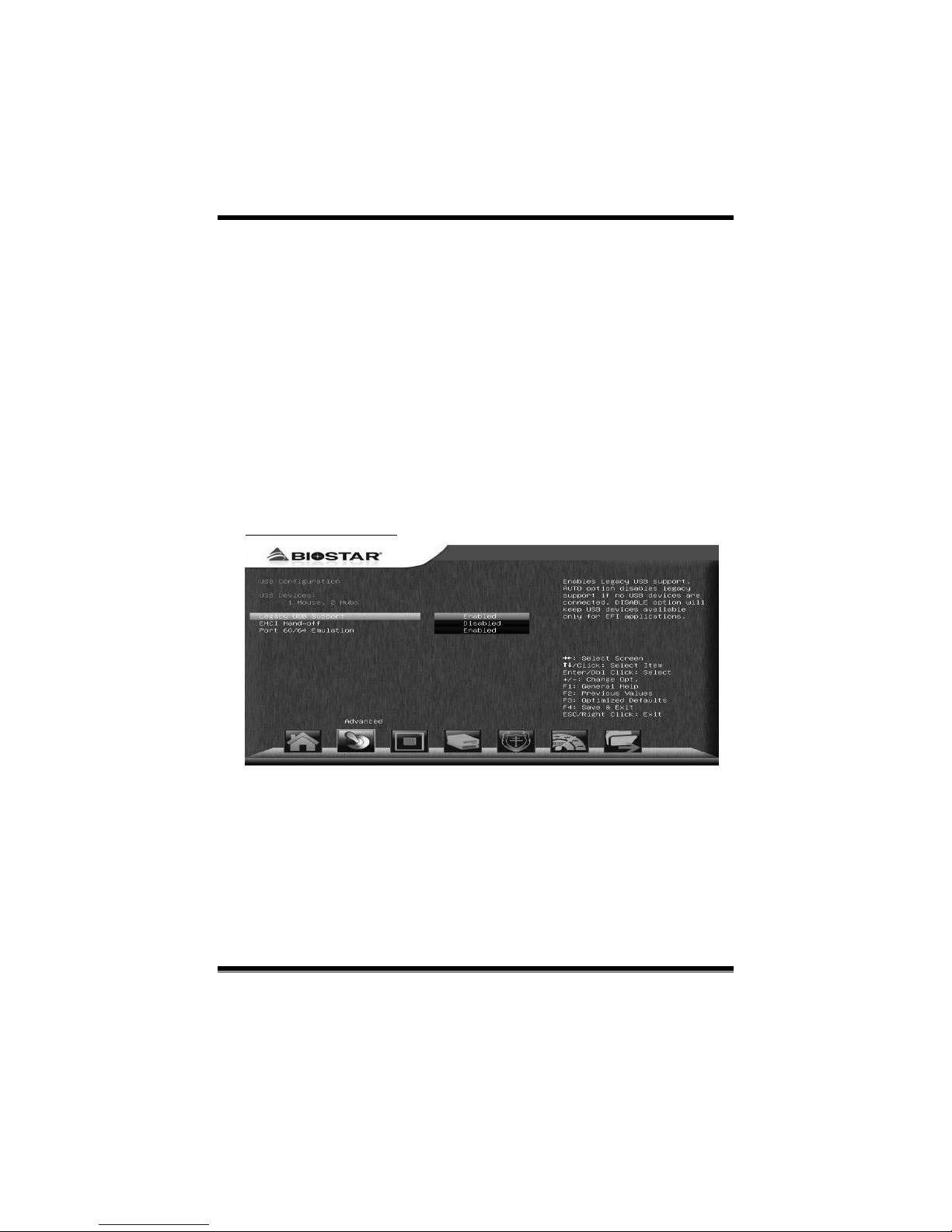

USB Configuration
Legacy USB Support
This item determines if the BIOS should provide legacy support for USB devices
like the keyboard, mouse, and USB drive. This is a useful feature when using such
USB devices with operating systems that do not natively support USB (e.g.
Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled / Auto

TZ68A+ UEFI BIOS Manual
12
EHCI Hand-Off
This is a workaround for OSes without EHCI hand-off support. The EHCI ownership
change should be claimed by EHCI driver.
Options: Disabled (Default) / Enabled
Port 60/64 Emulation
This items enables I/O port 60h/64h emulation support. This should be enabled for
the complete USB keyboard legacy s upport for no n-US B aware OSes.
Optio ns: Enabled (Default) / Disabled
SMART FAN Control
CPU Smart FAN
This item allows you to control the CPU Smart Fan function.
Options: Disabled (Default) / Auto
CPU FAN Calibrate
Press [ENTER] to calibrate CPU FAN.
Control Mode
This item provides several operation modes of the fan.
Options: Quiet / Aggress ive / Manual

TZ68A+ UEFI BIOS Manual
13
Fan Ctrl OFF(℃)
When CPU temperature is lower than this value, the CPU fan will keep lowest RPM.
Options: 10 (℃) (default)
Fan Ctrl On(℃)
When CPU temperature is higher than this value, the CPU fan controller will turn on.
Options: 20 (℃) (Default)
Fan Ctrl Start Value
This item sets CPU FAN Start Speed Value.
Options: 50 (Default)
Fan Ctrl Sensitive
The bigger the numeral is, the higher the FAN speed is.
Options: 30 (Default)

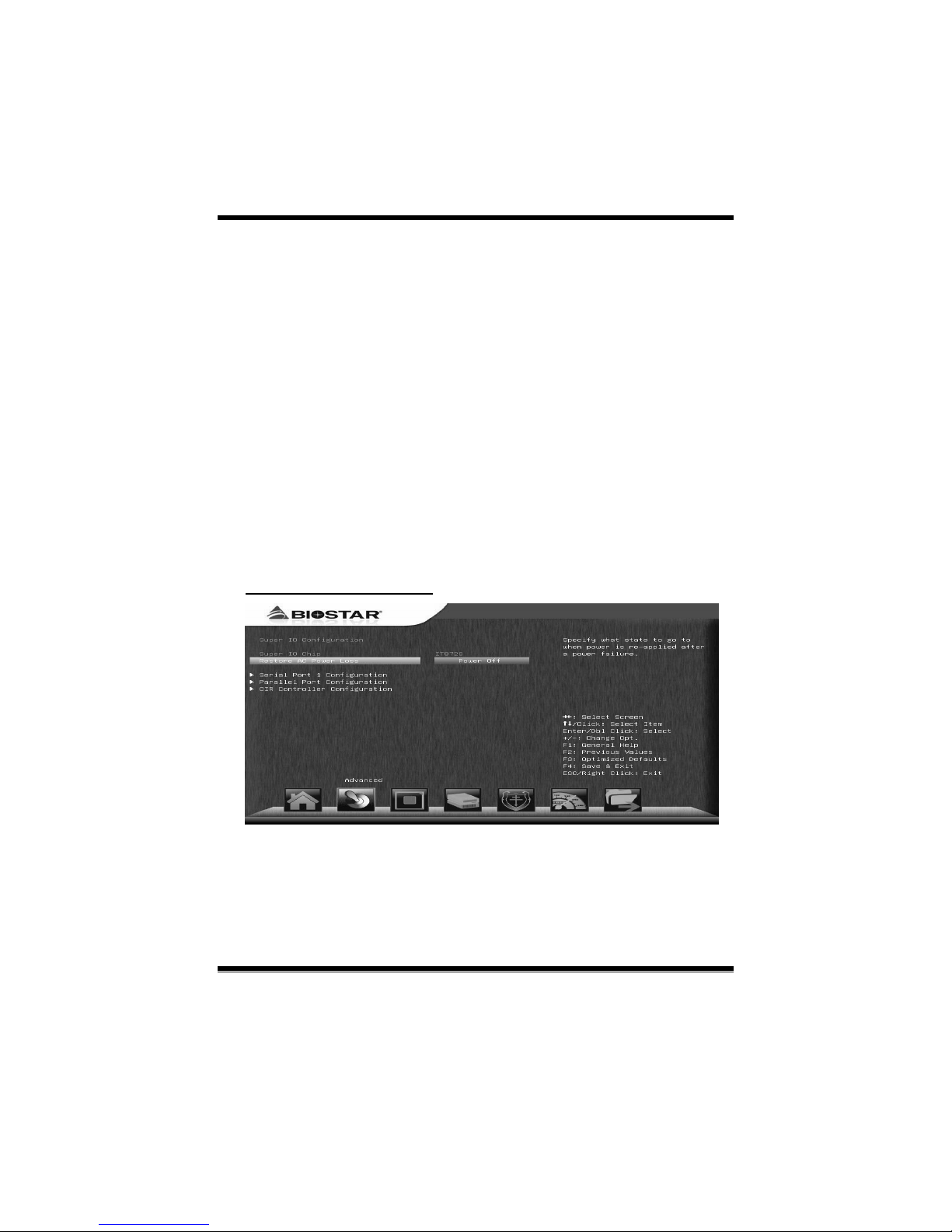

Super IO Configuration

TZ68A+ UEFI BIOS Manual
14
Restore AC Power Loss
This setting specifies how your system should behave after a power fail or interrupts
occurs. Power Off: Leaving the system in power-off status after power recovers.
Power O N: Po wering o n t he s ys tem immed iately when po wer ret ur ns. Las t S tate: 1.
Leaving the system in power-off if the system shuts down at DC off status; 2.
Powering on the system immediately if the system shuts down at DC on status.
Options: Power Off (Default) / Power On / Last State

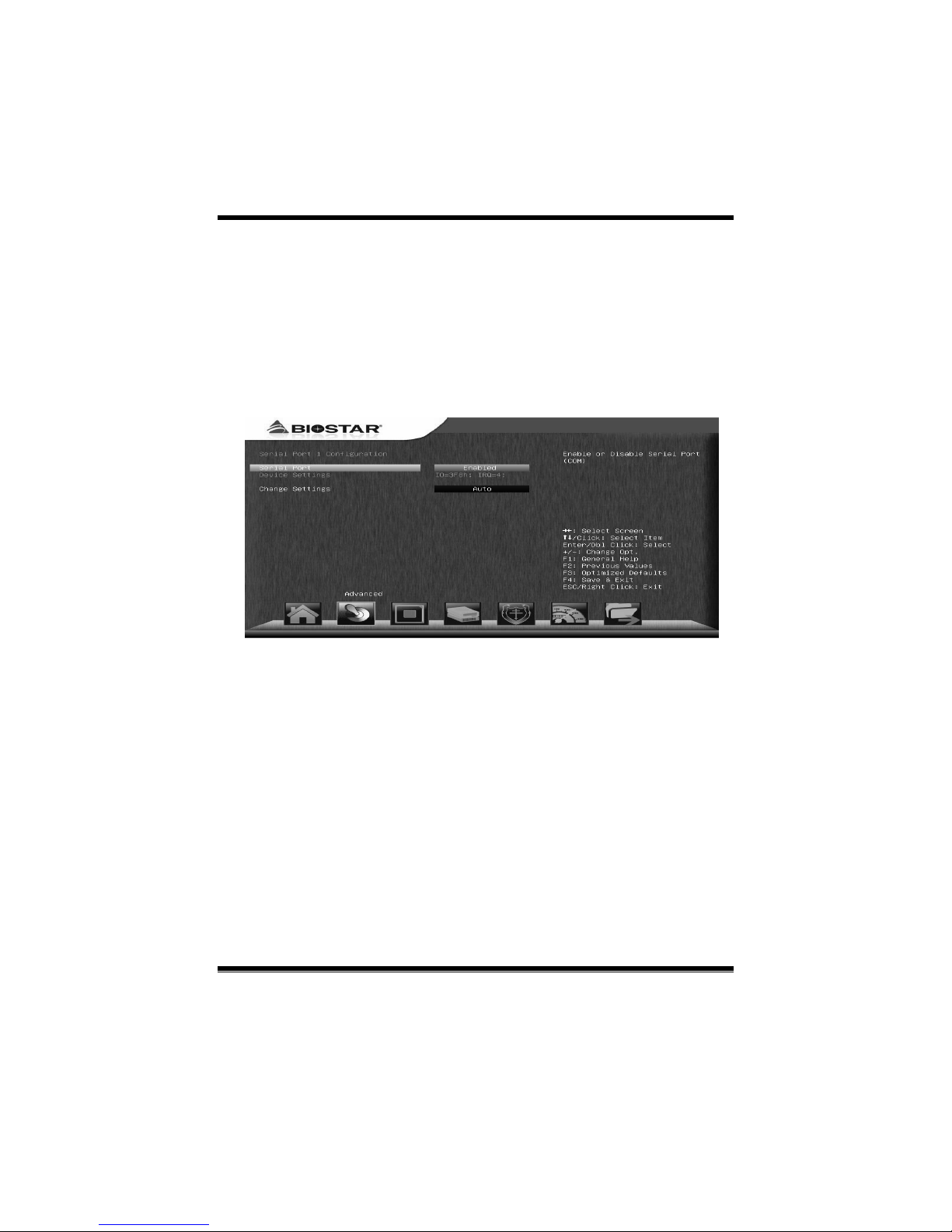

Serial Port 1 Configuration
Serial Port
This item enab les o r disables Serial Port (COM).
Optio ns: Enabled (Default) / Disabled
Change Settings
This item selects an optimal setting for Super IO device.
Optio ns: Auto (Default)

TZ68A+ UEFI BIOS Manual
15

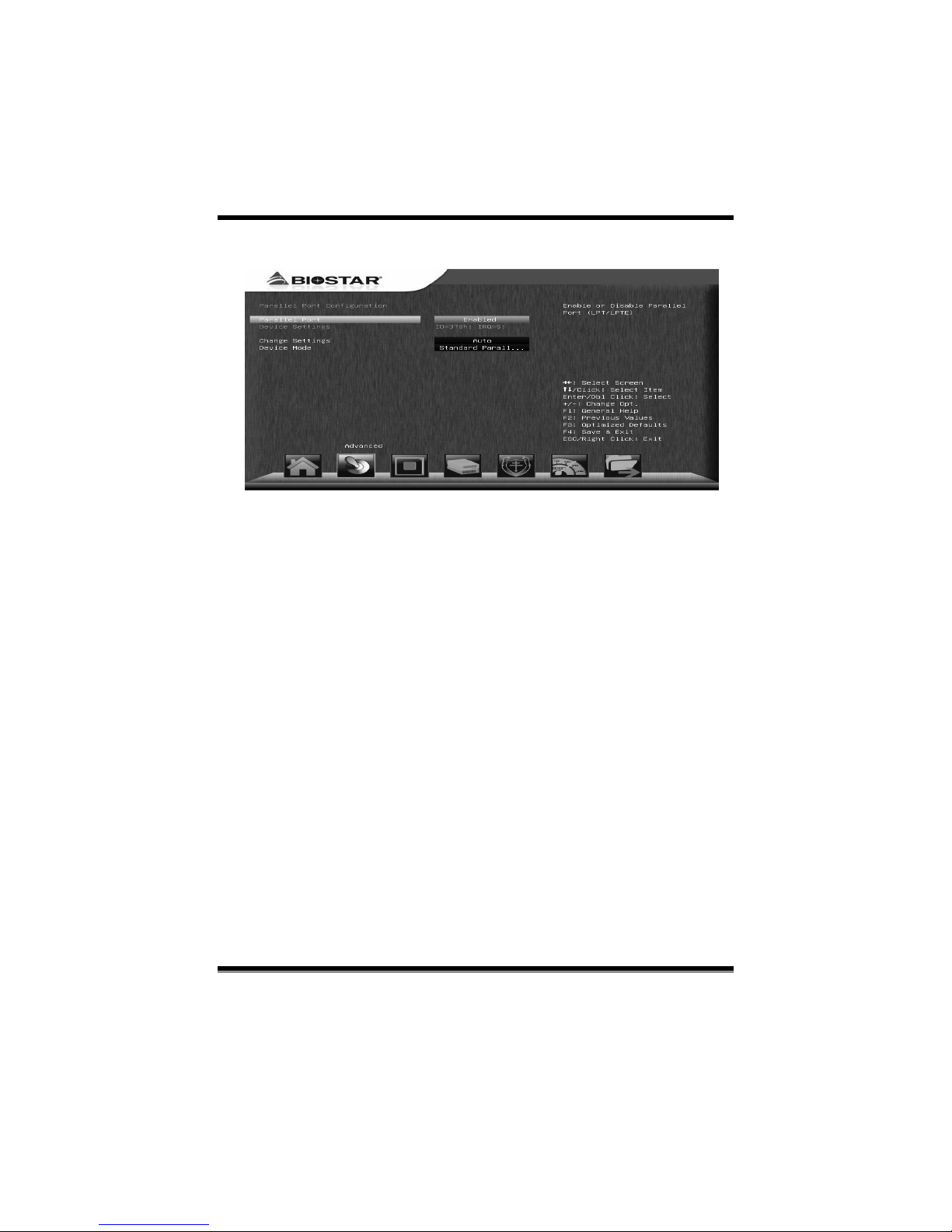

Parallel Port Configuration
Parallel Port
This item enables or disables Parallel Port (LPT/LPTE).
Optio ns: Enabled (Default) / Disabled
Change Settings
This item allows you to select an optimal setting for Super IO device.
Options: Auto (Default) / IO=378h; IRQ=5 / IO=378h; IRQ=5, 6, 7, 9, 10, 11, 12 /
IO=278h; IRQ=5, 6, 7, 9, 10, 11, 12 / IO=3BCh; IRQ=5, 6, 7, 9, 10, 11,
12
Device Mode
This item allows you to determine how the parallel port should function.
Options: Standard Parallel Port Mode (Default) (Using Parallel port as Standard
Printer Port) /
EPP Mode (Using Parallel Port as Enhanced Parallel Port) /
ECP Mode (Using Parallel port as Extended Capabilities Port) /
ECP Mode & EPP Mode (Using Parallel port as ECP & EPP mode)

TZ68A+ UEFI BIOS Manual
16
CIR Controller Configuration
CIR Controller
This item enables or disables CIR Controller.
Options: Disabled (Default) / Enabled
Change Settings
This item selects an optimal setting for Super IO device.
Optio ns: Auto (Default)
H/W Monitor

TZ68A+ UEFI BIOS Manual
17
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature.
Options: Disabled (Default) / 70 /158 / 75 /167 / 80 /176 / 85 /185℃℉℃℉℃℉℃℉
/ 90 /194℃℉

TZ68A+ UEFI BIOS Manual
18
3 Chipset Menu
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devic es to operate at speeds nearing the
speed of the CPU itself uses when communicating with its own special components.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.

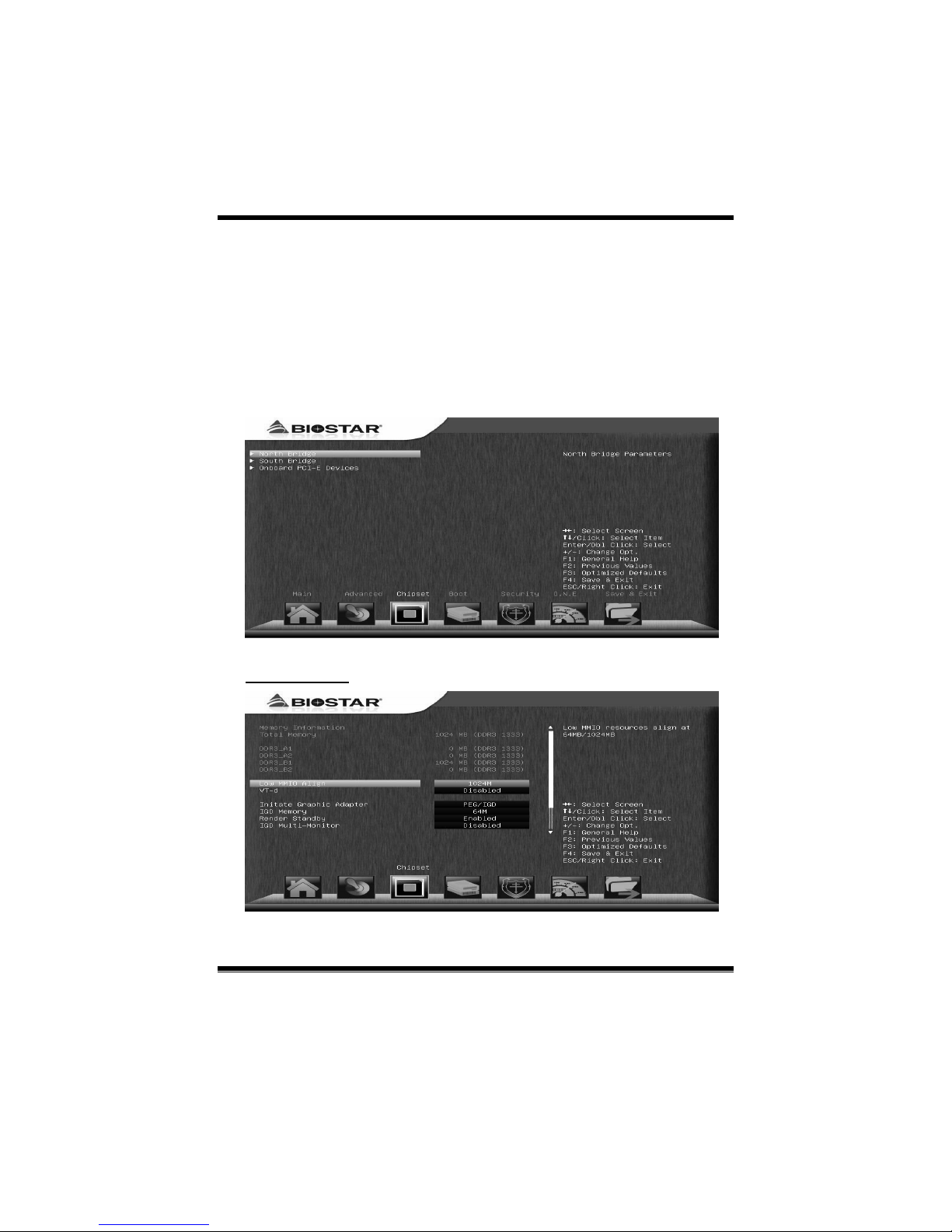

North Bridge

TZ68A+ UEFI BIOS Manual
19
Low MMIO Align
Low MMIO resources align at 64MB/1024MB.
Options: 1024M (Default) / 64M
VT-d
This item enables/d isables VT-d function.
Options: Disabled (Default) / Enabled
Initiate Graphic Adapter
This item allows you to select which graphics controller to use as the primary boot
device.
Optio ns : PEG/PCI (Default) / IGD / PCI/IGD / PCI/PEG / PEG/IGD
IGD Memory
This item sets IGD Share Memory Size.
Options: 64M (Default) / Dis abled / 32M / 128M
Render Standby
This item enables/disables Render Standby by Internal Graphics Device.
Optio ns: Enabled (Default) / Disabled
IGD Multi-Monitor
This item enables/disables IGD Multi-Monitor by Internal Graphics Device.
Options: Disabled (Default) / Enabled
DVMT Mode Select
This item selects DVMT Mode used by Internal Graphics Device.
Options: DVMT Mode (Default) / Fixed Mode
