ECS G43T-M3 User manual

Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any
particular purpose. The manufacturer reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
TrademarkRecognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective
owners and are acknowledged.
FederalCommunicationsCommission(FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing
this device. Changes or modifications not expressly approved by the system’s manu-
facturer could void the user’s authority to operate the equipment.

ii
Preface
DeclarationofConformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interfer-
ence that may cause undesired operation
CanadianDepartmentofCommunications
This class B digital apparatus meets all requirements of the Canadian Interference-
causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur
le matériel brouilieur du Canada.
AbouttheManual
The manual consists of the following:
Chapter 1
Introducing the Motherboard
Chapter 2
Installing the Motherboard
Chapter 3
UsingBIOS
Chapter 4
Using the Motherboard Software
Describes features of the
motherboard.
Go to Hpage 1
Describes installation of
motherboard components.
Goto Hpage 7
Provides information on us-
ing the BIOS Setup Utility.
Go to Hpage 25
Describes the motherboard
software.
Go to Hpage 41

iii
TT
TT
TABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTS
Preface i
Chapter 1 1
IntroducingtheMotherboard 1
Introduction......................................................................................1
Feature...............................................................................................2
MotherboardComponents.............................................................4
Chapter 3 25
UsingBIOS 25
Aboutthe SetupUtility................................................................25
The Standard Configuration..............................................25
Entering the Setup Utility...................................................25
UsingBIOS.....................................................................................26
Standard CMOS Setup......................................................27
Advanced Setup.................................................................29
Advanced Chipset Setup....................................................30
Chapter 2 77
77
7
Installing the Motherboard 7
SafetyPrecautions...........................................................................7
Choosinga ComputerCase............................................................7
Installing the Motherboard in a Case...........................................7
Checking JumperSettings..............................................................8
Setting Jumpers...................................................................8
Checking Jumper Settings...................................................9
Jumper Settings...................................................................9
InstallingHardware.......................................................................10
Installing the Processor.....................................................10
Installing Memory Modules...............................................12
Expansion Slots.................................................................15
Connecting Optional Devices............................................17
InstallingSATAHardDrive..................................................20
Connecting I/ODevices...............................................................21
ConnectingCase Components....................................................22
Front Panel Header...........................................................24

iv
Integrated Peripherals.......................................................31
Power Management Setup.................................................33
PCI/PnP Setup...................................................................34
PC Health Status...............................................................35
Frequency/Voltage Control................................................37
Load Default Settings........................................................38
Supervisor Password........................................................38
User Password..................................................................39
Save & Exit Setup..............................................................39
Exit Without Saving............................................................39
Updating the BIOS.............................................................40
Chapter 4 4141
4141
41
UsingtheMotherboardSoftware 41
Aboutthe SoftwareCD-ROM......................................................41
Auto-installingunderWindows XP/Vista..................................41
Running Setup....................................................................42
ManualInstallation........................................................................46
UtilitySoftware Reference............................................................46

1
IntroducingtheMotherboard
Chapter1
IntroducingtheMotherboard
Introduction
Thank you for choosing the G43T-M3 motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA775 socket
for latest Intel®45nm Multi-Core processors/CoreTM 2 Quad/CoreTM 2 Duo/Pentium®
Dual Core/Celeron®Dual Core/Celeron®400 series processors for high-end business
or personal desktop markets.
The motherboard incorporates the Intel®G43 Northbridge (NB) and Intel®ICH10
Southbridge (SB) chipsets. The Northbridge supports a Front Side Bus (FSB) fre-
quency of 1333/1066/800 MHz using a scalable FSB Vcc_CPU. The memory con-
troller supports DDR2 memory DIMM frequencies of 800/667 MHz. It supports two
DDR2 sockets with up to maximum memory of 8 GB. DDR2 Maximum memory
bandwidth of 12.8 GB/s in dual-channel symmetric mode assuming DDR2 800 MHz.
High resolution graphics via one PCI Express slot, intended for Graphics Interface,
is fully compliant to the PCI Express Base Specification revision 2.0.
The Intel®ICH10 Southbridge supports one PCI slot which is PCI 2.3 compliant. In
addition, two PCI Express x1 slots are supported. It implements an EHCI compliant
interface that provides 480 Mb/s bandwidth for 12 USB 2.0 ports (8 USB ports and
2USB 2.0 headers support additional 4 USB ports). The Southbridge integrates a
Serial ATA host controller, supporting six SATA ports with maximum transfer rate up
to 3.0 Gb/s each.
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including PS/2 keyboard connector, COM, one DVI port (optional), one VGA port,
eight USB ports, one LAN port and audio jacks for microphone, line-in and line-out.

2
IntroducingtheMotherboard
Feature
• Accommodates Intel®45nm Multi-Core processors/CoreTM 2 Quad/
CoreTM 2 Duo/Pentium®Dual Core/Celeron®Dual Core/Celeron®400
series processors
• Supports a system bus (FSB) of 1333/1066/800 MHz
• Supports “Hyper-Threading” technology CPU
The motherboard uses an LGA775 type of Intel®45nm Multi-Core processors/
CoreTM 2 Quad/CoreTM 2 Duo/Pentium®Dual Core/Celeron®Dual Core/Celeron®
400 series processors that carries the following features:
Processor
“Hyper-Threading” technology enables the operating system into thinking it’s
hooked up to two processors, allowing two threads to be run in parallel, both on
separate “logical” processors within the same physical processor.
Chipset
The Intel®G43 Northbridge (NB) and Intel®ICH10 Southbridge (SB) chipsets
are based on an innovative and scalable architecture with proven reliability and
performance.
G43
(NB) • Supports 36-bit host bus addressing, allowing the CPU to
access the entire 64 GB of the memory address space
• Chip-to-chip connection interface to Intel ICH10
• 2 GB/s point-to-point Direct Media Interface (DMI) to ICH10
(1 GB/s each direction)
• Supports 512-Mb 1-Gb and 2-Gb DDR2 DRAM technolo-
gies for x8 and x16 devices
• One 16-lane (x16) PCI Express port intended for support-
ing up to two external PCI Express graphics card in bifur-
catedmode,fullycompatibletothePCIExpressBaseSpeci-
fication revision 2.0
• An integrated graphics device (IGD) delivering cost com-
petitive 3D, 2D and video capabilities
ICH10
(SB) • Enhanced DMA Controller, Timer/Counter functions, and
Interrupt Controller
• Compliant with PCI Express Base Specification Revision
1.1
• Compliant with PCI 2.3 specification
• Integrated SATA 3.0 Gb/s Host Controller
• Integrated USB 2.0 Host Controller
•Integrated Gigabit LAN Controller
Memory
• Supports DDR2 800/667 DDR2 SDRAM with Dual-channel architec-
ture
• Accommodates two unbuffered DIMMs
• Up to 4 GB per DIMM with maximum memory size up to 8 GB

3
IntroducingtheMotherboard
Audio
The onboard Audio provides the following features:
The motherboard comes with the following expansion options:
• One PCI Express x 16 slot for Graphic Interface
• Two PCI Express x1 Slots
• One 32-bit PCI v2.3 compliant slot
• Six 7-pin SATA connectors
Expansion Options
This motherboard supports Ultra DMA bus mastering with transfer rates of 133/
100/66/33 Mb/s.
• 5.1 Channel High DefinitionAudio Codec
• ADCs support 44.1k/48k/96kHz sample rate
• Meets Microsoft WLP 3.08 Vista premium and mobile PCs audio
requirements
• Direct Sound 3DTM compatible
Onboard LAN
The onboard LAN provides the following features:
• Integrated PHY for 10/100/1000 Mbps
• IEEE 802.3x compliant flow control support
• Three power supplies: 2.5V, 1.8V and 1.2V
• PCI Express base 1.1 compliant
Integrated I/O
• Power management
• Wake-up alarms
• CPUparameters
• CPUandmemorytiming
• Memory Voltage
BIOS Firmware
This motherboard uses AMI BIOS that enables users to configure many system
features including the following:
• One serial port
• One VGA port
• One DVI port (optional)
• Eight USB ports
• One LAN port
• Audio jacks for microphone, line-in and line-out
The motherboard has a full set of I/O ports and connectors:
• One PS/2 port for keyboard
The firmware can also be used to set parameters for different processor clock
speeds.
1. Some hardware specifications and software items are subject to change
without prior notice.
2. Due to chipset limitation, we recommend that motherboard be oper-
ated in the ambiance between 0 and 50 °C.

4
IntroducingtheMotherboard
MotherboardComponents

5
IntroducingtheMotherboard

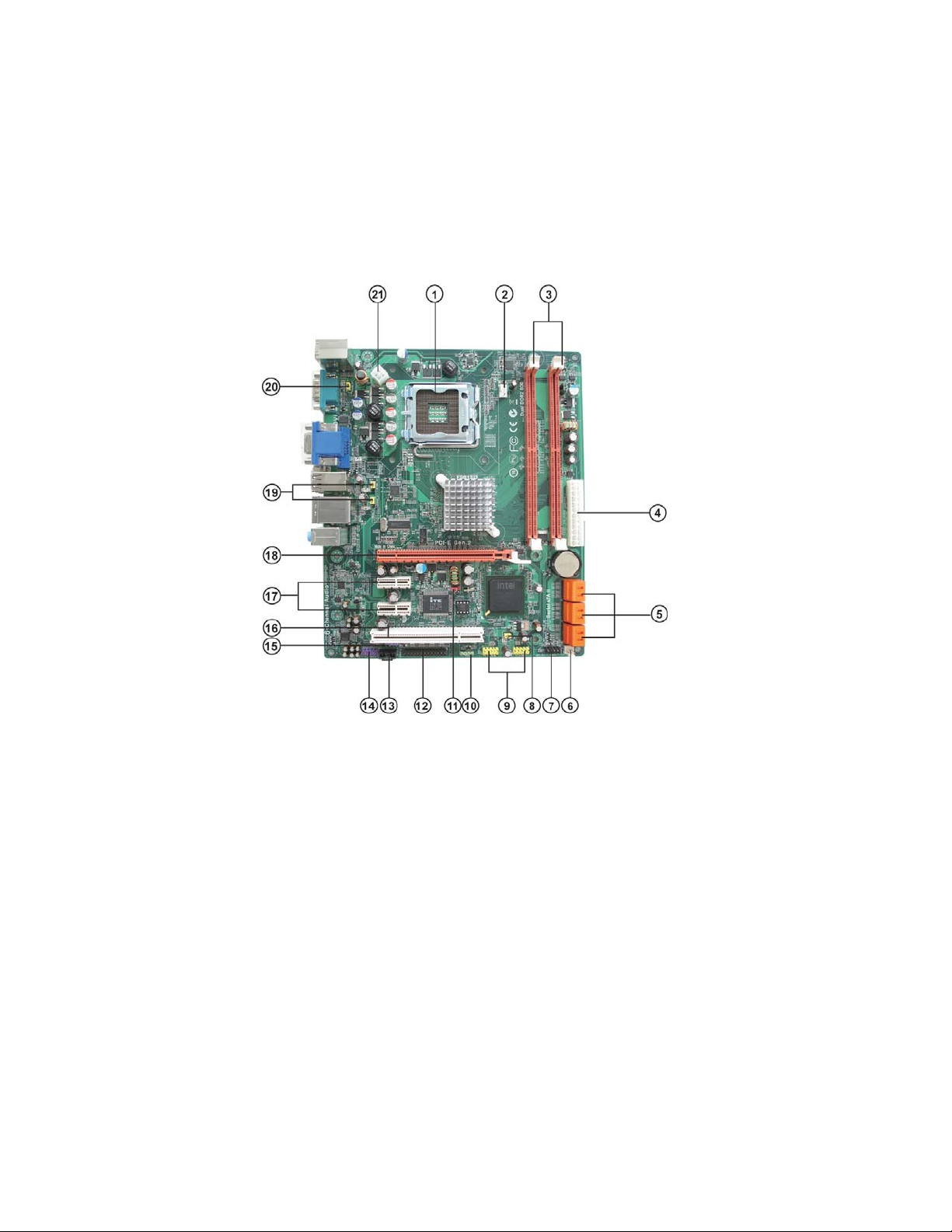

Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
LGA775 socket for Intel®45nm Multi-Core processors/
CoreTM 2 Quad/CoreTM 2 Duo/Pentium®Dual Core/
Celero
n
®
Dual Core/Celero
n
®
400 series CPUs processors
2. CPU_FAN CPU cooling fan connector
3. DDR2_1~2 240-pin DDR2 SDRAM slots
4. ATX_POWER Standard 24-pin ATX power connector
5. SATA1~6 Serial ATA connectors
6. SYS_FAN System cooling fan connector
7. F_PANEL Front panel switch/LED header
8. USBPWR_F Front panel USB Power Select jumpers
9. F_USB1~2 Front panel USB headers
10. SPK Internal Speaker header
11. CLR_CMOS Clear CMOS jumper
12. LPT Onboard parallel port header
13. CD_IN Analog audio input connector
14. F_AUDIO Front panel audio header
15. SPDIFO SPDIF out header
16. PCI1 32-bit add-on card slot
17. PCIE1~2 PCI Express x1 slots
18. PCIEX16 PCI Express x16 graphics card slot
19. USBPWR_R1~2 Rear USB/PS2 Power Select jumpers
20. USBPWR_R3 Rear USB/PS2 Power Select jumper
21. ATX12V 4-pin +12V power connector
1. CPU Socket

6
IntroducingtheMotherboard
Memo

7
InstallingtheMotherboard
Chapter2
InstallingtheMotherboard
SafetyPrecautions
• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid dam-
age from static electricity
• Discharge static electricity by touching the metal case of a safely
grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards
ChoosingaComputer Case
There are many types of computer cases on the market. The motherboard complies
with the specifications for the Micro ATX system case. Some features on the
motherboard are implemented by cabling connectors on the motherboard to indica-
tors and switches on the system case. Make sure that your case supports all the
features required. Make sure that your case has sufficient power and space for all
drives that you intend to install.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O
template in the case matches the I/O ports installed on the rear edge of the
motherboard.
This motherboard carries a Micro ATX form factor of 244 x 204 mm. Choose a case
that accommodates this form factor.
Installingthe Motherboard ina Case
Refer to the following illustration and instructions for installing the motherboard in
a case.
Most system cases have mounting brackets installed in the case, which correspond
the holes in the motherboard. Place the motherboard over the mounting brackets
and secure the motherboard onto the mounting brackets with screws.
Ensure that your case has an I/O template that supports the I/O ports and expansion
slots on your motherboard.

8
InstallingtheMotherboard
CheckingJumperSettings
This section explains how to set jumpers for correct configuration of the motherboard.
SettingJumpers
Use the motherboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the jumper
caps are placed on the correct pins.
The illustrations show a 2-pin jumper. When
the jumper cap is placed on both pins, the
jumper is SHORT. If you remove the jumper
cap, or place the jumper cap on just one pin,
the jumper is OPEN.
This illustration shows a 3-pin jumper. Pins
1 and 2 are SHORT.
SHORT OPEN
Do not over-tighten the screws as this can stress the motherboard.

9
InstallingtheMotherboard
Checking Jumper Settings
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
JumperSettings
Jumper Type Description Setting (default)
CLR_CMOS 3-pin CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.
3-pin
USBPWR_R1/2
1-2: VCC
2-3: 5VSB
Rear USB/PS2
Power Select
Jumper
3-pin
USBPWR_F
1-2: VCC
2-3: 5VSB
Front Panel
USB Power
Select Jumper
USBPWR_R1/2
CLR_CMOS
1
USBPWR_F
1
USBPWR_R3 Rear USB/PS2
Power Select
Jumper
3-pin 1-2: VCC
2-3: 5VSB
USBPWR_R3
1
1
To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save & Exit Setup”.
1.
2. Make sure the power supply provides enough 5VSB voltage before se-
lecting the 5VSB function.
3. It is required that users place the USBPWR_F & USBPWR_R1~3 cap
onto 2-3 pin rather than 1-2 pin as default if you want to wake up the
computer by USB/PS2 KB/Mouse.

10
InstallingtheMotherboard
InstallingHardware
Installing the Processor
Caution: When installing a CPU heatsink and cooling fan make sure
that you DO NOT scratch the motherboard or any of the surface-
mount resistors with the clip of the cooling fan. If the clip of the
cooling fan scrapes across the motherboard, you may cause serious
damage to the motherboard or its components.
On most motherboards, there are small surface-mount resistors near
the processor socket, which may be damaged if the cooling fan is
carelessly installed.
Avoid using cooling fans with sharp edges on the fan casing and the
clips. Also, install the cooling fan in a well-lit work area so that you
can clearly see the motherboard and processor socket.
Before installing the Processor
This motherboard automatically determines the CPU clock frequency and system
bus frequency for the processor. You may be able to change the settings in the system
Setup Utility. We strongly recommend that you do not over-clock processors or
other components to run faster than their rated speed.
This motherboard has an LGA775 socket. When choosing a processor, consider the
performance requirements of the system. Performance is based on the processor
design, the clock speed and system bus frequency of the processor, and the quantity
of internal cache memory and external cache memory.
Warning:
1. Over-clocking components can adversely affect the reliability of
the system and introduce errors into your system. Over-clocking can
permanently damage the motherboard by generating excess heat in
components that are run beyond the rated limits.
2. Always remove the AC power by unplugging the power cord from
the power outlet before installing or removing the motherboard or
other hardware components.

11
InstallingtheMotherboard
A. Read and follow the instructions shown on the
sticker on the CPU cap.
B. Unload the cap
· Use thumb & forefinger to hold the
lifting tab of the cap.
· Lift the cap up and remove the cap
completely from the socket.
C. Open the load plate
· Use thumb & forefinger to hold the
hook of the lever, pushing down and pulling
aside unlock it.
· Lift up the lever.
· Use thumb to open the load plate. Be
careful not to touch the contacts.
D. Install the CPU on the socket
· Orientate CPU package to the socket.
Make sure you match triangle marker
to pin 1 location.
E. Close the load plate
· Slightly push down the load plate onto the
tongue side, and hook the lever.
· CPU is locked completely.
F. Apply thermal grease on top of the CPU.
G. Fasten the cooling fan supporting base onto
the CPU socket on the motherboard.
H. Make sure the CPU fan is plugged to the
CPU fan connector. Please refer to the CPU
cooling fan user’s manual for more detail
installation procedure.
CPU Installation Procedure
The following illustration shows CPU installation components.
1.
2. DO NOT remove the CPU cap from the socket before installing a CPU.
3. Return Material Authorization (RMA) requests will be accepted only if
the motherboard comes with the cap on the LGA775 socket.
To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 3800 rpm at least. CPU fan and heatsink
installation procedures may vary with the type of CPU fan/heatsink
supplied. The form and size of fan/heatsink may also vary.

12
InstallingtheMotherboard
Installing Memory Modules
This motherboard accommodates two memory modules. It can support two 240-pin
DDR2 800/667. The total memory capacity is 8 GB.
You must install at least one module in any of the two slots. Each module can be
installed with 4 GB of memory; total memory capacity is 8 GB.
Do not remove any memory module from its antistatic packaging
until you are ready to install it on the motherboard. Handle the
modules only by their edges. Do not touch the components or metal
parts. Always wear a grounding strap when you handle the modules.

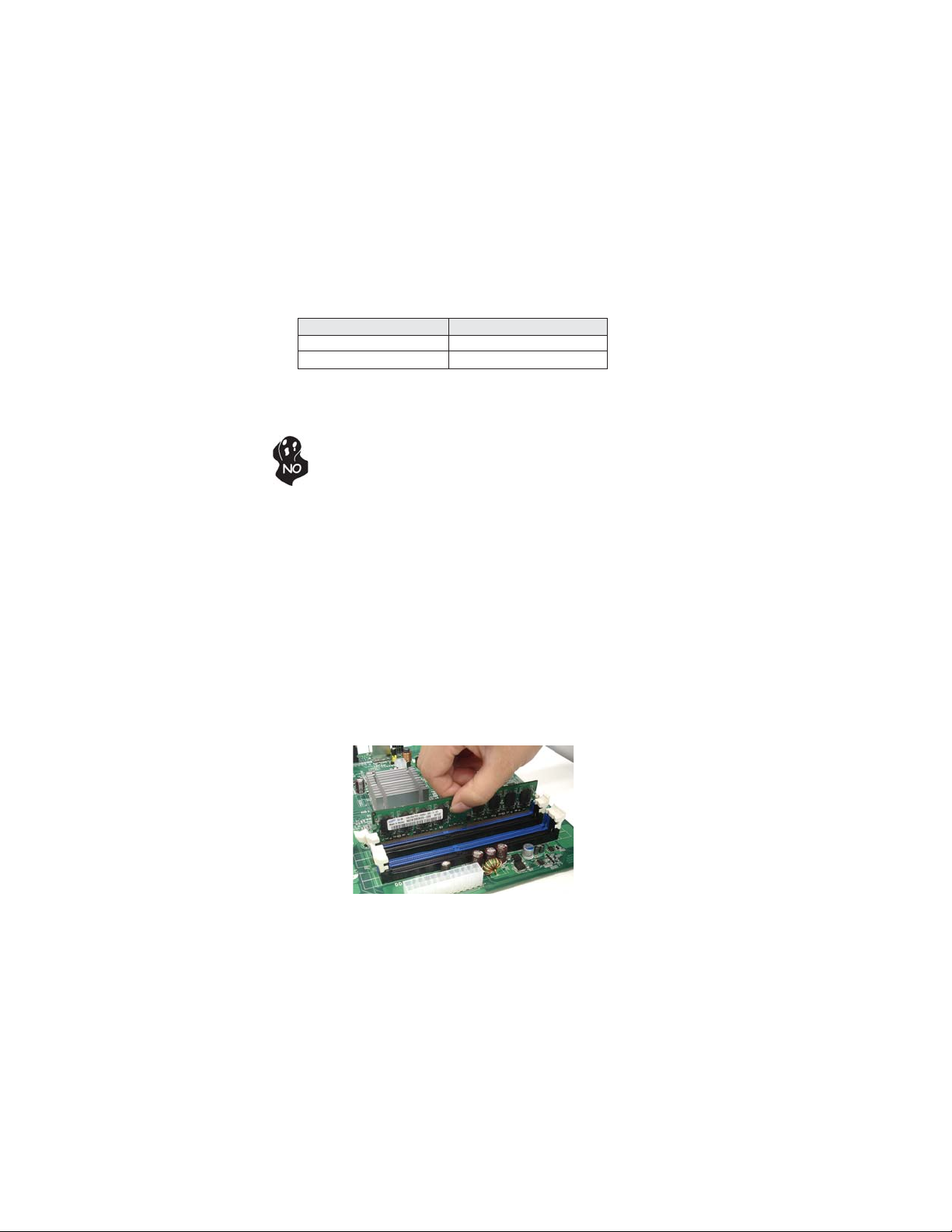

Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR2 SDRAM .
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Installany remaining DIMM modules.
DDR2 SDRAM memory module table
DDR2 667 333 MHz
DDR2 800 400 MHz
Memory module Memory Bus

13
InstallingtheMotherboard
Table A: DDR2 (memory module) QVL (Qualified Vendor List)
The following DDR2 800/667 memory modules and combination have been tested
and qualified for use with this motherboard.
Apacer 78.91G92.9K5
Micron MT4HTF6464AY-667E1
PSC AL6E8E63J-6E1
Ramxel RML1520M38D6F-667
Samsung PC2-5300U-555-12-D3
AU01GE667C5KBGC
78.01G9O.9K5
1GB UNB PC2-5300 CL5
Corsair VS1GB667D2
Hexon HYNT7AUDR-30M48
Kingston KVR667D2N5
Micron MT8HTF12864AY-667E1
AL7E8E63B-6E1T
AL7E8F63J-6E1
AL7E8F73C-6E1
Samsung GOLD BAR M378T2863DZS 0742
Apacer 78.A1G9O.9K4
Aeneon AET860UD00-30DB08X
Hynix HYMP125U64AP8-Y5 AB-A 0623
Hexon HYNT8AUDR-30M88
Kingston KVR667D2N5/2G
LeadMax PC2-5300U
PSC AL8E8F73C-6E1
Qimonda HYS64T256020EU-3S-C2
4 GB Aeneon AET960UD00-30D
Type
1 GB
Size
512 MB
Apacer
DDR2 667 PSC
2 GB
Module NameVendor

14
InstallingtheMotherboard
Kingston KVR800D2N5
Micron MT8HTF6464AY-80ED4
Qimonda HYS72T64000HU-2.5-B
A-DATA M2GVD6G3I41P0U1E5E
APOGEE AU1G082-800P000
AET760UD00-30DB97X
AET760UD00-25DC08X
78.01GAO.9K5
AU01GE800C5KBGC
GEIL Millenary/Geil/GL2L64M088BA18H/1GB/DS
GEIL PlatinumEdition/Geil/BOXED/1GB/DS
Hexon ELPT7AUDR-25M48
Infinity 04701G16CZ5U2G
KHX6400D2ULK2/2G
KVR800D2N5/1G 1.8V 9905316-054.A01LF
PSC AL7E8F73C-8E1
Ramaxel RML1320EH38D7F-800
Samsung GOLDBAR M378T2953EZ3-CE7 0726
Silicon Power SP001GBLRU800S01
Transcend 507301-1571
A-DATA RED A-DATA M2OMI6H3J4720L1C5Z
Aeneon AET860UD00-25DC08X
Apacer 78.A1GAO.9K4
CORSAIR CM2X2048-6400C5
Hexon ELPT8AUDR-25M88
Kingston KVR800D2N5
Micron MT16HTF25664AY-800E1
PSC AL8E8F73C-8E1
Qimonda HYS64T256020EU-25F-C2
Samsung M378T5663QZ3-CF7
Silicon Power SP002GBLRU800S01
4 GB Aeneon AET960UD00-25D
2 GB
Type Size
DDR2 800
1 GB
512 MB
Kingston
Module Name
Geil
Apacer
Aeneon
Vendor
