INTRODUCTION
MI970 User’s Manual 1
Introduction
Product Description
The MI970VF Mini ITX motherboard is based on the latest Intel®QM77
chipset. The platform supports 3rd generation Intel®Core processor
family with rPGA988B packing and feature an integrated dual-channel
DDR3 memory controller as well as a graphics core.
The latest Intel®processors provide advanced performance in both
computing and graphics quality. This meets the requirement of
customers in the gaming, POS, digital signage and server market
segment.
The QM77 platform is made with 22-nanometer technology that
supports Intel’s first processor architecture to unite the CPU and the
graphics core on the transistor level. The MI970VF Mini ITX board
utilizes the dramatic increase in performance provided this Intel’s latest
cutting-edge technology. Measuring 170mm x 170mm, the MI970F
offers fast 6Gbps SATA support (2 ports), USB3.0 (4 ports) and
interfaces for DVI-D, DVI-I, LVDS and DisplayPort displays. MI970VF
features Intel Active Management Technology 8.0.
MI970F FEATURES:
 Supports Intel®3rd Generation Core i7/i5/i3 QC/DC mobile
processors
 Two DDR3 SoDIMM, 1066/1333/1600MHz, Max. 16GB
memory
 Dual Intel®PCI-Express Gigabit LAN
 Integrated Graphics for DVI-I, DVI-D/DisplayPort/LVDS
displays
 4x SATA 2.0, 2x SATA 3.0, 8x USB 2.0, USB 3.0 (4 ports),
4x COM, Watchdog timer
 1x PCI-E (x16), 2x Mini PCI-E
 Optional AMT (MI970AF only)

INTRODUCTION
2 MI970 User’s Manual
Checklist
Your MI970 package should include the items listed below.
 The MI970 Mini-ITX motherboard
 This User’s Manual
 1 CD containing chipset drivers and flash memory utility
 Serial ATA cable

INTRODUCTION
MI970 User’s Manual 3
MI970 Specifications
Product Name MI970F [Supports ErP]
MI970VF [Supports iAMT 8.0, TPM & vPro]
Form Factor Mini-ITX
CPU Type - Intel®3rd Generation Core TMi7/i5/i3 mobile processors
- rPGA package, 37.5 mm x 37.5mm
- TDP: QC = 45W/ DC = 35W
**Ivy Bridge CPU socket is compatible with Sandy Bridge CPU**
CPU Speed Up to 2.7GHz
Cache Up to 8MB
CPU Socket rPGA 988B (Socket G2)
Chipset Intel®QM77Platform Controller Hub (MI970VF)
Intel®HM76Platform Controller Hub (MI970F)
25 x 27 mm package size
BIOS AMI BIOS [16MB SPI ROM]
Memory Intel®Ivy-Bridge mobile processors integrated memory controller
DDRIII 1066/1333/1600 MHz
- SO-DIMM [204-pin vertical type]x 2 (Non-ECC), Max. 16GB
VGA - Intel®Ivy-Bridge mobile processor integrated Gfx, supports 3
independent displays, Direct X 11, OpenGL 3.1, Open CL 1.1
DVI-I X 1 (thru Level shifter ASM1442)
DVI-D X 1 (thru DP to DVI converter ANX9830C)
DisplayPort x 1
LVDS : DF13 x 2 for dual channel 24-bit support
LAN 1. Intel® Lewisville 82579LM GbE PHY [MI970VF only]
or Intel® Lewisville 82579V GbE PHY [MI970F only]
2. Intel®82583V as 2nd GbE
USB USB 2.0 host controller [Panther Point integrated], supports 8ports
- 4 ports in the rear panel
- 2 ports via onboard pin header (2.54mm pitch)
- 2 ports via MiniPCIe sockets
USB 3.0 host controller [Panther Point integrated], support 4 ports
- 2 ports in the rear panel
- 2 ports via onboard box-header type [Blue color]
Serial ATA Intel®QM77 PCH built-in SATA controller, supports total 6 ports
2 x SATA (3.0) 6Gbps+ 4 x SATA (2.0) 3Gbps ports
Audio Intel®QM77 PCH built-in High Definition Audio controller + Realtek
ALC892 w/ 7.1 channels
LPC I/O Fintek F81866AD-I (128-pin LQFP [14mm x 14 mm])
COM1 (RS232/422/485)
[EXAR SP339EER1 232/422/485 transceiver x 1 for jumper-less]
COM2/COM3/COM4 (RS232), Hardware
Monitor (2 thermal inputs,4 voltage monitor inputs & 2 Fan headers)
[CPU FAN & SYS FAN(DC Fan type, 3-pin connector)]
COM1/2 with pin-9 with power for 2 ports (500 mA for each port)
Digital IO 4 in & 4 out
TPM 1.2 Nuvoton WPCT210AA0WX (MI970VF only)
**Operation temperature for 0 ~ +60 degree C only**
iAMT Intel®QM77 PCH built-in (MI970VF only)
- Intel®Active Management Technology ver. 8.0
Expansion Slots - PCI-Express (16x) x1 [Gen 3.0 PEG]
- Mini PCI-Express x1port [Full-sized] w/mSATA +USB 2.0 support
- Mini PCI-Express x1port [Half-sized] w/ USB 2.0 support

INTRODUCTION
4 MI970 User’s Manual
Edge Connector
[The same as
MI956]
Dual DB9 stack connector for COM #1 / #2
DVI-D + DVI-I stack connector x 1
USB(3.0) dual stack + DP connector x1
RJ-45 + dual USB(2.0) stack connector x2
Triplet type Jack 3 x 1 for HD Audio
Onboard
Header/Connector 2 ports x SATA III [Blue color] , 4ports x SATA II ,
mSATA (w/JEDEC MO-300) [Share with SATA #5]
DF-11 8 pins connector x 1 for 2 ports USB 2.0
DF-13 20 pins connector x 2 for dual –channel LVDS
2x10 pins box-header x 1 for 2ports USB 3.0 [Blue color]
2x5 pins pin-header x 1 for front panel audio [Support 7.1 Channel]
2x5 pins pin-header x 2 for COM3 & COM4
2x5 pins pin-header x 1 for Digital IO
4 pins box header x 1 for LCD backlight control
1 x 5 pins pin-header x 1 for IrDA
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
System Voltage ATX standard 20-pin type
4 pin type (+12V only)[For full system loading usage]
Others - vPro [MI970VF only]
- ErP feature for MI970F(F81866AD-I integrated ,WOL from 2nd
GbE
- iSMART function (TI MSP430G2433)
- AT24C02C EEPROM [SO8 type] via SMbus (Optional)
Board Size 170mm x 170mm

INTRODUCTION
MI970 User’s Manual 5
[
Board Dimensions

INTRODUCTION
6 MI970 User’s Manual
This page is intentionally left blank.

INSTALLATIONS
MI970 User’s Manual 7
Installations
This section provides information on how to use the jumpers and
connectors on the MI970 in order to set up a workable system. The
topics covered are:
Installing the CPU .........................Fehler! Textmarke nicht definiert.
Installing the Memory ...................Fehler! Textmarke nicht definiert.
Setting the Jumpers........................Fehler! Textmarke nicht definiert.
Connectors on MI970....................Fehler! Textmarke nicht definiert.

INSTALLATIONS
8 MI970 User’s Manual
Installing the CPU
The MI970 board supports rPGA988B socket for Intel® Ivy Bridge
Dual Core mobile processors.
The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, fasten the
screw. Refer to the figures below.
NOTE: Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATIONS
MI970 User’s Manual 9
Installing the Memory
The MI970 board supports two DDR3 memory socket for a maximum
total memory of 16GB in DDR3 SO-DIMM memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligned
with that on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
DDR3 Module
Lock Lock
Lock Lock

INSTALLATIONS
10 MI970 User’s Manual
Setting the Jumpers
Jumpers are used on MI970 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MI970 and their respective functions.
Jumper Locations on MI970................................................................11
JP1: LPC debug Connector (Factory use only)....................................12
JP2: COM1 RS232 RI/+5V/+12V Power Setting................................12
JP3: COM2 RS232 RI/+5V/+12V Power Setting................................12
JP4, JP5: LVDS Connectors (1st channel, 2nd channel) .......................12
JP6: LCD Backlight Connector ...........................................................13
JP7: USB4/USB5 Connector...............................................................13
JP8: SPI Flash connector (Factory use only).......................................13
JP9: SPDIF I/O....................................................................................13
J13: Flash Descriptor Security Override (Factory use only)................13
J14: LCD Panel Power Selection.........................................................14
J16: Clear ME Contents.......................................................................14
J17: Clear CMOS Contents..................................................................14

INSTALLATIONS
MI970 User’s Manual 11
Jumper Locations on MI970
Jumpers on MI970............................................................................Page
JP1: LPC debug Connector (Factory use only) ................................... 12
JP2: COM1 RS232 RI/+5V/+12V Power Setting ............................... 12
JP3: COM2 RS232 RI/+5V/+12V Power Setting ............................... 12
JP4, JP5: LVDS Connectors (1st channel, 2nd channel)....................... 12
JP6: LCD Backlight Connector........................................................... 13
JP7: USB4/USB5 Connector............................................................... 13
JP8: SPI Flash connector (Factory use only)....................................... 13
JP9: SPDIF I/O.................................................................................... 13
J13: Flash Descriptor Security Override (Factory use only) ............... 13
J14: LCD Panel Power Selection......................................................... 14
J16: Clear ME Contents....................................................................... 14
J17: Clear CMOS Contents ................................................................. 14

INSTALLATIONS
12 MI970 User’s Manual
[
JP1: LPC debug Connector (Factory use only)

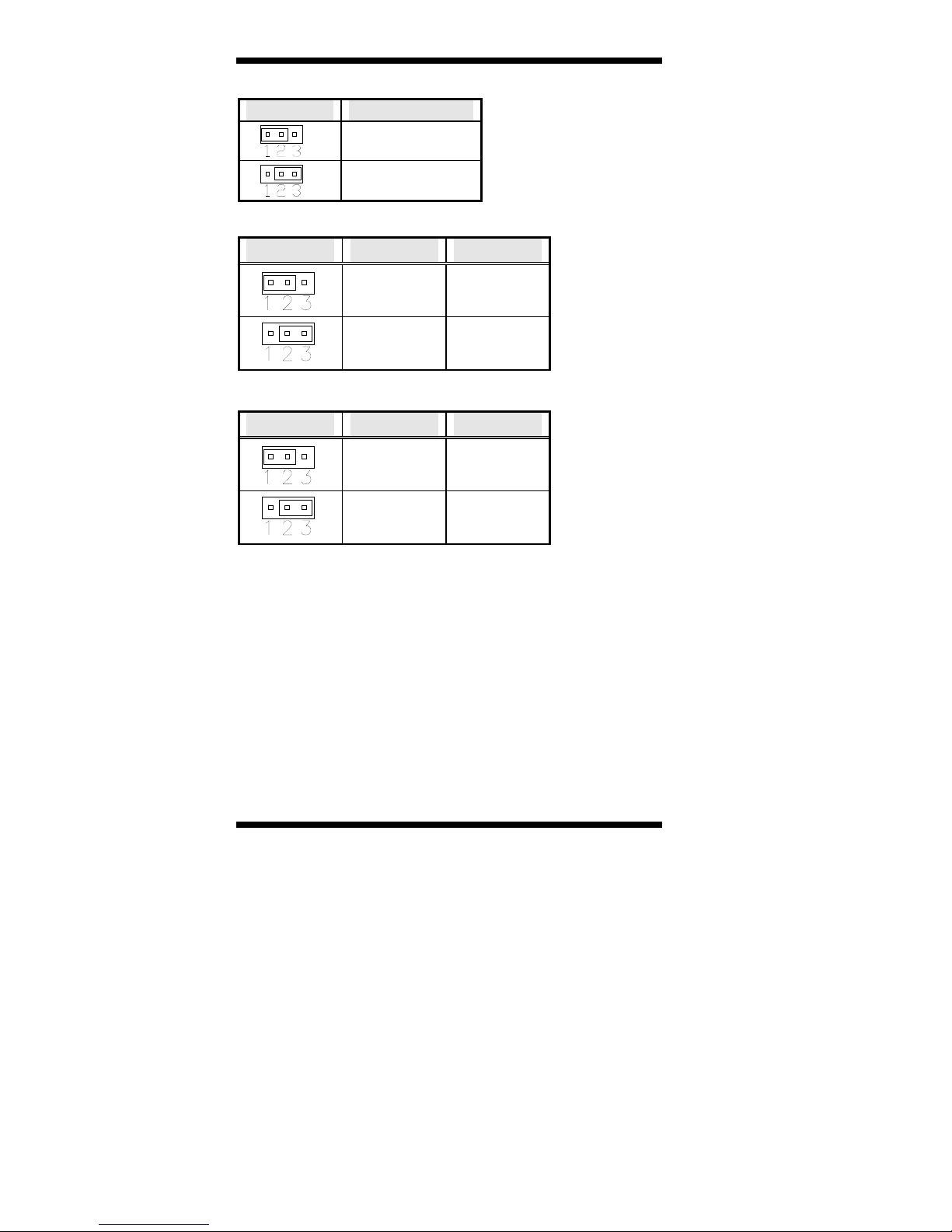

JP2: COM1 RS232 RI/+5V/+12V Power Setting
JP2 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V
JP3: COM2 RS232 RI/+5V/+12V Power Setting
JP3 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V

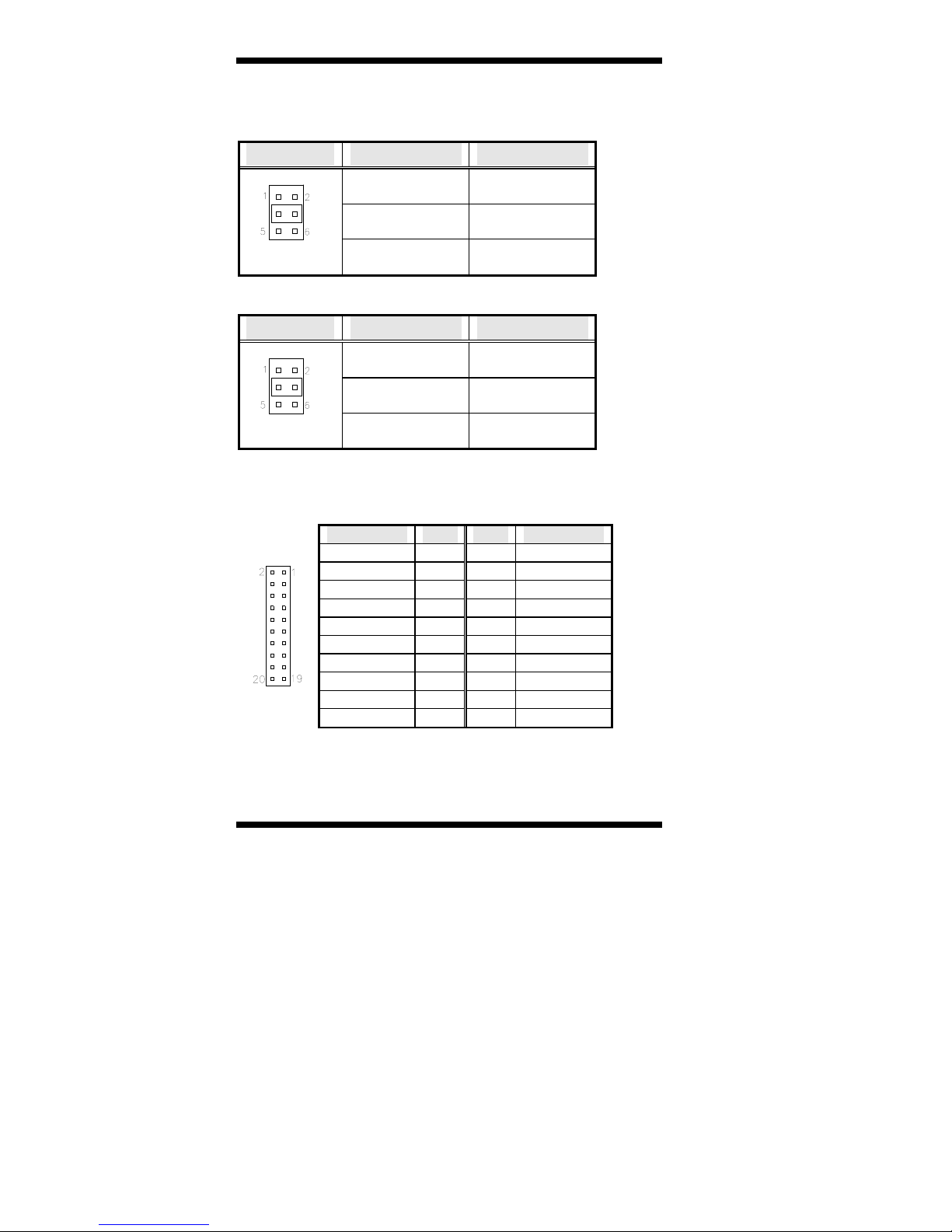

JP4, JP5: LVDS Connectors (1st channel, 2nd channel)
The LVDS connectors on board consist of the first channel (LVDS1)
and second channel (LVDS2).
Signal Name Pin # Pin # Signal Name
TX0- 2 1 TX0+
Ground 4 3 Ground
TX1- 6 5 TX1+
5V/3.3V 8 7 Ground
TX3- 10 9 TX3+
TX2- 12 11 TX2+
Ground 14 13 Ground
TXC- 16 15 TXC+
5V/3.3V 18 17 ENABKL
+12V 20 19 +12V

INSTALLATIONS
MI970 User’s Manual 13

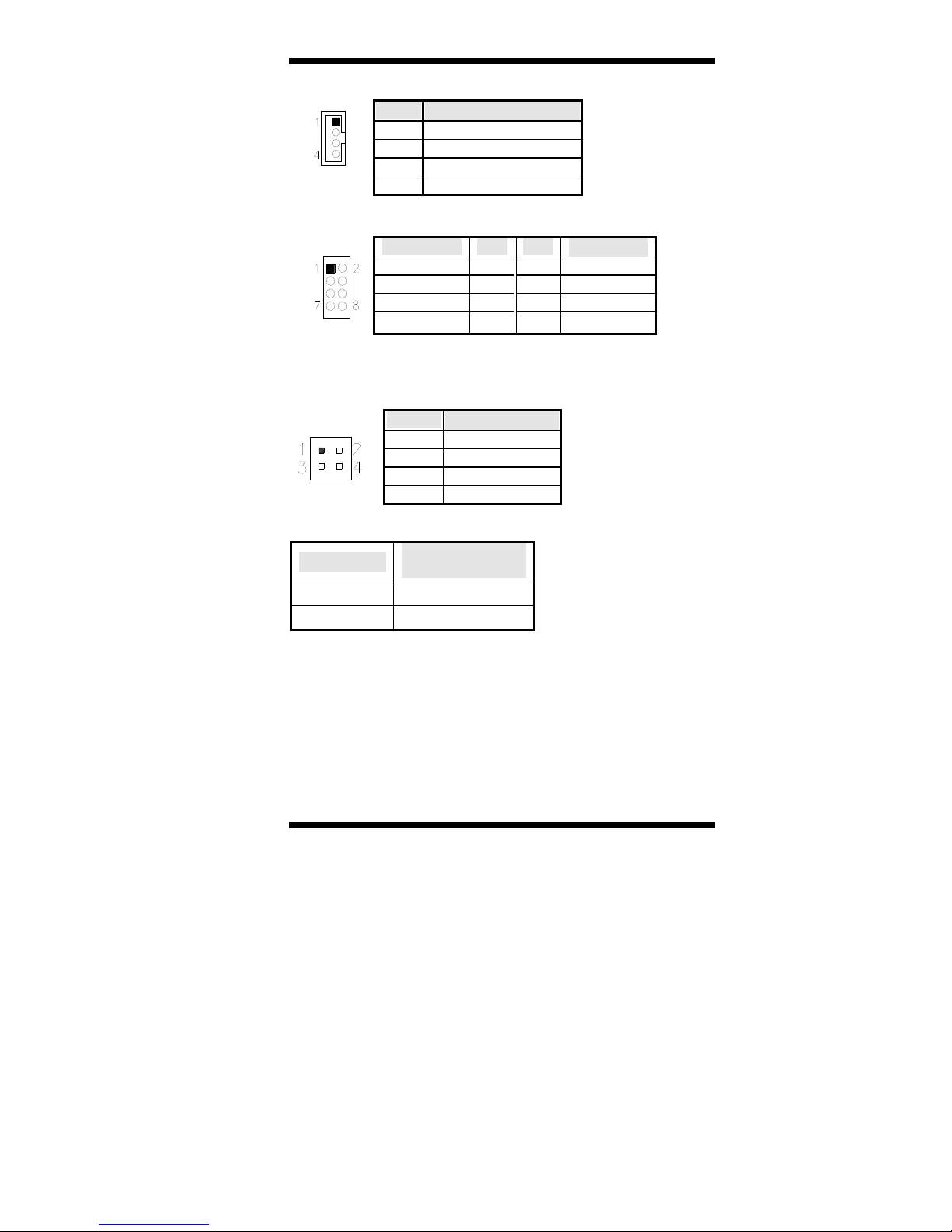

JP6: LCD Backlight Connector
Pin # Signal Name
1 +12V
2 Backlight Enable
3 Brightness Control
4 Ground
JP7: USB4/USB5 Connector
Signal Name Pin # Pin # Signal Name
Vcc 1 2 Ground
D0- 3 4 D1+
D0+ 5 6 D1-
Ground 7 8 Vcc
JP8: SPI Flash connector (Factory use only)
JP9: SPDIF I/O
Pin # Signal Name
1 SPDIF IN
2 Ground
3 SPDIF OUT
4 Ground
J13: Flash Descriptor Security Override (Factory use only)
J13 Flash Descriptor
Securit
y
Override
Open Disabled (Default)
Close Enabled

INSTALLATIONS
14 MI970 User’s Manual
J14: LCD Panel Power Selection
J14 LCD Panel Power
3.3V
5V
J16: Clear ME Contents
J16 Setting Function
Pin 1-2
Short/Closed Normal
Pin 2-3
Short/Closed Clear
J17: Clear CMOS Contents
J17 Setting Function
Pin 1-2
Short/Closed Normal
Pin 2-3
Short/Closed Clear CMOS

INSTALLATIONS
MI970 User’s Manual 15
Connectors on MI970
Connector Locations on MI970........................................................... 16
CN1: COM1 and COM2 Serial Ports.................................................. 17
CN2: DVI-D and DVI-I Connector..................................................... 17
CN3: USB3.......................................................................................... 18
CN4: DisplayPort ................................................................................ 18
CN6: Gigabit LAN (82579LM/V) +USB2 12/13................................ 18
CN10: Gigabit LAN (82583V) + USB2 8/9........................................ 18
CN13: HDA Audio connector............................................................. 18
CN5: USB3 Connector........................................................................ 19
CN7: SATA3 Connector Port2............................................................ 19
CN8: SATA3 Connector Port1............................................................ 19
CN9: SATA2 Connector Port4............................................................ 19
CN11: SATA2 Connector Port3.......................................................... 19
CN12: SATA2 Connector Port6 (Share with mSATA) ...................... 19
CN14: SATA2 Connector Port5.......................................................... 19
J1: Digital I/O Connector (4 in, 4 out)................................................. 19
J4, J2: COM3, COM4 RS232 Serial Ports .......................................... 20
J3: ATX Power Supply Connector...................................................... 20
J6: ATX 12V Power Connector .......................................................... 20
J8: DDR SO-DIMM Channel A.......................................................... 21
J9: DDR SO-DIMM Channel B .......................................................... 21
J11: Mini-PCIE Connector.................................................................. 21
J12: Mini-PCIE Connector and mSATA/share with CN12................. 21
J18: Audio Pin Header for Chassis Front Panel.................................. 21
J20: Front Panel................................................................................... 21
J21: PCIE Configuration ..................................................................... 21
SYS_FAN1: CPU Fan Power Connector........................................... 21
SYS_FAN2: System Fan Power Connector....................................... 22

INSTALLATIONS
16 MI970 User’s Manual
Connector Locations on MI970
