redrad Heater
User Manual Version B
Mobile heater for light industrial & commercial use
Manufactured in the UK by: Bison Products Ltd, 85 Bison Place, Moss Side Industrial Estate,
Leyland. Lancashire. PR26 7QR
Tel: [phone] email: [e-mail]
www.bisonproductsltd.co.uk
MODEL NO’S:
(HEA-REB-110) redrad Rebel Heater 110V
(HEA-REB-230) redrad Rebel Heater 230V
(HEA-RRL-110) redrad Low Level Heater 110V
(HEA-RRL-230) redrad Low Level Heater 230V
(HEA-CER-110) redrad Ceramic Heater 110V
(HEA-CER-230) redrad Ceramic Heater 230V

Page 2
Bison products reserves the right, without notice, to make any amendment, update, or improvement to these products at any time.
All details contained within this manual are correct at the time of print
Thank you for purchasing a redrad Heater
CONTENTS
Page 2 Introduction
Page 3 Electrical connections/ Warnings and General Safety
Page 4 Warnings and General Safety / Other information
Page 5 Cleaning and maintenance/ Operating Instructions / Specification &
Technical data
Page 6 Troubleshooting / Warranty
Page 7-9 Wiring diagrams
Page 10 Certification / Recycling and disposal / Product improvement
Page 11-12 Energy Efficiency
Page 13-26 Parts diagram and Parts lists
Redrad Heaters
INTRODUCTION
The redrad range of heaters are portable, industrial, and commercial heating products. The
Rebel and Low-level models are versatile, offering heating or drying solutions for a varied
number of applications, generally in the industrial market whilst the Ceramic is found in
both industrial and commercial application.
Before attempting to use this equipment and to avoid personal injury, carefully read and
understand these instructions. If you are in any doubt about using this product, DO NOT use
this equipment, contact your supplier for clarification.
To ensure years of trouble-free operation we advise that the product is regularly serviced
and maintained by a qualified person.
NB: Please note that the redrad range of heaters come in six different models, see below
for all models:
L W H
HEA-REB-110 redrad Rebel Heater 110V 17kg 930mm 490mm 460mm
HEA-REB-230 redrad Rebel Heater 230V 17Kg 930mm 490mm 460mm
HEA-RRL-110 redrad Low Level Heater 110V 13Kg 810mm 670mm 600mm
HEA-RRL-230 redrad Low Level Heater 230V 13Kg 810mm 670mm 600mm
HEA-CER-110 redrad Ceramic Infra red Heater 110V 6.5Kg 360mm 350mm 520mm
HEA-CER-230 redrad Ceramic Infra red Heater 230V 6.5Kg 360mm 350mm 520mm
Unboxed Dimensions
Weight
Description
Model Number

Page 3
ELECTRICAL CONNECTIONS
Before plugging the heater into the socket, check the following:
•Make sure your hands are dry
•The socket must have an earth connection
•The socket must be able to withstand the maximum power output indicated on the
rating label
•The power cord must not be bent or crushed
•Do not use extension leads
•Do not use outdoors
•Do not change the plug for a lower rated specification
Both the Rebel and Low Level 230V heaters are fitted
with a 13amp BS1363/A approved plug and fuse. If
your plug needs to be replaced it should be fitted with
a plug with the same standard.
The 110V models will be fitted with a 32amp 110V BS
EN 60309-2 plug and be wired according to the letters stamped on the plug: L = live
(Brown), N = Neutral (Blue), E = Earth (Green/Yellow)
The power cord and plug should be inspected regularly for damage and should be replaced
by the manufacturer or similarly qualified persons if necessary.
Warnings and General safety
THESE WARNINGS ARE GIVEN FOR SAFETY REASONS AND SHOULD BE FOLLOWED AT ALL
TIMES. Safety cont.
1. NEVER use in environments that have explosive, flammable or combustible
substances, gases, or materials
2. NEVER use in dusty environments as some dusts are highly combustible.
3. NEVER pull the heater by the cable

Page 4
Warnings and General safety cont.
4. NEVER allow the heater to get wet, doing so will increase the risk of electric shock
5. NEVER use with an extension lead as this could cause overheating and potential fires
6. NEVER allow children to use this heater. Adult supervision is always required
7. NEVER leave the heater unattended whilst switched on
8. ALWAYS position the heater at least 2m from people, draperies, inflammable
materials etc
9. NEVER Cover or block vents or guards
10. NEVER use without guards in place
11. NEVER operate if lamps are broken or damaged
12. NEVER use whilst under the influence of alcohol or drugs
13. NEVER touch lamps, even when cold.
14. ALWAYS ensure castors are locked before the heater is switched on.
15. ALWAYS unplug the machine before carrying out any maintenance work
16. ALWAYS use in an upright position
17. We recommend the use of an RCD
18. Do not move while the heater is switched on
Other Information
When using the 110V heater with a transformer, please ensure it is a minimum of
3KVA continuous rated specification and ensure that only the heater is plugged into
it. If there are other equipment being used off the same transformer, a new
calculation needs to be done to ensure that the transformer can power everything.
Do not plug heaters into extension leads, this causes voltage drop and if a small
diameter cable is used, this will exacerbate the situation and cause overheating and
potential fires.

Page 5
Cleaning and Maintenance
Keeping your unit clean will ensure your heater is always working at its best! Any
maintenance work should be done whilst the unit is unplugged from the mains supply.
Carry out regular checks for the following:
1. Inspect the mains cable for any damage and have replaced by a qualified person if
necessary
2. Check the grills, reflectors, and lamps for any build-up of dust and if necessary, clean
with a damp cloth and allow to dry before use.
3. Check the lamps for breakages and replace when necessary.
Operating Instructions
1. Position the heater in the desired location taking account the safety precautions on
pg 4
2. Ensure the switches are in the off position before plugging in
3. Lock both swivel castors
4. Plug the unit into the power supply
5. Switch the rocker switch to the on position, either one or two switches can be
selected.
Specification and technical data
REDRAD HEATER RANGE Rebel 110V
Rebel 230V
Low Level
110V
Low Level
230V Ceramic 110V Ceramic 230V
Frequency 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz
Input Voltage 110 230 110 230 110 230
Amps (Both elements) 27 6.52 27 6.52 25.5 12.2
Amps (One element) 13.6 12.5 13.6 12.5 12.7 6.08
Energy consumption - Both elements KW 3 3 3 3 2.8 2.8
Energy consumption - Single element KW 1.5 1.5 1.5 1.5 1.4 1.4
IP rating 20 20 20 20 20 20
Product weight (KG) unboxed 17 17 13 13 6.5 6.5
Efficiency at Optimum point on a scale from A+++ (low
consumption) to D (high consumption)
A+++ A+++ A+++ A+++ A+++ A+++
Arctic grade cable dia (3 core yellowBS6004:2012+ A1:2020) 4mm x 4m na 4mm x 4m na 4mm x 4m na
HO7RN-F cable dia (3 core black BS6195, BS EN50525-2-21) na 2.5mm x 4m na 2.5mm x 4m na 2.5mm x 4m
Plug type
32amp
IEC 60309-2
13amp
BS1363/A
32amp
IEC 60309-2
13amp
BS1363/A
32amp
IEC 60309-2
13amp
BS1363/A

Page 6
Trouble shooting
In the event of the heater not working please check the following:
1. Mains supply power cut
2. Mains fuses has tripped out
3. Ensure the plug has been fully inserted into the socket
4. Check plug fuses
5. Eliminate the socket you are using
6. If after following the above point does not resolve the problem, we recommend
you consult a qualified electrician for further testing
7. Please note that the Rebel and ceramic heater is fitted with a tilt switch that could
be a cause of failure but only a qualified person should assess this potential cause.
Warranty
Your Redrad heater is covered by a 12-month warranty. The Company undertakes to
replace or repair, free of charges, any defect due to faulty workmanship or material within
12 months of the sale date, except for:
1. Defects arising from neglect, misuse, or un-authorised modifications.
2. Damage caused by abuse, misuse, dropping or other similar damage caused by or as
a result of failure to follow operating instructions.
3. Alterations, additions, or repairs carried out by people other than the manufacturer
or their recognized distributors.
4. Transportation or shipment costs to and from the Manufacturer or their recognized
agents, for repair or assessment against a warranty claim, on any redrad heater or
component.
5. Materials and/or labour costs to re-new, repair or replace components due to fair
wear and tear.
6. Faults arising from the use of non-standard or additional parts, or any consequential
damage or wear caused by the fitting or use of such parts.
IMPORTANT –Warranty, at the sole discretion of the manufacturer, may be voided if
regular maintenance/inspections are not carried out by a competent person.

Page 7
Wiring diagrams
SWITCH N
0 1
CON BLOCK
L
EARTH CON BLOCK
L N
MICRO
SWITCH
L
0 1 CON BLOCK
SWITCH
N
IR LAMP
IR LAMP
REBEL HEATER WIRING DIAGRAM 110V
MAINSCABLE
SWITCH N
0 1
CON BLOCK
L
EARTH CON BLOCK
L N
MICRO
SWITCH
L
0 1 CON BLOCK
SWITCH
N
IR LAMP
IR LAMP
REBEL HEATER WIRING DIAGRAM 230V
MAINSCABLE

Page 8
Wiring diagrams cont.
SWITCH N
0 1
CON BLOCK
L
EARTH
CON BLOCK
L N
L
0 1 CON BLOCK
SWITCH
N
IR LAMP
IR LAMP
LOW LEVEL HEATER WIRING DIAGRAM 110V & 230V
MAINSCABLE

Page 9
Wiring diagrams cont.
CERAMIC ELEMENT
N
CON BLOCK
L
CERAMIC ELEMENT
L
CON BLOCK
N
5B 2A
4B 11A
SWITCH
5B
2A
4B 11A
SWITCH
THERMAL TRIP
MICRO
SWITCH E N L L
CON BLOCK CON BLOCK
2 SWITCHS FOR 110V VERSION E N L L
1 SWITCH FOR 230V VERSION
CERAMIC HEATER WIRING DIAGRAM 230V & 110V
L

Page 10
Certification
We the manufacturer confirm that the Redrad range of heaters evaluated to ensure
compliance with all current EU regulations in the Directive 2009/125/EC and all relating
eco standards and RoHS covering all 10 substances recently updated in July
2019(Restrictions of Hazardous Substances). A copy of the conformity certification can
be obtained by contacting the office using the contact details on page 1.
Recycling and Disposal
As part of our commitment towards environmental protection, we would ask
for our customers to minimise materials wastage by disposing of packaging
materials, following local regulations to allow for recycling of packaging
materials.
As a responsible manufacturer Bison Products complies to the European
Directive 2012/19/EU concerning Waste Electrical and Electronic Equipment
(WEEE). All components in this product should be recycled where possible and
must not be disposed of in the household general waste. The symbols of the
wheelie bin are to remind users of their obligations when disposing of WEEE. If
you are at all unsure of the correct disposal, please contact your local waste
disposal facility for further advice.
Product Improvement
Bison Products has a policy of continual improvement and reserves the right to develop,
improve or alter a design without assuming any obligation to modify any product
previously manufactured.

Page 11

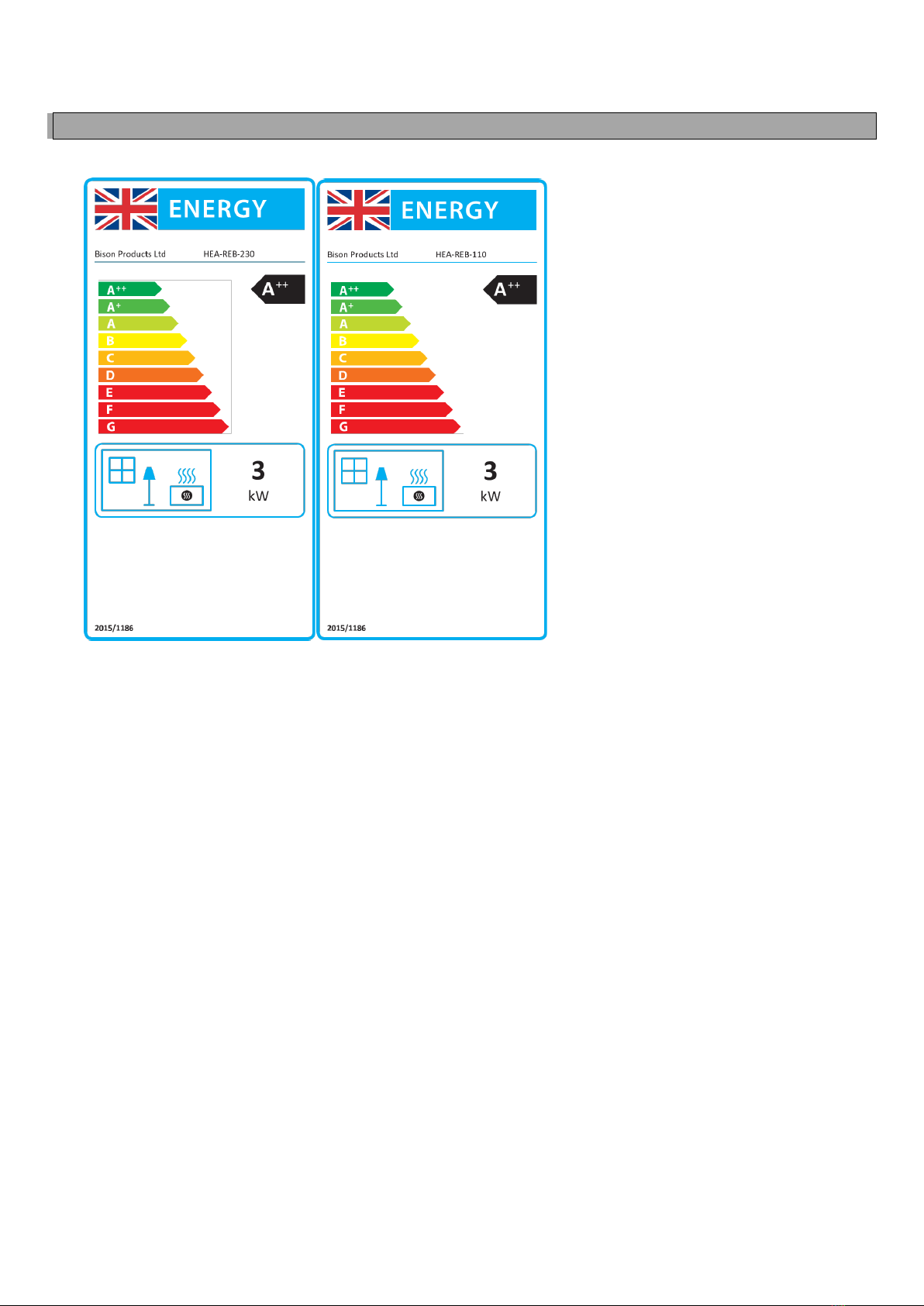

Efficiency

Page 12
Efficiency cont....

Page 13
REDRAD LOW LEVEL HEATER

Page 14
Item No: PART NUMBER DESCRIPTION
Qty per
Unit
1 HEA-RRL-010 Low level body 1
2 HEA-RRL-020 Low level Grill 1
3 HEA-RRL-030 Low Level Chassis 1
4 HEA-RRL-040 Low level Frame 1
5 HEA-RRL-050 Main Reflector 1
6 HEA-RRL-060 Side Reflector Top L/H & Bottom R/H 2
7 HEA-RRL-070 Side Reflector Top R/H & Bottom L/H 2
8 CAB-HEA-110 4m x 4mm Arctic Yellow cable 3 core 1
9 ELE-COR-M20 Cord Grip Bush 1
10 ELE-NUT-M20 M20 Nylon Lock nut Black 1
11 ELE-CON-130 Porcelain connector blocks 3
12 ELE-HEA-010 240V 1.5KW IR Lamps 2
13 CLI-HEA-IRZ IRZ Clip 4
14 FAS-RIV-32-10 Rivets for spring clips 3.2 x 10mm 4
15 FAS-SCR-BUT-420 M4 x 20mm Button socket screw ZP 5
16 FAS-SCR-POZ-FLA-614 6g x 1/4" Pozi flange ST AB ZP 10
17 FAS-SCR-POZ-FLA-612 6g x 1/2" Pozi flange ST AB ZP 4
18 FAS-SCR-POZ-515 M5 x 16mm Pan Pozi mch screw 3
19 FAS-WAS-SHA-5 M5 Internal shakeproof washers 3
20 ELE-SWI-115 0-1 On Off Rocker Switch 2
21 FAS-NUT-004 M4 Full Nuts 6
22 FAS-WAS-SHA-4 M4 Shakeproof washers 6
23 FAS-SCR-SET-412 M4 x 12mm HT Set 1
24 LAB-HEA-010 Label Warning Hot surface 1
25 LAB-HEA-020 Label Warning Red on white 1
26 CAS-HEA-075 Castor unbraked 2
27 CAS-FAN-075 Castor braked 2
28 HANDWHEELM1050 M10 X 50mm Handwheel 2
29 NYL-WAS-HM10 Nylon Half Moon washer 4
30 FAS-SCR-BUT-1060 M10 x 60mm Button Socket Screw 4
31 FAS-NUT-110 M10 Nyloc nut 4
REDRAD LOW LEVEL HEATER 110V PARTS LIST

Page 15
Item No: PART NUMBER DESCRIPTION
Qty per
Unit
1 HEA-RRL-010 Low level body 1
2 HEA-RRL-020 Low level Grill 1
3 HEA-RRL-030 Low Level Chassis 1
4 HEA-RRL-040 Low level Frame 1
5 HEA-RRL-050 Main Reflector 1
6 HEA-RRL-060 Side Reflector Top L/H & Bottom R/H 2
7 HEA-RRL-070 Side Reflector Top R/H & Bottom L/H 2
8 CAB-HEA-H07RN 4m x 1.5mm H07RN cable c/w plug and crimps 1
9 ELE-COR-M20 Cord Grip Bush 1
10 ELE-NUT-M20 M20 Nylon Lock nut Black 1
11 ELE-CON-124 Porcelain connector blocks 3
12 ELE-HEA-020 240V 1.5KW IR Lamps 2
13 CLI-HEA-IRZ IRZ Clip 4
14 FAS-RIV-32-10 Rivets for spring clips 3.2 x 10mm 4
15 FAS-SCR-BUT-416 M4 x 16mm Button socket screw ZP 5
16 FAS-SCR-POZ-FLA-614 6g x 1/4" Pozi flange ST AB ZP 10
17 FAS-SCR-POZ-FLA-612 6g x 1/2" Pozi flange ST AB ZP 4
18 FAS-SCR-POZ-515 M5 x 16mm Pan Pozi mch screw 3
19 FAS-SCR-WAS-5 M5 Internal shakeproof washers 3
20 ELE-SWI-115 0-1 On Off Rocker Switch 2
21 FAS-NUT-004 M4 Full Nuts 6
22 FAS-WAS-SHA-4 M4 Shakeproof washers 6
23 FAS-SCR-SET-412 M4 x 12mm HT Set 1
24 LAB-HEA-010 Label Warning Hot surface 1
25 LAB-HEA-020 Label Warning Red on white 1
26 CAS-HEA-075 Castor unbraked 2
27 CAS-FAN-075 Castors braked 2
28 HANDWHEELM1050 M10 X 50mm Handwheel 2
29 NYL-WAS-HM10 Nylon Half Moon washer 4
30 FAS-SCR-BUT-1060 M10 x 60mm Button Socket Screw 4
31 FAS-NUT-110 M10 Nyloc nut 4
REDRAD LOW LEVEL HEATER 230V PARTS LIST

Page 16
Item No: Part No: Description
Qty per
unit
1 HEA-REB-010 Rebel body 1
2 HEA-REB-020 Rebel Grill 1
3 HEA-REB-030 Chassis 1
4 HEA-REB-040 Rebel Handle 1
5 HEA-REB-050 Main Reflector 1
6 HEA-REB-060 Side Reflector Top L/H & Bottom R/H 2
6a HEA-REB-060a Side Reflector Top R/H & Bottom L/H 2
7 HEA-REB-070 Rebel Back Panel 1
8 HEA-REB-080 Rebel Base Plate 1
9 HEA-REB-090 Rebel Foot 2
10 CAS-FAN-075 Castors braked 2
11 CAS-HEA-075 Castors unbraked 2
12 CAB-HEA-4Y 4m x 4mm Arctic cable c/w plug and crimps 1
13 CLI-HEA-IRZ IRZ Spring clip 4
14 ELE-SWI-115 0-1 On Off Rocker Switch 2
15 ELE-SWI-TIL-110 Tilt switch assembley 110V 2
16 ELE-HEA-010 110V IR Lamps 2
17 NYL-WAS-HM8 M8 Half moon washers 4
18 ELE-CLA-010 Con Clamp 1
19 ELE-CON-124 Porcelain connector blocks 3
20 SCR-BUT-416 M4 x 16mm Button socket screw ZP 2
21 SCR-BUT-420 M4 x 20mm Button Socket screw ZP 3
22 SCR-POZ-FLA-614 6g x 1/4" Pozi flange ST AB ZP 12
23 SCR-POZ-FLA-612 6g x 1/2" Pozi Flange ST AB ZP 4
24 SCR-POZ-515 M5 x 16mm Pan Pozi machine screws ZP 3
25 WAS-SHA-5 M5 Shakeproof washers ZP 3
26 SCR-POZ-FLA-838 8g x 3/8" Pozi Flange ST Type AB ZP 13
27 SCR-SET-855 M8 x 55mm HT Sets ZP 4
28 WAS-SHA-8 M8 Shakeproof washers ZP 4
29 SCR-SET-412 M4 x 12mm HT Set 1
30 NUT-004 M4 Full Nuts 6
31 WAS-SHA-4 M4 Shakeproof washers 6
32 SCR-SOC-1025 M10 x 25mm Socket Cap Screw ZP 4
33 SCR-BUT-850 M8 x 50mm Button socket ZP 4
34 RIV-32-10 3.2mm Rivets 4
35 SCR-POZ-312 M3 x 12mm Pan pozi mch screw ZP 2
36 WAS-SHA-3 M3 Shakeproof washer ZP 2
37 WAS-NUT-003 M3 Full nut ZP 2
38 LAB-HEA-010 Label Warning Hot surface 1
39 LAB-HEA-020 Label Warning Red on white 1
40 ELE-SWI-MIC16 Micro switch 16amp 6.3mm connectors 2
41 ELE-CON-130 Porcelain connector blocks Large 1
REDRAD REBEL HEATER (110V) Parts list

Page 17
Item No: Part No: Description
Qty per
unit
1 HEA-REB-010 Rebel body 1
2 HEA-REB-020 Rebel Grill 1
3 HEA-REB-030 Chassis 1
4 HEA-REB-040 Rebel Handle 1
5 HEA-REB-050 Main Reflector 1
6 HEA-REB-060 Side Reflector Top L/H & Bottom R/H 2
6a HEA-REB-060a Side Reflector Top R/H & Bottom L/H 2
7 HEA-REB-070 Rebel Back Panel 1
8 HEA-REB-080 Rebel Base Plate 1
9 HEA-REB-090 Rebel Foot 2
10 CAS-FAN-075 Castors braked 2
11 CAS-HEA-075 Castors unbraked 2
12 CAB-HEA-HO7RN 4m x 1.5mm H07RN cable c/w plug and crimps 1
13 CLI-HEA-IRZ IRZ Spring clip 4
14 ELE-SWI-115 0-1 On Off Rocker Switch 2
15 ELE-SWI-TIL Tilt switch 1
16 ELE-HEA-020 230V IR Lamps 2
17 NYL-WAS-HM8 M8 Half moon washers 4
18 ELE-CLA-010 Con Clamp 1
19 ELE-CON-124 Porcelain connector blocks small 3
20 SCR-BUT-416 M4 x 16mm Button socket screw ZP 2
21 SCR-BUT-420 M4 x 20mm Button Socket screw ZP 3
22 SCR-POZ-FLA-614 6g x 1/4" Pozi flange ST AB ZP 12
23 SCR-POZ-FLA-612 6g x 1/2" Pozi Flange ST AB ZP 4
24 SCR-POZ-515 M5 x 16mm Pan Pozi machine screws ZP 3
25 WAS-SHA-5 M5 Shakeproof washers ZP 3
26 SCR-POZ-FLA-838 8g x 3/8" Pozi Flange ST Type AB ZP 13
27 SCR-SET-855 M8 x 55mm HT Sets ZP 4
28 WAS-SHA-8 M8 Shakeproof washers ZP 4
29 SCR-SET-412 M4 x 12mm HT Set 1
30 NUT-004 M4 Full Nuts 6
31 WAS-SHA-4 M4 Shakeproof washers 6
32 SCR-SOC-1025 M10 x 25mm Socket Cap Screw ZP 4
33 SCR-BUT-850 M8 x 50mm Button socket ZP 4
34 RIV-32-10 3.2mm Rivets 4
35 SCR-POZ-312 M3 x 12mm Pan pozi mch screw ZP 2
36 WAS-SHA-3 M3 Shakeproof washer ZP 2
37 WAS-NUT-003 M3 Full nut ZP 2
38 LAB-HEA-010 Label Warning Hot surface 1
39 LAB-HEA-020 Label Warning Red on white 1
40 ELE-SWI-MIC16 Micro switch 16amp 1
41 ELE-CON-130 Porcelain connector blocks Large 1
REDRAD REBEL HEATER (230V) Parts list

Page 18
REDRAD REBEL HEATER
15
29
35
31
30
30
31
34
13
20
41
21
19
14
20

Page 19
REDRAD REBEL HEATER
17
28
33
13
34
2
27
32
10
16
20
23
11
28
8
3
6
5
6
6
a
6
a
7
4
26
1

Page 20
REDRAD REBEL HEATER
22
23
28
18
12
33
