Thanks for buying a BISSELL CleanView™
We’re glad you purchased a BISSELL CleanView Vacuum. Everything
we know about floor care went into the design and construction of this
powerful, high-tech home vacuuming system.
Your BISSELL CleanView is well made, and we back it with a
limited comprehensive two-year warranty. We also stand behind it with a
knowledgeable, dedicated Consumer Services department, so, should you
ever have a problem, you’ll receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today,
BISSELL is a global leader in the design, manufacture, and service of high
quality homecare products like your BISSELL CleanView.
Thanks again, from all of us at BISSELL.
Mark J. Bissell
President and Chief Executive Officer
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 2

3
IMPORTANT SAFETY INSTRUCTIONS
■Keep openings free of dust, lint, hair, etc.
■Keep appliance on a level surface.
■Turn off all controls before unplugging.
■Unplug by grasping the plug, not the cord.
■Be extra careful when cleaning stairs.
■Pay close attention when working
around children.
SAVE THESE INSTRUCTIONS.
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
WARNING: This appliance must be Earthed .
IMPORTANT FOR OPERATION ON
A 220/240 VOLT A.C. 50/60 Hz POWER
SUPPLY ONLY.
If your appliance is fitted with a nonrewireable
BS 1363 plug it must not be used unless a
13 amp (ASTA approved to BS 1362) fuse is
fitted in the carrier contained in the plug.
(Spares may be obtained from your BISSELL
supplier). If for any reason the plug is cut off,
it must be disposed of, as it is an electric
shock hazzard should it be inserted into a 13
amp socket.
When using an electrical appliance,
basic precautions should be observed,
including the following:
READ ALL INSTRUCTIONS
BEFORE USING YOUR
UPRIGHT VACUUM.
Always connect to a properly Earthed Outlet.
Unplug from outlet when not in use and before
conducting maintenance or troubleshooting.
WARNING: To reduce the risk of
fire, electric shock, or injury:
■Use indoors only.
■Do not leave machine when it is plugged in.
■Do not service machine when it is plugged in.
■Do not use with damaged cord or plug.
■Do not use machine if it has been dropped,
damaged or dropped into water.
■Do not handle unit with wet hands.
■Do not pull or carry by cord, use cord as a
handle, close door on cord, pull cord around
sharp corners or edges, run appliance over
cord, or expose cord to heated surfaces.
■Do not carry the appliance while in use.
■Do not unplug by pulling on cord. Unplug
by grasping plug.
■Do not handle plug or appliance with
wet hands.
■Do not put any object into appliance openings,
use with blocked opening, or restrict air flow.
■Do not expose hair, loose clothing, fingers
or body parts to openings or moving parts.
■Do not pick up hot or burning objects.
■Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc.) or
use in the presence of explosive liquids or vapour.
■Do not use appliance in an enclosed space
filled with vapours given off by oil base
paint, paint thinner, some moth proofing
substances, flammable dust, or other
explosive or toxic vapours.
■Do not pick up toxic material (chlorine
bleach, ammonia, drain cleaner, petrol, etc.).
■Do not modify the Earthed plug.
■Do not allow to be used as a toy.
■Do not use for any purpose other than
described in this User’s Guide.
■Use only manufacturer’s recommended
attachments.
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 3

4
CAUTION:
Do not plug in your vacuum
cleaner until you are familiar
with all instructions and
operating procedures.
Power
Switch
Carrying
Handle
Crevice Tool
Post-Motor
Filter
Quick Reach
Handle
Handle
Quick Release
Cord Wrap
Handle
Release
Pedal
Powerfoot
Stretch Hose
Extension Wand
Power Cord
Furniture
Protection
Guard
Upper Tank
Dirt Container
Pre-Motor Filter
Lock ’n
Seal™Lever
Height
Adjustment
Knob
Dusting
Brush Hose Wand
Upper Tank Knob
Hose Clip
Hepa Media Filter
(Optional Item)
Hose
Wand Base
Louvers
Upper Tank
Frame and Filter
(Inside Louvers)
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 4

5
This User’s Guide has been designed to help you get the most
satisfaction from your BISSELL CleanView. You’ll find assembly and
operating instructions, safety precautions, as well as maintenance and
troubleshooting instructions. Please read this User’s Guide thoroughly
before assembling your vacuum cleaner.
Pay particular attention to the product diagram, assembly
instructions, and part names. Locate and organize all parts
before assembly. Familiarize yourself with the parts and where
they fit. Following this User’s Guide will greatly enhance your
ability to get the most performance from your BISSELL
CleanView for many years.
The only tool you’ll need to assemble your vacuum
cleaner is a Phillips head screwdriver.
Locate the vacuum Handle and remove the screw packet
taped to the base of the Handle.
Stand the vacuum upright and slide the base of the Handle
firmly into the grooves at the top of the vacuum body.
Check to be sure the Handle is fitted to the vacuum
body. If there is a gap in front, continue to push firmly
until the Handle is flush.
Insert one screw provided from the screw packet into the
existing hole. Tighten securely with a Philliphs head screwdriver.
Position the Hose Assembly on the back of the vacuum
as shown.
Attach the Hose with the remaining two screws from the
packet. Tighten securely with a Phillips head screwdriver.
Grasping the Quick Reach Handle, slide the end of the
Hose Wand onto the Hose Wand Base. Snap the Hose
into the Hose Clip.
NOTE: The Powerfoot will not operate effectively
unless the Hose Wand is firmly attached.
Slide the Extension Wand and the Crevice Tool together
into the storage clip as shown.
Slide the Dusting Brush Tool into the storage clip as shown.
How To Use This Guide
How To Put It Together
WARNING:
Plastic film can be dangerous.
To avoid danger of suffocation,
keep away from babies
and children.
Attach Handle To Vacuum
1.
2.
3.
4.
Attach Vacuum Hose and Tools
1.
2.
3.
4.
5.
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 5

6
Press the Handle Release Pedal with your foot to place
your CleanView into one of three cleaning positions.
Upright- For storage and above floor cleaning with tools.
Normal Cleaning- Press Handle Release Pedal once. Use
for most household floor cleaning tasks.
Low Cleaning- With the vacuum in normal cleaning position,
press Handle Release Pedal again. Use for reaching under
low furniture such as tables, chairs or beds.
The Powerfoot/Rotating Floor Brush on your BISSELL CleanView
can be adjusted to clean several floor surfaces.
NOTE: For optimal cleaning performance, adjust
to the lowest practical setting. If your cleaner is
difficult to push, adjust to the next higher setting.
Place Handle in Upright Position.
Turn Height Adjustment knob to desired setting.
Lowest Setting - For bare floors.
Medium Settings - For short and medium
pile carpets.
Highest Setting - For plush pile carpet.
Place the Handle into the Normal Cleaning Position and
the Powerfoot will adjust to the setting chosen.
NOTE: You may also adjust the setting while in
the Normal Cleaning Position.
To move your cleaner from room to room, put the Handle
in the upright position, tilt the cleaner back on its rear
wheels and push forward.
The cleaner can also be moved by using the
Carrying Handle.
How To Use Your BISSELL CleanView
Handle Positions
1.
2.
3.
Tip:
Your BISSELL
CleanView
features a
Quick-Release
Cord Wrap. To
remove the
Power Cord
quickly and
easily, rotate the
Upper Cord Wrap
towards floor,
and slip Power
Cord from Upper
and Lower
Cord Wraps.
Tip:
Before cleaning
under low
furniture, check
area first for
objects that
might harm the
unit or block the
Vacuum Hose.
Power Height Adjustment
1.
2.
1.
2.
CAUTION:
Before using your vacuum, make
sure that the Dirt Container and
Upper Tank are in locked position
and that both filters (Pre-Motor
and Post-Motor) are in place. Do
not operate your vacuum without
these filters.
3.
Carrying
Handle
1
2
3
NOTICE:
The Floor Brush will continue to rotate
while you use your vacuum for above
floor cleaning. To prevent carpet damage,
do not lean on the vacuum or let the
Powerfoot tilt forward.
Transporting Cleaner
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 6

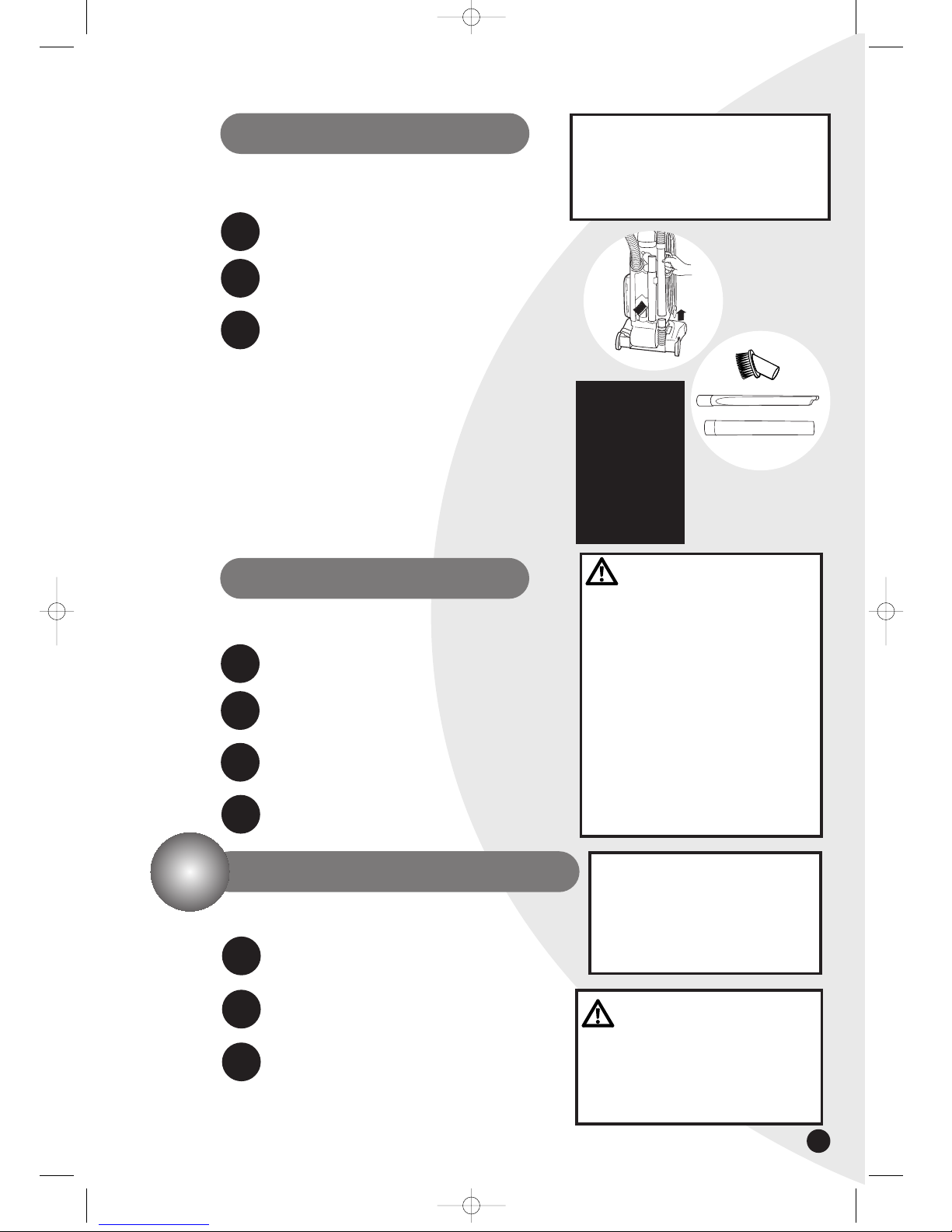

7
Your BISSELL CleanView is not only a powerful carpet and rug
vacuum cleaner, it’s also a versatile above floor vacuum cleaner
when you select one of the special tools.
Raise Handle to Upright Position.
Grasp the Quick Reach Handle and lift Hose Wand to
separate from suction intake opening.
Attach tools by firmly pushing onto Vacuum Hose
or Extension Wand.
Dusting Brush Tool:
Use to dust furniture, blinds, books, lamps, shelves,
draperies, cushions.
Crevice Tool:
Use in tight narrow spaces.
Extension Wand:
Use with desired attachment for a longer reach.
When you are done using your BISSELL CleanView, return it to the
Upright position and store the Power Cord.
Turn vacuum cleaner off.
Unplug Power Cord by grasping the plug (NOT the cord)
and disconnect from outlet.
Loop Power Cord around Cord Wraps on side of
vacuum cleaner.
Clip molded plug to Power Cord to secure.

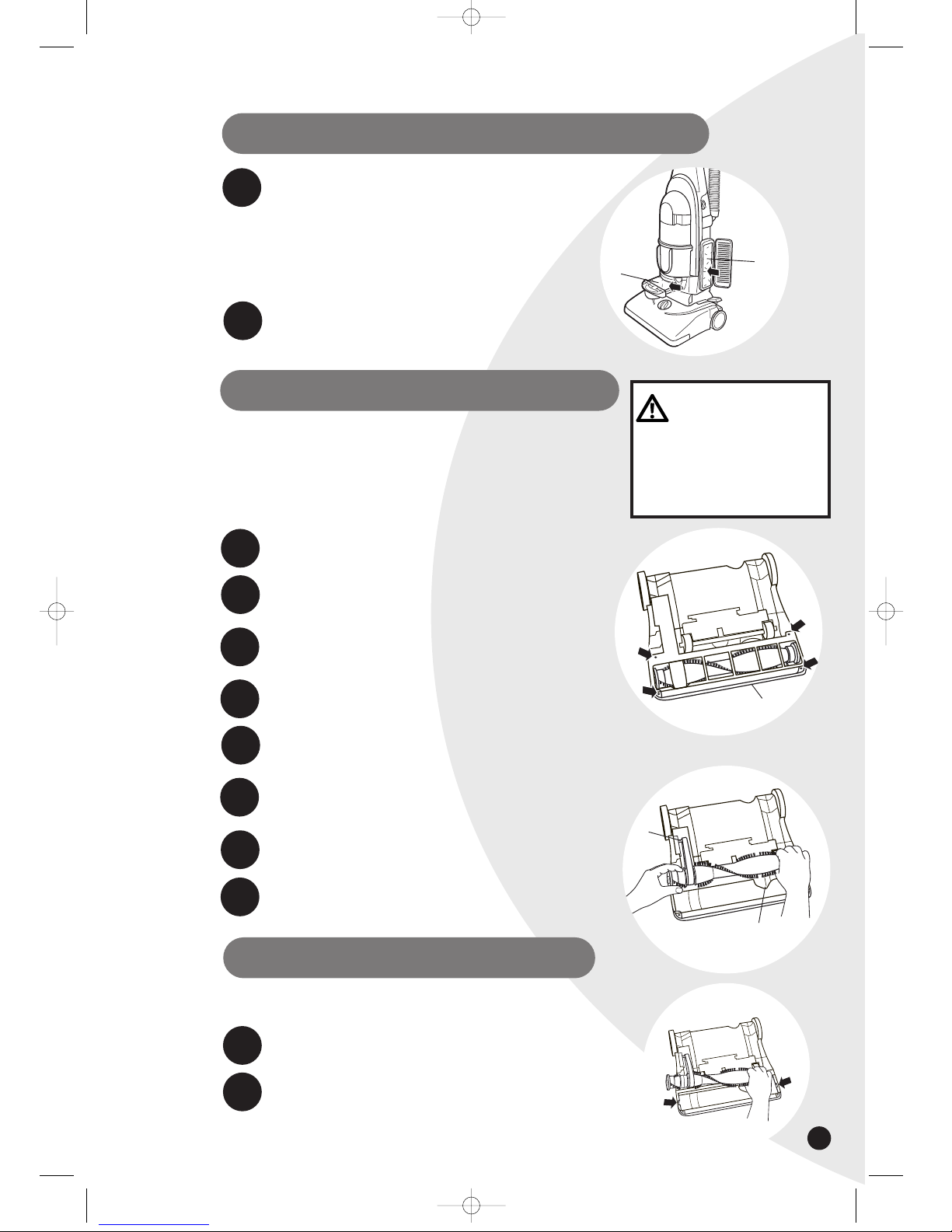

To maintain maximum cleaning performance, the following
maintenance steps must be performed:
Empty the Dirt Container when the dirt reaches the “Full”
line on the side.
Check the Upper Tank and Pre-Motor Filters monthly and
clean or replace as needed.
Clean or replace the Post-Motor Filter every
three months.
Note: More frequent filter cleaning may be
necessary if you are vacuuming new carpet, fine
dust, or have allergy concerns. Follow the
instructions on the following pages to perform
these simple maintenance steps.
Special On-Board Tools
1.
2.
3.
Tip:
Hair, string and
small objects can
block the Vacuum
Hose or Tools.
Check them
occasionally for
obstructions.
CAUTION:
The Rotating Floor Brush
continues to rotate while tools
are in use. To reduce the risk of
injury from moving parts,
always move the cleaner with
the Carrying Handle at the back
of the cleaner. Always place
vacuum cleaner on floor with
Handle in Upright position
when using tools. Never place
your fingers under the cleaner
when it is running. Never place
Powerfoot on furniture or
uneven surfaces. Do not place
vacuum cleaner close enough
to objects to pull them into
rotating brush.
NOTICE:
The Floor Brush will continue to rotate
while you use your vacuum for above
floor cleaning. To prevent carpet damage,
do not lean on the vacuum or let the
Powerfoot tilt forward.
NOTICE:
While vacuuming, certain carpets
and low humidity conditions may
generate small static discharges.
The discharges are entirely harmless
and are not associated in any way
with the main power supply.
Power Cord Storage
1.
2.
3.
4.
How to Maintain Your BISSELL CleanView
WARNING: To reduce
the risk of electric shock,
turn Power Switch OFF and
disconnect plug from electrical
outlet before performing mainte-
nance or troubleshooting checks.
1.
2.
3.
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 7

8
The Dirt Container needs to be emptied when the dirt
reaches the “Full” line on the side of the Container.
Unplug cleaner from electrical outlet.
Slide the Lock ‘n Seal Lever to the "Unlock" position.
Grasp handle and pull the Dirt Container straight out to
remove from vacuum.
Empty dirt into garbage container.
Put the Dirt Container back in the vacuum and slide the
lever to the "Lock" position.
Note: The Dirt Container may be washed in warm
water with a mild detergent. Make sure it is
completely dry before using again.
Use only BISSELL Replacement Filters in your BISSELL Cleanview.
Upper Tank Filter 203-1085
Unplug the cleaner from electrical outlet.
The Upper Tank Filter can be reached by removing the
Dirt Container, reaching underneath the Upper Tank and
turning the rim of the Filter Frame to unlock. Pull straight
down to remove. Brush the dirt off the Louvers and
Upper Tank Filter.
The foam Upper Tank Filter may be removed and hand
washed in cold water with mild detergent. Rinse well
then air dry thoroughly before replacing.
The Upper Tank and Louvers may also be wiped clean
with a damp cloth.
Note: For easier access, the entire Upper Tank
may be removed by turning the knob on the back
of the cleaner to unlock and pulling the entire
tank straight out.
Use only BISSELL Replacement Filters in your BISSELL CleanView.
Pre-Motor Filter 203-1073
Post-Motor Filter 203-1009
HEPA Media Post-Motor Filter 32076 (Optional Item)
Unplug the cleaner from electrical outlet.
The Pre-Motor Filter protects the motor from dirt particles.
It is located in the slide out tray underneath the Dirt
Container. If the filter becomes dirty, pull out the tray, lift
out the filter and clean.
Tip:
For maximum
cleaning performance,
check and clean or
replace all filters
as suggested.
Cleaning The Upper Tank & Filter
1.
2.
3.
Empty Dirt Container
1.
2.
3.
4.
Full Line
Lock Position
Unlock
Position
4.
5.
Cleaning The Pre-Motor and Post-Motor Filters
1.
2.
WARNING:
Do Not operate cleaner
with damp or wet
filters or without all
filters in place.
Post-Motor
Filter
Pre-Motor
Filter
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 8

9
The Post-Motor Filter assists in the filtration process to
return clean air to the room. It is located behind the door
on the side of the cleaner. If the filter becomes dirty,
open the door, remove the filter and clean.
Note: A white, pleated HEPA Media Filter is offered
as an optional item. This filter is not washable and
must be replaced.
The standard filters may be hand washed in cold water
with mild detergent. Rinse well and air dry thoroughly
before replacing.
You should check your vacuum cleaner’s Rotating Floor Brush
and Drive Belt regularly for wear or damage. You should also
clean the brush and brush ends of strings, hair, and carpet
fibers. These can wrap around the brush and hamper its ability
to effectively clean your carpet. Also remove any debris that
has accumulated under the brush cover.
Unplug cleaner from electrical outlet.
Place handle in Low position and turn vacuum cleaner
over so bottom side is up.
Remove the four screws as shown with a Phillips head
screwdriver. Lift the Brush Cover off.
Grasp Rotating Floor Brush at both ends and lift.
Clean strings, hair and other debris from Rotating Floor
Brush, paying particular attention to brush ends.
Clean strings, hair and other debris from Motor Pulley
and Drive Belt areas.
Check Drive Belt carefully for wear, cuts or stressed areas.
Check Air Passageway for obstructions. Remove debris
from this area.
Use only BISSELL Style 7 Replacement Belts (#32074) in your
BISSELL CleanView.
Unplug cleaner from electrical outlet.
With Rotating Floor Brush removed from vacuum cleaner
(Steps 1-4 of Check Rotating Floor Brush and Drive Belt),
grasp old Drive Belt and remove from Motor Pulley.
Discard old Drive Belt.
Cleaning The Pre-Motor and Post-Motor Filters Continued
3.
4.
WARNING:
To reduce the risk of injury
from moving parts, turn
off vacuum cleaner and
disconnect Power Plug
from electrical outlet.
Post-Motor
Filter
Pre-Motor
Filter
Check Rotating Floor Brush and Drive Belt
5.
6.
7.
8.
1.
2.
3.
4. Brush
Cover
Air Passageway
Motor Pulley
1.
2.
Replace Drive Belt
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 9

10
Place new Drive Belt over Motor Pulley and stretch other
end over Rotating Floor Brush in the space between
the bristles.
Place ends of Rotating Floor Brush down into slots on
sides as shown.
Turn Rotating Floor Brush by hand several times in the
direction of Motor Pulley. If properly installed, Drive Belt
will center itself on Rotating Brush crown.
Reposition Brush Cover and screws. Tighten
screws securely.
Low suction or poor pickup may be due to a clog in the vacuum
cleaner. If you notice a change in the sound of the motor or a
reduction in the spinning action, check for clogs.
Unplug cleaner from electrical outlet.
Empty Dirt Container.
Check Upper Tank for build up or clogs.
Remove the Upper Tank and check the suction inlet for a clog.
Grasp the Quick Reach Handle and lift Hose Wand to
separate from the suction opening. Check for a clog in
the Base, the Wand or the Hose.
Remove the screw attaching the Hose Wand Base to the
vacuum. Straighten the Hose Wand Base and unclog
with long, narrow object.
If the clog persists, follow the instructions for Checking
the Rotating Floor Brush on page 9 and inspect the Air
Passageway for obstructions.
3.
4.
5.
6.
Clearing Clogs
Replace Drive Belt Continued
1.
2.
3.
4.
5.
6.
Suction
Inlet
Air Passageway
7. WARNING:
To reduce the risk of injury
from moving parts and/ or
electrical shock, turn Power
Switch OFF and disconnect
plug from electrical
outlet before performing
troubleshooting checks.
1
2
1
2
1
2
3
1
2
3
Troubleshooting
Vacuum cleaner won't run.
Possible Causes Remedies
Power cord not firmly plugged in Check electrical plug
Blown fuse or breaker Check/replace fuse - Reset breaker
Vacuum cleaner won't pick up dirt.
Possible Causes Remedies
Incorrect Height Adjustment Adjust Powerfoot to correct height setting
Hose not attached to suction opening Grasp Quick Reach Handle and firmly push Hose
Wand onto the suction opening
Crack or hole in Hose Check Hose and replace if needed
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 10

11
Vacuum cleaner won't pick up dirt continued.
Possible Causes Remedies
Broken or worn Drive Belt Replace Drive Belt, see pg. 9
Rotating Floor Brush bristles worn Replace brush
Rotating Floor Brush jammed Remove brush and clean debris from brush ends
Clog in vacuum Follow instructions on pg. 10 for clearing clogs
Dirt Container full Empty Dirt Container
Dirt Container or Upper Tank not installed properly Position correctly and lock in place
Filters are dirty Check and clean Upper Tank, Pre-Motor and
Post-Motor Filters
Tools won't pick up dirt.
Possible Cause Remedies
Crack or hole in Hose Check Hose and replace if needed
Clog in vacuum Follow instructions on pg. 10 for clearing clogs
Dirt Container full Empty Dirt Container
Dirt Container or Upper Tank not installed properly Position correctly and lock in place
Filters are dirty Check and clean Upper Tank, Pre-Motor and
Post-Motor Filters
Vacuum cleaner is difficult to push.
Possible Causes Remedies
Incorrect Height Adjustment Adjust Powerfoot to correct height setting
Visible dirt escaping from cleaner.
Possible Causes Remedies
Dirt Container full Empty Dirt Container
Filters missing or installed incorrectly Check Upper Tank, Pre-Motor and Post-Motor
Filters for correct installation
Dirt Container installed incorrectly Pull out and re-insert Dirt Container correctly
If suggested solutions do not correct the problem, call:
If your BISSELL product should require service:
In the UK call BISSELL Inc. Consumer Services at the number below and we will give you the location of a BISSELL Authorized
Service Center in your area. For all other countries contact your local in country distributor for questions, service, or repair.
If you have questions about your warranty or need replacement parts please contact the numbers below.
For UK inquiries:
Monday - Thursday 9 a.m. — 5 p.m.
Friday 9 a.m. — 4 p.m.
BISSELL Inc. Consumer Services
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: [phone]
Or visit the BISSELL website - www.bissell.com
When contacting BISSELL, have model number of unit available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________
NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a
warranty claim. See "About Your Warranty" on page 12 for details.
Please do not return this product to the store.
4
5
6
7
8
9
10
4
5
6
7
8
9
10
1
2
3
4
5
1
2
3
4
5
11
11
22
Troubleshooting Continued
33
BISSELL Consumer Services
For all other inquiries:
Monday - Friday 8 a.m. — 4 p.m.
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids, MI 49501 USA
Telephone: [phone]
Fax: [phone]
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 11

Item Part No. Part Name
1 32074 Style 7 Drive Belt (2-Pack)
2 203-1063 Crevice Tool
3 203-1083 Dusting Brush
4 203-1084 Extension Wand
5 603-1164 Vacuum Hose
6 203-2032 Brush Roll
7 203-1085 Upper Tank Filter
8 203-1073 Pre-Motor Filter
9 203-1009 Post-Motor Filter
10 32076 HEPA Media Post-Motor Filter (Optional Item)
Replacement Parts – BISSELL CleanView Series
123 4 5 6
7810
9
12
About Your Warranty
This warranty gives you specific legal rights, and you may also have other rights which may vary from
country to country. If you need additional instruction regarding this warranty or have questions regarding
what it may cover, please contact BISSELL Inc. Consumer Services by telephone, or regular post as
described below, or contact your local in country distributor.
Limited Two Year Warranty
BISSELL Homecare, Inc., will replace, free of charge, any part which is defective or malfunctioning within
two years of purchase date to the original purchaser, provided the product is used for personal, and not
commercial or rental, service.
Damages or malfunctions caused by negligence, abuse, or use not in accordance with the User’s Guide will
not be covered. This warranty does not cover parts of the unit that require replacement under normal use.
For UK inquiries:
Monday - Thursday 9 a.m. — 5 p.m.
Friday 9 a.m. — 4 p.m
BISSELL Inc. Consumer Services
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: [phone]
For all other inquiries:
Monday - Friday 8 a.m. — 4 p.m.
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids, MI 49501 USA
Telephone: [phone]
Fax: [phone]
©2003 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in Korea.
Part Number 603-5202
Rev 1/03
Visit our website at:
www.bissell.com
ug603-5202/3590/220-240v/1/03 7/1/04 11:15 AM Page 12
