Bissell PowerSteamer 8804 User manual

1697,8804 SERIES
SafetyInstructions
ProductView/Accessories
Features/Operations
ConsumerServices
ReplacementParts
ug310-5944 1697 207.indd 1 2/20/07 3:03:11 PM

for buyinga BISSELLPowerSteamer
We're glad you purchased a BISSELLPowerSteamer deep cleaner. Everything
we know about floor care went into the design and construction of this
complete, high-tech home cleaning system.
Your PowerSteamer is well made, and we back it with a limited one-
year warranty. We also stand behind it with a knowledgeable, dedicated
Consumer Services department, so, should you ever have a problem, you'll
receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today, BISSELLis
a global leader in the design, manufacture, and service of high quality
homecare products like your PowerSteamer.
Thanks again, from all of us at BISSELL.
Mark J. Bissell
President and Chief Executive Officer
2www.bissell.com 800.237.7691
ug310-5944 1697 207.indd 2 2/20/07 3:03:13 PM

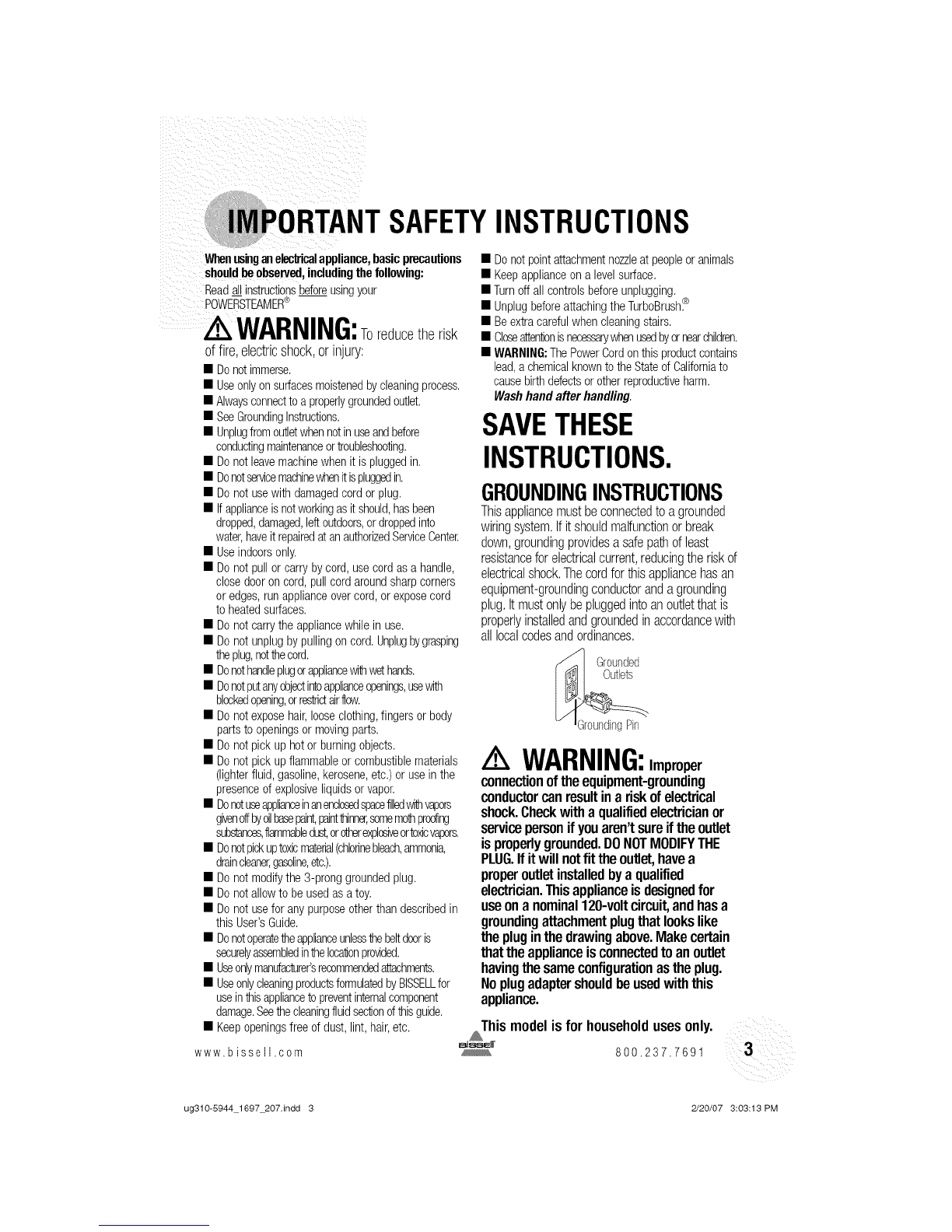

IMPORTANTSAFETYINSTRUCTIONS
Whenusbganeleckicalappliance,basicprecautions
shouldbeobserved,induding the following:
:_eadall instructionsbeforeusingyour
DOWERSTEAMER®
/k WARNING:Toreducetilerisk
offire,electricshock,or injury:
• Donotimmerse.
• Useonlyon surfaces moistenedby cleaningprocess.
• Alwaysconnectto aproperlygroundedoutlet.
• SeeGroundingInstructions.
• Unplugfromoutletwhennotinuseandbefore
conductingmaintenanceortroubleshooting.
• Do notleavemachinewhen it is pluggedin.
• Donotservicemachinewhenit ispluggedin.
• Do not usewith damagedcord or plug.
• Ifapplianceisnot workingas it should,has been
dropped,damaged,left outdoors,or droppedinto
water,haveit repairedatanauthorizedServiceCenter.
• Use indoorsonly.
• Do not pullor carry by cord, use cord as a handle,
close door on cord,pull cordaroundsharp corners
or edges,run applianceover cord,or expose cord
to heatedsurfaces.
• Do notcarrythe appliancewhile in use.
• Do not unplugby pulling on cord. Unplugbygrasping
theplug,notthecord.
• Donothandleplugorappliancewilhwethands.
• Donotputanyobjectintoapplianceopenings,usewith
blockedopening,orrestrictairflow.
• Do notexposehair,looseclothing,fingers or body
parts to openings or moving parts.
• Do notpick up hotor burningobjects.
• Do not pick up flammable or combustiblematerials
(lighterfluid, gasoline,kerosene,etc.) or use in the
presenceof explosiveliquids orvapor.
• Donotuseapplianceinanenclosedspacefilledw_ vapors
givenoffbyoilbasepaint,paintlhinna;,somemolhprodirg
substances,flammabledust,orotherexplosiveortoxicvapors.
• Donotpickuptoxicmaterial(chlorinebleach,ammonia,
draincleaner,gasoline,etc.).
• Do not modifythe 3-prong groundedplug.
• Do notallow to be usedas a toy.
• Do not usefor any purposeotherthan describedin
this User'sGuide.
• Donotoperatetheapplianceunlessthebeltdooris
securelyassembledintheleca'donprovided.
• Useonlymanufacturer'srecommendedattachments.
• UseonlycleaningproductsformulatedbyBISSELLfor
useinthisapplianceto preventinternalcomponent
damage.Seethecleaningfluidsectionofthisguide.
• Keepopenings free of dust, lint, hair,etc.
www.bissell.com
• Donotpointattachment nozzleat peopleor animals
• Keepapplianceon a level surface.
• Turnoff all controls beforeunplugging.
• Unplug beforeattachingthe TurboBrush_
• Beextracareful when cleaningstairs.
• Closeattentionisnecessarywhenusedbyornearchildren.
•WARNING:ThePowerCordon this productcontains
lead,a chemicalknownto theState of Californiato
causebirthdefectsor other reproductiveharm.
Washhand after handling.
SAVETHESE
INSTRUCTIONS.
GROUNDINGINSTRUCTIONS
This appliance must be connected to a grounded
wiring system. If it should malfunction or break
down, grounding provides a safe path of least
resistance for electrical current, reducing the risk of
electrical shock. The cord for this appliance has an
equipment-grounding conductor and a grounding
plug. It must only be plugged into an outlet that is
properlyinstalled and groundedin accordance with
all local codes and ordinances.
Grounded
WARNING:Improper
connectionoftheequipment-grounding
conductorcanresultina riskofelectrical
shock.Checkwitha qualifiedelectricianor
servicepersonifyouaren'tsureiftheoutlet
isproperlygrounded.DONOTMODIFYTHE
PLUG.Ifitwillnotfit theoutlet,havea
properoutletinstalledbya qualified
electrician.Thisapplianceisdesignedfor
useona nominal120-voltcircuit,andhasa
groundingattachmentplugthatlookslike
thepluginthedrawingabove.Makecertain
thattheapplianceisconnectedtoanoutlet
havingthesameconfigurationastheplug.
Noplugadaptershouldbeusedwiththis
appliance.
_his modelisfor householdusesonly.
Bi_E{[ 800.237.7691
ug310-5944 1697 207.indd 3 2/20/07 3:03:13 PM

TurboBrush®
Storage _#II I
(Select Models) _
lFlow Indicator
SmartMix®(Filter Inside)
Switch.._ i_j y _ "_-------Lower Handle
pD'o_t_frten_h_ _ rN_oozi2BeltAccess Doolr
OptionalAccessories: Window
These itemsareavailablefor purchasewith your model.Toorder replacementparts or additionaltools or
formulas, pleasereferto page 19.
PreTreatWand
3" ToughStainBrush 4" UpholsteryTool TurboBrush® HardFloorTool
SprayingCreviceTool MeshToolBag
4. www.bissell.com _ (bagonly) 800.237.7691
ug310-5944 1697 207.indd 4 2/20/07 3:03:14 PM

Keepplenty of genuineBISSELL
AdvancedCleaningFormulason hand
soyou can clean whenever it fits your
schedule.Always usegenuineBISSELL
deep cleaningformulas. Non-BISSELL
cleaningsolutionsmay harm the
machineand will void the warranty.
-- UpperHandle ToolCaddy
QuickRelease
Stain
_Brush Storage
2-in-1 water
tank,,, Nuts
FlexHose
4" Upholstery
ToolStorage
(SelectModels)
BISSELLFormulas:
48 oz,BISSELL 48oz. BISSELL
FiberCleansing MultiAllergen
FormulaTM with RemovalTM
ScotchgardM PormuldMwith
Protector ScotchgardTM
Protector
www.bissell.com
48 oz.BISSELL 48oz,BBSELL48 oz.BBSELL 43oz.BBSELL 32 oz, 22 oz,
PetOdorand%11NaturalOrange LavenderE,%ence3XOoncerTtratedBISSELL BISSELL
RemovalTM FormulaExtractPormula Formula%th FiberCleansing HardFloor ToughStain
withScotchgardTM w_hSc/stchgardMScstchgard_ Formula%th SolutionsTM PreCbanerTM
Protector Protector Protector Scotchgard_ Formula
Protector
800.237.7691 5
ug310-5944 1697 207.indd 5 2/20/07 3:03:15 PM

to Use this Guide
This user's guide has been designed to help you
get the utmost satisfaction from your BISSELL
PowerSteamer. You'llfind assembly and operat-
ing instructions, safety precautions, as well as
maintenance and troubleshooting instructions.
Please read this guide thoroughly before
assembling your deep cleaner.
Payparticularattentiontotheproductdiagram,assembly
instructions,andpartnames.Locateandorganizeallparts
beforeassembly.Familiarizeyourselfwith the partsand
wheretheygo. Followingthisuser'sguidewill greatly
enhanceyour abilityto getthemostperformancefromyour
BISSELLPowerSteamerfor manyyears.
YourPowerSteamercomesin three,easy to
assemblecomponents:
UpperHandle
LowerHandle
ToolCaddy
Theonlything youwill needto assembleyour cleaneris
a Phillipshead(_'_ screwdriver.
w_
WARNING:
Do not plug in your
cleaneruntil you have
completelyassembledit per
thefollowing instructions
and arefamiliar with all
instructionsand operating
procedures.
1. Slideupperhandleonto lowerhandle.
2. Feedbundledpowercord throughtoolcaddyfrom
caddy'sflat side.
3. Alignupperhandleholesandtool caddyholes.
4. Placehex nutintobackof toolcaddyandholdin
place.Insertboltfromfrontto backturning intothe
hexnut untilsnug.Donotovertighten.Repeatfor
thesecondbolt andhex nut.
5. Insert2 screwsintolower2 holes.Turnuntilsnug.
6. Snaptoolsinto storageon thetool caddy.
7. Wrappowercord andflex hoseas shown in
figure 7.
PowerSteamerassemblyis now complete.
3, 4,
6www.bissell.com 800.237.7691
ug310-5944 1697 207.indd 6 2/20/07 3:03:24 PM

Special Features ofYour BISSELLPowerSteamer
YourBISSELLPowerSteamerisa homecleaning
systemthatusesa combinationofhottapwater,
BISSELLadvancedcleaningformulaandsuction
tosafelycleancarpetsand upholstery.
DirtLifter_PowerBrush
TheDirtLifferPowerBrushisdesignedto
enhancecleaningperformance.Thebristle
patternsafelyliftsoutthedeepdowndirtwhile
gentlygroomingcarpetfibers.Thefloating
suspensionself-adjuststoall carpetheights.
Whenthe powerisON( I )andthe machineis
inthe uprightposition,yourcarpetisprotected
becausethe brushesare liftedupoffthecarpet.
SmartMix®
TheSmartMixfeatureautomaticallymixeshot
tap waterwiththeBISSELLadvancedcleaning
formula.Simplychooseoneof the3 settings
(hightraffic,normal,orwateronly)andthe
PowerSteamerwilladjusttherightamountof
cleaningsolutionto mixwiththewatertofit
yourcleaningneed.
Havinga separatesolutiontankfromthe
water tank allowsnowaste offormula.
Becausethe water and solutionare stored
separately,theyare not mixeduntilyouare
readyto clean.Whenyour cleaningjob is
finished,theformula canbe storedreadyto
usein yourmachinefor the nexttime!
2-in-1 watertank
SmartMixbottle
Our2-in-1watertank systemisdesignedwitha
heavydutybladderinsidefor cleanwater.Asyou
clean,thecleanwaterinthebladderwillempty
andmixwiththecleaningformula.Dirtywater
pulledoutofyourcarpetswill collectaroundthe
outsideofthebladdersothatcleananddirty
waterarealwayskeptseparate.Thisallowsthe
usertomaximizetank space,yetonlycarryone
tank toandfromthesinkfor emptyingandfilling.
www.bissell.com 800.237.7691
iiii_ i
ug310-5944 1697207.indd 7 2/20/07 3:03:25 PM

Features of Your BISSELLPowerSteamer
Flow indicator
Thisislocatedonthemachinebase.It spins
whenthetriggerispressedtoindicatethatthe
machineisapplyingcleaningsolutiontothe
carpetandwillstopspinningwhenthe SmartMix
tankor Bladderneedstoberefilled,orwhenthe
triggerisreleased.
Note:Flowindicatordoesnot spinwhen
sprayingthroughtheattachmenthose.
ReadyToolsdial
Thisprovideseitherfloorcleaningorabove
thefloorcleaningwith theflip of a switch.If
choosingabovefloorcleaningfor upholstery,
stairs,or alongthe baseboards,choosethe
attachmentappropriateforthejob. Attachtool
tothe hose,and youare readyto go!
1.
2.
flowqaica_or
3.
4.
5.
Planactivities to give yourcarpet time todry.
Movefurniture to another areaif cleaningan
entire room(optional).
Thoroughlyvacuumareawith a dry vacuum
cleanerbeforedeep cleaning.
Planyourcleaningroutetoleaveanexitpath.Itisbest
tobegincleaninginthecornerfa_est fromyourexit.
Pretreating(optional)
Note:Prebeal_ngisrecommendedtoimprove
cleaningeffectivenessfor heavilysoiledcarpetin
hightrafficareassuchas enkywaysandhallways.
A. SpraytheBlSSELLToughStainPre-'_eatformula
ontoheavytrafficareas,soiledareas,orstains.
B. Allowtopenetratefor atleast3 minutes.
C. Followingtheinstructionsbelow,cleanas
normal,usingtheBISSELLPowerSteamer
machineonthe hightrafficsetting.
8 www,bissell,corn
ATTENTION:
SomeBerbercarpetshavea
tendencytofuzzwithwear.
Repeatedstrokesinthesame
areawith anordinaryvacuum
ordeepcleanermay aggravate
thiscondition.PleaseseeStain
Removalinstructionsonpage 14.
800.237.7691
ug310-5944 1697 207.indd 8 2/20/07 3:03:26 PM

Fill the 2-in-1 watertank
1. Releasethe handleandlaythe machinehandle
backto accesstheTank.
2. Removethetank from the baseof themachine by
lifting the tank carry handle.
3. Carrylikeabuckettothe sink.Rotatethehandle
forwardtounlatchthelid.Liftoffandsetthelidaside.
4. Fill upthe bladderwith cleanhot tapwater.
*Do notboil or microwavewater as it can
destroythe bladder.
5. Replacethetopof the tank by matchingthe lid
and tank edges.Handlemust be in the forward
positionin orderto replacelid. Rotatethe handle
to thecarrying positiontolatch the lid.
Note:Rememberto securethe lidandtestto
makesureit issecurebeforepickingupthetank.
6. Placetank intomachinebase,seatingfirmly in place.
Rotatetank handlebackintolatchedposition.Bring
machinehandlebackintouprightposition.
I:',I,I:L
Fill
1.
2a.
2b.
the SmartMix/formulatank
Lifttheformulatank upandoutofthemachinebase.
Fillthe formula tank byfirst unscrewingthecap
andinsert.AlwaysusegenuineBISSELLformulas
tomaximizecleaningandfor thesafetyofyour
machine.Fillformulauptothelineandreplacethe
capand insert.Placeformulatank intotheslotinthe
backofthemachinefora snugfit.
If usingtheBISSELL3XConcentratedFiberCleansing
Formula:Add3capfulsof3X ConcentratedFiber !
Cleansingformulatotheformulatank,andthenfill I_
with warmwatertothe line. IZBWARNING:
Note:ff bottleleaks,checkfor properpositioning TOReducetheRiskdFireand
of redgrommentandstraw insert. ElectricShockduetointernal
componentdamage,useonly
BISSELLcleaningfluidsintended
for usewiththedeepdeaner.
www.bissell.com 800.237.7691
ii
ug310-5944 1697 207.indd 9 2/20/07 3:03:27 PM

Choosethe SmartMixsetting
Simplychooseoneofthe3 settings
•HighTraffic
• Normal
•WaterRinse
andthe PowerSteamerwill adjusttheright
amountofcleaningsolutiontomixwith the
heatedwatertofit yourcleaningneed,
NOTE:Whenyourcleaningjobisfinished,
theformulacan bestoredreadytouse in
yourmachineforthe nexttime!
Set ReadyToolsdial
Setready toolsdial to the floor cleaning setting.
Powerswitch
1. Pluginto aproper outletandturn the power
switch to the ON( I ) position.Theswitch is
foundon thebackof the handle.
/
SmartMixDial
J ReadyToolsDial
i_'j ,
Cleaningstrokes
10 www.bissell.com
1. Whilepressingthetrigger,makeone slowforward
wet passandanotheroneback.Lettheformula
andDirtLifter PowerBrushdothe work for you.
Caution:Donot ovenNet.Takecare notto run
overlooseobjectsor edgesof arearugs. Stalling
brushmayresult in prematurebeltfailure.
2. Releasethetriggerandmakeoneslowforwardand
backwardpassoverthesameareato removeany
residualdirtywater,andaidin drying.Repeatcleaning
passesuntilsolutionbeingpulledupappearsclean.
Continuepasseswithoutpressingthethggeruntilyou
can'tseeanymorewaterbeingpulledup.
NOTE: Boththe SmartMix tank and the
clean water tank must have liquid in them
in order for the machine to spray. If one
tank is empty the machine will notapply
cleaning solution or water.
3. Aftercleaning,youmaywanttoturntheSmartMix
dialtorinsetogiveyourcarpetinga finalwateronly
rinse.Thiswillensurethoroughremovalofembedded
dirtloosenedbythedeepcleaningformula.BISSELL
deepcleaningformulascontainananti-resoiling
agentthathelpsyourcarpetsrepeldirtandkeeps
themlookinggoodlonger
A WARNING:
Toreducethe risk of fire,
electric shock or injury,
unplugfrom the outlet
beforeservicing.
800.237.7691
ug310-5944 1697 207.indd 10 2/20/07 3:03:28 PM

_peration
EmptyThe 2-in-1 watertank
1. Removethe2-in-1watertankfromthe baseusing
thetankcarryhandle.Carrythetanklikea bucketto
autilitysinkoroutsidewhereyouwilldisposeofthe
collectionwater Removethetopofthetankby rotating
thehandleforwardto unlatchlidandliftinglidofftank.
2. Emptycollectionwater from bottomof tank.
NOTE:Youmay notice hair& debrisdeposits
on the carpet or in the tank that were
loosenedbythe cleaning action (especially
with newer carpets that have neverbeen
deep cleaned before). This debris shouldbe
picked up and thrown away.
3. After eachuse, removeandrinsethe lint screen
locatedon thetank lid.
4. Refillthetank in tank by referencing"Fill the2-in-
1water tank" on page9.Rememberto securethe
topof thetank by rotatingthe handleand test to
makesure it is securebeforepicking up.
5. Return2-in-1 water tank to themachine.
NOTE:Always check the level of cleaning
formula in the SmartMix tank at the same
time, and refill as needed.
1,
3,
Rinse (optional)
Rinsing is an optional step that can be done
during the cleaning process by switching to the
water rinse setting,or it can be done after the
carpeted area has been cleaned.
1. Simplychoosethewater rinsesettingonthe
SmartMixdial,and follow the samepath as you
did for cleaning,taking caretodo aforward (wet)
strokeby depressingthe trigger,a backward(wet)
stroke,and a forwardand backward(dry)stroke,
releasingthetrigger.Continuethis until thewater
yousee coming upthe nozzleisclear.
1,
/ WARNING:
To reducethe risk of fire,
electric shock or injury,
unplugfrom the outlet
beforeservicing.
www.bissell,com 800.237.7691 11 /
ii
ug310-5944 1697 207.indd 11 2/20/07 3:03:29 PM

iintenanceandcare
Machinestorage
Onceyourcleaningiscomplete,makesurethe
2-in-1watertankisemptiedandrinsedout.Put
theunitawayina closetorbasementforthe next
use.TheSmartMixtank canremainfilledand
readytogo(storewith machinesettowateronly
setting),oritcansimplybeemptiedbackintothe
formulabottleifthatismoreconvenient.
Note:Storecleanerina protected,dryarea.
Sincethisproductuseswater,itmustnotbe
storedwherethereisa dangeroffreezing.
Freezingwill damageinternalcomponents
andvoidthewarranty.
Machine Care
For best results, a few simple steps can assure
your machine iswell maintained after your
cleaning is complete.
1. Turnpowerswitch OFF( 0 ). Unplugthe machine
andwrap the powercord.
2. Afteremptyingthe 2-in-1 water tank, rinseit out
at afaucetwith runninghottap water,taking care
tocleanunderneaththe heavyduty bladder,and
all around it. Cleanout lint trap.
3. Replacethe 2-in-1 water tankon the machine.
4. Cleanoutthe flow indicatorfiltereachtime it isused
toensurebestcleaningperformance.Unscrewthe
flow indicatorcap,liftoutthe redrotorandwhite
filter.Rinseall _ree partswith water.Replacethe
filterand rotor.Replacetheflow indicatorcap.Turn
untilsnug,donotover-'tighten.
5. Anyloosehairor debriscan be pulledfrom the
brush roll if desiredand thrown away.
6. Wipethemachine'sexteriorwith a soft cloth.
7. Aftercarpet is dry,vacuum againto remove
hairandfuzz.
A WARNING:
To reducethe risk of fire,
electric shock or injury,
unplugfrom the outlet
beforeservicing.
3. \,_
©
12 www.bissell.com 800.237.7691
ug310-5944 1697 207.Jndd 12 2/20/07 3:03:29 PM

Maintenance andcare
YourPowerSteamer machine comes equipped
with a hose and at least one attachment for
cleaning stairs, upholstery, and more.
1. Important!If usingto cleanUpholstery,check
UpholsteryTags.
A, Checkmanufacturer'stag beforecleaning.
"W"or "WS" onthe tagmeansyou can
useyour PowerSteamer.Ifthe tag is coded
with an"X" oran "S" (witha diagonalstripe
throughit),or says"Dry CleanOnly",do not
proceedwith any deepcleaningmachine.Do
notuseonvelvetor silk.If manufacturer's
tagis missingor notcoded,checkwith your
furnituredealer.
B. Checkforcolorfastnessinaninconspicuousplace.
C. Ifpossible,checkupholsterystuffing.Colored
stuffingmaybleedthroughfabricwhenwet.
D. Planactivitiestoallowupholsterytimetodry.
E. Vacuumthoroughlyto pickuploosedebrisand
pethair.Useavacuumwith abrushattachment
andacrevicetooltocleaninfabricfolds.
2. Followtheinstructions on page9 for filling the
2-in-1 water tank and the formula tank.
3. Setreadytoolsdialtothetoolsor pretreatsetting.This
will allowsprayanddivertthesuctiontothehose.
4. SetSmartMixdialto normal.
5. Attach thecleaningtool tothe endof the hose.
6. Plugin and turn on the powerswitch.
7. Cleanby pressingthetrigger tospray solution
ontotheareato becleaned.Slowly movethetool
backand forth overthesoiled surface.Release
thetrigger tosuction soiledwater.Continueto
cleanin the area,working in small sections, until
nomoredirt can be removed.Rinse(optional)and
suctionas needed.Caution:Dono overwet.
8. Whencleaning iscomplete,removeand rinse
toolsin clean, runningwater.
9. Coilhosearoundthetool caddy.
10. Empty2-in-1 water tank and rinse out,following
theinstructionson page 11.
11. Returnreadytoolsdial to floorcleaning.
Manufacturer'stag
Z WARNING:
To reducethe risk of
injury,beextra careful
when cleaningstairs.
Make sure machine is
secure and level.
www.bissell,com 800.237.7691
0
iiii_ i
ug310-5944 1697207.indd 13 2/20/07 3:03:30 PM

ianing Fluid Section
Cleaningfluid section
KeepplentyofgenuineBISSELLFiberCleansing
FormulaTM onhandsoyoucancleanandprotect
wheneveritfitsyourschedule.Alwaysuse
genuineBISSELLdeepcleaningformulas.
A WARNING:
Toreducetherisk offire
andelectricshockdueto
internalcomponentdamage,
useonlyBISSELLcleaning
fluidsintendedfor usewith
the deep cleaner,Non-
BISSELLcleaningsolutions
may harm the machineand
voidthe warranty,
48oz.BISSELL 48 oz.BISSELL 48 oz.BISSELL 48 oz.BISSELL 43oz.BISSELL3X
FiberCleansingFormulaTM MultiAllergenRemovalTM PetOdorandSoilRemovalTM NaturalOrange Conce_TtratedRber
%I7Sc/stchgardTM FormulawithScotchgardTM FormulawithScotchgardTM ExtractFormulawith CleansngFormula%th
Piotector Protector Protector ScotchgardTM ProtectorScotdTgardTM Protector
item #0710 item #0720 item #0730 item #0740 item #0716
Stainremoval
Do not delay! Attending to an accident soonafter
it occurs ensures the chances for full removal.
Leavingit for an extended periodof time may
cause it to set and become permanent.
1. Blotupliquidswith anabsorbentclothorpaper
towels.Whitematerialsarerecommendedbecause
certaindyesmaybleedandmakethestainworse.
2. 6entlyscrapeup anysemi-solidswith a spoonor
spatula. Donot usea knife or other utensilwith
sharp edgesbecauseit could damagethe carpet
or upholstery.
3. Iftheareahasdried,removethe remaining
semi-solidsand residuewith asweeperor vacuum.
4. Besure totest anyspot removalformulasin an
inconspicuousareafirst.This is importantas some
dyesand materialscouldbedamagedor discolored
bycleaningsolvents.Ifsuchachangeshouldoccur,
try adifferent solutionor call a professional.
5. Ifcleaningon Berbercarpeting,gentlyrunyour
machineovera hiddenarea.If nofuzzing occurs,
continue cleaningin soiled area.
6. Usingthe BISSELLToughStainPreCleaner,spray
evenlyoversoiled area.Donot overwet.Wait3-5
minutes.Gentlywork the solutionby blotting area
with a clean,damp, colorsafe cloth.
7. Cleanusing either the floor cleaning,or tools or
pretreatsetting onthe readytoolsdial.
14 www,bissell,com 800.237.7691
ug310-5944 1697 207.indd 14 2/20/07 3:03:30 PM

Hard FloorCleaning ....
Hardfloorcleaning
Your PowerSteamer model may have come with
a hard floor attachment and Hard Floor Solutions
Formula. If not,these products are available for
purchase by contacting the BISSELLConsumer
Services department by phone or on the website.
The hard floor tool provides effective cleaning for
linoleum, vinyl, and tile floors.
Caution:Do not use on unsealed hardwood floors.
1. Vacuumor Sweepthoroughlyto pick up any loose
debrisand pet hair.
2. Moveanyfurniture,if needed.
3. Emptyany carpet cleaningformula backinto the
BISSELLbottleif stored in the formula tank. Fill
formulatank with BISSELLHardFloorSolutions,
availableat manyretailers,or contact BISSELL
ConsumerServices.
4. Fillthe 2-in-1 watertankwith hot tapwaterand
setaside.
5. Attachthehardfloortoolontothefloor nozzlewith
thelongtabtotheright sideof thefloornozzle.First
attachleft side(shorttab)catchingtabovernozzle
edge.Gentlybendlongtab(rightside)outwardto
easilysnapoveredgeofclearnozzleonleft.
6. Setthe readytools dialto floor cleaning.
7. Setthe SmartMixdial to normalclean.
8. Pluginto anoutlet andturn the powerswitch
ON(I).
9. Slowlymovethemachineforwardand backover
barefloorsurfaceonetimewhilepressingtrigger.
Caution:Do notoverwet.
10. Repeatthemotionwithout pressingthe trigger.
This allows the hardfloor tool to squeegeeand
suctionup thedirty water.
11. Allow approximately30 minutesfor floors to dry.
12. Removehardfloor tool and rinseanddry
beforestoring.
13. Ifany formula remainsin the formula tank,pour
it backinto the HardFloorSolutionsbottlefor use
thenext time.
14. Rinseoutthe formula tank.
HardFloor
CleaningTool
BottomFrontEdge
ofFloorNozzle
www.bissell.com
ug310-5944 1697207.indd 15
800.237.7691
2/20/07 3:03:37 PM

iubleshooting RNING:
Reducedspray or no spray.
PossibleCause
1. Bladdermay be empty.
2. SmartMixtank maybe empty.
3. Thefilter maybeclogged.
4. Tanksmay not beseatedproperly.
5. Pumpmayhavelost prime.
6. Thepumpbeltmay bebroken.
insert
Screwdriver
BadeHere
Remedies
1,
2.
3.
4.
5.
6,
Refillbladderwi1_hottapwater.
Fillwi1_BISSELLFiberCleansing
Formulaforcleaning.
Cleanoutflow indicatorfilter,
page12.
TurnpowerOFF(0); remove&
reseattanks.
TurnpowerOFF(0); after1
minuteturnONandpress
Trigger.
Turnthe machineOFF(0) and unplug
from the outlet.Tocheck if a pump
belthas broken,you will needa flat
headscrewdriver.Insertthe blade
endinto the lowerslot ofthe belt
accessdoorto releasethe lower
snap.Ifnecessary,insertthe blade
endinto the upperslot to releasethe
uppersnap.Examinethe beltfor
breakage.Youshouldbeableto
seethe pump beltloopedaroundthe
motorshaft.If it is brokenor missing,
pleasereferto ReplacementPartson
page19beforecallingConsumer
Services.Completeinstallation
instructionswill accompanythe
replacementbelt.
16 www,bissell,com 800.237.7691
ug310-5944 1697 207.indd 16 2/20/07 3:03:39 PM

DirtLifter PowerBrushdoes not turn.
PossibleCause
1. TheBrushBeltor PumpBelt
isoff or broken.
Cleaner not picking up solution.
PossibleCauses
1. Readytools dialmay beonthe
wrong settingfor the cleaningjob.
2. Nozzlewindowmay notbe
properlyattached.
3. 2-in-1 watertank lid is not properlyinstalled.
4. 2-in-1 water tank is not properlyseated.
5. Poortoolposi'don,
(Handheldattachmentsonly).
6. 2-in-1watertankhaspickedup
maximumdirty water.
Remedies
Turnthe machineOFF(0) and unplug
from the outlet,Tocheck if the brush
beltor pump belt hasbroken,you
will needaflat headscrewdriver.
Insertthe bladeend intothe lower
slot ofthe belt accessdoorto release
the lower snap,Ifnecessary,insert
the bladeendintothe upperslot to
releasethe uppersnap.Examinethe
beltfor breakage.Ifbroken,please
referto ReplacementPartsonpage19
beforecallingConsumerServices.
Completeinstallationinstructions
will accompanythe replacementbelt,
Remedies
1. Set readytools dialto eitheror
tools or pretreatfloorcleaning,
2, Pressdownfirmly onthe black
ovalgasketatthe top windowto
makesurethe twotabs onthe
backofthe nozzlewindoware
snappedinto the matingslotsin
the main housing,
3. Re-installlid;referto page9.
4. 2-in-1 water tank mustbefirmly
seatedto func'don;removeand
reseat2-in-1 watertank,
5. Adjustangle;applymore
downwardpressure.
6. Empty2-in-1 watertank, referto
page11.
Other Maintenanceor Service not includedaboveshouldbe performedby an
authorizedservicerepresentative.
Thankyoufor selecting a BISSELLproduct.
Ifyoushouldhappentoneedassistanceduringassemblyoroperations,call1-800-237-7691
lPleasedonotreturnthisproducttothestoreJ
www.bissell,com 800.237.7691
ug310-5944 1697207.indd 17 2/20/07 3:03:39 PM

;SELLConsumerServices
For information about repairs or replacement parts, or questions about your warranty,call:
BISSELLConsumerServices
1-800-237-7691
Monday - Friday 8 a.m. 10 p.m. EST
Saturday 9 a.m. 8 p.m. EST
Orwrits:
BISSELLHOMECARE,INC
POBox3606
GrandRapidsMI49501
A_N: ConsumerServices
Orvisitthe BISSELLwebsite- www,bissell,com
WhencontactingBISSELL,havemodelnumberof unitavailable.
PleaserecordyourModelNumber:
PleaserecordyourPurchaseDate:
NOTE:Pleasekeepyouroriginalsalesreceipt.It providesproofofdateofpurchaseintheevent
ofawarrantyclaim.See"AboutYourWarranty"onpage20fordetails.
18 www.bissell.com 800.237.7691
ug310-5944 1697 207.indd 18 2/20/07 3:03:39 PM

Replacementparts - BISSELLPowerSteamer
Belowa listofcommonreplacementparts.Whilenotallof thesepartsmayhavecome
withyourspecificmachine,allareavailabletoyoufor purchase,ifdesired.
Item Part No.
210-9201
2 203-6655
3 310-1252
4 214-9131
5 214-9142
6 215-9155
7 015-9043
8 015-4439
9 015-9041
10 210-1785
11 210-1795
12 555-6503
13 214-9871
14 210-4052
15 215-0628
16 015-0621
17 213-3501
18 710A
19 720A
20 730A
21 0716
22 0484
23 222-0400
Part Name
4" SmallAreaTool
SprayingCreviceTool
TurboBrush®
HardFloorTool
PreTreatWand
ToughStainBrush
TankAssemblyCompletedncludeslidassembly)
TankLidAssembly
TankBottom
SmartMix®Tank(IncludesCap)
SmartMix® CapAssembly
FlowIndicatorCapAssembly
FloorNozzleWindowandGasket
WindowGasket
ReplacementPumpBelt(WithInstructions)
ReplacementBeltBrush(WithInstructions)
LintScreen
FiberCleansingFormulaTM 48 oz
Multi-AllergenRemovaFMFormula48 oz
PetOdorandSoilRemovaF_ Formula48 oz
3xConcentratedFiberCleansingFormulawith
ScotchgardTM Protector43 oz.
HardFloorSolutionsTM 32 oz
ToughStainPreCleaneF_ 22 oz
1
17
2
<-.*_-.......
18
3
10
11
4
12 _
o
2O 21
6
15
22
7
16
23
www.bissell.com 800.237.7691
ii
ug310-5944 1697 207.indd 19 2/20/07 3:03:40 PM

- BISSELLPowerSteamer
Thiswarranty givesyou specific legal rights,and you mayalso haveotner rtcqts wntcn mayvary from state
to state. Ifyou needadditionalinstruction regardingthiswarranty or nave auesttonsregardingwhat it may
cover,pleasecontact BISSELLConsumerServicesby E-mail,telephone,or regular mal as describec below.
LimitedOneYearWarranty
Subjectto the *EXCEPTIONSAND EXCLUSIONSidentified below,uponreceipt ofthe product BISSELL
Homecare,Inc.will repair or replace(with newor remanufacturedcomponents or products),at BISSELL's
option,free of charge from the dateof purchaseby the originalpurchaser,for one year any defectiveor
malfunctioning part.
See information belowon "If your BISSELLproduct should requireservice".
Thiswarrantyappliesto productusedfor personal,andnot commercialor rentalservice.Thiswarrantydoesnot
applytofansor routinemaintenancecomponentssuchasfilters,belts,orbrushes.Damageormalfunctioncaused
by negligence,abuse,neglect,unauthorizedrepair,or anyotherusenot in accordancewith the User'sGuideisnot
covered.
IfyourBISSELLproductshouldrequireservice:
Contact BISSELLConsumer Services to locate a BISSELLAuthorized Service Center inyour area.
If you needinformationabout repairs or replacement parts, or if you have questions about your warranty,
contact BISSELLConsumer Services.
Website or E-mail:
www.bissell.com
Usethe "Customer Services" tab.
OrCall:
BISSELLConsumerServices
1-800-237-7691
Monday - Friday8 a.rn. - 10 p.m. ET
Saturday9 a.rn. - 8 p.m. ET
Orwrite:
BlSSELLHomecare Inc.
POBox 3606
Grand RapidsMI 49501
ATTN:ConsumerServices
BISSELLHOMECARE,INC,ISNOTLIABLEFORINCIDENTALOR
CONSEQUENTIALDAMAGESOFANYNATUREASSOCIATEDWITHTHE
USEOFTHISPRODUCT,BISSELL'SLIABILITYWILLNOTEXCEEDTHE
PURCHASEPRICEOFTHEPRODUCT,
Somestatesdo notallow the exclusionor limitationof incidentalor consequentialdamages,sothe above
limitationor exclusionmay not applyto you.
*EXCEPTIONSAND EXCLUSIONSFROMTHETERMSOFTHELIMITEDWARRANTY
THISWARRANTYISEXCLUSIVEANDINLIEUOFANYOTHERWARRANTIESEITHER
ORALORWRITTEN,ANYIMPLIEDWARRANTIESWHICHMAYARISEBYOPERATION
OFLAW,INCLUDINGTHEIMPLIEDWARRANTIESOFMERCHANTABILITYAND
FITNESSFORA PARTICULARPURPOSE,ARELIMITEDTOTHEONEYEARDURATION
FROMTHEDATEOFPURCHASEASDESCRIBEDABOVE,
20 www.bissell.com
@2007 BISSELLHomecare,Inc
Grand Rapids,Michigan
All rightsreserved.
PartNumber 310-5944
Rev 02/07
Visitour website at:
www.bisselLcom
Scotchgard is a trademark of 3M
800.237.7691
ug310-5944 1697 207.indd 20 2/20/07 3:03:47 PM
