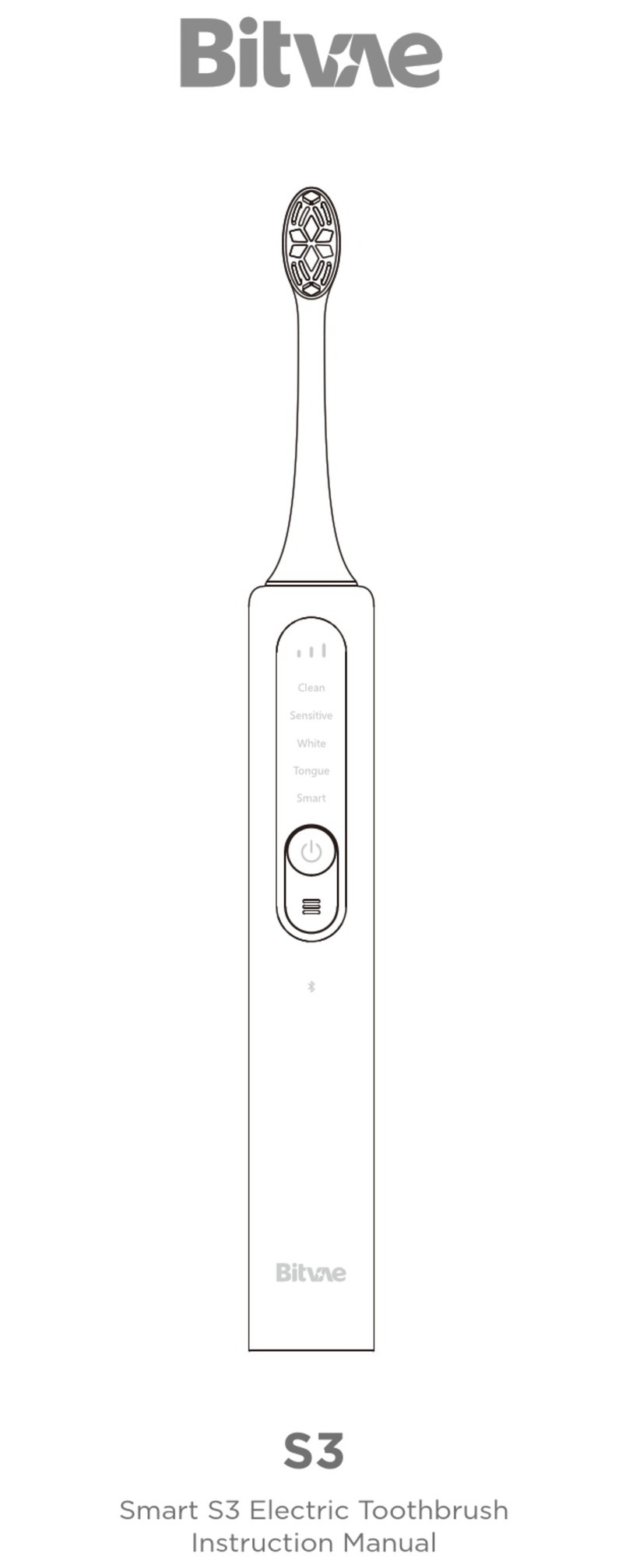

Bitvae S3 User manual
Attention
1. When using this product for the first time, it is recommended to use sensitive
mode. If you experience discomfort or bleeding gums for more than 2 weeks,
please stop using this product and consult your dentist.
2. When starting the toothbrush for the first time. In case of low power or no power,
please charge the toothbrush fully before using it.
3. Do not put the product in fire. Do not charge, use or place it in high temperature
environment.
4. Do not place the product in damp environment or other liquid for a long time to
avoid function failure.
5. Do not repair, alter the product or use other accessories or power supplies by
yourself.
6. Please do not drop or give strong impact on this product.
7. This product is for oral cleaning only, do not use for other purposes.
8. To ensure safety, do not use this product while charging.
9. Please use a 5V adapter for charging.
10. Before charging and connecting to the power supply, ensure that the charging
interface and power adapter are completely dry.
11. Periodically check whether the power cord is damaged. If the product is
damaged or faulty, please stop use it.
12. In case of battery leakage, please stop using immediately to avoid accidental
contact with skin.
13. Do not place the product in the mouth or brush your teeth in supine position,
otherwise it may lead to accidental swallowing.
14. Children cannot play with this product or disassemble it.
15. Keep this product away from children and infants.
16. This product contains small parts such as "brush head protection
cover", which should be keep away from children. When using this
product or replacing the brush head, please discard the brush head
protection cover firstly.
17. This product is not suitable for children under 12 years old. Children between 3
and 8 years old need parental or adult supervision guidance when brushing their
teeth.
18. If you have serious dental problems or are undergoing oral treatment, consult
your dentist before using this product.
19. If you have questions about pacemakers or other implanted devices, consult a
professional doctor before using this product.
Note: The illustrations of products, accessories and user interface in the manual are
all schematic diagrams for reference only. Due to product updates and upgrades,
there may be slight differences between the actual product and the schematic
diagram. Please refer to the actual product.
Product design
Features
1. Waterproof and non-slip design
2.Five Mode
Clean：Suitable for normal oral environment, maintain healthy oral hygiene.
Sensitive: Suitable for users with moderate cleaning requirements and sensitive teeth.
White: Frequency conversion alternately vibrates, cleans and promotes blood
circulation of the gums, effectively polishes and whitens the teeth.
Tongue: When working 20 seconds, it can effectively remove the bacteria on the
tongue coating and improve the health of the tongue coating.
Smart: The user can customize the brushing method, strength and time in the APP.
①Choose 1 of 3 brushing methods: clean, sensitive, whitening
Care method: tongue coating (20 seconds)。
②Strength1~9。
③Time：2 minutes、2.5minutes、3minutes、3.5minutes、4 minutes.
3. Three Forces
The body strength adjustment can be applied by 5 gear modes
Strength of smart rely on APP control.
4. Smart Pressure Sensing
When the brushing force is too strong, the pressure on the brush head is too heavy, and the
pressure light switch is triggered, the pressure sensing light on the back of the handle is
always on red, and the brush head vibrates rapidly, reminding you to reduce the brushing
intensity and reduce the damage to the gums.
5. Gradual increase in vibration
In order to prevent toothpaste from splashing, the vibration frequency gradually increases
when each gear is activated.
6. Memory function Mode
Each time you use it for 5 seconds or more, the electric toothbrush will remember the
brushing mode currently used; when you use it next time, press the power button to
automatically turn on the mode and intensity of the last use.
7. Scientific timing reminder
Non-custom mode 1-3 gears: brush your teeth for 30 seconds, the body will pause for a while
to remind you to change the brushing area; after 2 minutes, the toothbrush will automatically
stop; 4 gears clean the tongue coating for 20 seconds, the toothbrush will automatically stop.
Custom mode 5 gears: The maximum brushing time can reach 240S according to the setting.
8. Low battery function reminder
When the power is lesser than 10%, pressing the power button shortly, the product can work,
the three red lights flash for 5 seconds.
When the power is lesser than 5%, pressing the power button shortly, the product cannot
work, the three red lights flash for 5 seconds.
9.Operating time
The working time of battery is more than 180 days (sensitive mode, 2 times a day, 2 minutes
each time)
10.Charging time
Type-C charging directing，Fully charged within 4 hours.
11. Charging method
During charging: when 1%-30%, the first white light flashes slowly; when 30%-60%, the first and
the second white lights flash slowly; when 60%-99%, the three white lights flash slowly ; After
fully charged, all the charging lights are keeping on for 2 minutes and then turn off.
12.Power on
Charge in the off state or press the power button shortly, the mode light will turn from
bottom to top, and the power on state will be turned on.
13. Power off
Press the power button for 10 seconds, the mode light will run from top to bottom once,
and the power off state will be turned on.
14. Button mode exchange
When power on, shortly press the button mode exchange within 5s; shortly press the stop
button within 5-15s; after 15s shortly press can enter into the hold on state. When the hold
on state counts down for 30s, the gear light is in a breathing state, and starts again within
30s, the gear light is keeping on, continue to brush your teeth, if it does not start, the
brushing will end; when switching from the last gear to the first gear, the product stops
working.
15. Overvoltage protection
If the input voltage is too large, the product will turn on the self-protection state, and the
charging process will automatically stop.
16. Bluetooth connection
Non-working state: After the bluetooth connection, when the bluetooth light flashes, press
the power button for 3S to enter into the binding pairing mode, and the device can be
matched.
17. Bluetooth real-time function
①Strength adjustment: The toothbrush host 1-5 mode can adjust the overall strength in the
APP, and the adjustment range is strength 1-9.
②Brushing time:
1~3 gears, fixed for 120 seconds, finish automatically.
4 gear, 20 seconds, finish automatically.
5 gear, according to the time set by the user, it will finish automatically.
③Interface reminder: In the APP brushing interface, the current mode and the current host
strength are displayed, and they switch when the host switch.
④Real-time brushing, animation guidance: When brushing teeth, the toothbrush
recognizes the user's brushing position, judges whether the current guidance position is
correct, and accumulates the effective brushing time in the area; when an abnormal position
is identified, the effective brushing time is not accumulated (reminder the posture is
incorrect)
⑤Important care reminder: the sensitive area of the gums will automatically reduce the
intensity (to the minimum intensity of 1); the APP will remind you when there is plaque in
the area.
⑥Overpressure reminder: When brushing your teeth, the brush head feels excessive
pressure, then the APP pops up an overpressure reminder.
⑦Data synchronization: After brushing, synchronize data with APP (score, brushing time,
overvoltage, etc.)
⑧Stop brushing: shortly press for 5-15S to stop; after 15s shortly press the pause, restart
within 30s to continue brushing.
18. Data Storage
Record the recently 180 sets of brushing data (data lesser than 15 seconds of brushing time
will not be recorded). If the data exceeds, the old data will be automatically replaced, and
the data will be automatically synchronized after the Bluetooth connection with the APP,
and the data will be synchronized through the pairing code.
19. Data reporting
After the host stops working, it will start again within 30S as the same brushing report; if it
exceeds 30S, it will start again as the next report.
20. Abnormal feedback
When there is an abnormality, the force display/charging display light group will light up in
red.
Instructions for use
1. Battery charging
-During use, if the power/charge indicator lights flash red for 5 seconds, it
reminds you to charge in time
-Please insert the charging cable into the charging port. After the power is
safely connected to the power supply, the charging white light flashes slowly
to indicate that it is charging.
-After fully charged, the charging lights are all on for 2 minutes and then
turn off.
2. Steps of brushing teeth
-Fix the brush head to the handle.
-Wet the bristles and squeeze an appropriate amount of toothpaste.
-The toothbrush is tilted 45°and placed at the junction of the teeth and the
gums.
-Select the appropriate mode to start the toothbrush and move slowly.
-Change the brushing area every 30 seconds and automatically shut down after 2
minutes.
-After using, rinse the toothbrush with clean water and wipe it clean.
Common Problems
Why is there a record of zero brushing time in the report?
Because the brushing time is the accumulated effective brushing time, when the correct brushing posture is not
detected in the process of brushing, the record of brushing time is 0.
If the device cannot start, it may be caused by the following conditions
1. The power supply is too low, and the power supply light will flicker when the power is low.It can be started
after deep charging
2. The device is in charge
3. There is a foreign body stuck at the switch
How to update the firmware program of the toothbrush equipment?
Connect the toothbrush device, enter "Settings" - "Firmware Upgrade" on the home page, and upgrade can be
done according to the prompts
Can't access the real-time brushing interface while brushing?
Please start the APP cold 2. In standby state, long press the toothbrush on key for 10s until the running light
comes down once, and then press the switch again to wake up
Device Connection
Why can't I find the device?
Please make sure your Bluetooth settings are on and that your electric toothbrush is powered and connected!
Can you bind multiple toothbrush devices?
The APP can bind multiple toothbrush devices, and the data of different toothbrush devices can be saved
separately, and the device management department can switch or add devices
How do I add a new device?
1. When the toothbrush is not bound, the APP will prompt you to bind or click the drop-down button to pop
up device management. "Add" can be used for device scanning 2. After energizing the device, keep it close to
the phone. Under normal circumstances, the new device will be displayed in the device scan list 3. Click the
scanned device to bind according to the prompts
Can't find toothbrush equipment?
1. Low battery on your toothbrush
2. The toothbrush is far away from the phone
3. The toothbrush has been connected to another phone
4. The toothbrush enters dormant state and needs to be lifted to wake up
5. The device enters deep sleep state.You need to tap the power button to turn it on
6. Bluetooth is not turned on Note: If none of the above conditions occurs, please try the following operation
Please turn off the Bluetooth and APP on the mobile phone, restart the Bluetooth and APP, and try to search
the device again.If still cannot search, please long press the device switch for 10 seconds, then press the switch
to wake up, and then use APP to search the device
Battery Power
Power description
1、When the power of toothbrush is less than 10%, app will remind you of low power. In order not to affect
normal use, please charge it in time
2、When the power of toothbrush is less than 5%, it will enter the low power protection mode. The toothbrush
cannot work. Please use it after charging
3、When the toothbrush is normally charged, it will not be used for safety consideration. Please unplug the
power supply when the charging power meets the usage value
If the device cannot be charged, the following circumstances may cause
1. The equipment is in full power state
2. The required adapter is not used
3. There is a foreign body at the charging interface
Service support
1. Since the date of purchase, if the fault is caused by non-human factors, you can
repair the machine for free within 1 year .
2. During the warranty period, if the product cannot work due to the design, we will
replace parts or the whole product for free.
3. The following conditions are not covered by the warranty: toothbrush
head; Damage caused by improper using, such as improper use of power, plug in
the wrong socket, artificial damage, etc. Damage caused by the use of the
product for other purposes or by the use of unauthorized components; Normal
use will cause aging and wear; If you have any questions, please contact customer
service.
Environmental protection
This product operates with rechargeable lithium battery, when scrapped, do not mix
with general household garbage, should be sent to the battery recycling office for
treatment according to the local waste management regulations.
CONTACTS
After-sale Guarantee
Any question, please contact us. We will provide a solution within 24 hours.
support@bitvae.com
TEL：972-679-9068
https://bitvae.com
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
L'émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux
CNR d'Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
1) L'appareil ne doit pas produire de brouillage;
2) L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Cet émetteur ne doit pas être colocalisé ou fonctionner en conjonction avec une
autre antenne ou un autre émetteur.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
Le matériel a été évalué pour répondre aux exigences générales d’exposition aux
radiofréquences.Le dispositif peut être utilisé dans des conditions d ‘exposition
portables illimitées.
Other manuals for S3
1
Table of contents
Other Bitvae Electric Toothbrush manuals
