BJ BJ-V300RC-DC12V User manual
Page 1 Total 7 Pages
RGB Remote Controller
Model：
：：
：BJ-V300RC-DC12V
V1.0
Manual
***Please read this manual thoroughl before using this controller. ***
Important Notice：
：：
：
Important Notice：
Thank you for purchasing our BJ-V300RC remote key-press type controller. Please read this
manual carefully before installing and using this product and make sure you understand the
manual completely to avoid unnecessary damage and extra cost.
After Service：
：：
：
If quality problems occur during the normal use abiding by the operation instructions, our
company offers replacement service within 1 month from the purchase date or free maintenance
within 1 year from the purchase date.
Supposing the damages caused by disobeying the operation instructions or under the following
circumstances, we will not take the responsibility for any problems or disfigurements of the
product, even if it is still in the warranty period, but the purchaser will bear the maintenance
ShenZhen BeiJing Optoelectronics Science & Technology Co.,LTD
深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司
Page 2 Total 7 Pages
costs.
1． The damages caused by disassembling, or modifying the circuit personally, or replacing any
chip without permission.
2． The damages caused by transportation, bump, or fall to the ground after the purchasing.
3． The damages caused by natural calamities like earthquake, fire, flood, or lightning attack,
environment pollution, abnormal voltage.
4． The damages caused by negligence or improper maintenance, such as storing in the high
temperature and moisture surroundings, or near the harm chemicals.
If everything goes smoothly, the maintenance time is no more than one month and the charged
maintenance costs are only the material cost and postage.
Precaution：
：：
：
In order to keep the intact of the product and to use safely, please follow the instructions in this
manual.
1. Please avoid installation in the area where there is lightning strike, or strong magnetic filed or
the high-voltage place.
2. Ensure the correct and firm wire connection in case that the short circuit damages the parts
or causes the fire accidents.
3. The controller should work in the ventilated and dry places to make sure the proper
environmental temperature.
4. Before use this product, please check that if the local voltage and the adaptor meet the
requirements of the product and also check if the polarities of the power are defined identically
with the products.
5. Before switch on the power, please confirm the correct installation and connection, and no
short circuit. To do the connection as the power on is forbidden.
6. If the controller working out of the way, please switch off the power, but do not disassemble
and repair it privately.
*This Manual is onl for our product with this model. An changes, no further notice. *
ShenZhen BeiJing Optoelectronics Science & Technology Co.,LTD
深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司
Page 3 Total 7 Pages
Product Instruction
BJ-V300RC remote/ke -press t pe multifunctional LED RGB controller is used exclusively to
control the RGB color of the LED modules with 4 lines and 3 loops (common anode) to change
entirely and synchronously.
Performance Specification：
：：
：
Model:
BJ-V300RC-DC12V
Working
Voltage:
DC12V
Output Load
Current:
9A 路×3
Self Power
Consumption:
< 1W
Output Power:
1～ 300W
Speed Level:
8 level
Brightness
Level:
0～8 级
Case
Dimension:
L211×W40×H30
MM
Working
Temperature:
:
-10 ℃～ 50℃
Packing Size:
L218×W45×H50
MM
Interface
T pe:
:
Terminal
Interface
Weight:
200g
Protective
Function:
Short circuit
Self-protection
Features:
1. Key-press control and remote control are
available. The effective remote control distance is 50
meters. But if in the open area, the remote control
distance can be 100 meters. 2. Three lines
for RGB can be controlled with the maximum output
current of 9A for each line. 3. 10 types
of change patterns and 256 levels of gray scale
4.In each mode, 1-8 level of speed and 0-8 level of
the whole brightness change can be individually
controlled 5.。Pause function can keep the LED color
and gray scale in the present mode.
Applicable
LED Module:
All the RBG LED modules and strips manufactured by our
company.
ShenZhen BeiJing Optoelectronics Science & Technology Co.,LTD
深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司
Page 4 Total 7 Pages
Operation Instruction：
：：
：

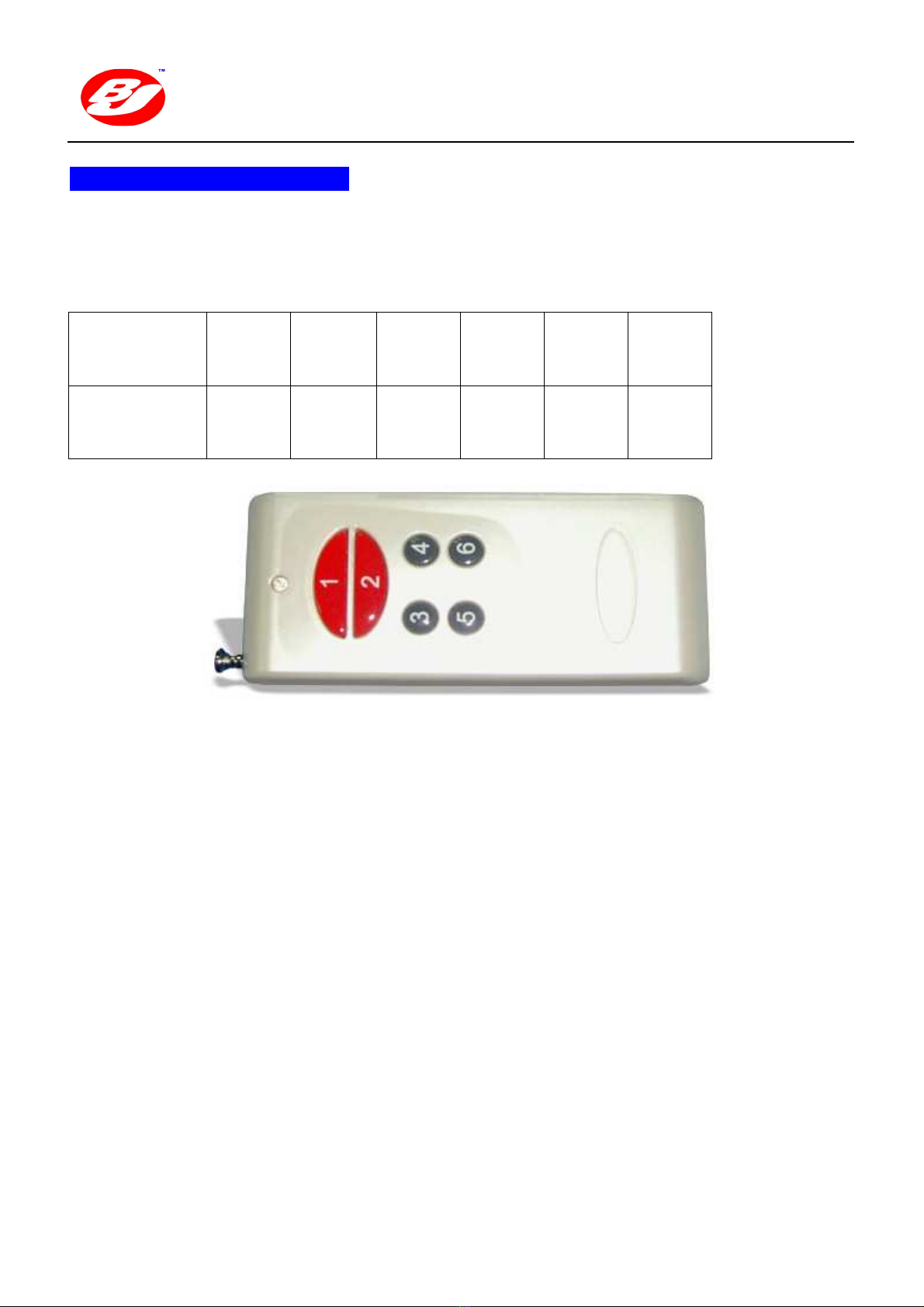

BJ-V300RC controller can be operated not onl b ke -press, but also b remote
controller (See the photo of the remote controller below).
The
corresponding relationships between the ke -press on the remote controller
and the ke -press on the RGB controller:
Ke -press on
the RGB
controller
MODE
PAUSE
SPD+
SPD- BRI+ BRI-
Ke -press on
the remote
controller
1 2 3 4 5 6
1．”Mode” key is used to choose a mode. The mode will be changed after each press and total
10 modes can be chosen circularly.
2. ”PAUSE” key is used to pause. When it is working in order, press “PAUSE” key, the present
color or gray scale will stand by. Press “PAUSE” again or other key, it will be back to the
normal state.
3. “SPD+” or “SPD-” key is to change the speed. There are total 8 levels of speeds adjustable.
The default speed when the controller powered is the 1
st
level speed, namely the maximum
speed.
4. “BRI+” or “BRI-” key is to change the brightness. There are total 8 levels of brightness
adjustable. The default brightness when the controller powered is the maximum.
5.
After above settings done, the controller will automatically save the settings. Then when
powering the controller next time, it will work under the final mode settings saved last time.
**Precaution: When operating, please press the ke s gentl , but don’t
overexert to avoid the membrane ke -presses failing to function.
ShenZhen BeiJing Optoelectronics Science & Technology Co.,LTD
深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司
Page 5 Total 7 Pages
List for lighting effects：
：：
：
Mode
Lighting Effects Remark
1
RG Jumping
2
GB Jumping
3
RB Jumping
4
Seven-color Jumping
5
RG Fading
6
GB Fading
7 B
R Fading
8
RGB Fading
9
Seven-color Gradual Brighter or Dimmer
10
Auto C cle Mode
Automaticall c cle from the 1
st
to 9
th
mode
.
Problem Anal sis and Solution：
：：
：
Problem Reason Analysis Solution
The wire on the wire terminal in bad connection
Anode grey wire in the wrong connection
Re-connect the
wires.
The positive and negative wires of the power supply in short
circuit
LED out of work
Be interfered
Re-power
In wrong color The wire is not corresponding with the LED
Re-connect the
wire to the
corresponding
LED.
ShenZhen BeiJing Optoelectronics Science & Technology Co.,LTD
深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司
Page 6 Total 7 Pages

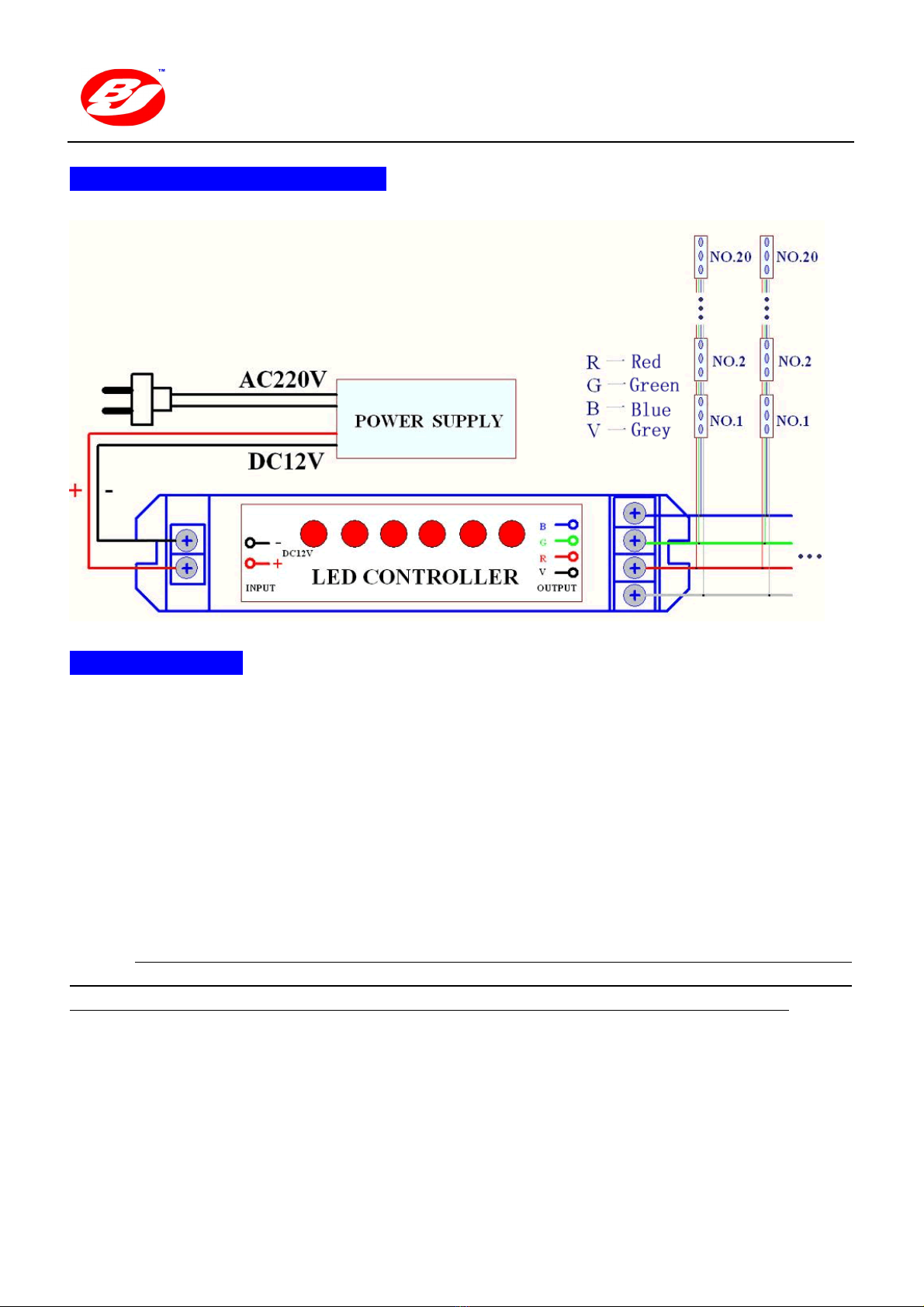

Connection for Reference：
：：
：
Installation：
：：
：
1.
The distance between controller and power supply or between LED modules and
controller should be no more than 3 meters;
2.
When choosing the power cord, please remember that the total current of the LED
modules connected with the power cord should not exceed the normal working current of the
power cord;
3.
Please make sure that the metal case of the power supply is connected with the ground
line since the power supply must be grounding;
4.
The waterproof and insulating treatment should be done for the last module of each
loop;
5.
The controller and power supply must work in the ventilated and dry environment;
6.
The Grey output wire(V) of the controller should be connected with the grey common
anode wire(DC12V) of the controlled modules, while another three output wires of red, green and
blue should be connected with the red, green and blue wires of the controlled modules;
7.
Please confirm that no short circuit exists between input or output wires of the main line
of the controlling. If electrified when short circuit existing, the internal components may be
burned out;
8.
When doing the connection and installation, please take care and don’t disassemble or
install without switching off the power;
9.
If the controller working out of the way, please don’t disassemble or removing privately,
but contact with the manufacturer to solve the problems.
ShenZhen BeiJing Optoelectronics Science & Technology Co.,LTD
深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司深圳市贝晶光电科技有限公司
深圳市贝晶光电科技有限公司
Page 7 Total 7 Pages
This manual is just for reference onl . Shenzhen Beijing Optoelectronics
Science & Technolog Co., Ltd. reserves the right of the final explanation. An
changes, no further notice.
Address: No. 1 Building, Julong Industrial Park, Shuidou, Yousong, Longhua Town, Bao’an District,
Shenzhen, P.R. China
Phone: +86-755-28158599 28158760 ext. 805 Mr. Chen
Fax: +86-755-28134634
Email: Engineering@led-beijing.com
Website: www.led-beijing.com
