Bkav AI View P450-0802GN User manual

Qualcomm products contained here in are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
4k dome
AI-BASED CAMERA

Model: P450-0802GN/P450-0802N/P450-0803FG/P450-0803F
INSTALLATION GUIDE

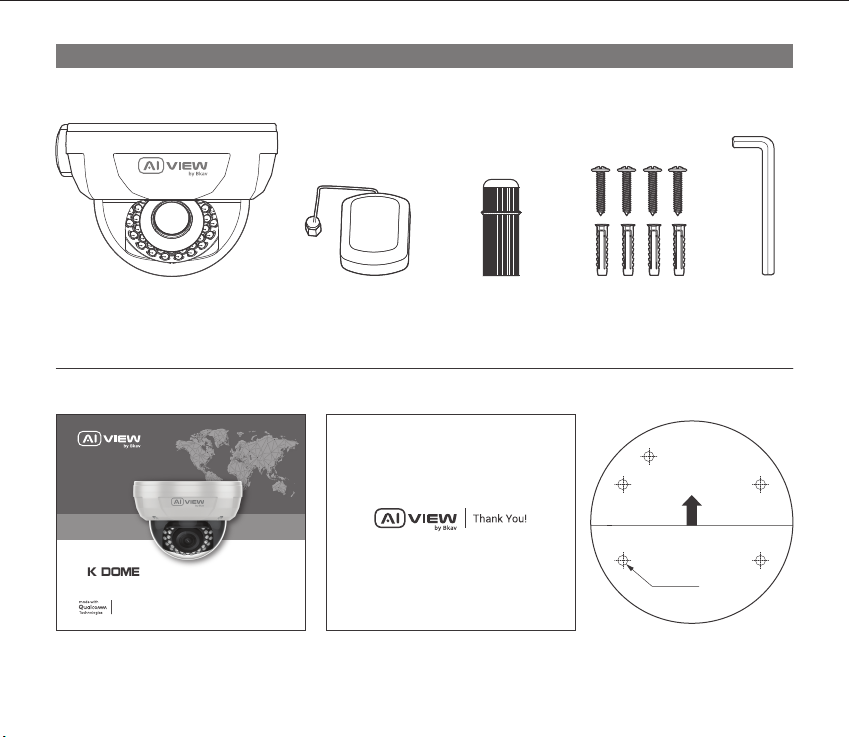

PRODUCT KIT
Camera
Installation guide Drilling position decalThank you letter
3
Hex tool
Set 4 of screws
and anchors
Ø 5 mm, 5 holes
WALL DECAL FOR
DRILLING POSITION
GPS antenna
P450-0803FG/P450-0802GN
Qualcomm products contained here in are products of Qualcomm Technologies,Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
4k dome
AI-BASED CAMERA
Waterproof
couplings

TECHNICAL SPECIFICATION
Protection standards
Resolution, frame rate
IP66, IK10
UHD 3840 x 2160, Max 60fps
Digital zoom P450-0802GN/P450-0802N/P450-0803FG/P450-0803F :8x
Micro SD card External, up to 256GB
Optical zoom
P450-0803FG / P450-0803F: 3x
P450-0802GN / P450-0802N: 2x
Focal length
P450-0803FG / P450-0803F: 10.9 - 29mm
P450-0802GN / P450-0802N: 4.36 - 9.33mm
Field of view (horizontal - vertical)
P450-0803FG / P450-0803F: Near: 42° - 22.8° / Far: 15° - 8.4°
P450-0802GN / P450-0802N: Near: 111.96° - 58.11° / Far: 47.23° - 26.53°
Weight
Operating temperature
-40°C - 50°C (-40°F - 122°F)
Humidity 10 - 100%
Dimentions (L x W x H) L142 x W142 x H101.6mm
1.1kg
4
Power consumption
Power
DC12V: Max 15W
PoE: Max 16.5W
DC12V 10%/ PoE (IEEE802.3at)

Camera body
Camera lens
Dust and waterproof lens protector
Infrared LED
PRODUCT OVERVIEW
5
12VDC power supply
Audio line in (white)
Audio line out (Red)
PoE interface
Signal lights
Reset factory

INSTALLATION GUIDE
Step 1: Apply position decal and then drill 4 anchors to the wall. Put the camera onto the wall using 4
screws to fix the camera ceiling mount (Figure 1).

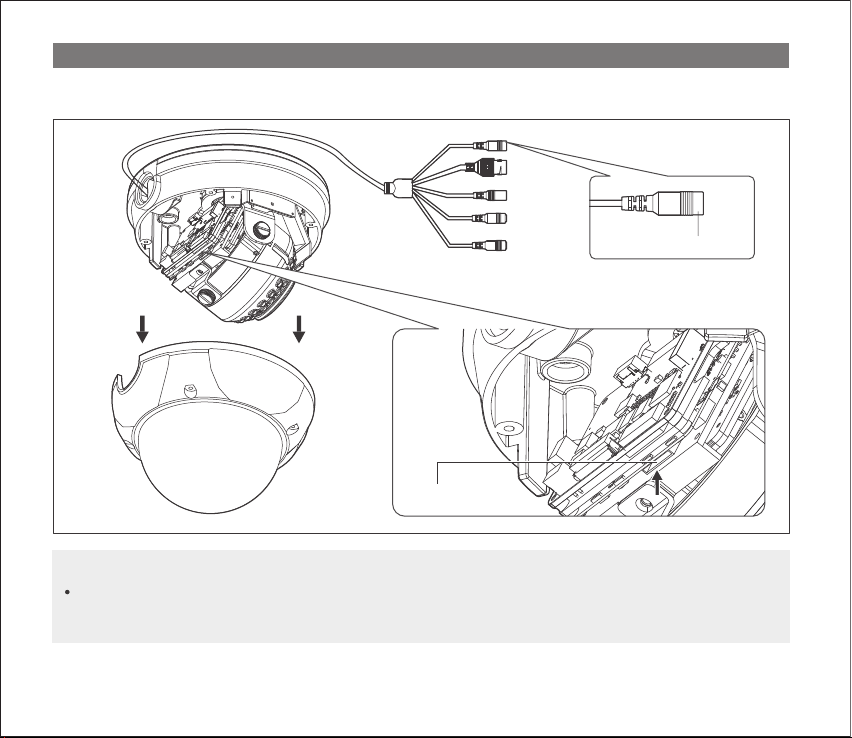

Step 2: Fit the protective cover in the camera body to prevent dust and water, then fix it with 4 screws
(Figure 2).
1 2
6
Drilling position decal

7
CONNECTING THE SIGNAL WIRE
Two options to connect devices:
Option 1: Use the network cable connected from the PoE switch to the waiting PoE interface, no need to use
12VDC power supply (Figure 1).
Option 2: Use 12VDC power supply and the network cable connected from the switch (Figure 2).
Connect the PoE cable. Insert the cable into the
waterproof coupling before connecting the wires
into the terminal.
2
1
PoE switch
LAN
12VDC power supply
PoE interface
Ethernet interface

8

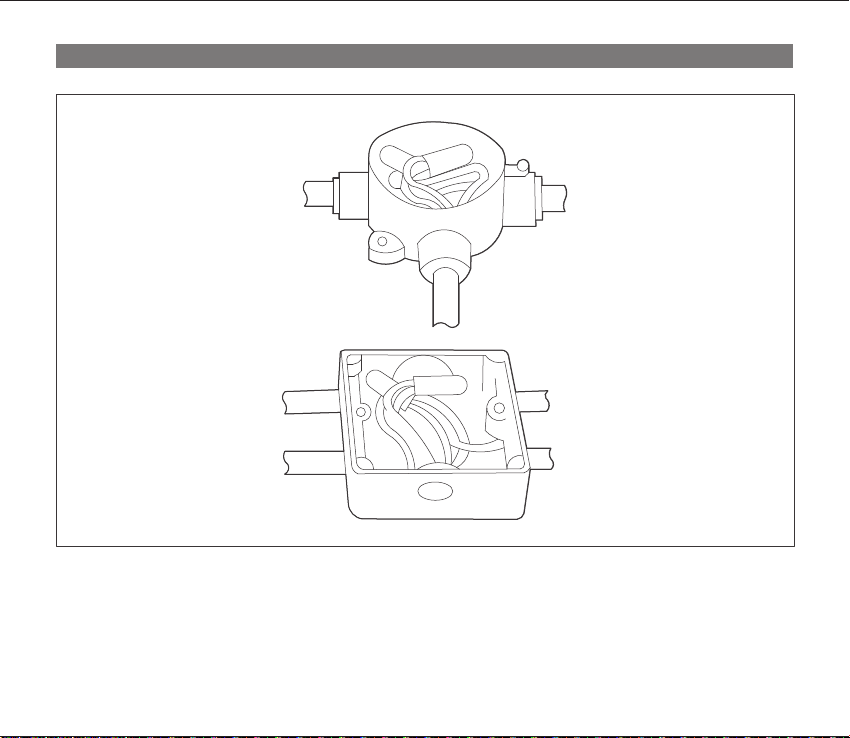

NOTES ON WATERPROOF FOR CAMERA
All wiring connections when installed must be placed in a technical box, protected from the effects of
weather and human factors.

9
GPS ANTENNA INSTALLATION
Step 1: Use the screw unscrew tool in the position, as in the figure below.
Step 2: Use sharp-pointed pliers to insert the GPS antenna connector into the waiting cable terminal
(tighten enough screw thread).
Step 3: Fix the GPS antenna onto the camera body using silicone glue, as in the figure below.
GPS antenna

ADJUSTING THE CAMERA VIEWING ANGLE
65°
80°
10
Note: Don’t need to loose the screw on camera to adjust the camera's angle.

11
THE MEMORY CARD AND RESET INSTALLATION
Micro SD card
Power off the camera, press and hold the factory reset button. Continue to hold the factory reset button
for another 10 seconds while powering the camera, the camera will be restored to factory settings.
Note:
Memory card: Open the protective cover, you can find the location of Micro SD card.
Reset factory

12
ACCESSING THE CAMERA
Password setting
The IP address of camera is set to DHCP mode by default. For the camera enables the DHCP by default,
you need to use the AI View Scanner App to scan IP.
Note: To complete the installation steps for the camera, refer to the User Manual.
The system will ask you to reset the password on your initial access.
When the "Administrator password change" window appears, enter a new password.
For passwords using eight or nine characters, you need to use at least three of the following types of
characters: uppercase and lowercase letters, numbers, and special characters.
For passwords using 10 to 15 characters, you need to use at least two of the character types.
Special characters include: ~ ` ! @ # $ % ^ & * ( ) _ - = + | { } [ ] . ? /
User name
Password
Administrator password change
New password
Confirm new password
For a new password with 8 to 9 digits, you must use at least 3 of the following:
uppercase/lowercase letters, numbers and special characters. For a password with 10 to 15
digits, you must use at least 2 types of those mentioned.
For higher security, you are not recommended to repeat the same characters or consecutive
keyboard inputs for your passwords.
If you lost your password, you can press the [RESET] button to initialize the product. So, don’t
lose your password by using a memo pad or memorizing it.
Special characters that are allowed: ~`!@#$%^*()_-+=|{}[].?/
For additional security, please do not repeat any characters in your password.
If you forget your password, you can hold the [RESET] button to return the product to its
factory settings.
Note:

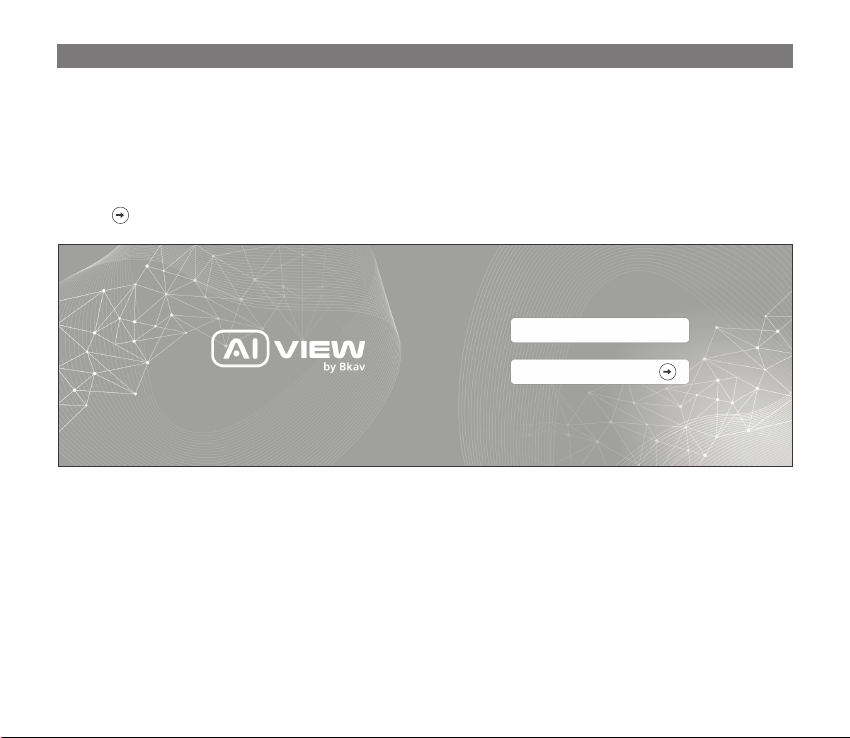

Login screen
When accessing the camera, a login window will appear.
Enter your user name and password to access the camera.
1. Enter "admin" in the <User name> box.
2. Enter your chosen password in <Password> box.
3. Click
SOFTWARE INSTALLATION
User name
Password
13

SAFETY INFORMATION
Be sure to follow this advice to ensure the device works properly.
Installation instruction: Concrete, brick, column, wood... are all suitable. Make sure the wall is strong enough.
The torque forces of screws securing IP enclosure: 1.3 – 1.4Nm.
It is recommended to use shielded network cables (STP) during set-up.
It is recommended to use CAT5e or higher network cables.
Store the camera in a cool and dry environment.
Shield the camera from potential impact from heavy objects.
Do not install the camera on unstable pillars, brackets, surfaces, or walls.
Do not use chemicals or detergents to clean the camera or housing.
To clean, use a damp cloth.
Only use standard tools and accessories when installing the camera equipment. The manufacturer
recommends using the manufacturer's power supply equipment or a corresponding source for the
camera. Improper installation may cause damage to the product.
Contact Bkav's customer support or authorized Bkav agents if you experience any problems.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursu-
ant to part 15 of the FCC rules. These limit are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
a accordance with the instruction manual, may cause harmful interference to radio communications.
Operations of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Precautions
Use the original packaging, or equivalent, to avoid damaging the product during transportation.
Transportation:
14

15
For information about AI View product warranty and thereto related information, go to aiview.ai/warranty.
WARRANTY INFORMATION

Model: P450-0802GN/P450-0802N/P450-0803FG/P450-0803F
HƯỚNG DẪN LẮP ĐẶT

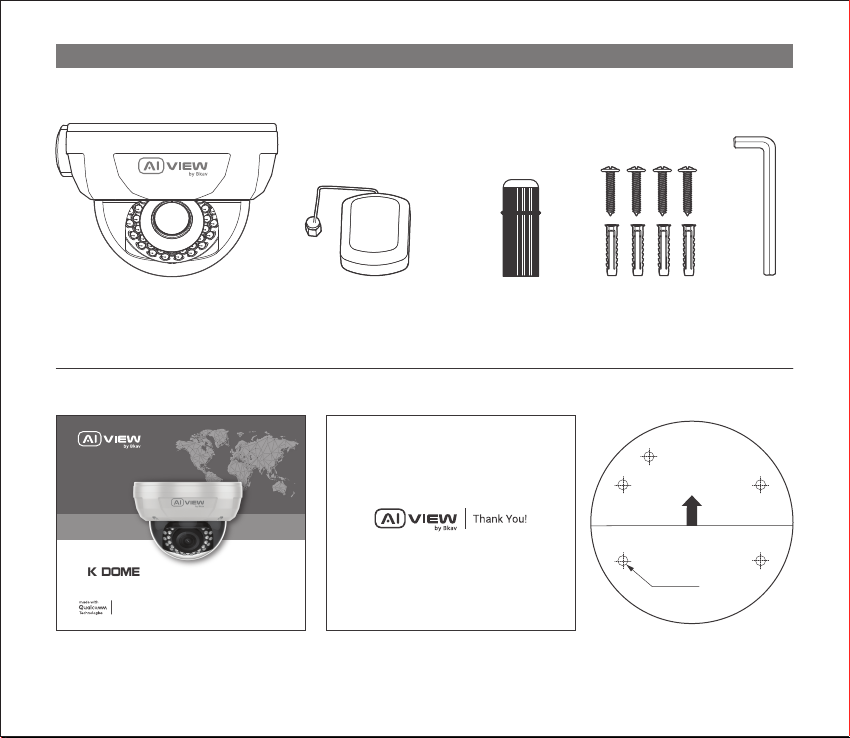

BỘ SẢN PHẨM ĐÓNG GÓI
Camera
Sách hướng dẫn lắp đặt Decan định vị khoanThư cảm ơn
17
Bộ lục giác
Bộ 4 vít và neo
Ø 5 mm, 5 holes
WALL DECAL FOR
DRILLING POSITION
Ăng ten GPS (Phụ kiện cho
P450-0803FG/P450-0802GN)
Qualcomm products contained here in are products of Qualcomm Technologies,Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
4k dome
AI-BASED CAMERA
Khớp nối
chống thấm nước

THÔNG SỐ KỸ THUẬT
Tiêu chuẩn bảo vệ
Độ phân giải, tốc độ khung hình
IP66, IK10
UHD 3840 x 2160, Tối đa 60fps
Zoom số P450-0802GN/P450-0802N/P450-0803FG/P450-0803F: 8x
Thẻ micro SD Hỗ trợ cắm thẻ nhớ ngoài lên đến 256GB
Zoom quang học P450-0803FG / P450-0803F: 3x
P450-0802GN / P450-0802N: 2x
Tiêu cự P450-0803FG / P450-0803F: 10.9 - 29mm
P450-0802GN / P450-0802N: 4.36 - 9.33mm
Trường nhìn (ngang - dọc) P450-0803FG / P450-0803F: Gần: 42° - 22.8° / Xa: 15° - 8.4°
P450-0802GN / P450-0802N: Gần: 111.96° - 58.11° / Xa: 47.23° - 26.53°
Khối lượng
Nhiệt độ hoạt động -40°C - 50°C (-40°F - 122°F)
Độ ẩm 10 - 100%
Kích thước (D x R x C) D142 x R142 x C101.6mm
1.1kg
18
Nguồn tiêu thụ
Nguồn
DC12V: Tối đa 15W
POE: Tối đa 16.5W
DC12V 10%/ PoE (IEEE802.3at)

Thân camera
Ống kính
Kính chống bụi và nước
Đèn hồng ngoại
TỔNG QUAN THIẾT BỊ
19
Cổng cắm nguồn 12VDC
Đầu vào âm thanh (Trắng)
Đầu ra âm thanh (Đỏ)
Cổng kết nối POE
Đèn tín hiệu
Nút Reset

HƯỚNG DẪN LẮP ĐẶT
Bước 1: Định vị lỗ khoang vít bằng Decan và các neo vít trên tường (Hình 1).
Bước 2: Lắp nắp kính chống bụi và nước vào thân camera. Cố định camẻa lên tường bằng các vít (Hình 2).
1 2
20
Decal vị trí khoan
