Bosch EX49N User manual

MAN-49N-01
EX49N
Conical No-Grip Dome Camera
INSTALLATION INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep this instruction.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install
in accordance with manufacturer instructions.
7. Do not install near any heat sources where the
temperature goes above the product rating.
8. Protect the cabling from being walked on or
pinched particularly at connection points and
where they exit from the apparatus.
9. Only use accessories specified by the
manufacturer.consult an electrician for
replacement of the obsolete outlet.
10. Disconnect this apparatus during lightning
storms or when unused for long periods of
time if precautions are not taken to prevent
lightning/electrical damage to the product.

11. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in a way, such
as internal wiring is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.

IMPORTANT
For best results, please read this Instruction Booklet prior to
installing the EX49N camera.
For best results in infrared image quality, when reassembling the
dome to the housing, make sure the foam donut is in tight 360
contact with the dome.
WARNING !
CSA Certified / UL Listed CLASS 2 power adaptors must be used
in order to comply with electrical safety standards.
12-24 VDC/VAC (60Hz), 10W
CSA Type 4X
CAN/CSA 60065 – 03 + Amd 1
Audio, Video and Similar Electronic Apparatus – Safety Requirements
UL Std No. 60065 - 07
Audio, Video and Similar Electronic Apparatus – Safety Requirements
This Product Has Been Certified By CSA International To
Include the Health Care Facility Requirements Of UL 2044.
This installation should be made by a qualified service person and
conform to all local codes. Bosch will not be responsible for
injuries or damages resulting from the improper installation or use
of any camera sold by Bosch, their agents, distributors or dealers.
EU Directives covered by this declaration:
72/9/EC Low Voltage Directives
89/336/EEC Electromagnetic Compatibility Directive

NOTE: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to
part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. As part of its’
normal operation this device can generate radio
frequency energy and if not installed and used in
accordance with the installation manual may cause
interference to radio communications. However, there
is no guarantee that interference will not occur on a
particular installation. If the device does cause
interference to radio or television reception the user is
encouraged to try to correct the interference by one or
more of the following measures:
1) Fit Ferrite beads on all cable to and from the power
supply box, within the box walls.
2) Route the composite cable between the camera and
the power supply in steel conduit piping over the entire
run of the cable up to and including connection to a
deep conduit base fitted under the camera and a conduit
fitting adaptor in the wall of the PSU box.
3) Contact BOSCH Service Center for further advice.

INDEX – EX49N
Page
Description..................................................1
Unpacking...................................................2
Parts List.....................................................2
Items Required for Installation....................2
Initial Preparations......................................3
Guidelines...................................................3
Section 1. Dome Removal..........................4
Section 2. Input Power Connections.......... 6
Section 3. Mounting – Camera Base ..........9
Section 4. Adjustments.............................13
Section 5. Camera Re-Assembly..............18
Section 6. Troubleshooting Guide.............20
Section 7. Template – Mounting Holes.....23
Section 8. General Specifications.............24

1
DESCRIPTION
The EX49N “No-Grip” High Impact Dome
Night Vision Camera has been engineered for
surveillance in hostile environments. Compact
and good looking, the camera features a smooth
“no-grip” housing for protection against theft and
vandalism.
An aluminum housing, CNC-machined from a
solid billet, with an impact resistant
polycarbonate dome and locking retaining ring,
make it extremely rugged and weather-tight.
For flexibility, the CCD Camera/LED Array can
be fully rotated using a unique “Pan-Tilt-Twist”
(PTT) mounting bracket.
A voltage regulator circuit allows for 12V DC or
24V AC operation, and a range in between, also
providing protection from voltage surge,
transient spikes, and reverse voltage.
The EX49N is available in several models
designed to meet specific needs.

2
UNPACKING
Care should be taken when unpacking the
shipped unit. Check the parts list and confirm all
items have been located. Inspect the equipment
thoroughly to ensure nothing was damaged in
transit.
Contact BOSCH Service Center if a problem is
noted, see the rear page of this booklet for
contact numbers.
PARTS LIST (items supplied with unit)
EX49N Camera Assembly with foam gasket
Half-tint dome bubble (installed)
Clear dome bubble (spare)
Installation Instructions booklet
Plastic bag containing one hex key
Desiccant pack for moisture absorption (do
not remove)
ITEMS REQUIRED FOR INSTALLATION
(not supplied with unit)
- Philips, Robertson screwdrivers
- Silicone sealant and Teflon sealing tape
- Mounting screws, etc.

3
INITIAL PREPARATIONS
Determine the operating voltage at the
installation site. The camera‘s Voltage
Regulator Board accepts either +12V DC or
24V AC input.
See Section 2, Input Power Connections.
Determine the optimum location for the
camera. Section 3, Mounting-Camera Base.
All cameras have been tested prior to
shipment. After the wiring has been
reconnected, it is advisable to check the
camera’s operation before installation.
ESD protection – Cameras and circuit boards
are sensitive electronic components. It is
recommended to wear a ground strap to
ground any static charge. (Alternative: touch a
grounded metal plate for at least a minute
before proceeding with any disassembly)
GUIDELINES
The installation of the EX49N camera is explained
in Sections 1 to 5 listed below. It is important that
these steps are followed in sequence:
1. Dome Removal
2. Input Power Connections
3. Mounting – Camera Base
4. Adjustments
5. Camera Re-Assembly

4
1. DOME REMOVAL
The camera’s dome and its retaining ring must
be removed prior to mounting the camera or
performing any wiring disconnections and re-
connections. The set-screws in the retaining ring
are not tightened in the factory and protrude by
1/8" (3mm) in order for the ring to be rotated.
Refer to Figure 1 - 1 on page 5.
Step 1.1 - Place the camera on a flat surface.
Step 1.2 - Press firmly on the dome with one
hand and rotate the retaining ring in
a counter-clockwise direction with
the other hand. Push against the
protruding set-screws with a finger
to rotate the ring. Do not use a
screwdriver or other metal device.
Step 1.3 - Remove the dome and the retaining
ring. Set them aside.

5
FIGURE 1 – 1
Dome Removal
Camera Base
Rotation
Retaining
Ring
Dome
Set Screws
(3)

6
2. INPUT POWER CONNECTIONS
Attention: External Video Cable Systems Must
Be Properly Grounded In Accordance With The
National Electrical Code, ANSI/NFPA 70.
The EX49N Camera Unit is pre-connected with
an electrically isolated power board (VRB) for
24V AC or 12V DC operation, with no change to
the polarity of the wires.
The VRB connects to the Camera and LED
Array Power Board.
See Figure 2 – 1 on page 7 and Figure 2 – 2 on
page 8
NOTE:
For DC input, the input voltage range is
10.8V DC to 26.4V DC.
The recommended input current from the power
supply should be approximately 1 Amp.
For AC input, the input voltage range is
10.8V AC to 26.4V AC.
The recommended input current from the power
supply should be approximately 1 Amp.

7
Power
IN Power OUT

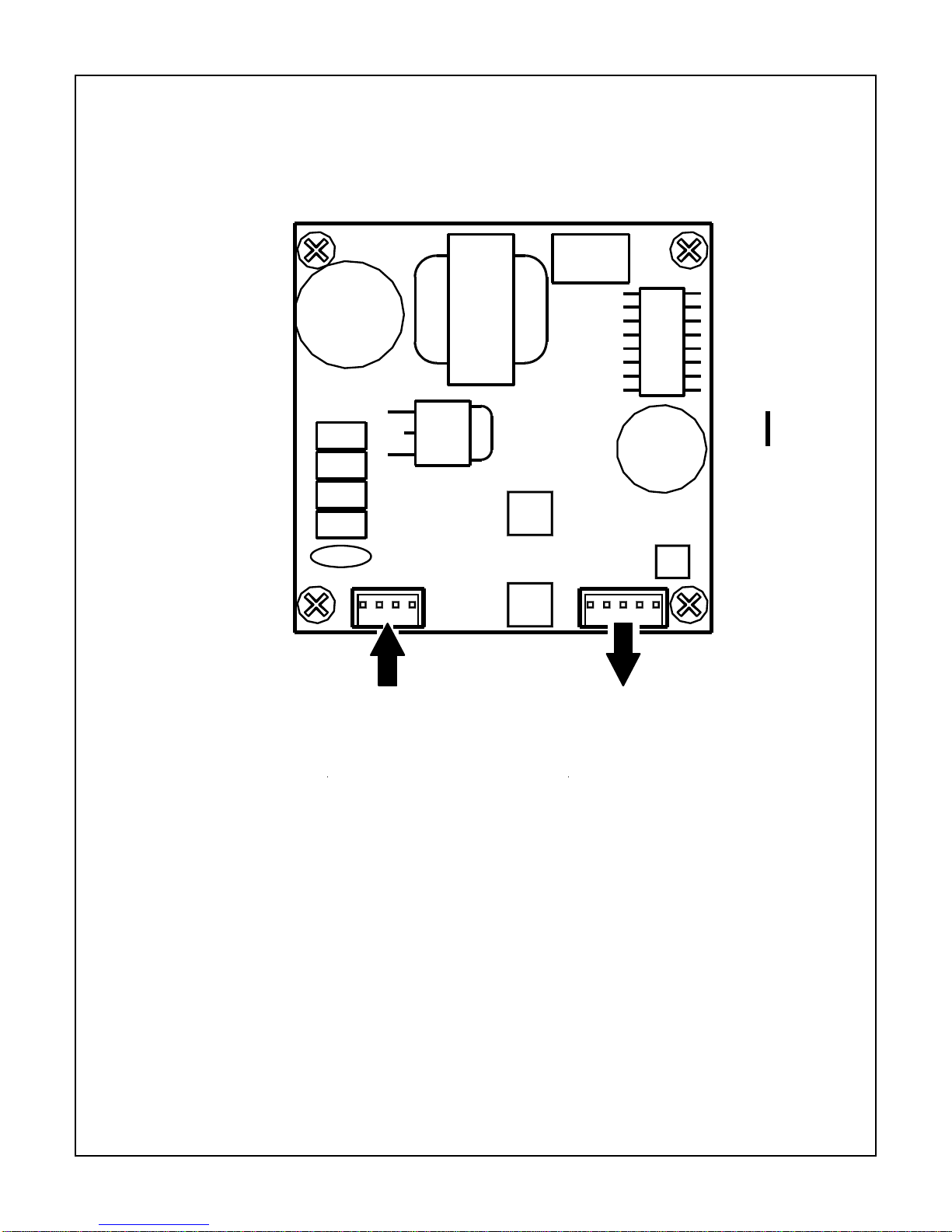

FIGURE 2 – 1
12V – 24V AC / DC
Electrically Isolated Power Board (VRB)

8
Power
Input
12V
Enable
Power to
LED Array Photocell
Adjustment

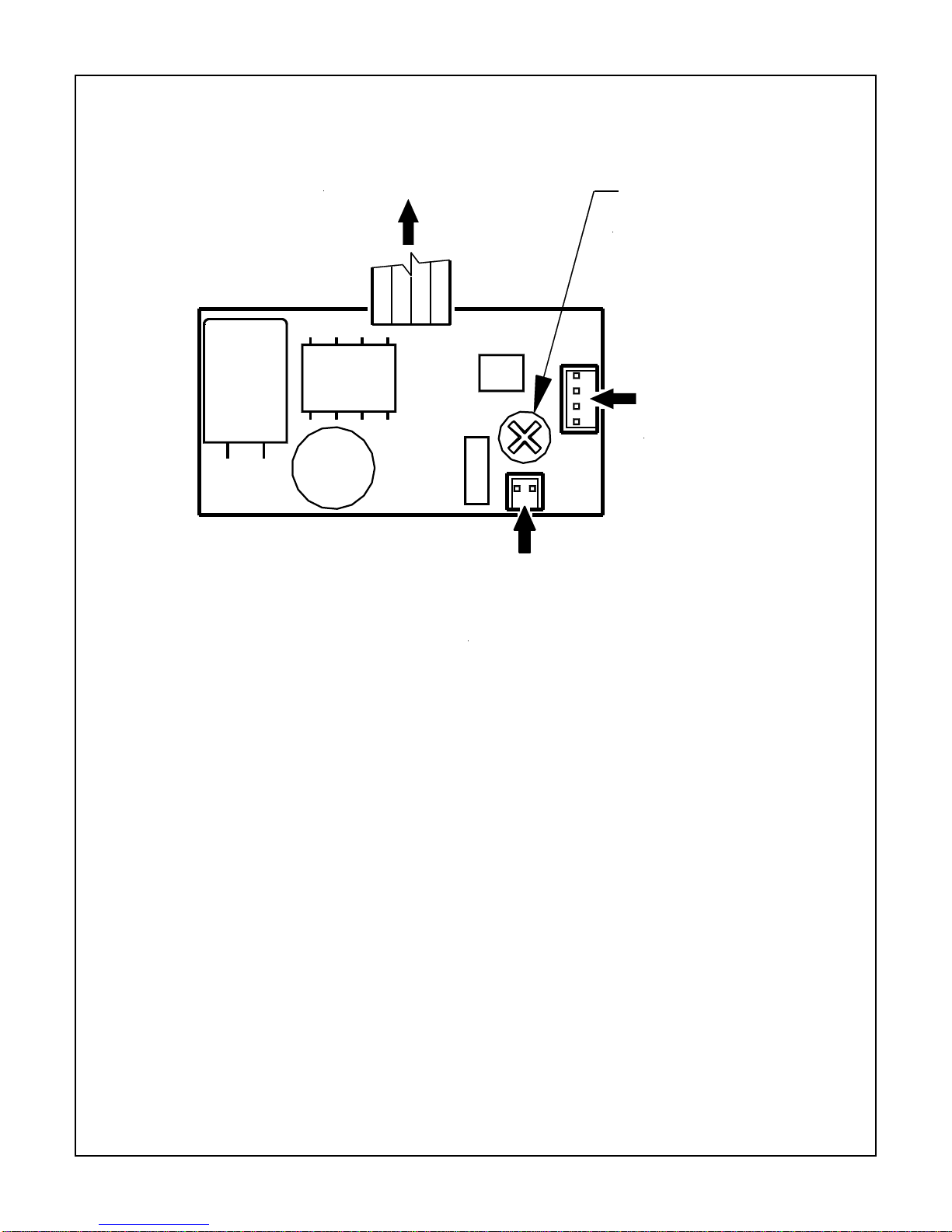

FIGURE 2 – 2
LED Array Power Board

9
3. MOUNTING - CAMERA BASE
IMPORTANT MOUNTING INSTRUCTIONS
WARNING: THIS APPARATUS MUST BE SECURELY
ATTACHED TO THE WALL OR CEILING IN ACCORDANCE
WITH INSTALLATION INSTRUCTIONS. FAILURE TO FOLLOW
INSTALLATION INSTRUCTIONS MAY RESULT IN INJURY
The selected mounting location should not place the
camera in a situation where its environmental
specifications could be exceeded. See page 25.
Caution: Ensure the selected location is protected from
falling objects, accidental contact with moving objects, and
unintentional interference from personnel. Follow all
applicable building codes.
The following installation guidelines must be
followed:
Installation should only be performed by skilled
personnel.
Locate the camera such that it cannot be easily
interfered with, either intentionally or
accidentally.
Select a mounting surface capable of supporting
the combined weight of the camera and
mounting hardware under all expected
conditions of vibration and temperature or
equivalent.

10
Secure all cabling.
Camera has been evaluated for wall/ceiling
mounting using #8 1¼” long, 12 TPI, wood
screws with Robertson heads secured into a 2x4
stud under ½” drywall
Camera has not been evaluated for safety
requirements using other mounting kits.
The mounting holes are configured for a single-gang
electrical box or a round ceiling electrical box. The
camera base can also be mounted to any flat
surface. See the template on page 23.
It would be advantageous if the power and video
wires from the remote source could be routed into
the electrical box at this time.
Step 3.1 - Connect the cables coming out of the
camera to the power and video cables that
are routed from their remote location into
the electrical box or equivalent.
Step 3.2 - Mount the camera housing to the electrical
box or surface. (Screws are not supplied).
Refer to Figure 3-1 on page 11.

11

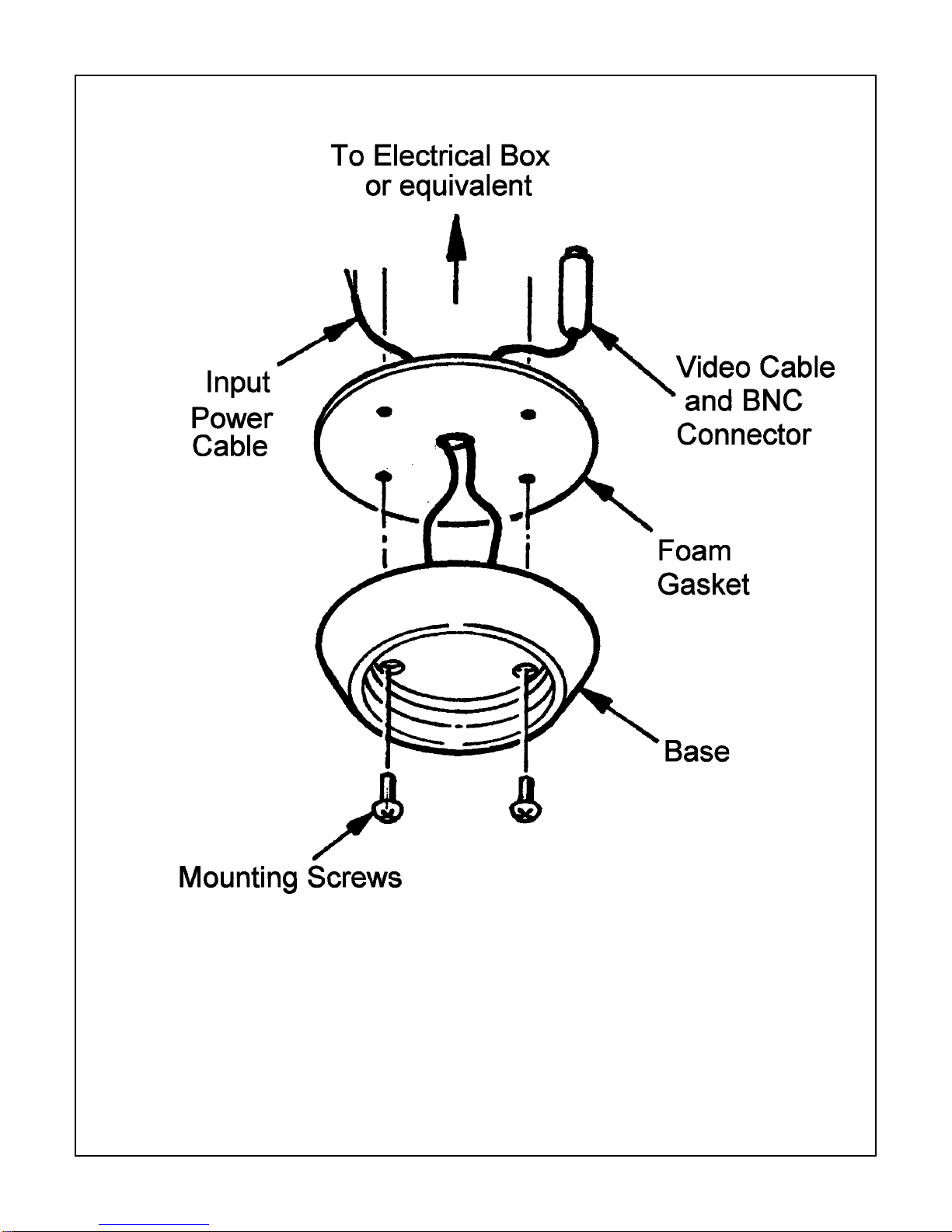

FIGURE 3 –1
EX49N Camera Base Mounting

12
Note:
Gasket Back Cover - Some products have a paper
backing on the gasket. Please remove it before
installation.
Mounting - It is recommended that the camera be
mounted to a flat non-porous surface for best
results. The mounting holes and the area around
the mounting screws should be sealed with silicone
to prevent water or moisture from entering into the
unit.
Conduits and Connectors - The conduits and
connectors connecting to the housing should be
sealed with silicone to prevent water and moisture
from entering into the unit.
Mountin
g
Hole
Mounting Bolt
Seal area around mounting hole
and bolt with silicone
Housing Seal conduit/connector
connection with silicone
Conduit/Connecto
r

13
4. ADJUSTMENTS
For optimum picture quality the camera lens
must be as close as possible to the dome’s
inside face, without touching. However, the foam
ring around the lens should be adjusted to seal
against the dome, minimizing any side light
interference, but without obstructing the field of
view.
The lens dome clearance and camera viewing
angles can be achieved through a combination
of adjustments available on the PTT bracket.
If the lens touches the dome, loosen the side
adjustment knobs and slide the Camera/LED
Array assembly away from the dome. See
Figure 4-2 on page 15. The Camera and PTT
bracket can also be rotated horizontally, see
Figure 4-3 on page 16. The camera picture can
be adjusted by twisting the PTT disc, see Figure
4-4 on page 17. The LED Array brightness has
been set at the factory before shipment. For
photocell sensitivity adjustments see Figure 2-2
on page 8.

14
Note: If light reflects from side walls or other adjacent
surface, some bright spots or halo may appear on the image.
Move lens away from the reflection surfaces in order to avoid
back reflection.

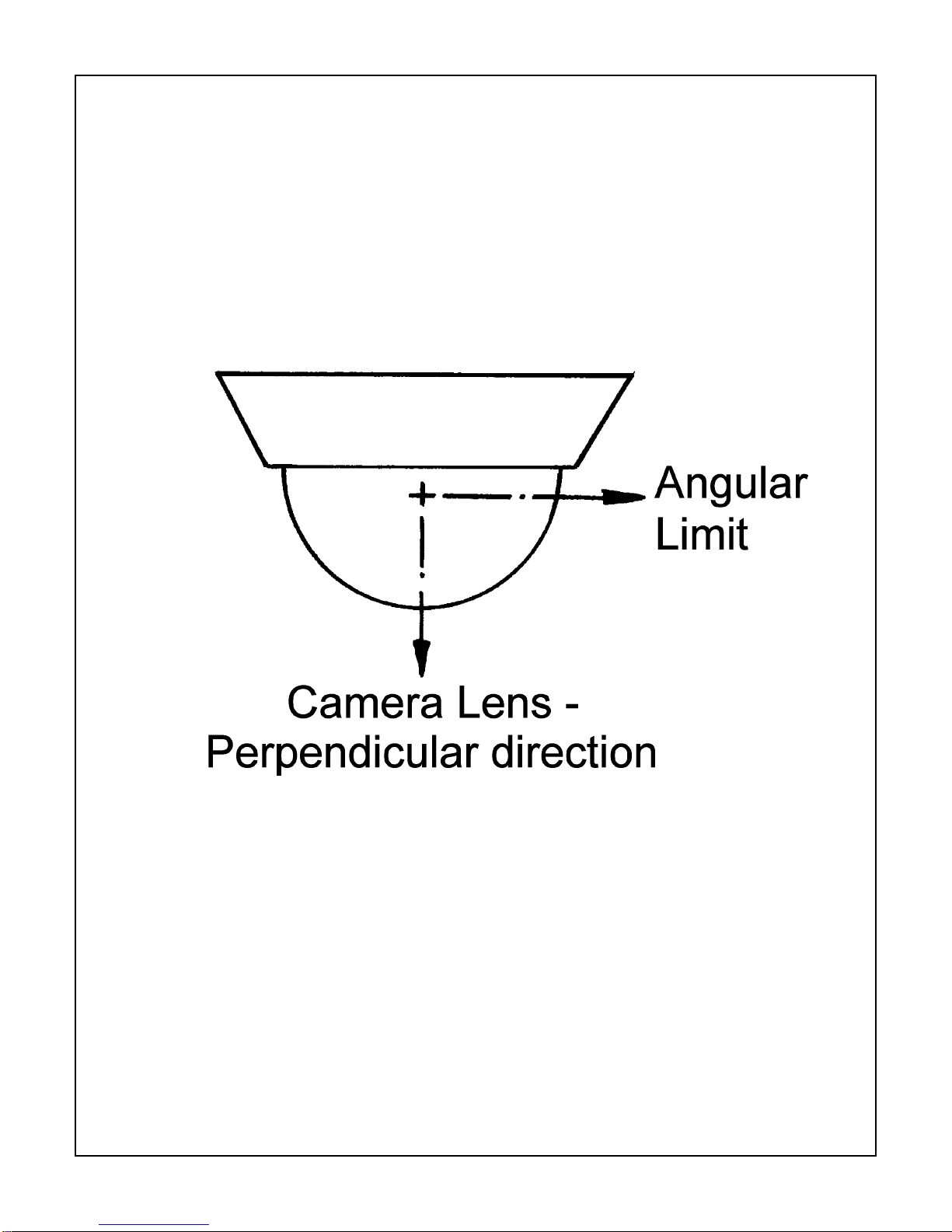

FIGURE 4 – 1
Camera / Lens Directional Alignment
