BKI Hot Deli BHI-4 User manual

CS-TM-018.02 Revised 10/17/13
Hot Deli Display Island
MOD LS BHI-4, BHI-4T, BHI-5 & BHI-5T
Service Manual
Serial Numbers 128049 and Higher

CS-TM-018.02 Revised 10/17/13
BKI LIMIT D WARRANTY
2812 Grandview Dr. • Simpsonville, SC 29680 • USA
(864 963-3471 • Toll Free: (800 927-6887 • Fax: [phone]
WHAT IS COV R D This warranty covers defects in material and workmanship under normal use, and applies
only to the original purchaser providing that:
អ T he equipment has not been accidentally or intentionally damaged, altered or misused;
អ The equipment is properly installed, adjusted, operated and maintained in accordance
with national and local codes, and in accordance with the installation and operating
instructions provided with this product.
អ The serial number rating plate affixed to the equipment has not been defaced or
removed.
WHO IS COV R D This warranty is extended to the original purchaser and applies only to
equipment purchased for use in the U.S.A.
COV RAG P RIOD អ Warranty claims must be received in writing by BKI within one (1) year from
date of installation or within one (1) year and three (3) months from data of
shipment from the factory, whichever comes first.
អ COB Models: One (1) Year limited parts and labor.
អ COM Models: Two (2) Year limited parts and labor. COM convection ovens also have a
two (2) year door warranty.
អ CO1 Models: Two (2) Year limited parts and labor. Five (5) Year limited door
warranty.
អ BevLes Products: Two (2) Year limited parts and labor.
អ Warranty period begins the date of dealer invoice to customer or ninety (90) days
after shipment date from BKI, whichever comes first.
WARRANTY COV RAG This warranty covers on-site labor, parts and reasonable travel time and travel
e
xpenses of the authorized service representative up to (100) miles round trip and (2)
hours travel time and performed during regular, weekday business hours.
XC PTIONS Any exceptions must be pre-approved in advance and in writing by BKI. The
extended door warranty on convection ovens years 3 through 5 is a parts only warranty and
does not include labor, travel, mileage or any other charges.
XCLUSIONS អ Negligence or acts of God,
អ Thermostat calibrations after (30) days from equipment installation date,
អ Air and g as adjustments,
អ Light bulbs,
អ Glass doors and door adjustments,
អ Fuses,
អ Adjustments to burner flames and cleaning of pilot burners,
អ Tightening of screws or fasteners,
អ Failures caused by erratic voltages or gas suppliers,
អ Unauthorized repair by anyone other than a BKI F actory Authorized Service Center,
អ Damage in shipment,
អ Alteration, misuse or improper installation,
អ Thermostats and safety valves with broken capillary tubes,
អ Freight – other than normal UPS charges,
អ Ordinary wear and tear,
អ Failure to follow installation and/or operating instructions,
អ vents beyond control of the company.
INSTALLATION Leveling, as well as proper installation and check out of all new equipment -
per
appropriate installation and use materials – is t he responsibility of the dealer or
installer, not the
manufacturer.
R PLAC M NT PARTS BKI genuine Factory O M parts receive a (90) day materials warranty effective from the
date of
installation by a BKI F actory Authorized Service Center.

Hot Deli Display Island Table of Contents
1
Table of Contents
Table of Contents..................................................................................................................................................... 1
Introduction .............................................................................................................................................................. 2
Safety Precautions................................................................................................................................................. 2
Safety Signs and Messages.............................................................................................................................. 2
Safe Work Practices.......................................................................................................................................... 3
Safety Labels..................................................................................................................................................... 4
Operation .................................................................................................................................................................. 5
Controls and Indicators.......................................................................................................................................... 5
Unit Startup and Preheating .................................................................................................................................. 6
BHI..................................................................................................................................................................... 6
BHI-T ................................................................................................................................................................. 6
Temperature Adjustment ....................................................................................................................................... 6
Operational Guidelines .......................................................................................................................................... 7
Unit Shutdown ....................................................................................................................................................... 7
Installation ................................................................................................................................................................ 8
Instructions For Shipping Damage ........................................................................................................................ 8
Location and Placement ........................................................................................................................................ 8
Wiring..................................................................................................................................................................... 8
Maintenance ............................................................................................................................................................. 9
Scheduled Maintenance ........................................................................................................................................ 9
Cleaning ............................................................................................................................................................ 9
Troubleshooting ................................................................................................................................................... 10
Replacement Parts................................................................................................................................................. 11
BHI ....................................................................................................................................................................... 11
BHI-T ................................................................................................................................................................... 12

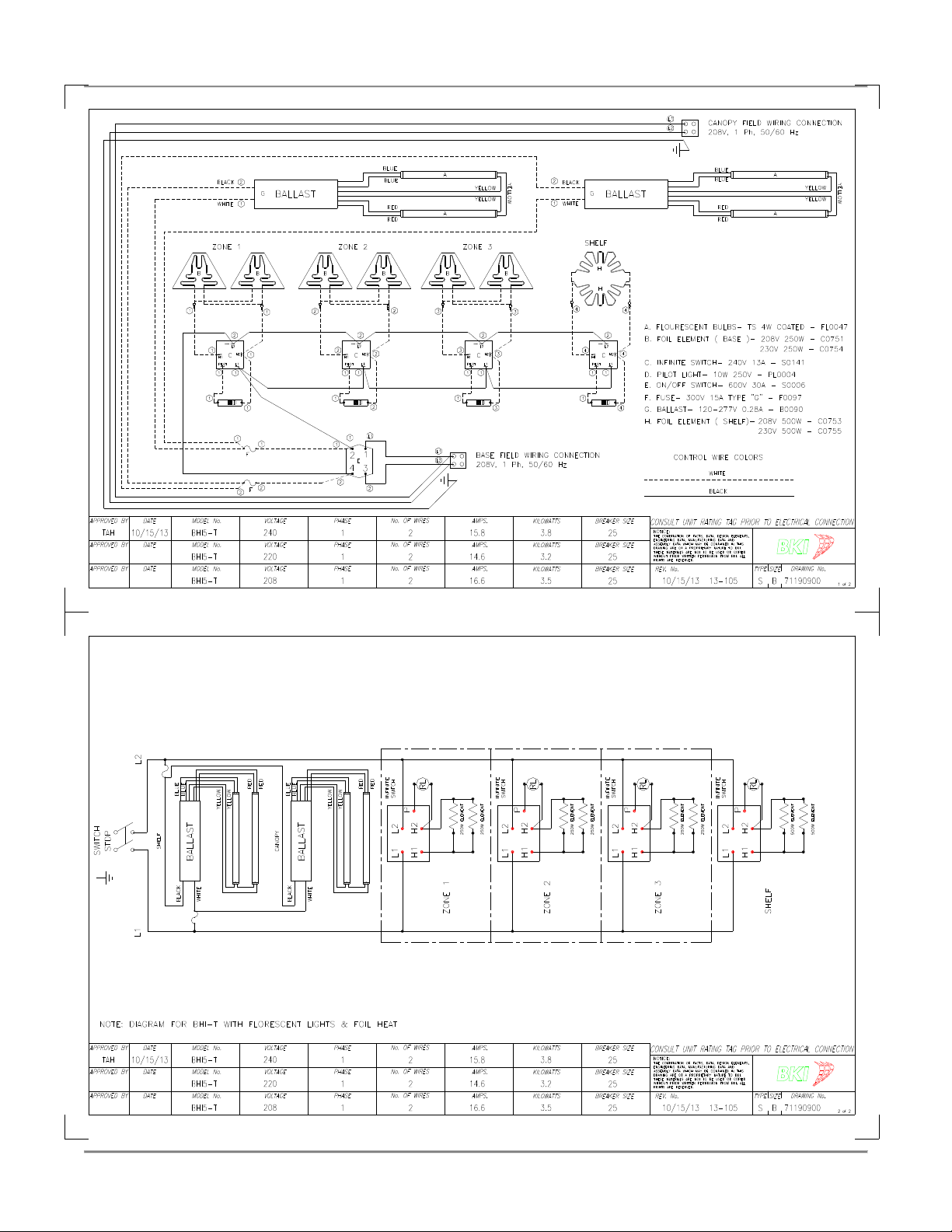

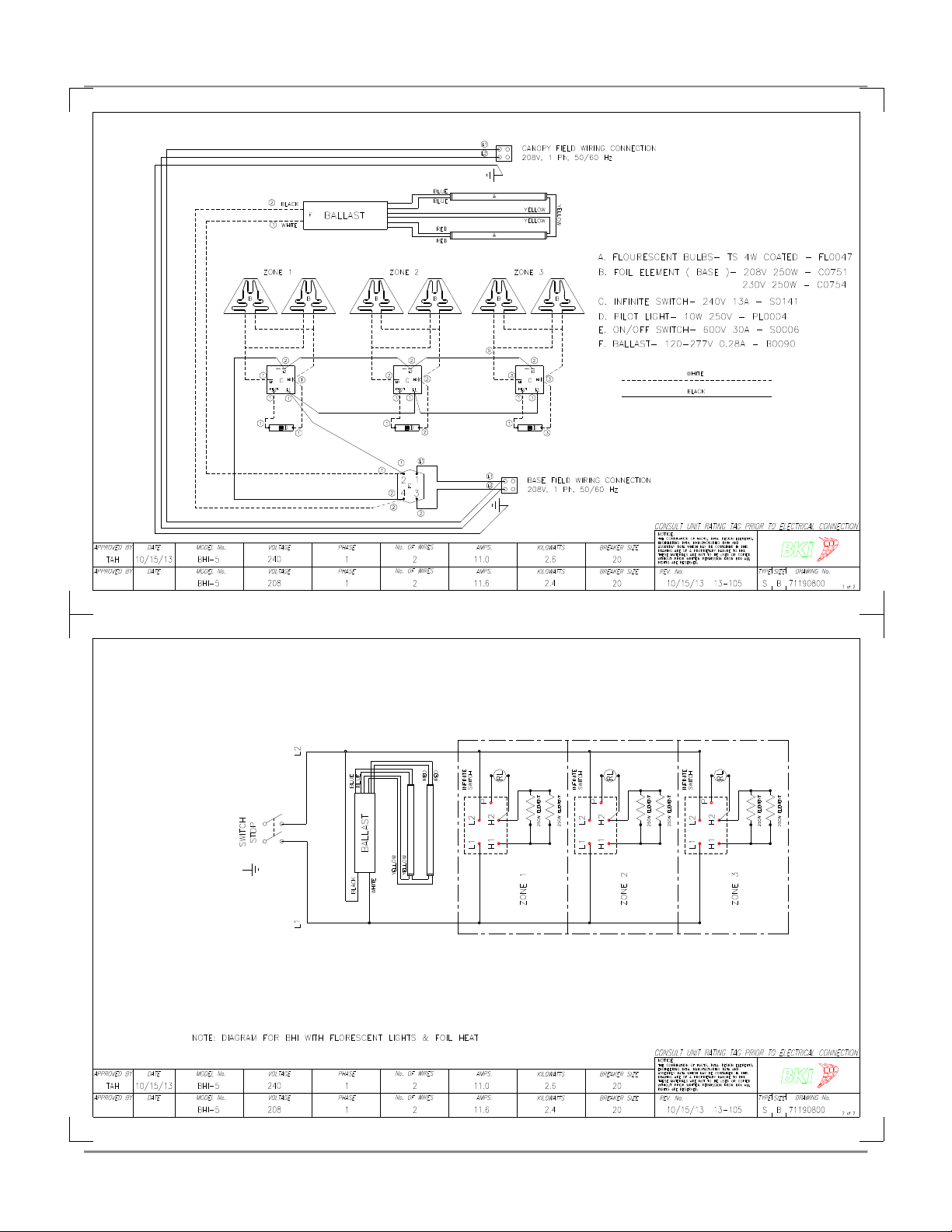

Wiring Diagrams..................................................................................................................................................... 13
Notes ....................................................................................................................................................................... 21

Hot Deli Display Island Introduction
2
Introduction
Congratulations! You have chosen a Hot Deli Display Island that will give you many years of fine service from
the original manufacturer, BKI.
The BKI name and trademark on this unit assures you of the finest in design and engineering — that it has been
built with care and dedication — using the best materials available. Attention to the operating instructions
regarding proper installation, operation, and maintenance will result in long lasting dependability to insure the
highest profitable return on your investment.
PL AS R AD THIS NTIR MANUAL B FOR OP RATING TH UNIT. If you have
any questions, please contact your BKI Distributor. If they are unable to answer your
questions, contact the BKI Technical Service Department, toll free: 1-800-927-6887.
Outside the U.S., call 1-864-963-3471.
Safety Precautions
Always follow recommended safety precautions listed in this manual. Below is the safety alert symbol. When you
see this symbol on your equipment, be alert to the potential for personal injury or property damage.
Safety Signs and Messages
The following Safety signs and messages are placed in this manual to provide instructions and identify specific
areas where potential hazards exist and special precautions should be taken. Know and understand the meaning
of these instructions, signs, and messages. Damage to the equipment, death or serious injury to you or other
persons may result if these messages are not followed.
This message indicates an imminently hazardous situation that, if not avoided, will result
in death or serious injury.
This message indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
This message indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury. It may also be used to alert against unsafe practices.
This message is used when special information, instructions or identification are required
relating to procedures, equipment, tools, capacities and other special data.

Hot Deli Display Island Introduction
3
Safe Work Practices
Beware of High Voltage
This equipment uses high voltage. Serious injury can occur if you or any untrained
or unauthorized person installs, services, or repairs this equipment. Always Use an
Authorized Service agent to Service Your quipment.
Keep this manual with the Equipment
This manual is an important part of your equipment. Always keep it near for easy
access. If you need to replace this manual, contact:
BKI
Technical Services Department
2812 Grandview Drive
Simpsonville, S.C. 29680
Or call toll free: 1-800-927-6887
Outside the U.S., call 864-963-3471
Protect Children
Keep children away from this equipment. Children may not understand that this
equipment is dangerous for them and others.
N V R allow children to play near or operate your equipment.
Keep Safety Labels Clean and in Good Condition
Do not remove or cover any safety labels on your equipment. Keep all safety labels
clean and in good condition. Replace any damaged or missing safety labels. Refer
to the Safety Labels section for illustration and location of safety labels on this unit.
If you need a new safety label, obtain the number of the specific label illustrated on
page 4, then contact:
BKI
Technical Services Department
2812 Grandview Drive
Simpsonville, S.C. 29680
Or call toll free: 1-800-927-6887
Outside the U.S., call 864-963-3471
Be Prepared for Emergencies
Be prepared for fires, injuries, or other emergencies.
Keep a first aid kit and a fire extinguisher near the equipment. You must use a 40-
pound Type BC fire extinguisher and keep it within 25 feet of your equipment.
Keep emergency numbers for doctors, ambulance services, hospitals, and the fire
department near your telephone.
Know your responsibilities as an Employer
• Make certain your employees know how to operate the equipment.
• Make certain your employees are aware of the safety precautions on the
equipment and in this manual.
• Make certain that you have thoroughly trained your employees about operating
the equipment safely.
• Make certain the equipment is in proper working condition. If you make
unauthorized modifications to the equipment, you will reduce the function and
safety of the equipment.

Hot Deli Display Island Introduction
4

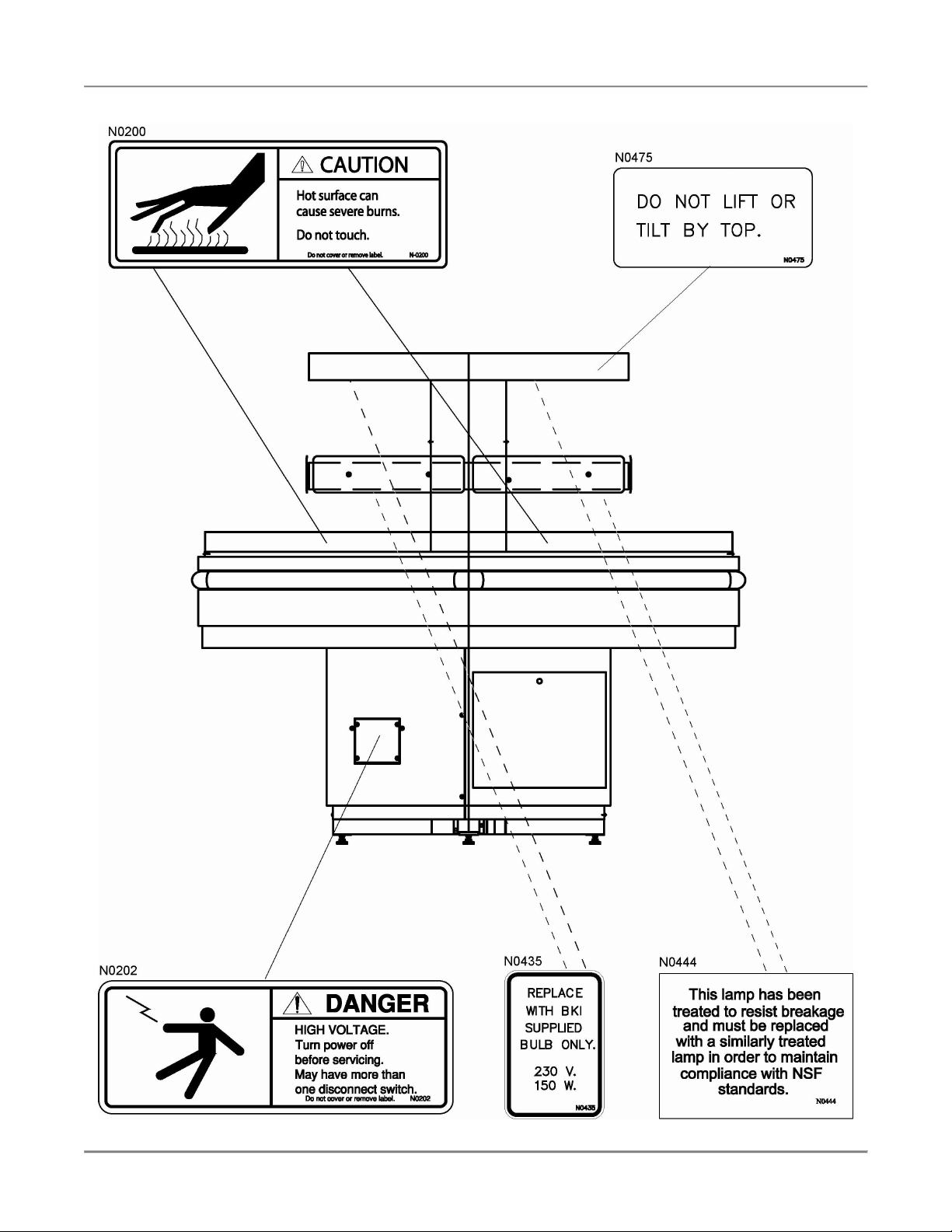

Safety Labels

Hot Deli Display Island Operation
5
Operation

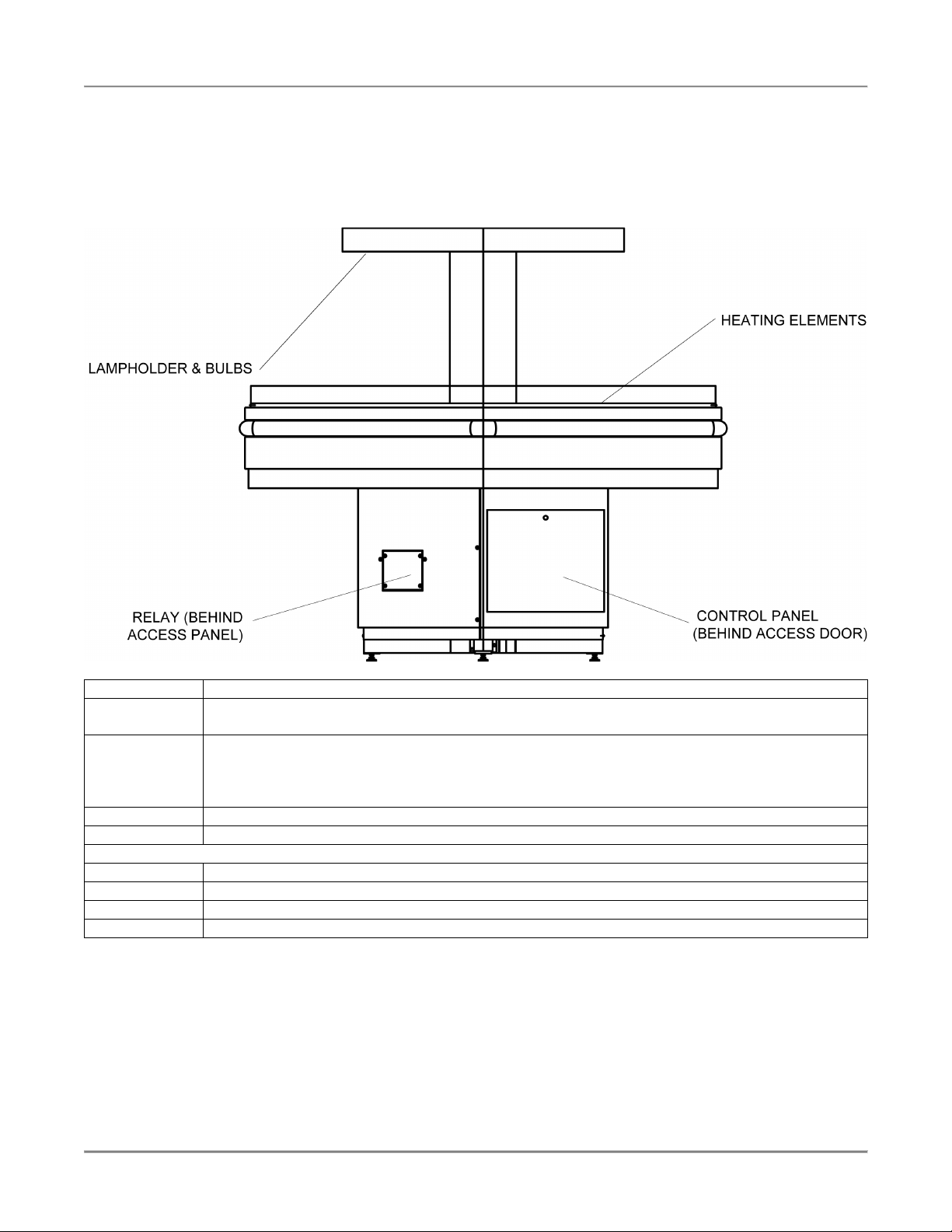

Controls and Indicators

Hot Deli Display Island Operation
6
Unit Startup and Preheating
BHI
1. Open the access door to the control panel and place the POW R switch in the 1 position.
2. Place TH RMOSTAT ZON knobs 1, 2 and 3 to the number 5 position. The pilot light for each thermostat
will cycle on and off to indicate that proper temperature is being maintained for that zone.
3. Allow the equipment to preheat for 30 minutes before loading it with product.
BHI-T
1. Open the access door to the control panel and place the POW R switch in the 1 position.
2. Place TH RMOSTAT ZON knobs 1, 2 and 3 to the number 5 position. The pilot light for each thermostat
will cycle on and off to indicate that proper temperature is being maintained for that zone.
3. Place TH RMOSTAT ZON knob 4 to the number 5 position. The pilot light for this thermostat will cycle
on and off to indicate that proper temperature is being maintained for the upper shelf.
4. Allow the equipment to preheat for 30 minutes before loading it with product.
Te perature Adjust ent
After loading the unit with product, it may be necessary to adjust the thermostat knobs in order to maintain the
proper internal temperature for the product on display. The thermostat knobs should be set to the lowest possible
number that will maintain the proper product temperature.

Hot Deli Display Island Operation
7
Operational Guidelines
• Foods should be a minimum of 160° F. before being placed in the unit.
• Foods loaded in first should be served first as much as is practical.
• Check Federal and State Health and Sanitation Regulations for internal temperature required for holding
cooked foods for sale. Maintaining these temperatures often tends to continue to cook certain products.
Therefore, smaller amounts of bulk foods should be displayed at non-peak periods and the warmer
refilled as needed.
This equipment is designed to temporarily slow the cooking of food.
Unit Shutdown
1. Remove all food from the equipment.
2. Place the TH RMOSTAT knobs to the OFF position.
3. Place the POW R switch to the 0 position.
4. Allow the equipment to cool to room temperature.
5. Remove any residue and clean the equipment thoroughly.

Hot Deli Display Island Installation
8
Installation
Serious injury, equipment damage or death could result if attempting to install this unit
yourself. nsure that an authorized BKI service agent installs the unit.
Instructions For Shipping Da age
You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for
damage when they arrive. If there is damage noted to shipping crates or cartons, or, if a shortage is found, note
this on the bill of lading (all copies) before signing.
If damage is detected when the equipment is uncrated, immediately call the delivering truck line and follow up the
call with a written report indicating concealed damage to your equipment. Ask for an immediate inspection of your
concealed damage item. Crating material MUST be retained to show the inspector from the truck line.
Location and Place ent
Move the unit to a permanent location then level it using a 4’ level and the leg levelers.
Wiring
lectrocution, equipment failure or property damage could result if an unlicensed
electrician performs the electrical installation. nsure that a licensed electrician perform
the electrical installation in accordance with local codes, or in the absence of local codes,
with the National lectrical Code, ANSI NFPA 70-20XX.
This unit, when installed by an authorized BKI service agent, must be wired for use in accordance with all
applicable local, state, and federal codes. For specific electrical requirements and connections refer to the wiring
diagram attached to the unit or provided in the Service Manual.
The kickplates included with this product are to be installed, and the product is to be
sealed to the floor prior to use.

Hot Deli Display Island Maintenance
9
Maintenance
Failure to comply with the maintenance below could result in a serious accident.
lectrocution, equipment failure or property damage could result if an unlicensed
electrician performs electrical repair. nsure that a licensed electrician perform electrical
repair.
Scheduled Maintenance
Failure to remove power from this unit may cause severe electrical shock. This unit may
have more than one disconnect switch.
Never use abrasive cleaners that may damage the finish.
Never steam clean the interior.
Avoid getting excess water in the interior of the unit.
Do not leave this unit on and unattended after business hours.
Cleaning
This unit should be cleaned at the end of each working day. Use the following procedure:
1. Remove all food from the equipment.
2. Place the TH RMOSTAT ZON knobs to the OFF position.
3. Place the POW R switch to the 0 position.
4. Cut OFF the circuit breaker supplying power to the unit at the building power panel.
5. Allow the equipment to cool to room temperature.
6. Remove any residue and clean the equipment thoroughly.
7. Sponge the inside and outside of the unit with a mild soap and water solution, being sure to clean all
areas. Avoid getting water in the interior of the unit.
8. Wipe the parts and unit dry with a soft, clean cloth.

Hot Deli Display Island Maintenance
10
Troubleshooting
Problem Cause Possible Solution
Main power switch is off. Place main power switch on.
No Power to the case. Check circuit breaker or fuses at
building power panel. If problem
persists, contact an authorized
BKI service agent for corrective
action.
No Heat and Lights
Possible defective switch. Contact an authorized BKI service
agent for corrective action.
All Lights ON but No Heat from
any Temperature Zone
Possible defective
component in the heating
circuit.
Contact an authorized BKI service
agent for corrective action.
All Temperature Zones Heat but
No Lights illuminate
Possible defective
component in the lighting
circuit.
Contact an authorized BKI service
agent for corrective action.
All Lights are On and all
Temperature Zones heat except
one
Possible defective Heating
lement or thermostat.
Contact an authorized BKI service
agent for corrective action.
All Temperature Zones Heat
and all lights are on except one
Possible bulb failure. Replace bulb.
Unit and food pans have not
been preheated.
Refer to the preheating section on
page 6. If problem persists,
contact an authorized BKI service
agent for corrective action.
One or more heating
elements or thermostats not
operating properly.
Contact an authorized BKI service
agent for corrective action.
Holding Temperature Not
Adequate
Product is below 160° F
when loaded.
Check product temperature
before loading the case.

Hot Deli Display Island Replace ent Parts
11
Replacement Parts
Use the information in this section to identify replacement parts. To order replacement parts, call your local BKI
sales and service representative. Before calling, please note the serial number on the rating tag affixed to the unit.
BHI
PART # DESCRIPTION
B0555
LH0021
BULB, 150W 240V HALOG N COAT D
LAMPHOLD R, HI T MP
C0766
C0767
C0751
C0754
H ATING L M NT, BHI-4, 208V
H ATING L M NT, BHI-4, 230V
H ATING L M NT, BHI-5, 208V
H ATING L M NT, BHI-5, 230V
B0090 BALLAST – 120V-277V, .28A
FL0047 FLUOR SC NT BULB, T5, 14W W/ SHATT R SHI LD
CONTROL PAN L
PL004 PILOT LIGHT, 250V, 10W
S0006 MAIN SWITCH, 600V, 30A
S0141 INFINIT SWITCH, 240V 13A
K0040 KNOB

Hot Deli Display Island Replace ent Parts
12
BHI-T
PART # DESCRIPTION
B0555
LH0021
BULB, 150W 240V HALOG N COAT D
LAMPHOLD R, HI T MP
C0766
C0767
C0751
C0754
H ATING L M NT, LOW R D CK, BHI-4, 208V
H ATING L M NT, LOW R D CK, BHI-4, 230V
H ATING L M NT, LOW R D CK, BHI-5, 208V
H ATING L M NT, LOW R D CK, BHI-5, 230V
C0753
C0091
H ATING L M NT, UPP R D CK, BHI-4 & 5, 208V
H ATING L M NT, UPP R D CK, BHI-4 & 5, 230V
B0090 BALLAST – 120V-277V, .28A
FL0047 FLUOR SC NT BULB, T5, 14W W/ SHATT R SHI LD
CONTROL PAN L
FH0001 FUS HOLD R, 15A 300V
F0097 FUS , 15A 300V TYP G
PL004 PILOT LIGHT, 250V, 10W
S0006 MAIN SWITCH, 600V, 30A
S0141 INFINIT SWITCH, 240V 13A
K0040 KNOB

Hot Deli Display Island Wiring Diagra s
13
Wiring Diagrams
Refer to the table below to find the wiring diagram associated with your unit.
Wiring Diagram Part No. Page No.
BHI-5 208V-240V/1 Ph, Fluorescent Lights SB71190000
Error!
Bookmark
not defined.
BHI-5T 208V-240V/1 Ph, Fluorescent Lights SB71190100 15
BHI-5 208V/1 Ph, Quartz Halogen Lights SB71190200 16
BHI-5 208V-240V/1 Ph, Fluorescent Lights, Canopy Wiring Option SB71190800 17
BHI-5T 208V-240V/1 Ph, Fluorescent Lights, Canopy Wiring Option SB71190900 18
BHI-4 208V-240V/1 Ph, Fluorescent Lights, Canopy Wiring Option SB71191000 19
BHI-4T 208V-240V/1 Ph, Fluorescent Lights, Canopy Wiring Option SB71191100 20

Hot Deli Display Island Wiring Diagra s
14

Hot Deli Display Island Wiring Diagra s
15

Hot Deli Display Island Wiring Diagra s
16

Hot Deli Display Island Wiring Diagra s
17

Hot Deli Display Island Wiring Diagra s
18
