Black & Decker BCED26 User manual

INSTRUCTION MANUAL
2.6 CU. FT. COMPACT DRYER
3.5 CU. FT. COMPACT DRYER
Thank you for choosing BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR
ANY REASON.
If you have a question or experience a problem with your BLACK+DECKER
purchase, go to www.blackanddecker.com/instantanswers
If you can’t find the answer or do not have access to the Internet, call
844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an
agent. Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CATALOG NUMBER
BCED26
BCED37

Page 2

Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your
product.
Remember to record the model and
serial numbers. They are on a label
on the back of the product.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION
Product Registration ................................................................................................................................................................ 3
Precautions ...................................................................................................................................................................................4
Important Safety Instructions......................................................................................................................................... 4-8
SET UP & USE
Installation Guide .................................................................................................................................................................9-10
Specifications...............................................................................................................................................................................11
Parts & Features ........................................................................................................................................................................12
Operation................................................................................................................................................................................13-15
CARE & MAINTENANCE.........................................................................................................................16-17
TROUBLESHOOTING & WARRANTY
Troubleshooting.................................................................................................................................................................18-20
Limited Warranty......................................................................................................................................................................21
Page 3

Page 4
SAFETY INFORMATION
WARNING
Improper use of the grounding plug can result in a risk
of electric shock.
ELECTRICAL REQUIREMENTS
The electrical requirement is for a 120 volt, 60Hz, electric dryer only, 12 amps. It is
recommended that a separate circuit serving only the product be provided. The
product is equipped with a 3-wire cord having a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the
electric current. The cord provided with this appliance is equipped with a
grounding wire and a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.
Avoid the use of three prong adapters or cutting off the third grounding prong in
order to accommodate a two prong outlet. This is a dangerous practice since it
provides no effective grounding for the dryer and may result in shock hazard.
Consult a qualified electrician or serviceman if:
1) The grounding instructions are not completely understood.
2) You are unsure that the appliance is properly grounded.
3) You have any questions about the grounding or electrical instructions.
POWER SUPPLY CORD
1. Avoid the use of an extension cord because of potential safety hazards under
certain conditions. Have a qualified electrician or serviceman to install an outlet
near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord,
extreme care must be exercised.
a) Use only a grounding type 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot receptacle that will accept the plug on the appliance.
b) The marked electrical rating of the cord set or extension cord must equal to
or greater than the electrical rating of the appliance. The longer cord should
be arranged so that it will not drape over the counter top or table top where it
can be pulled on by children or tripped over unintentionally.
NOTE: Neither BLACK+DECKER nor the dealer can accept any liability for damage to
the product or personal injury resulting from failure to observe the electrical
connection procedures.

Page 5
SAFETY INFORMATION
WARNING
This dryer cannot be used upside down.
Risk of Fire
Clothes dryer installation must be performed by a qualified installer.
Install clothes dryer according to the manufacturers instructions and local codes.
Do not install a clothes dryer with flexible plastic venting materials. If flexible
metal (foil type) duct is installed, it must be of a specific type identified by the
appliance manufacturer as suitable for us with clothes dryers. Flexible venting
materials are known to collapse, be easily crushed and trap lint. These conditions
will obstruct clothes dryer airflow and increase the risk of fire.
To reduce the risk of severe injury or death, follow all installation instructions.
Connect to individual branch circuit.
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having
an equipment-grounding conductor and grounded in accordance with all local
codes and ordinances.
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, and/or injury to persons,
basic safety precautions should always be followed
when using electrical appliances.
When using electrical appliances, basic safety precautions should be
followed, including the following:
1. Read all instructions before using the appliance.
2. Risk of child entrapment and suocation; never allow children to operate, play
with, or crawl inside the appliance.

Page 6
SAFETY INFORMATION
3. This appliance must be grounded. Connect only to a properly grounded outlet.
See the “GROUNDING INSTRUCTIONS” section found on page 4.
4. Install or locate the appliance only in accordance with the provided installation
instructions.
5. DO NOT place the dryer in steamy rooms or where the dryer is directly
exposed to rain. Moisture may destroy the electrical insulation causing an
electrical shock hazard.
6. Use the dryer only for its intended use as described in the user guide. This type
of dryer is specifically designed to dry clothes. It is not designed for industrial
or laboratory use.
7. As with any appliance, close supervision is necessary when used around children or
incapacitated persons.
8. DO NOT operate the dryer if it has a damaged power cord or plug, if it is not
working properly, or if it has been damaged or dropped in any manner.
9. The dryer should be serviced only by qualified service personnel. Contact the
nearest authorized service facility for examination, repair, or adjustment.
10. DO NOT cover or block any openings on the appliance.
11. DO NOT put your hand in the drum while it is moving. The rotating parts may
cause injury to your hand.
12. DO NOT immerse the power cord or plug in water.
13. Keep the cord away from all heated surfaces.
14. DO NOT store or use gasoline or any other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
15. When cleaning the surfaces of the door and the frame, use only mild, nonabrasive
soaps or detergents applied with a sponge or soft cloth. Never clean appliance
parts with flammable fluids. The fumes can create a fire hazard or explosion.
16. Do not tamper with controls.
17. Remove dryer door before discarding the dryer.
18. Do not dry clothing that has been soiled with solvents, cooking oils, gasoline,
flammable or explosive substances. Vapors could ignite or explode.
19. The lint filter and air intake filter should be cleaned before or after each use.
20. The dryer should be vented. The interior and exhaust vent should be cleaned
periodically by a qualified service professional.
21. Installation work must be done by qualified person(s) in accordance with
applicable codes and standards.

Page 7
22. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
23. Do not allow children to play on or in the appliance. Close supervision of children
is necessary when the appliance is used near children.
24. INDOOR USE ONLY - this appliance is not intended for outdoor use.
25. Do not place naked flame sources, such as candles, on the appliance.
26. Do not locate the appliance or cord near heat sources such as radiators, heaters,
air ducts or direct sunlight.
27. Do not run the cord under floor coverings. Instead, arrange the cord away from
tracc areas where it will not become a trip hazard.
28. To disconnect the appliance, turn the appliance o, switch o the power outlet
and remove the plug from the power outlet.
29. Do not misuse the cord. Never carry the appliance by the cord or pull to
disconnect it from the outlet, instead grasp the plug and pull to disconnect.
30. Do not attempt to repair, disassemble or modify this appliance. The warranty
becomes void if not serviced or repaired by a qualified person.
31. Do not install in a tight fitting cabinet.
32. Do not use fabric softeners or products to eliminate static unless recommended
by the manufacturer of the fabric softener or product.
33. Do not use heat to dry articles containing foam rubber or similarly textured
rubber-like materials.
34. Keep area around the exhaust opening and adjacent surrounding areas free from
the accumulation of lint, dust and dirt.
35. Ensure foreign objects do not find their way into the tub of the tumble dryer.
36. The door window may be hot after a long drying cycle. Please ensure children are
kept away from the machine.
37. After turning o the power supply to the tumble dryer, wait at least 2 minutes
before turning it back on again.
38. Please remove the transport packaging at the rear of the tumble dryer, prior to
use.
CAUTION: If this appliance is supplied from a cord extension set or an electrical
portable outlet device, the cord extension set or electrical portable outlet device must
be positioned so that it is not subject to splashing or ingress of moisture.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
SAFETY INFORMATION

Page 8
Oil aected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumbler dryer. The items
become warm, causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-aected items
can prevent heat from escaping and so create a fire hazard.
• Read all instructions before using the appliance.
• DANGER or WARNING: Risk of child entrapment.
• Child entrapment and suffocation are not problems of the past.
Junked or abandoned, appliances are still dangerous, even if they will just sit in
a garage for a few days.
• Before you throw away your old appliance: Take off the door so that children
may not easily climb inside.
• Never allow children to operate, play with or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
• Do not place the dryer in steamy rooms or where the dryer is directly exposed
to rain.
Moisture may destroy the electrical insulation causing an electrical shock
hazard.
• During spinning, don’t put your hand in the spin basket. Because the spin
basket is rotating at high speed, rotating parts may injure your hand.
• Do not store or use gasoline or any other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
SAVE THESE INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury when using
your appliance, follow these basic precautions.
SAFETY INFORMATION

Page 9
SET UP & USE
INSTALLATION GUIDE
LOCATION
1. Examine the dryer after unpacking. Check for damage such as a misaligned
door, broken door or dent in the cavity. If any damage is visible, DO NOT
install, and notify your dealer immediately.
2. Check to ensure that you have four (4) leveling legs.
3. Install the dryer on a flat, level surface. If the surface is uneven, adjust the
leveling legs.
4. Install the dryer away from direct sunlight; direct sunlight may affect the
acrylic coating, plastic and electrical components. The room temperature
should not fall below 32°F.
5. Check the ventilation. DO NOT block the air vents, especially when the dryer is
installed on a carpeted floor. If the air vents are blocked during operation, the
dryer may overheat and eventually fail. For proper ventilation, allow at least
5 inches of space between the dryer top, sides, rear, and adjacent surfaces.
Ensure adequate space for ventilation. It is recommended that the unit be
vented outdoors. (Ventilation Kit not included.) A ventilation kit with a 4”
diameter duct can be purchased at your local hardware store.
6. Install the dryer away from heating appliances and water taps. Keep the
dryer away from heat, steam, or splashing liquids. Never splash water onto
the control panel. These things can adversely affect the wiring and electrical
conduction contacts of the dryer.
ADJUSTING THE LEVELING LEGS
The dryer is shipped with a bag containing the user guide
and four(4)leveling legs. See the illustration to the right to
install and adjust the leveling legs.
If the dryer is placed on an uneven or weak surface, noise
or vibrations will occur from the appliance. If the floor
is uneven, adjust the height level of the leveling legs
accordingly. DO NOT insert pieces of wood or any other
objects under the legs.

Page 10
SET UP & USE
INSTALLING THE EXHAUST CONNECTOR
Install the exhaust connector as shown in the illustration by lining it up with the
connector on the back of the dryer and turning it clockwise so the tabs on the
exhaust connector fit into the slots on the connector:
• For a downward exhaust, join the sections (1) pointing downward.
• For an upward exhaust, join the sections (2) pointing upward.
NOTE: The dryer must be vented. A ventilation kit with a 4” diameter duct can be
purchased at your local hardware store.

Page 11
SET UP & USE

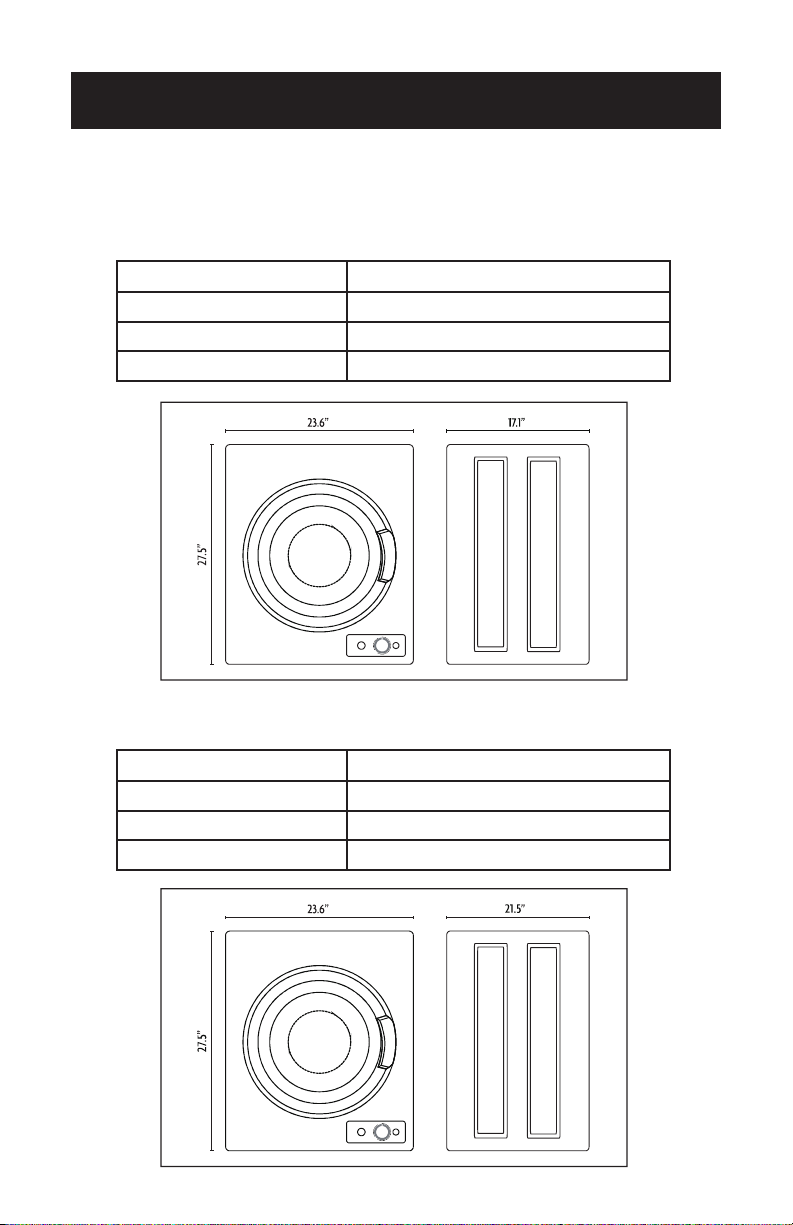

SPECIFICATIONS
MODEL BCED26
MODEL BCED37
Power Supply 120V AC, 60Hz
Capacity 2.6 cu. ft.
Unit Dimensions 23.6” x 27.5” x 17.1” (W x H x D)
Net Weight 48.4 lbs.
Power Supply 120V AC, 60Hz
Capacity 3.5 cu. ft.
Unit Dimensions 23.6W x 27.5H x 21.5D
Net Weight 49.5 lbs.

Page 12
SET UP & USE

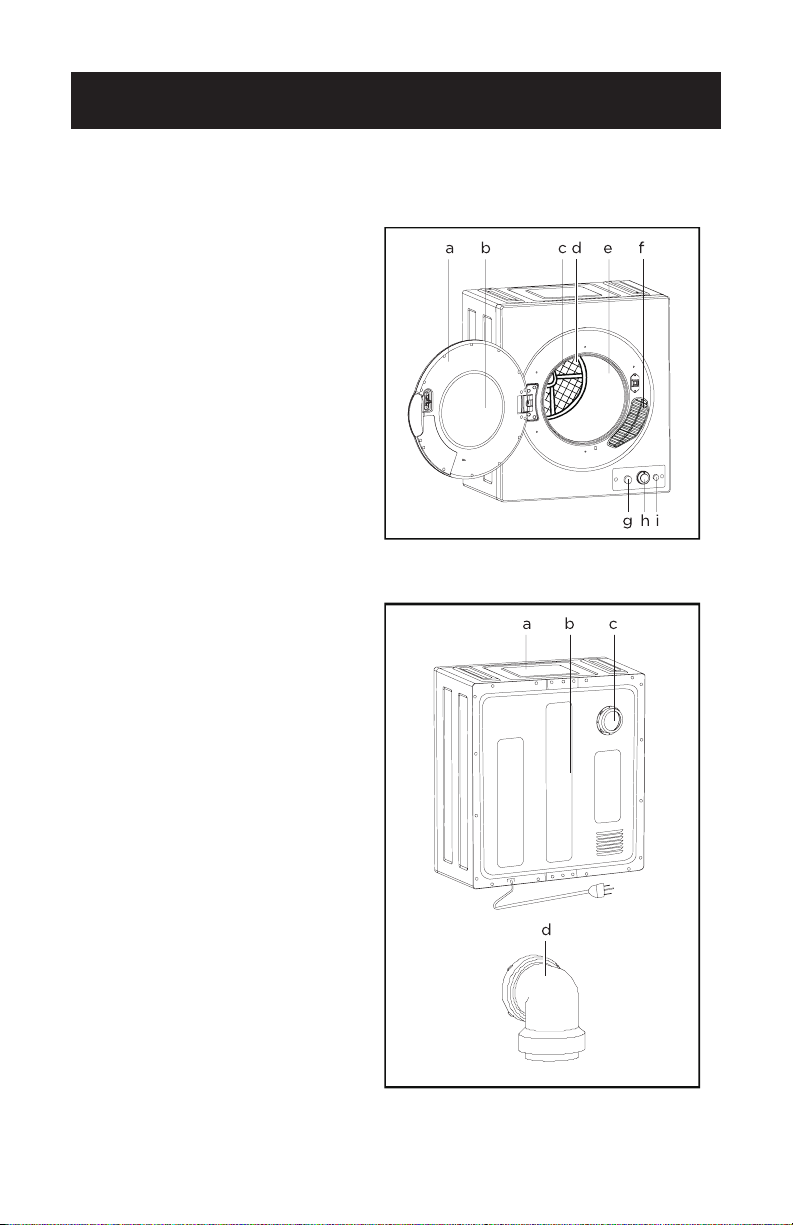

PARTS & FEATURES
FRONT
The appearance of your model
may slightly differ from the
illustrations in this manual.
a. Door
b. Window
c. Door Gasket
d. Lint Filter Assembly
e. Drum
f. Air Intake Shroud
g. Timer
h. Sensor Dry
i. Mode Selector
BACK
The appearance of your model
may slightly differ from the
illustrations in this manual.
a. Dryer Housing
b. Back Cover
c. Exhaust Vent
d. Exhaust Connector

Page 13
SET UP & USE
OPERATION
CONTROL PANEL
MODE SELECTOR
. . . . . . when button is raised ECO MODE is activated
. . . . . . when button is pressed NORMAL MODE is activated
NORMAL : By default, the dryer operates under the ‘NORMAL’ mode (the
mode button is pressed), in combination with the presets, ‘SENSOR DRY’ and
‘TlMER’, for optimal drying performance. The ‘SENSOR DRY’ function can be
adjusted to your drying needs by using the dial and temperature guidelines.
ECO : The Dryer operates using an energy-saving mode, independent of the
‘SENSOR DRY’ and the ‘TIMER’ functions. The dryer will automatically run in
‘ECO’ mode for a total duration of 270 minutes. The dryer will begin air drying
the laundry for 150 minutes with cool air, followed by another 120 minutes using
hot air by activating the heating element. Simply open and load the dryer, close
the door, make sure the mode button is raised, and the dryer will run in the
‘ECO’ mode. If the power turns off while the dryer is in ‘ECO’ mode, the unit will
remember the time remaining and resume drying when the power goes on again.
Memory won’t be affected if the door is opened when the unit is off. However,
if the door is opened while the dryer is on, the remainder time will not be
remembered and ‘ECO’ drying will not resume.
SENSOR DRY SELECTOR
ON : When the drying time reaches 120 minutes, the sensor dry function
measures the moisture and humidity levels during the cycle and automatically
adjusts the heating time for a more efficient drying performance. As a result, the
dryer may stop generating heat in advance of the ‘TIMER’ preset, but the preset
cycle continues by generating cool air until the drying time is complete and the
dial is in the ‘Off/0’ position.
OFF : The dryer operates according to the time set by the ‘TIMER’ until the preset
finished in the ‘Off/0’ position.

Page 14
SET UP & USE
TIME SETTING
OFF: When the ‘TIMER’ is in the ‘OFF/0’ position, power is not supplied to the
unit. Turning the dial clockwise to the desired program will start the dryer.
COOL : This setting is generally used to cool items that have just been dried to
help prevent creasing.
• ANTI-WRINKLE: For laundry loads that are difficult to iron (e.g. cotton shirts
and linen), set the ‘TIMER’ between 30-60 minutes, depending on the load size.
Once the cycle stops, the items will still contain moisture, thereby making the
ironing process easier.
• WARM : This setting is used to dry and cool, and depending on the material,
leave items wrinkle free. Set the ‘TIMER’ by turning the dial clockwise between
60-150 minutes.
• HOT : This setting is used for drying large quantities or bulky items (i.e.
the dryer drum is approximately 1/2 full). Set the ‘TIMER’ by turning the dial
clockwise to 150+ minutes.
• AIR DRY : This setting is used without any heat to freshen items by letting cool
air move through it (e.g. clothes that have been stored for an extended period
of time).
NOTE: ALWAYS make sure items being dried have gone through the Spin cycle
in the washing machine first. Do not put soaking wet clothes in the dryer.
DRYING TIME REFERENCE
NOTE: Drying times will usually vary between 30 minutes for smaller loads and
200 minutes for larger loads according to load size, type of fabric, degree
of wetness etc.
If clothes are still damp after completing the selected dry cycle, add more drying
time or a higher heat setting for future loads.
NOTE: This is a 120 volt dryer. Drying times will be longer than a 220 volt dryer.

Page 15
SET UP & USE
SORTING AND LOADING LAUNDRY
NOTE: Do not load your dryer more than approximately half full to allow space
for the clothes to tumble.
For the best results, your laundry should be sorted properly. Separate the lint
shedders (e.g. chenille and terry cloth) from the lint collectors (e.g. synthetics,
flannels, velvets, and corduroys). Separate non-colorfast from light colored
items, heavy fabrics from lightweight fabrics, and permanent press from heavy,
bulky items.
Delicate clothes, especially those with ribbon or lace, should be placed in a nylon
mesh bag before drying to prevent tangling.
NOTE: Before drying, check all pockets. If nails, coins, or pins remain in pockets,
the objects may damage the dryer and/or clothes. Place your laundry into
the dryer evenly. Uneven laundry may cause noise or vibrations.
Clothes with zippers, buckles buttons or fasteners should be closed or turned
inside out to reduce the impact of noise between the metal and the dryer’s drum.
DO NOT TUMBLE DRY: Read all permanent care labels carefully. If the care label on
the garment reads “Drip Dry”, “Line Dry”, or “Dry Flat”, DO NOT dry the garments in
the dryer. In addition, certain materials will melt or become dangerously flammable
if heated, while other garments may lose their shape. Other items that should not be
tumble dried are the following:
1. Garments that have been dry cleaned at home.
2. Garments made from wool, unless the garment manufacturer recommends it.
3. Garments with fiberglass materials.
4. Garments containing vinyl, rubber, plastic or similar materials, including bras, tennis
shoes, rubber galoshes, bath mats, rugs, bibs, baby pants, plastic bags, pillows,etc.,
as they may melt or burn. Under certain circumstances, some rubber materials,
when heated, can produce fire by spontaneous combustion.

Page 16
CARE AND MAINTENANCE
FABRIC CARE
• For optimum results, load the dryer with cloths of similar fabric, weight and
construction.
• Check for stains that may not have been removed in washing. The dryer heat
may permanently set some stains.
• Separate dark and light colored items, like you do when washing laundry.
• DRYING TlME: The drying time depends on many factors, such as the type of
fabric. ln addition, the drying duration is dependent on how dry you want the
laundry to be when taken out of the dryer.
• DRYER ADDED FABRIC SOFTENERS: Certain dryer added fabric softeners may
cause damage to automatic dryers. Therefore, only use fabric softeners with
written assurance from the manufacturer that their softeners can safely be used
in your dryer.
• SINGLE ITEMS: Use the timed drying mode when there is only one item to be
dried. This is because the moisture sensor in the automatic drying mode may
disable the heating element too early in the cycle, thereby failing to adequately
dry the garment.
• OVERDRYING GARMENTS: When using the timed drying mode, it is possible
to overdry the garments, especially if the timer has been set too long. This can
cause the fabrics to wrinkle, shrink, or feel harsh. Synthetic materials can also
become charged with static electricity.
NOTE: Refer to the Fabric Care Chart on page 15 for commonly used fabric care
symbols.
NOTE: Always remove the laundry load from the dryer as soon as possible.
FABRIC CARE CHART
Fabric Care Symbol Definition
Dry flat
Can be hung to dry
Dry on clothes hanger
Tumble dry, normal heat
Tumble dry, reduced heat
Do not tumble dry

Page 17
CARE AND MAINTENANCE
CARE AND MAINTENANCE
NOTE: Unplug the power cord before cleaning any part of the dryer.
UNIT
The dryer should be cleaned regularly, including the control panel, with a soft
cloth and non-abrasive household detergents. The use of harsh detergent or
abrasives is not recommended. Do not pour water on the dryer or control panel.
Use a soft cloth to dry the surfaces. Failure to maintain the dryer in a clean
condition could lead to deterioration of the surface which could adversely affect
the life of the appliance and possibly result in a hazardous situation.
LINT FILTER ASSEMBLY
The lint filter assembly should be cleaned before or after each use. Refer to the
chart below to clean each part of the lint filter assembly.
Lint Filter Assembly
1Remove the lint filter by using the four (4) grip holes in the filter assembly to
rotate the filter (in either direction) until you feel a bump, then pull it outward.
NOTE: The lint filter assembly must be installed when operating the dryer.
2The lint filter assembly consists of three
(3) parts: exhaust vent shroud, lint
filter, and exhaust filter.
3 Separate the three (3) parts of the as-
sembly and clean the individual pieces
using a soft brush or a vacuum cleaner.
Do not damage the filter assembly.
4Reassemble the filter assembly in the
following order: exhaust filter - lint
filter - exhaust vent shroud. Align the
entire assembly with the recessed posi-
tion in the back of the drum and press
firmly until the entire filter assembly is
secured.
WARNING
Regularly clean the lint trap. Hot Surface.
Do not touch the intake during the drying
cycle due to high temperatures.

Page 18
Air Intake Filter
1Remove the air intake filter by pulling outward while holding the filter housing
by its top and bottom.
NOTE: The air intake filter must be installed when operating the dryer.
2The air intake filter consists of two (2)
parts: filter housing and air intake filter.
3Remove the air intake filter inside the
filter housing. Clean the filter using a
soft brush or a vacuum cleaner.
4Reassemble the air intake filter inside
the filter housing, then reinstall the
filter housing by pushing the housing
upwards with your thumb until the
latch is secured to the dryer.
CARE AND MAINTENANCE
AIR INTAKE FILTER
The air intake filter should be cleaned before or after each use. Refer to the chart
below to clean the air intake filter.
NOTE: Unplug the power cord before cleaning any part of the dryer.

Page 19
The ‘TIMER’ dial will not rotate • The dryer is not plugged in.
• The circuit beaker tripped of a fuse blew. Check for
blown circuit fuse or tripped main circuit breaker in
your house.
• The door is not closed.
The dryer does not operate • The dryer is not plugged in.
• The circuit breaker tripped or a fuse blew. Check for
a blown circuit fuse or tripped main circuit breaker
in your house.
• The door is not closed.
The dryer drum does not rotate • The dryer is not plugged in.
• The circuit breaker tripped or a fuse blew. Check for
a blown circuit fuse or tripped main circuit breaker
in your house.
• The door is not closed.
The laundry is not completely
dry
• Verify the presets used of ‘TIMER’, ‘MODE’, and
‘SENSOR DRY’.
• Clean the filter.
• Reduce the laundry load in the dryer. Do not over-
load the dryer.
• Dry these items further in the timed drying mode
for 10+ minutes.
• Ensure the items are not knotted or bulked to-
gether.
• The dryer is not located in a properly ventilated
area.
• Make sure your washer’s spin cycle is extracting
water properly.
TROUBLESHOOTING & WARRANTY
Troubleshoot your problem by using the chart below. If the dryer still does not work
properly, contact BLACK+DECKER customer service center or the nearest authorized
service center.
WARNING: Users must never troubleshoot internal components.

Page 20
BEFORE YOU CALL FOR SERVICE
IF THE APPLIANCE FAILS TO OPERATE:
A) Check to make sure that the dryer is plugged in securely. If it is not, remove
the plug from the outlet, wait 10 seconds and plug it in again securely.
B) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem
to be operating properly, test the outlet with another appliance.
IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE APPLIANCE
YOURSELF.
IMPORTANT
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have a problem with this product, please contact the
BLACK+DECKER Customer Satisfaction Center at
844-299-0879 or [email protected]
DATED PROOF OF PURCHASE, MODEL # AND SERIAL #
REQUIRED FOR WARRANTY SERVICE
TROUBLESHOOTING & WARRANTY
