Black & Decker BDMOW14-XE User manual

SAVE THESE INSTRUCTIONS CAREFULLY
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
If you follow the instructions, your oven will provide you with
many years of good service.
INSTRUCTION MANUAL
Microwave Oven
Cat. No.:EM930ACZ
Model:BDMOW14-XE

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
Specifications
2
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions(LxWxH):
Net Weight:
BDMOW14-XE
230V~ 50Hz
1450 W
900 W
30 L
315 mm
520X444X335mm
Approx. 15Kg
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
Additional safety instructions for Australia and New Zealand
a) Young children and the infirm.This appliance is not intended for use by young children
or infirm persons without supervision. Young children should be supervised to ensure they
do not play with this appliance.
b) Replacement of the supply cord. If the supply cord is damaged, it must be
replaced by the manufacturer or an authorised Black & Decker Service Centre in order
to avoid a hazard.

IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a competent person to remove a
cover which gives protection against
exposure to microwave energy.
3. Warning: Only allow children to use the
oven without supervision when adequate
instructions have been given so that the
child is able to use the oven in a safe way
and understand the hazards of improper
use.
4. Warning: When the appliance is operated
in the combination mode, children should
only use the oven under adult supervision
due to the temperatures generated.
(only for grill series)
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is observed, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items,
such as bread, cookies, etc. inside the
oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
15. Use this appliance only for its intended
uses as described in manual. Do not
use corrosive chemicals or vapors
in this appliance. This oven is especially
designed to heat. It is not designed for
industrial or laboratory use.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. Keep cord away from heated
surface, and do not cover any events
on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
23. Microwave heating of beverages can
result in delayed eruptive boiling,
therefore take care when handling the
container.
3

DANGER
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
CLEANING
Be sure to disconnect the
oven from the power supply.
1. Clean the inside of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
1. A short power-supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
1)The marked electrical rating of the cord set
or extension cord should be at least as great
as the electrical rating of the appliance.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that it
will not drape over the counter top or tabletop
where it can be pulled on by children or tripped
over unintentionally.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped
with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood or if doubt exists as to whether the
appliance is properly grounded. If it is necessary
to use an extension cord , use only a 3-wire
extension cord.
4

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
5

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Shut off oven power if the door is opened during operation.
6

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
Hub (underside)
Glass tray
Turntable ring assembly
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
7

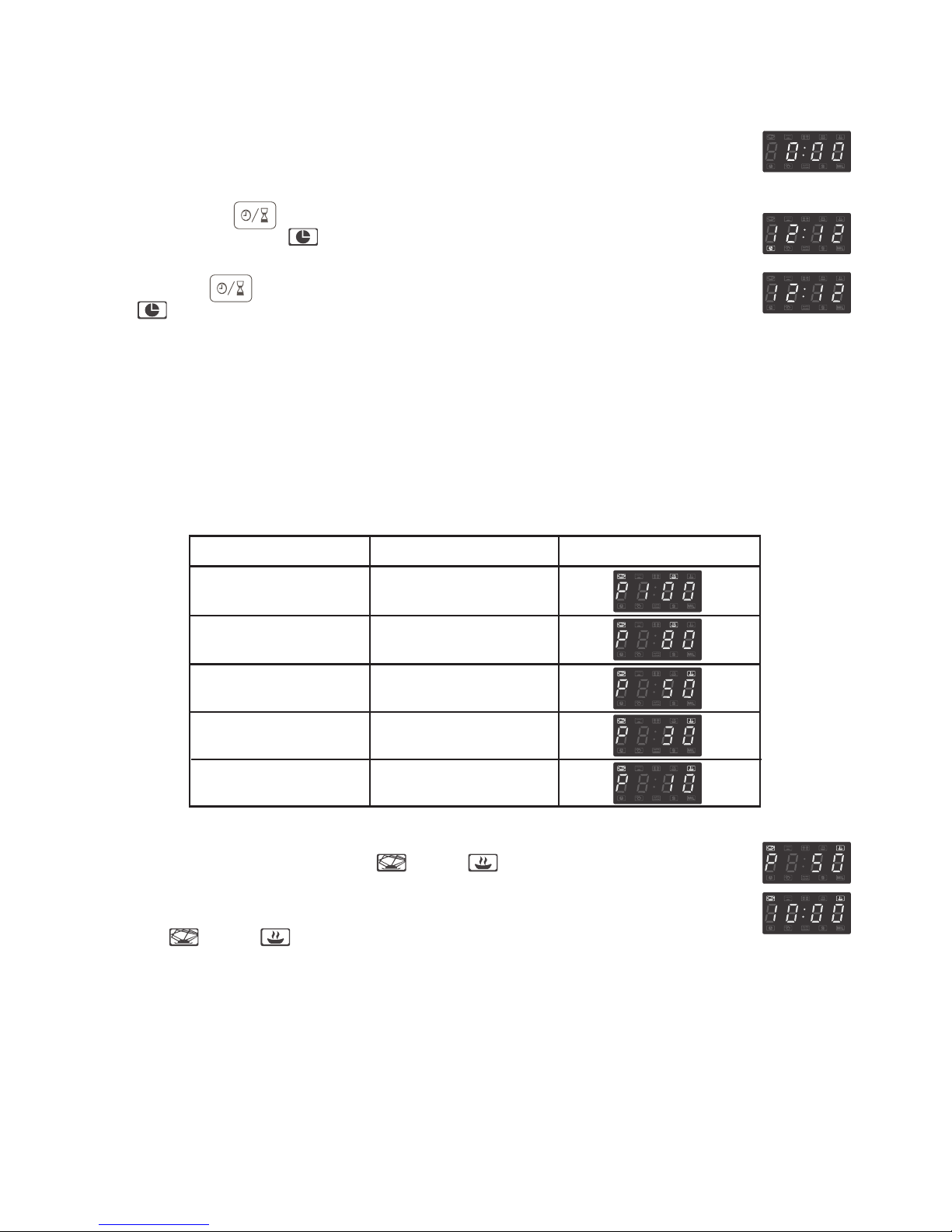

1. Clock Setting
When the microwave oven is electrified, the LED will display "0:00".
The input time should be within 0:00--23:59;
Example: To set 12:12 .
(1) Press the " " button, the hour figures will flash, and the
indicator for clock " " will light.
(2) Press the number buttons of "1","2","1","2" in order.
(3) Press " " to finish clock setting. The indicator for clock
" " will go out, ":" will flash, and the time will light.
Note: In the process of clock setting, if " Stop/Clear " is pressed or if there is no operation
within 1 minute, the oven will go back to the previous status automatically.
Operation Instructions
3. Speedy Cooking:
When the unit is in waiting state, the press on " Start/Express Cook " can start cooking at
30 seconds with 100% microwave power. Each additional press will increase the cooking time
by 30 seconds until the accrued time reaches 1 minute 30 seconds or less. By then, each
press will increase cooking time by 1 minute, the maximum cooking time is 12 minutes.
Microwave Power Chart
2. Microwave Cooking
Select different microwave power level and set cooking time as you wish. There are five
power levels available for choosing. Refer to Chart 1. The maximum microwave cooking
time is 99 minutes and 99 seconds. Keep on pressing " Microwave " to choose the power
wished.
8
Press "Microwave" Microwave Power Display
Once
Twice
Thrice
4 times
5 times
80%
50%
30%
10%
100%
Example: Choose 50% power for cooking 10 minutes.
(1) Press " Microwave " thrice, " " and " " will light.
(2) Press the numeral buttons of "1", "0", "0", "0" in order;
(3) Press " Start/Express Cook " to start cooking, the time will count down.
":", " " and " " will flash.

Example: Cook vegetable of 350g:
(1) Press " Vegetable " button, " " and " " will light.
(2) Press " Vegetable " button twice to choose weight, LED will display "350",
"g", " " and " " will light.
(3) Press " Start/Express Cook " to start cooking, "g" will go out, time counts
down, " " and " " will flash.
Pad CookDisplay Pad CookDisplay Pad CookDisplay
1
2
3
4
5
6
7
8
9
Reheat
Vegetable
Fish
Meat
Pasta
Potato
Pizza
Soup
Porridge
6. Auto Menu Cooking
The numeral pads 1—9 are matching with nine different subjects respectively;
5. Speedy Defrost
Example: Defrost beef of 500g
(1) Press " Speed Defrost ", LED will display "dEF2", " " and " " will light.
(2) Press "5" "0" "0" in order, "g" will light, the range of defrosting weight is
100g-1200g.
(3) Press " Start/Express Cook " to start defrosting, "g" will go out, " " and " " will flash.
4. Defrost by Weight
Example: Defrost beef of 500g:
(1) Press " ", LED will display "dEF1", " " and " " will
light.
(2) Press "5", "0", "0" in order, "g" will light, the range of defrosting weight is
100g-2000g.
(3) Press " Start/Express Cook " to start defrosting, "g" will go out, " " and " " will flash.
7. Inquiring Function
(1) In one stage cooking state, press " Microwave ", the current microwave power will be
displayed for 3 seconds. After three seconds, the oven will turn back to the former state;
(2) In pre-set state, press " " to inquire the time for delay start cooking. The
pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
(3) In cooking state, press " " to check the current time. It is displayed for 2-3 seconds
and then turn back to waiting states.
9

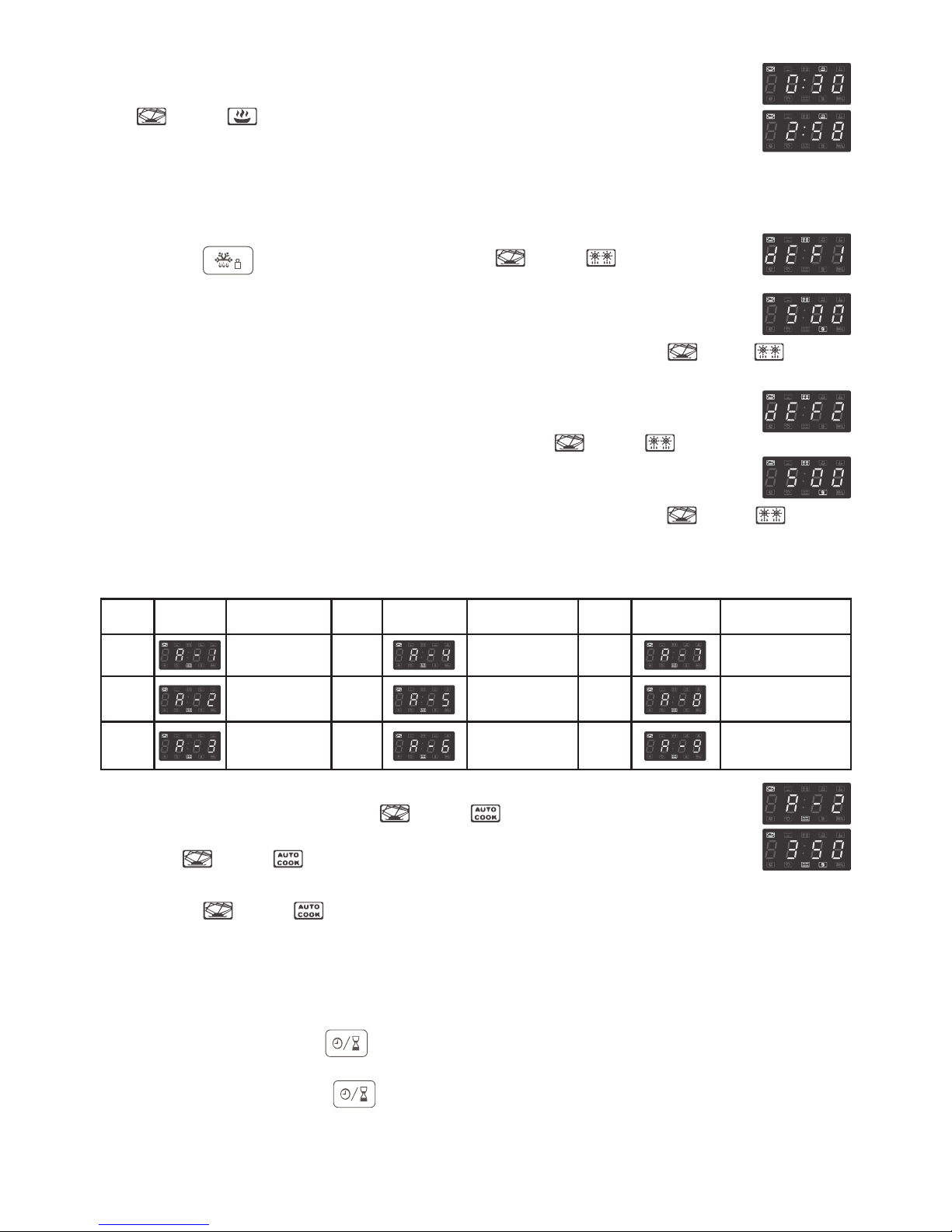

Example: Set 3 minutes speedy cooking:
(1) Press " Start/Express Cook " once to start cooking, LED will display "0:30",
" " and " " will light.
(2) Press " Start/Express Cook " again for 4 times, the cooking time will be 3
minutes.

1010

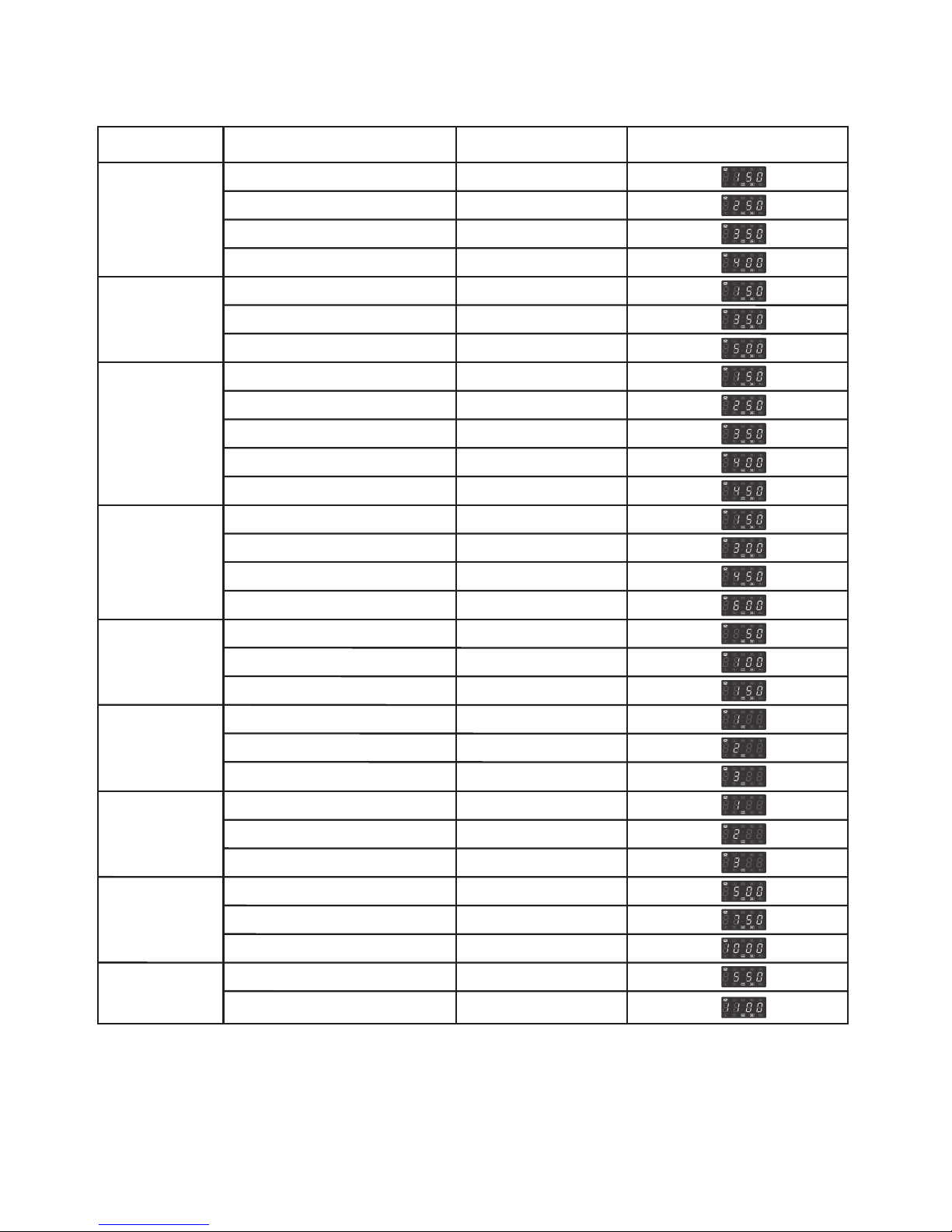

Refer to chart 2 for the automatic menu procedure:
Chart 2:
Menu Weight(g) Press Times Display
A-1
Auto Reheat
A-2
Vegetable
A-3
Fish
A-4
Meat
A-5
Pasta
A-6
Potato
A-7
Pizza
A-8
Soup
A-9
Porridge
150
250
350
400
150
350
500
150
250
350
400
450
150
300
450
600
50(with cold water 450g)
100(with cold water 800g)
150(with cold water 1200g)
1(approximately 200g)
2(approximately 400g)
3(approximately 600g)
1(approximately 80g)
2(approximately 160g)
3(approximately 250g)
500
750
1000
550
1100
Once
Twice
Thrice
4 times
Once
Twice
Thrice
Once
Twice
Thrice
4 times
5 times
Once
Twice
Thrice
4 times
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice

11
11. Cooking End Reminding Function
When cooking ends, there will be 5 beeps which is reminding the completion of cooking.
12. Display Specification
(1) In waiting state, LED will display clock and " :" will flash.
(2) In function setting state, LED will display the related setting.
(3) In the operation and suspending state, LED will display the residual cooking time.
10. Lock-out Function for Children
Lock: In waiting state, press " Stop/Clear " for 3 seconds, there will be a long beep denoting
entering into the children-lock state and LED will display " ".
Lock quitting: In locked state, press " Stop/Clear " for 3 seconds, there will be a long "beep"
denoting that the lock is released.
9. Delay Start
Example: to start cooking at 12:12.
(1) Set the clock first. (Consult the instruction of clock setting.)
(2) Set the cooking program wanted;Defrost program cannot be set here.
(3) Press " " to display the current clock. The hour figures flash:
(4) Press "1", "2", '1", '2";
(5) Press " Start/ Express Cook" to confirm the setting. The unit will turn
back to the clock state.
(6) Cooks begin when the time arrives.
Note: (1) If the setting is not within the range 0:00–23:59, the setting will be invalid;
(2) In the process of setting, if " Stop/Clear " is pressed or there is no operation within
1 minute, the unit will go back to the previous state automatically;
(3) The clock must be set before the delay start cooking. If the pre-set cooking has
not been programmed and only time to start cooking is set, the whole set will be
regarded as an alarm clock setting and 5 beeps will be sound when the pre-set
time is reached.
8. Multi-section cooking
At most 2 sections can be set for cooking. In multi-section cooking, if one section is
defrosting, then defrosting will be placed in the first stage automatically.
Note: Auto cooking cannot work in the multi-section cooking.
Example: if you want to cook with 100% microwave power for 5 minutes +80% microwave
power for 10 minutes. The cooking steps are as following:
(1) Press "Microwave" once to choose 100% microwave,now "P100" is displayed;
(2) Press number keys "5","0","0" to set the cooking time;
(3) Press "Microwave" twice to choose 80% microwave power, "P80" is displayed;
(4) Press number keys "1","0","0","0" to set the cooking time;
(5) Press "Start/Express Cook" to start cooking.

Trouble shooting
It is forbidden to run the unit without any food inside.
It is very dangerous.
This Appliance has a 2 year replacement guarantee offered by
BLACK & DECKER AUSTRALIA and BLACK & DECKER NEW ZEALAND
Please refer to the enclosed guarantee card.
