ENGLISH (Original instructions)
Intended use
Your BLACK+DECKERTM Dustbuster® handheld vacuum cleaner has been designed
for light dry vacuum cleaning purposes. This appliance is intended for household use
only.
Safety instructions
@Warning! Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions listed below may result
@Warning!
When using battery-powered ap-
pliances, basic safety precautions, including the
following, should always be followed to reduce
and material damage.
u Read all of this manual carefully before using the appli-
ance.
u The intended use is described in this manual. The use
of any accessory or attachment or the performance
Dustbuster NV6020(H1)
Voltage Vdc
Battery
NV6020
DUSTBUSTER HANDHELD VACUUM CLEANER
Technical data
Type
Weight kg
6.0
NiCd
0.82
Charger
Input voltage Vac
Vdc
Output voltage
100-240*
27
Current mA
Approximate charger time h
85
21
0.06
Weight
kg
* As stated on charger name plate

of any operation with this appliance other than those
recommended in this instruction manual may present a
risk of personal injury.
u Retain this manual for future reference.
Using your appliance
u Do not use the appliance to pick up liquids or any mate-
u Do not use the appliance near water.
u Do not immerse the appliance in water.
u Never pull the charger lead to disconnect the charger
from the socket. Keep the charger lead away from heat,
oil and sharp edges.
5
ENGLISH
(Original instructions)
u This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or in-
struction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Inspection and repairs
u Before use, check the appliance for damaged or defec-
tive parts. Check for breakage of parts, damage to
switches and any other conditions that may affect its
operation.
u Do not use the appliance if any part is damaged or
defective.
u Have any damaged or defective parts repaired or
replaced by an authorized repair agent.
u Regularly check the charger lead for damage. Replace
the charger if the lead is damaged or defective.
u Never attempt to remove or replace any parts other

Additional safety instructions
Residual risks.
Additional residual risks may arise when using the
tool which may not be included in the enclosed
safety warnings. These risks can arise from mis-
use, prolonged use etc.
Even with the application of the relevant safety
regulations and the implementation of safety
devices, certain residual risks can not be avoided.
These include:
u Injuries caused by touching any moving parts.
u Injuries caused by touching any hot parts.
u Injuries caused when changing any parts or accesso-
ries.
6
ENGLISH (Original instructions)
u Injuries caused by prolonged use of the appliance.
When using any appliance for prolonged periods ensure
you take regular breaks.
Batteries and chargers
Batteries
u Never attempt to open for any reason.
u Do not expose the battery to water.
u Do not expose the battery to heat.
u Do not store in locations where the temperature may
exceed 40°C.
u Charge only at ambient temperatures between 10°C
and 40°C.
u Charge only using the charger provided with the appli-
ance/tool. Using the wrong charger could result in an
electric shock or overheating of the battery.
u When disposing of batteries, follow the instructions
given in the section "Protecting the environment".
u Do not damage/deform the battery pack either by punc-
ture or impact, as this may create a risk of injury and
u Do not charge damaged batteries.

u Under extreme conditions, battery leakage may occur.
When you notice liquid on the batteries carefully wipe
the liquid off using a cloth. Avoid skin contact.
u In case of skin or eye contact, follow the instructions
below.
Warning!
or damage to property. In case of skin contact, immediate-
ly rinse with water. If redness, pain or irritation occurs seek
medical attention. In case of eye contact, rinse immedi-
ately with clean water and seek medical attention.
Chargers
voltage. Always check that the mains voltage
corresponds to the voltage on the rating plate and
the information in the technical data table.
7
ENGLISH
(Original instructions)
Warning! Never attempt to replace the charger unit
with a regular mains plug.
u Use your BLACK+DECKER charger only to charge the
battery in the appliance/tool with which it was supplied.
Other batteries could burst, causing personal injury and
damage.
u Never attempt to charge nonrechargeable batteries.
u If the supply cord is damaged, it must be replaced by
the manufacturer or an authorised Black & Decker
Service Centre in order to avoid a hazard.
u Do not expose the charger to water.
u Do not open the charger.
u Do not probe the charger.
u The appliance/tool/battery must be placed in a well
ventilated area when charging.
Electrical safety
voltage. Always check that the mains voltage cor-
responds to the voltage on the rating plate. Never
attempt to replace the charger unit with a regular
mains plug.

Symbols on the charger
Read all of this manual carefully before using the
appliance.
#
This tool is double insulated; therefore no earth
wire is required. Always check that the power
supply corresponds to the voltage on the rating
plate.
w
Short circuit proof safety isolating transformer.
The mains supply is electrically separated from
the transformer output.
8
ENGLISH (Original instructions)
x
The charger automatically shuts off if the ambi-
ent temperature becomes too high. As a con-
sequence the charger will be inoperable. The
charging base must be disconnected from the
mains supply and taken to an authorised service
centre for repair.
$
The charging base is intended for indoor use
only.
Features
This tool includes some or all of the following features.
1. On/off switch
2. Bowl release button
3. Dust bowl
4. Charger
5. Charging bracket

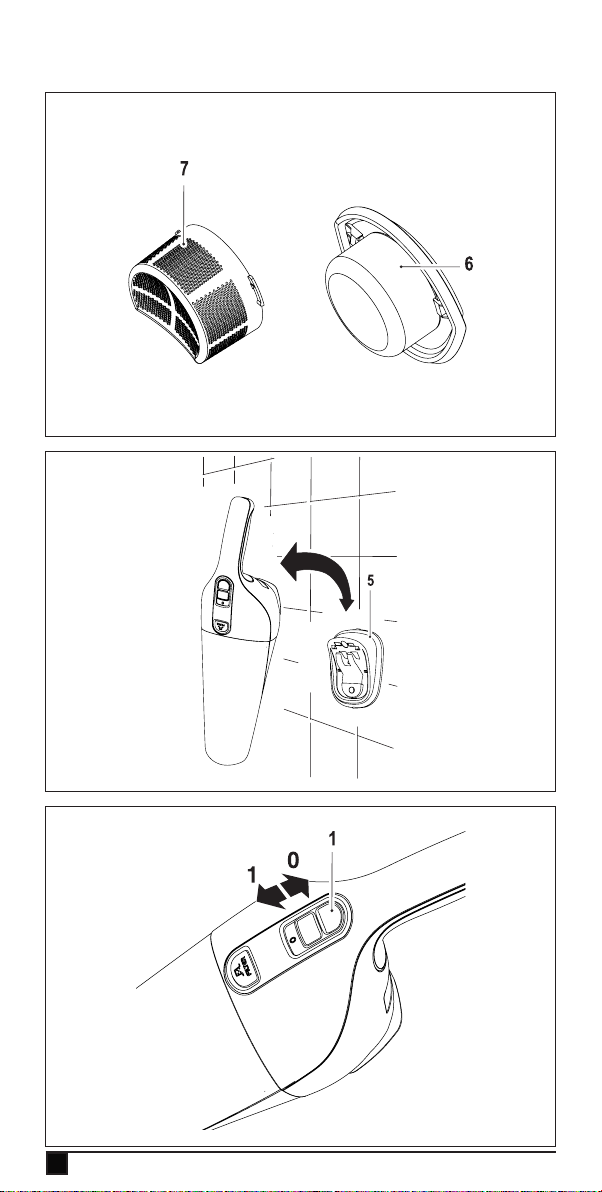

Fig. A
6.
7.
Installation
The product can be attached to a wall to provide a convenient storage and charging
point for the appliance.
is appropriate to the weight of the appliance.
uMark the location of the screw holes (within reach of an electrical outlet for charging
the vac while it is on the wall bracket).

uFix the mounting bracket to the wall using appropriate screws and plugs for the type
of wall and weight of the appliance.
uHang the appliance on the wall by placing the opening on the base of the vac over
the hooks in the wall mount charging bracket.
Use
u
uPlace the appliance on the charging bracket whenever it is not in use.
Charging the battery (Fig. B)
uMake sure that the appliance is switched off. The battery will not be charged with
the on/off switch in the on position.
uPlace the appliance on the charging bracket (5).
uPlug in the charger. Switch on at the mains.
uLeave the appliance to charge for at least 21 hours.
9
ENGLISH
(Original instructions)
While charging, the charger may become warm. This is normal and does not indicate a
Warning! Do not charge the battery at ambient temperatures below 10 °C or above 40
°C.
Note: Ensure the appliance is fully seated onto the charging base. If the appliance is
not fully seated then the appliance will not charge.
uTo switch the appliance on, slide the on/off switch (1) forward to position 1.
uTo switch the appliance off, slide the on/off switch (1) back to position 0.
Optimising the suction force
use.
Emptying and cleaning the product.
Warning!

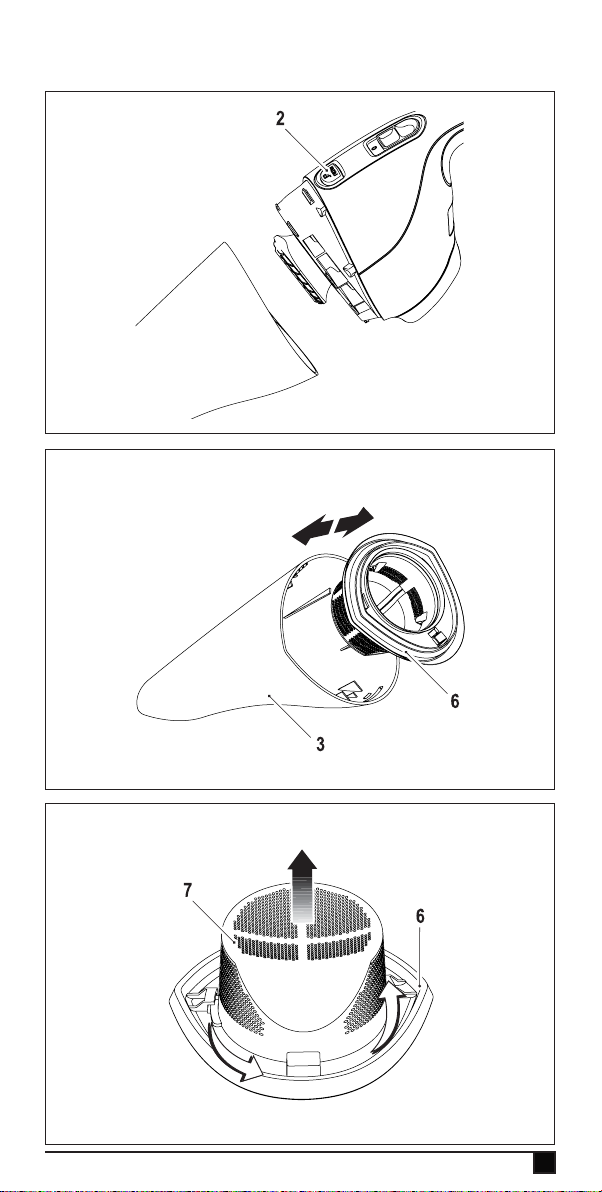

uPress the bowl release button (2) and pull the dust bowl (3) straight off.
u-
tents of the bowl.
u
position.
Warning!

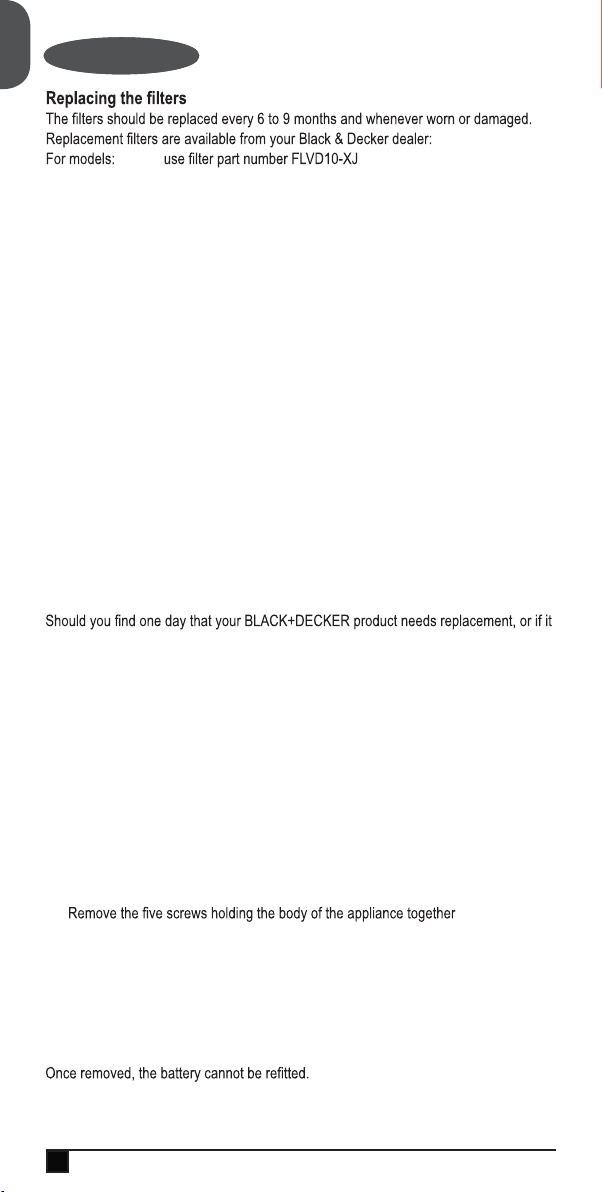

u
u
u

Maintenance
Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate
over a long period of time with a minimum of maintenance. Continuous satisfactory
operation depends upon proper tool care and regular cleaning.
Warning! Before performing any maintenance on corded/ cordless power tools:
uSwitch off and unplug the appliance/tool.
uOr switch off and remove the battery from the appliance/tool if the appliance/tool
has a separate battery pack.
uOr run the battery down completely if it is integral and then switch off.
uUnplug the charger before cleaning it. Your charger does not require any mainte-
nance apart from regular cleaning.
uRegularly clean the ventilation slots in your appliance/tool/charger using a soft
brush or dry cloth.
10
ENGLISH (Original instructions)
uRegularly clean the motor housing using a damp cloth. Do not use any abrasive or
solvent-based cleaner.
Protecting the environment
ZSeparate collection. This product must not be disposed of with normal house- hold waste.
is of no further use to you, do not dispose of it with household waste. Make this product
available for separate collection.
zSeparate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environ-
mental pollution and reduces the demand for raw materials.
Battery
ZIf you want to dispose of the product yourself, the battery must be removed as described below and disposed of in accordance with local regulations.
uPreferably discharge the battery by operating the appliance until the motor stops.
uPress the bowl release button (2) and remove the dust bowl (3).
u.
uLift the housing cover away from the assembly.
uDetach all lead connections from the battery pack.
uRemove battery pack and motor assembly.
uPlace the battery pack and motor assembly in suitable packaging to ensure that the
terminals cannot be short-circuited.
uTake the battery pack and motor assembly to your service agent or to a local
recycling station.
NV6020
