INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Por favor, lea antes de devolver este aparato por cualquier motivo.
Please read before returning this appliance for any reason.
BXUVXA01
VACUUM+WASH DUO
DÚO ASPIRADORA+LAVADO

CONTENTS
SAFETY ALERT SYMBOLS......................................................................................2
PRODUCT OVERVIEW..............................................................................................2
IMPORTANT SAFETY INSTRUCTIONS...............................................................3
WHAT'S IN THE BOX.................................................................................................7
DISPLAY.........................................................................................................................8
ASSEMBLY & DISASSEMBLY.................................................................................8
APPLIANCE OPERATION........................................................................................11
DAILY MAINTENANCE............................................................................................14
SOLUTIONS TO COMMON PROBLEMS............................................................17
TROUBLESHOOTING...............................................................................................18
SPECIFICATIONS......................................................................................................19
BATTERY DISPOSAL INSTRUCTIONS..............................................................19
WARRANTY...............................................................................................................20

2
Dirty Water Tank
Clean Water Tank
Roller Cover
Release
Roller
Self-Cleaning
Button
Mode Button
Power Button
Handle
Digital Display
Dirty Water Tank
Release
Clean Water Tank
Release
Charging Port
DEFINITIONS: SAFETY ALERT SYMBOLS AND WORDS
PRODUCT OVERVIEW
This instruction manual uses the following safety alert symbols and words to alert you
to hazardous situations and the risk of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
NOTICE:
Indicates a practice not related to personal injury which, if not avoided,
may result in property damage.
WARNING: Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result
in electric shock, fire and/or serious injury.
WARNING: To reduce the risk of injury,
read the instruction manual.
Carrying Handle

3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance. If the appliance is passed to a third
party for use, please attach this manual to the appliance. When using an electrical
appliance, basic precautions should be observed, including the following:
!WARNING:
To reduce the risk of fire, electric shock, or injury:
1. Use indoors only. Do not use the appliance in outdoor, commercial, or industrial
environments.
2. Do not use the appliance as a toy. Children should be supervised to ensure that
they do not play with the appliance.
3. Only use as described in this user manual. Only use attachments
recommended or sold by the manufacturer.
4. Do not charge with a damaged power cord or plug. Take care not to damage
the power cord or plug. Discard the appliance or return to an authorized service
facility for examination and/or repair.
5. Do not use to pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
6. Do not use to pick up sharp objects, such as metallic nails, pieces of glass,
metal paper clips, or pins.
7. Do not use to pick up hazardous material and chemicals, such as solvents,
drain cleaner, strong acids, or strong alkali, substances that may react
chemically with water.
8. Do not use to pick up ultrafine particles, such as lime, cement, sawdust,
gypsum powder, or ashes.
9. Do not use to pick up flammable or combustible materials such as gasoline,
printer or copier toner, or use in areas where they may be present.
10.Do not use a battery pack or appliance that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable behavior resulting in
fire, explosion or risk of injury.
11. Do not use the appliance in an enclosed space filled with vapors given off by
oil-based paint, paint thinner, some moth-proofing substances, flammable
dust, or other explosive or toxic vapors.
12. Do not use without filter in place.
13. Do not expose a battery pack or appliance to fire or excessive temperature.
Exposure to fire or temperature above 130°C/265°F may cause explosion.
14. Do not charge the appliance outdoors.

4
15. Do not handle charging base, charging plugs, or appliance with wet hands.
16. Do not immerse in water or liquid. Do not place or submerge appliance in
standing water or try to clean flooded areas. Use only on surfaces moistened
by the cleaning process.
17. Do not unplug by pulling on charging base cord. To unplug, grasp the adapter,
not the cord.
18. Do not put any object into openings. Do not use with any opening blocked.
19. Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts of the appliance and its accessories.
20. Use extra care when cleaning on stairs. Prevent the appliance from falling.
21. Prevent unintentional activation. Ensure the appliance is off before picking up
or carrying the appliance. Carrying the appliance with your finger on the button.
22. Recharge only with the adapter specified by BLACK+DECKER. Use of other
types of adapters may cause a fire.
23. Always turn off the appliance before making any adjustments, changing
accessories, or storing the appliance.
24. Use appliance only with specifically designated BLACK+DECKER battery packs.
Use of any other battery packs may cause a risk of injury and fire.
25. Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, wash with water. If liquid contacts
eyes, seek medical help. Liquid ejected from the battery may cause irritation
or burns.
26. Follow all charging instructions and do not charge the battery pack or
appliance outside of the temperature range 4-40°C/40-104°F. Charging
improperly or at temperatures outside this range may damage the battery
and increase the risk of fire.
27. Have servicing performed by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is main-
tained.
28. Do not modify or attempt to repair the appliance except as indicated in the
instructions for use and care.
29. Always turn off the appliance before cleaning and servicing it.

5
30. Stop using immediately if the appliance is overheating, making unusual
noises, producing unusual odors, performing low suction, or leaks electricity.
31. Unplug adapter from electrical socket when not in use, before cleaning,
maintaining or servicing the appliance.
32. Store appropriately indoors in a dry place after use.
33. Keep cord away from heated surfaces.
34. Always clean the dirty water tank after each use to avoid potential blockage,
which may lead to low suction power, motor overheating, or reduce the
service life of the appliance.
35. Do not pull or carry charging base by cord, use cord as a handle, close door
on cord, or pull cord around sharp edges or corners.
36. Do not incinerate the appliance even if it is severely damaged. The batteries
will explode.
37. Do not carry the appliance while in use.
38. Plastic film can be dangerous. To avoid danger of suffocation, keep away
from babies and children.
39. When the battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects, that
can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
40. If the appliance is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
41. Always connect to a proper electrical socket.
42. Do not turn on your appliance until you are familiar with all instructions and
operating procedures.
43. The battery must be removed from the appliance before it is scrapped.
44. The charging base is only for BLACK+DECKER BXUVXA01.
45. Do not add other solutions, such as alcohol, disinfectant, etc.
46. Do not add materials that are prone to foaming.

6
ABOUT THE APPLIANCE
ABOUT CLEANING SOLUTIONS
RANGE OF USAGE
!
WARNING:
Keep out of reach of children. If any solution gets into the eyes,
immediately flush them with clean water. If any product is swallowed by accident,
seek medical care immediately.
!
WARNING:
Do not modify or attempt to repair the appliance except as indicated
in the instructions for use and care.
1. Use this appliance ONLY as described in the manual. Recommend using with
BLACK+DECKER cleaning tablets.
2. Overfill of liquid cleaning solution into the motor may cause damage to
the appliance.
3. Dirty water and tablet disposal should comply with local environmental
regulations.
1. Use extra care when cleaning on stairs.
2. Ensure that the Power button is turned OFF before picking up or carrying the
appliance. Do not lay flat or overlean the appliance to prevent dirty water from
entering into the motor.
3. To avoid being tripped accidentally, please put away the appliance on the
charging base.
4. Always install the dirty water tank and clean water tank properly before use.
!
WARNING:
Charge the appliance with the adapter. Input Voltage: 120V. Both high
and low voltages can damage the adapter, appliance, or even cause danger
to the user.
!
WARNING:
Do not allow the appliance, charging base or adapter to get wet to avoid
risk of fire or injury caused by a short circuit.
1. The appliance is to be used on indoor hard floors and carpets, such as vinyl, tile,
sealed wood, short pile carpet, etc. Use on a rough surface may not get the best
performance.
2. Keep the appliance away from heat sources, such as fireplace or heater, to
avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles,
sharp objects, hazardous material, chemicals, or anything that is burning or
smoking, as described above.

7

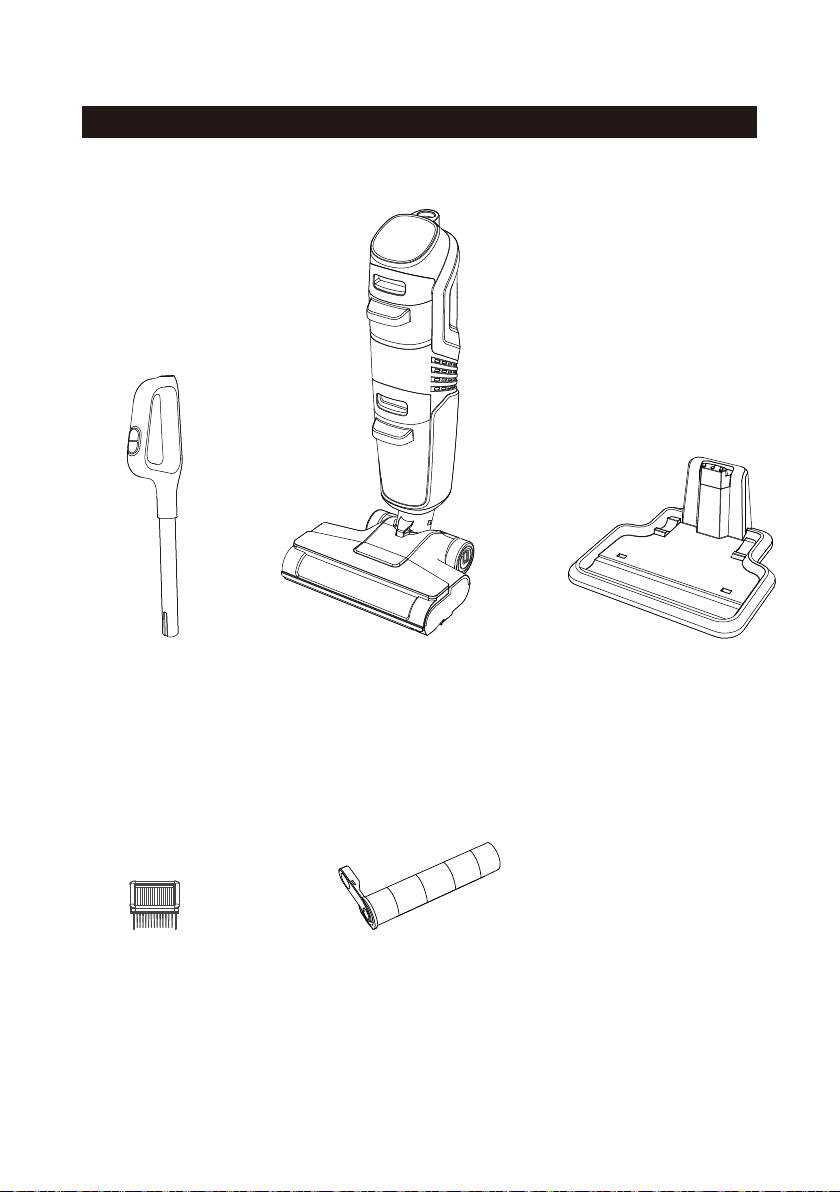

WHAT'S IN THE BOX
Handle
Soft Roller
Foam Filter
Model: BXUVXAC01 Model: BXUVXAR01
Charging Base
Body

8
DISPLAY
MAX Mode
ECO Mode
Clean Water Tank
Shortage Indicator
Dirty Water Tank
Full Indicator
Battery Level
Indicator
Self-Cleaning
Indicator Roller Tangled
Indicator
System Error
Indicator
Dry Vacuum Mode
ASSEMBLY & DISASSEMBLY
Assemble Handle
To assemble the handle, insert it into
the appliance until you hear a click.
Disassemble Handle
To disassemble the handle, insert a
tool (not included) into the disassembly hole
on the back of the appliance, press firmly
against the stopper, and pull the handle
upward to complete the disassembly.
Disassembly Hole

9

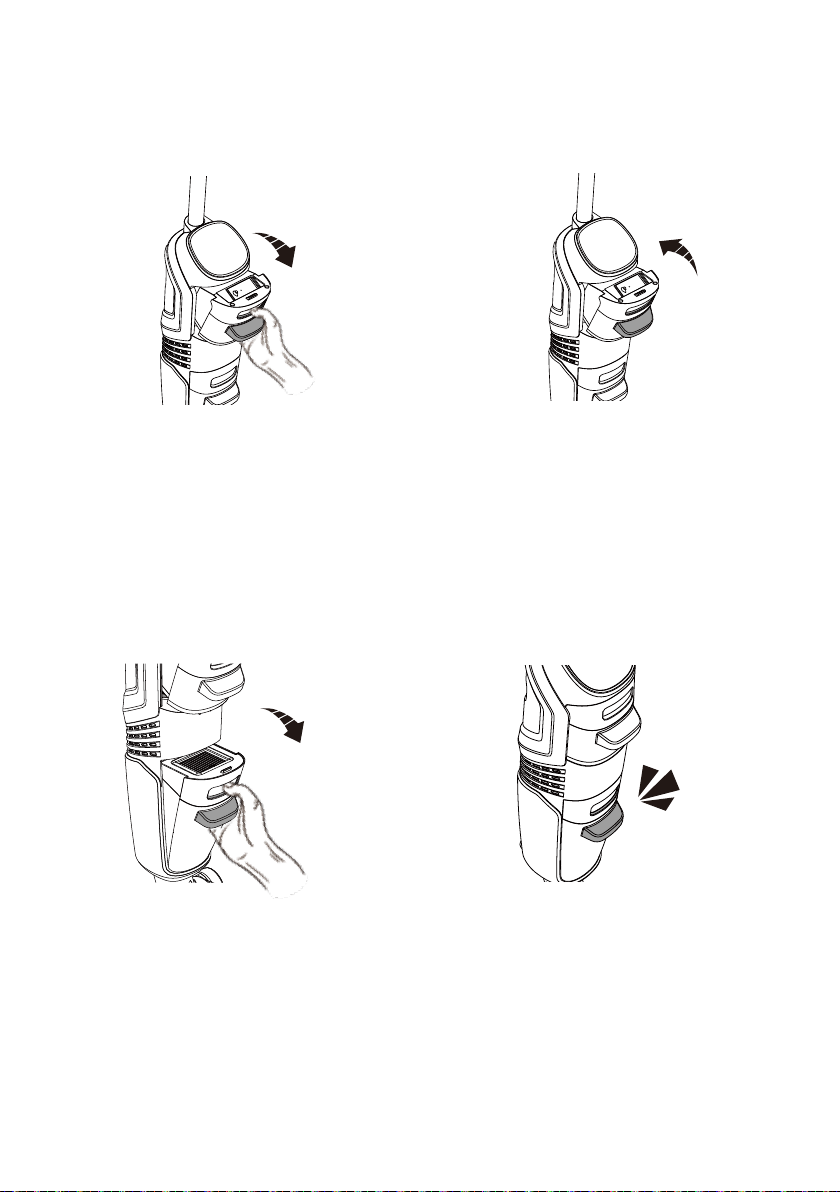

Disassemble Dirty Water Tank Assemble Dirty Water Tank
To disassemble the dirty water tank,
press the dirty water tank release button
to remove it from the appliance.
To assemble the dirty water tank,
insert the bottom of the tank first,
then pivot the top toward the
appliance until it “clicks” into place.
Disassemble Clean Water Tank Assemble Clean Water Tank
To disassemble the clean water tank,
press the clean water tank release
button to remove it from the appliance.
To assemble the clean water tank,
align the bottom of the clean water
tank with the groove and push the
tank until it “clicks” into place.

10

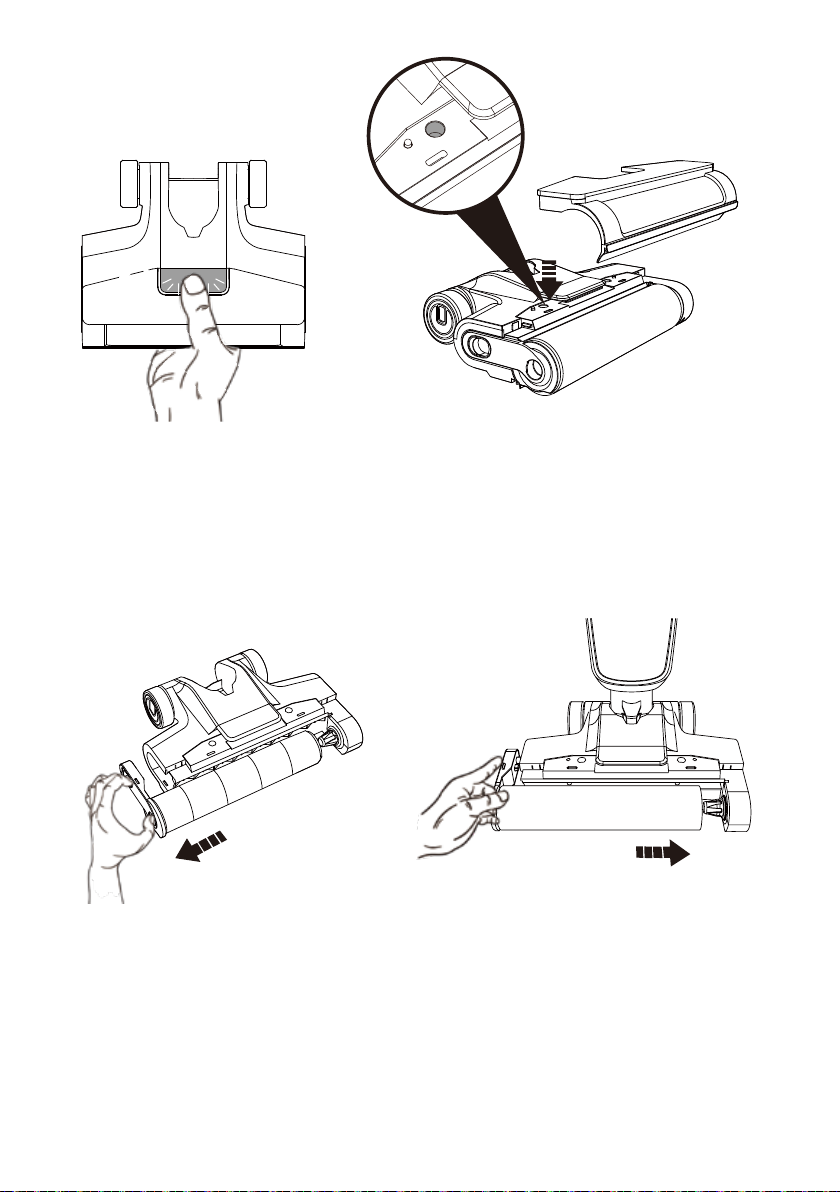

To remove the roller, pull up the left
handle of the roller with your fingers to
remove it.
To assemble the roller, squeeze the
roller handle with your hand, align
the right side of the roller with the
right end cover first, then put the left
end of the roller handle into the slot,
until it “clicks” into place.
Assemble RollerDisassemble Roller
Press middle of the roller cover release
button to remove it.
To assemble the roller cover, first
align the roller cover with the snap
position, press down with both
hands until it “clicks” into place.
Disassemble Roller Cover Assemble Roller Cover
Snap

11
APPLIANCE OPERATION
——Appliance Use——
——Vacuum Modes——
1. Before use, please charge the appliance
for about 5 hours (on page 13).
1 2
For daily cleaning.
ECO Mode
For heavy dirty cleaning.
MAX Mode
For carpet cleaning.
Dry Vacuum Mode
Clean Water Tank
Release
2. To disassemble the clean water tank,
press the clean water tank release
button to remove it from the appliance.

12
＜160°

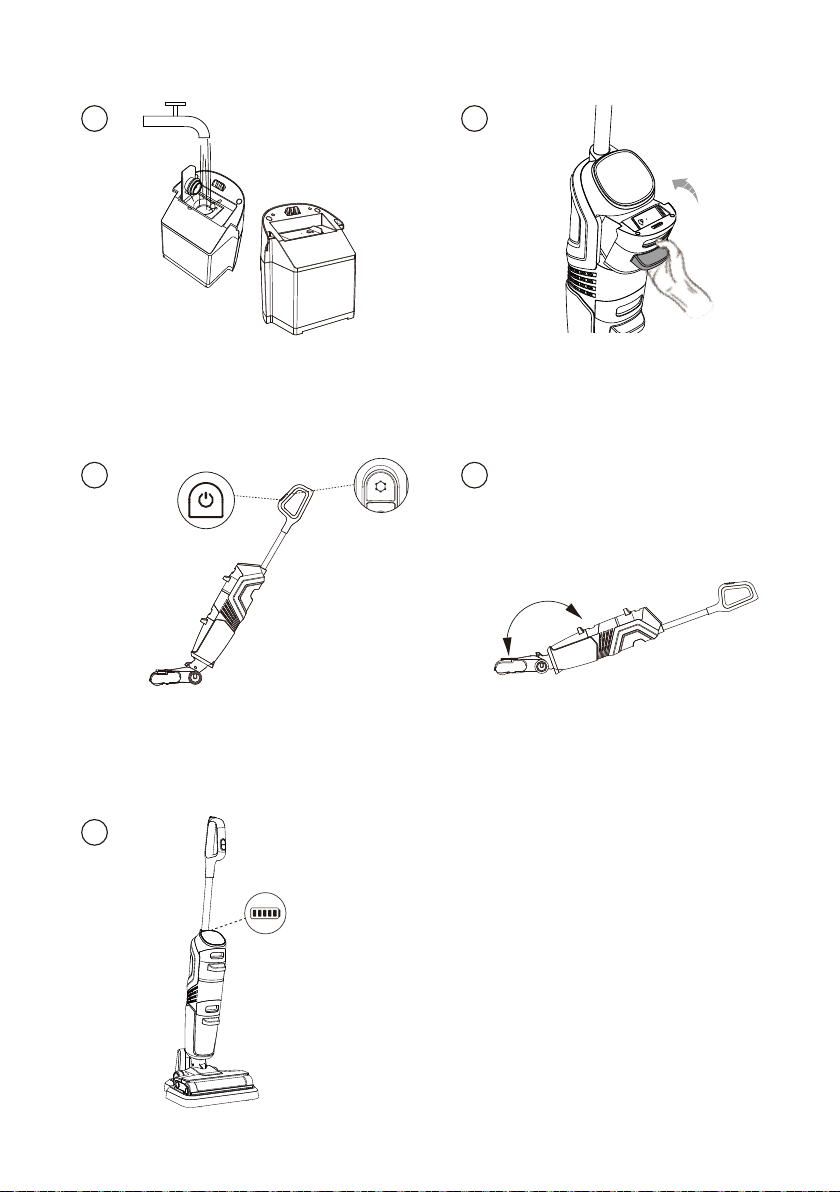

3. Fill the clean water tank with water.
When deep cleaning is required, it is
recommended to clean with
BLACK+DECKER cleaning tablets,
Model #: BXCTXA030 (Not included)
4. To assemble the clean water tank,
align the bottom of the clean water
tank with the groove and push the
tank until it “clicks” into place.
3 4
5
7
6
6. Tilt the angle properly. Do not
recline the appliance more than
160° to protect against water
leakage.
7. Place the appliance on the charging base vertically
after use for charging. Then start the cleaning
process (located on the next page).
5. Press the power button to turn it on.
Switch to ECO/MAX/Dry Vacuum mode
according to floor types by pressing
the mode button.
Power Button
Mode Button
1. Do not vacuum foamed liquid.
2. Do not add cleaning solutions that are prone to
foaming.
3. Do not tilt the machine (less than 45°C) to one
side or lay it flat to prevent dirty water from
entering the motor.
4. Do not fill hot water in the clean water tank.
5. Do not soak or rinse the appliance and the
charging base with water.
Note:

13
——Self-Cleaning ——
——Appliance Charging——
Note:
1. Ensure the charging base is plugged in.
Make sure the appliance is fully charged before use.
1. To charge the appliance, place the appliance on the charging base vertically.
2. Plug the adapter into a suitable wall outlet. The Battery Indicator will flash
when charging.
3. To avoid tripping hazards, please place the appliance on the charging base
near a wall during charging.
4. For maximum run time, charge the appliance for 5 hours.
1. Only charge the appliance with the charging base supplied by
BLACK+DECKER.
2. During long periods of not being used, the appliance must be
charged once every 3 months for optimal performance.
3. Store indoors in a dry, cool area. Do not expose
the appliance to sunlight or freezing environment.
Warning:
!
1. Place the appliance on the charging base.
2. Make sure the water in the clean water tank
exceeds half.
3. Ensure the dirty water tank is clean (see page 14).
4. Press the self-cleaning button to clean the roller.
Takes around 90 seconds.
5. The self-cleaning process will be paused if the
self-cleaning button is pressed while cleaning.

14
DAILY MAINTENANCE
——Debris Channel——
——Cleaning the Dirty Water Tank & Filter——
After each use, remove the dirty water tank and lightly wipe any dirt
inside the tube and on the sensor with a washcloth.
For optimal performance and to prevent odors, always clean and dry dirty water
tank, filter, roller, roller cover completely after each use.
Press the dirty water tank release
button to remove the dirty water tank.
Rinse the dirty water tank cover and
the dirty water tank with water, and
use the cleaning tool (not included)
to clean the dirty water tank.
Ensure the dirty water tank is clean
and completely dry, assemble it into
place. (Directions on page 9)
Remove the filter from the dirty water tank
cover, pull out the dirty water tank cover
upwards and pour out the dirty water.
1 2
3 4
Foam Filter
Dirty Water Tank Cover
!
WARNING:
Turn unit off and remove from charging base before performing
any maintenance.

15
——Cleaning the Roller Cover——
Press the roller cover release to remove roller cover.
Hr
Rinse the roller cover with clean water, and wait for it to completely dry
before assembling.

16

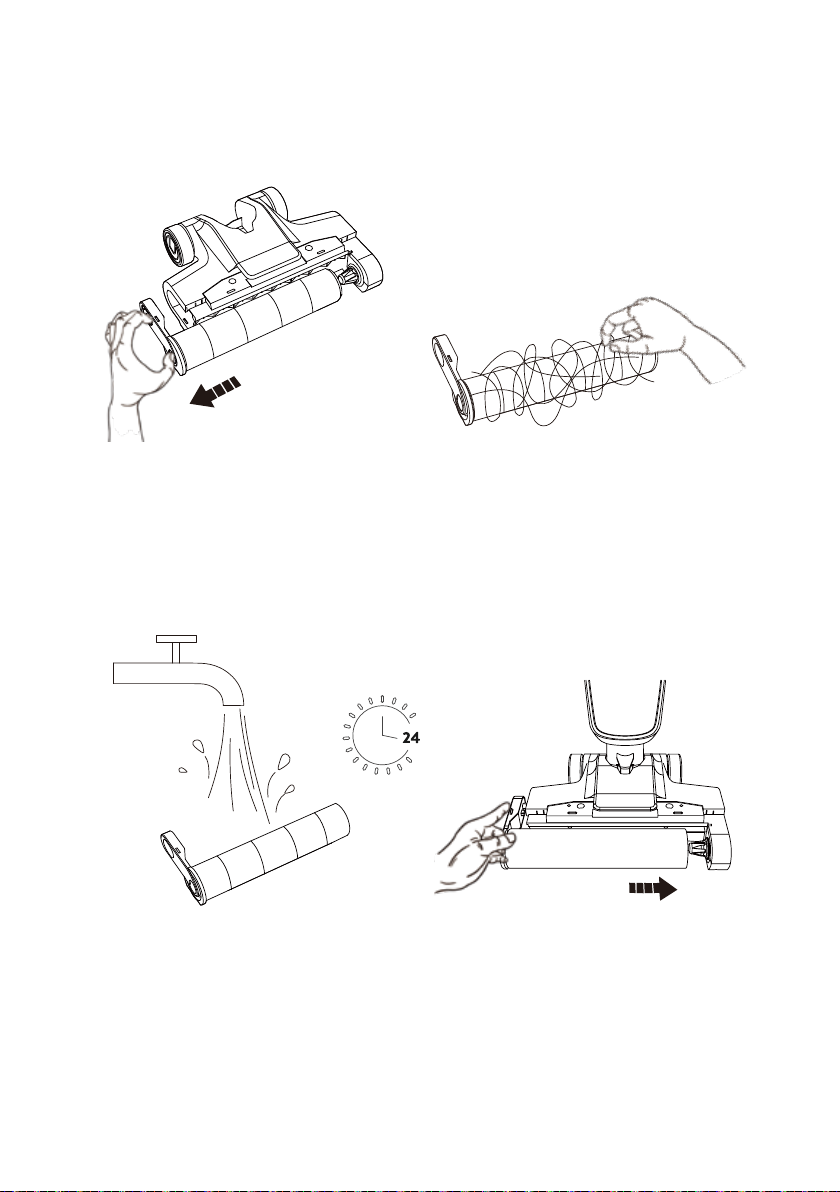

——Cleaning the Roller——
Press the roller release, remove the
roller.
Rinse the roller with clean water as well as wait for it to dry completely before
assembling.
Hr
Clean the tangle by hand.

17
NO. SolutionPossible Cause
Problem
SOLUTIONS TO COMMON PROBLEMS
The appliance
does not turn
on or is not
working
The appliance
does not
charge
Weak suction
Strange sound
from motor
Foam
overflowing
No water
coming out
Motor
malfunction
Note:
If the above guide fails to resolve the problems, please contact us at
1-888-899-0146 for further support.
1. Low battery
2. Dirty water tank full
3. Roller is tangled
1. The appliance is not
properly placed on the
charging base
2. The plug is not plugged in
properly
3. Ambient temperature is
too high or low
1. The Foam Filter is dirty
1. The dirty water tank is full
2. Debris channel is clogged
1. Added too much cleaning
solution
2. Absorbed foamy material
1. The clean water tank is
empty
2. The clean water tank is
not installed in place
2. Debris channel is clogged
1. Place the device in the
charging dock properly
(on page 12)
2. Plug the unit into a suitable
wall outlet (on page 13)
3. Please charge in 4-40°C/
40-104°F setting.
1. Clean and dry the Foam
Filter (on page 14)
1. Empty the dirty water tank
(on page 14)
2. Clean the channel with a
washcloth (on page 14)
1. Recommend to use
Black+Decker cleaning tablet
(Model#:BXCTXA030) as
described in the manual.
2. Clean the dirty water tank
(on page 14). And avoid
absorbing foamy material
1. Add water into clean
water tank (on page 12)
Please contact customer
service
2. Reassemble the clean water
tank (on page 12)
2. Clean the channel with a
washcloth (on page 14)
4. Appliance is overheating
1. Charging before use
(on page 13)
2. Empty the dirty water tank
(on page 14)
3. Clean the roller
(on page 16)
4. Restart after cooling down
around half an hour.

18
TROUBLESHOOTING
ECO Mode Dry Vacuum Mode MAX Mode Self-Cleaning Mode
Display Icons
NO. Description Solution
1. Add water into clean
water tank
2. Reinstall the clean
water tank (on page 12)
1. Empty the dirty water
tank (on page 14)
2. Clean the Foam Filter
(on page 14)
Reinstall the dirty water
tank first (on page 14), and
if it cannot be solved,
please contact the
customer service at
1-888-899-0146
Please charge the appli-
ance (on page 13)
Clean the roller
(on page 16)
Clean Water Tank
Shortage Indicator
Dirty Water Tank
Full Indicator
System Error
Indicator
Roller Tangled
Indicator
Always on after a few
flashes
Powers off after a few
flashes
Powers off after a few
flashes
Powers off after a few
flashes
Powers off after a few
flashes
Battery Level
Indicator

19
BATTERY DISPOSAL INSTRUCTIONS
The chemical substances contained in the lithium-ion battery built in the appliance
will pollute the environment, please remove it by professionals and hand it over to a
professional battery recycling organization for centralized disposal before disposing.
1. The battery contains substances that are harmful to the environment and
must be removed from the appliance before disposing.
2. The appliance must be powered off when the battery is removed.
3. Batteries, adapters, accessories, and packaging should be sorted for environ
mental recycling.
Product
Base Charging Input
Rated Voltage
Rated Power
Running Time
Charging Time
Clean Water Tank Capacity
Dirty Water Tank Capacity
BXUVXA01
AC 120V~ 60Hz
DC 25.2V 2000mAh Lion
180W
20mins
5hrs
600ml
550ml
SPECIFICATIONS
!
WARNING:
1. Do not put battery into water or soil.
2. Do not expose the battery to fire or excessive temperature. Exposure to fire or
temperature above 130°C/265°F may cause explosion.
3. If battery leaks fluid and comes in contact with skin and clothing, rinse immediately
with water to avoid irritation and seek immediate medical attention.
