Black Dog LED PhytoMAX-2 Series User manual

Acceptable Voltage Range 100V - 250V
AC Frequency Range 50 - 60 Hz
Operaonal Temperature Range -4 - 104 °F (-20 - 40 °C)
Spectrum
Proprietary Phyto-Genesis
Spectrum®covering
365 - 750nm, including UV and NIR
Warranty 5 years
Cercaons
M.T.B.F. > 50,000 Hours
Power Factor > 0.98
Fans 70,000 Hour Expected Life

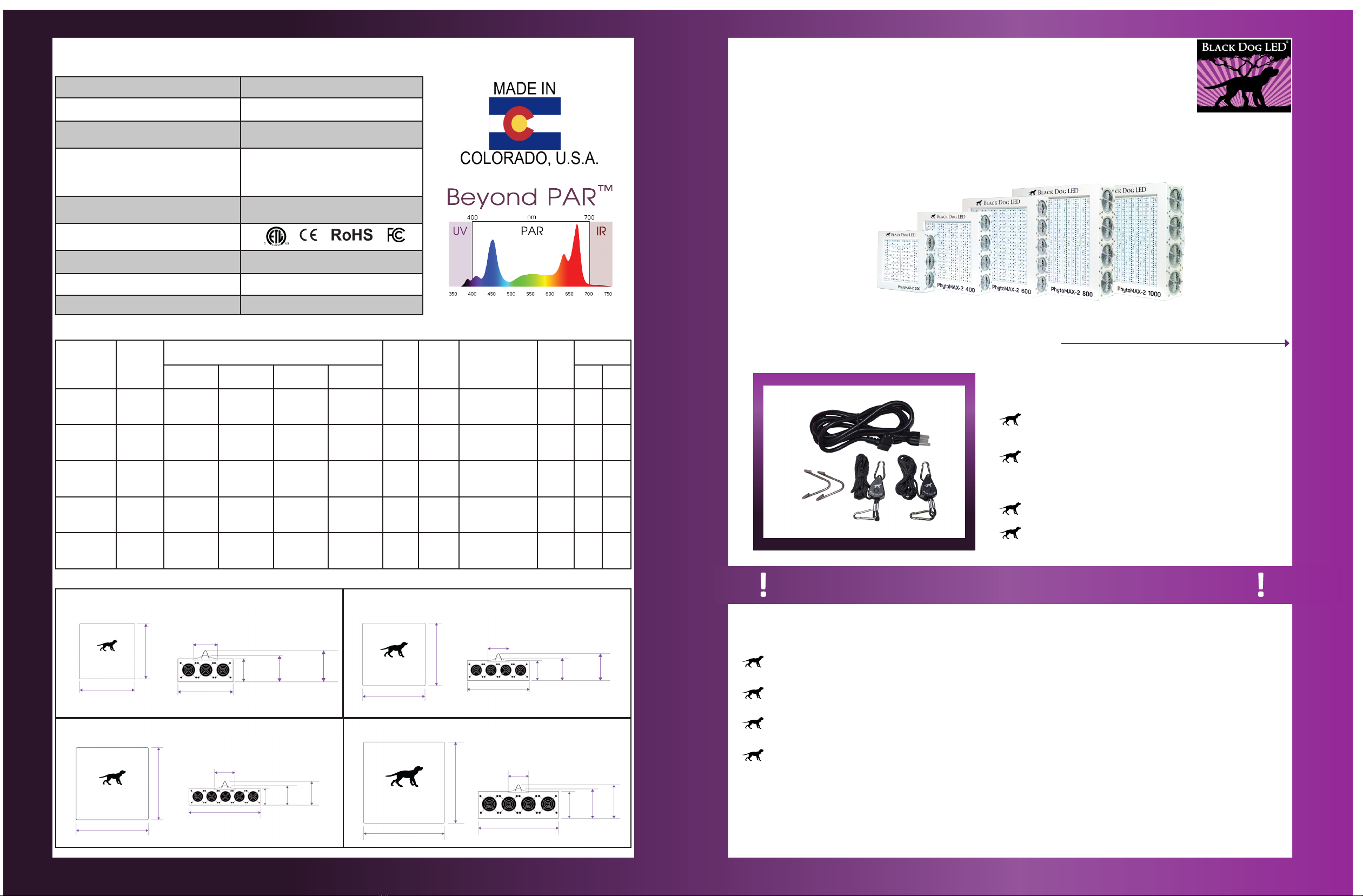

Model Specifications
PhytoMAX-2 General Specifications
-Applies to all PhytoMAX-2 models-
Technical Drawings
Welcome to Your New
PhytoMAX-2
LED Grow Light!
Please read and save this quick guide to your light; more detailed informaon and
updates can be found on our website at this URL:
In the Box You will Find:
1 Kettle Plugwith Outlet CEE 7, Type F
(Schuko) 2,5m Power Cord
1 pair Heavy Duty Ratcheng Light Hangers
Safety:
Be careful while hanging our lights; they're heavy, do not aempt to hang the lights alone!
NEVER look directly at the LEDs while they are on; eye damage may result.
Please save the protecve foam and box your light came in
1 new PhytoMAX-2 Grow Light!
1 pair Commercial LED Hanger Clips
www.blackdogled.eu/PhytoMAX2 www.blackdogled.eu/PhytoMAX2
Don't over-load your electrical circuits!
We recommend wearing any UV-blocking eye wear such as sunglasses when viewing or working
with plants under our lights. PhytoMAX-2 contains UV LEDs, which just like natural sunlight can
not only protect from UV but also color-correct to more easily view your plants under our lights.
irritate and damage your eyes.
Model Waage
(average)
Total Photon Flux (μMol/s)
# LEDs BTUs Size
(L x W x H) Weight
Amps
(average)
300-800nm UV (<400nm) PAR (400-
700nm) IR (>700nm) 120V 240V
PhytoMAX-2
1000 1025 1602 73 1485 47 420 3581 21 x 21 x 7 in
53 x 53 x 17 cm
53 lbs
24 kg 8.8 4.4
PhytoMAX-2
800 820 1282 58 1188 38 336 2864 21 x 21 x 7 in
53 x 53 x 17 cm
50 lbs
22.7 kg 7 3.5
PhytoMAX-2
600 615 961 44 891 28 252 2148 18.75 x 18.75 x 5 in
48 x 48 x 13 cm
34 lbs
15.4 kg 5.3 2.6
PhytoMAX-2
400 410 641 29 594 19 168 1432 15.75 x 15.75 x 5 in
40 x 40 x 13 cm
24 lbs
10.9 kg 3.5 1.8
PhytoMAX-2
200 205 320 15 297 9 84 716 12 x 12 x 5 in
31 x 31 x 13 cm
14 lbs
6.4 kg 1.8 0.9
The Phyto-Genesis Spectrum®
12”/31cm
18 ¾”/48cm
21”/53cm
15¾”/40cm
4 ⅜”/11.1cm
4 ⅜”/11.1cm
6”/15.2cm
4 ⅜”/ 11.1cm
6 ⅝”/16.8cm
6 ⅝”/16.8cm 6 ⅝”/16.8cm
6 ⅝”/16.8cm
5 ⅛”/13cm
5 ⅛”/13cm
6 ¾”/17.1cm
5 ⅛”/ 13cm
6 ⅝”/16.8cm
6 ⅝”/16.8cm
8 ¼”/20.9cm
6 ⅝"/16.8cm
12”/31cm
18 ¾”/48cm 21”/53cm
15 ¾”/40cm
12”/31cm
18 ¾”/48cm
21”/53cm
15 ¾”/40cm
PhytoMAX-2 200
PhytoMAX-2 200
PhytoMAX-2 600 PhytoMAX-2 800
/1000
PhytoMAX-2 400
PhytoMAX-2 400
PhytoMAX-2 800/1000
PhytoMAX-2 600
We offer Black Dog LED grow glasses from Method Seven which

Attention:
AHier Text eingeben
disposal
A
Hier Text eingeben
INCORRECT!
CORRECT!

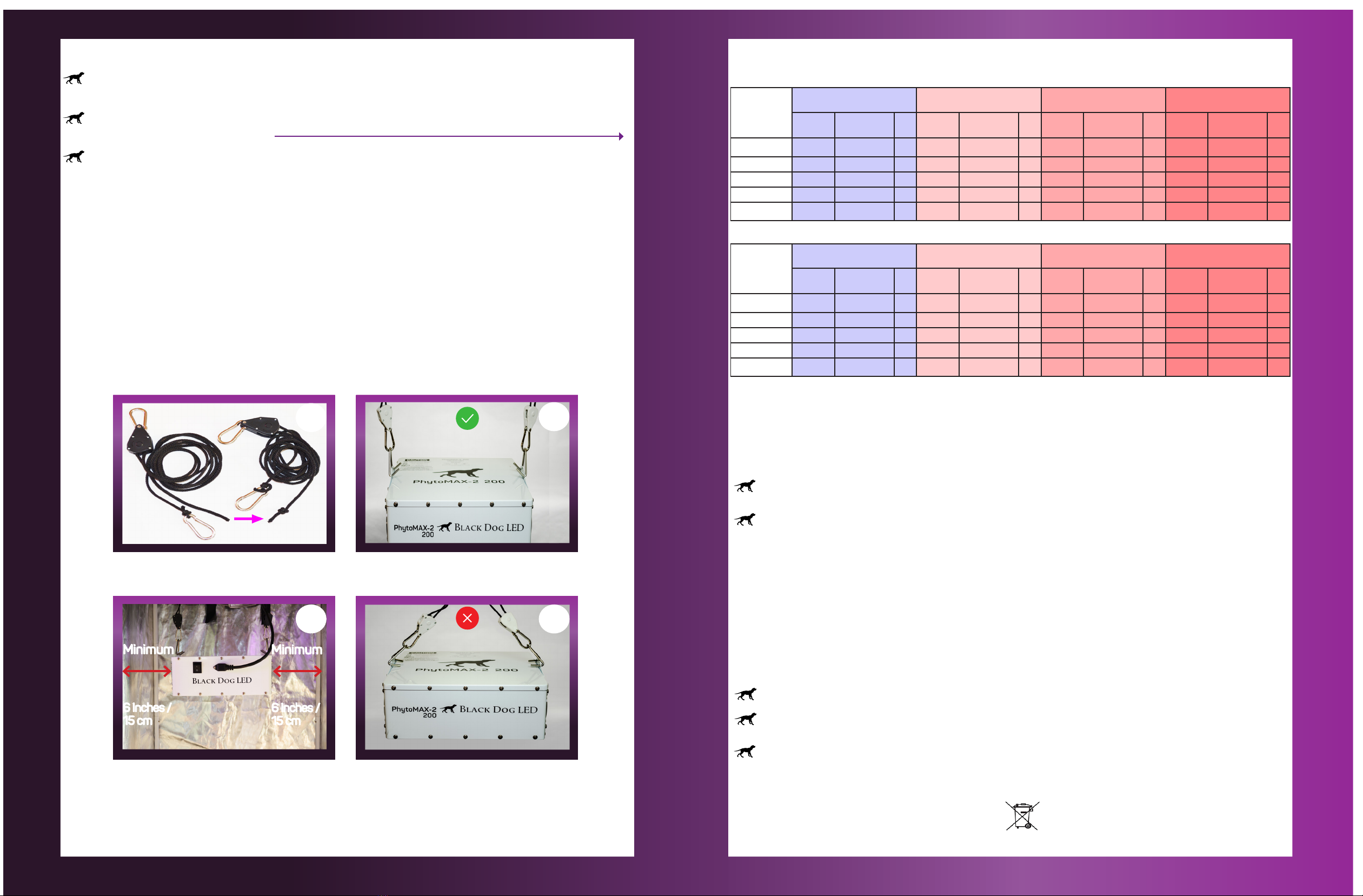

Hanging Your Light:
We recommend tying a stopper knot at the loose end of the rope to prevent
over-extension of each of the ratcheng rope hangers. See gure A
DO NOT aempt to hang a PhytoMAX-2 light alone! At least 2 people are recommended.
See this URL for more informaon:
Ensure that the structure you'll be hanging the light from can support its weight plus some
extra for cords, etc. - The PhytoMAX-2 800 and 1000 hanging points need to support over
25 kilograms (50 pounds)!
1. Insert a metal hanger clip into the hanging bracket on either side of the back of the light.
Ensure that both ends of the clip are secure.
2. Clip one end of each of the ratcheng rope hangers to the ceiling, and the other end to
the metal hanger clips aached to the light. The ropes should be hanging straight, not
pulling the hanging brackets toward or away from the center of the light. See gures B & C
3. Adjust the ratchet to hang the light at the recommended height as outlined in the table on
the next page.
4. Ensure there is always a minimum 6"/15cm of clearance on both sides of the light that
have vents. Failure to provide adequate clearance can cause the light to overheat. The
sides without vents and the top of the light do not require any clearance. See Figure D
AB
CD
Recommendations for Proper Use
Imperial
Metric
* Average PPFD measurements are over the enre footprint, edge-to-edge and corner-to-corner, based on reflective
surroundings or adjacent lights.
** When growing in an area smaller than the medium recommended ower footprint, CO2 supplementation is generally
required to make full use of the addional light.
The above footprint calculaons were created for photoperiod-sensive plants in a square area
PhytoMAX-2 Growing Tips:
We recommend keeping your growing area 9-10 °F / 5 °C (85 °F / 29 °C) warmer than you would
with other lights to maximize yield.
If not growing hydroponically, we recommend using fabric pots with our lights; they allow soil to
dry out more quickly since our lights aren't heating it as much. This allows faster nutrient cycling
and encourages a better root system.
www.blackdogled.eu/PhytoMAX2
www.blackdogled.eu/PhytoMAX2
Minimum
6 Inches /
15 cm
Minimum
6 Inches /
15 cm
Light Model
Largest Recommended
Vegetave Footprint
Largest Recommended
Flower Footprint
Medium Recommended
Flower Footprint**
Smallest Recommended
Flower Footprint**
Area
(feet)
Average PPFD*
(μMol/m²/s)
H.H.
(in)
Area
(feet)
Average PPFD*
(μMol/m²/s)
H.H.
(in)
Area
(feet)
Average PPFD*
(μMol/m²/s)
H.H.
(in)
Area
(feet)
Average PPFD*
(μMol/m²/s)
H.H.
(in)
PhytoMAX-2 200
3.75 x 3.75 211 27 3 x 3 330 21 2.25 x 2.25 587 16 1.75 x 1.75 971 13
PhytoMAX-2 400
5.25 x 5.25 215 38 4.25 x 4.25 329 30 3 x 3 660 21 2.5 x 2.5 951 18
PhytoMAX-2 600
6.5 x 6.5 211 47 5 x 5 356 36 3.75 x 3.75 634 27 3 x 3 990 21
PhytoMAX-2 800
7.5 x 7.5 211 54 6 x 6 330 43 4.5 x 4.5 588 32 3.5 x 3.5 971 25
PhytoMAX-2 1000
8 x 8 232 57 6.5 x 6.5 352 47 5 x 5 596 36 4 x 4 930 29
Light Model
Largest Recommended
Vegetave Footprint
Largest Recommended
Flower Footprint
Medium Recommended
Flower Footprint**
Smallest Recommended
Flower Footprint**
Area
(cm)
Average PPFD*
(μMol/m²/s)
H.H.
(cm)
Area
(cm)
Average PPFD*
(μMol/m²/s)
H.H.
(cm)
Area
(cm)
Average PPFD*
(μMol/m²/s)
H.H.
(cm)
Area
(cm)
Average PPFD*
(μMol/m²/s)
H.H.
(cm)
PhytoMAX-2 200
115 x 115 209 68 90 x 90 341 53 65 x 65 653 41 55 x 55 913 34
PhytoMAX-2 400
160 x 160 216 97 130 x 130 327 77 95 x 95 612 54 75 x 75 982 46
PhytoMAX-2 600
200 x 200 207 119 155 x 155 345 93 115 x 115 627 69 95 x 95 918 56
PhytoMAX-2 800
230 x 230 209 137 185 x 185 323 110 135 x 135 606 82 110 x 110 913 63
PhytoMAX-2 1000
250 x 250 221 150 200 x 200 345 121 150 x 150 614 92 120 x 120 959 76
Issues And Questions:
Black Dog LED wants you to be satisfied with your PhytoMAX-2 light!
Please note that our lights contain infrared and ultraviolet diodes that are outside of humans'
visual range, so it is normal for some of the LEDs to appear dim or unlit.
If you have any issues with your light's function, please contact Black Dog LED, not the store
it was purchased from. Contact us at: [e-mail]
Cleaning and Maintenance:
If your light requires cleaning:
1. Spray water or a mild glass cleaner onto a soft lint-free towel!
2. Gently blot the LEDs with the moist towel until clean. DO NOT RUB THE LEDs!
3. Allow to air-dry, then plug your light back in and turn it on!
4. NEVER spray any liquids directly on or around the LEDs!
Disclaimer: It is your responisibility to know and understand all federal, state and local laws and regulations
regarding the cultivation of any plant in your jurisdiction. Plant Light Science GmbH & Co. KG does not intend
or recommend that its product be used to assist in any way with violation of any applicable laws!
disposal!
Attention: If you want to dispose of this equipment, please do not use the ordinary household waste
WEEE-Reg.-Nr. DE29366297
Plant Light Science GmbH & Co. KG · Adalbert-Stifter-Str. 4, 90587 Veitsbronn, Germany · Ph: [phone]
