BLACK EARTH SS CI User manual

FOR USE WITH PROPANE ( L.P.) OR NATURAL GAS,
AND NATURAL 1/ 4 ” ( 6 m m ) DIA HARDWOOD PELLETS
F O R P A R T S R E P L A C E M E N T S , P L E A S E S E E Y O U R R E P L A C E M E N T P A R T S M A N U A L
BEHSSCIGPG-P01E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL
- THIS OUTDOOR COOKING GAS APPLIANCE IS NOT INTENDED TO BE INSTALLED IN, OR ON
BOATS OR RECREATIONAL VEHICLES
- READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR GAS & PELLET GRILL.
- SAVE THESE INSTRUCTIONS.
- CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
- FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE,
BODILY INJ URY OR EVEN DEATH.
THIS GRILL IS FACTORY CONFIGURED FOR USE WITH EITHER LIQUID PROPANE ( LP) GAS
OR NATURAL GAS AND WITH 1/ 4 ” ( 6 m m ) DIA NATURAL HARDWOOD PELLETS.
Co n f o r m s To : ANSI Z 21.58 -2018 a n d UL Su b j e c t 27 28 -2009
US
Ce r t i f i e d To : CSA 1.6 -2018 a n d ULC/ ORD-C27 28 -13
5003703

CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . 3 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 4
. . . . . . . . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . 26
SAFETY
INSTALLATION
INTRODUCTION
SHIPPING AND ASSEMBLY

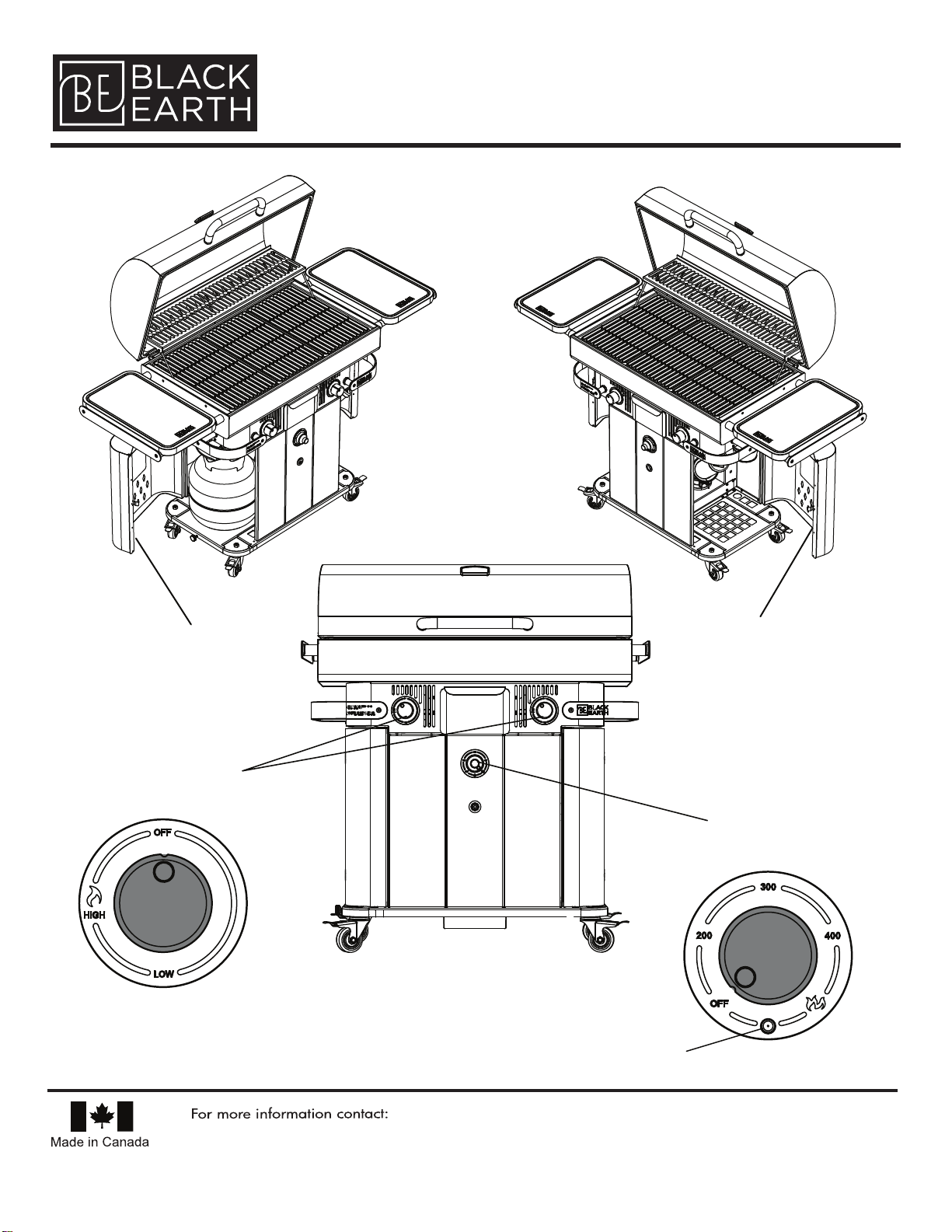

GETTING FAMILIAR
BASIC COMPONENTS
SPECIFICATIONS
L.P. GAS CYLINDER

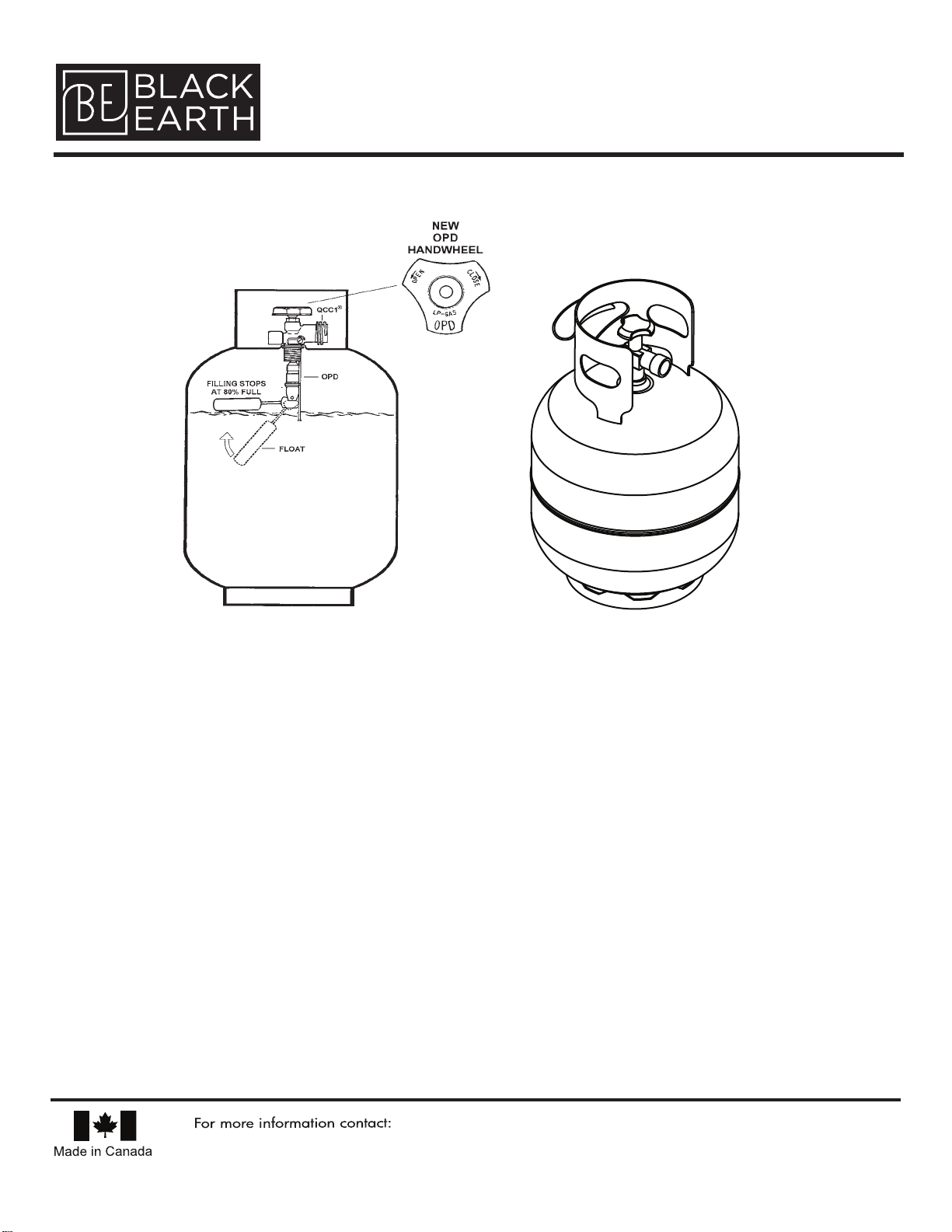

OPD EQUIPPED CYLINDER
HOSE & REGULATOR
LEAK TESTING
GAS BURNERS CLEANING AND MAINTENANCE
GAS BURNERS LIGHTING
HARDWOOD PELLET FUEL
MAINTENING YOUR GRILL
DIAGRAMS ( PLUMBING AND ELECTRICAL)
WARRANTY
PELLET BURNER LIGHTING
OPERATION & PERFORMANCE
DANGER
IF YOU SMELL GAS:
1. SHUT OFF GAS TO THE APPLIANCE
2. EX TINGUISH ANY OPEN FLAME
3 . OPEN LID
4 . IF ODOR CONTINUES, KEEP AWAY FROM THE
APPLIANCE AND IMMEDIATELY CALL YOUR GAS
SUPPLIER OR YOUR FIRE DEPARTMENT
WARNING
1. DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE LIQUIDS OR
VAPORS IN THE VICINITY OF
THIS APPLIANCE
2. A LP CYLINDER NOT CONNECTED FOR USE
SHALL NOT BE STORED IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE
PLEASE RECORD YOUR MODEL
NUMBER, SERIAL NUMBER AND DATE
OF PURCHASE HERE.
T h i s i n f o r m a t i o n c a n b e f o u n d o n t h e N a m e P l a t e L a b e l
o n t h e b a c k o f y o u r g r i l l .
//esahcruPfoetaD
!
!
2
SERIAL NUMBER
MODEL
BLACK EARTH SS CI GAS & PELLET BARBECUE
BLACK EARTH HYBRID
m m d d y y y y
BEHSSCIGPG-P02E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE!
Congratulations on your purchase of The Black Earth Hybrid Grill.
This grill is built with pride in Winnipeg, Manitoba, Canada by Crystal Spring Hog Equipment who is committed to offer you an
outdoor cooking product you will be proud to own for many years.
WARNING! Read this manual carefully and completely before using your grill to ensure proper operation, proper installation,
proper servicing and to reduce the risk of fire, burn hazard and/ or other injury.
This unique and high quality product is a dual fuel combustion outdoor appliance that can use propane gas (L.P.) or
natural gas (N.G.) and hardwood pellets. Fuels can be used separate or both at the same time.
For using the wood pellet fuel or the combination of gas and wood pellets, the unit requires to be plugged into a
115VAC/2.3A/60Hz grounded power outlet, equiped with GFCI protection.
A ground fault circuit interrupter (GFCI) or Residual Current Device (RCD) is a device that shuts off an electric power circuit
when it detects that current is flowing along an unintended path, such as through water or a person.
GFCIs are usually required by local laws to be installed to any outdoor outlets.
For PROPANE GAS FUEL, your Black Earth Hybrid Grill is designed to be used with a 20 lb. (9 kg) LP gas cylinder,
equipped with the QCC®-1 Quick Closing Coupling system.
Gas fuel type and LP Gas cylinder specifications are explained in detail in the next chapters.

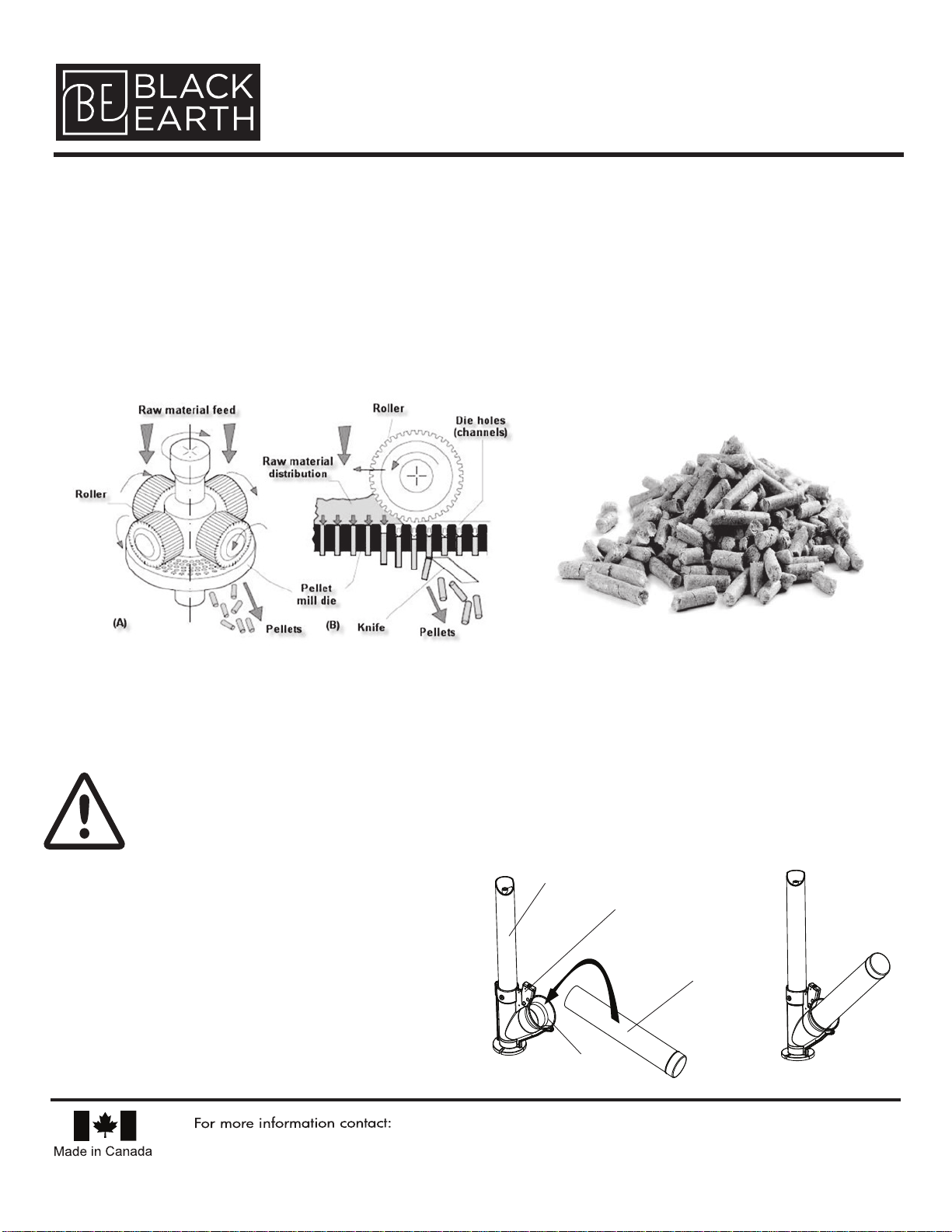

For WOOD PELLET FUEL, your Black Earth Hybrid Grill can use only all natural hard wood pellets specially formulated for grilling.
These pellets look very similar to the heating pellets but do not contain any additives or other harmful substances for cooking.
We recommend the use of only Black Earth brand BBQ pellets, which are specifically made to work in our Grills.
Black Earth Wood Pellets are rated for 8500 BTU per LBS with an ash content of 2%.
Improper Use Can Cause Uncontrolled Fire. To Reduce Fire Risk:
WARNING! Use only Hardwood pellets for grilling. Never use heating pellets or charcoal pellets with this unit!
CAUTION! Always store wood pellets in a dry location, away from heat-producing appliances and other fuel containers.
CAUTION! Keep the Grill clean – See the cleaning Instructions in this Owner’s Manual.
CAUTION! Do not use accessories not specified for use with this Grill.
DANGER! Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or
similar liquids to start or ’freshen up’ a fire in this appliance. Keep all such liquids well
away from the appliance when in use.
If Fire Occurs:
Call Fire Department
Do Not: Try To Move Appliance, Try To Smother Fire, Or Put Water On The Fire.
With proper set-up, operation and maintenance, the Black Earth Hybrid Grill will provide you with delicious food and years
of professional cooking enjoyment.
This unique hybrid bbq can sear, smoke, bake, broil and grill - to competition standards, at your own convenience.
SAVE THESE INSTRUCTIONS!
INTRODUCTION
BEHSSCIGPG-P03E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
3
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

Your new Black Earth Hybrid grill is a convenient and safe appliance when assembled and used properly.
As with all gas or pellet-fired products, however, certain safeguards must be observed.
Failure to follow these safeguards may result in serious injury or even death.
If you have questions concerning assembly or operation, consult your dealer, gas & pellet appliance specialist, gas company
or our direct customer service line at 1-855-234-1373. / www.blackearthgrills.com
CAUTION
WARNING
• FOR OUTDOOR USE ONLY. IF STORED INDOORS, DETACH AND LEAVE CYLINDER OUTDOORS.
• NOT INTENDED TO BE INSTALLED IN OR ON BOATS OR RECREATIONAL VEHICLES
• THIS APPLIANCE MUST NOT BE OPERATED UNATTENDED.
• SPECIAL CARE MUST BE TAKEN TO KEEP SMALL CHILDREN AWAY FROM HEATED SURFACES.
Use caution when handling or transporting this product. Metal edges can be hazardous. Use appropriate gloves
when lifting or handling. Before lifting, push in side shelves holders and remove grids and cutting boards.
SAFETY
1. USE ONLY WITH GFCI PROTECTED CIRCUIT. USE ONLY EXTENSION CORDS APPROVED FOR OUTDOOR USE
MARKED WITH W-A AND RATED FOR THE POWER OF THIS APPLIANCE.
In the absence of local codes, the following standards apply:
(Canada) CSA C22.1 Canadian Electrical Code and
(U.S.A.) ANSI/NFPA No. 70-Latest Edition
2. Do not cut or remove the grounding prong from the plug.
3. Keep the electrical supply cord and the fuel supply hose away from any heated surface.
4. To protect against electric shock, do not immerse cord or plugs in water or other liquids
5. Unplug from the outlet when not in use and before cleaning.
Allow to cool before putting on or taking off parts.

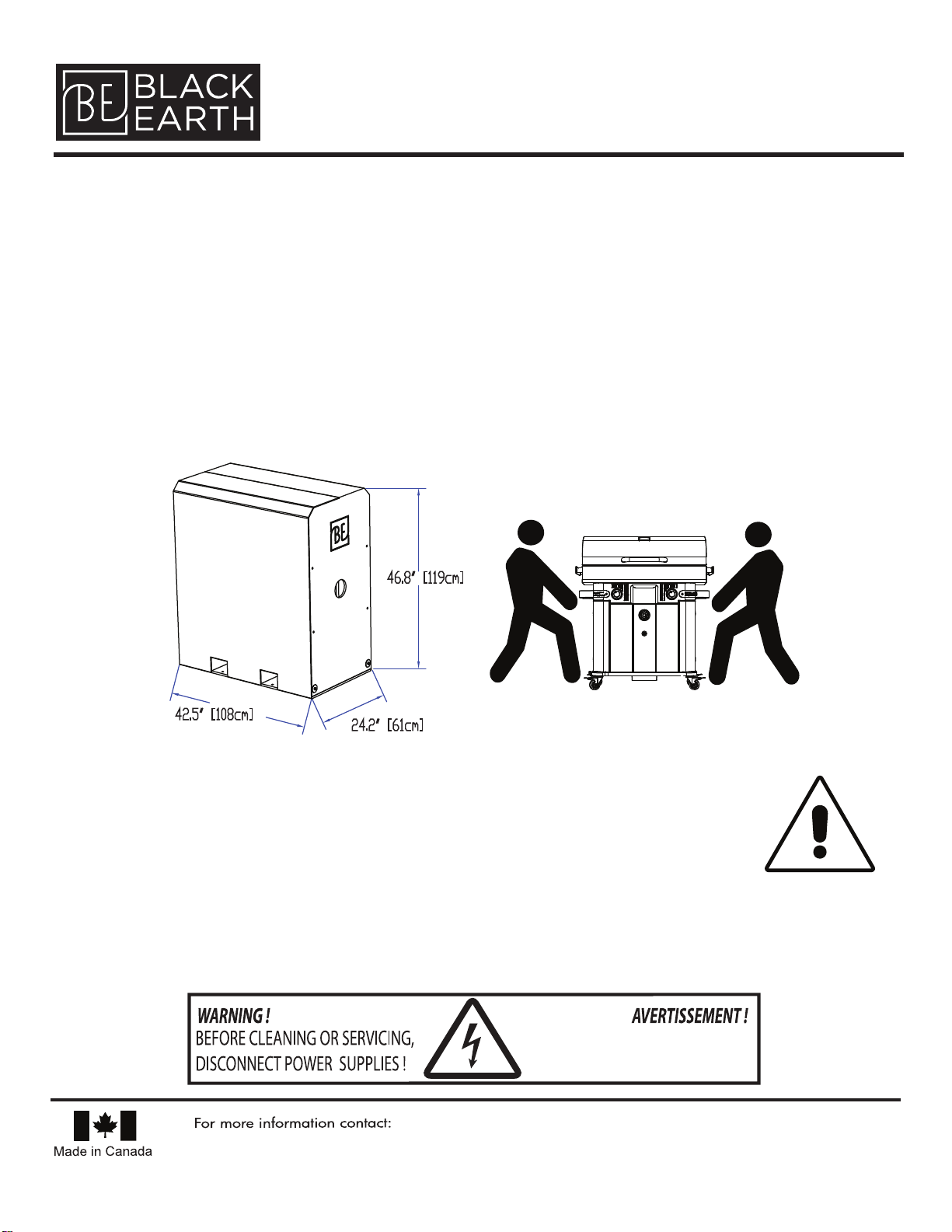

320LB (145Kg)
UNIT WEIGHT: 255 LB (116Kg)
42.5" [108cm] 24.2" [61cm]
46.8" [119cm]
DÉBRANCHER L’APPAREIL AVANT
LE NETTOYAGE OU L’ENTRETIEN !
BEHSSCIGPG-P04E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
4
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

1. In Canada, this appliance must be installed in accordance with the local code and the relevant CSA standards:
CSA-B149.1 Natural Gas and Propane installation Code
2. In the U.S.A.,this appliance must be installed inaccordance with the local code and the relevant national code:
4. Do not operate this appliance under any overhead roof construction or foliage!
5. This appliance is for OUTDOOR USE ONLY, DO NOT operate in garage, shed, balcony or other such enclosed areas.
6. DO NOT restrict the flow of air to the appliance.
7. Keep the area surrounding the appliance free of combustible materials, gasoline, and all flammable liquids and vapors.
8. This appliance is not intended to be installed in, or on, recreational vehicles and/or boats.
9. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
10. DO NOT use your grill in the rain or around any water source.

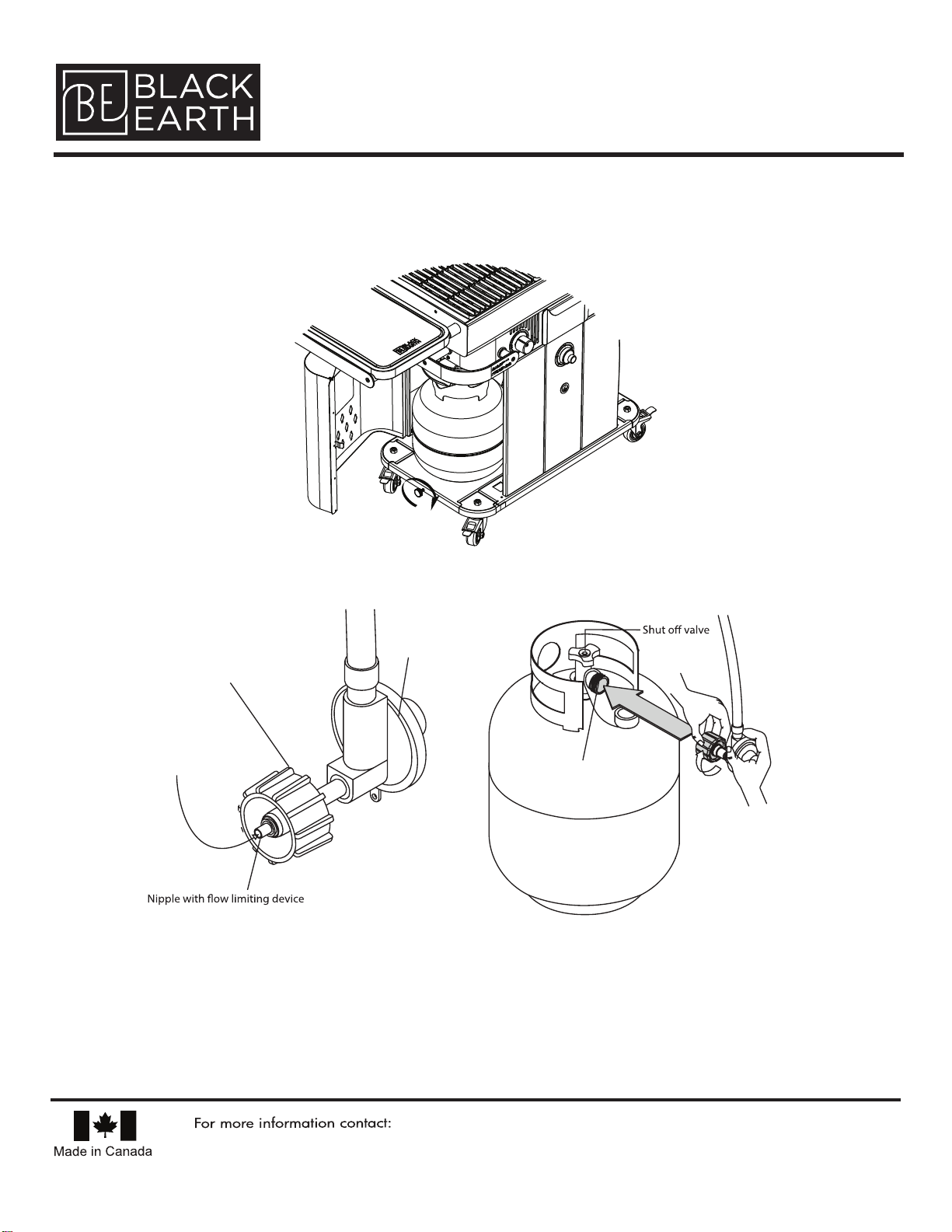

LP GAS CYLINDER PLACEMENT
LP gas cylinders must be installed according to assembly instructions using retainer provided.
Do not store a spare cylinder under or near this appliance.
All cylinders used must be compatible with supplied means of cylinder retention.
INSTALLATION
A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES)
TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE
INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
ANSI Z223.1/NFPA 54 - Latest Edition National Fuel Gas Code and Latest Local Codes where Applicable
3. The appliance must be located away from combustible surfaces by at least 1m / 39” from each side,
and 1m / 39” from the rear.
- MINIMUM CLEARANCE OF UNIT
TO COMBUSTIBLE CONSTRUCTION
CAUTION!
Do not use this appliance under any combustible surfaces!
INSTALL AND OPERATE ONLY ON NONCOMBUSTIBLE FLOORS OR FLOORS PROTECTED WITH NONCOMBUSTIBLE
SURFACES WHERE THE PROTECTIVE SURFACE HAS BEEN APPROVED FOR SUCH USE BY THE AUTHORITY HAVING
JURISDICTION.
MIN 39” (1m)
MIN 39” (1m)
BEHSSCIGPG-P05E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
5
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

R E M O V E S T A P L E S A N D F O L D C A R D B O A R D S
T H I S A P P L I A N C E C O M E S F U L L Y A S S E M B L E D W I T H T H E E X C E P T I O N O F T H E H A N D L E S A N D S I D E S H E L V E S .
P L E A S E F O L L O W S T E P S B E L L O W T O U N P A C K A N D F I N A L I Z E Y O U R G R I L L A S S E M B L Y .
R E M O V E H A N D L E ,
T H E R M O M E T E R A N D
C U T T I N G B O A R D S
R E - P A C K A G E A N D S E C U R E
P A L L E T A N D S I D E S A S S H O W N ;
U S E 2 B O L T S P E R S I D E
S L I D E F O L D E D C A R D B O A R D S
A N D O T H E R P A C K A G I N G M A T E R I A L S
I N S I D E R E T U R N P A C K A G E .
C A L L F O R P I C K - U P
I N S T A L L H A N D L E A N D T H E R M O M E T E R
- U S E S U P P L I E D H A R D W A R E
O P E N A N D I N S T A L L
S I D E S H E L V E S
SHIPPING AND ASSEMBLY
12
34
5
6
78
R E M O V E S I D E P A N E L S - U S E 9 / 1 6 S O C K E T S
S A V E 3 / 8 B O L T S A N D N U T S F O R R E - P A C K A G I N G
R E M O V E G R I L L F R O M
P A C K A G I N G M A T E R I A L S
BEHSSCIGPG-P06 E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
6
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

OPTIONAL CUTTING BOARD STORING
1
2
3
BEHSSCIGPG-P07 E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
7
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

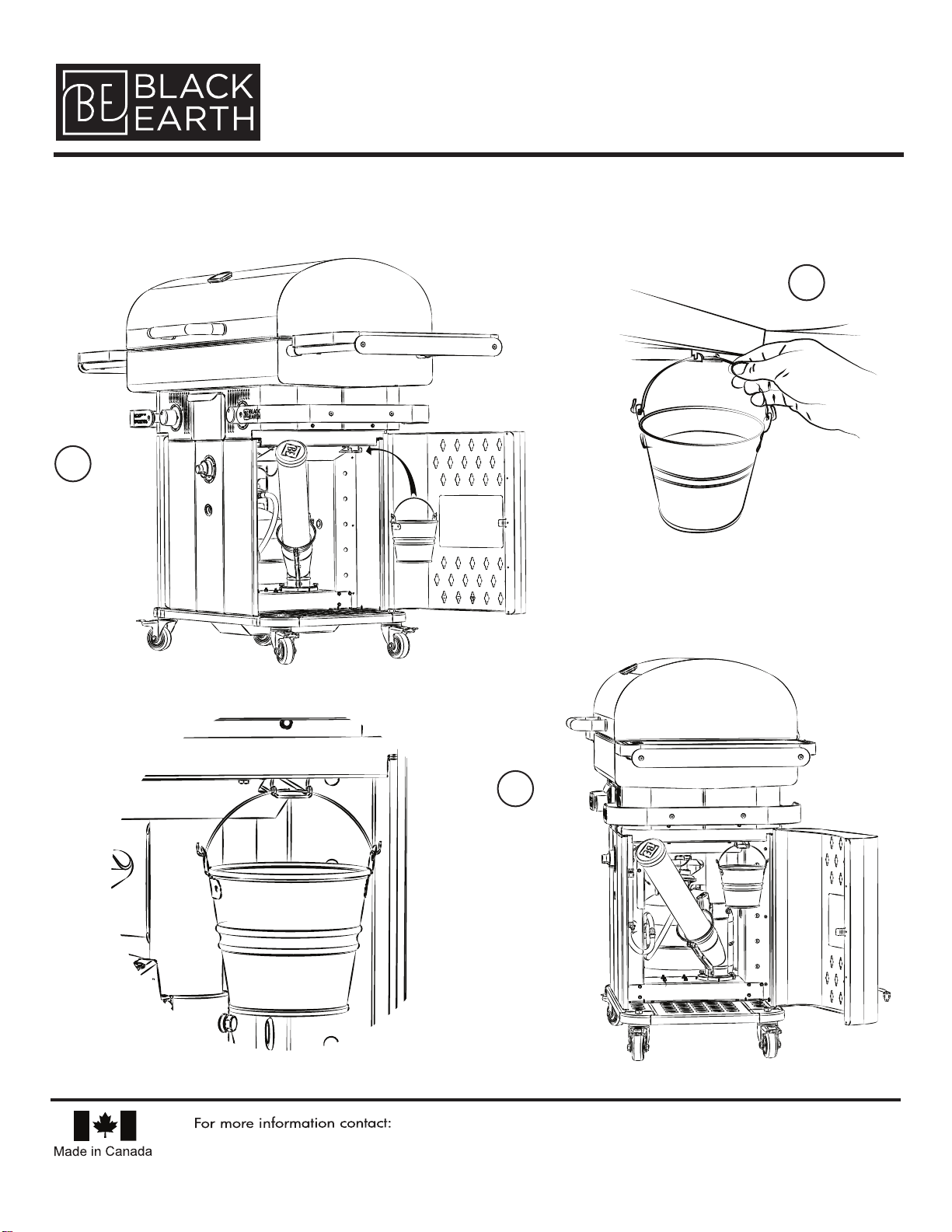

INSTALLING THE GREASE BUCKET
1
2
3
BEHSSCIGPG-P08 E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
8
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

GAS FUEL ACCESS DOOR
GAS FUEL DIAL CONTROLS
PELLET FUEL ACCESS DOOR
PELLET FUEL DIAL CONTROL
L.E.D. INDICATOR
GETTING FAMILIAR
BEHSSCIGPG-P09 E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
9
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

CAST IRON GRILLS
3 PCS
BASIC COMPONENTS
Unit shown with housing partial removed.
FLAME GUARD
MANUAL LIGHTING
PORTS
SIDE SHELF
PULL-OUT
PELLET FUEL CONTROL
TOOL HANGER
AUGER TUBE
ASSEMBLY
CARTRIDGE
RECEIVER
PELLET CARTRIDGE BURN GRATE
BURN POT ASSEMBLY
& CLEANOUT
GAS VALVE
2 PCS
AUGER MOTOR
PELLET FUEL
IGNITER
CYLINDER RETENTION
QCC® - 1
QUICK CLOSING
COUPLING
FAN
WARMING SHELF
GAS BURNER
2 PCS
BEHSSCIGPG-P10E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
1 0
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

SPECIFICATIONS
DIMENSIONS
WEIGHT
CLOSED: 38”Wx45”Hx25”D 96,5cmWx114,5cmHx63,5cmD
OPEN: 61”Wx59”Hx28”D 155cmWx150cmHx71,5cmD
POWER RATING
115V, 2.3 Am p , 6 0Hz
UNIT WEIGHT: 255 LB (116kg)
GRILLING SURFACE: 650 SQIN (0,41m )
2
SUPPLY PRESSURE 7 .0” w c Na t u r a l Ga s ; 11.0” w c Pr o p a n e ( L.P.)
1.7 4 k Pa 2.7 4 k Pa
3 2,000 Bt u / h r ( L.P. o r Na t u r a l Ga s )
9 ,8 k Wh
PELLET FEED RATE
3 .3 l b / h r WOOD PELLETS
1,5Kg / h r
BURN RATE
60 "
66 "
66 "
12 "
33 "
36 "
11 "
21 " 19 "22 "
34 "
8 "
40 "
45 "
26 "
28 "
36 "
5 "
BEHSSCIGPG-P11E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
1 1
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

1. The Black Earth Hybrid grill is designed to be used with an LP gas cylinder equipped with the QCC®-1 Quick Closing
Coupling system.
QCC® - 1 QUICK CLOSING COUPLING
2. The QCC®-1 system incorporates safety features required by the American National Standards Institute (ANSI) and
the Canadian Standards Steering Committee.
• Gas will not flow until a positive connection has been made.
• A thermal element will shut off the flow of gas between 240° and 300° F.
• When activated, a Flow Limiting Device will limit the flow of gas to 10 cubic feet / hour.
3. The LP Gas Cylinder is not included with the Gas Grill.
Be sure to purchase one with the QCC® valve. This valve is recognized by the external threads on the inlet port of
the valve. QCC® equipped cylinders are available from your Gas & Pellet Grill Dealer.
WARNING:
Any attempt to connect the regulator, by use of adapters or any other means, to any other valve could
result in damage, fire or injury and may negate the important safety features in the QCC®-1 system.
SPECIFICATION
1. All LP gas cylinders used with this appliance must be constructed and marked in accordance with the
Specifications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of
Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods ; and Commission,
as applicable.
2. The LP gas cylinder used for this appliance must not have a capacity exceeding 20 lb. (9 kg).
• Approximately 18” (46cm) high and 12” (31cm) diameter
3. All LP gas cylinders used with this appliance should be inspected at every filling and re qualified by a licensed
service outlet at the expiry date (10 years), in accordance with the DOT (USA) and Canadian Transport Commission
(Canada) codes for LP Gas Cylinders.
4. All LP gas cylinders used with this appliance must be provided with a shutoff valve terminating in a cylinder valve
outlet No. 510, specified in the Standard for Compressed Gas Cylinder Valve Outlet and Inlet Connection (USA)
ANSI/CGA-V-1-1977 (Canada) CSA B96.
5. The cylinder supply system must be arranged for vapor withdrawal.
LP GAS CYLINDER ( PROPANE CONFIGURATION )
Nipple with Flow
Limiting Device
Heat Sensitive
Hand Wheel
Regulator
Shut-O Valve
Cylinder
Check Valve
BEHSSCIGPG-P12E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
12
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

6. The cylinder must include a collar to protect the cylinder valve.
7. The cylinder must be installed as per assembly instructions.
8. Never fill the cylinder beyond 80% full. A fire causing death or serious injury may occur.
9. The cylinder valve must include a safety relief device having direct communication with the vapor space of the cylinder.
HANDLING
1. Government regulations prohibit shipping full LP gas cylinders. You must take your new cylinder to a LP gas
dealer for filling.
2. A filled LP gas cylinder is under very high pressure. Always handle carefully and transport in the upright position.
Protect the valve from accidental damage.
3. Do not tip the LP gas cylinder while connecting it to the regulator. Fasten the cylinder securely during transport,
use and storage.
4. If the cylinder is tipped after it is connected to the regulator, shut off the gas, disconnect the regulator and have it
checked before using it again.
STORAGE
1. Store the LP gas cylinder outdoors in a well-ventilated place.
2. Do not store the LP gas cylinder in direct sunlight, near a source of heat or combustion.
3. If you intend to store the grill indoors, disconnect and remove the LP gas cylinder first. Disconnected cylinders
must have a dust cap installed and must not be stored in a building, garage or any enclosed area.
4. Keep out of the reach of children.
5. When the LP gas cylinder is connected to the gas grill, the gas grill and LP gas cylinder must be stored outside in a
well-ventilated place.
OPERATION
1. Never connect your gas grill to an LP gas cylinder without the regulator provided, and NEVER TO AN
UNREGULATED LP GAS SUPPLY. The regulator supplied with the barbecue must be used.
2. Always leak test the LP gas cylinder to regulator connection when connecting the LP gas cylinder to the
appliance. See “Leak Testing.” (page 14)
3. Do not operate appliance if the smell of LP gas is present. Extinguish all flame and determine source of LP gas
before proceeding. Do not ignite the appliance until the LP gas leak has been found and sealed.
4. Always shut off LP gas cylinder valve when the appliance is not in use.
OVERFILL PREVENTION DEVICE
1. The standard for outdoor gas appliances, ANSI Z21.58/ CAN/CGA-1.6, requires that appliances be used with
cylinders equipped with an Overfill Prevention Device (OPD).
2. The OPD is designed to reduce the potential for the overfilling of propanecylinders, thus reducingthe possibility
of relief valve discharges of raw propane. The OPD causes a slower purge/ fill operation. Some consumers
have been advised by filling stations that these cylinders are “defective.” This is not a defect.
OPD EQUIPPED CYLINDER
3. New OPDs coming onto the market have technology that allows for much greater BTU outputs which will decrease
the amount of time it takes to purge a cylinder.
BEHSSCIGPG-P13E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
13
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

IDENTIFICATION
To identify these cylinders, the OPD handwheel has been standardized to the shape shown.
1. All models are equipped with a hose and regulator with a QCC®-1 Quick Closing Coupling.
2. The QCC® coupling contains a magnetic Flow Limiting Device which will limit the flow of gas should there be a leak
between the regulator and the appliance valve. This device will activate if the cylinder valve is opened while
the appliance valves are open. Be sure the appliance valves are off before the cylinder valve is opened to
prevent accidental activation.
3. The QCC® coupling incorporates a heat sensitive hand wheel that will cause the back check module in the QCC®
cylinder valve to close when exposed to temperatures between 240° and 300°F. Should this occur, do not attempt to
reconnect the hand wheel. Remove hose/regulator assembly and replace with a new one.
4. The pressure regulator is set at 11 inches WC (water column) and is for use with LP gas only. The hose and
hose couplings comply with CGA Standard CAN 1.83. No modifications or substitutions should be attempted.
5. Protect the hose from dripping grease and do not allow the hose to touch any hot surface , including the base
housing of the barbecue head.
6. Inspect the seal in the QCC® cylinder valve when replacing the LP gas cylinder or once per year whichever
is more frequent. Replace the seal if there is any indication of cracks, creases, or abrasion.
7. Inspect the hose before each use. If the hose is cracked, cut, abraded or damaged in any way, the appliance
must not be operated.
8. For repair or replacement of the hose/regulator assembly, contact customer service.
HOSE & REGULATOR
BEHSSCIGPG-P14E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
14
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

CONNECTING YOUR GAS CYLINDER
1. Be sure cylinder valve and appliance valves are “OFF.”
2. Place full LP gas cylinder in LP tank well and secure base as per drawing bellow.
3. Center the nipple in the cylinder valve and hold it in place. Using other hand, turn the hand wheel clockwise until
there is a positive stop. Do not use tools. Hand tighten only. When making the connection, hold the regulator
in a parallel with the cylinder valve, so as not to cross thread the connection.
4. Leak test connections. See “Leak Testing.” (page 14)
5. Refer to lighting instructions. To avoid activating the Flow Limiting Device when lighting, open cylinder
valve slowly with the appliance valves off. If the Flow Limiting Device is accidentally activated, turn off cylinder
valve and appliance valves, wait 10 seconds to allow the device to reset, open cylinder valve slowly, then open the
appliance valve.
DISCONNECTION
Always close LP cylinder valve and remove coupling nut before moving cylinder from specified operation position.
Nipple has to be centered
into the LP cylinder valve.
Regulator
Heat sensitive hand wheel
Hold coupling nut and
regulator as shown for
proper connection to
LP cylinder valve.
Check valve
STRAIGHT
BEHSSCIGPG-P15E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
15
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

All factory-made connections have been rigorously tested for gas leaks. However, shipping and handling may have
loosened a gas fitting.
AS A SAFETY PRECAUTION:
• Test all fittings for leaks before using your gas grill.
• Test the cylinder valve for leaks each time the cylinder is filled.
• Test for leaks every time you connect the gas fitting
• Do not smoke at any time while testing.
• Never test for leaks with a lit match or open flame.
• Test for leaks outdoors.
TO TEST FOR LEAKS:
1. Extinguish any open flame or cigarettes in the area.
2. Be sure that cylinder valve and gas grill valves are “OFF.”
3. Connect LP gas cylinder. See “Hose and Regulator.”
4. Prepare a soap solution of one part water, one part liquid detergent.
5. With a full gas cylinder, open cylinder slowly.
6. Brush the soap solution on each connection.
7. A leak is identified by a flow of bubbles from the area of the leak.
8. If a leak is detected, close the gas cylinder “shut-off” valve, tighten the connection and retest.
9. If the leak persists, contact your gas grill dealer for assistance. Do not attempt to operate appliance if a leak is present.
LEAK TESTING
BEHSSCIGPG-P16E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
16
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

Always keep venturi tubes clean. Blockages in the venturi tubes caused by spiders, insects and nests can cause a
flashback fire. In fact, although the gas grill may still light, the backed up gas can ignite and cause a fire around the venturi
tubes at the control panel or the side burner.
1. Turn off gas at the source by closing the propane cylinder valve or gas valve for natural gas units.
2. When grill is cool, remove cast grills and flame deflector to access burners.
Remove and save spring clips. Proceed to lift the burners from the gas grill housing.
3. Clean the venturi tubes with a pipe cleaner
4. Lower the burner into position in the gas grill housing,
making sure that the venturi tubes are correctly aligned
and fitted on the gas valves orifices.
5. Re-secure burners with spring clips
GAS BURNERS CLEANING AND MAINTENANCE
DANGER! IF A FLASHBACK FIRE OCCURS,
TURN OFF GAS AT THE SOURCE IMMEDIATELY.
REMOVE SPRING CLIPS
Always keep grill area clear and free from combustible materials, gasoline and other ammable vapors and liquids.
Do not obstruct the ow of combustion and ventilation air.
Visually check burner ames every time you light up your gas and pellet grill.
Over time the performance of your grill can diminish if has not been maintained properly. Low temperatures,
uneven heat, and food sticking to grates are all possible side eects of poor grill cleaning and conditioning.
A simple monthly maintenance plan is an easy and inexpensive way to keep your BlackEarth Hybrid grill in shape.
•Wipe outside and inside of the grill lid with a paper towel and cleaner
•To clean grill parts use a mild dish detergent and warm water.
•Cleaning a cook box may seem tricky, but it’s actually simple and can have a big impact on the way your grill performs.
Disconnect the Power Cord! Turn O Gas at the Source!
When your grill is completely cool, remove your Cast Grids and Flame Guard. Remove Gas Burners as shown bellow.
Using a sti, nonmetallic tool, whipe up all excess grease and debris from inside the cook box.
•Inspect and clean Gas Burners (Venturi Tubes):
BEHSSCIGPG-P17E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
17
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

- TURN BOTH GAS TEMPERATURE VALVES ( TOP DIAL KNOBS) TO THE OFF POSITION
- MAKE SURE YOUR PROPANE BOTTLE, ( L.P. GAS BOTTLE) IS CONNECTED AND IT IS NOT EMPTY. ( PROPANE CONFIGURATION)
- OPEN GAS SOURCE VALVE TO FULLY OPEN ( COUNTERCLOCKWISE) .
- OPEN GRILL LID AND LEAVE OPEN UNTIL COMPLETELY LIT.
- PUSH ONE OF THE GAS DIAL KNOBS IN AND HOLD PRESSED WHILE SLOWLY TURNING TO THE
LEFT UNTIL IT “C LICKS” AND VALVE TORCH FIRES-UP.
- HOLD PRESSED IN FOR MAX 5 SECONDS AND WAIT FOR BURNER TO LIGHT-UP
- VISUALLY CHECK THE BURNER FLAME AND MAKE SURE IT IS FULLY LIT.
- TURN OFF GAS SOURCE IMMEDIATELY IF IGNITION DOES NOT OCCUR IN GIVEN TIME FRAME ( 5 SECONDS) .
- AFTER THE FIRST BURNER IS LIT, REPEAT PROCEDURE FOR THE SECOND GAS BURNER.
TO LIGHT BURNER WITH A BBQ LIGHTER OR A PAPER MATCH:
- USING BBQ LIGHTER OR PROVIDED MATCH HOLDER, INSERT LIT MATCH OR LIGHTER TIP THROUGH BURNER PORTS
- THERE IS NO NEED TO REMOVE THE GRIDS OR FLAME DEFLECTOR TO ACCESS THE BURNER PORTS
- PUSH IN THE BURNER CONTROL KNOB AND TURN TO “H IGH”.
- BURNER SHOULD IGNITE WITHIN 5 SECONDS.
TO SHUT OFF GAS BURNERS, TURN BOTH VALVES ( TOP DIAL KNOBS) TO OFF.
TURN OFF GAS VALVE AT THE SOURCE. FOR PROPANE CONFIGURATION, DISCONNECT PROPANE BOTTLE
AND STORE OUTSIDE THE UNIT IF APPLIANCE IS NOT USED FOR LONGER PERIODS.
1. READ ALL PREVIOUS CHAPTERS BEFORE LIGHTING.
2. OPEN LID DURING LIGHTING
3 . IF IGNITION DOES NOT OCCUR WITHIN 5 SECONDS ( GAS ) , TURN THE
KNOBS OFF, CHECK GAS , WAIT FOR 5 MINUTES AND REPEAT PROCEDURE.
GAS BURNERS LIGHTING INSTRUCTIONS
“CLICK”
PRESS AND HOLD
WHILE SLOWLY
TURNING TO THE LEFT
UNTIL IT “CLICKS”
BURNER PORTS
MATCH HOLDER
FOR MANUAL LIGHTING
GAS BURNERS START-UP:
BEHSSCIGPG-P18 E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
1 8
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

HOW IT WORKS
HARDWOOD PELLET FUEL
Wood pellets are made from material that might otherwise be wasted.
This includes sawmill residues -- sawdust, planer shavings, and sometimes even some bark
In some regions, this also includes under-utilized species or tree segments that are not suited for other applications.
Our industry turns this waste into clean, renewable, carbon-neutral solid biofuel.
Pellets are produced by compressing the wood material which has rst passed through a hammer mill
to provide a uniform dough-like mass. This mass is fed to a press, where it is squeezed through a die having holes
of the size required (normally 6 mm diameter). The high pressure of the press causes the temperature of the wood
to increase greatly, and the lignin plasticizes slightly, forming a natural "glue" that holds the pellet together as it cools.
For easy handling and a good visual of the fuel level, your Black Earth Hybrid BBQ is designed to use pellet fuel
pre-packaged in clear tube cartridges.
These cartridges can be purchased directly online at www.blackearthgrills.com or from your gas & pellet appliance
dealer and can be replenished from bulk fuel bags.
Remove loose cap as shown below. Hold the tube
with both hands and position open end into the
auger tube receiver.
For your safety, auger assembly is equipped with
a cartridge shut-o switch.
Auger and fan will not run unless the cartridge is
placed and inserted all the way into receiver.
AUGER TUBE ASSEMBLY
SAFETY SWITCH
AUGER RECEIVER
PELLET CARTRIDGE
CAUTION!
One end of the pellet cartridge is factory seald and should not be removed!
Do not operated this unit with an open fuel tube or other improvised cartridges!
Inspect cartridge before any use. Replace with new if any signs of damage.
BEHSSCIGPG-P19 E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
1 9
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL

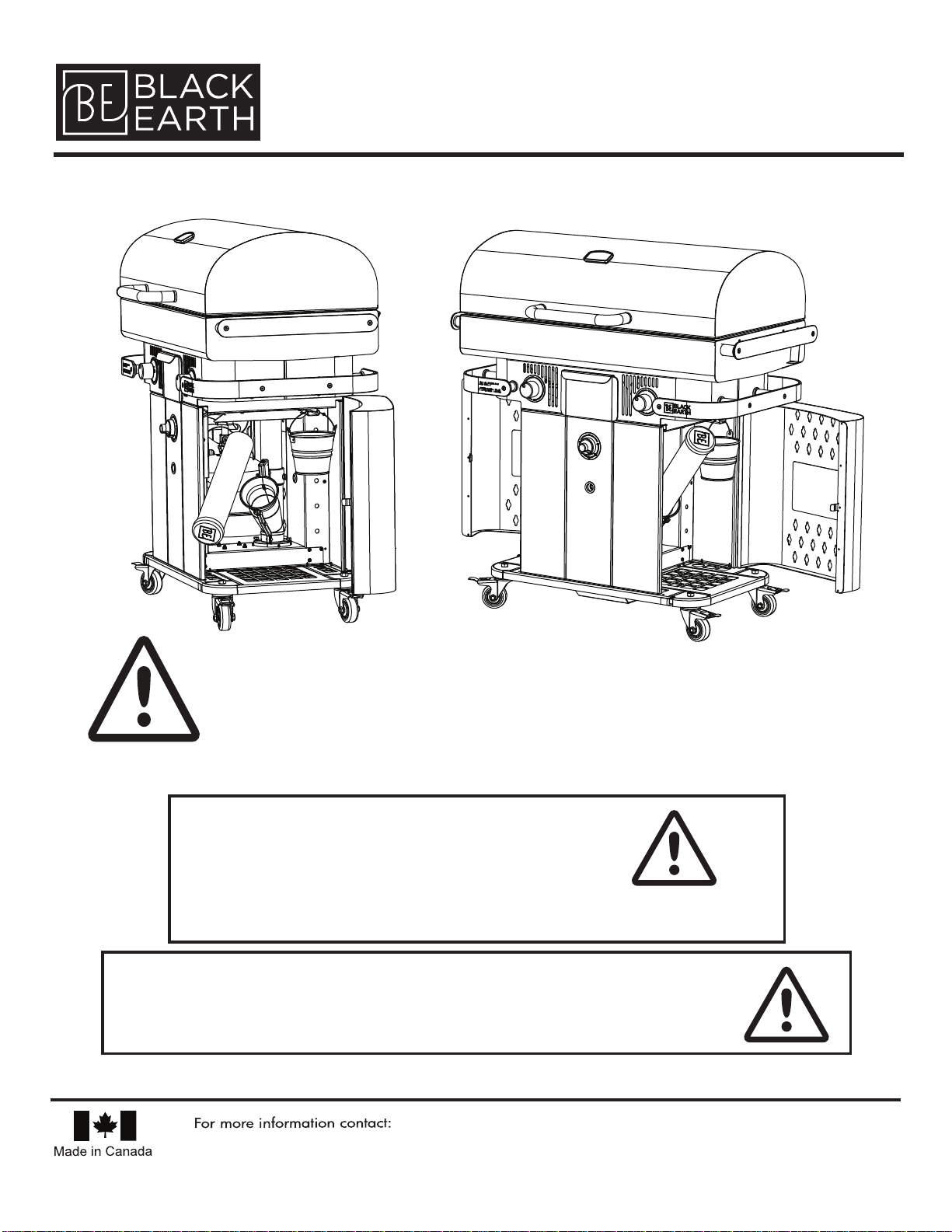

Auger Tube Assembly and Auger Receiver can be accessed by opening the right side cabinet door as shown bellow.
CAUTION!
FOR USE WITH RECOMMENDED PELLETIZED,
ALL NATURAL, HARDWOOD FUEL ONLY.
DO NOT USE SPIRIT, PETROL, GASOLINE OR LIGHTER FLUID FOR LIGHTING OR RE-LIGHTING YOUR GRILL!
WARNING
1. DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE LIQUIDS OR
VAPORS IN THE VICINITY OF
THIS APPLIANCE
2. SPARE PELLET BAGS OR FUEL CARTRIDGES NOT CONNECTED FOR USE
SHALL NOT BE STORED IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE
WARNING
IF AN UNCONTROLLED FIRE DOES OCCUR: CALL THE FIRE DEPARTMENT!
DO NOT: t r y t o m o v e a p p l i a n c e , t r y t o s m o t h e r t h e f i r e , o r p u t w a t e r o n t h e f i r e .
BEHSSCIGPG-P20E-2020-R1
BLACK EARTH SUPPORT / 1.855.234.1373/ www.blackearthgrills.com
MANUFACTURED BY CRYSTAL SPRING HOG EQUIPMENT, STE.AGATHE, MB, CANADA
PATENT US9,814,354B2
20
SS CI GAS & PELLET BARBECUE
OWNER’S MANUAL
