Black BLK-CPD227CM User manual

CEILING BRACKET MANUAL ..................................................................................................... 01
1. Attach the ceiling bracket base to the ceiling
1) Make a hole in the ceiling to pass video and power
cables through.
2) Using the base as a template drill four holes in the ceiling
to mount the base.
3) Insert screws and anchors into the ceiling to properly
attach the base.
Ceiling bracket
Specification
1) Dimension :
2) Weight :
3) Material :
Ø121.7 x 349~545(H) mm
Approx. 750g
Aluminum
Ø89
Ø83.5
Ø83
Ø121.7
2. Attach the ceiling bracket pipe to the base
1) Twist the ceiling bracket pipe clockwise into the base.
2) Attach the retaining screws using the supplied Hex wrench.
ANCHORS 8x35 4EA
CEILING BRACKET BASE
CEILING BRACKE T BASE
CEILING PIPE
TAPPING SCREW M5x35 4EA
Ø86 HOLE
Ø25~ 30Ø
Ø6.5
HEX WRENCH M6x8

FRONT FRONT
SCREW HOLE
CEILING BRACKET MANUAL ..................................................................................................... 02
3B25062A

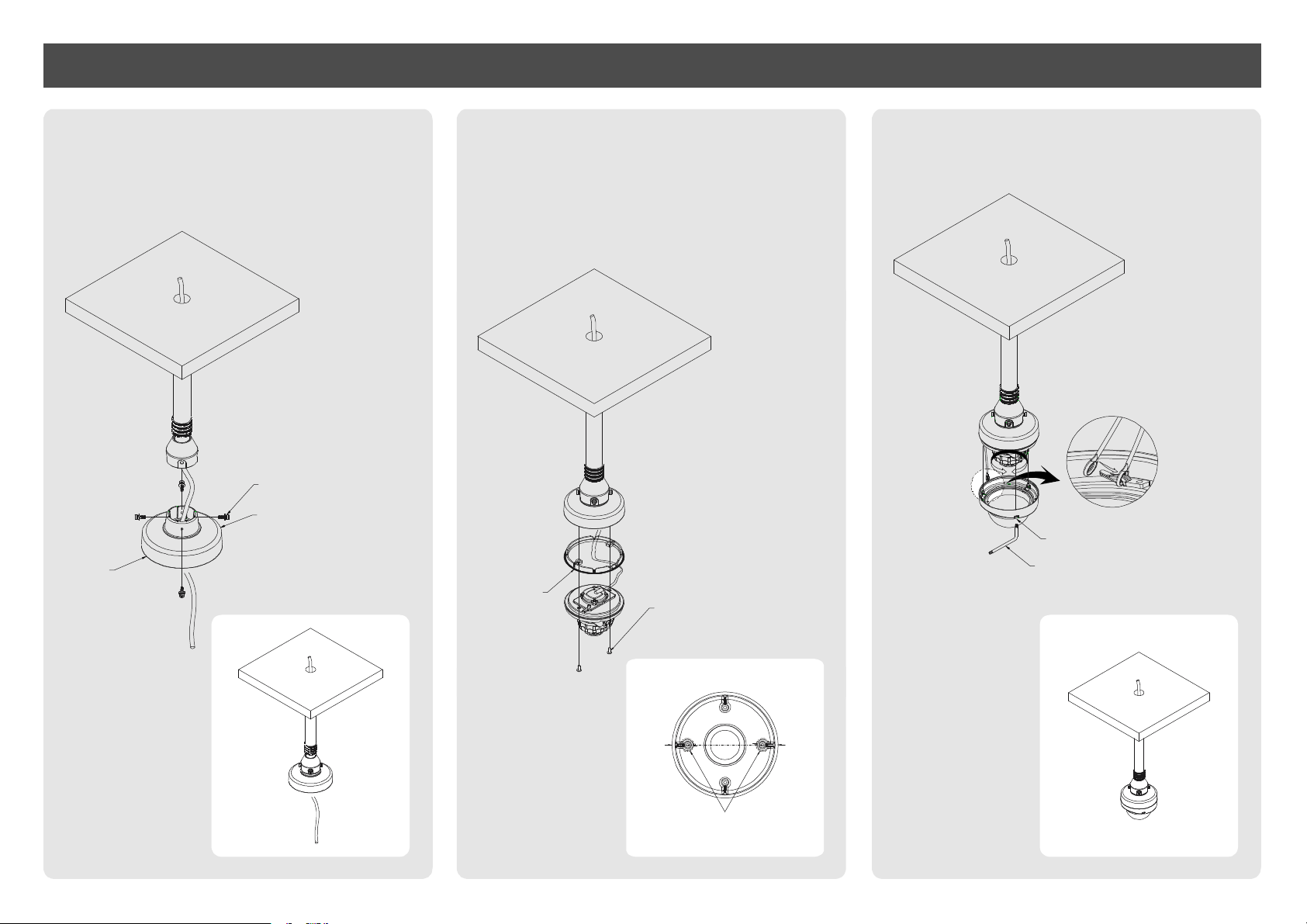

4. Install the camera
1) Use the 4 supplied screws to attach the main bracket to
the pipe.
2) Lay the base rubber between the main bracket and the
camera base.
3) Pay attention to directions and install accordingly.
4-1. Attach the camera base
4-2. Attach the dome cover
Set up the view of angle whichever want. Connect the
hanger like the picture shown, assemble the body.
3. Attach the main bracket
1) Use the 4 supplied screws to attach the main bracket to
the bracket pipe.
2) Note that the main bracket is marked "F" and "F".
Use any of them for the front.
BASE
RUBBER MACHINE SCREW
M4x8 P4 ORING 2EA
REAR
FRONT
MACHINE M4x15 &
SPRING WASHER SCREW 4EA
SCREW 3EA
WRENCH
