Premier Mounts PSM-402T User manual

PLASMA DISPLAY MOUNT MODEL
INSTALLATION MANUAL
VISIT US AT WWW.MOUNTS.COM
3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: [phone] Fax: [phone]

2
o Safety & precautions
o Mount diagrams
o Parts List
o Optional Adapters
o Installing the PSM plasma mount
o Securing the universal flat & tilt mounts
o Electrical
o Mount Interlocking
o Checking for proper safety and security
o Ceiling structure assembly drawing (pg 6)
Plasma display manufacturers are constantly improving their products and introducing new ones. We are committed to keeping up with
them. That’s why we maintain close relationships with all major OEMs – to ensure that we have the latest information on new display
products coming to market. Our mounts are often available before the corresponding displays are even on sale.
Mounts are available in either flat or tilt versions, this versatile mount can be used for just about any application, including walls, stands,
carts
,
ceilin
g
s
–
even inside custom cabinets and other furniture a
pp
lications.
NOTE: The following installation procedures indicate a wall structure installation. For installations other than wall mounting refer to installation instructions.
NOTE: For installations other than wall mounting please refer to page 6. If installing the plasma display to the ceiling or floor stand please refer to its
installation instructions.
Contents
Introduction

3
The wall or ceiling structure must be capable of supporting at least five (5) times the weight of plasma display.
If not, the wall or ceiling must be reinforced. Proper installation procedure by qualified personnel as outlined in the installations instructions
must be adhered to. Failure to do so could result in serious
p
ersonal in
j
ur
y
The entire installation instructions should be fully read and understood, including all of the safety symbols and safety precautions, before
beginning installation. The installation instructions should be read, understood and followed to prevent personal in
j
ur
y
or propert
y
dama
g
e.
Keep these installation instructions in an easily accessible location for future reference.
Indicates that the power plug is to be disconnected from
the power outlet.
Safety precautions must be taken at all times.
Contact Premier Mounts for an
y
q
uestions
Warning and caution in general
A secured structure wooden stud wall must always support the weight or load of the plasma. Always confirm the center of the wood
stud before beginning the installation.
Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in plasma cracking or
falling from the wall causing damage and injury.
Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy. Failure to do so may
result in damage to the plasma television and could cause a risk of fire.
At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling
the plasma television.
Mounting structure recommended wood studs, solid-flat concrete, and reinforced metal studs. If installing the mount on other than
wood studs use (commercially available) suitable hardware.
Safety & Precautions
WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper safety gear and tools for the
installations
p
rocedure to
p
revent
p
ersonal in
j
ur
y
or dama
g
e to the
p
lasma dis
p
la
y
s or
p
lasma mounts.

4
10.750
4.500
1.750
0.688
4.500
14.324
12.000
2.125
0.750
0.104
1.528
1.528
0.500
0.375
Ø0.375 (x4)
Ø2.500
a
b
c
d
16.000
19.500
8.750
8.750
17.500
2.125
16.000
5.460
1.250
3.250
16.000
4.500
1.750
18.500
1.125
8.000
8.000
5.000
1.000
4.500
5.460
2.865
3.500
g
A
h
19.771
F

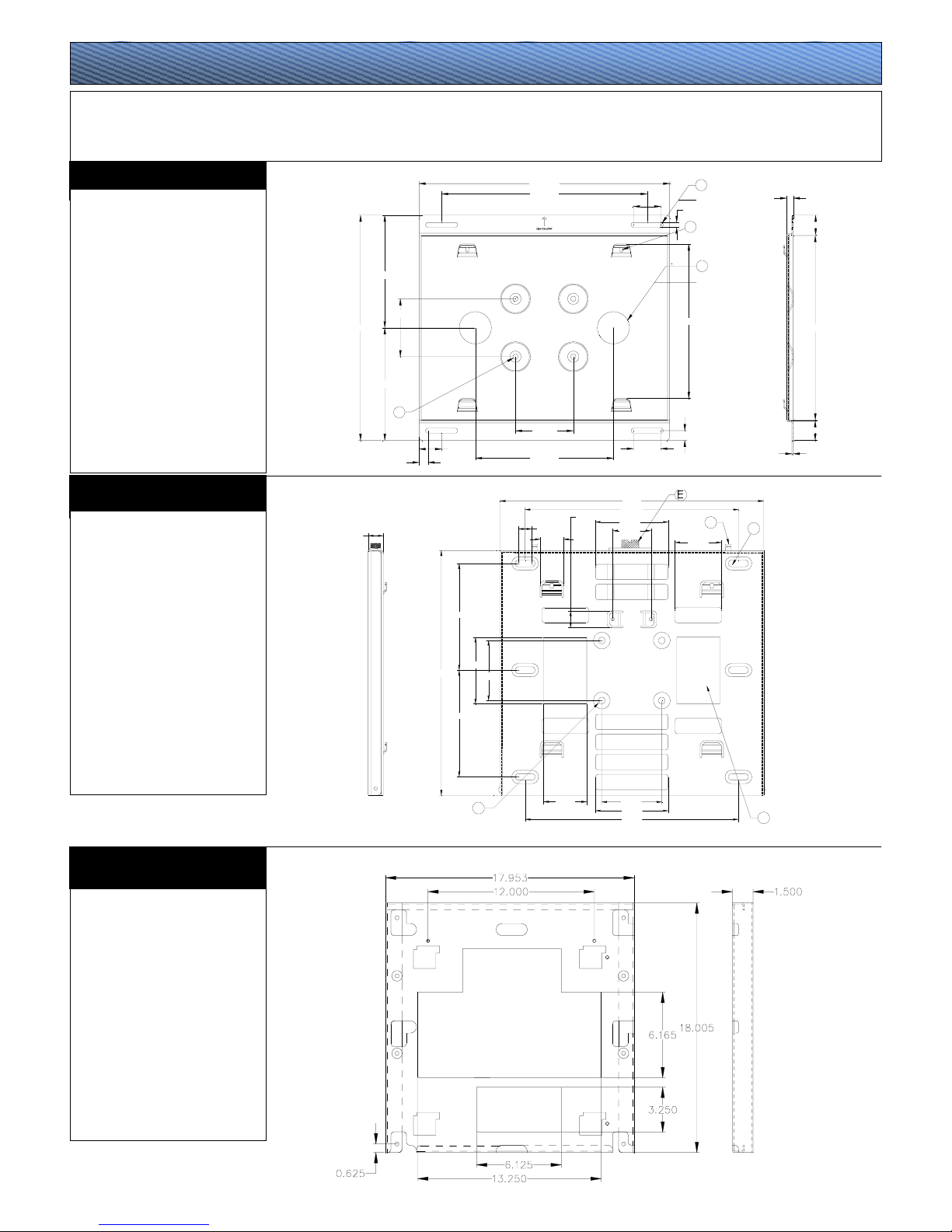

UNIVERSAL FLAT MOUNT
UNIVERSAL TILT MOUNT
PSM SERIES MOUNT
Our PSM flat / tilt mounts are designed for wall or ceiling mounting, or it can mate with any of our popular carts, floor stands or wall arms.
The ultra slim plasma mount stands off the wall just enough for proper, OEM-specified ventilation, yet keeps the plasma close enough for a
clean, seamless look. It allows either vertical (portrait) or horizontal (landscape) display configuration.
PART#:
PDB-UWFB
MATERIAL:
12 (GA) CRS
COLOR:
Black powder coat
A.
Lag bolt access slot.
B.
Mounting points (4.5") used on
installations other than wall mounting.
C.
Access hole for power or cables.
D.
M6 security screw mounting points
used on installations other than flat
wall mounting.
PART#:
PSB-TBP
MATERIAL:
12 (GA) P & O
COLOR:
Black powder coat
A.
Lag bolt access slot.
E.
Worm drive
F.
Locking pins
G.
Access hole for power or cables.
H.
Mounting points (4.5") used on
installations other than wall mounting.
PART#:
PDB-402
MATERIAL:
12 (GA) P & O
COLOR:
Black Powder coat
Note: The PDB-Series bracket mates
to the universal PDB-UWFB flat
mount and the universal PSB-TBP tilt
mount.
Mount Diagrams

5
Standard hardware
PSM-Series Mounting hardware
PSM-Mount
o Phillips screwdriver
o Drill gun
o Soft material or a blanket
o Pencil
o ¼" drill bit
o Level
o Measuring tape
o Wrench with a 1/2" socket
o Stud finder
o 1/4"-3/8" Toggler bolts: Used for hollow concrete block wall mounting.
o 5/16"-3/8" Wedge anchors: Used in solid brick or minimum-rated (3000psi) solid concrete.
QT
Y
SIZE DESCRIPTION
6 (Tilt) – 4 (Flat) 5/16” Dia Lag bolts
1  PSM series mount
1  Flat / Tilt mount
2 M6 x 12 (mm) Phillip security
screws
Used on Tilts, Carts, floor
stands and ceiling mounts only
1  Installations instructions
1  Bubble level
6 M5 x 16 Phillip screws
4 M6 x 12 Phillip screws
6 M8 x 20 Phillip screws / Flat washers / Split washers
8 M6 x 12 Phillip screws
6 M5 x 16 Phillip screws / Flat washers / Split washers
6 M5 x 12 Phillip screws
6 M5 x 10 Phillip screws
6 M5 x 12 Phillip screws
8 M4 x 12 Phillip screws
8 M5 x 12 Phillip screws
6 M6 x 16 Phillip screws
8 M8 x 12 Phillip screws
6 M5 x 16 Phillip screws
4 – 4 M5 x 35 – M4 x 12 Phillip screws / Hex bolts
6 M6 x 12 Phillip screws
4 – 2 M5 x 50 / M10 x 25 Hex screws / Hex bolts / Flat washer
8 M5 x 20 Phillip screws / Flat washers / Split washers
6 M8 x 20 Phillip screws
6 M8 x 20 Phillip screws
• • •
6 M8 x 30 Phillip screws
2 M5 x 12 Phillip screws
2 M5 x 12 Phillip screws
6 M8 x 30 Phillip screws
6 M8 x 16 Phillip screws / Flat washers / Split washers
6 M8 x 10 Phillip screws
6 M6 x 12 Phillip screws
4 M8 x 30 Phillip screws / Flat washers / Fender washer / .5” nylon spacers
QTY SIZE DESCRIPTION
PSM-313
PSM-375
PSM-401
PSM-402
PSM-410
PSM-421
PSM-423
PSM-424
PSM-425
PSM-426
PSM-427
PSM-428
PSM-432
PSM-460
PSM-478
PSM-499
PSM-500
PSM-501
PSM-502
PSM-532
PSM-540
PSM-542
PSM-550
PSM-570
PSM-610
PSM-615
PSM-783
PSM-442
Parts List
TOOLS & SUPPLY NEEDED
(
O
p
tional
)
Installation Hardware

6
A Plasma display
B PSM-Mount
C PSM-Hardware
(See chart on pg 5)
D M10 x 12 (mm) Hex
screws, flat washers
(4,4,8 Pack)
E PSB-UWFB Universal flat
mount
F M6 Security screws used
on tilt, ceiling, cart, floor
stand applications.
G PSB-TBP Universal tilt
mount
H AST-2446 adjustable
suspension post for single
display mounting or
AST-2446/2 adjustable
suspension post for dual
display mounting.
I PSD-S Single mounting
adapter
J PSD-D Dual mounting
adapter
K 1½" (NTP) For single
ceiling display installations
or 2" (NTP) For dual
ceiling installations
AST-2446: 1½" (Adjustable height suspension adapter) - Offering height adjustment in 1¼" increments, between 24" and 46"
(12" - 24", if you cut down), this suspension adapter mates with the single display swivel adapter and 1½" (NTP) pipe.
AST-2446/2: 2" (Heavy-duty adjustable height suspension adapter) - Offering height adjustment in 1¼" increments, between 24" and 46"
(12" - 24", if you cut down), this suspension adapter mates with the dual display swivel adapter and 2" (NTP) pipe.
PSD-S: 1½" (Single display swivel adapter) – This adapter could be mated with any two of out ultra slim flat or tilt plasma mounts to allow 360° swivel for a
ceiling installation. It works with 1½" threaded (NTP) pipe or AST-2446.
PSD-D: 2" (Dual display swivel adapter) - This adapter could be mated with any two of out ultra slim flat or tilt plasma mounts to allow 360° swivel for a ceiling
installation of two back to back displays. It works with 2" threaded (NTP) pipe or AST-2446/2.
PSD-PVW1: 1½" (Single display pole adapter) – Attach this adapter directly to any of the flat or tilt plasma mounts, and slide it over a 2" scheduled 40 steel
pipe, then secure at any height with two (2) tension-locked bolts.
PSD-PVW2: 2" (Dual display pole adapter) – Attach any two (2) of the flat or tilt plasma mounts back to back with this adapter, and slide it over a 2" scheduled
40 steel pipe, then secure at any height with two (2) tension-locked bolts.
Horizontal to vertical mounting
Note: The M6 x 12 (mm) Security screws
must always be used for extra security.

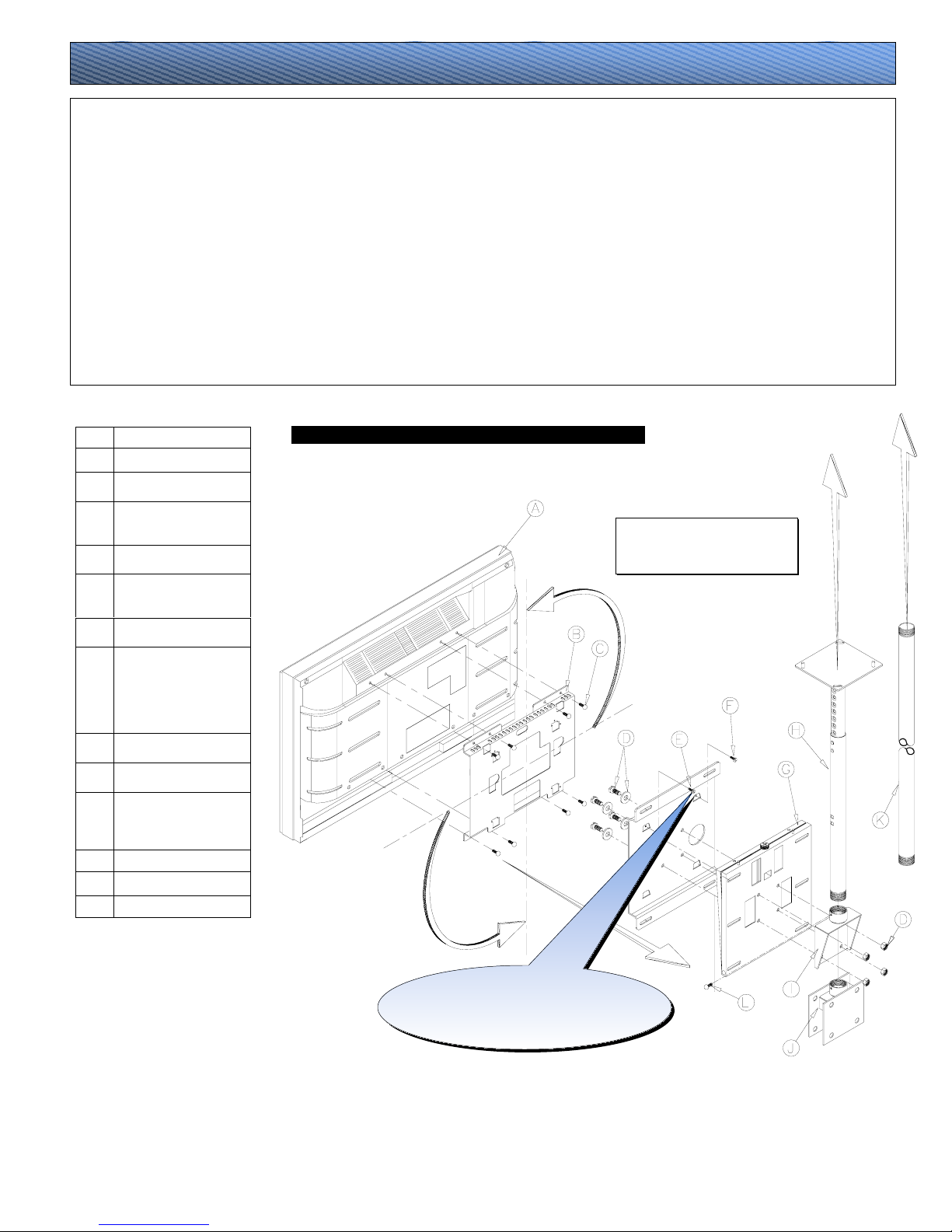

(Optional) ceiling adapters
Ceiling installation
assembly
EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES ONLY

7

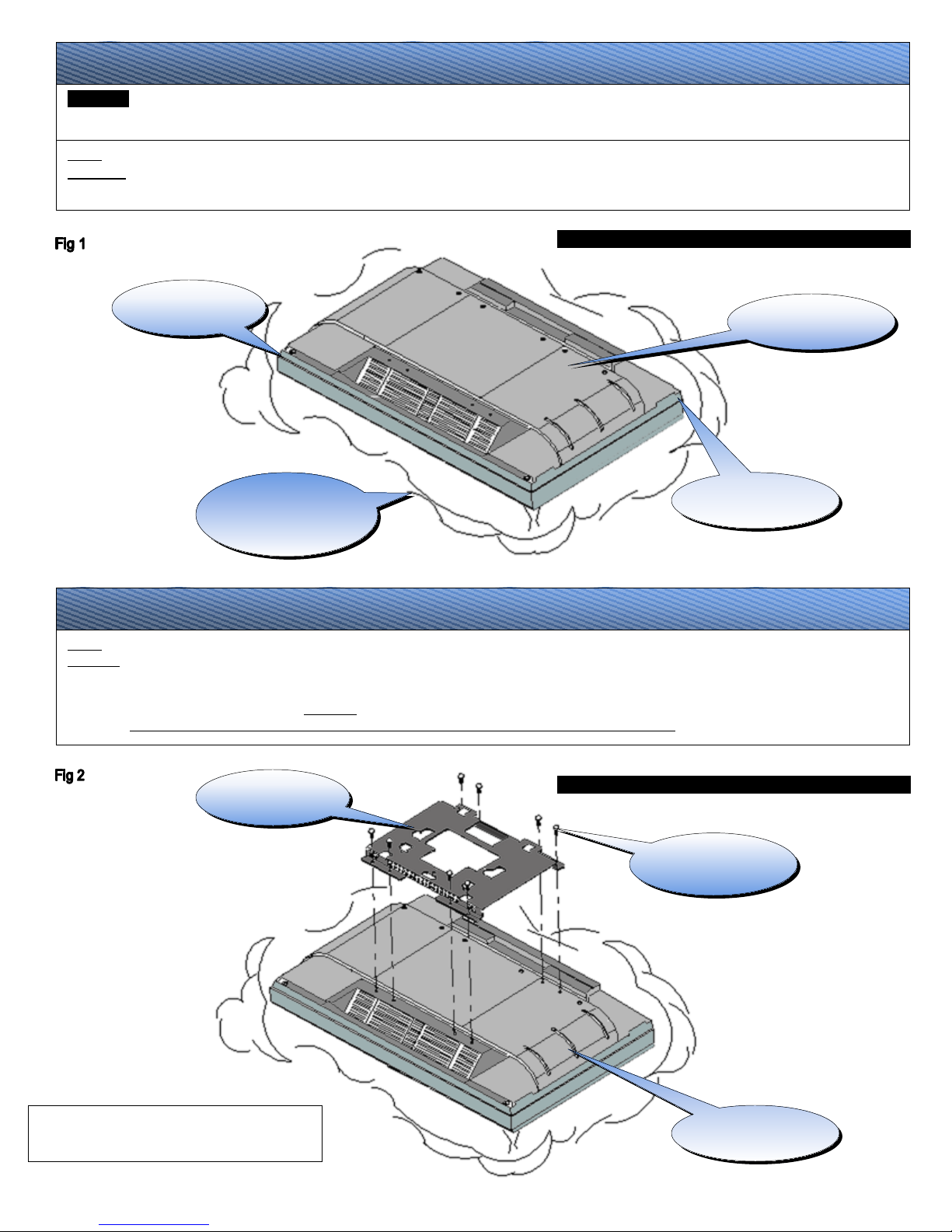

Step 1
CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product.
Invert the plasma display and set it on a soft, flat surface to prevent any damage to the plasma display. See fig 1.
WARNING : Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could
result in serious personal injury and possible damage to the plasma display.
Step 2
CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product.
Locate the mounting points found on the back of the plasma chassis, align the mounting holes from the mounting bracket to the holes on the chassis. Arrow found
on the PSM mount must always be pointing to the top of the plasma display before securing it to the chassis. Secure the mounting bracket to the plasma display by
using the hardware specified on the parts list. CAUTION: Do not over tighten the mounting hardware. See fig 2.
WARNING: Do not use the drill gun to secure the screws to the plasma display. A Phillips head screwdriver is preferred.
Soft and flat surface
blankets, foam, cloth
etc.
Inverted plasma
dis
p
la
y
Top of the plasma
dis
p
la
y
Bottom of the
p
lasma dis
p
la
y
Inverted plasma
dis
p
la
y
PSM-series
mount
Mounting hardware
(see chart on pg 5)
Installing the PSM-Series mount
EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES ONLY
EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES ONLY
NOTE: The PSM-402 was designed to work with more than
one Hitachi model chassis. On some chassis only six (6)
mounting points are going to match and eight (8) on others.

8
Step 3
Securing the flat mount
CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product.
All plasma models vary depending on the manufacturer and some are centered and others are not. Please verify that your plasma mounting points from the back of the chassis are
centered before installing the universal back plate.
Select the area where the plasma will be installed and make sure it can support the weight standards (see warning on page 3). Locate the 16" wood stud centers behind the wall using
a (commercially available) stud finder and mark the center of the studs when found. Set the mounting bracket to the wall and mark the desired height by marking the center of the
universal flat mount.
Note: Same installation process applies to the PSM-Tilt series. See fig 3.
Wall structure
Wood studs behind
the wall structure
Stud centers
marking
Universal flat
mount
A
djusting the
mount
Desired height
marking
Securing the universal flat or tilt mounts
CENTER
OF
V
IEWING
HEIGHT

9
Step 3
Securing the flat mount
To determine the desired viewing height, use the center slot opening in the wall mount as a center reference for the plasma television when mounted. Once the height is determined,
use the bubble level to insure that the bracket is level. Next, using a pencil, mark the four (4) lag bolt slot openings on the mounting bracket. Before continuing, confirm the marks are
located on the center of the studs.
Drill 1/4" pilot holes on the four (4) markings on the wall. Raise the universal flat or universal tilt bracket and have someone hold it in place (arrow side away from the wall and
pointing up). Put the lag bolt through the flat washers. Screw the lag bolt through the upper left slot opening into the 1/4" pilot hole. Confirm that the wall mount is still leveled and then
screw a lag bolt to the upper right side slot opening into the 1/4" pilot hole. Then install the remaining two lag bolts tightly into the wall studs in the lower left and right slot openings on
the wall mount.
Lateral movement of approximatel
y
1½" for final positionin
g
is now possible. Make an
y
positionin
g
chan
g
es then secure the la
g
bolts. See fi
g
4.
Wood studs behind
the wall structure
Drill gun with a 1/4"
drill bit
Wall structure
Marking on wall
Flat washers
Lag bolts
Access holes
Universal flat
mount
Electrical
Step 4
All electrical wiring components should be installed at this time to ensure that the plasma display has enough power sources.

10

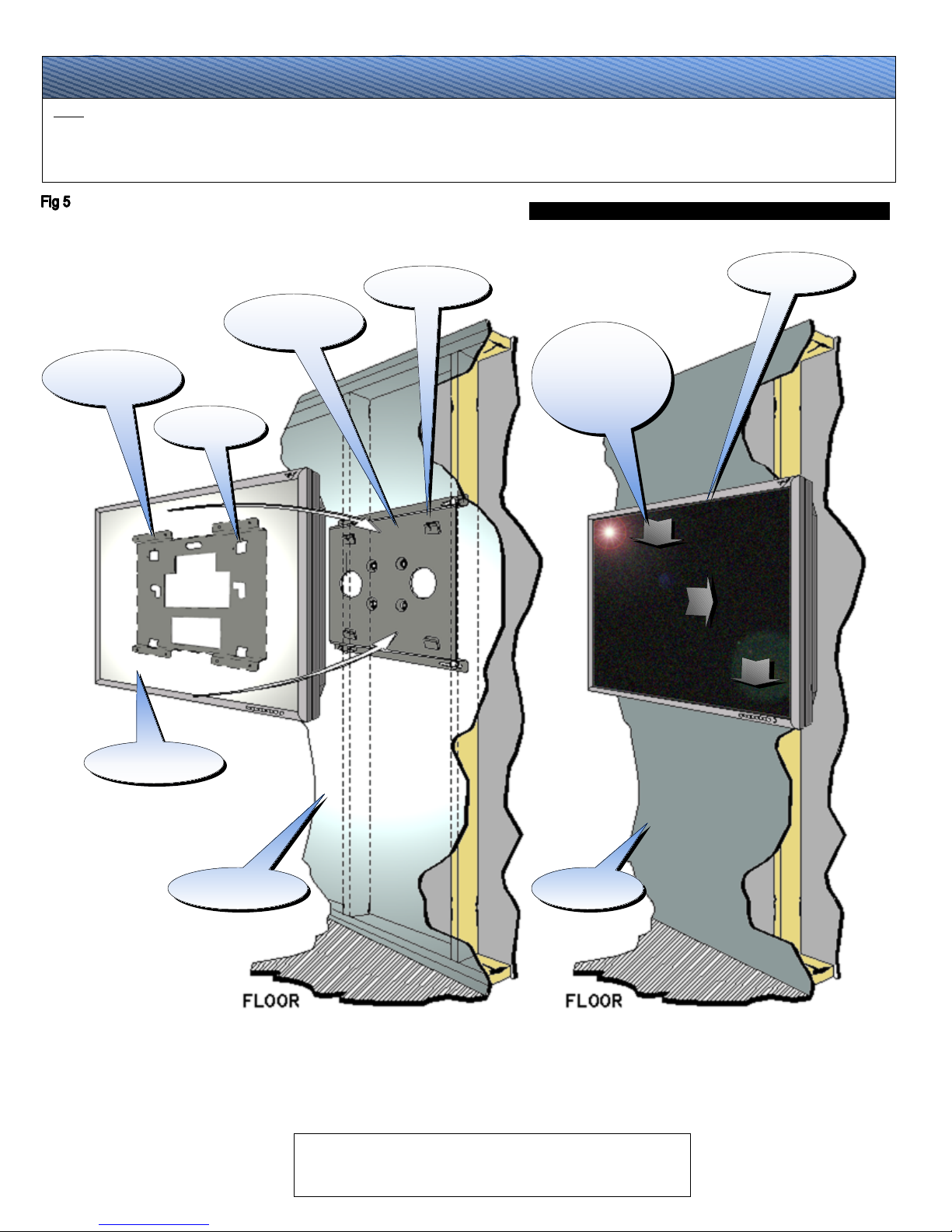

Mount interlocking
Step 5
Warning: The plasma display is heavy and 2 people are needed to lift and install it. Failure to do so could result in serious personal injury.
Before placing the plasma on the wall recheck all hardware for proper tightness and security. Align the PSM series mount tab openings to the receiving tabs on the universal flat mount
or tilt mount. Slide the plasma down, right and down again to lock the mounts together. Make sure all tab openings are interlocked with the receiving tabs before letting go of the
plasma. See fig 5.
Plasma display
PSM-series
mount
Universal flat
mount
Securing tabs
Tab openings
Wall structure
Plasma display
Wall structure
A
lign the tabs and
push the plasma
as shown on
arrows to lock in
p
lace
EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES ONLY
Thank you for choosing PREMIER MOUNTS INC. for your installation needs.
If you have any questions please contact PREMIER MOUNTS INC.
Information is shown on the front of this page.
