Blackbird 43876 User manual

4K 1x2 HDMI® Splitter
P/N 43876
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to
these safety warnings and guidelines. Please keep this manual in a safe place for
future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind. Do not place
drinks or other containers with moisture on or near the device. If
moisture does get in or on the device, immediately remove it from its
power source and allow it to fully dry before reapplying power.
•Do not touch the device, the power cord, or any other connected cables
with wet hands.
•Do not expose this device to excessive vibration or extreme force,
shock, or fluctuations in temperature or humidity.
•Do not expose this device to excessively high temperatures. Do not
place it in, on, or near a heat source, such as a fireplace, stove, radiator,
etc. Do not leave it in direct sunlight.
•Do not place or install this device in an area where it can be exposed to
excessive amounts of dust, humidity, oil, smoke, or combustible vapors.
•Prior to operation, check the unit and power cord for physical damage.
Do not use if physical damage has occurred.
•Before plugging the unit into a power outlet, ensure that the outlet
provides the same type and level of power required by the device.
•Unplug this device from the power source when not in use.
•Take care to prevent damage to the power cord. Do not allow it to
become crimped, pinched, walked on, or become tangled with other
cords. Ensure that the power cord does not present a tripping hazard.
•Never unplug the unit by pulling on the power cord. Always grasp the
connector head or adapter body.

3
•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents,
or detergents. For stubborn deposits, moisten the cloth with warm
water.
•This device has no user serviceable parts. Do not attempt to open,
service, or modify this device.
INTRODUCTION
This 4K 1x2 HDMI® Splitter allows you to distribute a single HDMI video source to
two HDMI displays. It supports video resolutions up to 4K@30Hz with YCbCr
4:4:4, including 1080p@60Hz. A built-in signal equalizer helps prevent
transmission signal loss, allowing for longer than normal cables to be used. It has
smart EDID® management and it supports CEC passthrough.
FEATURES
•Supports video resolutions up to 4K@30Hz with YCbCr 4:4:4, including
1080p@60Hz
•Built-in signal equalizer to help prevent transmission signal loss
•Smart EDID® management
•Supports CEC passthrough
•USB powered

4
ONLINE SUPPORT
Monoprice™ is pleased to provide free online support. For order related issues,
contact the Customer Service department through the Live Chat link on our
website www.monoprice.com or via email at [e-mail]
For technical issues, contact the Technical Support department through the
online chat button on our website www.monoprice.com or by sending an email
to [e-mail]
Check the website for support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the
items listed below. If anything is missing or damaged, please contact
Monoprice™ Customer Service for a replacement.
1x 4K 1x2 HDMI® Splitter
1x Micro USB Cable
1x User's Manual

5

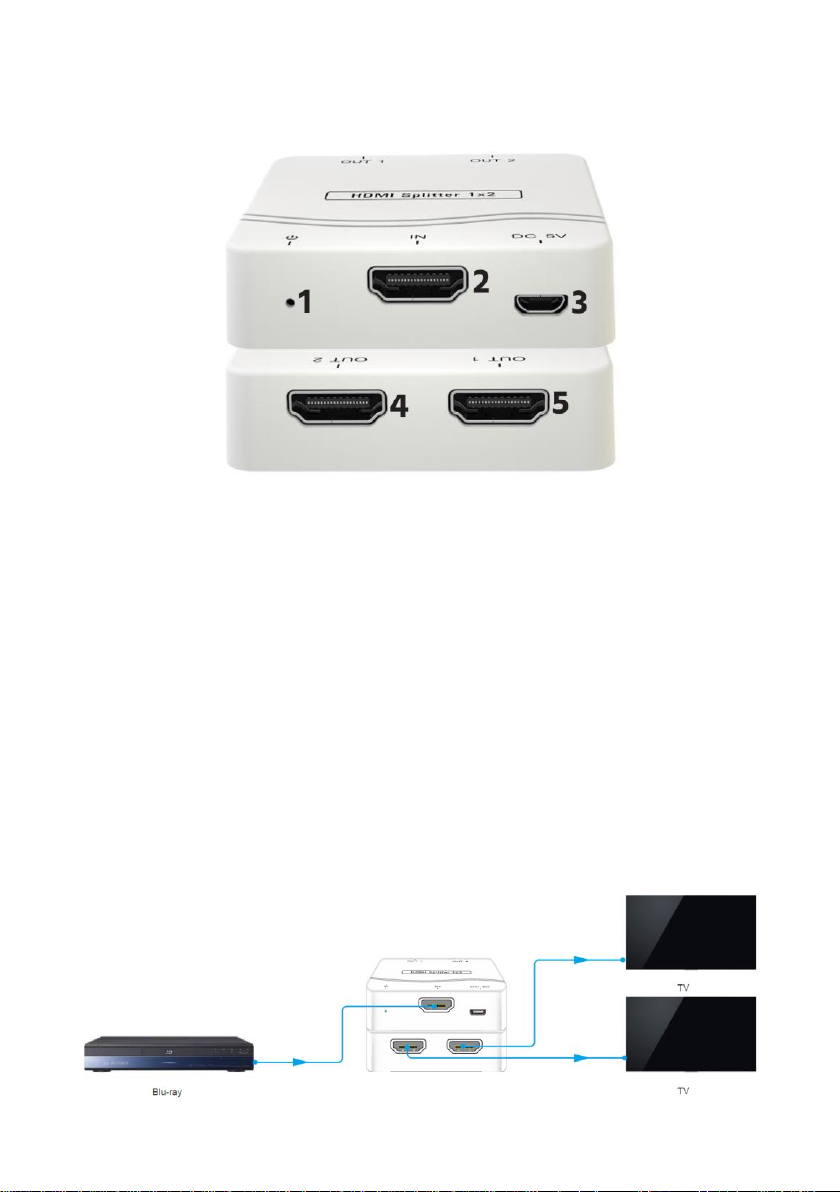

PRODUCT OVERVIEW
1. POWER: The LED illuminates when power is applied.
2. IN: HDMI® port for connecting an HDMI video source device.
3. DC 5V: Micro USB port for connecting the included Micro USB cable to
connected to a USB power source (available separately) to power the
splitter.
4. OUT 2: HDMI port for connecting an HDMI display.
5. OUT 1: HDMI port for connecting an HDMI display.
SAMPLE CONNECTION DIAGRAM

6
EDID AND HDCP MANAGEMENT
The splitter scans the EDID® data for each connected display and sends the one
with the lowest resolution to the video source device. If the splitter fails to read
the EDID for some reason, it will revert to the default 1080p video and stereo
audio.
Note that the outputs do not have HDCP™, regardless of whether the input has it
or not.
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Modifying the equipment without Monoprice's authorization may result in the
equipment no longer complying with FCC requirements for Class B digital
devices. In that event, your right to use the equipment may be limited by FCC
regulations, and you may be required to correct any interference to radio or
television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this

7
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.

8
Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are
trademarks of Monoprice Inc.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
EDID® is a registered trademark of the Video Electronics Standards Association.
HDCP™ is a trademark of Digital Content Protection LLC.
