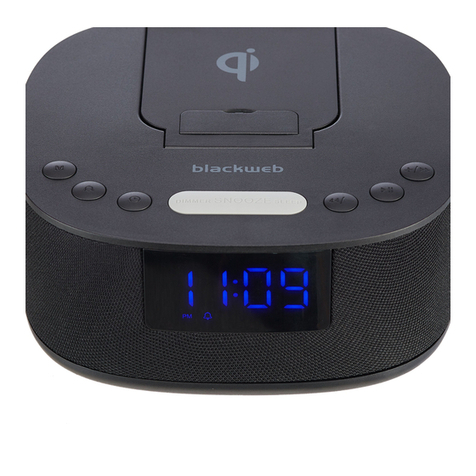

Blackweb BWD19AAA08 User manual
WIRELESS CHARGING CLOCK RADIO
WITH BLUETOOTH SPEAKER
PRODUCT USER GUIDE
Model: BWD19AAA08
TM
Features
Top
Package Contents
• 1x Clock Radio
• 1x 5V/3.2A Power Adapter
• 1x User Guide
• 1x Quick Start Guide
Rear
Item Description#
Mode button
①Press to cycle between FM mode, BT mode and AUX mode (when Aux-in jack is
connected )
Clock button
③In other modes, press to return to Clock mode; In any modes, press and hold 1
second to enter clock settings.
Alarm button
②In Clock mode, press to turn on or turn o alarm; In other modes, press to return to
Clock mode; In any mode, press and hold 1 second to enter alarm clock settings.
Dimmer/Snooze/Sleep④When alarm rings, you can press to adjust the interval to repeat alarm. The alarm
repeats ringing 10 minutes later. When alarm not rings, press it to adjust LED
brightness, press and hold 2 seconds to set up sleep timer.
Volume Down/
Previous Track
⑤In BT mode, press to switch to previous track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd a
lower available channel, and press and hold to decrease volume. In any modes,
press and hold to decrease volume.
Item Description#
AUX IN jack
①Connect to an external audio device.
USB port
③Connect to charge an external device.
FM antenna
②The FM antenna is an 80cm pigtail cable, keep it fully
extended to get the best signal reception.
DC IN jack
④Connect to the included power adapter.
Play/Pause
⑥In AUX mode and BT mode, press to play or pause audio; in FM mode, press to
enter preset station play mode, press and hold 2 seconds to set preset station.
In BT mode, press to switch to next track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd
an upper available channel. In any modes, press and hold to increase volume.
Volume Up/Next Track
⑦
LED Digital Display
Item Description#
Current time
①Displays the current time.
Alarm
③Lights when alarm has been set and enabled.
AM/PM
②“AM” lights after midnight and before noon, and “PM”
lights after noon and before midnight.
Bluetooth
④Lights when BT mode is selected.
AUX
⑤Lights when an external audio is connected.
FM
⑥Lights when FM mode is selected.
MHz
⑦Lights when FM mode is selected.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
WIRELESS CHARGING CLOCK RADIO
WITH BLUETOOTH SPEAKER
PRODUCT USER GUIDE
Model: BWD19AAA08
TM
Features
Top
Package Contents
• 1x Clock Radio
• 1x 5V/3.2A Power Adapter
• 1x User Guide
• 1x Quick Start Guide
Rear
Item Description#
Mode button
①Press to cycle between FM mode, BT mode and AUX mode (when Aux-in jack is
connected )
Clock button
③In other modes, press to return to Clock mode; In any modes, press and hold 1
second to enter clock settings.
Alarm button
②In Clock mode, press to turn on or turn o alarm; In other modes, press to return to
Clock mode; In any mode, press and hold 1 second to enter alarm clock settings.
Dimmer/Snooze/Sleep④When alarm rings, you can press to adjust the interval to repeat alarm. The alarm
repeats ringing 10 minutes later. When alarm not rings, press it to adjust LED
brightness, press and hold 2 seconds to set up sleep timer.
Volume Down/
Previous Track
⑤In BT mode, press to switch to previous track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd a
lower available channel, and press and hold to decrease volume. In any modes,
press and hold to decrease volume.
Item Description#
AUX IN jack
①Connect to an external audio device.
USB port
③Connect to charge an external device.
FM antenna
②The FM antenna is an 80cm pigtail cable, keep it fully
extended to get the best signal reception.
DC IN jack
④Connect to the included power adapter.
Play/Pause
⑥In AUX mode and BT mode, press to play or pause audio; in FM mode, press to
enter preset station play mode, press and hold 2 seconds to set preset station.
In BT mode, press to switch to next track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd
an upper available channel. In any modes, press and hold to increase volume.
Volume Up/Next Track
⑦
LED Digital Display
Item Description#
Current time
①Displays the current time.
Alarm
③Lights when alarm has been set and enabled.
AM/PM
②“AM” lights after midnight and before noon, and “PM”
lights after noon and before midnight.
Bluetooth
④Lights when BT mode is selected.
AUX
⑤Lights when an external audio is connected.
FM
⑥Lights when FM mode is selected.
MHz
⑦Lights when FM mode is selected.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
WIRELESS CHARGING CLOCK RADIO
WITH BLUETOOTH SPEAKER
PRODUCT USER GUIDE
Model: BWD19AAA08
TM
Features
Top
Package Contents
• 1x Clock Radio
• 1x 5V/3.2A Power Adapter
• 1x User Guide
• 1x Quick Start Guide
Rear
Item Description#
Mode button
①Press to cycle between FM mode, BT mode and AUX mode (when Aux-in jack is
connected )
Clock button
③In other modes, press to return to Clock mode; In any modes, press and hold 1
second to enter clock settings.
Alarm button
②In Clock mode, press to turn on or turn o alarm; In other modes, press to return to
Clock mode; In any mode, press and hold 1 second to enter alarm clock settings.
Dimmer/Snooze/Sleep④When alarm rings, you can press to adjust the interval to repeat alarm. The alarm
repeats ringing 10 minutes later. When alarm not rings, press it to adjust LED
brightness, press and hold 2 seconds to set up sleep timer.
Volume Down/
Previous Track
⑤In BT mode, press to switch to previous track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd a
lower available channel, and press and hold to decrease volume. In any modes,
press and hold to decrease volume.
Item Description#
AUX IN jack
①Connect to an external audio device.
USB port
③Connect to charge an external device.
FM antenna
②The FM antenna is an 80cm pigtail cable, keep it fully
extended to get the best signal reception.
DC IN jack
④Connect to the included power adapter.
Play/Pause
⑥In AUX mode and BT mode, press to play or pause audio; in FM mode, press to
enter preset station play mode, press and hold 2 seconds to set preset station.
In BT mode, press to switch to next track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd
an upper available channel. In any modes, press and hold to increase volume.
Volume Up/Next Track
⑦
LED Digital Display
Item Description#
Current time
①Displays the current time.
Alarm
③Lights when alarm has been set and enabled.
AM/PM
②“AM” lights after midnight and before noon, and “PM”
lights after noon and before midnight.
Bluetooth
④Lights when BT mode is selected.
AUX
⑤Lights when an external audio is connected.
FM
⑥Lights when FM mode is selected.
MHz
⑦Lights when FM mode is selected.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
WIRELESS CHARGING CLOCK RADIO
WITH BLUETOOTH SPEAKER
PRODUCT USER GUIDE
Model: BWD19AAA08
TM
Features
Top
Package Contents
• 1x Clock Radio
• 1x 5V/3.2A Power Adapter
• 1x User Guide
• 1x Quick Start Guide
Rear
Item Description#
Mode button
①Press to cycle between FM mode, BT mode and AUX mode (when Aux-in jack is
connected )
Clock button
③In other modes, press to return to Clock mode; In any modes, press and hold 1
second to enter clock settings.
Alarm button
②In Clock mode, press to turn on or turn o alarm; In other modes, press to return to
Clock mode; In any mode, press and hold 1 second to enter alarm clock settings.
Dimmer/Snooze/Sleep④When alarm rings, you can press to adjust the interval to repeat alarm. The alarm
repeats ringing 10 minutes later. When alarm not rings, press it to adjust LED
brightness, press and hold 2 seconds to set up sleep timer.
Volume Down/
Previous Track
⑤In BT mode, press to switch to previous track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd a
lower available channel, and press and hold to decrease volume. In any modes,
press and hold to decrease volume.
Item Description#
AUX IN jack
①Connect to an external audio device.
USB port
③Connect to charge an external device.
FM antenna
②The FM antenna is an 80cm pigtail cable, keep it fully
extended to get the best signal reception.
DC IN jack
④Connect to the included power adapter.
Play/Pause
⑥In AUX mode and BT mode, press to play or pause audio; in FM mode, press to
enter preset station play mode, press and hold 2 seconds to set preset station.
In BT mode, press to switch to next track; In FM Mode, press to tune in 0.1MHz
increments or switch preset stations, double-click to start auto scan until nd
an upper available channel. In any modes, press and hold to increase volume.
Volume Up/Next Track
⑦
LED Digital Display
Item Description#
Current time
①Displays the current time.
Alarm
③Lights when alarm has been set and enabled.
AM/PM
②“AM” lights after midnight and before noon, and “PM”
lights after noon and before midnight.
Bluetooth
④Lights when BT mode is selected.
AUX
⑤Lights when an external audio is connected.
FM
⑥Lights when FM mode is selected.
MHz
⑦Lights when FM mode is selected.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Set Alarm Sound
After set the alarm minute, press button two times to enter alarm tone selection, then press or button to choose the
tone you want (4 tones plus 1 FM radio tone), after tone is set, press button to conrm setting (If no button is pressed for 15
seconds, the setting is saved automatically).
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC RF EXPOSURE STATEMENT:
This device complies with Innovation, Science, and Economic Development Canada licence exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
Blackweb is a trademark of Walmart Stores, Inc. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by
Blackweb is under license. Distributed by Walmart Stores, Inc., Bentonville, AR; 72716
1-800-925-6278 . 2018 Walmart Stores, Inc. All rights reserved.
ISEDC CAUTION:
The device is in compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.
ISEDC RF EXPOSURE STATEMENT:
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should always be followed, including the following:
Please use the standard power adapter equipped with this unit.
The charging input and output ports, please do not connect to any faulty equipment to avoid the irreversible damage of the unit.
Do not use in a strong magnetic or strong interference eld, otherwise it may cause the machine to be functionally unusual.
The product is for indoor use only.
IMPORTANT LEGAL INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
A MESSAGE FROM THE ENVIRONMENT
WARNING: This product has an internal, non-replaceable lithium-ion battery. Please dispose of in accordance with your local, state,
province, and country guidelines. This product contains small parts that may present a choking hazard for young children. CAUTION:
All servicing of this product must be performed by authorized service personnel only.
• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your device is turned down before
connecting to the speaker. After turning on your speaker, gradually turn up the volume until you reach a comfortable listening
volume.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by Blackweb.
• Blackweb is not liable for any damage caused to smartphones, iPod/MP3 players, or any other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surfaces wet from water or cleaning solvents.
Set Alarm Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or button to
adjust the hour, after hour is set, press button to switch to minute, then press or button to adjust the minute, after
minute is set, press button to conrm setting (If no button is pressed for 15 seconds, the setting is saved automatically).
Connect to Power
- Risk of product damage! Use the include 5V power adapter ONLY. Connect the AC power cord to the wall socket.
Set Clock Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or
button to adjust the hour, after hour is set, press button to switch to minute, the LED minute blinks, then press or
button to adjust the minute, after minute is set, press to conrm setting (If no button is pressed for 15 seconds, the setting
is saved automatically).
Use Snooze Feature
1) You can press to repeat alarm. When alarm rings, press button to snooze for 10 minutes.
2) When alarm rings, press any button (except button). The alarm stops, but the alarm settings remain.
Set the Sleep Timer
In BT/AUX/FM modes, press and hold button to adjust sleep timer, there are “90/60/30/15 minutes”
and “OFF” total 5 options, after you get to the desired option, let go o button to conrm selection.
Turn On/O Alarm
Press button to turn o or turn on alarm, the LED alarm icon keeps o or on correspondingly.
Return Factory Default
Press button for 10 seconds until “beep”, the previous Clock settings, Alarm settings and Bluetooth paring settings will be
cleared.
Play FM Radio
1) The default mode upon power on is FM mode. In other modes, press button to switch to FM mode. ( FM supports 87.5MHz
to 108MHz)
2) Press or button to tune frequency for 0.1MHz each time, double-click or button to start auto scan, it
stops until a station is found, auto scan will be interrupted by press or button.
3) Tune to the radio station you want to program, then press and hold button for 2 seconds to enter preset mode. The next
available preset number (P-01 through P-10) appears on the LED. If you want to use a dierent preset number, press or
button repeatedly until the number you want appears on the LED,then press button again to save your station and
exit preset mode with “beep” voice prompt. (If no button is pressed for 15 seconds, the setting is saved automatically).
4) Press button to enter play preset station mode, and the last played preset station number (P-01 through P-10) appears on
the LED, then press or button repeatedly until the preset station you want appears on the LED. Press button
again to exit play preset station mode.
5) Press and hold or button to adjust volume, the volume level number appears on LED.
Adjust LED Brightness
When alarm no sounds, short press button to adjust LED brightness, there are low, medium and high
three levels for selection.
Play Audio from a Bluetooth Device
The rst time you connect your Bluetooth device to this player, you need to pair your device to this player.
Note:
Connect an External Audio Device
• The operational range between this player and a Bluetooth device is approximately 10 meters (without any object between
the Bluetooth device and the unit).
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.
• If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically.
1) Press button to switch to BT mode, you will hear a “Bluetooth Mode” prompt tone, and clock radio automatically enters
Bluetooth pair with Bluetooth name “Blackweb Clock Radio”, there will be a “Bluetooth Pairing” prompt tone if pairing
success and you will hear “Bluetooth Disconnected” when disconnected.
2) Press and hold button for 1 second to disconnect the current connected device, clock radio re-enters paring status.
3) When Bluetooth is disconnected, press button and clock radio will reconnect with the device that has connected before.
4) Press and hold or button to adjust volume, the volume level number appears on LED.
1)In any mode, plug an audio cable with a 3.5 mm connector (not included) into the AUX IN jack on the back of your clock
radio and into the audio out jack on your audio device, clock radio enters AUX mode automatically and plays the audio
from your audio device, LED AUX icon keeps on.
2)Press and hold or button to adjust volume, the volume level number appears on LED.
Wireless Charging a Mobile Device
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Make sure your device supports Qi charging technology.
3) Put your device horizontally on the wireless stand, DO NOT put it vertically as this will make it beyond charging arrange.
4) Your device will show charging status if charge successfully.
Charge a Mobile Device via USB-A Port
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Connect a USB cable (not provided) to the USB port on the back of your clock radio and to the USB port on your device.
3) Your device will show charging status if charge successfully.
FCC WARNING:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19
Set Alarm Sound
After set the alarm minute, press button two times to enter alarm tone selection, then press or button to choose the
tone you want (4 tones plus 1 FM radio tone), after tone is set, press button to conrm setting (If no button is pressed for 15
seconds, the setting is saved automatically).
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC RF EXPOSURE STATEMENT:
This device complies with Innovation, Science, and Economic Development Canada licence exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
Blackweb is a trademark of Walmart Stores, Inc. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by
Blackweb is under license. Distributed by Walmart Stores, Inc., Bentonville, AR; 72716
1-800-925-6278 . 2018 Walmart Stores, Inc. All rights reserved.
ISEDC CAUTION:
The device is in compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.
ISEDC RF EXPOSURE STATEMENT:
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should always be followed, including the following:
Please use the standard power adapter equipped with this unit.
The charging input and output ports, please do not connect to any faulty equipment to avoid the irreversible damage of the unit.
Do not use in a strong magnetic or strong interference eld, otherwise it may cause the machine to be functionally unusual.
The product is for indoor use only.
IMPORTANT LEGAL INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
A MESSAGE FROM THE ENVIRONMENT
WARNING: This product has an internal, non-replaceable lithium-ion battery. Please dispose of in accordance with your local, state,
province, and country guidelines. This product contains small parts that may present a choking hazard for young children. CAUTION:
All servicing of this product must be performed by authorized service personnel only.
• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your device is turned down before
connecting to the speaker. After turning on your speaker, gradually turn up the volume until you reach a comfortable listening
volume.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by Blackweb.
• Blackweb is not liable for any damage caused to smartphones, iPod/MP3 players, or any other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surfaces wet from water or cleaning solvents.
Set Alarm Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or button to
adjust the hour, after hour is set, press button to switch to minute, then press or button to adjust the minute, after
minute is set, press button to conrm setting (If no button is pressed for 15 seconds, the setting is saved automatically).
Connect to Power
- Risk of product damage! Use the include 5V power adapter ONLY. Connect the AC power cord to the wall socket.
Set Clock Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or
button to adjust the hour, after hour is set, press button to switch to minute, the LED minute blinks, then press or
button to adjust the minute, after minute is set, press to conrm setting (If no button is pressed for 15 seconds, the setting
is saved automatically).
Use Snooze Feature
1) You can press to repeat alarm. When alarm rings, press button to snooze for 10 minutes.
2) When alarm rings, press any button (except button). The alarm stops, but the alarm settings remain.
Set the Sleep Timer
In BT/AUX/FM modes, press and hold button to adjust sleep timer, there are “90/60/30/15 minutes”
and “OFF” total 5 options, after you get to the desired option, let go o button to conrm selection.
Turn On/O Alarm
Press button to turn o or turn on alarm, the LED alarm icon keeps o or on correspondingly.
Return Factory Default
Press button for 10 seconds until “beep”, the previous Clock settings, Alarm settings and Bluetooth paring settings will be
cleared.
Play FM Radio
1) The default mode upon power on is FM mode. In other modes, press button to switch to FM mode. ( FM supports 87.5MHz
to 108MHz)
2) Press or button to tune frequency for 0.1MHz each time, double-click or button to start auto scan, it
stops until a station is found, auto scan will be interrupted by press or button.
3) Tune to the radio station you want to program, then press and hold button for 2 seconds to enter preset mode. The next
available preset number (P-01 through P-10) appears on the LED. If you want to use a dierent preset number, press or
button repeatedly until the number you want appears on the LED,then press button again to save your station and
exit preset mode with “beep” voice prompt. (If no button is pressed for 15 seconds, the setting is saved automatically).
4) Press button to enter play preset station mode, and the last played preset station number (P-01 through P-10) appears on
the LED, then press or button repeatedly until the preset station you want appears on the LED. Press button
again to exit play preset station mode.
5) Press and hold or button to adjust volume, the volume level number appears on LED.
Adjust LED Brightness
When alarm no sounds, short press button to adjust LED brightness, there are low, medium and high
three levels for selection.
Play Audio from a Bluetooth Device
The rst time you connect your Bluetooth device to this player, you need to pair your device to this player.
Note:
Connect an External Audio Device
• The operational range between this player and a Bluetooth device is approximately 10 meters (without any object between
the Bluetooth device and the unit).
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.
• If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically.
1) Press button to switch to BT mode, you will hear a “Bluetooth Mode” prompt tone, and clock radio automatically enters
Bluetooth pair with Bluetooth name “Blackweb Clock Radio”, there will be a “Bluetooth Pairing” prompt tone if pairing
success and you will hear “Bluetooth Disconnected” when disconnected.
2) Press and hold button for 1 second to disconnect the current connected device, clock radio re-enters paring status.
3) When Bluetooth is disconnected, press button and clock radio will reconnect with the device that has connected before.
4) Press and hold or button to adjust volume, the volume level number appears on LED.
1)In any mode, plug an audio cable with a 3.5 mm connector (not included) into the AUX IN jack on the back of your clock
radio and into the audio out jack on your audio device, clock radio enters AUX mode automatically and plays the audio
from your audio device, LED AUX icon keeps on.
2)Press and hold or button to adjust volume, the volume level number appears on LED.
Wireless Charging a Mobile Device
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Make sure your device supports Qi charging technology.
3) Put your device horizontally on the wireless stand, DO NOT put it vertically as this will make it beyond charging arrange.
4) Your device will show charging status if charge successfully.
Charge a Mobile Device via USB-A Port
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Connect a USB cable (not provided) to the USB port on the back of your clock radio and to the USB port on your device.
3) Your device will show charging status if charge successfully.
FCC WARNING:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19
Set Alarm Sound
After set the alarm minute, press button two times to enter alarm tone selection, then press or button to choose the
tone you want (4 tones plus 1 FM radio tone), after tone is set, press button to conrm setting (If no button is pressed for 15
seconds, the setting is saved automatically).
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC RF EXPOSURE STATEMENT:
This device complies with Innovation, Science, and Economic Development Canada licence exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
Blackweb is a trademark of Walmart Stores, Inc. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by
Blackweb is under license. Distributed by Walmart Stores, Inc., Bentonville, AR; 72716
1-800-925-6278 . 2018 Walmart Stores, Inc. All rights reserved.
ISEDC CAUTION:
The device is in compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.
ISEDC RF EXPOSURE STATEMENT:
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should always be followed, including the following:
Please use the standard power adapter equipped with this unit.
The charging input and output ports, please do not connect to any faulty equipment to avoid the irreversible damage of the unit.
Do not use in a strong magnetic or strong interference eld, otherwise it may cause the machine to be functionally unusual.
The product is for indoor use only.
IMPORTANT LEGAL INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
A MESSAGE FROM THE ENVIRONMENT
WARNING: This product has an internal, non-replaceable lithium-ion battery. Please dispose of in accordance with your local, state,
province, and country guidelines. This product contains small parts that may present a choking hazard for young children. CAUTION:
All servicing of this product must be performed by authorized service personnel only.
• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your device is turned down before
connecting to the speaker. After turning on your speaker, gradually turn up the volume until you reach a comfortable listening
volume.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by Blackweb.
• Blackweb is not liable for any damage caused to smartphones, iPod/MP3 players, or any other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surfaces wet from water or cleaning solvents.
Set Alarm Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or button to
adjust the hour, after hour is set, press button to switch to minute, then press or button to adjust the minute, after
minute is set, press button to conrm setting (If no button is pressed for 15 seconds, the setting is saved automatically).
Connect to Power
- Risk of product damage! Use the include 5V power adapter ONLY. Connect the AC power cord to the wall socket.
Set Clock Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or
button to adjust the hour, after hour is set, press button to switch to minute, the LED minute blinks, then press or
button to adjust the minute, after minute is set, press to conrm setting (If no button is pressed for 15 seconds, the setting
is saved automatically).
Use Snooze Feature
1) You can press to repeat alarm. When alarm rings, press button to snooze for 10 minutes.
2) When alarm rings, press any button (except button). The alarm stops, but the alarm settings remain.
Set the Sleep Timer
In BT/AUX/FM modes, press and hold button to adjust sleep timer, there are “90/60/30/15 minutes”
and “OFF” total 5 options, after you get to the desired option, let go o button to conrm selection.
Turn On/O Alarm
Press button to turn o or turn on alarm, the LED alarm icon keeps o or on correspondingly.
Return Factory Default
Press button for 10 seconds until “beep”, the previous Clock settings, Alarm settings and Bluetooth paring settings will be
cleared.
Play FM Radio
1) The default mode upon power on is FM mode. In other modes, press button to switch to FM mode. ( FM supports 87.5MHz
to 108MHz)
2) Press or button to tune frequency for 0.1MHz each time, double-click or button to start auto scan, it
stops until a station is found, auto scan will be interrupted by press or button.
3) Tune to the radio station you want to program, then press and hold button for 2 seconds to enter preset mode. The next
available preset number (P-01 through P-10) appears on the LED. If you want to use a dierent preset number, press or
button repeatedly until the number you want appears on the LED,then press button again to save your station and
exit preset mode with “beep” voice prompt. (If no button is pressed for 15 seconds, the setting is saved automatically).
4) Press button to enter play preset station mode, and the last played preset station number (P-01 through P-10) appears on
the LED, then press or button repeatedly until the preset station you want appears on the LED. Press button
again to exit play preset station mode.
5) Press and hold or button to adjust volume, the volume level number appears on LED.
Adjust LED Brightness
When alarm no sounds, short press button to adjust LED brightness, there are low, medium and high
three levels for selection.
Play Audio from a Bluetooth Device
The rst time you connect your Bluetooth device to this player, you need to pair your device to this player.
Note:
Connect an External Audio Device
• The operational range between this player and a Bluetooth device is approximately 10 meters (without any object between
the Bluetooth device and the unit).
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.
• If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically.
1) Press button to switch to BT mode, you will hear a “Bluetooth Mode” prompt tone, and clock radio automatically enters
Bluetooth pair with Bluetooth name “Blackweb Clock Radio”, there will be a “Bluetooth Pairing” prompt tone if pairing
success and you will hear “Bluetooth Disconnected” when disconnected.
2) Press and hold button for 1 second to disconnect the current connected device, clock radio re-enters paring status.
3) When Bluetooth is disconnected, press button and clock radio will reconnect with the device that has connected before.
4) Press and hold or button to adjust volume, the volume level number appears on LED.
1)In any mode, plug an audio cable with a 3.5 mm connector (not included) into the AUX IN jack on the back of your clock
radio and into the audio out jack on your audio device, clock radio enters AUX mode automatically and plays the audio
from your audio device, LED AUX icon keeps on.
2)Press and hold or button to adjust volume, the volume level number appears on LED.
Wireless Charging a Mobile Device
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Make sure your device supports Qi charging technology.
3) Put your device horizontally on the wireless stand, DO NOT put it vertically as this will make it beyond charging arrange.
4) Your device will show charging status if charge successfully.
Charge a Mobile Device via USB-A Port
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Connect a USB cable (not provided) to the USB port on the back of your clock radio and to the USB port on your device.
3) Your device will show charging status if charge successfully.
FCC WARNING:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19
Set Alarm Sound
After set the alarm minute, press button two times to enter alarm tone selection, then press or button to choose the
tone you want (4 tones plus 1 FM radio tone), after tone is set, press button to conrm setting (If no button is pressed for 15
seconds, the setting is saved automatically).
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC RF EXPOSURE STATEMENT:
This device complies with Innovation, Science, and Economic Development Canada licence exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
Blackweb is a trademark of Walmart Stores, Inc. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by
Blackweb is under license. Distributed by Walmart Stores, Inc., Bentonville, AR; 72716
1-800-925-6278 . 2018 Walmart Stores, Inc. All rights reserved.
ISEDC CAUTION:
The device is in compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.
ISEDC RF EXPOSURE STATEMENT:
IMPORTANT SAFEGUARDS:
When using an electrical product, basic precautions should always be followed, including the following:
Please use the standard power adapter equipped with this unit.
The charging input and output ports, please do not connect to any faulty equipment to avoid the irreversible damage of the unit.
Do not use in a strong magnetic or strong interference eld, otherwise it may cause the machine to be functionally unusual.
The product is for indoor use only.
IMPORTANT LEGAL INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
A MESSAGE FROM THE ENVIRONMENT
WARNING: This product has an internal, non-replaceable lithium-ion battery. Please dispose of in accordance with your local, state,
province, and country guidelines. This product contains small parts that may present a choking hazard for young children. CAUTION:
All servicing of this product must be performed by authorized service personnel only.
• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your device is turned down before
connecting to the speaker. After turning on your speaker, gradually turn up the volume until you reach a comfortable listening
volume.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by Blackweb.
• Blackweb is not liable for any damage caused to smartphones, iPod/MP3 players, or any other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surfaces wet from water or cleaning solvents.
Set Alarm Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or button to
adjust the hour, after hour is set, press button to switch to minute, then press or button to adjust the minute, after
minute is set, press button to conrm setting (If no button is pressed for 15 seconds, the setting is saved automatically).
Connect to Power
- Risk of product damage! Use the include 5V power adapter ONLY. Connect the AC power cord to the wall socket.
Set Clock Time
In any modes, press and hold button for 1 second, you will see the LED hour section blinks, then press or
button to adjust the hour, after hour is set, press button to switch to minute, the LED minute blinks, then press or
button to adjust the minute, after minute is set, press to conrm setting (If no button is pressed for 15 seconds, the setting
is saved automatically).
Use Snooze Feature
1) You can press to repeat alarm. When alarm rings, press button to snooze for 10 minutes.
2) When alarm rings, press any button (except button). The alarm stops, but the alarm settings remain.
Set the Sleep Timer
In BT/AUX/FM modes, press and hold button to adjust sleep timer, there are “90/60/30/15 minutes”
and “OFF” total 5 options, after you get to the desired option, let go o button to conrm selection.
Turn On/O Alarm
Press button to turn o or turn on alarm, the LED alarm icon keeps o or on correspondingly.
Return Factory Default
Press button for 10 seconds until “beep”, the previous Clock settings, Alarm settings and Bluetooth paring settings will be
cleared.
Play FM Radio
1) The default mode upon power on is FM mode. In other modes, press button to switch to FM mode. ( FM supports 87.5MHz
to 108MHz)
2) Press or button to tune frequency for 0.1MHz each time, double-click or button to start auto scan, it
stops until a station is found, auto scan will be interrupted by press or button.
3) Tune to the radio station you want to program, then press and hold button for 2 seconds to enter preset mode. The next
available preset number (P-01 through P-10) appears on the LED. If you want to use a dierent preset number, press or
button repeatedly until the number you want appears on the LED,then press button again to save your station and
exit preset mode with “beep” voice prompt. (If no button is pressed for 15 seconds, the setting is saved automatically).
4) Press button to enter play preset station mode, and the last played preset station number (P-01 through P-10) appears on
the LED, then press or button repeatedly until the preset station you want appears on the LED. Press button
again to exit play preset station mode.
5) Press and hold or button to adjust volume, the volume level number appears on LED.
Adjust LED Brightness
When alarm no sounds, short press button to adjust LED brightness, there are low, medium and high
three levels for selection.
Play Audio from a Bluetooth Device
The rst time you connect your Bluetooth device to this player, you need to pair your device to this player.
Note:
Connect an External Audio Device
• The operational range between this player and a Bluetooth device is approximately 10 meters (without any object between
the Bluetooth device and the unit).
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.
• If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically.
1) Press button to switch to BT mode, you will hear a “Bluetooth Mode” prompt tone, and clock radio automatically enters
Bluetooth pair with Bluetooth name “Blackweb Clock Radio”, there will be a “Bluetooth Pairing” prompt tone if pairing
success and you will hear “Bluetooth Disconnected” when disconnected.
2) Press and hold button for 1 second to disconnect the current connected device, clock radio re-enters paring status.
3) When Bluetooth is disconnected, press button and clock radio will reconnect with the device that has connected before.
4) Press and hold or button to adjust volume, the volume level number appears on LED.
1)In any mode, plug an audio cable with a 3.5 mm connector (not included) into the AUX IN jack on the back of your clock
radio and into the audio out jack on your audio device, clock radio enters AUX mode automatically and plays the audio
from your audio device, LED AUX icon keeps on.
2)Press and hold or button to adjust volume, the volume level number appears on LED.
Wireless Charging a Mobile Device
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Make sure your device supports Qi charging technology.
3) Put your device horizontally on the wireless stand, DO NOT put it vertically as this will make it beyond charging arrange.
4) Your device will show charging status if charge successfully.
Charge a Mobile Device via USB-A Port
1) Plug in the included 5V/3.2A power adapter and your clock radio is powered on.
2) Connect a USB cable (not provided) to the USB port on the back of your clock radio and to the USB port on your device.
3) Your device will show charging status if charge successfully.
FCC WARNING:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Ver.01 Rev. 01/05/19 Ver.01 Rev. 01/05/19
Ver.01 Rev. 01/05/19
Other manuals for BWD19AAA08
1
Table of contents
Other Blackweb Clock Radio manuals
