Blastrac BG-180EC User manual

Original instructions in English
OPERATING INSTRUCTIONS BG-180EC
VERSION 1 2

2
EC DECLARATION OF CONFORMITY
in accordance with Appendix II sub A of Directive 2006/42/EC
We,
BLASTRAC B.V.
Utrechthaven 12
NL - 3433 PN NIEUWEGEIN
The Netherlands
Declare under our sole responsibility that the grinding machine as described below,
Model: BG-180 EC Serial number: XXXXXB
satisfies the conditions set out in the:
Machinery Directive (2006/42/EC);
Low Voltage Directive (2006/95/EC);
EMC Directive (2004/108/EC);
Where appropriate, are in conformity with the following harmonized standards:
NEN-EN-ISO 12100:2010
NEN-EN-IEC 60204-1:2006/C11:2010
In case of changes to the machine without our written authorization this declaration loses its validity
Nieuwegein 17-11-2015
Michiel Kalisvaart
Operational Manager

3
Index
EC Declaration o Con ormity 2
1. Introduction 4
2. Machine description 4
3. Sa ety 5
3 1 Work area safety 5
3 2 Electrical safety 5
3 3 Personal safety 6
3 4 Machine safety 6
3 5 Maintenance safety 6
3 6 Dust collector safety 6
3 7 Grinding safety 7
3 8 Transport safety 7
Signs on the machine 8
4. Initial operation 9
4 1 Checkpoints of electrical safety 9
4 2 Checkpoints of machine safety 9
4 3 Manual moving 9
4 4 Transport with lifts or cranes 9
4 5 Before start-up 10
5. Operating 10
5 1 Grinding of edges 11
5 2 Stopping the machine 11
5 3 Operating during grinding 11
6. Maintenance 12
6 1 Disassembly 13
6 2 Bearing house maintenance 14
Other maintenance 14
7. Changing the disk 14
8. Troubleshooting 16
9. Technical data 17
Contact

4
1. Introduction
Before use, operators must be provided with information, instruction and training for the use of the machine
and the substances for which it is to be used, including the safe method of removal and disposal of the
material collected All persons who are working with or maintaining this machine must read the manual
carefully and understand it fully In case you sell the unit, hand it on to the next owner
Keep this manual always with the machine, to enable it to be referred to at any time
Any other work not covered by this operating manual must not be carried out
This machine is designed for industrial use by professionals Only authorized and trained personnel may
operate this machine This machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge Blastrac BV offers a course on
the use of the machine in order to make the operating and maintenance personnel familiar with all elements of
the machine
2. Machine description
The Blastrac grinding machine BG-180EC is exclusively designed to process horizontal surfaces indoor The
machine must not be used for other purposes The manufacturer will not be liable for damage resulting from
incorrect usage In these cases the user takes responsibility for all risks
Typical range of application of the BG-180EC are for example: To remove undulated concrete surfaces, glue
residues and coating defects Also to prepare the surface for coatings and to polish the surface The machine
may not be used without an adequate dust extraction system A specially designed Blastrac dust collection
system ensures dust-free operation of the machine and clean air at the workspace
The BG-180EC can process an output width of 180 mm, and gives excellent performance due to its high
economic efficiency and easy handling The machine is capable of levelling uneven and undulating floors and
edges, this process is suitable for an optimisation of surfaces, concrete polishing and removing tiger striping
after shot blasting This machine may not be used on wood
Alternatively the machine can be used to smooth floor surfaces as a preparation operation for coatings to be
applied Depending on the application the diamond disc holder can be fitted with several different types of
diamond-grinding discs The number of revolutions the tools run at are 2800 revs/min
1 Steer
2 Control box
3 Dust hose connection
4 Wheel
5 Motor 2,2 kW
6 Weight block
7 Bearing house
8 Buffer
9 Cover
10 Adapter diamond
11 Diamond plate nut
12 Dust hose
13 Cover
14 Dustcap

5
3. General Sa ety Rules
Warning!
Read all sa ety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire, explosions and / or serious injuries
Only authorized and trained personnel may operate this machine
In case of any inappropriate usage, improper operation or repair, the producer shall be exempt from liability
3.1 Work area sa ety
a) Do not use the machine outside, in rain, damp or wet locations Do not use on wood
b) Avoid dangerous environments: do not work in the presence of explosive atmospheres, in the presence of
flammable liquids, gases or dust Remove materials or debris that may be ignited by sparks
c) In some cases sparks could be created by grinding
d) The sur ace to be treated must be clean, make sure to remove all stones, screws etc..
Any stones, screws, bolts, pieces of wire etc could cause serious damage to the machine!
e) Make sure there is enough ambient light on the work area Cluttered or dark areas invite accidents
f) Keep children and bystanders away while operating the machine They are likely not to foresee the
potential dangers of the machine Distractions could cause you to lose control of the machine
g) Persons who are not operating the machine must not be permitted to stay in the surrounding area of at
least 5 meter from the machine
h) Never use the machine when the surface is not clear and if there is a risk of stumbling or tripping
i) Remove electrical cables and dust hose from the surface to be treated
j) Make sure that there is nothing standing or situated on the surface to be treated
k) Make sure the machine can travel over all inequalities on the surface, small inequalities like weld seams or
(floor) joints are no barriers for the machine
l) Never operate the machine when workplace is wet. Never stay in the rain with the machine.
m) Check if there are any obstacles that can snag the cables when the machine is moving
n) Remove reinforcing steel or other objects protruding from the surface in order to prevent damage to the
compounds or diamond discs
o) Warning!
Make sure that the sur ace to be treated does not contain dangerous materials such as:
- combustible or explosive dusts or substances.
- carcinogenic or pathogenic substances.
o) The work area must be sealed off using a red and white safety chain and a danger sign
3.2 Electrical sa ety
a) Use only extension cables for extending the main cable that are sized and marked in accordance with the
overall power consumption of the machine Do not use damaged extension cables
b) Electrical cables must be rolled entirely off of the reels
c) Any damage to the electric cables and/or electrical components is not permitted
d) The voltage on the identification plate must comply with the power supply
e) Use an electrical power supply connection with earth connection and earth leakage circuit breaker
f) The circuit breaker of the power supply must have a ‘’D’’ characteristic Circuit breakers with a “C” or “B”
characteristic can give problems when switching the motor on
g) Keep the machine original; The machine is always equipped with an earthed connection, do not
change this and always use earthed cables with an earthed plug
h) Inspect and test the electrical components regularly The electrical components have to satisfy with the
requirements set out in the harmonised norm EN60204-1
i) Always call a skilled electrician or your distributor when you have questions about the safety of the
electrical components
j) Work on electrical equipment or operating materials may only be undertaken by a skilled electrician or by
trained persons under the guidance and supervision of a skilled electrician as well as in accordance with the
electrical engineering regulations
k) Do not abuse the cables Never use the cables for carrying, pulling or unplugging the machine Keep cables
away from heat, oil, sharp edges or moving parts Damaged or entangled cables increase the risk of electric
shock

6
l) Be careful with water on the treated surface Electrical cables must not come into contact with water
m) During a long standstill of the machine, cover the machine with plastic foil
n) If the machine is to be operated using power from a generator, the generator must be operated in
accordance with the current legal regulations and directives in force (this applies to the protective earth
conductor in particular) in order to ensure that all safety devices are functioning and to eliminate possible
damage to electrical components
3.3 Personal sa ety
a) Always wear Personal Protective Equipment while working with the machine.
b) Dress properly Do not wear loose clothing or jewellery Keep your hair, clothing and gloves away from
moving parts
c) Stay alert, watch what you are doing and use common sense when operating the machine
d) Disconnect the power supply before any inspections, adjustments and/or maintenance work is started
e) All persons in the proximity of the machine, must wear ear protectors and safety shoes
f) Always seek professional medical attention immediately in case of injury
3.4 Machine sa ety general
a) Safety functions and operating functions must work correct
b) No loose bolts and nuts permitted
c) Never operate machine without the guards and/or safety devices in place
d) Never change anything on the safety devices on the machine!
e) The machine, especially the handle grip must be free of fats/oils and has to be dry
f) All repair work has to be done by qualified Blastrac personnel, this guarantees a safe and reliable machine
g) Always use original Blastrac spare parts and grinding disks This will ensure the best performance
Only original Blastrac parts meet the factory specifications and quality Otherwise Blastrac BV cannot
guarantee the safety of the machine The part numbers can be found in the Service Manual
h) If sa ety-critical changes occur to the machine or its working method, the machine must be shut down
immediately! The cause of the fault must be established, and rectified
i) In the event of operational mal unctions the machine must be shut down immediately and secured!
j) Do not open or remove protective guards while driving gears are running
3.5 Maintenance sa ety
a) Disconnect the power supply before starting inspections and repairing on the machine
b) Wait for standstill of all drives before any inspections, adjustments and/or maintenance work is started
c) Block machine in a stable position before doing any maintenance work
d) Failures due to inadequate or incorrect maintenance may generate very high repair costs and long
standstill periods of the machine Regular maintenance therefore is imperative
e) Operational safety and service life of the machine depends, among other things, on proper maintenance
f) Prevent premature wear by keeping the machine as dust free as possible Clean the machine for this reason
regularly with a dust collector and non-aggressive materials Never use a high pressure water cleaner to
clean the machine
g) It is advisable to stock all spare parts or wear parts that cannot be supplied quickly As a rule, production
standstill periods are more expensive than the cost for the corresponding spare part
h) Do not use any aggressive cleaning materials!
i) Use lint-free cleaning cloths!
j) For the electrical parts, use a tool that is insulated against voltages
3.6 Sa ety regarding dust collectors
a) Always use a Blastrac dust cleaner to ensure a dust-free operation of the machine and clean air at the
workspace Also the airflow helps to cool the machine and prevents overheating
b) Read the operating instructions before using the dust collector
c) The dust container/bag of the dustcollector must be emptied regularly Comply with the local waste
treatment regulations considering the removed material
d) The dust hose must be connected properly with a hose clamp and industrial tape
e) The dust hose must be undamaged and free of obstructions
f) Always switch on the dust collector first!

7
3.7 Grinding sa ety
a) The machine contains rotating parts, which are protected with a cover Always leave the diamond disc on
the floor while the motor is turning
b) The buffer can become worn out with use, because of this there can be higher vibrations than normal
Check for this reason the buffer for deformation and damage before every use
c) Always put a diamond disc or blade nut under the adapter diamond when the machine stands still
d) Make sure the diamond disc is not damaged or worn out
e) Always disconnect the power supply before u start changing the disk
f) When mounting or removing a diamond disc; lay down the machine so it is lying on the handle Make sure
the machine will not fall back down A second person can stand on the handle to make sure it will not fall
back down
g) For changing the disk u should wear Personal Protective Equipment like a dust mask, safety goggles,
gloves, protective shoes, and close fitting protective clothing Use the vacuum cleaner to prevent excessive
dust
h) Caution! The grinding disk will heat up during grinding, don’t risk getting burned, always wear protective
gloves when handling them
i) The machine contains rotating parts; because of this never pull the machine backwards with a turning
motor
j) Be careful with the machine and pull or let down the machine slowly, big shocks can damage the electrical
parts
3.8 Transport sa ety
a) Be aware of your surroundings and machine operating level Do not side hill, do not run on steep incline,
this could cause machine to tip over
b) The net weight of BG-180 EC is 60 kg Use a crane or lift when transporting the machine
c) When lifting the machine from the ground, always use the lowest lifting speed The cables must first be
tensioned at this speed; they must not be slack when the machine is lifted from the ground
d) During hoisting make sure to be at a safe distance from the machine with the most optimal view on the
machine and working environment
e) Never stand directly below the machine
f) When transporting the machine do so in such a manner that damage due to the effects of the use of force
or incorrect loading and unloading is avoided
g) Always drive backwards when driving up to a ramp or grade, and forwards when driving of the ramp
h) Chock wheels for transport and keep control handle in neutral position
i) Don’t leave the machine unsecured on jobsites
j) Park the machine always on a flat horizontal and levelled surface
k) Make sure the electrical cable and dust hose are disconnected
l) Store the cleaned and dry machine in a humid free room Protect the electrical motor from moisture, heat
dust and shocks
m) Never use the machine for lifting persons or items

8
Signs on the machine
The following stickers are placed on the machine Meanings of these symbols are:
•Danger, disconnect electrical supply before working on this equipment
Wear a dust mask class FFP2 or higher
Ear protection is obliged
Safety glasses with lateral protection are obliged
CE-mark on this machine
Wear protecting gloves
Safety shoes obliged
Consult the manual before operating the machine
Personnel must tie back long hair and not wear loose clothing or jewellery including rings
Name, address, telephone & fax number,
Email address and website
The machine type
The net weight of the machine in kilogram
CE mark
The year of manufacture
The serial number of the machine

9
4. Initial operation
Before using the machine it is important to inspect the machine
It is not permitted to use the machine if the machine safety is not according the checkpoints below
Before switching on the machine make sure that no-one can be endangered when the machine starts up!
4.1 Checkpoints o electrical sa ety
•Use only extension cables that are sized and marked in accordance with the overall power consumption
of the machine
•Electrical cables must be rolled entirely off of the reels
•Any damage to electric cables is not permitted
•Use an electrical power supply connection with earth connection
4.2 Checkpoints o machine sa ety
Check if:
•The safety functions and operating functions work correct
•The diamond disk is not damaged
•There is no damage to the electrical components
•There are no loose nuts or bolts
•There is no damage to the dust hose and if it is connected correctly
4.3 Manual moving o the machine
To move the machine press down the handgrips of the machine
until the front part rises approximately 10 cm from the ground
It can now be pushed around on its wheels
The machine should only be moved around when the dust hose
and power supply cable are disconnected
WARNING! Always make sure the diamond disk and motor
have come to a complete standstill before moving around the
machine
4.4 Transport with li ts or cranes
If the machine is to be transported by the means of a crane or a fork lift truck, make sure that the lifting
means is of sufficient capacity to lift the weight of the machine, this gross weight is 58 kg, it is also shown on
the shield-type bolted to the machine
Fasten any lifting slings to the points (2) or (3) on the machine frame, these points are also suitable as a fixing
point for fastenings, during transportation of the machine on or in a vehicle
When transporting the machine in a vehicle drive in such a manner that damage due to the effects of the use
of force or incorrect loading and unloading is avoided Secure the machine with a tightening load strap over
the lower frame (3) and frame arm (2) Use at least two straps, and tighten down with the load straps to the
bodywork of the vehicle

10
4.5 Be ore start-up
Before start-up the operating personnel must be familiar with the safety regulations given in this manual
•Put the grinding machine and the dust collector on to the surface to be processed
•Fit the appropriate diamond grinding disc that is required for this particular process Please read
chapter 7 of this manual
•Use an extension cable (CEE 16 Amp), to connect the machine and the dust collector to the electricity
supply point, these electric supply points should be protected and equipped with an earth connection
and earth leakage circuit breaker In case of doubt ask the local safety officer
•Check the dust hose for damages and obstructions Make sure the dust bin of the dust collector unit is
empty Observe the local regulations regarding waste disposal
•Connect the grinding machine and the dust collector unit with the flexible dust hose Use hose clamps
at the connections
•Before grinding, clean the surface to be treated There should not be any trash, stones, cloths, or liquid
on the surface
•Remove all objects from the surface that can damage the machine Remove reinforcing steel or other
objects protruding from the surface in order to prevent damage to the machine, the seals or diamond
disc
•Check the water leveler on top of the grinding head, level the machine by turning the 2 adjustment
wheels up or down
5. Operating
When operating the BG-180 EC, the following additional safety instructions must be followed closely
Before Switching on the BG-180EC, the front part of the grinding
machine must be lifted by pushing the handgrip (1) down to floor
level till the machine is approximately 10cm from the ground
Push the green start button (4)
Now let down the grinding disc on the surface and begin the
grinding work Move the machine slowly forwards or reverse
dependent on the grinding work
1 Electrical inlet power supply
3 Stop button (red)
4 Start button (green)

11
5.1 Grinding o edges
The machine is built to grind edges By sweeping the frame arm to the left or the right, and take out one of
the two cornercaps you can grind the edges
•Disconnect the power supply cable
•Loosen the tension on the three knobs (02)
•Take out the quick release pin (01) and turn the frame arm untill the quick release pin (01) fits in another
gap
•Tension the three knobs (02)
•Take out one of the two cornercaps (03) for grinding along edges
Make sure that no vehicles, such as forklift trucks and other equipment run over the electric cable and the dust
hose
5.2 Stopping the machine
Push the red stop button
Wait for a complete standstill of all drives and machine parts
Disconnect the power supply cable and dust hose
Turn the dust collector off
5.3 Operating during grinding
It is advised to keep the machine constantly in movement for an optimum grinding result
For soft floors it is recommended to work on high disc speed, for hard floors and the first steps of polishing it is
recommended to grind with low speed of the tools
On hard floors and during polishing it is recommended to have a low grinding pressure
In case of emergency or operating trouble, like vibrations or strong noises, switch the machine off immediately
by hitting on the OFF-button!
Contact our experts at Blastrac or the correct application o the di erent tools
and their corresponding working speeds.
1 Quick release pin
2 Knob
3 Cornercap

12
6. Maintenance
Pay attention to Chapter 3 "Sa ety" during maintenance and repair works
Failures due to inadequate or incorrect maintenance may generate very high repair costs and long standstill
periods of the machine Regular maintenance therefore is imperative
Operational safety and service life of the blast machine depends, among other things, on proper maintenance
The following table shows recommendations about time, inspection and maintenance for the normal use of the
machine
Pay attention to unusual noises or strong vibrations Check for the cause of every big change Call a technician
if you have doubts about the cause or when a repair without a technician seems not possible without damages
Only use genuine Blastrac spare parts
Generally the grinding machine BG-180EC requires very little special attention regarding its maintenance
After using the BG-180EC, clean the machine with the dust collector, so there is no dust on the machine
See to it that any wastes or fibre residues do not remain in the area of the grinding disc
Dependent on the use of the machine the pulley should be checked about every 200 hours
Due to different working conditions it can’t be foreseen how frequently inspections for wear check’s,
inspection, maintenance and repair works ought to be carried out Prepare a suitable inspection schedule
considering your own working conditions and experience However a full overhaul must be carried out at least
once a year
Our specialists will be happy to assist you with more advice
Prior to any repair works on the machine and its drives, secure the machine against
unintentional switching on. Disconnect the power supply.
Follow additional operating and maintenance o OEM i included during your service and
maintenance work.
Operating hours/ time
period Inspection points, maintenance instructions
12 h after repairing Check all accessible screw connections for tight seat
Daily and
prior to starting work
Check that all safety devices working adequate
Check the power supply cable for damages
Check the hose to the dust collector for damage
Check whether or not, there are any foreign matter in the coupling of the
grinding disc
Check the grinding disc and the coupling for wear
Check the tension of the V-belt, adjust as is required
Check the dust cap for damage
Check the electric connections for sediments of dirt or foreign bodies
Check the electric motor for dirt and other contaminants
Every 3 months Clean the complete machine with a damp cloth
Every 200 hours Replacement of the pulley parts
Annually Full overhaul and cleaning of the complete machine

13
Further is advised:
Store the cleaned and dry machine in a dry and humid free room Protect the electrical motor from moisture,
heat, dust and shocks
All repair work must be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine
Any guarantee on the machine is expired when:
Non original Blastrac parts have been used
Repair work is not done by qualified Blastrac personnel
Changes, add on’s or conversions are undertaken without written permission of Blastrac BV
It would be advisable to stock all spare or wear parts that cannot be obtained quickly As a rule, production
standstill periods are more expensive than the cost for the corresponding spare part
Screws that have been removed must be replaced with those of the same quality (strength, material) and
design
Fig 7 2
6.1 Disassembly:
•Make sure that the power supply is disconnected from the electrical inlet (01)
•Take of the cover (02) and (03) and loosen the bolts from the weight block (04) and (05)
•Unscrew the bolts of the dusthose connector (10) so the dusthose (11) and the dustcap (12) can be
removed
•Take off the v-belt (06) from the bearing house (09) and remove the motor (07) so the frame arm
(08) with the bearing house (09) can be disassembled
•By removing the quick release pin (13) and the knobs (14) the upper (15) and under plate (16) can be
disassembled
•The wheels (19), steer (18) and frame (17) can now be disassembled
Assembly: Assemble the parts in the reverse order that they have
been disassembled

14
6.2 Bearing house maintenance
Disassembly:
•Take off the taperlock bush (01) with the pulley (02) and key
(03)
•The adapter diamond (15), spacer rings (16) and buffer (17)
can be unscrewed from the axle
•Remove the v-ring seal (04) and the retaining ring (05)
•Disassemble the axle (06) from the bearing house (12)
•Take off the retaining ring (07) v-ring seal (08) retaining ring
(09) &(10) and remove the bearing (11) out of the bearing
house (12)
•The lock pin (13) and the spring (14) can always be
disassembled
Assembly: Make sure that the bearings (11) and bearing house
(12) are clean and rub the bearings (11) in with a few
drops of loctite 641.
Assemble the parts in the reverse order that they
have been disassembled
Other maintenance
Check the seals for wear, and replace them at the time when they no longer provide a good seal against dust
emissions from the machine, by this action damage to the surrounding workspace is avoided, and
consequently saves additional charges from the job client
Clean the machine with a damp cloth Never use a high pressure water cleaner!
Apply oil to the adjusting pin of the operating lever, and other moving parts with clean oil can at regular
intervals
Always put a diamond disc or blade nut under the adapter diamond when the machine stands still
7. Changing the disk
Warning! Always wear Personal Protective Equipment!
The dust can be hazardous to the health! Wear a dustmask!
The wings can get hot! Don’t risk burning your hands! Wear protective gloves!
•Pull Disconnect the power supply
•Always wear a dust mask of at least class FFP2 and gloves
•Use the dust collector in order to work as dust free as possible

15
Disassembly:
1 Make sure that the power supply is disconnected from the electrical inlet (01)

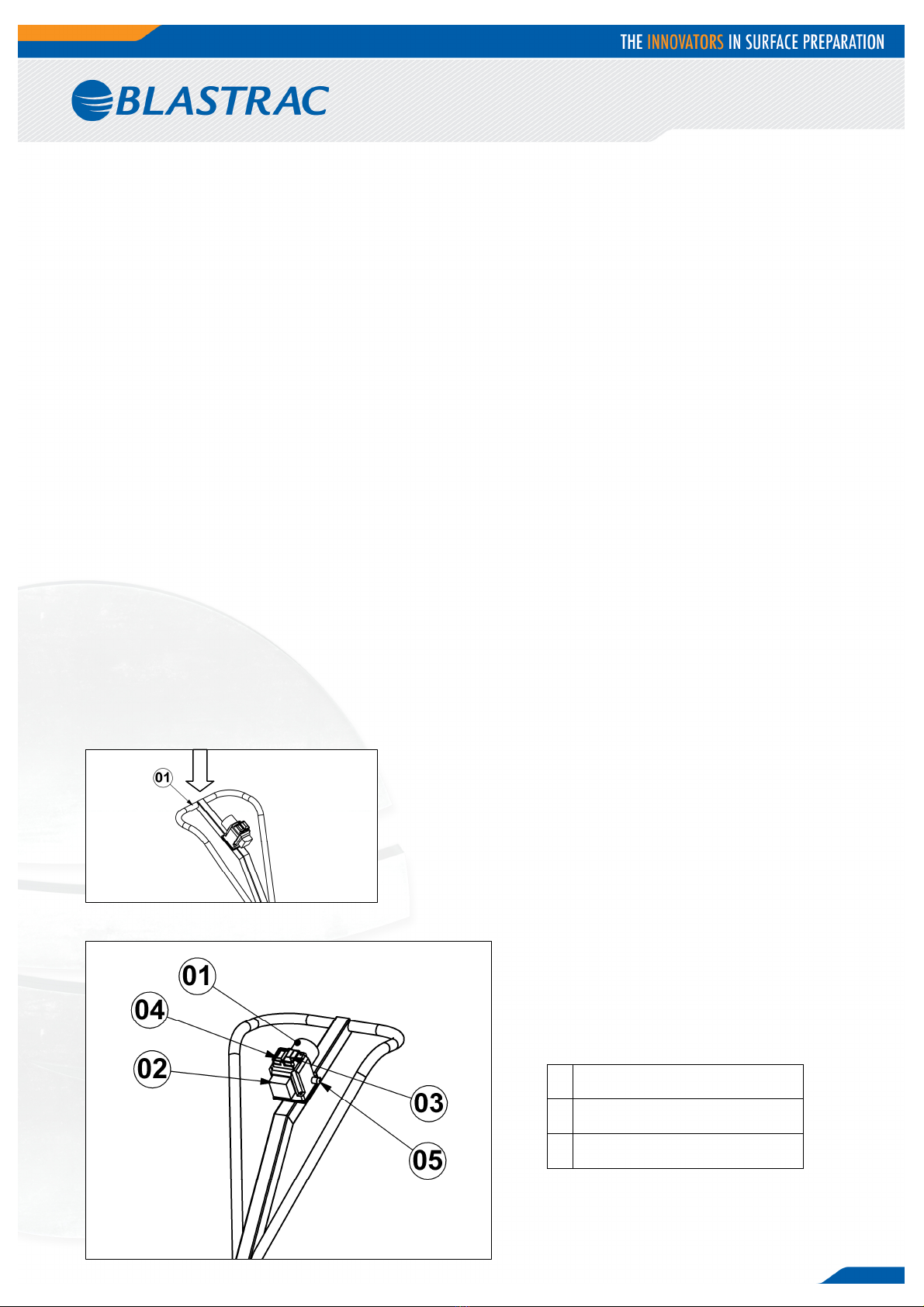

2 Tilt the machine to the back with the help of the handgrips (02) and lay it down on the steer (02)
3 Remove all the dust using the vacuum cleaner

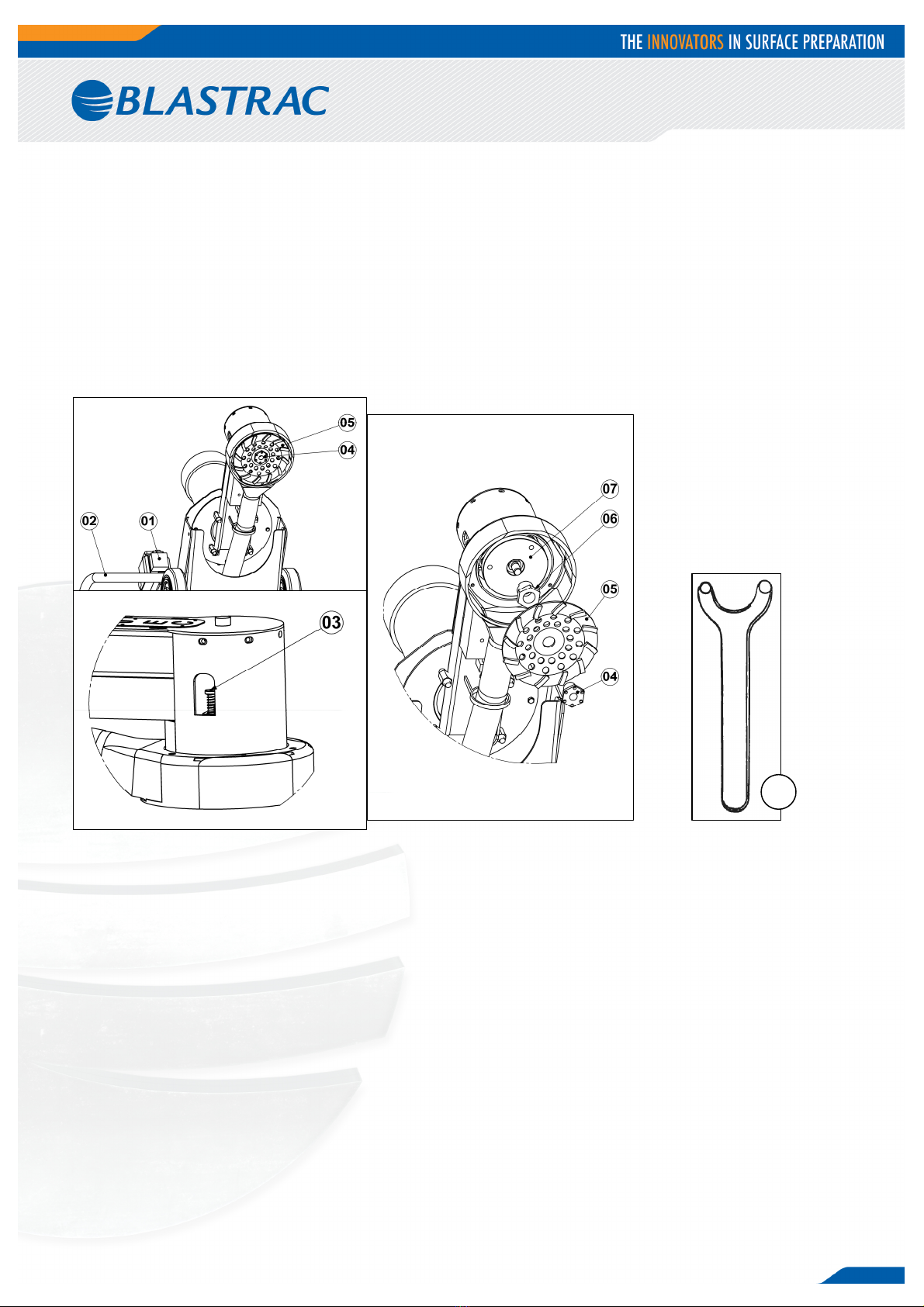

4 Push the lock pin (03) down until the disc (05) is blocked
5 Loosen the blade nut (04) using the spanner (8) and remove the diamond disc (05) and arbor nut (06)
Assembly:
6 Clean the adapter diamond (07)
7 Place the arbor nut (06) on the adapter diamond (07)
8 Place the diamond disc (05) on the arbor nut (06) and turn
the blade nut (04) on till the disc begins to turn
9 Push the lock pin (03) down till the disc blocks and turn the blade nut (04)
10 Tilt the machine forwards
When replacing the grinding disc, also check the condition of the drive pulley and the diamond tool holders
8

16
8. Troubleshooting
Fault Possible cause Remedy
Excessive vibration Imbalance due to worn or broken grinding
tools
PU-belt is too tight
Replace all worn or broken parts
Release the tension of the upper belt
Unusual noises Defective bearing
Wrong tension of the V-belt
Defective motor bearing
Debris deposit on the coupling
Check the bearing on the axle drive
shaft and replace if necessary
Check the tension of the V-belt, replace
the V-belt if necessary
Change the motor
Clean the coupling
Reduced or no grinding
performance
Grinding tools have reached the maximum
permissible wear
Inappropriate grinding tool for the
application
Too low tension of the V-belt
Replace the worn parts
Replace the grinding tools with
appropriate grinding tools for the
surface to be treated
Re-tension the V-belt
Motor does not switch on Missed phase
Defective Component
Check the mains power supply and next
switch on again
Fault finding and replace defective
component
Motor triggers while
running
Motor protections switch triggered because
of overload
Motor has a defect
Reduce additional load
Check the motor

17
9. Technical data
BG-180 EC
Power consumption motor 2,2 kW
Connected loads 2,2 KW 220V single phase, 12,9A
Power consumption 1,5 KW 50Hz/60Hz
Connected loads 1,5 KW 110V single phase 12,9A / 18A
Length 1315 mm
Width 432 mm
Height 1010 mm
Weight 60 kg
Dust hose connection 50 mm Ø
Suitable filterunit Contact Blastrac BV we will assist
you with a good advice
Design and specifications are subject to change without notice by Blastrac BV
If the grinding machine BG-180EC is to be operated using power from a generator, the generator must be
operated in accordance with the current EN-VDE directives (this applies to the protective earth conductor in
particular) in order to ensure that all safety devices are functioning and to eliminate possible damage to
electrical components
The sound level of this machine is measured according to EN-ISO 3744, the A-weighted emission sound
pressure level at the workstation could exceed 80dB (A), in this case suitable ear protection is obliged
The A evaluated noise level of the machine is typically:
•Emission sound pressure level: L pA = 86 dB(A);
•Sound power level: L WA = 92 dB(A);
•Uncertainty: K = 0 5 dB(A)
The hand-arm system transmitted vibration level has been measured according to international harmonized
standards EN-ISO 5349-1 and EN-ISO 5349-2, testing may be carried out on a representative sample of
technically comparable machinery
Total hand transmitted vibration value (sanding simulation on coated plate fixed to the ground, in free field ):
•Emission value: 2 77 m/s²
•Uncertainty: 0 24 m/s²
The indicated measurements refer to new machines Daily use, different surfaces and abrasive causes the
noise and vibration values to change

18
Because the value is above 2,5 m/s², we recommend to use measures to decrease hand-arm vibrations
IMPORTANT NOTE:
The declared vibration emission level represents the main applications of the machine However, if the
machine is used for different applications, with different accessories or poor maintenance, the vibration
emission may differ This may significantly increase the exposure level over the total working period
A precise estimation of the level of exposure to vibration should also take in account the times when the
machine is switched off or even running, but not actually in use This may significantly decrease the exposure
level over the total working period
Old equipment contains valuable materials which are valuable for re-processing The machine parts must
not be thrown away in the normal household waste, but should be disposed of at a suitable proper
collection system, e g via your communal disposal location This way the materials can be re-used in an
environmentally responsible manner
Despite the fact that this guide is made with care, Blastrac takes no liability for errors in the manual and the
possible consequences We are naturally very interested in your findings and additions
No part of this publication may be reproduced and / or published in print, photocopy, or other
form without prior permission by Blastrac
Tips or decreasing the exposure to hand- arm vibrations:
-Protect the hands with vibration dampening gloves
E12000 – Anti-vibration gloves
-Clean the plates before attaching the wings
-Clean the wings before attaching them to the plates
-Proper maintenance of the machine
-Scheduled replacement of the shock absorbing machine parts
-Keep the hands warm
-Prepare a work schedule and plan in rest periods

19
Headquarter
Blastrac The Netherlands
Utrechthaven 12
NL – 3433 PN Nieuwegein
Tel – 0031 30 601 88 66
Fax – 0031 30 601 83 33
Info@blastrac nl
Blastrac Poland
Golina, Dworcowa 47a
PL – 63-200 Jarocin
Tel – 0048 627 40 41 50
Fax – 0048 627 40 41 51
Info@blastrac pl
Blastrac Italy
S S 10 Padana Inferiore, 41
IT – 29012 Caorso (PC)
Tel – 0039 0523 81 42 41
Fax – 0039 0523 81 42 45
Info@blastrac it
Blastrac United Kingdom
Unit 2, Outgang Lane, Dinnington
Sheffield, South Yorkshire
GB – S25 3QY, England
Tel – 0044 1909 56 91 18
Fax – 0044 1909 56 75 70
Info@blastrac co uk
Blastrac Germany
Richard Byrd Straβe 15
D – 50829 Köln (Ossendorf)
Tel – 0049 221 70 90 32 0
Fax – 0049 221 70 90 32 22
Info@blastrac de
Blastrac Spain
Calle Copernico, 16
Nave 2
E – 28820 Coslada
Tel – 0034 91 660 10 65
Fax – 0034 91 672 72 11
Info@blastrac com es
Blastrac France (ZI)
29, Avenue des Temps Modernes
F – 86360 Chasseneuil du Poitou
Tel – 0033 549 00 49 20
Fax – 0033 549 00 49 21
Info@blastrac fr
Blastrac Ukraine
Nezalezhnosti 14, of 21
UA – 07400 Brovary
Tel – 0038 44 222 51 28
Fax – 0038 44 277 98 29
Info@blastrac com ua
