BLAUBERG Ventilatoren KOMFORT EC DBE 2000 User manual

Heat recovery air Handling unit
USER'S MANUAL
EN
KOMFORT EC DBE 2000
KOMFORT EC DBE 3000

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
2
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
KOMFORT EC DBE 2000/3000 unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
Safety requirements..................................................................................................................................................................... 3
Purpose................................................................................................................................................................................................ 5
Delivery set........................................................................................................................................................................................ 5
Designation key.............................................................................................................................................................................. 5
Technical data.................................................................................................................................................................................. 6
Design and functioning ............................................................................................................................................................ 8
Mounting and set-up.................................................................................................................................................................. 9
Connection to power mains .................................................................................................................................................. 11
Technical maintenance.............................................................................................................................................................. 12
Troubleshooting............................................................................................................................................................................. 13
Storage and transportation regulations.......................................................................................................................... 13
Manufacturer’s warranty........................................................................................................................................................... 14
Certificate of acceptance.......................................................................................................................................................... 15
Seller information.......................................................................................................................................................................... 15
Installation certificate.................................................................................................................................................................. 15
Warranty card................................................................................................................................................................................... 15
CONTENTS

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
3
SAFETY REQUIREMENTS
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation. The present user’s manual should be carefully read before
beginning works.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
This unit is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the unit.

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
4
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
Connection to the mains must be made through a disconnecting device, which is integrated
into the fixed wiring system in accordance with the wiring rules for design of electrical units,
and has a contact separation in all poles that allows for full disconnection under overvoltage
category III conditions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a safety hazard.
CAUTION: In order to avoid a safety hazard due to inadvertent resetting of the thermal cut-
out, this unit must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the utility.
Ensure that the unit is switched off from the supply mains before removing the guard.
WARNING: If there are any unusual oscillating movements, immediately stop using the unit and
contact the manufacturer, its service agent or suitably qualified persons.
The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.
Fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the appliance.
The mounting of the suspension system shall be performed by the manufacturer, its service
agent or suitably qualified persons.
The appliance is to be installed so that the blades are more than 2.3m above the floor.
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
5
PURPOSE
The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility
and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream
of intake air.
The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens, and other spaces with
high humidity.
Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises.
The unit is a component part and is not designed for stand-alone operation. It is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED
ACCESS BY UNATTENDED CHILDREN.
Name Number
Unit 1 pc.
User's manual 1 pc.
Packing box 1 pc.
DELIVERY SET
DESIGNATION KEY
KOMFORT EC D B E 2000 S21 DTV
Dierential pressure switches
_ – no differential pressure switches
DTV – pre-installed differential pressure switches
Control panel
S21
Air ow [m3/h]
Heater type
E – electric heater
Additional components
B – bypass
Mounting option
D – suspended mounting
Motor type
EC – electronically commutated motor
Unit series

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
6
TECHNICAL DATA
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to
60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing.
In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above
the dew point temperature of the transported air.
The unit should be operated continuously, and in cases where ventilation is not necessary, reduce the air flow of the fans to a minimum
(20%). This will ensure a favorable indoor climate and reduce the amount of condensation inside the unit, which can damage electronic
components. Never use the unit for dehumidification, for example, of new buildings.
The unit is rated as a Class I electrical appliance.
Hazardous parts access and water ingress protection rating:
IP22 for the unit connected to the air ducts
IP44 for the unit motors
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
TECHNICAL DATA
MODEL KOMFORT EC DBE 2000 KOMFORT EC DBE 3000
Voltage [V/50 (60) Hz] 3~ 400
Maximum fan power [W] 876 2226
Power of the integrated electric heater [W] 15000 21000
Maximum air flow [W] 15876 23226
Maximum unit current without a heater [A] 5.3 3.5
Current of the integrated electric heater [A] 21.7 30
Maximum current of the unit with an electric heater [A] 27.0 33.5
Air flow [m3/h] 2100 4300
Rotation speed [min-1] 2920 
Noise level, 3 m [dBA] 36 46
Transported air temperature [°C] -25...+40
Casing material Aluzinc
Insulation, mineral wool [mm] 25 25
Filtering class of the extract filter G4
Filtering class of the supply filter G4
Connecting air duct diameter [mm] 315 400
Weight [kg] 140 281
Heat recovery efficiency [%] 50...67 59...72
Heat exchanger type Cross-flow
Heat exchanger material Aluminium
SEC class NRVU NRVU

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
7

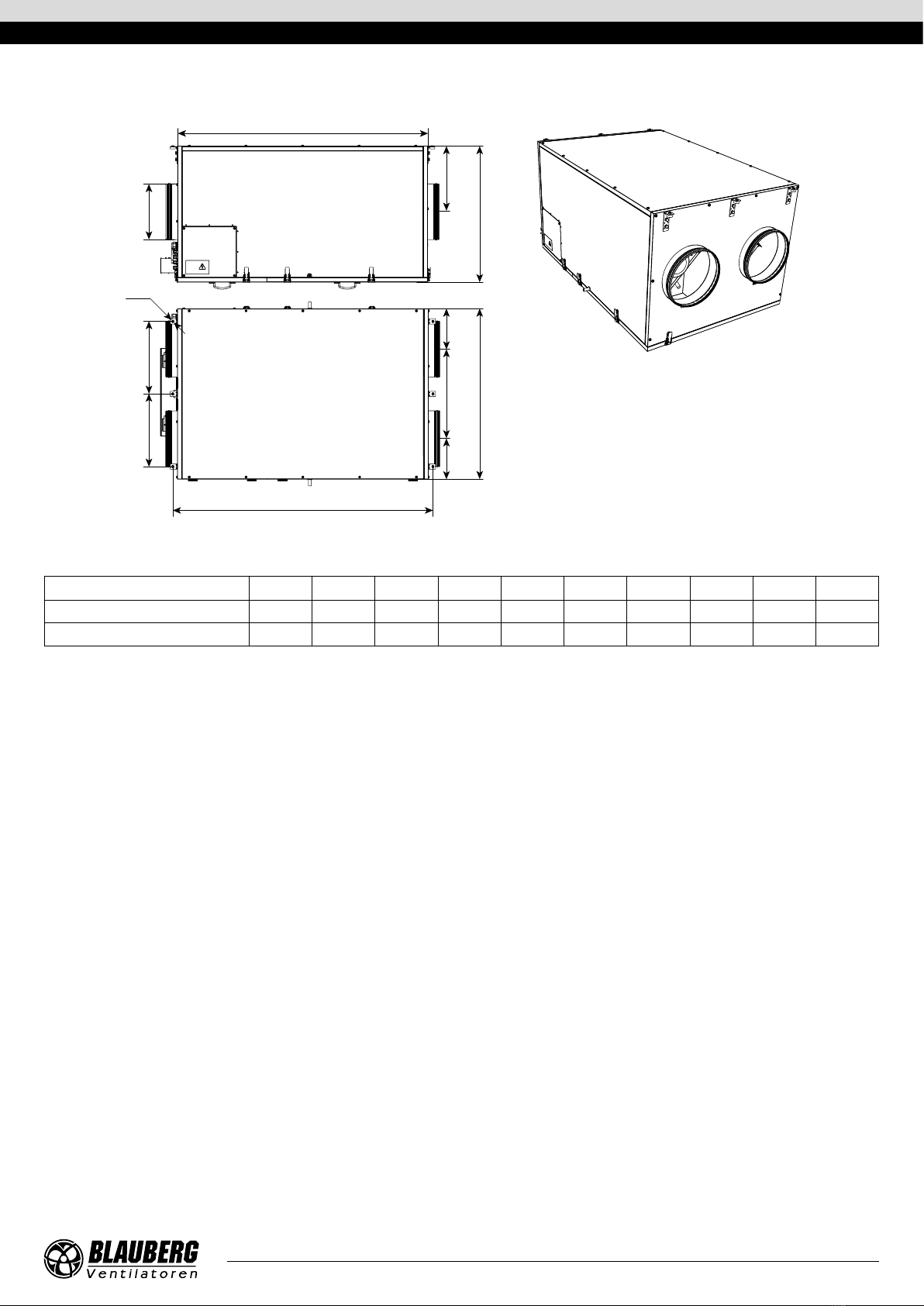

OVERALL DIMENSIONS OF THE UNIT
L1
ØD
Ød
L
H
H1
B
B2
B3
B2
B1
B1
Dimensions [mm]
Model Ø D В В1 В2 ВЗ Н Н1 L L1 Ø d
KOMFORT EC DBE 2000 315 950 405 225 500 762 367 1400 1453 9
KOMFORT EC DBE 3000 400 1265 563 347 570 881 427 1835 1888 9

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
8
The unit operates as follows:
Warm stale extract air from the room flows through the air ducts to the unit, where it is filtered, then air flows through the heat exchanger
and is exhausted outside by the extract fan through the air ducts.
Clean cold air from outside is moved by the supply fan to the unit, where from it is directed to the supply filter. Then filtered air flows
through the heat exchanger and moves to the room through the air ducts.
Heat energy of warm extract air is transferred to clean intake fresh air from outside and warms it up.
Heat recovery minimizes thermal energy losses, energy demand and operating costs for air heating accordingly.
The unit is equipped with a detachable service panel for repair works and preventive maintenance and a cover enabling access to the
control system components.

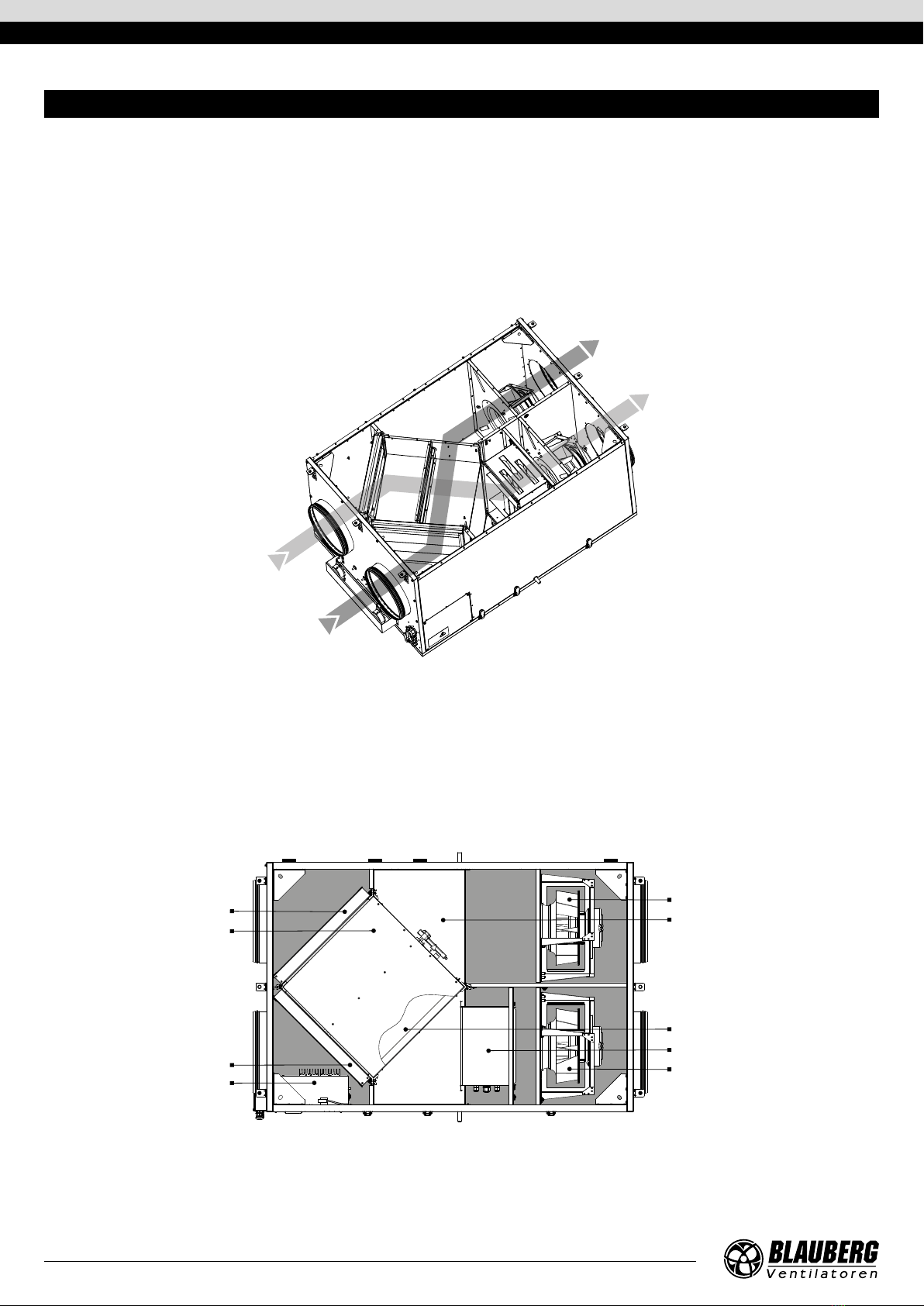

OPERATING LOGIC
Extract air
Supply air
Intake air
Exhaust air
The basic unit delivery set includes a remote control panel for connection to the control system inside the unit casing.
The unit comprises a supply and an extract centrifugal single-inlet fan with forward curved blades and maintenance-free EC motors with
external rotor and built-in overheat protection, a plate counter-flow heat exchanger and an electric heater.
The supply G4 filter cleans supply air flow and prevents contamination of the unit parts.
The extract G4 filter prevents contamination of the unit components.
Some condensate may be generated during heat recovery.
The condensed fluid is collected in the drain pan and is removed from the unit through the drain hoses.
UNIT DESIGN
Extract fan
Supply filter
Extract filter
Control unit
Heat exchanger
Drain pan
Bypass
Electric heater
Supply fan
DESIGN AND OPERATING PRINCIPLE

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
9
While mounting the unit provide enough space for its servicing and maintenance.
Minimum distance required to access
the unit
Control unit
Type KOMFORT EC DBE 2000 KOMFORT EC DBE 3000
min A, mm 500 850
UNIT MOUNTING
The unit is designed for suspended mounting by means of the threaded rod fixed in the threaded dowel.
Example
Nut
Washer
Vibration-
absorbing
rubber
Nut
and lock-nut
To attain the best performance of the unit and to minimise turbulence-induced air pressure losses, while mounting connect a straight air
duct section on both sides of the unit.
Minimum straight air duct length:
• equal to 1 air duct diameter on intake side.
• equal to 3 air duct diameters on outlet side.
If the air ducts are not connected or the connected air ducts are too short, protect the unit parts from ingress of foreign objects by covering
the spigots with a protecting grille or other protecting device with mesh width not more than 12.5 mm to prevent uncontrollable access
to the fans.
MOUNTING AND SETUP
READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT.

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
10
Safety precautions
The unit is designed for mounting on a rigid and stable structure.
The unit is mounted with anchor bolts. Make sure that a mounting construction has sufficient load capacity matching the unit weight.
Otherwise reinforce the installation place by beams, etc. If the threaded bolts used for the unit mounting are too short, the unit can
generate abnormal noise and resonate with the ceiling. The suspended bolts must be long enough to prevent resonating.
If the unit connection place to the spiral seam duct is supposed to be the source of abnormal noise, replace the spiral seam air duct with
the flexible one. Optionally the flexible connectors may be used to prevent resonating.

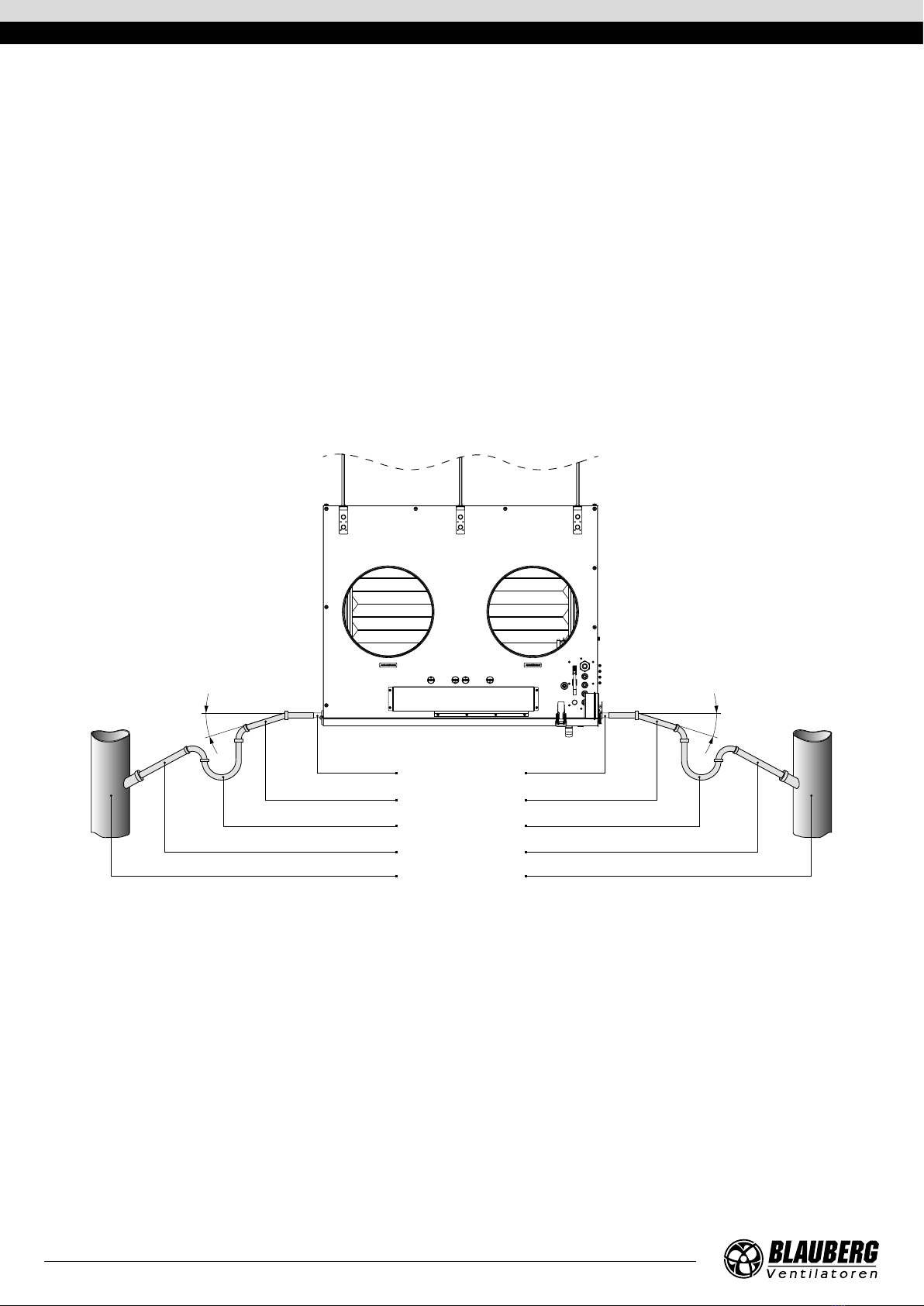

CONDENSATE DRAINAGE
The condensate drain pan in the heat recovery section is equipped with two hoses for extracting the condensed fluid outside the unit.
Connect the pipe, U-trap (not included in the delivery set) and the sewage collection system with metal, plastic or rubber connecting
pipes.
The pipe slope downwards must be at least 3°. Fill up the system with water before connecting the unit to power mains!
The U-trap must always be filled with water during the unit operation. Make sure that the water flows freely into the sewage collection
system or otherwise condensed water may build up in the unit during the heat exchanger operation and cause equipment failure and
condensed water outflow into the premises. The condensate drainage system is designed for normal operation in premises with air
temperatures above 0 °C. If the expected ambient air temperatures are below 0 °C, the condensate drainage system must be equipped
with heat insulation and pre-heating facilities.
min 3°min 3°
Drain
pipe
Pipe
U-trap
Pipe
Sewage system

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
11
DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS.
THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER'S LABEL.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED
AND WILL VOID THE WARRANTY.
The unit is rated for connection to three-phase 3~400 V/50 Hz power mains. For electric installations use insulated durable heat-resistant
conductors (cables, wires) with the minimum wire cross section 2.5 mm2.
The above conductor cross section value is tentative and in practice must be based on the wire type, maximum permissible heating
temperature, insulation, length and installation method.
Connect the unit to power mains through the external automatic circuit breaker with a magnetic trip integrated into the fixed wiring
system with the rated current not below the rated current consumption.
The terminal block with the prewired control unit is located inside the control unit compartment.
To connect the power and the ground cable, route the cables through the airtight electric lead-in in the unit casing and connect these to
the terminal block. The wiring diagram for connection of the air handling unit to power supply is on the back side of the lid.
CONNECTION TO POWER MAINS
KOMFORT EC DBE 2000 S21 EXTERNAL WIRING DIAGRAM
L2 L1 1 2 3 4 5 6 7 8 9 10
C
11
NC
12
C
13 14 15 16 17 18 19 20 21 22 23 24 25 26
NO
GND 0-10 +24V Gnd A B +24V NO C NO C NO C
P1*
12
PK1*
CCU*
N L3
X1
SM1* SM2*
**U
Boost* CO2*
1
2Gnd 0-10V +24V Gnd +24VA B 12
**U
12
P1*
12
PK1*
CCU*
X1
SM1* SM2*
**U
Boost* CO2*
1
2Gnd 0-10V +24V Gnd +24VA B 12
**U
12
~400 V 50/60 Hz
Design Name Type Wire*** Note
SМ1*Supply air damper actuator NO 2 x 0.75 mm23 A, 30VDC/~250 AC
SМ2 *Extract air damper actuator NO 2 x 0.75 mm23 A, 30VDC/~250 AC
РК1*Contact from fire alarm panel NC 2 x 0.75 mm2remove the jumper
CCU*Cooler control NO 2 x 0.75 mm23 A, 30VDC/~250 AC
Р1*External control panel 4 x 0.25 mm2
Boost*Boost mode On/Off contacts NO 2 x 0.75 mm2
CO2*External CO2sensor 3 x 0.25 mm2
*Is not included in the delivery set.
**The supply voltage U of the SM1, SM2 external dampers is selected depending on the type of dampers.
*** Maximum connecting cable length is 20 m!
Output parameters: terminals 21-26 – 3 A, 30VDC/~250VAC (“dry contact”).
— ELECTRIC SHOCK HAZARD!
remove the jumper
green brown yellow white

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
12
Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations:
1. Filter maintenance (3-4 times per year).
Dirty filters increase air resistance in the system and reduce supply air volume. The filters require cleaning not less than 3-4 times per year.
Vacuum cleaning is allowed. After two consecutive cleanings filters must be replaced. For new filters contact the Seller. Sequence of filter
removal:
1. Unlatch the service panel.
2. Open the service panel carefully, supporting it with the hand.
3. Remove the filters from the unit.
TECHNICAL MAINTENANCE
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE
OPERATIONS!
MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING
THE PROTECTION
KOMFORT EC DBE 3000 S21 EXTERNAL WIRING DIAGRAM
1 2 3 4 5 6 7 8
C
9
NC
10
C
11
NO
12
GND
13 14 15 16 17 18 19 20 21 22 23 24
0-10 +24V GND A B +24V NO C NO C NO C
P1*
12
PK1*
CCU*
N L3 L2 L1
X1
SM1* SM2*
**U
Boost* CO2*
1
2Gnd 0-10V +24V Gnd +24VA B 12
**U
12
P1*
12
PK1*
CCU*
X1
SM1* SM2*
**U
Boost* CO2*
1
2Gnd 0-10V +24V Gnd +24VA B 12
**U
12
~400 V 50/60 Hz
Design Name Type Wire*** Note
SМ1*Supply air damper actuator NO 2 x 0.75 mm23 A, 30VDC/~250 AC
SМ2 *Extract air damper actuator NO 2 x 0.75 mm23 A, 30VDC/~250 AC
РК1*Contact from fire alarm panel NC 2 x 0.75 mm2remove the jumper
CCU*Cooler control NO 2 x 0.75 mm23 A, 30VDC/~250 AC
Р1*External control panel 4 x 0.25 mm2
Boost*Boost mode On/Off contacts NO 2 x 0.75 mm2
CO2*External CO2sensor 3 x 0.25 mm2
*Is not included in the delivery set.
**The supply voltage U of the SM1, SM2 external dampers is selected depending on the type of dampers.
*** Maximum connecting cable length is 20 m!
Output parameters: terminals 19-24 – 3 A, 30VDC/~250VAC (“dry contact”).
— ELECTRIC SHOCK HAZARD!
remove the jumper
green brown yellow white

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
13
2. Heat exchanger maintenance (once per year).
Some dust may accumulate on the heat exchanger even in case of regular maintenance of the filters. To maintain high heat recovery
efficiency, regular cleaning is required.
To clean the heat exchanger, remove it from the unit and clean the heat exchanger by using compressed air or a vacuum cleaner. In case
of severe contamination, the heat exchanger can be washed with water. After cleaning, reinstall the heat exchanger into the unit.
Sequence of heat exchanger removal:
1. Unlatch the service panel.
2. Open the panels supporting those with the hand.
3. Remove the drain pan after unscrewing 4 screws.
4. Unscrew 9 self-tapping screws holding the heat exchanger and remove it from the unit.
Be careful when removing the heat exchanger.
3. Fan inspection (once a year).
Even regular technical maintenance of the filters and the heat exchanger may not completely prevent dust accumulation in the fans
which reduces the fan capacity and impairs supply air volume into the premises.
The fans must be cleaned by a service technician.
4. Condensate drain maintenance (4 times a year).
The drain pipes may get clogged with the extracted particles.
Pour some water inside the drain pan and check the pipe for clogging. Clean the U-trap and drain pipe if required.
5. Air intake maintenance (twice a year).
Leaves and other pollutions can clog the supply air grille and reduce the unit performance and supply air volume.
Check the supply grille twice per year and clean it as required.
6. Duct system maintenance (every 5 years).
Even regular fulfilling of all the prescribed above maintenance operations may not completely prevent dust accumulation in the air ducts
which reduces the air quality and the unit performance. The air duct maintenance includes regular cleaning or replacement.

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
14
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
+5 ˚C...+40 ˚C and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at
least 3-4 hours.
TROUBLESHOOTING
IF UNIDENTIFIED NOISES OR ODOURS SHOULD ARISE AND IN CASE OF DEFORMATION
OF ELEMENTS, VIBRATION, TERMINATION OF AIR SUPPLY/EXTRACTION OR REDUCED
SYSTEM PERFORMANCE, IMMEDIATELY DISCONNECT THE UNIT FROM POWER SUPPLY
AND CONTACT THE SELLER FOR THE VENTILATION SYSTEM DIAGNOSTICS
DIAGNOSTICS MUST BE CARRIED OUT BY QUALIFIED SPECIALISTS
POSSIBLE FAULTS AND TROUBLESHOOTING
Problem Possible reasons Troubleshooting
The fan (-s) does (do) not
start up during the unit
start-up.
No power supply. Make sure the unit is properly connected to power mains,
otherwise troubleshoot a connection error.
The mode is set in which the fans are off. Change the operating mode using the control panel.
Low air flow.
Low set fan speed. Set higher speed.
The filters, the fans or the heat exchanger are
contaminated.
Clean or replace the filters, clean the fans and the heat
exchanger.
The elements of the ventilation system (air ducts,
diffusers, louver shutters, grilles) are soiled, damaged or
closed.
Clean or replace the ventilation system elements (air ducts,
diffusers, louver shutters, grilles).
Low supply air
temperature. The extract filter is soiled. Clean or replace the extract filter.
High noise, vibration.
The fan or casing screw connection is loose. Tighten the screw connection of the fans or the casing
against stop.
No anti-vibration dampers on the spigots. Install anti-vibration rubber mounts.
Water leakage The drain line is clogged, damaged or mounted wrong.
Clean the drain line, if necessary. Check the drain line slant,
inspect the U-trap and make sure the drain line is equipped
with frost protection.
If the troubleshooting steps are unsuccessful,
contact the service department or the seller of the product.
In the event of malfunctions not described in the table,
contact the service department or the seller of the product.

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
15
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
16
CERTIFICATE OF ACCEPTANCE
Unit Type Heat recovery air handling unit
Model
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The unit _____________________________________ is installed pursuant to the requirements stated
in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Heat recovery air handling unit
Seller’s Stamp
Model
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
17

www.blaubergventilatoren.de KoMFort ec dBe 2000/3000
18

www.blaubergventilatoren.de
KoMFort ec dBe 2000/3000
19

www.blaubergventilatoren.de
B255-1EN-02
