Blaupunkt 23/157J-GB-3B-HKDU-UK User manual

23/157J-GB-3B-HKDU-UK
HD Ready LED TV with Freeview, DVD Player & USB Media Player
Model No
User Guide

LED TV
3
Congratulations on purchasing this television. We hope you have many years of trouble free
enjoyment from your purchase.
Your product is covered under the manufacturers guarantee for 12 months from date of
purchase.
In the event of a fault being diagnosed, please refer to the frequently asked questions/
troubleshooting section at the rear of this user guide.
If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this
user guide) or contact the helpline.
In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home
or work address, return it to our service centre, repair the item and then return it to you.
er a permanent repair, we will replace the item.
Helpline Information
Telephone UK 0871 2000 463, ROI01443 3940
Email: [email protected]
Web support: www.umc-uk.co.uk
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need these in the
event of warranty/service support.
ect your statutory rights.
If you need to call the helpline, you will need the following information.
nd this on the rear of the TV)
nd this on your sales receipt)
nd this on the rear of the TV)
Model Number
Serial No.
EXAMPLE OF LABEL ON REAR OF TV
Important Guarantee Information
User Guide - 23-157J-GB-3B-HKDU-UK.indd 3 6/19/2013 1:28:51 PM

4
Important safety instructions
Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.
Warnings
• To reduce the risk of re, electric shock or damage to the television, do not expose it to dust, rain or moisture, or
place any objects lled with liquids on or near the television.
• Do not place the television in a conned space, ensure that nothing can obstruct the ventilation openings at the rear
of the television.
• Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt,
please contact your local authority for details of recycling.
Safety
• For your safety, this appliance is tted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced,
ensure that any replacement is of the same amperage and approved with the BSI mark.
• The television should be connected to a main socket outlet with a protective earthing connection.
• Never try and replace the mains plug unless you have adequate qualications and are legally authorised to do so. In
the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a at level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable
and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the
television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the all pole mains switch located on the side, underside or
rear of the TV. The switch shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.
• Install the product at least 5cm from the wall for ventilation.
Maintenance
• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth
dipped in a soap and water solution or a mild detergent solution.
• Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.
CAUTION: If water or other liquid enters the television through the display panel surface or back cover a malfunction
may occur.
Packaging
• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out
warranty/service if you are unable to package it correctly.
To prevent the spread of re, keep candles or
other open ames away from this product at all times
User Guide - 23-157J-GB-3B-HKDU-UK.indd 4User Guide - 23-157J-GB-3B-HKDU-UK.indd 4 6/19/2013 1:28:51 PM6/19/2013 1:28:51 PM

5
Important safety instructions
CAUTION:
THIS UNIT IS A CLASS 1 LASER PRODUCT AND USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE
INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.
Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed
Image Displays
The extended use of xed image program material can cause a permanent“shadow image”on the LCD panel.
This background image is viewable on normal programs in the form of a stationary xed image. This type of irreversible
LCD/LED panel deterioration can be limited by observing the following steps:
1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the xed image for extended periods of time.
3. Turn the power o when not in actual use.
Examples of images that you need to watch out for are as follows (this is not an exhaustive list):
• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary.
• Moving or low-contrast graphics are less likely to cause ageing of the screen.
• Time Displays
• Teletext: Do not view a stationary page for a long period of time
• TV/DVD Menus: e.g. Listings of DVD disc content
• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or
videos.
Important - Once ‘shadow image/screen burn’occurs, it will never disappear and is not repairable under warranty.
How do I dispose of this product?
UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For
your nearest facilities, please see www.recycle-more.co.uk or in store for details.
ROI: Waste electrical products should not be disposed of with household waste. Separate disposal
facilities exist. Check with your Local Authority or retailer for recycling advice.
Batteries
• Observe the correct polarity when inserting batteries.
• Do not use dierent types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.
Please consult your local authority.
Cd
User Guide - 23-157J-GB-3B-HKDU-UK.indd 5User Guide - 23-157J-GB-3B-HKDU-UK.indd 5 6/19/2013 1:28:51 PM6/19/2013 1:28:51 PM

6
Contents
Important guarantee information ................................... 3
Important Safety Instructions..................................... 4-5
What is included in the box......................................... 7
Attaching the Stand................................................ 8
Detaching the Stand ............................................... 9
Wallmounting ..................................................... 9
Getting started - initial set up ...................................... 10
TV buttons & Source menu ........................................ 11
Remote control .................................................. 12
Connections ................................................. 13-14
TV Menu operation ............................................... 15
Channel menu.................................................... 15
Picture menu ..................................................... 15
Sound menu ..................................................... 16
Time menu....................................................... 16
Lock menu ....................................................... 16
Setup menu ...................................................... 17
Using the television as a computer monitor......................... 18
PC Settings....................................................... 19
7 Day TV Guide ................................................... 19
DVD menu ....................................................... 20
USB Mode / Media player.......................................... 21
Operating the TV with a universal or Sky (bskyb) remote control...... 22
Frequently asked questions........................................ 23
Technical specication ............................................ 24
Index ............................................................ 25
User Guide - 23-157J-GB-3B-HKDU-UK.indd 6User Guide - 23-157J-GB-3B-HKDU-UK.indd 6 6/19/2013 1:28:51 PM6/19/2013 1:28:51 PM

7
Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out
warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service
repair is in it’s original box/packaging.
What is included in the box
Accessories
Supply of this TV includes following parts:
1x TV 1x TV Stand Installation Packet
1x Remote Control 1x RF Cable
1x Quick Start Guide
2x AAA Batteries
1x Mini Component to
Component Cable
1x Mini CVBS to CVBS cable
1 x User Guide
|
User Guide - 23-157J-GB-3B-HKDU-UK.indd 7User Guide - 23-157J-GB-3B-HKDU-UK.indd 7 6/19/2013 1:28:51 PM6/19/2013 1:28:51 PM

8
Attaching the stand
To complete the stand installation you will need a crosshead type screw driver.
Place the TV set on a at and clean surface with the panel facing downwards to avoid damage.
(fig.1) Attach the stand neck to the rear of the TV set (fig.2) Connect the stand neck and base to the TV by
using the screws provided
(fig.3) Secure the base and neck to the TV by using the
screws provided for underneath the stand base.
User Guide - 23-157J-GB-3B-HKDU-UK.indd 8User Guide - 23-157J-GB-3B-HKDU-UK.indd 8 6/19/2013 1:28:58 PM6/19/2013 1:28:58 PM

9
Detaching the stand
Important - If you mount this television on the wall, use
only the screws holes for wall mounting. Using other screws
can cause irreparable damage to internal components.
Wall mounting the TV
1. Remove the four screws
2. The wall mount can now be easily attached to the mounting
holes on the rear of the TV. These holes are indicated in the
picture below.
For optimum viewing, if wall
mounting the TV higher than
eye level, the TV should be tilted
downwards so that the TV’s screen is
‘face on’. See g 1 and 2
To detach the stand please remove the 3 screws highlighted below and remove the stand from the rear of the TV set.
g 1 TV
Viewing angle
INCORRECT
Viewing angle
g 2 TV
Viewing angle
CORRECT
Viewing angle
User Guide - 23-157J-GB-3B-HKDU-UK.indd 9User Guide - 23-157J-GB-3B-HKDU-UK.indd 9 6/19/2013 1:28:58 PM6/19/2013 1:28:58 PM

10
1. Using the RF cable supplied, connect the TV to the TV Aerial
wall socket (Fig A).
2. Connect the power cable to the Electrical outlet (Fig B).
3. Turn on the device with marked ON/OFF switch
4. Insert the batteries supplied into the Remote control and
press the Standby button to power on the TV.
5. You will now be welcomed with the initial set-up screen.
If it does not appear, on the remote control, please press
[MENU] then 8-8-8-8 and the menu will appear. Press OK on
the remote control and tuning will start. *
6. After tuning the following screen will appear. *
* Screen shots/images are shown for illustration purposes
only and may change dependent on model/region.
If you are missing channels, the reason for this is likely to be signal strength, you should consider a connecting signal booster and
re-tuning the TV.
g. Ag. B
Getting started - initial set up
As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called
‘Ecohome’ (you will see this during the first time installation set up). Power consumption using the Ecohome function is
approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome function. If this function is
not suitable for your viewing environment, you can select other modes as necessary. (Please note, ‘Professional’ mode is for optimum
default picture settings, however, power consumption is approximately 15% higher than ‘Ecohome’ mode)
Please refer to the user guide section ‘Picture settings’ in order to change the mode to one that maybe more suitable for your
environment. There is also a shortcut button on the remote control called ‘P-Mode’ should you wish to change to another mode.
How to connect a signal booster
User Guide - 23-157J-GB-3B-HKDU-UK.indd 10User Guide - 23-157J-GB-3B-HKDU-UK.indd 10 6/19/2013 1:28:59 PM6/19/2013 1:28:59 PM

11
Choosing Mode Input/Source
To switch between the dierent input/connections.
a) Using the buttons on the remote control:
1. Press [SOURCE/ AV] - The source menu will appear.
2. Press [▼] or [▲] to select the input you require.
3. Press [OK].
b) Using the buttons on the Television:
1. Press [SOURCE].
2. Scroll up / down using CH+/ CH- buttons to the input/
source you require.
3. Press Vol+ to change input/source to the one selected.
TV buttons & Source menu
1
2
3
4
5
6
7
8
9
1Eject
2Play/Pause
3Volume down and menu left
4Volume up and menu right
5Programme/Channel down and menu down
6Programme/Channel up and menu up
7Displays Menu/OSD
8Displays the input source menu
9Standby Power On/O
User Guide - 23-157J-GB-3B-HKDU-UK.indd 11User Guide - 23-157J-GB-3B-HKDU-UK.indd 11 6/19/2013 1:28:59 PM6/19/2013 1:28:59 PM

12
Remote control
TV with USB
STANDBY - Switch on TV when in standby or vice versa
MUTE - Mute the sound or vice versa
DTV - Switch to Digital mode
RADIO - Switch to radio whilst in Digital source
USB - Switch to USB Source
DVD - Switch to DVD mode
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
TV GUIDE - Opens the 7 Day TV Guide (Digital mode)
- To return to the previous channel viewed
VOL - To increase / decrease the sound level
P.MODE - Scrolls through picture mode options
S.MODE - Scrolls through sound mode options
FAV - To display favourites menu
CH To increase or decrease the channel being watched
MENU - To display OSD menu
EXIT - To exit all menus
- Allows you to navigate the on-screen menus
and adjust the system settings to your preference
SOURCE/AV - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current
programme
ASPECT - To switch the screen between the different picture
formats
SLEEP - Press repeatedly to cycle through the sleep options
AUDIO - To change the audio language (if available)
SUBTITLE - To switch the dialogue at the bottom of the screen
(on/off)
TEXT/DVD ZOOM -
DVD Zoom - To zoom in
TEXT - Teletext mode - To enter Teletext
TEXT HOLD - Teletext mode - Hold current page which is
displayed
DISPLAY - To switch off the screen when listening to radio
DVD MENU - Access the DVD menu
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback/Eject Disc
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
REC LIST - Opens the list of what you have previously recorded
GOTO - To go to a specific chapter
A-B - Press once to set point, press a second time to return to
point
ANGLE - Select different angle of DVD
3D - Change to 3D mode
REPEAT - To repeat playback
KEY
For Models with Integrated DVD players
For Models with PVR Function
For Models with USB Playback
For Models with 3D Feature
1
2
3
4
1
4
2
3
User Guide - 23-157J-GB-3B-HKDU-UK.indd 12User Guide - 23-157J-GB-3B-HKDU-UK.indd 12 6/19/2013 1:29:00 PM6/19/2013 1:29:00 PM

13
Connections
1HDMI 2 in HDMI input 7VGA(PC) Audio in 3.5mm PC Audio in
2USB USB Input 8YPbPr Component HD input
3EARPHONES 3.5mm Earphone output 9AV in Audio/Video Input
4CI Card IN Common Interface Module Input 10 RF in RF / TV Aerial input
5HDMI 1 in HDMI input 11 COAX Audio Out Digital Coax Output
6VGA(PC) In VGA-PC input
Connections
21 3 4
57910 118
6
USB
HDMI CI CARD INEARPHONE
HDMI 2
VGA/PC(Audio in)
VGA/PC IN
HDMI 1
YPbPr AV IN
COAX
User Guide - 23-157J-GB-3B-HKDU-UK.indd 13User Guide - 23-157J-GB-3B-HKDU-UK.indd 13 6/19/2013 1:29:00 PM6/19/2013 1:29:00 PM

14
Connecting a Camcorder, Camera or Games Console
TVs Input / Source should be set to Video.
AV IN
Connecting a High Denition (HD) Device
Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of
quality.
TVs Input/Source should be set to the corresponding HDMI input.
Option 2 - via Component cable.
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must use included
YPbPr to MINI YPbPr cable adaptor to connect via Component (for picture) and by phono cable (for sound).
TVs Input / Source should be set to Component YPbPr.
Mini
YPbPr
L
R
Y
PB
PR
L
R
Connections
User Guide - 23-157J-GB-3B-HKDU-UK.indd 14User Guide - 23-157J-GB-3B-HKDU-UK.indd 14 6/19/2013 1:29:00 PM6/19/2013 1:29:00 PM

15
TV Menu Operation
To access this menu, press [MENU]
button on the remote control. To enter a
menu press [OK]
If you wish to make changes to any
of the default settings, use the scroll
(▲/▼/◄/►) buttons. To conrm any
settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Channel menu
Auto Tuning - Allows you to retune the television for all digital
channels, digital radio stations and analogue channels.
ATV Manual Tuning - Allows you to manually tune your
analogue signal.
Freeview Manual Tuning - Allows you to manually tune your
digital signal.
Programme Edit - Allows you to delete, skip and add favourite
channels.
Schedule List - Lists your programme reminders.
Signal Information - Displays signal strength and quality
information.
CI Information - Pay per view services require a “smartcard”
to be inserted into the TV. If you subscribe to a pay per
view service the provider will issue you with a ‘CAM’ and a
“smartcard”. The CAM can then be inserted into the COMMON
INTERFACE PORT (CI Card In).
Picture menu
Picture Mode - Choose from the following presets.
Standard Default settings
Dynamic Recommended settings for fast moving
pictures
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Ecohome Power saving mode which reduces the energy
used by up to 25% (by reducing the power to
the LED/LCD panel). In Ecohome mode, the
TV will switch itself to Standby mode after
4-5 hours in the event that the TV buttons or
remote control buttons are not pressed (see
the time menu to de-activate this function).
Contrast - Switch the balance between black and white.
Brightness - Increase or decrease the brightness of the picture.
Colour - Increases the colour from black and white.
Tint - Lets you increase or decrease the level of tint within the
picture.
Sharpness - Increase or decrease the sharpness of the picture.
Colour Temperature - Choose from the following presets.
Normal Default settings
Warm Increases red within the picture
Cool Increases blue within the picture
Noise Reduction - Choose from the following presets.
O Turns noise reduction o
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
Default Default settings
TV Menu operation
TV Menu Operation | Channel menu | Picture menu
User Guide - 23-157J-GB-3B-HKDU-UK.indd 15User Guide - 23-157J-GB-3B-HKDU-UK.indd 15 6/19/2013 1:29:01 PM6/19/2013 1:29:01 PM

16
Sound menu
Sound Mode- Choose from the following presets:
Standard Default settings
Music Emphasises music over voices
Movie Provides live and full sound for movies
Personal Selects your personal sound settings
Sports Emphasises sound for sports
Tip: Treble and bass levels can only be adjusted when the
sound mode ‘Personal’ is selected.
Treble - To adjust the amount of high frequency within the
sound.
Bass - To adjust the amount of low frequency within the sound.
Balance - To switch the sound between the left and right
speakers.
Auto Volume Level (AVL) - When ‘on’ is selected, the volume
will stay at a constant level regardless of input/source.
Digital Output - This is the digital COAX Audio output. Choose
from the following options:
O Default settings
Auto Emphasises music over voices
PCM Select this option if you are connecting to a
Stereo Hi- via coax cable (Pulse-code
modulation (PCM) is a digital representation
of an analogue signal)
AD Switch- This allows the user to turn AD (Audio Description)
on or o (Audio Description is a service available on certain
programmes. It provides a description of what is happening
during the selected programme for a person who is visually
impaired)
Time menu
Clock - Set the date and time.
O Time - Allows you to set a specic time for your TV to turn
o.
On Time - Allows you to set a specic time for your TV to turn
on, the channel it will then display, the source it will be on and
also the volume. This function can then be toggled to repeat
every day or a certain day.
Time Zone - Change your current time zone
Sleep Timer - Lets you set the sleep timer so the television
automatically switches o after a set amount of time. O ->
10min -> 20min -> 30min -> 60min -> 90min -> 120min ->
180min -> 240min.
Auto standby - Toggle the Function on and o.
OSD Timer - Lets you adjust the amount of time the On Screen
Menu stays on the screen before disappearing
Lock Menu
System Lock - Allows you to lock or unlock the menu. You
will be asked to enter a 4 digit password use the ◄button to
quit the password input. Use the ►button to clear. Default
password is 0000.
TV Menu operation
Sound menu | Time menu | Lock menu
User Guide - 23-157J-GB-3B-HKDU-UK.indd 16User Guide - 23-157J-GB-3B-HKDU-UK.indd 16 6/19/2013 1:29:02 PM6/19/2013 1:29:02 PM

17
Key Lock - Allows you to lock the buttons on the side of the
TV set
Parental Guidance - Allows you to set the rating to block
certain content based on age information
Default Source - Allows the user to set the default source.
The default source is the source the TV starts on when rst
switched on
Default Channel - Allows the user to set a channel as the
default channel on the Digital source. The default channel
is the channel the TV starts on when rst switched on
Source Lock - Allows you to lock the source menu
Channel Lock - Allows you to lock certain channels manually
Max Volume - Allows you to adjust and set the maximum
volume
Change Password - Allows you to change the password
Setup menu
Language - Allows you to change the language of the menu.
TT Language - Encoding settings for the proper display of
teletext characters
Audio language - Allows the user to change the audio
language
Subtitle Language - Allows the user to change the subtitle
language
Hearing Impaired - This allows the user to turn on the Hearing
Impaired function, this produces subtitles on the screen which
provide a description of what is happening during the selected
program.
Aspect Ratio - Within the EU the picture format varies
depending on the channel/broadcast. There are a number of
dierent options to best meet your needs.
Auto - Automatically displays the best picture format. So the
picture is in the correct position. May have black lines at the
top/bottom and/or sides.
Original - Will display the picture from the broadcaster
without any change.
Zoom - The picture is the
correct proportion but
zoomed in to ll the screen.
4:3 - Displays the 4:3 picture
in its original size. Side bars
are shown to ll the 16:9
screen.
16:9 - Fills the screen with a
regular 16:9 signal and the
4:3 signal will be streched to
ll the screen.
14:9 - Displays the 14:9
picture in the correct
proportion. As a result
side bars are shown on
the screen.
Blue Screen - Changes the background when there is no input
between clear and a blue background (Only available on some
sources).
Reset:
Reset Menu System - This resets the menus to factory
settings.
Reset TV Channels - This clears all the TV channels from the
television.
Software Update (USB) - From time to time we may release
new rmware to improve the operation of the television
(available to download). This menu lets you install the new
software/rmware onto the television. Further details of how
to do this will be issued with the rmware. Contact the helpline
or refer to the‘product support’ section of the website.
* after proper software update, remove USB device from TV
and delete softwares from USB device.
HDMI CEC (Consumer Electronic Control) - Allows HDMI
devices to control each other and allows the user to operate
multiple devices with one remote control. (only available with
compatible devices)
TV Menu operation
Setup menu
User Guide - 23-157J-GB-3B-HKDU-UK.indd 17User Guide - 23-157J-GB-3B-HKDU-UK.indd 17 6/19/2013 1:29:03 PM6/19/2013 1:29:03 PM

18
TV Menu operation
Using the television as a computer monitor
Windows XP Windows Vista Windows 7
VGA
IN VGA
OUT
AUDIO
IN AUDIO
OUT
IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the
television. You MUST do this using your old monitor.
How to set up for Windows XP, Windows Vista & Windows 7 (connecting via VGA cable to the TV).
1. Switch on your computer.
2. When nished booting up right click your
mouse anywhere on the screen.
3. Left click your mouse on Properties/
Personalise.
4. Left click your mouse on Setting/Display
Settings. Ensure the screen resolution
is set to what is shown in the technical
specications section toward the rear of this
user guide. To correct the resolution to that
of the television move the slider.
5. Left click your mouse on Advance/Advanced
Settings and left click on Monitor.
6. Left click on the drop down for Screen
refresh rate and select 60 Hertz, if you
experience picture noise or ‘ickering’, select
50 hertz or 70 hertz.
7. Click on Apply, then click Yes and the
settings will be saved.
8. Now switch o your computer and connect
the television (as shown).
9. Switch on the TV, select the input/source to
VGA/PC and re-start your PC.
Connecting a Laptop
In addition to the above if you are connecting
a laptop to the television you will also need
to activate the VGA connection on the laptop.
This can vary based on the brand of laptop
you have, on many brands/models, it is as per
below.
1. Connect the laptop to the television.
2. On the Laptop push buttons The screen will
now switch to the television.
User Guide - 23-157J-GB-3B-HKDU-UK.indd 18User Guide - 23-157J-GB-3B-HKDU-UK.indd 18 6/19/2013 1:29:03 PM6/19/2013 1:29:03 PM

19
PC Settings
Auto Adjust - Lets you automatically congure the television
to be used as a computer monitor
H Oset - Changes the horizontal position of the picture
V Oset - Changes the vertical position of the picture
Size - increase picture size
Phase - To adjust delay time of phase in order to reduce the
noise of picture
Position Reset - Changes back to the original settings
Size - increase picture size.
Phase - To adjust delay time of phase in order to reduce the
noise of picture
Position Reset - Changes back to the original settings
Tip: If the computer is left in-active for a period of time,
the television will switch into a‘sleep’ state (the screen
will power o to save power). To switch back on press the
standby button.
7 Day TV Guide
TV Guide is available in Digital TV mode. It provides
information about forthcoming programmes (where supported
by the Digital channel). You can view the start and end time of
all programmes and on all channels for the next 7 days and set
reminders.
TV Menu operation
PC Settings | 7 Day TV Guide
User Guide - 23-157J-GB-3B-HKDU-UK.indd 19User Guide - 23-157J-GB-3B-HKDU-UK.indd 19 6/19/2013 1:29:05 PM6/19/2013 1:29:05 PM

20
TV Menu operation

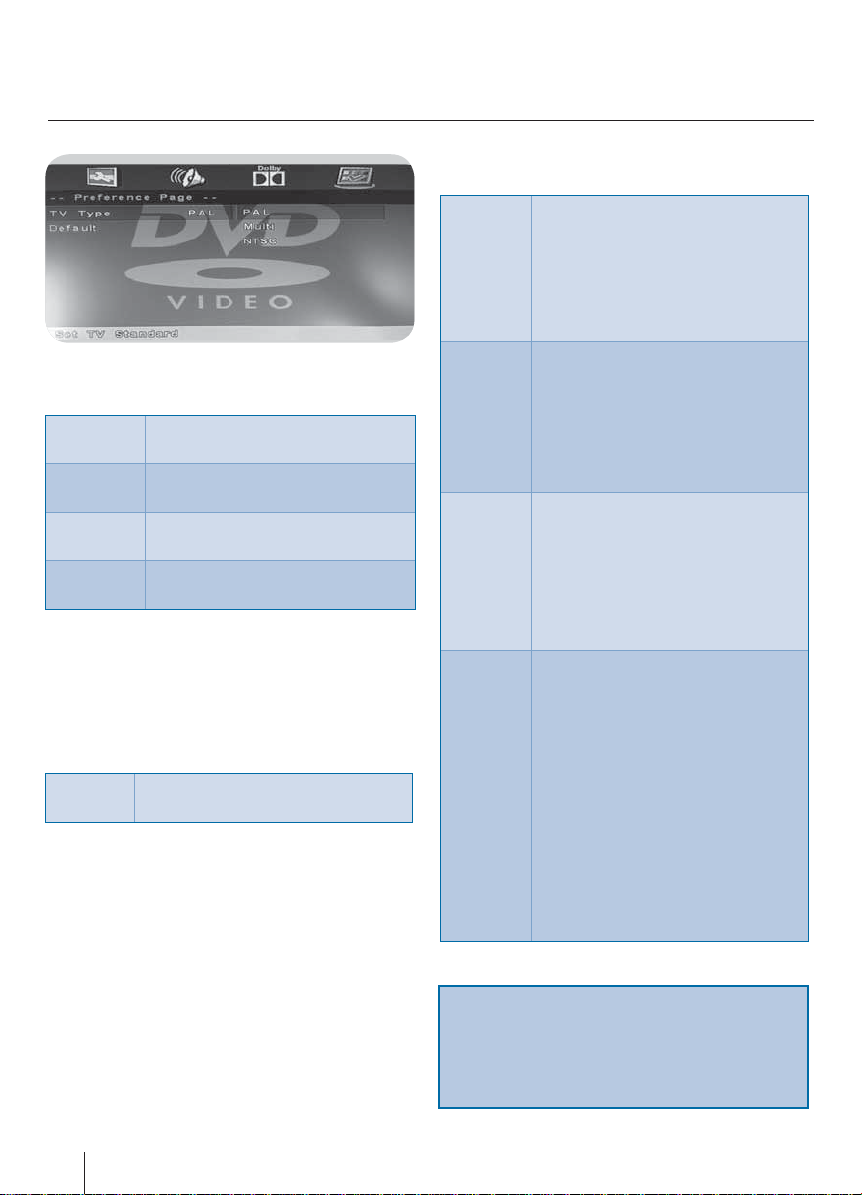

DVD Menu
TV Display - Some DVD discs have been authored in 4:3 aspect
ratio format. To see the material in its original mode, you may
need to change the aspect ratio.
Normal / PS
(Pan&Scan)
Black edges left and right will be seen
Normal / LB
(Letter Box)
Top and bottom of the screen may be black
Wide 16:9
(Widescreen)
Full width picture but may have black areas
top and bottom
OSD
Language
Select the OSD Language, "English" is the
default language
Last Memory ON/OFF - You may want the player to remember
where you nished watching a DVD and then removed the
DVD disc, the player will automatically remember the point it
stopped playing. When the disc is re-inserted the player will
continue from the same point.
Note:- if you put in a dierent disc the memory will be cleared for
the previous disc.
Downmix - Choose from the following options
Stereo Converts from multi-channel sound to
stereo
TV System - Select from PAL TV (UK Default), AUTO, Detects TV
system from the disc information. NTSC, USA picture mode.
Audio Select audio using the ▲/▼buttons. The
languages available will be shown in the
right column. Select the required language
using the ►/ ▼. "English" is default
language. If the disc has English it will play
the soundtrack in English
Subtitles Select Subtitle using the ▲/▼buttons. The
languages available will be shown in the
right column. Select the required language
using the ►/ ▼buttons. the default
language is "English". If the disc has English it
will display the subtitles in English
Disc Menu Select Disc Menu using the ▲/▼buttons.
The languages available will be shown in the
right column. Select the required language
using the ►/ ▼.buttons. the default
language is "English". If the disc has English it
will display the menu in English
Parental Select Parental using the ▲/▼buttons. Enter
the list using the ►button.
Set the level using the ▲/▼buttons
and press "OK". You will be asked for the
password (0000). "the default is ADULT"
PASSWORD: Select password using the ▲/▼
buttons. Select Change using the ►button
and "OK". Put in the old password then
you will be prompted to put in the new
password twice and press "OK"
DEFAULT: Selecting Default will reset your
personal settings to the factory settings for
the DVD setup menu.
Tip:
This TV/DVD player is pre-set to play Region 2 DVDs.
In the event you wish to use the TV/DVD in another
country that uses dierent region discs, please visit
www.umc-uk.co.uk. Select ‘Product Support’,
‘Changing Region’.
User Guide - 23-157J-GB-3B-HKDU-UK.indd 20User Guide - 23-157J-GB-3B-HKDU-UK.indd 20 6/19/2013 1:29:05 PM6/19/2013 1:29:05 PM

21
USB mode oers playback of various dierent types of content that you have saved on your USB Memory Stick.
Please refer to technical specication page for compatible le types
On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based
on le type.
TV Menu operation
USB mode / Media player
You can navigate through the menus using the scroll
▲/▼/◄/►buttons. To conrm the item you wish to play/view
press [OK] button.
You can now access the item. Press OK to view.
Select the drive you require. (If your drive only has 1 partition
you will only see 1 item).
While viewing you control the item using or by pressing ( i ) and
using ▲/▼/◄/►and (OK) shown in g (1) below
Fig (1)
User Guide - 23-157J-GB-3B-HKDU-UK.indd 21User Guide - 23-157J-GB-3B-HKDU-UK.indd 21 6/19/2013 1:29:05 PM6/19/2013 1:29:05 PM
