Congratulations on purchasing this television. We hope you have many years of trouble free
enjoyment from your purchase.
Your product is covered under the manufacturers guarantee for 12 months from date of
purchase.
In the event of a fault being diagnosed, please refer to the frequently asked questions/
troubleshooting section at the rear of this user guide.
If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this
user guide) or contact the helpline.
In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home
or work address, return it to our service centre, repair the item and then return it to you.
If we believe we cannot oer a permanent repair, we will replace the item.
Helpline Information
Telephone UK 0871 2000 463, ROI 01443 3940
Email: [e-mail]
Web support: www.umc-uk.co.uk
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need these in the
event of warranty/service support.
This guarantee is in addition to and does not aect your statutory rights.
If you need to call the helpline, you will need the following information.
1) Model Number ______________________________________ (You can nd this on the rear of the TV)
2) Date of purchase ______________________________________ (You can nd this on your sales receipt)
3) Serial Number ______________________________________ (You can nd this on the rear of the TV)
Model Number
Serial No.
EXAMPLE OF LABEL ON REAR OF TV
Important Guarantee Information
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 3UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 3 6/17/2013 9:51:35 AM6/17/2013 9:51:35 AM

4
Important safety instructions
Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.
Warnings
• To reduce the risk of re, electric shock or damage to the television, do not expose it to dust, rain or moisture, or
place any objects lled with liquids on or near the television.
• Do not place the television in a conned space, ensure that nothing can obstruct the ventilation openings at the rear
of the television.
• Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt,
please contact your local authority for details of recycling.
Safety
• For your safety, this appliance is tted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced,
ensure that any replacement is of the same amperage and approved with the BSI mark.
• The television should be connected to a main socket outlet with a protective earthing connection.
• Never try and replace the mains plug unless you have adequate qualications and are legally authorised to do so. In
the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a at level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable
and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the
television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the all pole mains switch located on the side, underside or
rear of the TV. The switch shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.
• Install the product at least 5cm from the wall for ventilation.
Maintenance
• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth
dipped in a soap and water solution or a mild detergent solution.
• Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.
CAUTION: If water or other liquid enters the television through the display panel surface or back cover a malfunction
may occur.
Packaging
• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out
warranty/service if you are unable to package it correctly.
To prevent the spread of re, keep candles or
other open ames away from this product at all times
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 4UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 4 6/17/2013 9:51:35 AM6/17/2013 9:51:35 AM

5
Important safety instructions
Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.
Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed
Image Displays
The extended use of xed image program material can cause a permanent “shadow image” on the LCD panel.
This background image is viewable on normal programs in the form of a stationary xed image. This type of irreversible
LCD/LED panel deterioration can be limited by observing the following steps:
1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the xed image for extended periods of time.
3. Turn the power o when not in actual use.
Examples of images that you need to watch out for are as follows (this is not an exhaustive list):
• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary.
Moving or low-contrast graphics are less likely to cause ageing of the screen.
• Time Displays
• Teletext: Do not view a stationary page for long period of time
• TV/DVD Menus: e.g. Listings of DVD disk content
• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or
videos.
Important - Once ‘shadow image/screen burn’ occurs, it will never disappear and is not repairable under warranty.
How do I dispose of this product?
UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For
your nearest facilities, please see www.recycle-more.co.uk or in store for details.
ROI: Waste electrical products should not be disposed of with household waste. Separate disposal
facilities exist. Check with your Local Authority or retailer for recycling advice.
Batteries
• Observe the correct polarity when inserting batteries.
• Do not use dierent types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.
Please consult your local authority
Cd
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 5UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 5 6/17/2013 9:51:35 AM6/17/2013 9:51:35 AM

6
3D safety information
• If you watch the 3D imaging too closely or for a long period of time, it may harm your eyesight.
• Watching the TV or playing video games that incorporate 3D imaging with the 3D glasses for a long period of time
can cause drowsiness, headaches or fatigue to you and/or your eyes. If you have a headache, or otherwise feel fatigued
or drowsy, stopwatching the TV and take a rest.
• Pregnant woman, seniors, persons with heart problems or persons who experience frequent drowsiness should
refrain from watching 3D TV.
• Some 3D imaging may cause you to duck or dodge the image displayed in the video. Therefore, it is best if you do
not watch 3D TV near fragile objects or near any objects that can be knocked over easily.
• Please prevent children under the age of 5 from watching 3D TV as it may aect their vision development.
Warning for photosensitization seizure
• Some viewers may experience a seizure or epilepsy when exposed to certain factors, including ashing lights or
images in TV or video games. If you or anybody from your family has a history of epilepsy or seizure, please consult with
your doctor before watching 3D TV. Also certain symptoms can occur in unspecied conditions without any previous
history. If you experience any of the following symptoms, immediately stop watching the 3D imaging and consult a
doctor: dizziness or light headedness, visual transition or altered vision, visual or facial instability, such as eye or muscle
twitching, unconscious action, convulsion, loss of conscience, confusion or disorientation, loss of directional sense,
cramps, or nausea. Parents should monitor their children, including teenagers, for these symptoms as they may be more
sensitive to the eects of watching 3D TV.
Warning for photosensitization seizure
• Take frequent breaks from watching 3D TV.
• For those who have vision that is dierent in each eye, they should watch the TV after taking vision correction
measures.
• Watch the TV so that your eyes are on the same level as the 3D screen and refrain from sitting too closely to the TV.
• Do not watch the 3D imaging when tired or sick, and avoid watching the 3D imaging for a long period of time.
• Do not wear the 3D glasses for any other purpose than viewing 3D imaging on a 3D TV.
• Some viewers may feel disoriented after watching 3D TV. Therefore, after you watch 3D TV, take a moment to regain
awareness of your situation before moving.
Important safety instructions
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 6UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 6 6/17/2013 9:51:35 AM6/17/2013 9:51:35 AM

7
Contents
Important guarantee information ................................... 3
Important safety information ..................................... 4-6
What is included in the box......................................... 8
Attaching the Stand.............................................9-10
Detaching the Stand .............................................. 11
Wall mounting the TV ............................................. 11
Getting started - initial set up ...................................... 12
TV buttons & Source menu ........................................ 13
Remote control .................................................. 14
Connections ................................................. 15-16
TV Menu operation ............................................... 17
Channel menu.................................................... 17
Picture menu ..................................................... 17
3D Settings....................................................... 18
Sound menu ..................................................... 19
Time menu....................................................... 19
Lock menu ....................................................... 19
Setup menu ...................................................... 20
Using the television as a computer monitor......................... 21
PC Settings....................................................... 22
7 Day TV Guide ................................................... 22
USB Mode / Media player.......................................... 23
Operating the TV with a universal or Sky (bskyb) remote control...... 24
Frequently asked questions........................................ 25
Technical specication ............................................ 26
Index ............................................................ 27
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 7UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 7 6/17/2013 9:51:35 AM6/17/2013 9:51:35 AM

8
Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out
warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service
repair is in it’s original box/packaging.
What is included in the box
Accessories
Supply of this TV includes following parts:
1 x TV 1 x TV Stand
Installation Packet
1 x Remote Control 1 x RF Cable
1 x Quick Start Guide
2 x AAA Batteries 4 x 3D Glasses
1 x User Guide
|
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 8UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 8 6/17/2013 9:51:35 AM6/17/2013 9:51:35 AM

9
Attaching the stand for 32-131 models only
To complete the stand installation you will need a Phillips screw driver.
Place the TV set on a at and clean surface with the panel facing downwards to avoid damage.
(g.1) Attach the stand neck to the rear of the TV set. (g.2) Secure the neck to the TV using the 4 x ST(4x16)
screws provided.
(g.3) Attach the stand base to the neck. (g.4) Secure the base to the neck using the 6 x ST(4x16)
screws provided.
1
4 x ST(4x14)
2
11 /2
34
ST(4x16)
4 x ST(4x14)
ST(4x16)
/(4x14)
/(4x14)
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 9UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 9 6/17/2013 9:51:45 AM6/17/2013 9:51:45 AM

10
Attaching the stand for 42-131 models only
To complete the stand installation you will need a Phillips screw driver.
Place the TV set on a at and clean surface with the panel facing downwards to avoid damage.
(g.1) Attach the stand neck to the rear of the TV set. (g.2) Secure the neck to the TV using the
2xA ST(4x16) and 4xB(4x12) screws provided.
(g.3) Attach the stand base to the neck. (g.4) Secure the base to the neck using the 6 x ST(4x16)
screws provided.
A
A
B
B
BB
11 /2
6 x ST(4x16)
/(4x14)
/(4x12)
1 2
4 x B
M (4x12)
/(4x14)
2 x A
ST (4x16)
/(4x14)
3 4
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 10UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 10 6/17/2013 9:51:45 AM6/17/2013 9:51:45 AM

11
Important - If you mount this television on the wall, use only
the screws holes for wall mounting. Using other screws can
cause irreparable damage to internal components.
g 1
g 2
TV
TV
Viewing angle
Viewing angle
INCORRECT
CORRECT
Viewing angle
Viewing angle
Wall mounting the TV
1. Remove the four screws
2. The wall mount can now be easily attached to the mounting
holes on the rear of the TV. These holes are indicated in the
picture below.
For optimum viewing, if wall
mounting the TV higher than
eye level, the TV should be tilted
downwards so that the TV’s screen is
‘face on’. See g 1 and 2
Detaching the stand
32-131 model only
To detach the stand please remove the 4 screws highlighted below and remove the stand from the rear of the TV set.
42-131 model only
To detach the stand please remove the 6 screws highlighted below and remove the stand from the rear of the TV set.
4 x ST(4x14)
ST(4x16)
A
A
B
B
BB
4 x B
M (4x12)
/(4x14)
2 x A
ST (4x16)
/(4x14)
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 11UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 11 6/17/2013 9:51:45 AM6/17/2013 9:51:45 AM

12
1. Using the RF cable supplied, connect the TV to the TV Aerial
wall socket (Fig A).
2. Connect the power cable to the Electrical outlet (Fig B).
3. Turn on the device with marked ON/OFF switch
4. Insert the batteries supplied into the Remote control and
press the Standby button to power on the TV.
5. You will now be welcomed with the initial set-up screen.
If it does not appear, on the remote control, please press
[MENU] then 8-8-8-8 and the menu will appear. Press OK on
the remote control and tuning will start.
6. After tuning the following screen will appear.
If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and
re-tuning the TV.
g. Ag. B
Getting started - initial set up
As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called
‘Ecohome’ (you will see this during the first time installation set up). Power consumption using the Ecohome function is
approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome function. If this function is
not suitable for your viewing environment, you can select other modes as necessary. (Please note, ‘Professional’ mode is for optimum
default picture settings, however, power consumption is approximately 15% higher than ‘Ecohome’ mode)
Please refer to the user guide section ‘Picture settings’ in order to change the mode to one that maybe more suitable for your
environment. There is also a shortcut button on the remote control called ‘P-Mode’ should you wish to change to another mode.
How to connect a signal booster
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 12UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 12 6/17/2013 9:51:45 AM6/17/2013 9:51:45 AM

13
Choosing Mode Input/Source
To switch between the dierent input/connections.
a) Using the buttons on the remote control:
1. Press [SOURCE/ AV] - The source menu will appear.
2. Press [▼] or [▲] to select the input you require.
3. Press [OK].
b) Using the buttons on the Television:
1. Press [SOURCE].
2. Scroll up / down using CH+/ CH- buttons to the input/
source you require.
3. Press Vol+ to change input/source to the one selected.
TV buttons & Source menu
1
2
3
4
5
6
7
1Volume up and menu right
2Volume down and menu left
3Programme/Channel up and menu up
4Programme/Channel down and menu down
5Displays Menu/OSD
6Displays the input source menu
7Standby Power On/O
STANDBY
TV with USB
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 13UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 13 6/17/2013 9:51:46 AM6/17/2013 9:51:46 AM

14
Remote control
TV with USB
STANDBY - Switch on TV when in standby or vice versa
MUTE - Mute the sound or vice versa
DTV - Switch to Digital mode
RADIO - Switch to radio whilst in Digital source
USB - Switch to USB Source
DVD - Switch to DVD mode
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
TV GUIDE - Opens the 7 Day TV Guide (Digital mode)
- To return to the previous channel viewed
VOL - To increase / decrease the sound level
P.MODE - Scrolls through picture mode options
S.MODE - Scrolls through sound mode options
FAV - To display favourites menu
CH To increase or decrease the channel being watched
MENU - To display OSD menu
EXIT - To exit all menus
- Allows you to navigate the on-screen menus
and adjust the system settings to your preference
SOURCE/AV - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current
programme
ASPECT - To switch the screen between the different picture
formats
SLEEP - Press repeatedly to cycle through the sleep options
AUDIO - To change the audio language (if available)
SUBTITLE - To switch the dialogue at the bottom of the screen
(on/off)
TEXT/DVD ZOOM -
DVD Zoom - To zoom in
TEXT - Teletext mode - To enter Teletext
TEXT HOLD - Teletext mode - Hold current page which is
displayed
DISPLAY - To switch off the screen when listening to radio
DVD MENU - Access the DVD menu
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback/Eject Disc
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
REC LIST - Opens the list of what you have previously recorded
GOTO - To go to a specific chapter
A-B - Press once to set point, press a second time to return to
point
ANGLE - Select different angle of DVD
3D - Change to 3D mode
REPEAT - To repeat playback
For Models with Integrated DVD players
For Models with PVR Function
For Models with USB Playback
For Models with 3D Feature
1
2
3
4
1
4
2
3
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 14UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 14 6/17/2013 9:51:47 AM6/17/2013 9:51:47 AM

VGA/PC (Audio in)
VGA/PC IN
USB 3
CI CARD IN
COAX
VIDEO RL
YPb Pr
EARPHONE
21 3 4 5 7
9 10 11 13
14
128
6
15
Connections
Connections
1EARPHONE 3.5mm Earphone Output 8SCART SCART input
2USB Port USB 9VGA(PC) Audio in 3.5mm PC Audio in
3HDMI 1 in HDMI input 10 RF In RF Input
4HDMI 2 in HDMI input 11 COAX Audio Out Digital Coax Output
5HDMI 3 in HDMI input 12 Video-CVBS Video Input & Audio input (Video
& YPbPr)
6VGA(PC) In VGA-PC input 13 R/L Audio In R/L Audio Input
7CI Card IN Common Interface Module Input 14 YPbPr Component HD Input
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 15UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 15 6/17/2013 9:51:48 AM6/17/2013 9:51:48 AM

16
Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box
TVs Input/Source should be set to SCART.
SCART
OUT
SCART
IN
RF IN
RF OUT RF IN
Connecting a Camcorder, Camera or Games Console
TVs Input / Source should be set to Video.
Audio
R/ L
Video
Connecting a High Denition (HD) Device
Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of
quality.
TVs Input/Source should be set to HDMI.
Option 2 - via Component cable.
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must use included
YPbPr to MINI YPbPr cable adaptor to connect via Component (for picture) and by phono cable (for sound).
TVs Input / Source should be set to Component.
Mini
YPbPr
L
R
Y
PB
PR
L
R
Connections
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 16UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 16 6/17/2013 9:51:48 AM6/17/2013 9:51:48 AM

17
TV Menu operation
TV Menu Operation | Channel menu | Picture menu
TV Menu Operation
To access this menu, press the [MENU]
button on the remote control. To enter a
menu press [OK]
If you wish to make changes to any
of the default settings, use the scroll
(▲/▼/◄/►) buttons. To conrm any
settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Channel menu
Auto Tuning - Allows you to retune the television for all digital
channels, digital radio stations and analogue channels.
ATV Manual Tuning - Allows you to manually tune your
analogue signal.
Freeview Manual Tuning - Allows you to manually tune your
digital signal.
Programme Edit - Allows you to delete, skip and add favourite
channels.
Schedule List - Lists your programme reminders.
Signal Information - Displays signal strength and quality
information.
CI Information - Pay per view services require a“smartcard”
to be inserted into the TV. If you subscribe to a pay per
view service the provider will issue you with a ‘CAM’ and a
“smartcard”. The CAM can then be inserted into the COMMON
INTERFACE PORT (CI Card In).
Picture menu
Picture Mode - Choose from the following presets.
Standard Default settings
Dynamic Recommended settings for fast moving
pictures
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Ecohome Power saving mode which reduces the energy
used by up to 25% (by reducing the power to
the LED/LCD panel). In Ecohome mode, the
TV will switch itself to Standby mode after
4-5 hours in the event that the TV buttons or
remote control buttons are not pressed (see
the time menu to de-activate this function).
Contrast - Switch the balance between black and white.
Brightness - Increase or decrease the brightness of the picture.
Colour - Increases the colour from black and white.
Tint - Lets you increase or decrease the level of tint within the
picture.
Sharpness - Increase or decrease the sharpness of the picture.
Colour Temperature - Choose from the following presets.
Normal Default settings
Warm Increases red within the picture
Cool Increases blue within the picturew
Noise Reduction - Choose from the following presets.
O Turns noise reduction o
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
Default Default settings
TV Menu operation
TV Menu Operation | Channel menu | Picture menu
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 17UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 17 6/17/2013 9:51:51 AM6/17/2013 9:51:51 AM

18
TV Menu operation
TV Menu Operation | Channel menu | Picture menu | 3D Settings
3D Settings
For the best 3D picture e ect, watch your TV from vertical angle +/- 10°.
3D Type- When connecting a 3D product sometimes the picture maybe displayed incorrectly; choose from the following settings to
correct this. You can toggle these settings by pressing the '3D' button on your remote (see page 11).
Exchange 3D L/R- change picture sequence for dierent viewing
2D to 3D- Changes the picture from regular 2 dimensions to 3 (3D). Please note as content is being changed by the TV the eects
are limited
3D O Default settings
Side by Side 3D format is commonly used in 3D broadcasting, works by halving the horizontal resolution of videos to
store left and right eye images in each frame. It eectively displays up to 960 x 1080 pixel pictures to each
eye, enabling TV stations to telecast 3D content at a much lower bandwidth compared with 3D Blu-ray discs.
Typical supported resolutions are limited to 720p and 1080i for 3D TV programs.
Users will need to manually select the correct 3D format to properly display side-by-side
3D content on a 3D TV.
Top Bottom 3D format is alternative for 3D broadcast, which is pretty similar to side-by-side 3D except that it halves the
vertical resolution instead. Available primarily up to 720p resolution, top-and-bottom 3D oers 1280 pixels
horizontally. The higher pixel count is generally considered more suitable for displaying panning motion in
sports programs.
Frame Packing As its name suggests, this format stacks the left and right eye images in each frame to retain the content's
original resolution for the best 3D pictures. Most, if not all, 1080p 3D Blu-ray movie discs and 720p PS3 3D
games are produced utilizing this technique. Another key dierentiator is that all 3D TVs should be able to
automatically detect frame-packing 3D signals and correctly display the content without user intervention.
Line by Line The picture signals for left and right eyes are interleaved in alternate lines. The left clip’s resolution is halved
then placed in the odd lines of the video stream. Correspondingly, the right clip’s resolution is halved then
placed in the even lines of the video stream. When combined the video stream totals 1920×1080.
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 18UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 18 6/17/2013 9:51:51 AM6/17/2013 9:51:51 AM

19
TV Menu operation
Sound menu | Time menu | Lock menu
Sound menu
Sound Mode- Choose from the following presets:
Standard Default settings
Music Emphasises music over voices
Movie Provides live and full sound for movies
Personal Selects your personal sound settings
Sports Emphasises sound for sports
Tip: Treble and bass levels can only be adjusted when the
sound mode ‘Personal’is selected.
Treble - To adjust the amount of high frequency within the
sound.
Bass - To adjust the amount of low frequency within the sound.
Balance - To switch the sound between the left and right
speakers.
Auto Volume Level (AVL) - When‘on’is selected, the volume
will stay at a constant level regardless of input/source.
Digital Output - This is the digital COAX Audio output. Choose
from the following options:
O Default settings
Auto Emphasises music over voices
PCM Select this option if you are connecting to a
Stereo Hi- via coax cable (Pulse-code
modulation (PCM) is a digital representation
of an analogue signal)
AD Switch- This allows the user to turn AD (Audio Description)
on or o (Audio Description is a service available on certain
programmes. It provides a description of what is happening
during the selected programme for a person who is visually
impaired)
Time menu
Clock - Set the date and time.
O Time - Allows you to set a specic time for your TV to turn
o.
On Time - Allows you to set a specic time for your TV to turn
on, the channel it will then display, the source it will be on and
also the volume. This function can then be toggled to repeat
every day or a certain day.
Time Zone - Change your current time zone
Sleep Timer - Lets you set the sleep timer so the television
automatically switches o after a set amount of time. O ->
10min -> 20min -> 30min -> 60min -> 90min -> 120min ->
180min -> 240min.
Auto standby - Toggle the Function on and o.
OSD Timer - Lets you adjust the amount of time the On Screen
Menu stays on the screen before disappearing
Lock Menu
System Lock - Allows you to lock or unlock the menu. You
will be asked to enter a 4 digit password use the ◄button to
quit the password input. Use the ►button to clear. Default
password is 0000.
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 19UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 19 6/17/2013 9:51:51 AM6/17/2013 9:51:51 AM

20
Key Lock - Allows you to lock the buttons on the side of the
TV set
Parental Guidance - Allows you to set the rating to block
certain content based on age information
Default Source - Allows the user to set the default source.
The default source is the source the TV starts on when rst
switched on
Default Channel - Allows the user to set a channel as the
default channel on the Digital source. The default channel
is the channel the TV starts on when rst switched on
Source Lock - Allows you to lock the source menu
Channel Lock - Allows you to lock certain channels manually
Max Volume - Allows you to adjust and set the maximum
volume
Change Password - Allows you to change the password

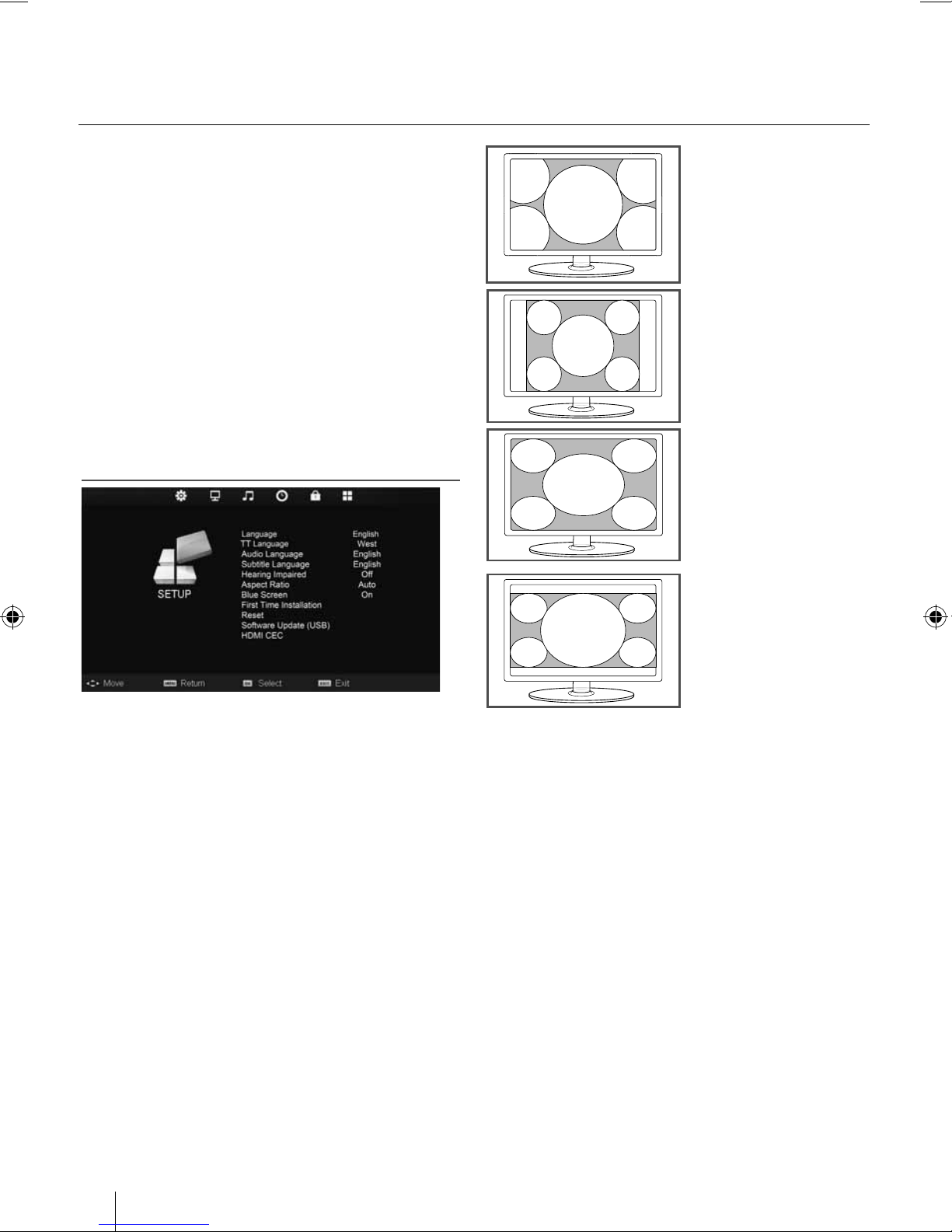

Setup menu
Language - Allows you to change the language of the menu.
TT Language - Encoding settings for the proper display of
teletext characters
Audio language - Allows the user to change the audio
language
Subtitle Language - Allows the user to change the subtitle
language
Hearing Impaired - This allows the user to turn on the Hearing
Impaired function, this produces subtitles on the screen which
provide a description of what is happening during the selected
program.
Aspect Ratio - Within the EU the picture format varies
depending on the channel/broadcast. There are a number of
dierent options to best meet your needs.
Auto - Automatically displays the best picture format. So the
picture is in the correct position. May have black lines at the
top/bottom and/or sides.
Original - Will display the picture from the broadcaster
without any change.
Zoom - The picture is the
correct proportion but
zoomed in to ll the screen.
4:3 - Displays the 4:3 picture
in its original size. Side bars
are shown to ll the 16:9
screen.
16:9 - Fills the screen with a
regular 16:9 signal and the
4:3 signal will be streched to
ll the screen.
14:9 - Displays the 14:9
picture in the correct
proportion. As a result
side bars are shown on
the screen.
Blue Screen - Changes the background when there is no input
between clear and a blue background (Only available on some
sources).
Reset:
Reset Menu System - This resets the menus to factory
settings.
Reset TV Channels - This clears all the TV channels from the
television.
Software Update (USB) - From time to time we may release
new rmware to improve the operation of the television
(available to download). This menu lets you install the new
software/rmware onto the television. Further details of how
to do this will be issued with the rmware. Contact the helpline
or refer to the ‘product support’ section of the website.
* after proper software update, remove USB device from TV
and delete softwares from USB device.
HDMI CEC (Consumer Electronic Control) - Allows HDMI
devices to control each other and allows the user to operate
multiple devices with one remote control. (only available with
compatible devices)
TV Menu operation
Setup menu
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 20UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 20 6/17/2013 9:51:52 AM6/17/2013 9:51:52 AM

21
Windows XP Windows Vista Windows 7
VGA
IN VGA
OUT
AUDIO
IN AUDIO
OUT
IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the
television. You MUST do this using your old monitor.
How to set up for Windows XP, Windows Vista & Windows 7 (connecting via VGA cable to the TV).
1. Switch on your computer.
2. When nished booting up right click your
mouse anywhere on the screen.
3. Left click your mouse on Properties/
Personalise.
4. Left click your mouse on Setting/Display
Settings. Ensure the screen resolution
is set to what is shown in the technical
specications section toward the rear of this
user guide. To correct the resolution to that
of the television move the slider.
5. Left click your mouse on Advance/Advanced
Settings and left click on Monitor.
6. Left click on the drop down for Screen
refresh rate and select 60 Hertz, if you
experience picture noise or ‘ickering’, select
50 hertz or 70 hertz.
7. Click on Apply, then click Yes and the
settings will be saved.
8. Now switch o your computer and connect
the television (as shown).
9. Switch on the TV, select the input/source to
VGA/PC and re-start your PC.
Connecting a Laptop
In addition to the above if you are connecting
a laptop to the television you will also need
to activate the VGA connection on the laptop.
This can vary based on the brand of laptop
you have, on many brands/models, it is as per
below.
1. Connect the laptop to the television.
2. On the Laptop push buttons The screen will
now switch to the television.
Using the television as a computer monitor
UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 21UserGuide - 32-131J-GB-1B-3HCU-UK, 42-131J-GB-1B-F3HCU-UK.indd 21 6/17/2013 9:51:53 AM6/17/2013 9:51:53 AM
