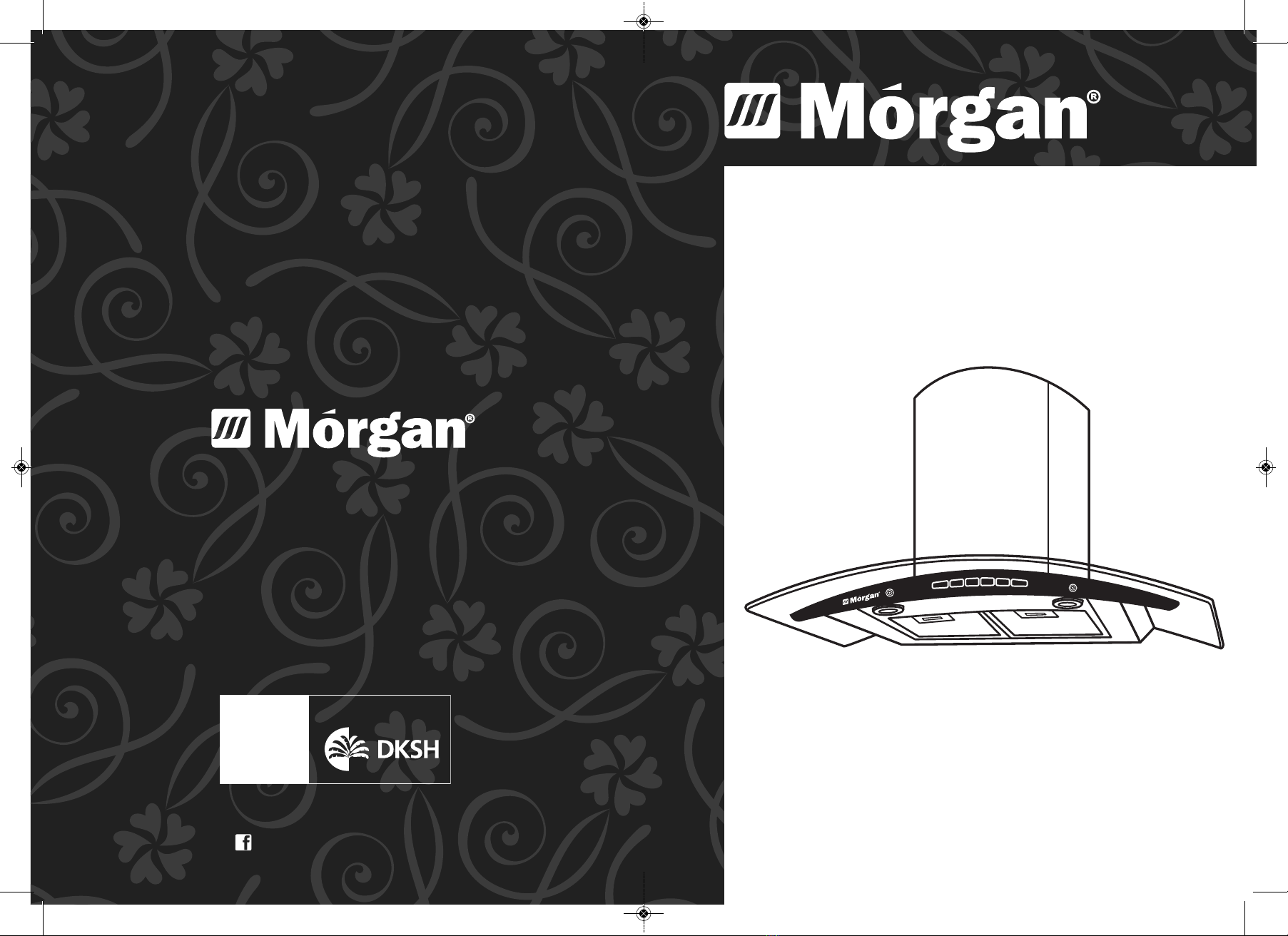

Morgan MDH-912ST User manual

USER MANUAL
!

MDH-912ST
E-mail: [e-mail]
www.morgan.my
Market Expansion
Services by
www.dksh.com
facebook.com/morganappliances
MDH-912ST(IM)100412_La out 1 4/17/12 5:21 PM Page 1

3

This User Instruction Manual contains important information, including safety & installation points, which
will ena le you to get the most out of your appliance. Please keep it in a safe place so that it is easily
availa le for future reference; for you or any person not familiar with the operation of the appliance.
NOTE: Your safety is of the utmost importance to us. Please ensure that you read this instruction booklet before
attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please
contact the Customer Care Department.

DIMEN ION
WIDTH (CANOPY) 900mm
HEIGHT (WITH CHIMNEY) 450 – 850mm
DEPTH (CANOPY) 500mm
DIMEN ION OF THE CHIMNEY ECTION 365mm x 310mm
PECIFICATION
MODEL MDH-912 T
MATERIAL 201 tainless teel + Curved Tempered
Glass Wing
VOLTAGE / FREQUENCY 240V~ 50Hz
AMP 1.5A
ILLUMINATION (LAMP) 2 x ≤20W
CONTROL 3 peed Finger Touch witch
FILTER 2 x Washable 5 Layers Aluminum
Grease Filter + Charcoal Filter
MOTOR PEED 1000rpm
CON UMPTION POWER 270W
EXTRACTION CAPACITY 1000m³/hr
AUTO HUT OFF TIMER
6

1. There is a fire risk if cleaning is not carried out in accordance with the instructions.
2. Be mindful of the flame when cooking food with alcoholic contents, which may cause burn the designer hood.
3. Ensure there is adequate ventilation when using both glass hob and designer hood.
4. Wipe the designer hood with a soft damp cloth.
5. Do not spray water directly on the designer hood to avoid electric shock or damage to it.
6. se mild detergent to clean the impeller. Pull out the oil cup, and wash it.
7. Always wash or change the filter, and clean the designer hood regularly.
8. It is recommended to clean the designer hood once a week.
9. If the power cord is damaged, have it replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
10. To degrease the filter, pull downwards to remove it and wash.
11. Do not allow young children, mentally or physically challenged persons from using, playing with or tampering with
the designer hood. Older children and infirm persons should be supervised if they are using the designer hood.

NOTE
• Light settings are independent from other settings (including delay-off) and lights have to be manually turned on
or off.
• The designer hood will saves user configurations, setting such as fan speed and they will remain the same until
next use.
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR
AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES
AFTER YOU HAVE FINISHED COOKING.
MDH-912ST(IM)100412_La out 1 4/17/12 5:21 PM Page 2

5

4
IMPORTANT
• Before installation and usage read all instructions carefully and ensure that the voltage (V) and the frequency (Hz)
indicated on the rating plate are exactly the same as the voltage and frequency in your home. Please refer to the
rating plate that can be found behind the grease filter.
•All installation work must ONLY be carried out by a qualified electrician or similarly competent person.
INSTALLING YOUR DESIGNER HOOD
1. Main Set Installation:
The minimum distance between the cooker and the appliance is 75-90cm. Drill holes on the wall and secure the
screws to the main unit. Adjust the main unit until it is aligned horizontally.
2. Fitting the chimney
• Install the chimney bracket according to your kitchen cabinet design. Find a suitable location and install it on the
wall. (fig 1)
• Adjust chimney height according to your kitchen cabinet design. Insert the aluminium tube into the indentation.
(fig 2 )
• Screw the upper chimney and bracket. (fig 3)

SURROUNDING ENVIRONMENT
The designer hood must be installed in accordance with the installation
instructions and all measurements followed. The designer hood should
be installed near an outdoor window so that the exhaust fumes from
the tube can exit easily through the window.
Alternatively, make a hole on the wall to allow the exhaust fumes exit
from the aluminium tube. Do not force the aluminium tube into the hole.
Similarly, do not select a place that has too many windows to prevent
excess ventilation that may affect the designer hood performance. (fig 1)

WARNING: UNPLUG THE POWER SOCKET BEFORE UNINSTALLATION.
1. Please keep a minimum 75 – 90cm
distance between designer hood and
cooker. Different types of cooker may
require bigger space allowance. (fig 2)
2. Do not cook with an open flame under
the designer hood. (fig 3)

Light Low Speed Medium
Speed
High Speed
FAN SPEED SETTING
• The designer hood is operates at 3 fan speed settings. Touch the high speed button to turn on high speed ventilation,
medium speed button to turn on low speed ventilation, and low speed button to turn on low speed ventilation. The
previously used fan speed will be automatically memorized and the designer hood will adjust itself to the previously
used fan speed in the next operation.
LIGHT
• The user can turn on the designer hood illumination by touching the 'Light' button. Touch once to turn it on and once
more to turn it off . The light function is independent from other function which will not be affected by other functions
or adjustment.
75-90cm
75-90cm
Keep it horizontal (Level)
fig 1
fig 2 fig 3
75-90cm
75-90cm
fig 1
75-90cm
75-90cm
fig 2
75-90cm
75-90cm
fig 3
3. Adjust the chimney height to ensure the exhaust fumes has exited completely.
4. Ensure adequate ventilation of the room when the designer hood is used at the same time as using cooking
appliances that depend on gas or other fuels.
5. Accessible parts may become hot when used with cooking appliances.
6. The fumes must not be discharged into a flue that is used for exhausting fumes from other appliances burning gas
or other fuels.
7. Securely tighten the screws after fixing the designer hood.
8. Do not tamper with or attempt to modify the appliance in any way to prevent accidents/hazards.
9. CA TION: The edges of the designer hood are sharp – be mindful of this as you handle your appliance, especially
during installation and cleaning.
10. Ensure the ducting for the extractor mode has the same diameter as the outlet hole throughout.
MDH-912ST(IM)100412_La out 1 4/17/12 5:21 PM Page 3

7

IMPORTANT: Refer to the checklist elow if your designer hood appears to have malfunctioned efore
contacting the Customer Care Department.
1. Designer hood will not start.
• Check that the hood is connected to the electricity supply
• Check that the fan speed control is set correctly.
2. Designer hood is not working effectively.
• The fan speed is not set high enough
• The grease filter is dirty and requires cleaning.
• The kitchen is adequately ventilated.
• If the hood is set up for recirculation mode, check that the carbon filters do not need replacing.
• If the hood is set up for extraction mode, check that the ducting hose and discharge outlet are not blocked.
3. Designer hood switches off during operation.
• The safety cut-out device has tripped.
• Turn off the hob and then wait for the safety cut-out device to reset.
IMPORTANT
• If you have installed your designer hood too low, the safety cut-out device will frequently trip. Your designer hood
may become damaged if the safety cut-out device is tripped frequently.
• If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and
then contact the Customer Care Department.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
2
       







IMPORTANT NOTES
SPECIFICATIONS
INSTALLATION
CAUTION
OPERATINg INSTRUCTIONS
CLEANINg AND MAINTENANCE
TROUBLESHOOTINg
