Blizzard hotstik 5 cob User manual

Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2014
cob
hotstik

Page 2
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
TABLE OF CONTENTS
HotStik™ 5 COB 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The HotStik™ 5 COB 5
Features 5
DMX Quick Reference 5
The HotStik™ 5 COB Pin-up Picture 6
Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of HotStiks™ 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
UsingthisxturewiththewiCICLE®WirelessDMXSystem 10
4. Operating Adjustments 12
The Control Panel 12
Control Panel Menu Structure 13
DMX Mode 14
Master/Slave Mode 14
Standalone (Program) Mode 14
DMX Channel Values In-Depth 15
Troubleshooting 16
5. Appendix 17
A Quick DMX Lesson 17
Keeping Your HotStik™ 5 COB As Good As New 18
Returns (Gasp!) 18
Shipping Issues 18
Tech Specs 19

Page 3
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
•1xHotStik™5COBLinearWashFixture
•AnEver-So-HandyPowerCord
•ThisLovelyUserManual
Getting It Out Of The Box
Congratulationsonpurchasingonewaycool,wayexible,wayoriginalLEDstriplight!
Now that you’ve got your HotStik™ 5 COB (or hopefully, HotSTIK’s!), you should carefully
unpack the box and check the contents to ensure that all parts are present and in good
condition. If anything looks as if it has been damaged in transit, notify the shipper
immediately and keep the packing material for inspection. Again, please save the carton
andallpackingmaterials.Ifaxturemustbereturnedtothefactory,itisimportantthat
thexturebereturnedintheoriginalfactoryboxandpacking.
Powering Up!
Allxturesmustbepowereddirectlyoffaswitchedcircuitandcannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythatthe
xtureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthextureor
refertothexture’sspecicationschartformoreinformation.Axture’slistedcurrent
ratingisitsaveragecurrentdrawundernormalconditions.Checkthextureordevice
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email. We’ll be happy to
help, honest.
Blizzard Lighting
N16W23390StoneridgeDr.SteE
Waukesha, WI 53188 USA
www.blizzardlighting.com
414-395-8365
Email:[email protected]
Disclaimer:Theinformationandspecicationscontainedinthisdocumentaresubject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any
errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the
right to update the existing document or to create a new document to correct any errors
or omissions at any time. You can download the latest version of this document from www.
blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 1/10/2014 J. Thomas 1/13/2014

Page 4
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
SAFETY INSTRUCTIONS
•PleasekeepthisUserGuideforfutureuse.Ifyouselltheunittosomeone
else, be sure that they also receive this User Guide.
•ALWAYSmakesurethatyouareconnectingtothepropervoltage,andthat
the line voltage you are connecting to is not higher than that stated on the
decalorrearpanelofthexture.
•Makesuretherearenoammablematerialsclosetotheunitwhileoperating.
•Theunitmustbeinstalledinalocationwithadequateventilation,atleast
20in(50cm)fromadjacentsurfaces.Besurethatnoventilationslotsare
blocked.
•ALWAYSdisconnectfromthepowersourcebeforeservicingorreplacingfuse
and be sure to replace with same fuse size and type.
•ALWAYSsecurextureusingasafetychain.NEVERcarrythexturebyits
cord. Use its carrying handles.
•DONOToperateatambienttemperatureshigherthan104°F(40°C).
•Intheeventofaseriousoperatingproblem,stopusingtheunitimmediately.
NEVERtrytorepairtheunitbyyourself.Repairscarriedoutbyunskilledpeople
can lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.
•NEVERconnectthedevicetoadimmerpack.
•Makesurethepowercordisnevercrimpedordamaged.
•Neverdisconnectthepowercordbypullingortuggingonthecord.
•Avoiddirecteyeexposuretothelightsourcewhileitison.
Caution! There are no user serviceable parts inside the unit. Do not
open the housing or attempt any repairs yourself. In the unlikely event
yourunitmayrequireservice,pleasecontactBlizzardLightingat

Page 5
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
2. MEET THE HOTSTIK™ 5 COB LED WASH FIXTURE
MAIN FEATURES:
•Colormixingvia12x25whighpowerRGBAWCOB5-in-1LEDs
•Variableelectronicstrobe
•Variableelectronicdimmer
•Built-incolor&chasemacrosviaDMX
•Built-inautomatedprograms+SoundActiveviamaster/slave
•RGBAWcolormixingabilityinstandalonemode
•3-pinmaleinputand3-pinfemaleoutput
•Userselectable5or9-channelDMXmodes
•AbletodirectlypowerthewiCICLE®wirelesssystemviaDMX
•Flicker-freeconstant-currentLEDdriver
•PowerCon™compatibleACpowerIn/Outconnectors
•EasytouseLEDcontrolpanel
CONTROL:
•USITTDMX-512(5/9Channels)
•3-pinInput/Output
•4-buttonmenuwithLCDdisplay
DMX Quick Reference - 9 Channel Mode
Channel What It Does
1 Dimmer (0% <--> 100%)
2 Strobe (slow <--> fast)
3 Red Intensity (0% <--> 100%)
4 Green Intensity (0% <--> 100%)
5 Blue Intensity (0% <--> 100%)
6 Amber Intensity (0% <--> 100%)
7 White Intensity (0% <--> 100%)
8 Color Macros
9AutoMode+SoundActive
DMX Quick Reference - 5 Channel Mode
Channel What It Does
1 Red Intensity (0% <--> 100%)
2 Green Intensity (0% <--> 100%)
3 Blue Intensity (0% <--> 100%)
4 Amber Intensity (0% <--> 100%)
5 White Intensity (0% <--> 100%)

Page 6
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
12x 25-watt RGBAW
COB5-in-1LEDs
Dual Mounting Brackets with
Adjustment/LockingKnobs
Figure 1: The HotStik™ 5 COB Pin-Up Picture
DMX Out
Power In
Power Out DMX In
Figure 2: The Rear Connections
Menu Display
Menu Buttons

Page 7
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
3. SETUP
Fuse Replacement
CAUTION! The HotStik™ 5 COB utilizes a high-output switch-mode power
supply with an internal fuse. Under normal operating conditions, the fuse
shouldnotrequirereplacement.Thefuseiseldreplaceable,however
itisanadvancedproceduresuitedtoqualiedindividuals.Shouldyour
HotStik™5COBfuserequirereplacement,pleasecontactBlizzardLighting
for instructions, or to return your unit for service.
Connecting A Bunch of HotStik™ 5 COB Fixtures
You will need a serial data link to run light shows using a DMX-512
controllerortorunshowsontwoormorexturessettosyncinmaster/
slaveoperatingmode.Thecombinednumberofchannelsrequiredbyall
thexturesonaserialdatalinkdeterminesthenumberofxturesthe
data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also,connectingmorethan32xturesononeserialdatalinkwithoutthe
use of a DMX optically-isolated splitter may result in deterioration of the
digital DMX signal. The maximum recommended cable-run distance is 500
meters(1640ft).Themaximumrecommendednumberofxturesona
serialdatalinkis32xtures.
Data/DMX Cabling
Tolinkxturestogetheryou’llneeddatacables.Youshouldusedata-
gradecablesthatcancarryahighqualitysignalandarelessproneto
electromagnetic interference.
Forinstance,Belden©9841meetsthespecicationsforEIARS-485
applications. Standard microphone cables will “probably” be OK, but note
that they cannot transmit DMX data as reliably over long distances. In
any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

Page 8
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR
connector on the other end. (Duh!)
CAUTION: Do not allow contact between the common and the
xture’schassisground.Groundingthecommoncancauseaground
loop,andyourxturemayperformerratically.Testcableswithan
ohm meter to verify correct polarity and to make sure the pins are not
grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.
They are widely available over the internet and from specialty retailers If you’d like to build your own, the
chart below details a proper cable conversion:
Conductor 3-Pin Female
(Output)
5-Pin Male
(Input)
Ground/Shield Pin 1 Pin 1
DMX Data (-) Pin 2 Pin 2
DMXData(+) Pin 3 Pin 3
Not Used. No Connection. No Connection.
Not Used. No Connection. No Connection.
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the
DMX cable to the female connector (output)
on the controller.
Step 2: Connect the female connector of
theDMXcabletotherstxture’smale
connector (input). Note: It doesn’t matter
whichxtureaddressistherstone
connected. We recommend connecting the
xturesintermsoftheirproximitytothe
controller, rather than connecting the lowest
xturenumberrst,andsoon.
Step 3:Connectotherxturesinthechain
from output to input as above. Place a DMX
terminatorontheoutputofthenalxture
to ensure best communication.

Page 9
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
Fixture Linking (Master/Slave Mode)
1. Connect the (male) 3 pin connector side of the
DMX cable to the output (female) 3 pin connector of
therstxture.
2. Connect the end of the cable coming from
therstxturewhichwillhavea(female)3pin
connectortotheinputconnectorofthenextxture
consisting of a (male) 3 pin connector. Then,
proceed to connect from the output as stated above
totheinputofthefollowingxtureandsoon.
A quick note: Often,
the setup for Master-
Slave and Standalone
operationrequiresthat
therstxtureinthe
chain be initialized for
this purpose via either
settings in the control
panel or DIP-switches.
Secondarily,thextures
that follow may also
requireaslavesetting.
Check the “Operating Adjustments” section in this manual for
completeinstructionsforthistypeofsetupandconguration.
Mounting & Rigging
ThisxturemaybemountedinanySAFEpositionprovidedthereis
enough room for ventilation.
It is important never to obstruct the fan or vents pathway. Mount the
xtureusingasuitable“C”or“O”typeclamp.Theclampshouldbe
ratedtoholdatleast10xthexture’sweighttoensurestructural
stability. Do not mount to surfaces with unknown strength, and ensure
properly“rated”riggingisusedwhenmountingxutresoverhead.
Adjusttheangleofthexturebylooseningbothknobsandtiltingthe
xture.Afterndingthedesiredposition,retightenbothknobs.
•Whenselectinginstallationlocation,takeintoconsiderationlamp
replacement access (if applicable) and routine maintenance.
•SafetycablesMUSTALWAYSbeused.

Page 10
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
USING THIS FIXTURE WITH THE wiCICLE® WIRELESS
DMX SYSTEM
In addition to the unbridled thrill you already
receivedthersttimeyoupluggedinyourx-
ture,you’llbedelightedtoknowthatThisx-
turealsoworksseamlesslywithourwiCICLE®
Wireless DMX system, without additional power.
•ONLYxturesbearingthislogoarecertiedforusewiththewiCICLE®
without external power.
• Unauthorized modication and/or using the wiCICLE®with un-
approved xtures may cause damage to the wiCICLE® or xture.
UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPON-
SIBLE FOR ANY DAMAGE FROM SUCH OPERATION.
•FixturesbearingtheabovelogoMUST only use cable and connectors
which separate chassis/case ground from cable shielding. Cabling with
the shield connected to the connector’s case/chassis may cause malfunc-
tionanddamagetothewiCICLE®orxture.
•wiCICLE®transmittershaveadditionalpowerrequirementsand
thereforecannotbepowereddirectlyfromthexture.Youwill
needtoutilizethesuppliedAC/DCadaptortodrivewiCICLE®
transmitters in your system.
WE HAD THIS SPACE, SO WE FIGURED WE’D
DRAW YOU A PICTURE:
AntennaHousing&1/2-wave
Antenna
Antennaferrule&articulation
joint
Stainless Steel Housing
Recessed Selector Button
StatusLED
3-Pin XLR Connector
(Male on transmitter, Female
on receiver model)

Page 11
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
EachwiCICLE®acts as both a transmitter and a receiver, depending on whether
a DMX source is applied to the integral XLR connector. This is an extremely
powerfulfeatureofthesystem,however,italsorequires1pieceofduediligence,
andthatistheremovalofextraneousDMXsignalsfromyourlightingrigBEFORE
proceeding.
SO: BEFORE DOING ANYTHING ELSE, YOU SHOULD DISABLE ANY BUILT-
IN PROGRAMS IN THE FIXTURES YOU WISH TO CONNECT AND/OR SET
THEM AS SLAVES PRIOR TO RETURNING THEM TO DMX MODE (IF AP-
PLICABLE). Most xtures contain a built-in automatic, sound active or
custom program which is designed to operate with the xture NOT con-
nected to a DMX chain.
Someoftheseprogramswillautomaticallyrununlessthextureissettoslave
mode.ThesexturestypicallysenseDMXautomaticallyandswitchtoDMXmode
upon receiving DMX signal (our Pucks do that!)
IfyouplugawiCICLE®“receiver”intoanautosensingxturesetasa“master,
“chancesaregoodthatthewiCICLE®“receiver” will begin transmitting the master
program. Most times, this is undesirable, and taking the two seconds to switch
these programs off will solve a lot of ails.
Got that done? Good! Then let’s proceed!
1.PlugthewiCICLE®Receiverintothe“DMXIN”connectorofthextureand
verify it is receiving power (the STATUS LED should illuminate.)
2.ConnecttheAC/DCadaptortothewiCICLE®Transmitter and verify it is receiv-
ing power (the STATUS LED should illuminate.)
3. Press the RECESSED SELECTOR BUTTON on the Transmitter to select the
operating channel group. (The system will store this setting for future use)
The7-ColorStatusLEDwillchangecolortoindicatethecurrentchannelgroup:
· GROUP 1: RED
· GROUP 2: GREEN
· GROUP 3: YELLOW
· GROUP 4: BLUE
· GROUP 5: VIOLET
· GROUP 6: CYAN
· GROUP 7: WHITE
4. Follow the same procedure on the Receiver to select the channel group.
5. Once both the transmitter and receiver(s) are both set to the same channel
group,connectthetransmittertotheDMXcontrollerortheDMXoutofaxture
on your DMX chain.
6.OnceaDMXsignalisprovidedtothetransmitter,thestatusLEDwillblinkRED
slowlyuntilcommunicationisestablishedwiththereceiver.ThestatusLEDon
thereceiver(s)willashGREEN slowly until communication is established.
7.Oncetheclearestchannelisauto-selected,thestatusLEDswillblinkquickly
onboththetransmitterandreceiver.NOTE:ThecoloroftheLEDDURING
operation does not indicate channel group, instead it indicates whether the unit
is transmitting or receiving. That’s It!
NOTE: “GROUP” number
also corresponds to the
“GROUP” setting on our
LightCaster™wireless DMX
Transceiver.

Page 12
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All the goodies and different modes possible with the HotStik™ 5 COB
areaccessedbyusingthecontrolpanelonthesideofthexture.
Thereare4controlbuttonsbelowtheLEDdisplaywhichallowyouto
navigate through the various control panel menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<SAVE>
Isusedtoselectandconrm/storethecurrentselection.
TheControlPanelLEDDisplayshowsthemenuitemsyouselectfrom
the menu map on page #13. When a menu function is selected, the
displaywillshowimmediatelytherstavailableoptionfortheselected
menu function. To select a menu item, press <ENTER>.
Press the <MENU> button repeatedly until you reach the desired
menu function. Use the <UP> and <DOWN> buttons to navigate the
menu options. Press the <SAVE> button to select the menu function
currently displayed, or to enable a menu option. To return to the
previous option or menu without changing the value, press the
<MENU> button.

Page 13
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
Control Panel Menu Structure
d001 d001 - d512 5 channel mode / choose DMX address
A.001 A001 - A512 9 channel mode / choose DMX address
CF -- CF01 - CF99 Color Fade (slow <--> fast)
CC -- CC01 - CC99 Color Change (slow <--> fast)
CS -- CS01 - CS99 Color Macros
r000 r001 - r255 Red Intensity (0% <--> 100%)
9000 9001 - 9255 Green Intensity (0% <--> 100%)
b000 b001 - b255 Blue Intensity (0% <--> 100%)
Y000 Y001 - Y255 Amber Intensity (0% <--> 100%)
U000 U001 - U255 White Intensity (0% <--> 100%)
dENO <ENTER> Auto Mode

Page 14
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Setting the DMX Channel Mode:
1.) To select a DMX channel mode, press the <MENU> button
repeatedlyuntilyoundeitherd.001 (5ch mode), or A.001 (9ch
mode). To change the DMX starting address within either of these, use
the <UP/DOWN> buttons to scroll from 001 to 512. Press <ENTER>
toconrmyourchoice.
Stand-Alone, Master/Slave, Sound Active Modes:
Allows a single or Master/Slaved units to run factory installed programs at user
selectable speeds.
1.)TosetthextureinColorFademode,selectCF.--. Then use the
<UP/DOWN> buttons to scroll from CF.01 to CF.99 (Slow <--> Fast).
2.)TosetthextureinColorChangemode,selectCC.--. Then use the
<UP/DOWN> buttons to scroll from CC.01 to CC.99 (Slow <--> Fast).
3.)Tosetthexturetodisplayanyofitsbuilt-inColorMacros,select
CS.--. Then use the <UP/DOWN> buttons to scroll from CS.01 to
CS.99 (Slow <--> Fast).
4.)Tosetthextureasaslaveunit,simplydaisychain2ormoreunits
via DMX.The1stxtureinthechainwillserveasthemaster,andthe
followingxtureswillactasthemasterunitdoes.
Auto/Demo Mode:
1.)TosetthextureinAutomode,selectDENO.
Sound Active Mode:
1.) Sound active mode is available via 9ch DMX Mode between the
values of 240 <--> 255.
Manual Color Adjustment:
Allows the user to adjust the color balance of the xture.
1.) Use the <MENU> button to select r.--- (Red Level), 9.--- (Green
Level), b.--- (Blue Level), Y.--- (Amber), or U.--- (White Level), then
hit <ENTER>.
2.) Using the <UP/DOWN> buttons, select the maximum level for
each color between 000x255 (000=off), then hit <ENTER>toconrm.

Page 15
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
DMX Values In-Depth (5-Channel Mode)
Ch. Value What It Does
1 000 <--> 255 Red Intensity (0% <--> 100%)
2 000 <--> 255 Green Intensity (0% <--> 100%)
3 000 <--> 255 Blue Intensity (0% <--> 100%)
4 000 <--> 255 Amber Intensity (0% <--> 100%)
5 000 <--> 255 White Intensity (0% <--> 100%)
DMX Values In-Depth (9-Channel Mode)
Ch. Value What It Does
1 000 <--> 255 Dimmer (0% <--> 100%)
2 000 <--> 001
002 <--> 255
No Function
Strobe (slow <--> fast)
3 000 <--> 255 Red Intensity (0% <--> 100%)
4 000 <--> 255 Green Intensity (0% <--> 100%)
5 000 <--> 255 Blue Intensity (0% <--> 100%)
6 000 <--> 255 Amber Intensity (0% <--> 100%)
7 000 <--> 255 White Intensity (0% <--> 100%)
8 000 <--> 032
033 <--> 065
066 <--> 096
097 <--> 129
130 <--> 160
161 <--> 191
192 <--> 224
225 <--> 254
255
Red
Red+Green(Rsame,Gbrighter)
Red+Green(Gsame,Rlessbright)
Green+Blue(Gsame,Bbrighter)
Green+Blue(Bsame,Glessbright)
Red+Blue(Bsame,Rbrighter)
Red+Green+Blue(RandBaresame,Gbrighter)
R+G+B+A+W(R,GandBaresame,AandWbrighter)
R+G+B+A+W(FullOn)
9 000 <--> 009
010 <--> 063
064 <--> 127
128 <--> 191
192 <--> 239
240 <--> 255
No function
R+B
R+G
G+B
R+G+B+A+W
Sound Active

Page 16
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
Troubleshooting
Symptom Solution
Beam is Dim Check optical system and clean excess dust/grime. Also
ensure that the 220V/110V switch is in the correct position,
if applicable.
No Light Output Checktoensurextureisoperatingundercorrectmode,
IEauto/DMX/Etc.,ifapplicable.Contactserviceformore
information.
Chase Speed
Too Fast/Slow
Checktoensurepropersetupofspeedadjustment.
No Power Check fuse, AC cord and circuit for malfunction.
Blown Fuse Check AC cord and circuit for damage, verify that moving
parts are not restricted and that unit’s ventilation is not
obstructed
Fixture Not
Responding /
RespondingEr-
raticly
Make sure all connectors are seated properly and securely.
Use Only DMX Cables.
Install a Terminator.
Check all cables for defects.
Resetxture(s).
If your problem isn’t listed, or if problems persist,
please contact support: [email protected].
1084 mm (42.7 in)
1000 mm (39.4 in)
125 mm
(4.92 in)
138 mm
(5.43 in)

Page 17
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
5. APPENDIX
A Quick Lesson On DMX
DMX (aka DMX-512) was created in 1986 by the United States Institute for Theatre
Technology (USITT) as a standardized method for connecting lighting consoles to lighting
dimmermodules.Itwasrevisedin1990andagainin2000toallowmoreexibility.The
EntertainmentServicesandTechnologyAssociation(ESTA)hassinceassumedcontrolover
the DMX512 standard. It has also been approved and recognized for ANSI standard clas-
sication.
DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common
communicationsstandardusedbylightingandrelatedstageequipment.
DMXprovidesupto512control“channels”perdatalink.Eachofthesechannelswasorigi-
nally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting
console,connectedto512lightbulbs.Eachslider’spositionissentoverthedatalinkasan
8-bit number having a value between 0 and 255. The value 0 corresponds to the light bulb
being completely off while 255 corresponds to the light bulb being fully on.
DMX data is transmitted at 250,000 bits per second using the RS-485 transmission stan-
dard over two wires. As with microphone cables, a grounded cable shield is used to prevent
interference with other signals.
TherearevepinsonaDMXconnector:awireforground(cableshield),twowiresfor
“Primary” communication which goes from a DMX source to a DMX receiver, and two wires
for a “Secondary” communication which goes from a DMX receiver back to a DMX source.
Generally,the“Secondary”channelisnotusedsodataowsonlyfromsourcestoreceiv-
ers. Hence, most of us are most familiar with DMX-512 as being employer over typical
3-pin“miccables,”althoughthisdoesnotconformtothedenedstandard.
DMXisconnectedusingadaisy-chaincongurationwherethesourceconnectstotheinput
oftherstdevice,theoutputoftherstdeviceconnectstotheinputofthenextdevice,
and so on. The standard allows for up to 32 devices on a single DMX link.
Eachreceivingdevicetypicallyhasameansforsettingthe“startingchannelnumber”that
itwillrespondto.Forexample,iftwo6-channelxturesareused,therstxturemight
be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next
xturewouldbesettostartatchannel7soitwouldrespondtochannels7through12.
The greatest strength of the DMX communications protocol is that it is very simple and
robust. It involves transmitting a reset condition (indicating the start of a new “packet”),
a start code, and up to 512 bytes of data. Data packets are transmitted continuously. As
soonasonepacketisnished,anothercanbeginwithnodelayifdesired(usuallyanother
follows within 1 ms). If nothing is changing (i.e. no lamp levels change) the same data will
be sent out over and over again. This is a great feature of DMX -- if for some reason the
dataisnotinterpretedthersttimearound,itwillbere-sentshortly.
Notall512channelsneedtobeoutputperpacket,andinfact,itisveryuncommontond
all 512 used. The fewer channels are used, the higher the “refresh” rate. It is possible to
get DMX refreshes at around 1000 times per second if only 24 channels are being trans-
mitted. If all 512 channels are being transmitted, the refresh rate is around 44 times per
second.
In summary, since its design and evolution in the 1980’s DMX has become the standard
forlightingcontrol.Itisexible,robust,andscalable,anditsabilitytocontroleverything
from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for
any lighting designer or lighting performer.

Page 18
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
Keeping Your HotStik™ 5 COB As Good As New
Thextureyou’vereceivedisarugged,toughpieceofprolightingequip-
ment, and as long as you take care of it, it will take care of you. That said, like
anything, you’ll need to take care of it if you want it to operate as designed.
Youshouldabsolutelykeepthextureclean,especiallyifyouareusingitinan
environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled
drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve
thequalityoflightoutput.Keepingthefansfreeofdustanddebriswillkeep
thexturerunningcoolandpreventdamagefromoverheating.
Intransit,keepthexturesincases.Youwouldn’tthrowaprizedguitar,
drumset, or other piece of expensive gear into a gear trailer without a case,
and similarly, you shouldn’t even think about doing it with your shiny new light
xtures.
Commonsenseandtakingcareofyourxtureswillbethesinglebiggestthing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your cli-
ent’s satistfaction and “wow factor.” That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But, like
anycomplexpieceofequipmentdesignedandbuiltbyhumans,onceinawhile,
somethingdoesn’tgoasplanned.Ifyoundyourselfwithaxturethatisn’t
behavinglikeagoodlittlextureshould,you’llneedtoobtainaReturnAuthori-
zation (RA).
Don’tworry,thisiseasy.Justsendanemailto[email protected],
and we’ll issue you an RA. Then, you’ll need to send the unit to us using a
trackable, pre-paid freight method. We suggest using USPS Priority or UPS.
Makesureyoucarefullypackthexturefortransit,andwheneverpossible,use
theoriginalbox&packingforshipping.
Whenreturningyourxtureforservice,besuretoincludethefollowing:
1.)Yourcontactinformation(Name,Address,PhoneNumber,Emailaddress).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
Wewill,atourdiscretion,repairorreplacethexture.Pleaserememberthat
any shipping damage which occurs in transit to us is the customer’s responsibil-
ity, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.

Page 19
HotStik™ 5 COB User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Length 42.7 inches (1084 mm)
Width 4.92 inches (125 mm)
Height 5.43 inches (138 mm)
Weight 21.1 lbs (10 kg)
Power
Operating Voltage 110V-240VAC, 50-60 Hertz
Power Consumption 236W, 1.95a, pf:.99
Light Source
LED 12x25wTianxinhighpowerRGBAWCOB5-in-1LEDs
Optical
Beam Angle 80 degrees
Luminous Intensity Meters / Lux Red Green Blue Amber White RGBAW
1m 1,950 2,000 2,120 1,000 2,200 8,610
2m 750 750 780 380 800 3,000
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 5/9 (User Selectable)
Input 3-pin XLR Male
Output 3-pin XLR Female
Operating Modes Standalone, Master/Slave
Other Information
A lot of people are afraid of heights. Not me, I’m afraid of widths.
Warranty
2-year limited warranty, does not cover malfunction caused by
damagetoLED’s.
DISCLAIMER:
Thepowerconnectorttedtothextureandxturecordaredesignedforcompatibility
with products manufactured by Neutrik AG, Neutrik USA and their related entities, howev-
ertheyarenotmanufacturedby,afliatedwithorendorsedbyNeutrikAG,NeutrikUSA,
oranyrelatedentity.Neutrik®andpowerCON®areregisteredtrademarksofNeutrikAG.

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
Table of contents
Other Blizzard Floodlight manuals

Blizzard
Blizzard ToughPAR Quadra LED User manual

Blizzard
Blizzard Flurry 5 User manual

Blizzard
Blizzard ROCKLITE AW User manual

Blizzard
Blizzard rokbox exa User manual

Blizzard
Blizzard Puck Q6 User manual

Blizzard
Blizzard Puck Q12 LED PAR Can User manual

Blizzard
Blizzard Cobzilla User manual

Blizzard
Blizzard Verismo WW User manual
Popular Floodlight manuals by other brands

Blizzard Lighting
Blizzard Lighting Puck Fab5 Skywire manual

Francis Searchlights

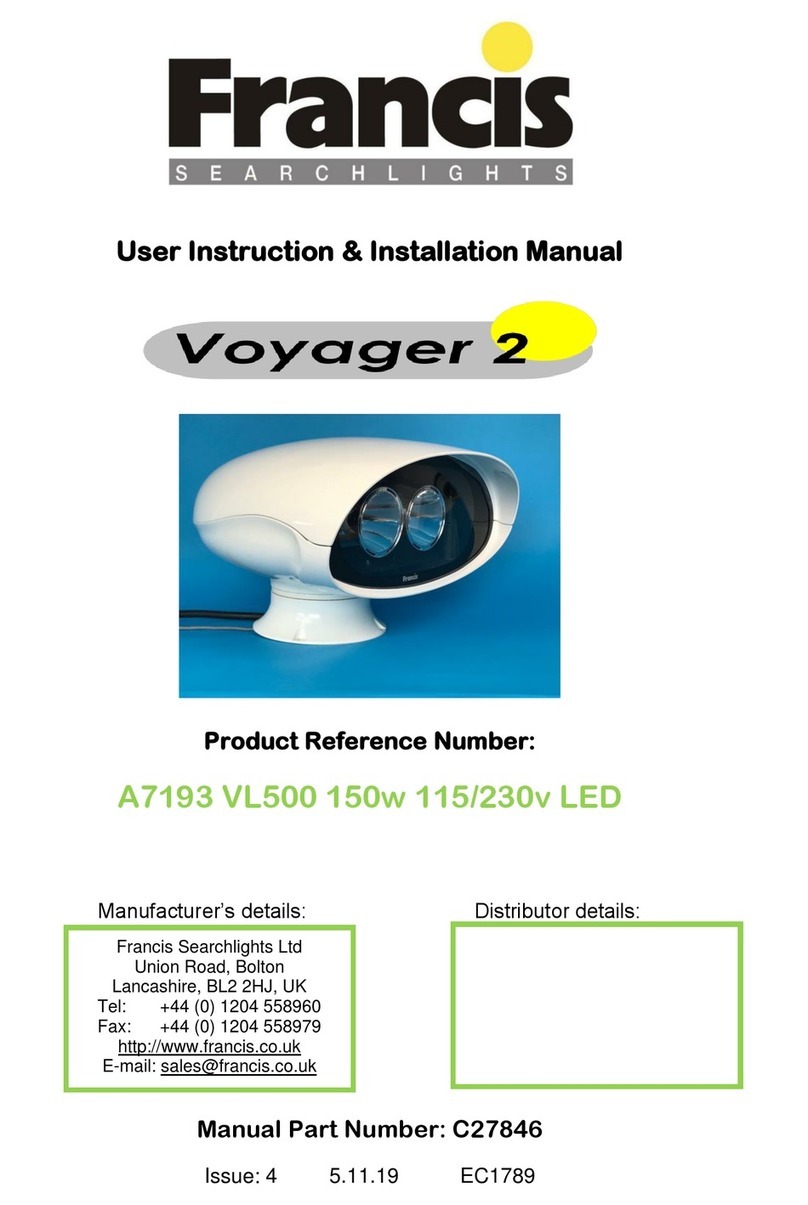

Francis Searchlights A7193 VL500 150w 115/230v LED User instruction & installation manual

cocoweb
cocoweb NEWCASTLE installation instructions

OMEZ
OMEZ TitanPar 36x3w user manual

Utilitech
Utilitech SE1048-BP2-02LF0-U operating instructions

1st-Relief
1st-Relief 220S Series manual
