Blizzard atmosFEAR 221b User manual

Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2019

Page 2
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x AtmosFEAR® 221b Fog Machine
• 1 x Remote Control
• 1 x 5m Cable for Removable LCD Control
• 1 x Ever-So-Handy Power Cord
• This Lovely User Manual
Getting It Out Of The Box
Congratulations! Your audiences will be blown away when they take a gander at the
colored fog eects of your new AtmosFEAR® 221b! Now that you’re the proud owner
of a AtmosFEAR® 221b (or hopefully, 221b’s), you should carefully unpack the box
and check the contents to ensure that all parts are present and in good condition. If
anything looks as if it has been damaged in transit, notify the shipper immediately
and keep the packing material for inspection. Again, please save the carton and all
packing materials. If a xture must be returned to the factory, it is important that
the xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run o
a rheostat (variable resistor) or dimmer circuit, even if the rheostat or
dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that
the xture you receive is suitable for your local power supply. See the label on the
xture or refer to the xture’s specications chart for more information. A xture’s
listed current rating is its average current draw under normal conditions. Check the
xture or device carefully to make sure that if a voltage selection switch exists that it
is set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the
line voltage applied. Damage to your xture may result if the line voltage
applied does not match the voltage indicated on the voltage selector switch.
All xtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardpro.com
and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information and specications contained in this document are
subject to change without notice. Blizzard Lighting™ assumes no responsibility or
liability for any errors or omissions that may appear in this user manual. Blizzard
Lighting™ reserves the right to update the existing document or to create a new
document to correct any errors or omissions at any time. You can download the
latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 7/17/2018 J. Thomas 6/25/2019

Page 3
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
SAFETY INSTRUCTIONS
Attention:
To keep your AtmosFEAR® 221b in good working order please remember to:
• IMPORTANT! This machine requires a power cord of at least 14 AWG.
• Use only water-based, non-toxic fog uid in the uid tank.
• Keep the machine clean.
• Turn the power o before adding fog uid.
• Turn the power o when not in use.
And also...
• ALWAYS make sure that you are connecting to the proper voltage, and that the
line voltage you are connecting to is not higher than that stated on the decal or rear
panel of the xture.
• This product is intended for indoor use only.
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be used in a location with adequate ventilation, at least 20in (50cm)
from adjacent surfaces. Be sure that no air intake slots are blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse and
be sure to replace with same fuse size and type.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized technical
assistance center. Always use the same type spare parts.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
Caution! There are no user serviceable parts inside the unit. Do not open
the housing to attempt any repairs yourself. In the unlikely event your unit
may require service, please visit our support website at: www.blizzardpro.
com/support.
Please read these instructions carefully. They include
important information about the installation, usage and
maintenance of this product.

Page 4
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
2. MEET THE ATMOSFEAR® 221B
MAIN FEATURES:
• High-output 1,500 watt fog machine
• Color mixing via 6x 3W 3-in-1 RGB LEDs
• Fog intensity, duration, and interval control in manual & DMX modes
• Easy-to-use duration/interval fog preset macros via DMX
• Built-in automated color macros with speed control
• RGB color mixing ability in standalone mode
• Virtual color wheel
• Variable electronic dimming & strobe
• Built-in timer with interval and duration
• Manual 3-slot conguration to save/load settings
• 5.0L capacity fog uid tank
• 3/5-pin XLR signal input & outputs
Control:
• Protocol: USITT DMX-512
• DMX channels: 11/3/1-channel
• Removable LCD 6-button control panel with 5m extension cable
• 6-button wireless remote with 3 customizable buttons
• Wireless remote range: up to 25-meters (manual mode only)
• Operating modes: standalone, master/slave, auto mode
DMX Quick Reference (11/3/1-Channel Modes)
11CH 3CH 1CH What it does
1 -- -- Fog Intensity
2 -- -- Fog Duration
3 -- -- Fog Interval
4-- -- Master Dimmer (0% <--> 100%)
5 -- -- Red Intensity (0% <--> 100%)
6 -- -- Green Intensity (0% <--> 100%)
7 -- -- Blue Intensity (0% <--> 100%)
8 -- -- Strobe (Slow <--> Fast)
-- 1 1 Fog Output Presets
9 2 -- Color Macros
10 3 -- Color Macro Speed (Slow <--> Fast)
11 -- -- Heater Enable/Disable

Page 5
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
Figure 1: The AtmosFEAR® 221b Pin-Up Picture
Figure 2: The Rear Connections
Thermal
Circuit
Breaker
AC Power
Input
3-Pin DMX
In/Out
5-Pin DMX
In/Out
Wireless
Input
Removable 6-button
LCD control panel.
Extends 5-meters with
included cable.
6x 3W
3-in-1
RGB LEDs
5.0L Fog
Fluid Tank
Mounting
Bracket with
Locking
Adjustment
Knobs
Dual Carry
Handles
Status
LEDs
Status LEDs:
LED 1:
Warming = ON
Ready = OFF
LED 2:
Warming = OFF
Ready = ON
Low Fluid = Flash

Page 6
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
Fuse Replacement
AtmosFEAR® 221b is equipped with an easy-to-use, push-button thermal cir-
cuit breaker. The button will extend for visual trip indication, and can simply be
pushed back in to be reset.
Connecting A Bunch of AtmosFEAR® 221b Units
You can use a serial data link to run shows using a DMX-512 controller or to
run shows on two or more units set to sync in master/slave operating mode.
The combined number of channels required by all the units on a serial data link
determines the number of units the data link can support.
Units on a serial data link must be daisy chained in one single line. Also, con-
necting more than 32 units on one serial data link without the use of a DMX
optically-isolated splitter may result in deterioration of the digital DMX signal.
The maximum recommended cable-run distance is 500 meters (1640 ft). The
maximum recommended number of units on a serial data link is 32 xtures.
Data/DMX Cabling
You should use data-grade cables that can carry a high quality signal and are
less prone to electromagnetic interference. For instance, Belden© 9841 meets
the specications for EIA RS-485 applications. Standard microphone cables will
“probably” be OK, but note that they cannot transmit DMX data as reliably over
long distances.
3-Pin??? 5-Pin??? Huh?!?
This unit is ideal for use with any DMX controller. It comes equipped with both
3-pin and 5-pin XLR in/out sockets with standard pin conguration:
Conductor 3-Pin Female (Output) 5-Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data 1- (Primary Data Link) Pin 2 Pin 2
Data 1+ (Primary Data Link) Pin 3 Pin 3
Data 2- (Optional Secondary Data Link) Pin 4 Pin 4
Data 2+ (Optional Secondary Data Link) Pin 5 Pin 5
This fog machine comes equipped with a 20A, push-to-
reset thermal circuit breaker.
3. SETUP

Page 7
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
CAUTION: Do not allow contact between the common and the xture’s chassis
ground. Grounding the common can cause a ground loop, and your xture may
perform erratically. Test cables with an ohm meter to verify correct polarity and
to make sure the pins are not grounded or shorted to the shield or each other.

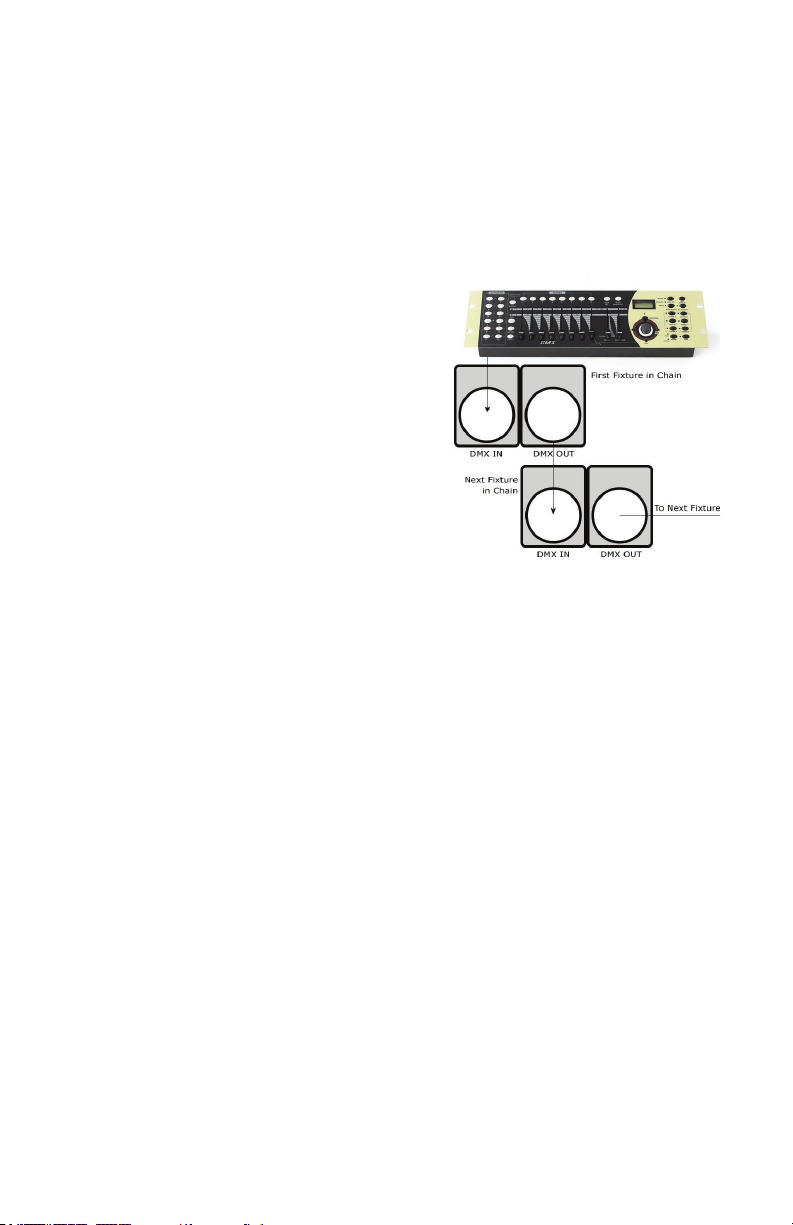

Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the DMX cable to the female connector
(output) on the controller.
Step 2: Connect the female connector of
the DMX cable to the rst xture’s male
connector (input). Note: It doesn’t
matter which xture address is the
rst one connected. We recommend
connecting the xtures in terms of their
proximity to the controller, rather than
connecting the lowest xture number
rst, and so on.
Step 3: Connect other xtures in the
chain from output to input as above.
Place a DMX terminator on the output
of the nal xture to ensure best
communication.
Fixture Linking (Master/Slave Mode)
1. Connect the male 3/5-pin connector side of the DMX cable to the output
(female) 3/5-pin connector of the rst xture.
2. Connect the end of the cable coming from the rst xture which will have a
(female) 3/5-pin connector to the input connector of the next xture consist-
ing of a (male) 3/5-pin connector. Then, proceed to connect from the output as
stated above to the input of the following xture and so on.
Mounting & Rigging
• This unit may be used on the oor, or mounted in any SAFE position provided
there is enough room for ventilation.
• Mount the xture using a suitable “C” or “O” type clamp. The clamp should
be rated to hold at least 10x the unit’s weight to ensure structural stability. Do
not mount to surfaces with unknown strength, and ensure properly “rated” rig-
ging is used when mounting xtures overhead.
• Adjust the angle by loosening both knobs and tilting the unit. After nding
the desired position, retighten both knobs.
• Safety cables MUST ALWAYS be used.
• Never mount in places where the unit will be exposed to rain, high humidity,
extreme temperature changes or restricted ventilation.

Page 8
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
Button Function
<FUNCTION>
<UP>
<DOWN>
<TIMER>
<MANUAL>
<BURST>
Used to navigate the menu upward.
Value adjustment upward.
Value adjustment downward.
Start/Stop: Hold 3 seconds. Also used for downward navigation.
Switch between DMX Mode and Manual Mode.
Press and hold the button to engage manual fog burst.
4. OPERATING ADJUSTMENTS
The Control Panel
All the settings possible with the AtmosFEAR® 221b are accessed by using the con-
trol panel on the rear of the unit. There are 6 control buttons below the display which
provide functionality and allow you to navigate through the various options.
Shown below: DMX Menu Home Screen - This is the top level of the DMX menu
structure which displays the DMX Status, Interval or Duration status (0I or 0D),
the set DMX Address, and the set Channel Mode (1-3).
FUNCTION
TIMER
UP
MANUAL
DOWN
BURST
DMX Ok 0I
Addr 8 Mode 1
To navigate the menu, use the <FUNCTION/TIMER> buttons to scroll through the
various options. Any currently displayed option can then be altered by using the <UP/
DOWN> buttons. All value changes are saved automatically.
Button Shortcuts:
<FUNCTION> + <TIMER>: Return to the main DMX Menu or Manual Menu
home screen from within either menu.
<FUNCTION> + <MANUAL>: Turns the uid tank + status LEDs on/o.

Page 9
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
Control Panel Menu Structure
DMX Menu Home Screen
Press the <MANUAL> button to enter the Manual Menu (from within DMX Menu).
Press the <FUNCTION> + <TIMER> buttons to return to the DMX Menu Home Screen.
DMX Address 1–512 Set the starting DMX address
DMX Channel Mode 1 Fog 1-channel DMX mode
3 Fog + Macro 3-channel DMX mode
11 All 11-channel DMX mode
Manual Menu Home Screen
Press the <MANUAL> button to enter the DMX Menu (from within Manual Menu).
Press the <FUNCTION> + <TIMER> buttons to return to the Manual Menu Home Screen.
Fog Level Wimpy Low output
Mild Medium output
Blazin High output
Fog Duration 1–255 Fog output duration
Fog Interval 1–255 Time between fog output
Macros
*When color macros are used,
they override R/G/B static
colors.
O Macros o
Rainbow Color macro 1
Fire Color macro 2
Water Color macro 3
Acid Color macro 4
Ether Color macro 5
Storm Color macro 6
Macro Speed O, 1-255 Macro speed (slow <--> fast)
Red Level O, 1-255 Red intensity (0% <--> 100%)
Green Level O, 1-255 Green intensity (0% <--> 100%)
Blue Level O, 1-255 Blue intensity (0% <--> 100%)
Strobe Level O, 1-255 Strobe (slow <--> fast)
Remote 4/5/6 Action
*Setup the actions for button
numbers 4, 5, and 6 on the
remote control unit.
No Action No Function
Choose Macro (cycles thru color macros 1-6, speed set in menu)
Red
Yellow
Green
Cyan
Blue
Magenta
Strobe Slow
Strobe Medium
Strobe Fast
Blackout
Whiteout
Save Settings Slot 1 Save up to 3 custom manual settings.
Press & hold the <UP> button for 3 sec-
onds to save current settings to slots 1-3.
Slot 2
Slot 3
Load Settings Slot 1 Load any saved custom settings from
slots 1-3. Press & hold the <UP> button
for 3 seconds to load from slots 1-3.
Slot 2
Slot 3

Page 10
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
DMX Settings
*The following DMX instructions require the DMX Menu as the starting point. Press the
<MANUAL> button until you are in DMX Mode.
Setting the DMX Address
1. Use the <FUNCTION/TIMER> buttons to navigate to DMX Address.
2. Then use the <UP/DOWN> buttons to select a starting DMX address from 1–512.
3. Changes are saved automatically upon value change.
DMX Channel Mode Settings
1. Use the <FUNCTION/TIMER> buttons to navigate to DMX Channel Mode.
2. Then use the <UP/DOWN> buttons to select 1 Fog (1-channel mode), 3 Fog +
Macro (3-channel mode), or 11 All (11-channel mode).
3. Changes are saved automatically upon value change.
Manual Settings
*The following Manual instructions require the Manual Menu as the starting point. Press
the <MANUAL> button until you are in Manual Mode.
Fog Level
1. Use the <FUNCTION/TIMER> buttons to navigate to Fog Level.
2. Then use the <UP/DOWN> to select highlight either Wimpy (low output), Mild
(medium output), or Blazin (high output).
3. Changes are saved automatically upon value change.
Interval, Duration, & Timer Settings
Interval settings control the period of time in between timed fog outputs (in seconds),
while duration settings are used to control the actual period of time of the timed output (in
seconds) while using timer mode.
1. Use the <FUNCTION/TIMER> buttons to navigate to either Interval or Duration.
2. Then use <UP/DOWN> to select the number of seconds.
3. Press the <FUNCTION> or <TIMER> button to return home.
4. Hold the <TIMER> button for 3 seconds to start or stop timed output.
Color Macros
Note: When color macros are being used, they will override R/G/B static colors.
1. Use the <FUNCTION/TIMER> buttons to scroll to Macros.
2. Then use the <UP/DOWN> to highlight O, or any of the built-in Color Macros.
3. Changes are saved automatically upon value change.
Color Macro Speed
1. Use the <FUNCTION/TIMER> buttons to scroll to Macro Speed.
2. Then use the <UP/DOWN> to select O, or adjust the 1-255 values (slow to fast).
3. Changes are saved automatically upon value change.

Page 11
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
Custom Static Colors:
1. Use the <FUNCTION/TIMER> buttons to navigate to Red Level, Green Level, or
Blue Level.
2. Then use the <UP/DOWN> buttons to adjust the intensity level from 0-255 (0%
<--> 100%).
3. Changes are saved automatically upon value change.
Strobe Settings:
1. Use the <FUNCTION/TIMER> buttons to navigate to Strobe Level.
2. Then use the <UP/DOWN> buttons to highlight O, or adjust the value from
1-255 (slow to fast).
3. Changes are saved automatically upon value change.
Save and Load Settings:
You can save and load up to 3 customized manual settings. These are the only settings in
the menu that are required to be manually saved.
1. Press the <MANUAL> button to reach the Manual Menu.
2. Use the <FUNCTION/TIMER> buttons to navigate to Save or Load Settings.
3. Then use the <UP/DOWN> to select any slot ranging from Slot 1-3.
4. Press & hold the <UP> button for 3 seconds to either save or load from slots 1-3.
Remote Control (for use in manual mode only)
1. Plug the wireless receiver into the input on the rear of the machine.
2. Setup the remote actions for the customizable buttons 4-6.
3. You can use the wireless remote control from up to 25-meters in distance.
Remote Actions (Buttons 4-6)
1. Use <FUNCTION/TIMER> buttons to navigate to Remote Action 4, 5, or 6.
2. Then use <UP/DOWN> to select any available action (see page 9).
3. Changes are saved automatically upon selection.
4. Press the <FUNCTION> + <TIMER> buttons to return home.
Wireless Receiver:
Remote control with 3 customizable
buttons (numbers 4-6):
• Button 1: Start Timer
• Button 2: Stop Timer
• Button 3: Burst
• Button 4: As set in menu
• Button 5: As set in menu
• Button 6: As set in menu

Page 12
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
DMX Values In-Depth (11/3/1-Channel Modes)
11CH 3CH 1CH Value What it does
1 -- --
000 <--> 020
021 <--> 100
101 <--> 200
201 <--> 255
Fog Intensity
No Output
Low
Medium
High
2 -- --
000
001 <--> 230
231 <--> 255
Fog Duration
No Output
Duration (seconds)
Constant On
If duration is set to con-
stant on, interval has no
function.
3 -- --
000
001 <--> 255
Fog Interval
Constant On (if fog intensity is not 0)
Interval (seconds)
4-- -- 000 <--> 255 Master Dimmer (0% <--> 100%)
5 -- -- 000 <--> 255 Red Intensity (0% <--> 100%)
6 -- -- 000 <--> 255 Green Intensity (0% <--> 100%)
7 -- -- 000 <--> 255 Blue Intensity (0% <--> 100%)
8 -- --
000 <--> 010
011 <--> 255
Strobe
Open
Slow <--> Fast
-- 1 1
000 <--> 020
021 <--> 040
041 <--> 060
061 <--> 080
081 <--> 100
101 <--> 120
121 <--> 140
141 <--> 160
161 <--> 180
181 <--> 200
201 <--> 220
221 <--> 240
241 <--> 255
Fog Output Presets
No Output
Macro: 3s Duration, 13s Interval
Macro: 3s Duration, 21s Interval
Macro: 3s Duration, 34s Interval
Macro: 3s Duration, 55s Interval
Macro: 8s Duration, 21s Interval
Macro: 8s Duration, 34s Interval
Macro: 8s Duration, 55s Interval
Macro: 8s Duration, 89s Interval
Macro: 8s Duration, 144s Interval
Macro: 21s Duration, 55s Interval
Macro: 21s Duration, 89s Interval
Fog Constant On
9 2 --
000 <--> 020
021 <--> 148
149 <--> 180
181 <--> 190
191 <--> 200
201 <--> 210
211 <--> 220
221 <--> 230
231 <--> 240
241 <--> 255
Color Macro
No Color
Virtual Color Wheel
White
Rainbow
Fire
Water
Acid
Ether
Storm
Moriarty
*When color macros are
used, they override R/G/B
static colors.
10 3 --
000 <--> 010
011 <--> 255
Color Macro Speed
O
Slow <--> Fast
11 -- --
000 <--> 127
128 <--> 255
Heater Enable/Disable
Heater Enabled
Heater Disabled

Page 13
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
5. APPENDIX
A Quick Lesson On DMX
DMX (aka DMX-512) was created in 1986 by the United States Institute for Theatre
Technology (USITT) as a standardized method for connecting lighting consoles to lighting
dimmer modules. It was revised in 1990 and again in 2000 to allow more exibility. The
Entertainment Services and Technology Association (ESTA) has since assumed control over
the DMX512 standard. It has also been approved and recognized for ANSI standard clas-
sication.
DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common
communications standard used by lighting and related stage equipment.
DMX provides up to 512 control “channels” per data link. Each of these channels was origi-
nally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting
console, connected to 512 light bulbs. Each slider’s position is sent over the data link as an
8-bit number having a value between 0 and 255. The value 0 corresponds to the light bulb
being completely o while 255 corresponds to the light bulb being fully on.
DMX data is transmitted at 250,000 bits per second using the RS-485 transmission stan-
dard over two wires. As with microphone cables, a grounded cable shield is used to prevent
interference with other signals.
There are ve pins on a DMX connector: a wire for ground (cable shield), two wires for
“Primary” communication which goes from a DMX source to a DMX receiver, and two wires
for a “Secondary” communication which goes from a DMX receiver back to a DMX source.
Generally, the “Secondary” channel is not used so data ows only from sources to receiv-
ers. Hence, most of us are most familiar with DMX-512 as being employer over typical
3-pin “mic cables,” although this does not conform to the dened standard.
DMX is connected using a daisy-chain conguration where the source connects to the input
of the rst device, the output of the rst device connects to the input of the next device,
and so on. The standard allows for up to 32 devices on a single DMX link.
Each receiving device typically has a means for setting the “starting channel number” that
it will respond to. For example, if two 6-channel xtures are used, the rst xture might
be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next
xture would be set to start at channel 7 so it would respond to channels 7 through 12.
The greatest strength of the DMX communications protocol is that it is very simple and
robust. It involves transmitting a reset condition (indicating the start of a new “packet”),
a start code, and up to 512 bytes of data. Data packets are transmitted continuously. As
soon as one packet is nished, another can begin with no delay if desired (usually another
follows within 1 ms). If nothing is changing (i.e. no lamp levels change) the same data will
be sent out over and over again. This is a great feature of DMX -- if for some reason the
data is not interpreted the rst time around, it will be re-sent shortly.
Not all 512 channels need to be output per packet, and in fact, it is very uncommon to nd
all 512 used. The fewer channels are used, the higher the “refresh” rate. It is possible to
get DMX refreshes at around 1000 times per second if only 24 channels are being trans-
mitted. If all 512 channels are being transmitted, the refresh rate is around 44 times per
second.
In summary, since its design and evolution in the 1980’s DMX has become the standard
for lighting control. It is exible, robust, and scalable, and its ability to control everything
from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for
any lighting designer or lighting performer.

Page 14
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
Keeping Your AtmosFEAR® 221b As Good As New
The fogger you have received is a rugged, tough piece of professional
equipment, and as long as you take care of it, it will take care of you. That said,
like anything, you’ll need to take care of it if you want it to operate as designed.
You should absolutely keep the xture clean, especially if you are using it in an
environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled
drinks.
Cleaning Instructions:
1.) You should follow these instructions after approximately 40 hours of use.
2.) Take o the nozzle before heating the fog machine, and clean the nozzle
with straight vinegar.
3.) To clean the tank, pour in and run a solution of 80% distilled water and 20%
white vinegar through the machine. When empty turn o the machine.
4.) Wait for it to cool down, re-install the nozzle, and you can now add more
uid to prepare for its next use.
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But,
like any complex piece of equipment designed and built by humans, once in a
while, something doesn’t go as planned. If you nd yourself with a xture that
isn’t behaving like a good little xture should, you’ll need to obtain a Return
Authorization (RA).
Don’t worry, this is easy. Just go to our website and open a support ticket at
www.blizzardpro.com/support, and we’ll issue you an RA. Then, you’ll need to
send the unit to us using a trackable, pre-paid freight method. We suggest
using USPS Priority or UPS. Make sure you carefully pack the xture for transit,
and whenever possible, use the original box & packing for shipping.
When returning your xture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the xture. Please remember
that any shipping damage which occurs in transit to us is the customer’s
responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the
shipper, and must be reported to the carrier immediately upon
receipt of the items. Claims must be made within seven (7)
days of receipt.

Page 15
AtmosFEAR® 221b Manual - Rev. B (c) 2019 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Length 21.75 inches
Width 11 inches
Height 7.6 inches (13 inches with bracket extended)
Weight 22 lbs. (10 kg)
Power
Operating Voltage AC 110-240VAC, 50/60 Hz
Power Consumption 1,500W, 13.4A, PF: .99
Fuse 20A push-button thermal circuit breaker
Power Cord A power cord with a minimum of at least 14 AWG
must be always used with this machine.
Light Source
LED 6 x 3W RGB 3-in-1 LEDs
Optical
LED Beam Angle 25° Beam Angle
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Operation/Capacity/Consumption
Warm-up Time 5-7min
Tank Capacity 5.0L
Output 20,000 cu.ft/min
Control
Protocol USITT DMX-512
DMX Channels 11/3/1 DMX Channels
Input 3/5-pin XLR Male
Output 3/5-pin XLR Female
Other Operating Modes Standalone, Master/Slave, Auto, Remote Control
Warranty 1-year limited warranty

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
