Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product is supplied with the selective sorting symbol for waste electrical
and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
2
1 Your refrigerator 3
2 Important Safety Warnings4
Intended use .....................................4
For products with a water dispenser;.6
Child safety........................................6
HCA Warning ....................................6
Things to be done for energy saving..7
3 Installation 8
Preparation........................................8
Points to be considered when re-
transporting your refrigerator .............8
Before operating your refrigerator ......8
Electric connection ............................9
Disposing of the packaging ...............9
Disposing of your old refrigerator .......9
Adjusting the legs ............................10
Replacing the interior light bulb .......10
Reversing the doors ........................11
CONTENTS
4 Using your refrigerator 12
Thermostat setting button................12
Defrost ............................................12
5 Maintenance and
cleaning 14
Protection of plastic surfaces ..........14
6 Recommended solutions
for the problems 15

EN
3
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your refrigerator
1. Interior light
2. Thermostat knob
3. Movable shelves
4. Wine rack
5. Defrost water collection channel -
Drain tube
6. Crisper cover
7. Salad crisper
8. Ice bank
9. Icematic and ice storage container
2
3
3
6
8
9
10
11
3
4
10
5
1
7
16
17
14
12
15
13
13
10. Freezer compartment
11. Adjustable front feet
12. Dairy compartment
13. Adjustable door shelves
14. Egg tray
15. Wine rack
16. Fridge compartment
17. Freezer compartment

EN
4
2Important Safety Warnings
Please review the following
information. Failure to observe this
information may cause injuries or
material damage. Otherwise, all
warranty and reliability commitments
will become invalid.
The usage life of the unit you
purchased is 10 years. This is the
period for keeping the spare parts
required for the unit to operate as
described.
Intended use
This product is intended to be used
– indoors and in closed areas such as
homes;
– in closed working environments such
as stores and offices;
– in closed accommodation areas such
as farm houses, hotels, pensions.
• This product should not be used
outdoors.
General safety
• When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put bottled and
canned liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor may get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the parts, where
the refrigerant is circulating, with
drilling or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations and
eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.

EN
5
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Never store spray cans containing
flammable and explosive substances
in the refrigerator.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• This product is not intended to be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of
the product
• Do not operate a damaged
refrigerator. Consult with the service
agent if you have any concerns.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact authorized service when
there is a power cable damage to
avoid danger.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is intended for only
storing food items. It must not be
used for any other purpose.
• Label of technical specifications is
located on the left wall inside the
refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the
refrigerator, do not look at the blue
light with optical tools.
• For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
• This operation manual should be
handed in to the new owner of the
product when it is given to others.
• Avoid causing damage on power
cable when transporting the
refrigerator. Bending cable may cause
fire. Never place heavy objects on
power cable. Do not touch the plug
with wet hands when plugging the
product.
• Do not plug the refrigerator if the wall
outlet is loose.
• Water should not be sprayed directly
on inner or outer parts of the product
for safety purposes.
• Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire
and explosion risk.
• Never place containers filled with
water on top of the refrigerator,
otherwise this may cause electric
shock or fire.
• Do not overload your refrigerator
with excessive amounts of food. If
overloaded, the food items may fall
down and hurt you and damage

EN
6
refrigerator when you open the door.
Never place objects on top of the
refrigerator; otherwise, these objects
may fall down when you open or
close the refrigerator's door.
• As they require a precise
temperature, vaccines, heat-sensitive
medicine and scientific materials
and etc. should not be kept in the
refrigerator.
• If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
• The plug's tip should be regularly
cleaned; otherwise, it may cause fire.
• The plug’s tip should be cleaned
regularly with a dry cloth; otherwise, it
may cause fire.
• Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable
legs on the floor can prevent the
refrigerator to move.
• When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
• When you have to place your product
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with the
product.
HCA Warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type plate which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.

EN
7
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
8
3Installation
Please remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please remember…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?

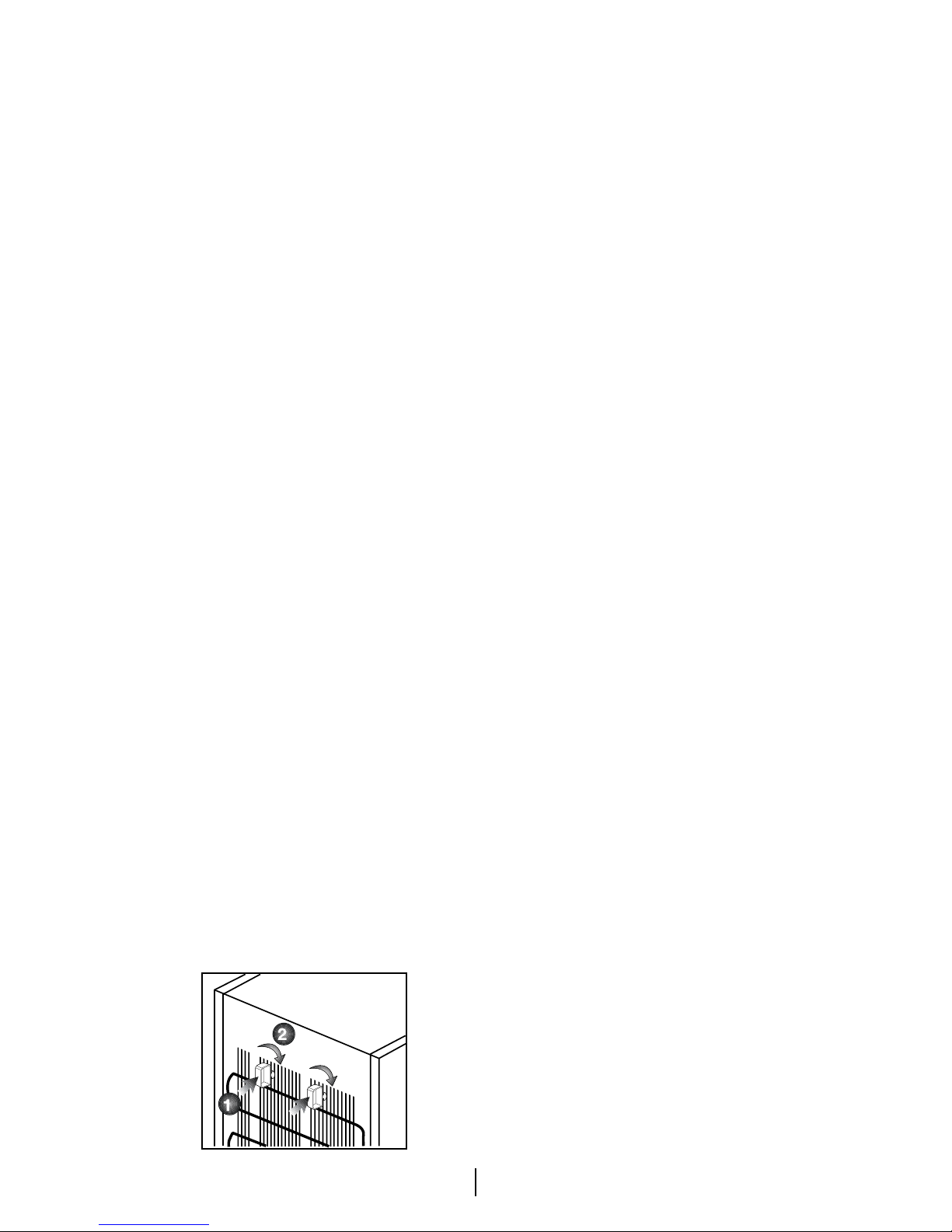

2. Insert the 2 plastic wedges onto
the rear ventilation as illustrated in
the following figure. Plastic wedges
will provide the required distance
between your refrigerator and the wall
in order to allow the air circulation.
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.

EN
9
4. Plug the refrigerator into the wall
outlet. When the fridge door is open
the fridge compartment interior light
will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.

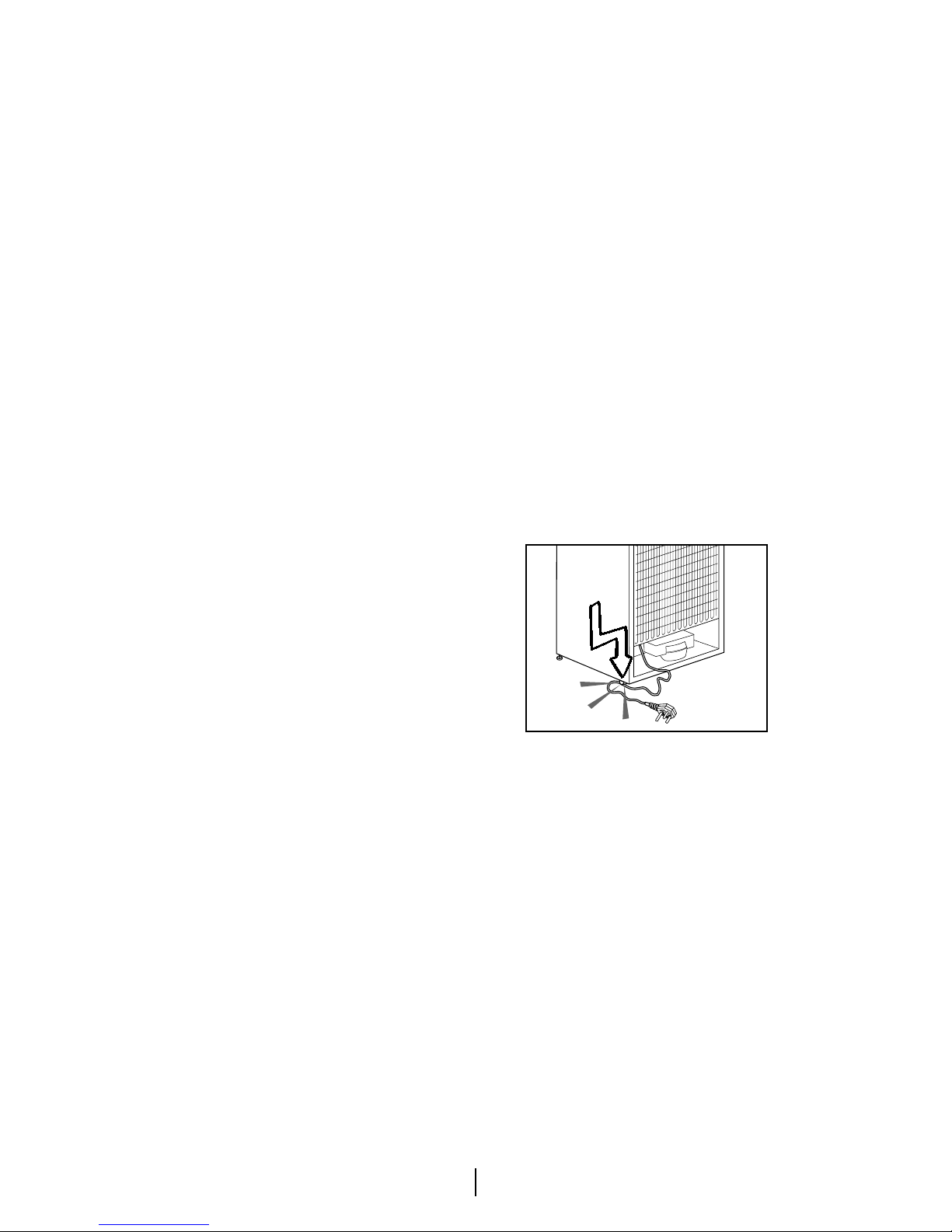

Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
The power cable plug must be easily
accessible after installation.
Voltage and permitted fuse protection
are indicated in the “Specifications”
section.
The specified voltage must be equal to
your mains voltage.
Extension cables and multiway plugs
must not be used for connection.
A damaged power cable must be
replaced by a qualified electrician.
Product must not be operated before it
is repaired! There is danger of electric
shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
You may consult your authorized dealer
or waste collection center of your
municipality about the disposal of
your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
The climate class rate of your appliance is given
on the rating label located inside the appliance.
It specifies the appropriate operating ambient
temperatures as explained below.
Climatic class Ambient temperatures
SN .......................+10 °C to 32 °C
N .........................+16 °C to 32 °C
ST........................+18 °C to 38 °C
T..........................+18 °C to 43 °C
SN-ST .................+10 °C to 38 °C
SN-T....................+10 °C to 43 °C

EN
10
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.
Replacing the interior light
bulb
Should the light fail to work, proceed
as follows.
1- Switch off at the socket outlet and
pull out the mains plug.
You may find it useful to remove
shelves for easy access.
2- Use a flat tipped screwdriver to
remove the light diffuser cover.
3- First check that the bulb hasn’t
worked loose by ensuring it is screwed
securely in the holder. Replace the
plug and switch on.
If the bulb works, replace the light
cover by inserting the rear lug and
pushing up to locate the front two
lugs.
4- If the light still fails to work, switch
off at the socket outlet and pull out
the mains plug. Replace the bulb with
a new 15 watt (max) screw cap (SES)
bulb.
5- Carefully dispose of the burnt-out
light bulb immediately.
Replacement light bulb can easily be
obtained from a good local electrical or
DIY store.

EN
11

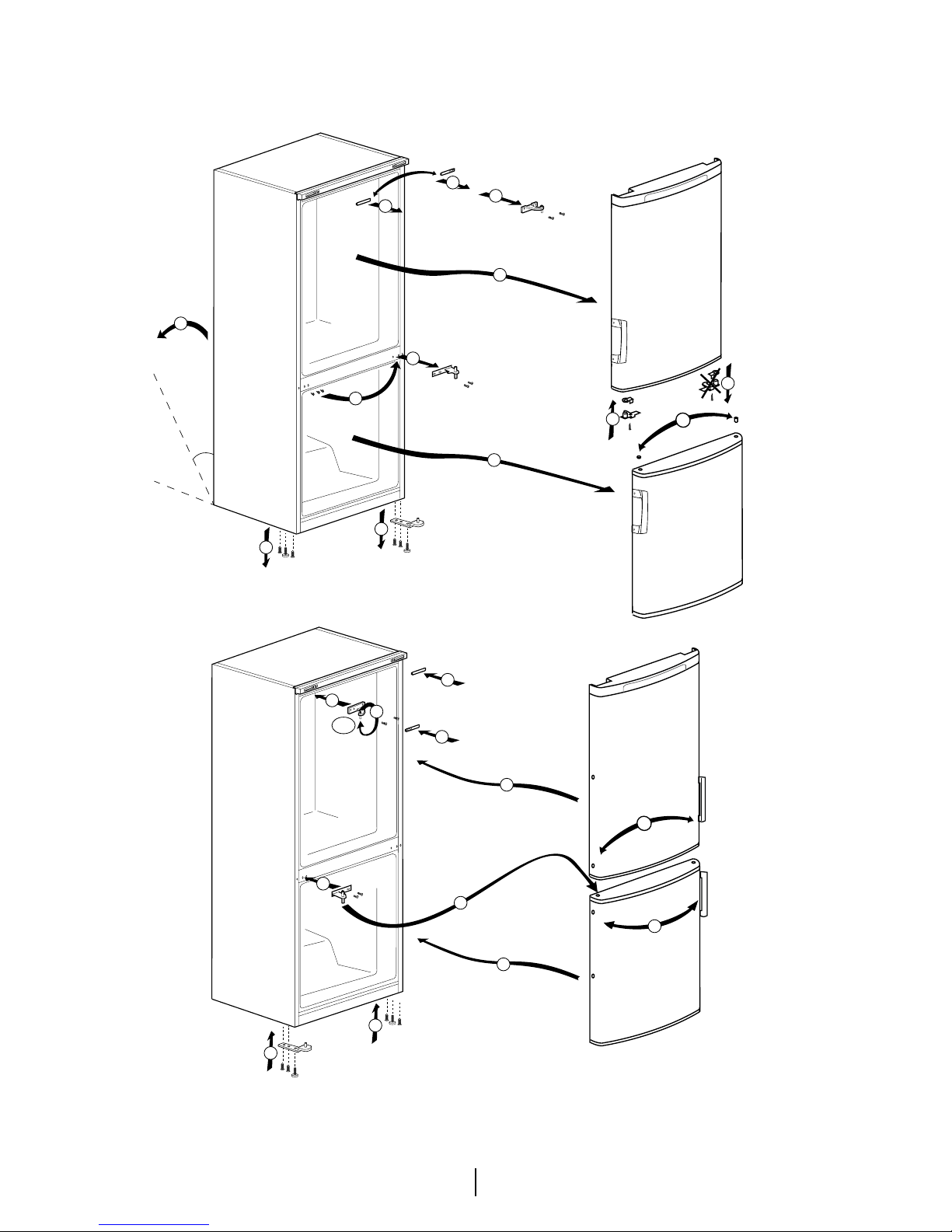

Reversing the doors
Proceed in numerical order
19
21
1
6
13
9
14
10
11
22
12
18
2
22
45°
7
8
4
5
4
180°
15
16
17
17
20
3

EN
12
4Using your refrigerator
Thermostat setting button
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonal temperatures,
• Frequent opening of the door and
leaving the door open for long
periods,
• Food put into the refrigerator
without cooling down to the room
temperature,
• The location of the refrigerator in the
room (e.g. exposing to sunlight).
• You may adjust the varying interior
temperature due to such reasons
by using the thermostat. Numbers
around the thermostat button
indicates the cooling degrees.
• If the ambient temperature is higher
than 32°C, turn the thermostat button
to maximum position.
• If the ambient temperature is lower
than 25°C, turn the thermostat button
to minimum position.
Defrost
A) Fridge compartment
Fridge compartment performs full-
automatic defrosting. Water drops and
a frosting up to 7-8 mm can occur
on the inner rear wall of the fridge
compartment while your refrigerator
cools down. Such formation is normal
as a result of the cooling system.
The frost formation is defrosted by
performing automatic defrosting
with certain intervals thanks to the
automatic defrosting system of the rear
wall. User is not required to scrape the
frost or remove the water drops.
Water resulting from the defrosting
passes from the water collection
groove and flows into the evaporator
through the drain pipe and evaporates
here by itself.

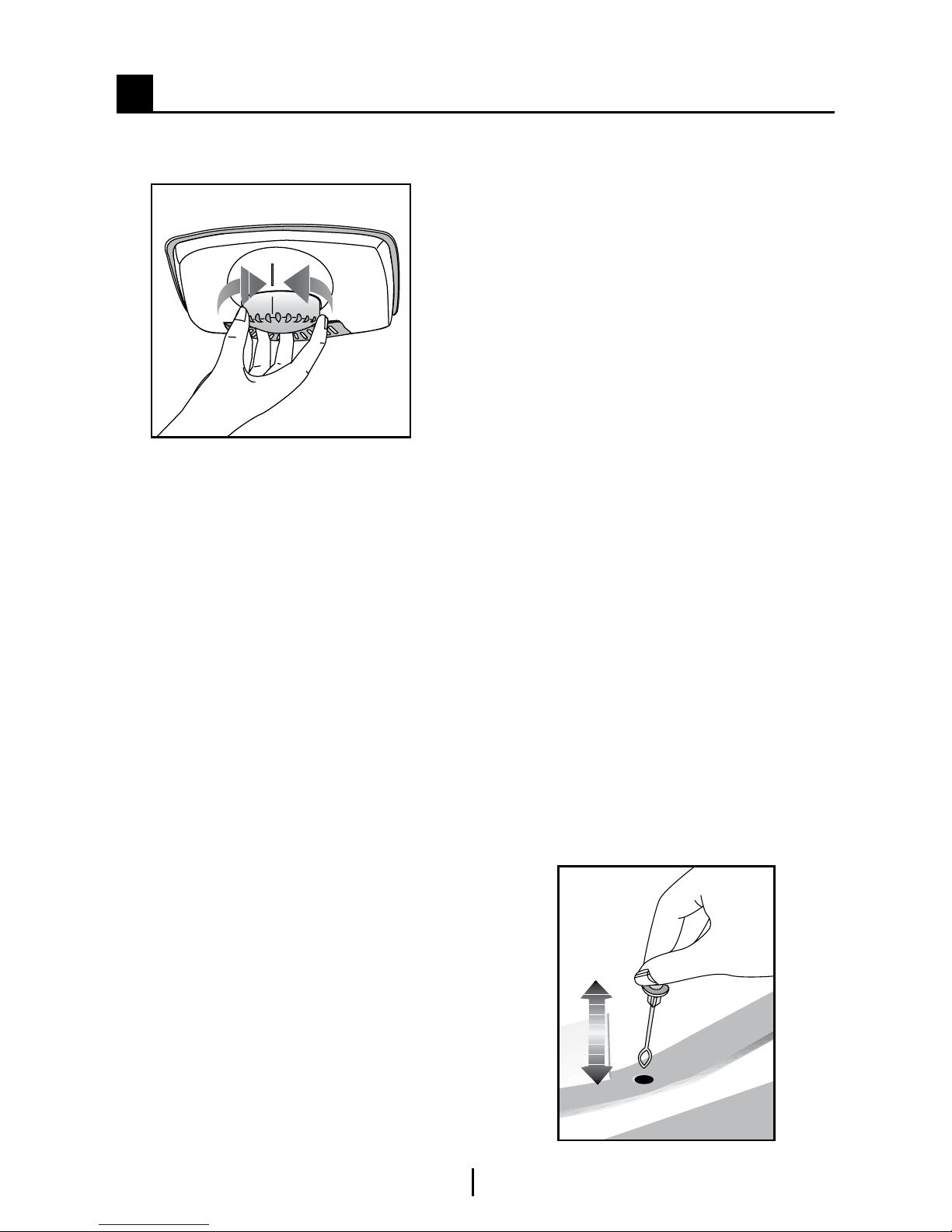

Check regularly to see if the drain pipe
is clogged or not and clear it with the
stick in the hole when necessary.
Deep freezer compartment does not
perform automatic defrosting in order
to prevent decaying of the frozen food.

EN
13
B) Freezer compartment
Defrosting is very straightforward and
without mess, thanks to a special
defrost collection basin.
Defrost twice a year or when a
frost layer of around 7 (1/4”) mm
has formed. To start the defrosting
procedure, switch off the appliance
at the socket outlet and pull out the
mains plug.
All food should be wrapped in several
layers of newspaper and stored in a
cool place (e.g. fridge or larder).
Containers of warm water may be
placed carefully in the freezer to speed
up the defrosting.
Do not use pointed or sharp-edged
objects, such as knives or forks to
remove the frost.
Never use hair dryers, electrical
heaters or other such electrical
appliances for defrosting.
Sponge out the defrost water
collected in the bottom of the freezer
compartment. After defrosting, dry the
interior thoroughly.
Insert the plug into the wall socket and
switch on the electricity supply.

EN
14
5Maintenance and cleaning
A Never use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
C Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
C Use lukewarm water to clean the
cabinet of your refrigerator and wipe it
dry.
C Use a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
CTo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the
plastic surfaces of your refrigerator. In
case of spilling or smearing oil on the
plastic surfaces, clean and rinse the
relevant part of the surface at once
with warm water.

EN
15
6Recommended solutions for the problems
Please review this list before calling the service. It might save you time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The refrigerator does not operate
• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse
blown out? Check the fuse.
Condensation on the side wall of the fridge compartment. (MULTI ZONE, COOL
CONTROL ve FLEXI ZONE)
• Very cold ambient conditions. Frequent opening and closing of the door. Highly
humid ambient conditions. Storage of food containing liquid in open containers.
Leaving the door ajar.
• Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
• Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures or
plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator
has not been balanced yet.
• Your refrigerator will start running approximately after 6 minutes. Please call the
service if your refrigerator does not startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting
refrigerator. Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that he plug is inserted
tightly to the wall socket.
• Are the temperature adjustments correctly made? There is a power failure. Call
your electricity supplier.

EN
16
The fridge is running frequently or for a long time.
• Your new refrigerator may be wider than the previous one. This is quite normal.
Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high.This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded
with food. Cooling down of the refrigerator completely may last for a couple of
hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot
food causes longer running of the refrigerator until they reach the safe storage
temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm
air that has entered into the refrigerator causes the refrigerator to run for longer
periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors
are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly
seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to
run for a longer period of time in order to maintain the current temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge
temperature to a warmer degree and check.
Food kept in the fridge compartment drawers are freezing.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge
temperature to a warmer degree and check.

EN
17
Temperature in the fridge or freezer is very high.
• The fridge temperature is adjusted to a very high degree. Fridge adjustment has an
effect on the temperature of the freezer. Change the temperature of the fridge or
freezer until the fridge or freezer temperature reaches to a sufficient level.
• The door might be left ajar. Close the door completely.
• Large amounts of hot food might have been put in the refrigerator recently. Wait
until the fridge or freezer reaches the desired temperature.
• Refrigerator might have been plugged in recently. Cooling down of the refrigerator
completely takes time because of the size.
Noise similar to the sound of seconds heard from an analog clock is coming from
the refrigerator.
• This noise is coming from the solenoid valve of the refrigerator. Solenoid valve
functions for the purpose of ensuring coolant passage through the compartment
which can be adjusted to cooling or freezing temperatures, and performing cooling
functions. This is normal and is not fault cause.
The operation noise increases when the refrigerator is running.
• The operating performance characteristics o f the refrigerator may change
according to the changes in the ambient temperature. It is normal and not a fault.
Vibrations or noise.
• The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make
sure that the floor is level, strong and capable to carry the refrigerator.
• The noise may be caused by the items put onto the refrigerator. Such items should
be removed from the top of the refrigerator.
There are noises like liquid spilling or spraying.
• Liquid and gas flows happen in accordance with the operating principles of your
refrigerator. It is normal and not a fault.
There is a noise like wind blowing.
• Air activators (fans) are used in order to allow the refrigerator to cool efficiently. It is
normal and not a fault.
Condensation on the inner walls of refrigerator.
• Hot and humid weather increases icing and condensation. It is normal and not a
fault.
• The doors are ajar. Make sure that the doors are closed completely.
• Doors might have been opened very frequently or they might have been left open
for along time. Open the door less frequently.
Humidity occurs on the outside of the refrigerator or between the doors.
• The weather may be humid. This is quite normal in humid weather. When the
humidity is less, condensation will disappear.
