Blossom Jena Series User manual

Specifcation & Installation Guide
Features
Sink Top Options
01/06
www.blossomus.com
Package Dimension
24”26-3/8'' X 20-15/32'' X 24-1/64''
30” 32-43/64'' X 20-15/32'' X 24-1/64''
36” 38-37/64'' X 20- 15/32'' X 24-1/64''
Gross Weight
24” 48.5LBS
30”52.91LBS
36” 59.52LBS
Artificial stone basin
A10 2418 25
A10 3018 25
A10 3618 25
A10 4818 25D
Vanities
24” V8018 24 23/24
30” V8018 30 23/24
36” V8018 36 23/24
48” V8018 48 23/24 (two 24”)
Ceramic basin
C04 2418
C04 3018
C04 3618
C04 4818D
luxury made simple
JENA Series Vanities
JENA
Furniture grade water proof polyvinyl
Chloride board, protected with several
Coats of polyurethane.
Night lights & drawer lights with touch
switches on both side panels.
Luxury look Calacatta White or Light Grey
matte glass drawer fronts.
Two fully adjustabledrawer with
Full extension soft-close hardware.
Colors / Finishes
Box-Matte White
Drawer Fronts - Calacatta White or Light
Grey matte galsses.

03/06
www.blossomus.com
Anchors
Lag Bolt
Bolt
(not includes)
Leveling
Bracket
The suggestion install height 32-3/4''
(831mm) to 33-1/2” (851mm)
Wood Reinforcement
Board minimum size 8”
The typical dimensions shown will result in vanity cabinet height of 32-3/4” (831mm). Depending on the sinks selected, the
total height will vary from 33-1/2” (850mm) 35-1/4” (895mm). If an alternate height is desired, adjust the rough-in and backing
material heights using the dimensions provided.
Specifcation & Installation Guide
luxury made simple
JENA Series Vanities
JENA
Wall Preparation
Width of the Vanity or longer

04/06
www.blossomus.com

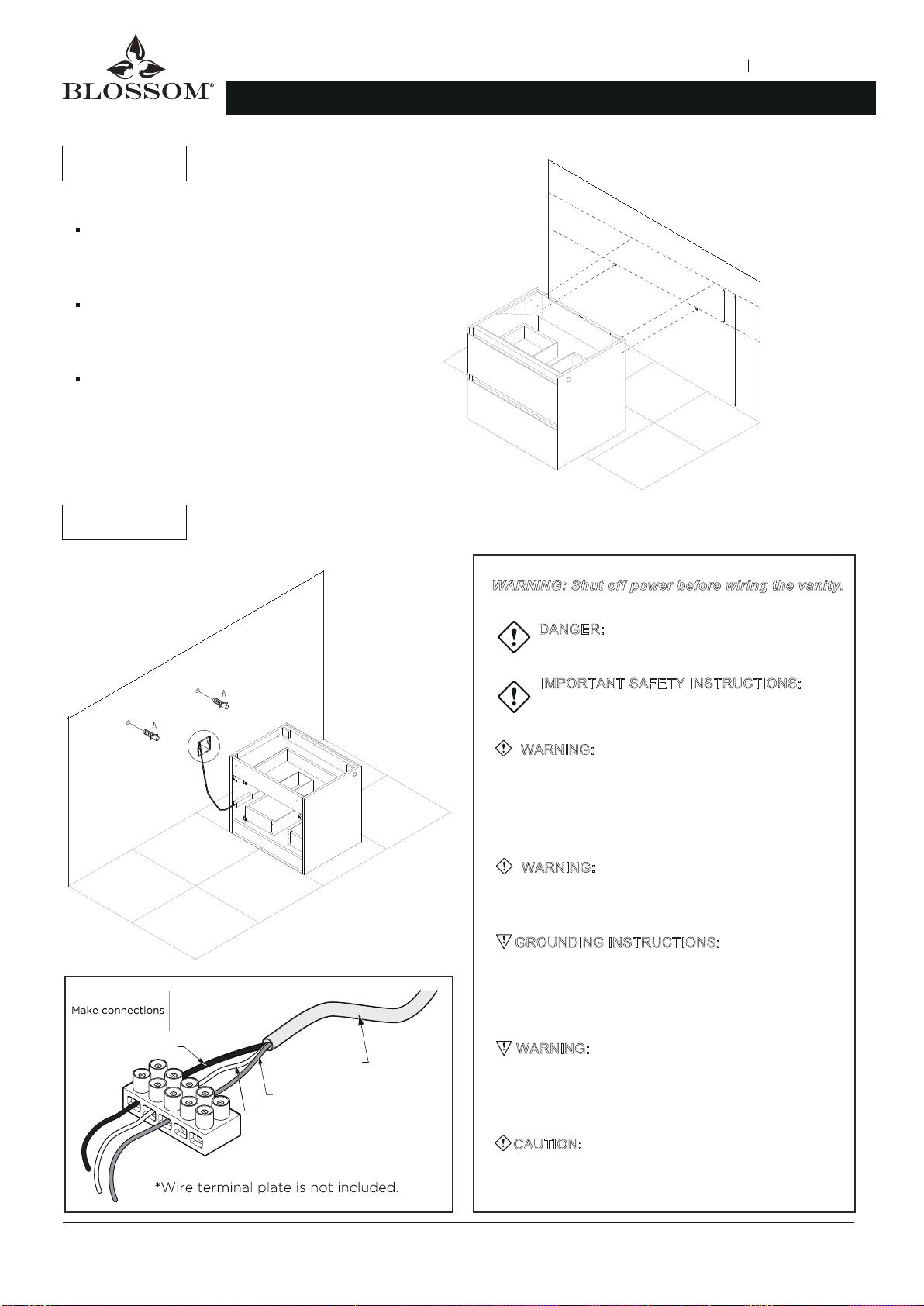

STEP 1. Cabinet positioning and installation
The suggestion install
height 32-3/4” (831mm)
6-1/3” (160mm)
The suggestion height of vanity installation is 32-3/4”
(831mm) - not including the basin.
The height of Leveling Bracket Installation
is 26-1/2” (671mm).
Leveling bracket installation & Wiring
STEP 2.
Specifcation & Installation Guide
luxury made simple
JENA Series Vanities
JENA
Please reserve the power around 21-5/8(550mm)
off ground.
WARNING: Shut off power before wiring the vanity.
DANGER:
WARNING:
GROUNDING INSTRUCTIONS:
WARNING:
CAUTION: Require 120 VAC 20 Amp GFI protected circuit.
* PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT SAFETY INSTRUCTIONS:
Live / Black
Field Wire
Ground / Green
Neutral / White
Neutral to white
Live to black
Ground to green.
Refer to the figure below
When using an electrical furnishing, basic precautions
should always be followed, including the following:
To reduce the risk of burns, fire, electric shock or injury to persons,
Use this furnishing only for its intended use as described in these
instructions. Do not use attachments not recommended by the
manufacturer. Never drop or insert any object into any opening. Do
not use it for outdoors.
WARNING:
Risk of electric shock. Connect this furnishing to a properly grounded
circuit only. See Grounding instructions.
This product must be connected to a grounded metal, permanent
wiring system, or an equipment-grounding conductor must be run
with the circuit conductors and connected to the equipment-ground-
ing terminal.
READ AND FOLLOW ALL INSTRUCTIONS
BEFORE USING THIS VANITY.
An Electrical option cabinet must be wired to a 20
Amp GFI (Ground Fault Interrupter) Protected circuit when used in
bathrooms and all other locations required by the National Electric
Code.

05/06
www.blossomus.com
Specifcation & Installation Guide
luxury made simple
JENA Series Vanities
JENA
Fixed Cabinet
Install Lag Bolt after determined the height, left
& right position then fix the Vanity.
STEP 4.
STEP 3. Hang the cabinet on the leveling bracket
and adjust it horizontally
Place vanity on leveling bracket, Leveling brackets are only to
level the vanity. They are not designed for permanent support.
Vanity needs to be secured into the wood backing material.
Install sink top with Silicone
STEP 5.

48”
06/06
www.blossomus.com
Finish
STEP 6.
Specifcation & Installation Guide
luxury made simple
JENA Series Vanities
JENA
If you need to install a 48" double basin
STEP1. Unplug the power cord. STEP2. Push out the switch button from inside with a screw driver gently
STEP3. Link the wiring of the both vanities
To make combination, take off the right light switch( Left vanity) and the left switch( right vanity) as shows below.
WARNING: Shut off power before wiring the vanity.
* Please make sure the color of both wiring is matched.
Intersect
Screw
Please link the wiring together after
combined both vanities and follow up by
Step 2.
Other size 48” size

For clarification, please contact us at (718)-366-0088 or [email protected]
All dimensions are approximate and subject to standard tolerance. Specifications subject to change without
prior notice.
luxury made simple
Blossom Kitchen & Bath Supply Corporation
(718)-366-0088 | [email protected] | www.BlossomUS.com
