Our HEX11WP-TX-US HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that
extends HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WP-TX-US
has been designed to work with all Blustream HDBaseT™ receiver and matrix
solutions, be installed in US Decora style backboxes and can be powered locally,
or from compatible Blustream HDBaseT™ products.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products*
• Magnetic faceplate surround and US Decora style backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device

HEX11WP-TX-US QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
02

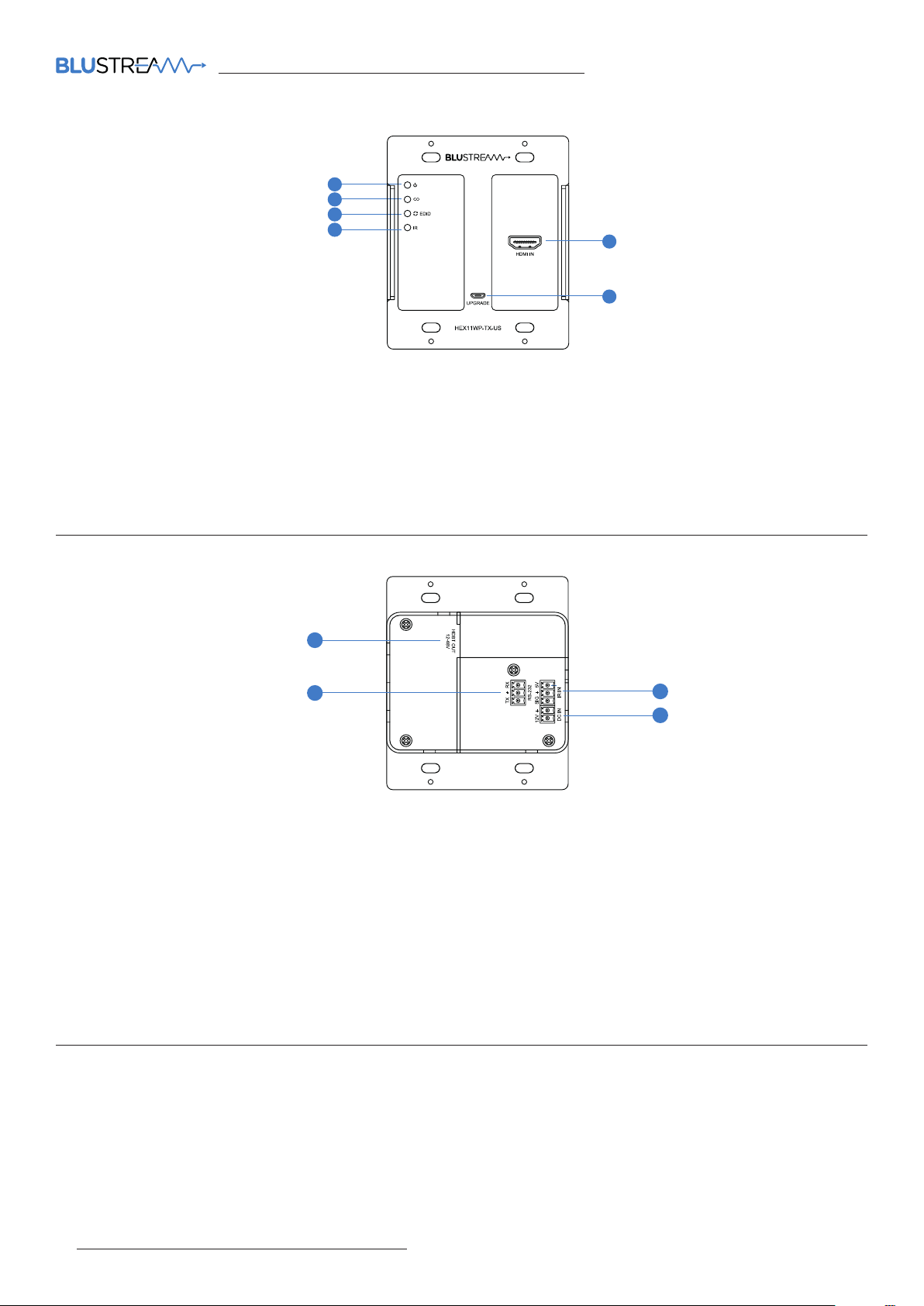

Front Panel Description
1Power Status Indicator - Illuminates when powered
2HDBaseT™ Link Status Indicator - Illuminates when the transmitter is connected to a HDBaseT™ receiver / matrix
product successfully
3EDID Selection Button – Cycle through 2 EDID modes - see EDID Management below
4IR Receiver - Built-in IR sensor for IR pass-through
5HDMI Input - Type A HDMI port to connect HDMI source
6Upgrade Port - Micro USB connection used for firmware upgrade. (Note: requires supplied USB serial cable)
7HDBaseT™ Output - RJ45 HDBaseT™ port to connect to the HDBaseT™ input port of the compatible Blustream
HDBaseT ™ receiver / matrix device
8RS-232 - 3-pin Phoenix connector for RS-232 pass-through to / from compatible Blustream HDBaseT™ device
9IR Receiver Input - 3-pin Phoenix connector to connect to Blustream IR receiver (not supplied)
q12V DC Input - 2-pin Phoenix connector to connect to Blustream 12V power supply (supplied)
Product supports PoC to Blustream HDBaseT™ Receiver products. PoC output is not live until HDMI source is
connected to the wall plate. This feature can be used for 12V trigger on Blustream SW41HDBT Switcher
Note: When powering the HEX11WP-TX-US locally and using PoC to power a compatible Blustream receiver device, power
is only enabled when an active HDMI source device is connected to the HEX11WP-TX-US. This feature is used to trigger
auto switching on the Blustream SW41HDBT HDBaseT™ Switcher.
2
Rear Panel Description
The HEX11WP-TX-US features automatic EDID management to ensure signals being transmitted fall within the 10.2Gbps
bandwidth requirement of HDBaseT™. The HEX11WP-TX-US will evaluate the EDID of the display device and modify its
EDID value to ensure compatibility. The default maximum resolution supported is 4K @60Hz 4:2:0. By pressing the EDID
selection button you can limit the maximum EDID to 4K @30Hz 4:4:4.
1
3
EDID Management
4
6
5
8
7
9
10

HEX11WP-TX-US QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail] 03
RS-232 HDMI Infrared Cat 6 DC Power
HEX11WP-TX-US Example Schematic
HDMI Source
Control Processor
Compatible Blustream HDBaseT™ Matrix or Receiver product. *Technical performance is subject to the features supported on the connected HDBaseT™ device.
Optional PSU when not powered via HDBaseT™
HDBaseT™ RX
Display

HEX11WP-TX-US QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
The HEX11WP-TX-US features 2 x options for receiving of IR signals. The HEX11PW-TX-US has an in-built IR receiver on
the front panel that will receive IR commands from line of sight IR remote controls, and a 3-pin Phoenix connection on
the rear panel. You may need to cut and terminate the Blustream IR receiver (not supplied) into the Phoenix connector.
The pin out configuration for the Blustream IR receiver is as follows:
• White - 5V
• Red - Signal
• Black - Ground
04
Package Contents
Specifications
HEX11WP-TX-US
• 1 x HEX11WP-TX-US
• 1 x 12V/1A DC Power Supply
• 1 x Magnetic Faceplate
• 1 x Quick Reference Guide
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmentally safe recycling.
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
HEX11WP-TX-US
Video Input Connectors: 1 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDBaseT™ RJ45 connector
RS-232 Serial Port: 1 x 3-pin Phoenix connector
IR Input Port: 1 x 3-pin Phoenix connector
Local Power Input: 1 x 2-pin Phoenix connector
Module Dimensions (W x H x D): 89mm x 105mm x 44mm (w/o faceplate)
Faceplate Dimensions (W x H x D): 115mm x 115mm x 6mm
Cut Out Dimensions (W x H x D): 89mm x 70mm x 37mm
Mounting Hole Spacing: US 97mm CTC
Backbox Requirements: US double gang junction box
Shipping Weight: 1.0Kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 12V/1A DC
